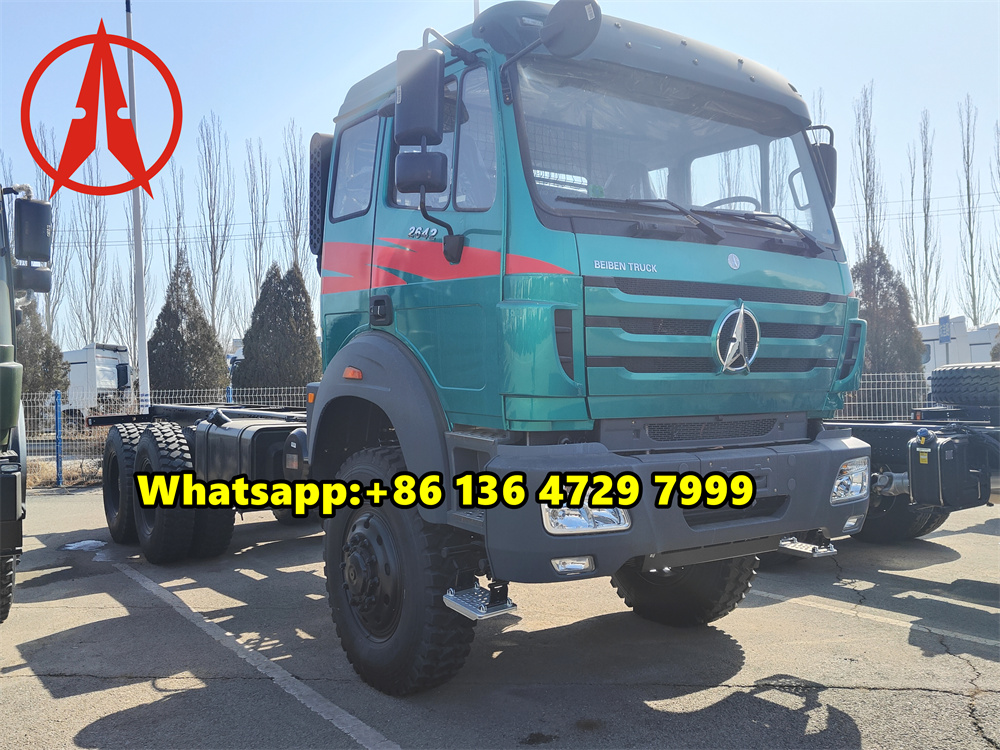

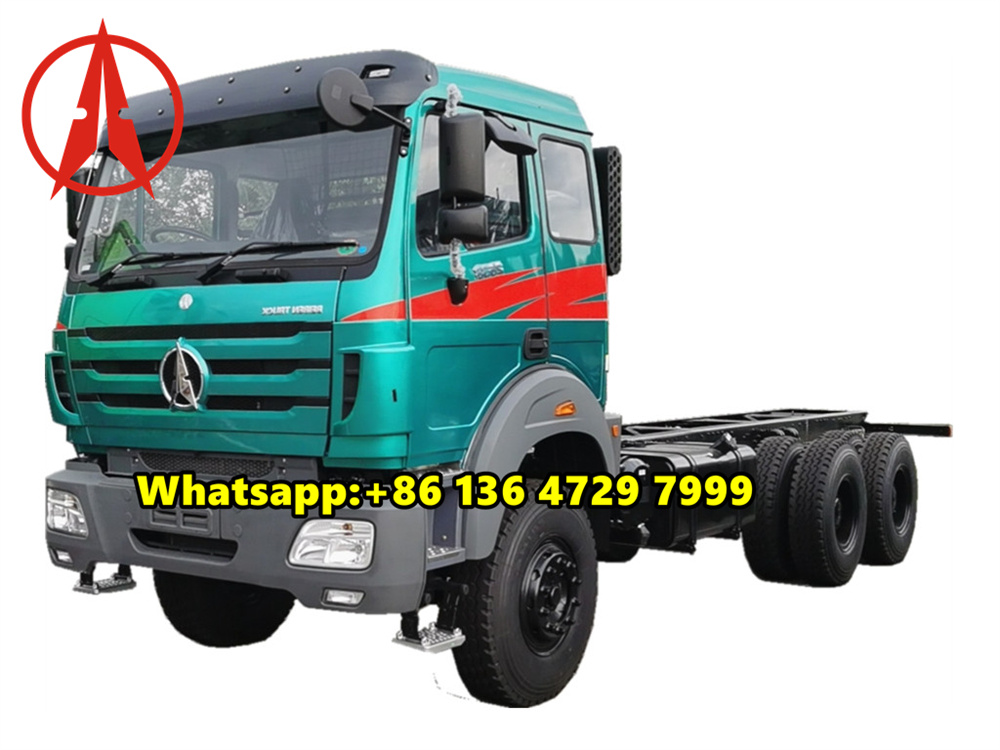

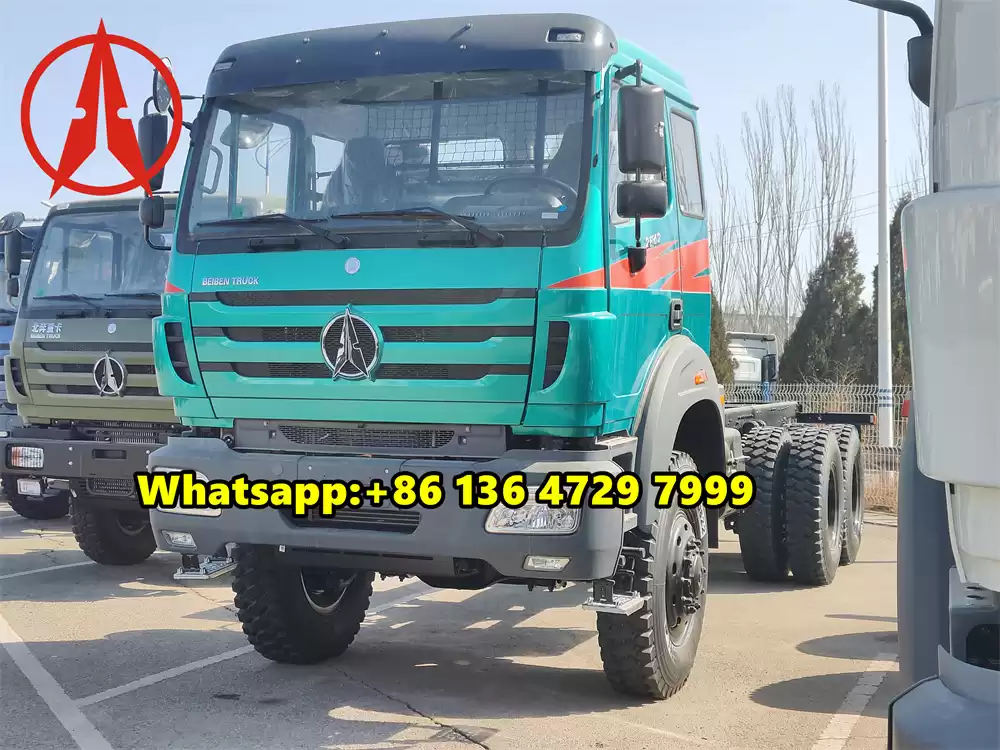

Beiben 2642 all wheel drive cargo truck is a powerful and reliable vehicle equipped with top-of-the-line components. The heart of this truck is the WP12.420 diesel engine, which provides the necessary power and torque to handle heavy loads and rough terrain. This engine is known for its efficiency and durability, ensuring that the truck can perform well even in the most challenging conditions.
The ZF8098 steering system of the Beiben 2642 offers precise and responsive control, allowing the driver to navigate through tight spaces and tricky situations with ease. This advanced steering system enhances the overall driving experience, making the truck more maneuverable and easier to handle.

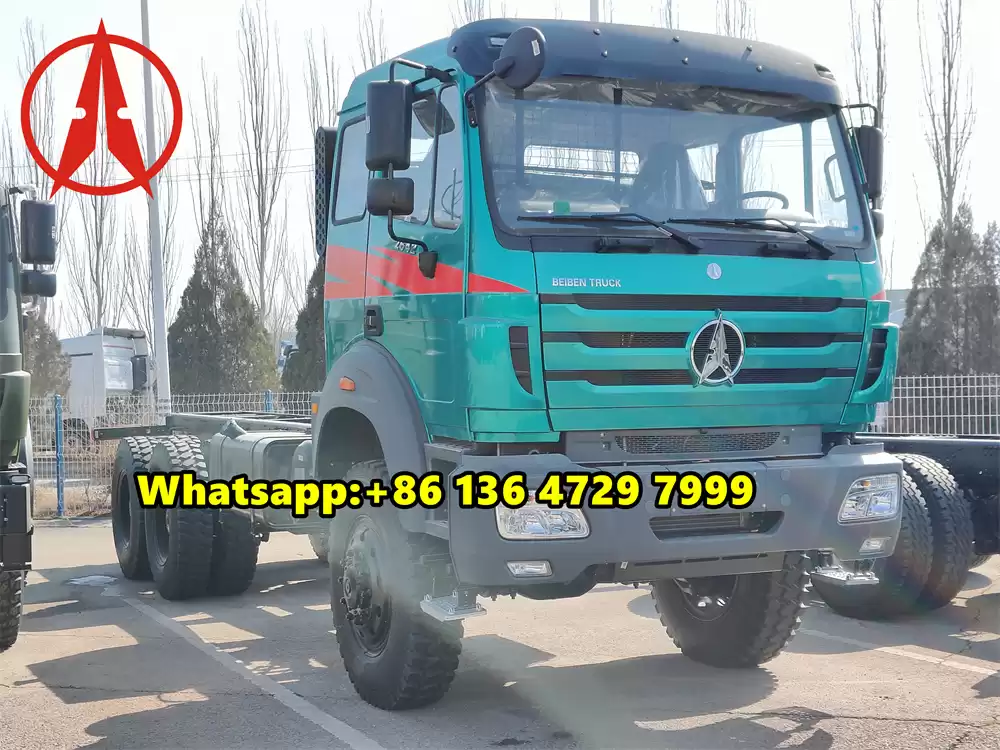

The Benz technology NG80B cabin of the Beiben 2642 provides a comfortable and ergonomic environment for the driver, with plenty of space and amenities to ensure a pleasant journey. The cabin is equipped with modern features and controls, designed to enhance safety, comfort, and convenience for the driver.
The truck is also equipped with a 7 Ton benz technology front axle and a benz 13 T rear axle, which provide excellent stability and load-bearing capacity. These axles are designed to withstand heavy loads and harsh conditions, ensuring that the truck can carry large amounts of cargo safely and efficiently.
|
Required Technical Specification
|
|
Basic parameter
|
Mode
|
2642PZ/6×6
|
|
Length×width×height(mm)
|
9526×2500×3385
|
|
Wheel-base(mm)
|
4450+1450
|
|
Curb weight(kg)
|
11400
|
|
Engine parameter
|
Model (six cylinder in line)
|
WP12.420E32
|
|
Max. Power (HP/rpm)
|
420
|
|
Max. Torque(Nm/rpm)
|
1600/1400～1600
|
|
Displacement(lit)
|
11.726 L
|
|

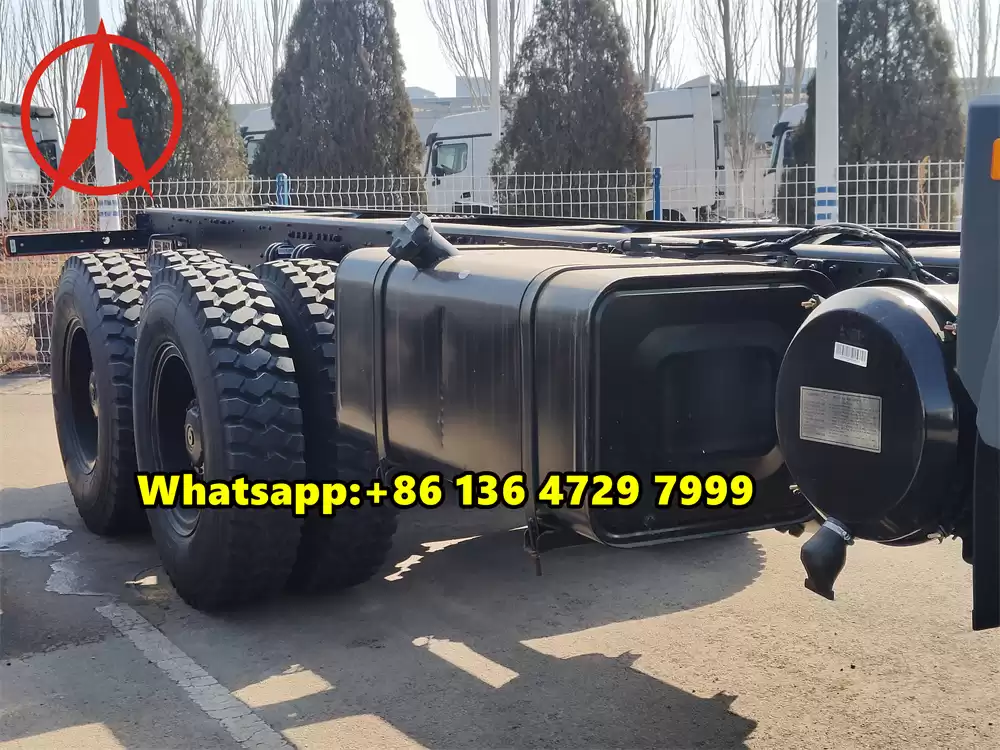

Fuel tank capacity
|
400L Iron oil tanker 400L
|
|
Transmission system
|
Clutch
|
430 Single disc, dry type, friction clutch；
|
|
Gearbox
|
Mechanical, 9JS150A
|
|
Steering system
|
Steering gear
|
8098 Circulating ball steering gear, hydraulic booster
|
|
Brake system
|
Service brake
|
Double circulation air brake system equipped；
|
|
Parking brake
|
Energy storage spring brake
|
|
Assisted brake
|
Engine exhaust brake
|
|

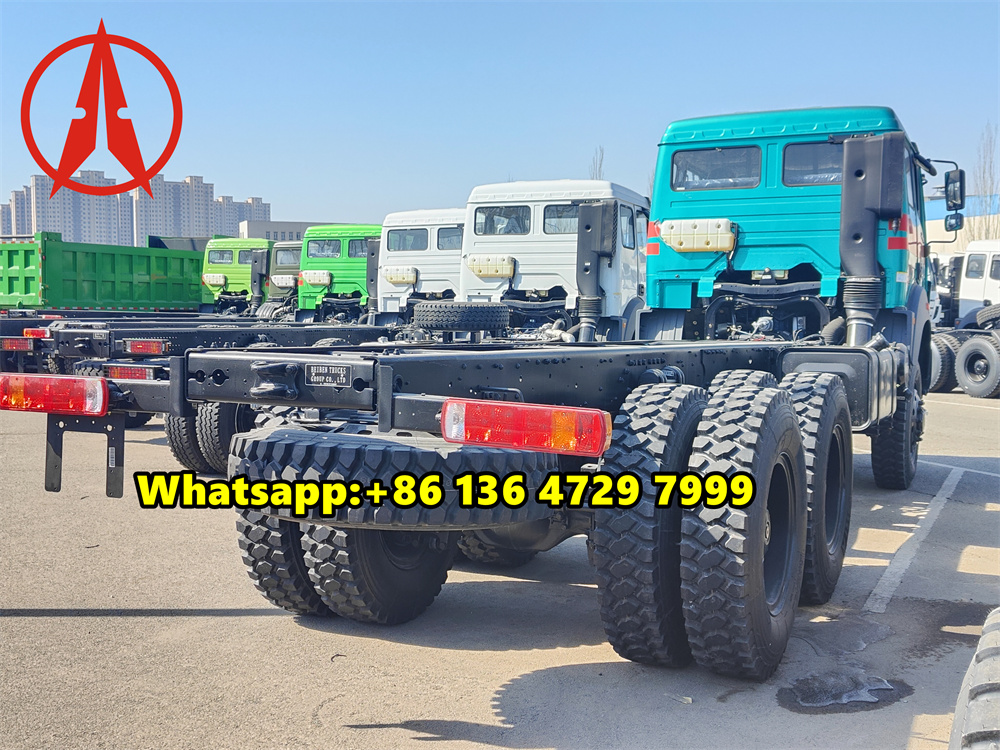

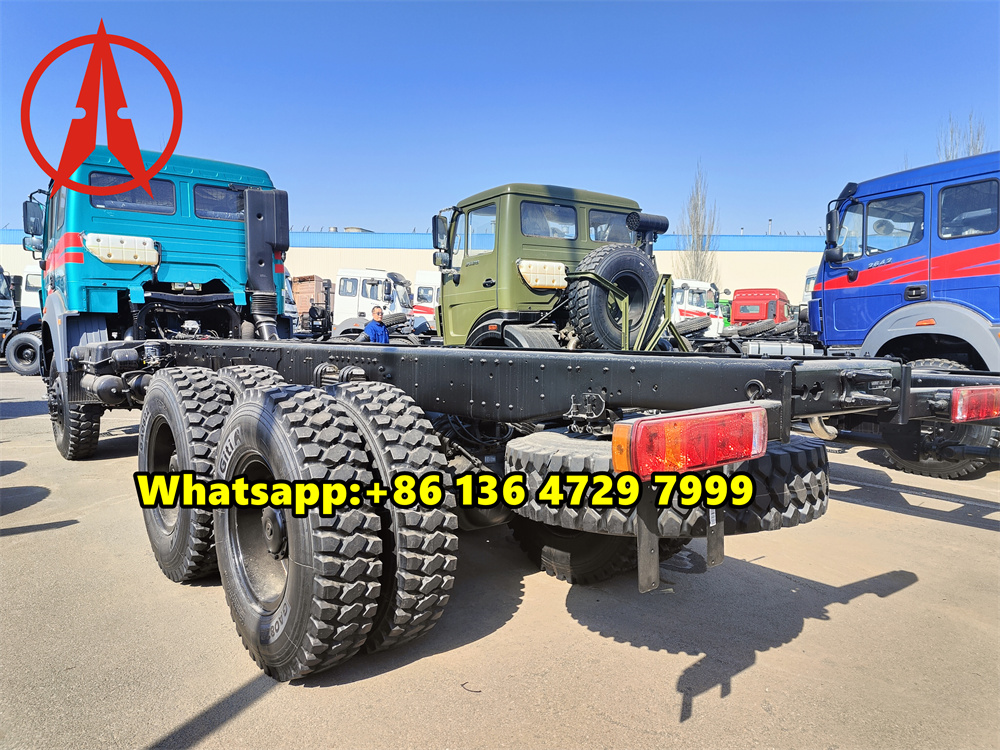

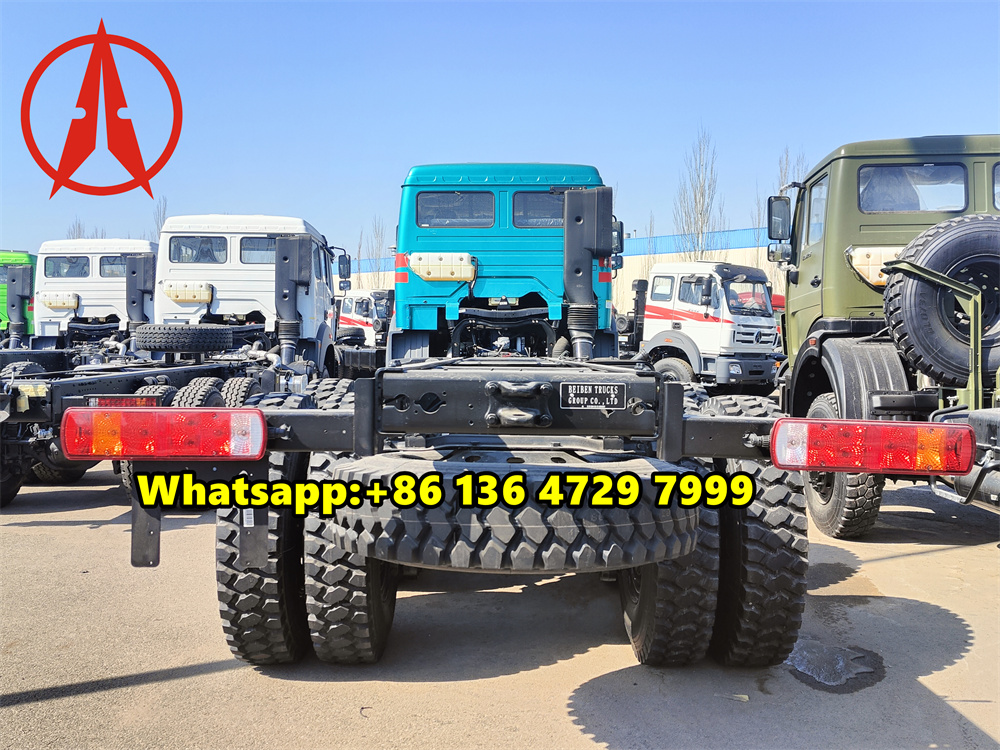

Chassis parameter
|
Frame
|
Variable width and section 317×70×8.5+7+8.5 mm；
|
|
Front axle
|
7.5 T, no-driving steering axle, drum brake；
|
|

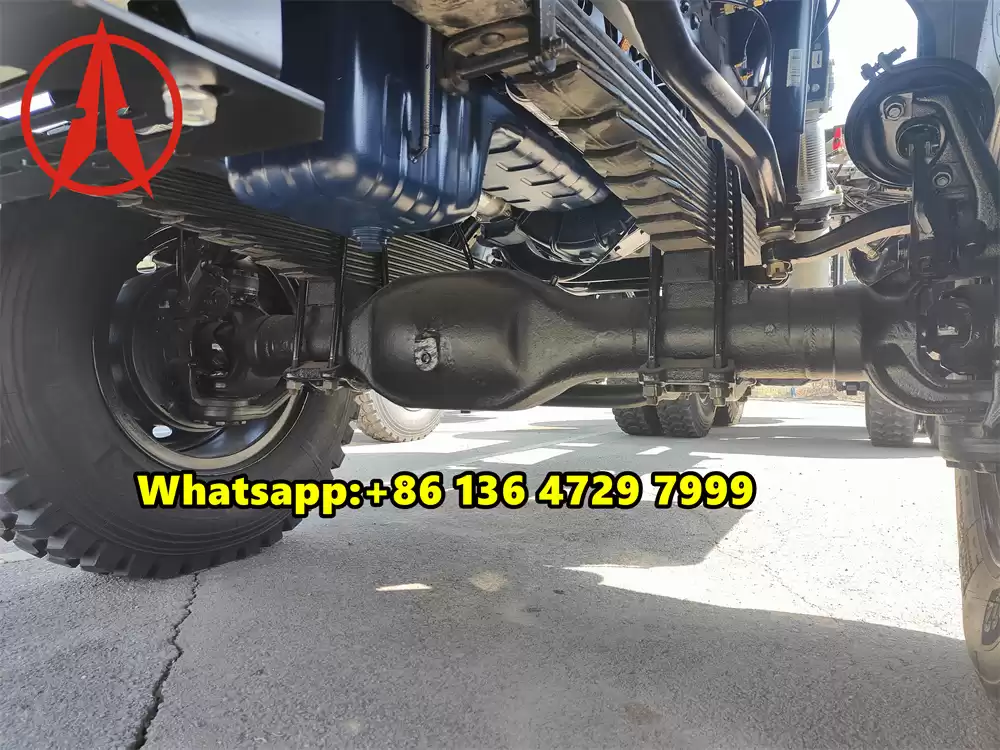

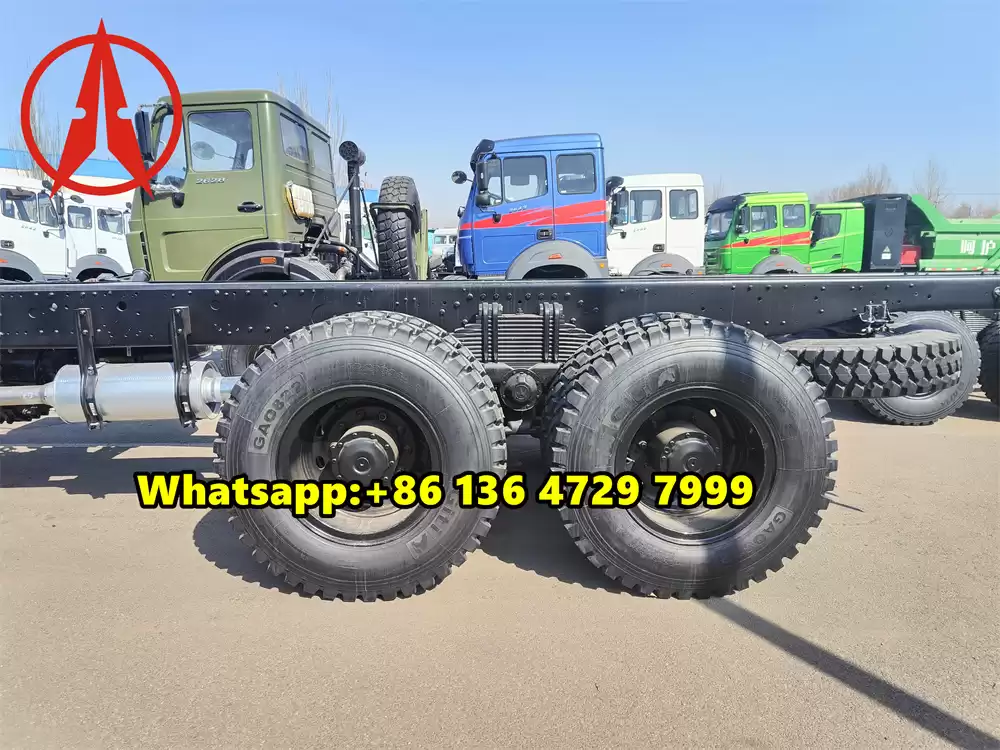

Middle & Rear axle
|
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263；
|
|
Front and rear suspension
|
Front/rear: Leaf spring, 13/13 pieces；
|
|

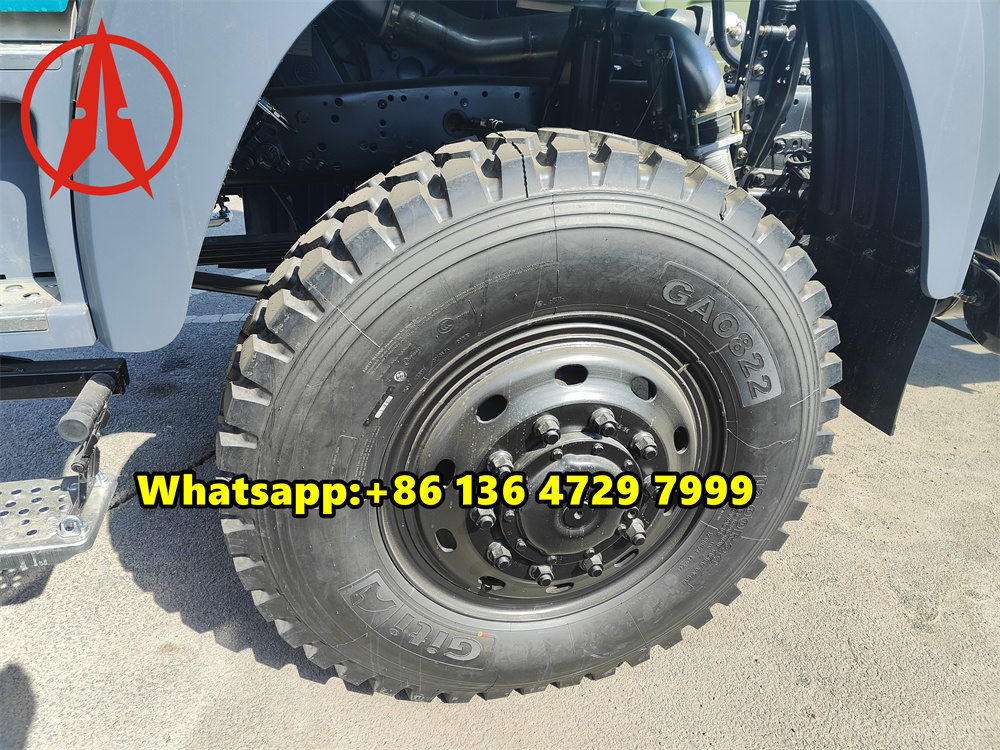

Tire
|
12.00R24
|
|

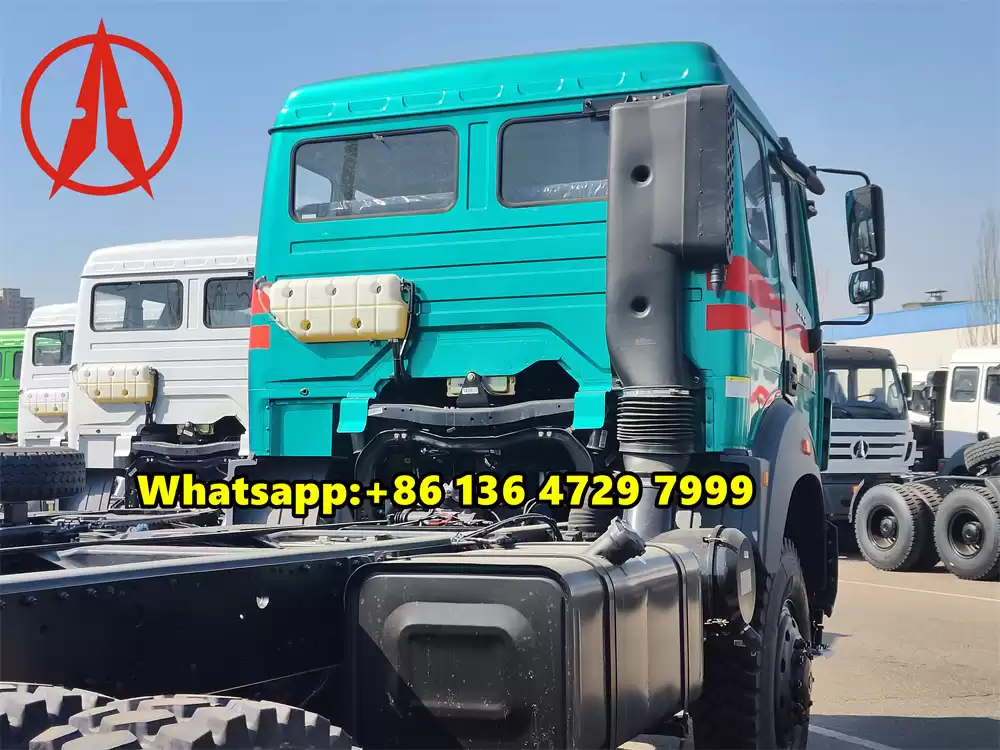

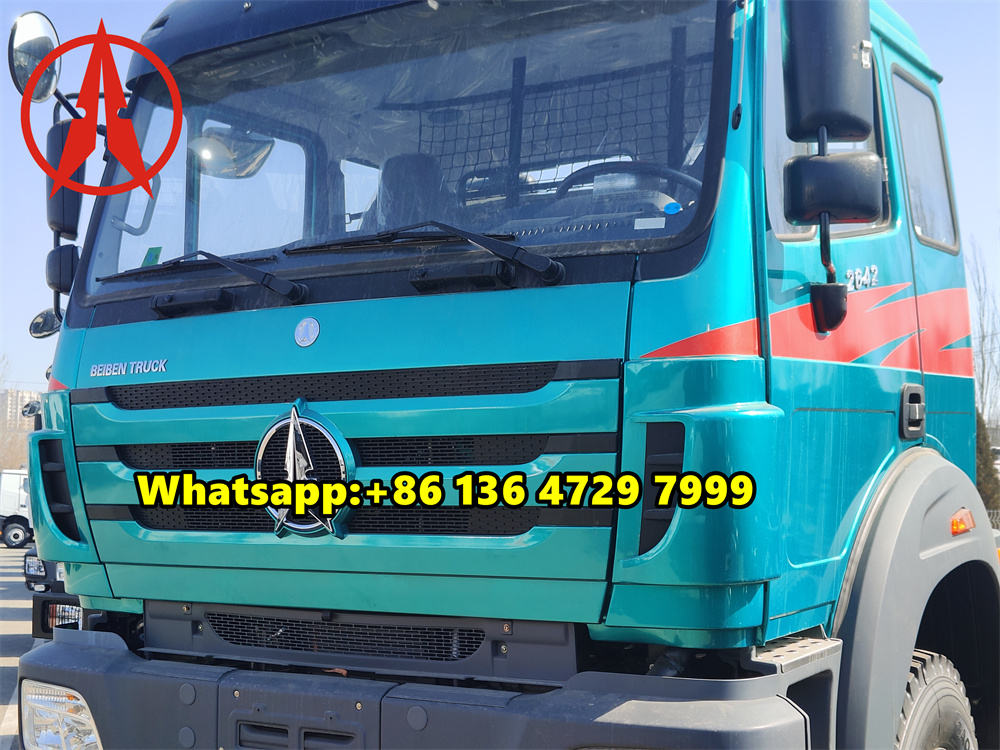

Cab
|
NG80B Long Cabin/ Flat roof/Left drive
Exterior trimming:
Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).
|
|

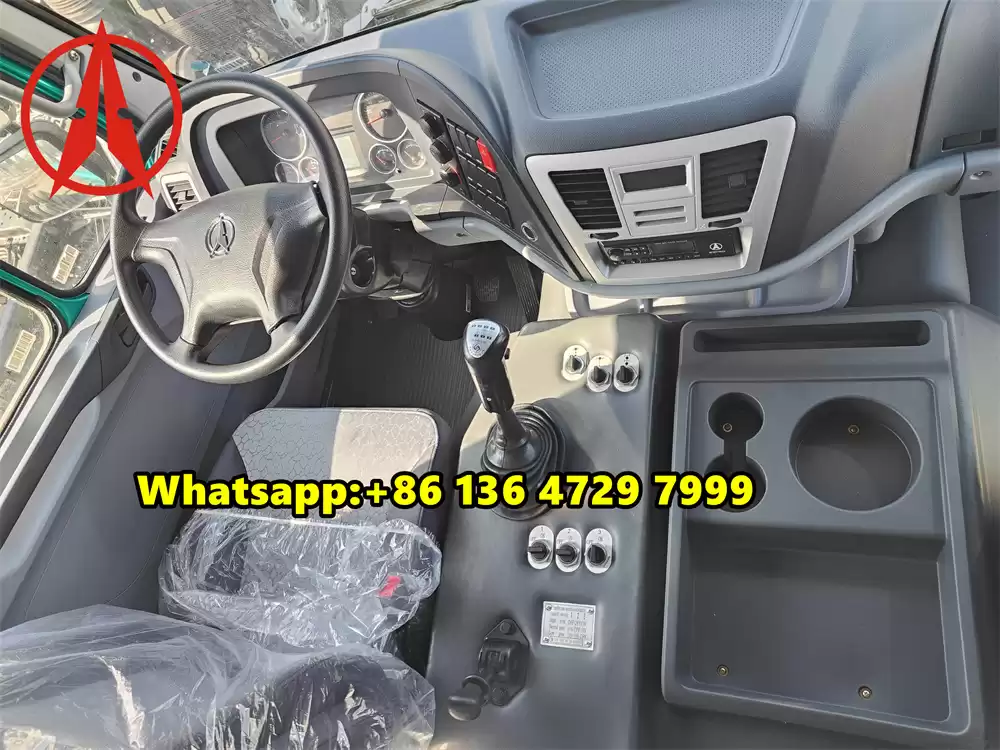

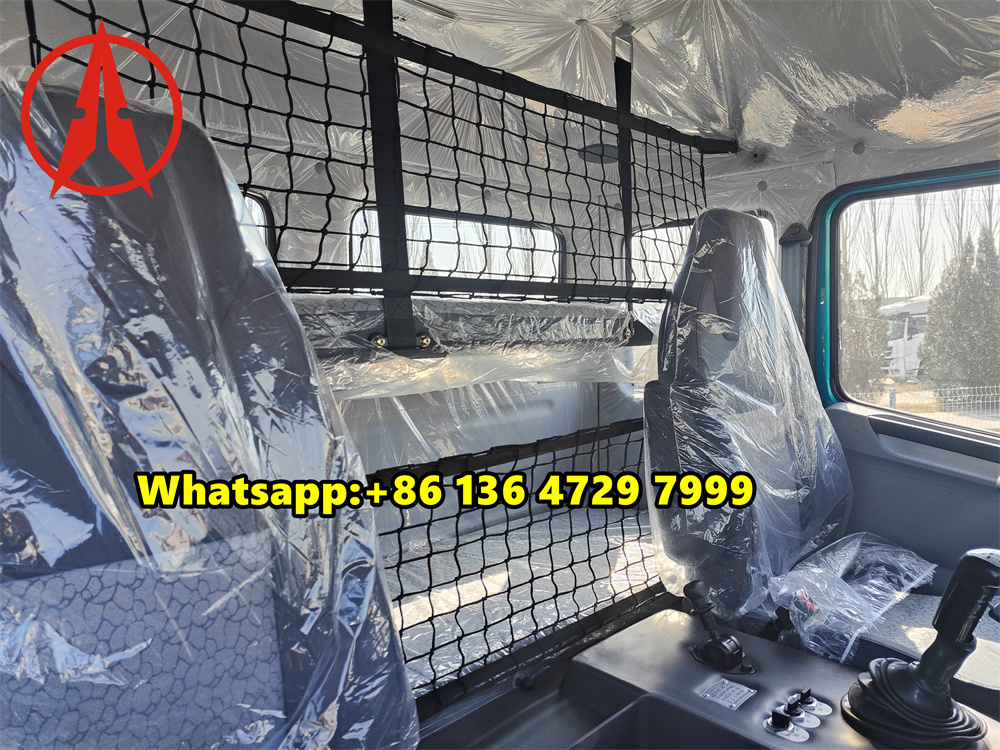

Interior trimming:
Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument
|
|
Offer
|
|
The Beiben 2642 all wheel drive cargo truck is a rugged and versatile vehicle that is well-suited for a variety of tasks in the Democratic Republic of Congo. Its main uses include:
1. Transportation of heavy and bulky goods: The Beiben 2642 is equipped with a powerful engine and a sturdy chassis, making it capable of carrying large loads over long distances. This makes it ideal for transporting goods such as construction materials, agricultural products, and equipment in the challenging terrain of the Congo.
2. Military and security operations: The Beiben 2642's all wheel drive capabilities and robust construction make it a valuable asset for military and security forces operating in remote and difficult-to-access areas. It can be used to transport personnel, supplies, and equipment, as well as for reconnaissance and patrol missions.
3. Humanitarian aid and disaster relief: In a country prone to natural disasters and humanitarian crises, the Beiben 2642 can play a crucial role in delivering emergency supplies, food, and medical aid to affected areas. Its off-road capabilities allow it to navigate rough terrain and reach isolated communities in need of assistance.
4. Mining and natural resource extraction: The Congo is rich in natural resources such as minerals, timber, and oil, and the Beiben 2642 is well-suited for transporting these products from mines and extraction sites to processing facilities and ports. Its durability and reliability make it a popular choice among companies involved in the country's lucrative natural resource industry.
