Product Descriptions
In today's engineering construction and logistics transportation sectors, a highly efficient, durable, and adaptable dump truck chassis is a crucial factor in ensuring the smooth progress of projects. The Beiben 2642 dump truck chassis, with its exceptional design concept and outstanding performance parameters, has become the preferred choice for numerous industry users.

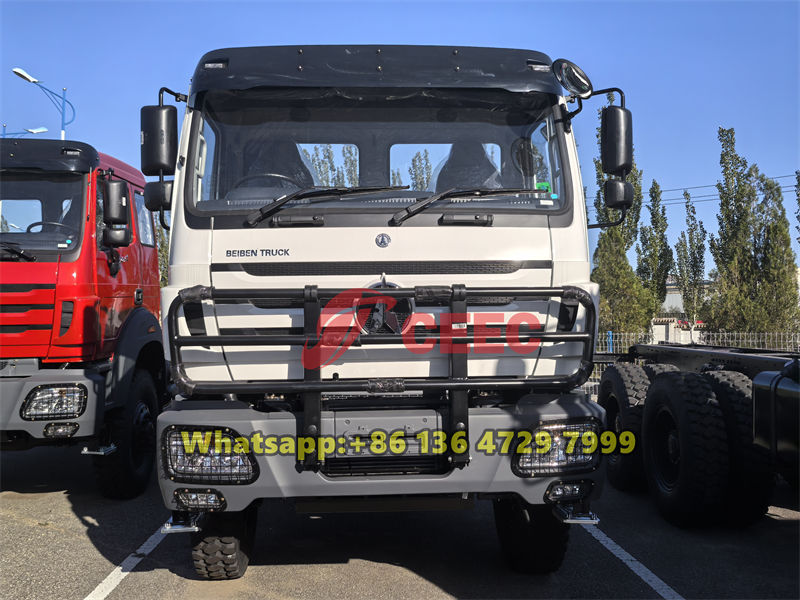

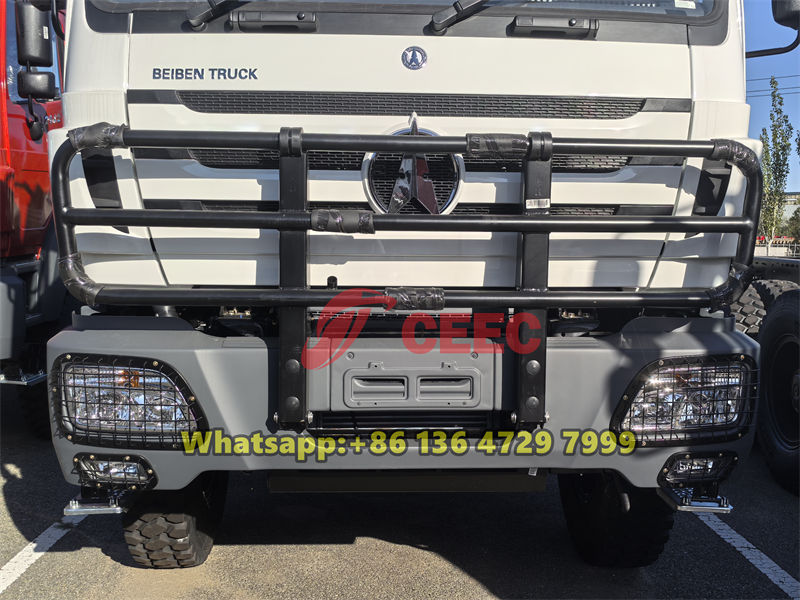

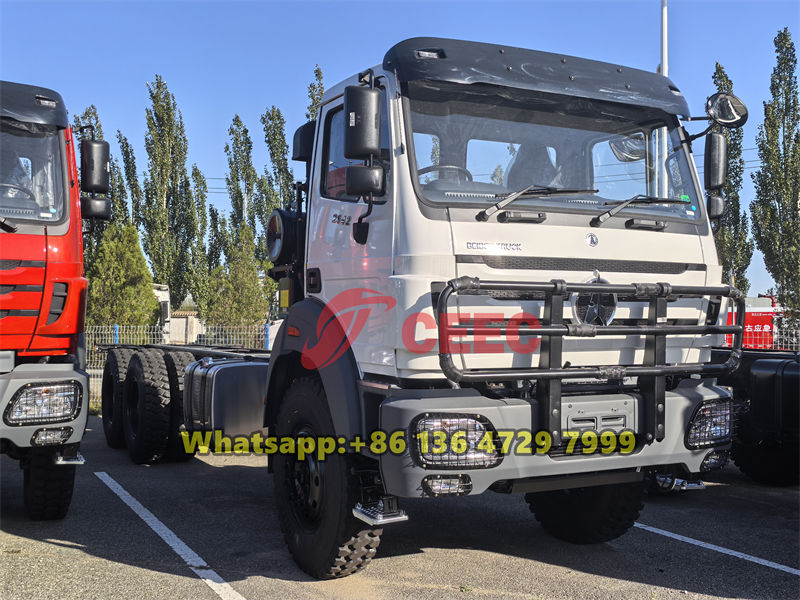

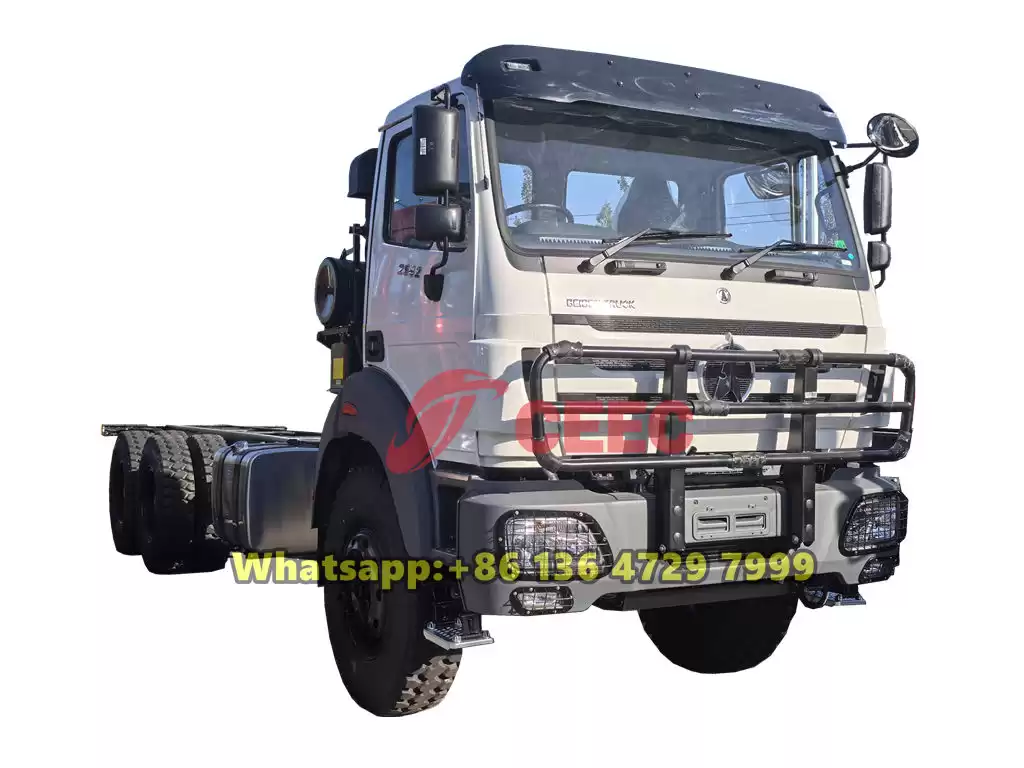

The Beiben 2642 chassis' cab adopts a full steel frame structure, with the cab covered by double-layer steel plates, providing not only excellent impact resistance but also effectively isolating external noise, thereby creating a safe and comfortable working environment for the driver. It's worth mentioning that, based on customer needs, a special anti-collision device has been installed at the front of the cab. This design significantly reduces the risk of collisions in complex and changing operating environments, protecting the driver's life safety.
In terms of the power system, the Beiben truck chassis is equipped with a WP12.420E32 diesel engine, a 6-cylinder inline, turbocharged, internally cooled engine that complies with Euro VI emission standards. With a maximum horsepower of 420HP (309KW) and a displacement of 11.596L, it ensures abundant power output for the vehicle under various operating conditions. Coupled with a 12JS200T mechanical transmission with 12 forward speeds and 2 reverse speeds, the Beiben 2642 can flexibly handle different road conditions and speed requirements during heavy-duty transportation, achieving efficient and energy-saving transportation operations.
Thanks to its powerful performance and reliable quality, the Beiben 2642 heavy duty chassis is widely used in various scenarios such as mines, construction sites, sand and gravel yards, among others. Whether it's heavy-duty transportation, earthwork operations, or the loading and unloading of sand and gravel materials, this chassis can easily cope with these tasks due to its exceptional adaptability and versatility. Especially in large-scale civil engineering projects and mining operations, the Beiben 2642 trucks have won the trust and praise of users with its efficient and stable performance.
Technical Specifications
|
Model
|
Beiben 6x4 dump truck chassis
|
|
Cabin
|
Full steel skeleton structure, covered with double layer steel plate; can be tipped forwardly
|
|
Engine
|
Type: Diesel 4-stoke Direct injection, 6-cylinder in line, Turbocharged, Inner cooling.
|
|
Model:
|
WP12.420E32
|
|
Max horsepower
|
420HP/309KW
|
|
Displacement(L)
|
11.596L (Euro 6 standard)
|
|
Rated speed
|
2100 rpm
|
|
Max torque
|
1750 N.m
|
|
Speed at max torque
|
1200-1500rpm
|
|
Bore×stoke
|
126mm/155mm
|
|
Gear box
|
Model:
|
12JS200T, mechanism
|
|
Speed:
|
12 speed forward, 2 reverses
|
|
Axle
|
Front
|
7.5T, double-shoe pneumatic brake, non-driving steering axle
|
|
Rear
|
13T, double-shoe pneumatic brake, casting, double reduction driving axle
|
|
Clutch
|
Single dry frictional disc, Hydraulic boosting
|
|
Brake
|
Service brake: Double circulation air brake system
|
|
Parking brake: Potential springs pressing on middle and rear wheels
|
|
Engine brake: Engine exhaust brake (EVB)
|
|
Steering
|
TAS85, driver sit at the left-hand side
|
|
Electric equipment
|
Operating voltage:
|
24V negative grounded
|
|
Starter:
|
24V, 5.4KW
|
|
Alternator
|
28V, 758W
|
|
Battery voltage
|
12V/135Ah, cigar lighter
|
|

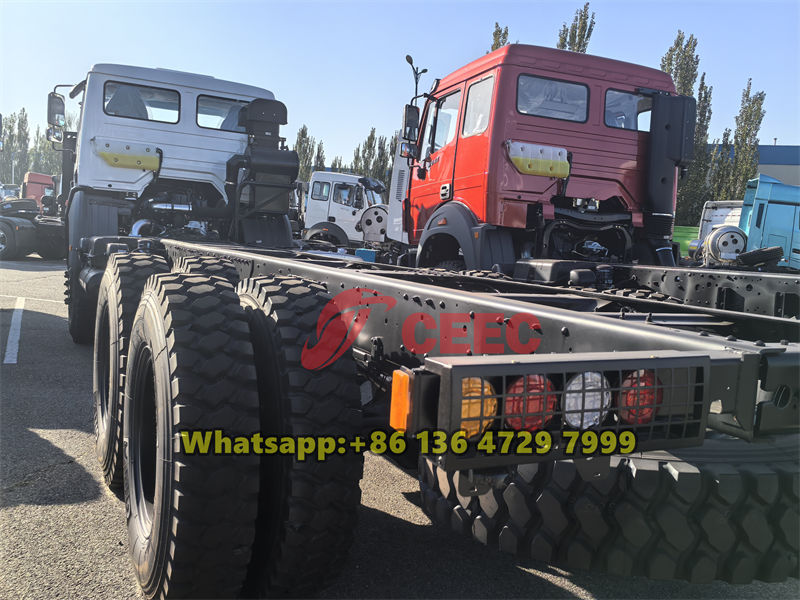

Frame
|
Fish belly, shape, variable width, variable sections, side beam structure.
|
|

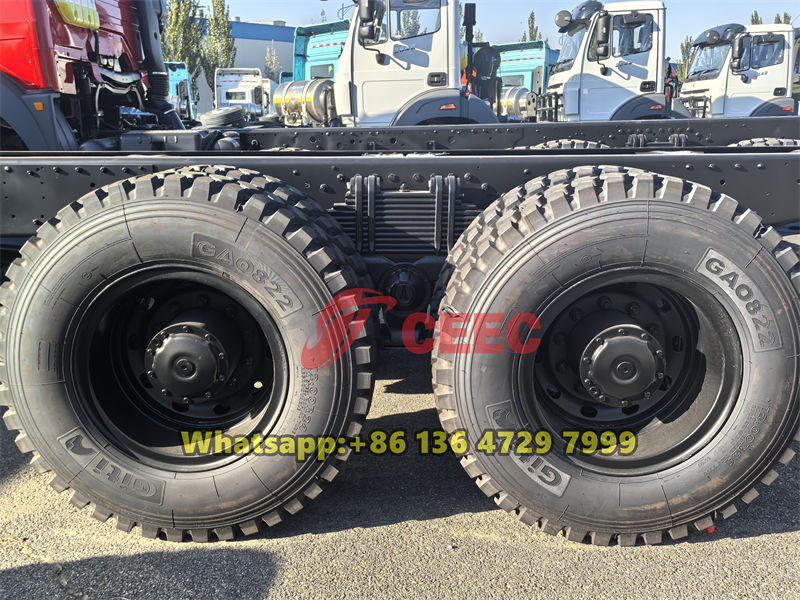

Tyre
|
10+1 spare tyre with rim
|
|
12.00R24
|
|

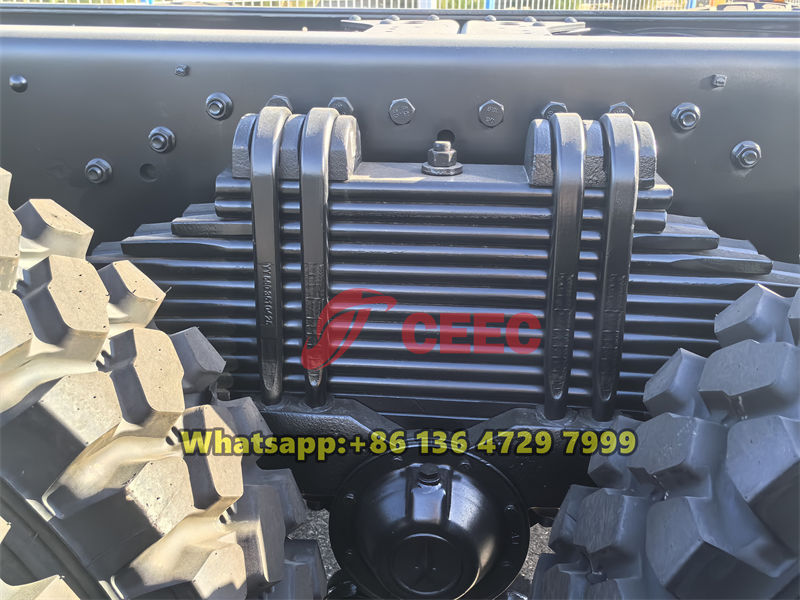

Suspension system
|
Strengthen heavy duty leaf spring type
|
|
Front/rear
|
|
Wheel track
|
Front/Rear
|
2045/1872
|
|
Angle
|
Approach/Departure
|
26/27
|
|
Overhang
|
Front /Rear overhang
|
1410/2020
|
|
Dump body
|
Cargo box size
|
5600x2500x1500 mm
|
|
Material
|
High strength steel, side 8mm thickness, bottom 10mm thickness
|
|
Lifting type
|
Front lifting
|
|
Gross vehicle weight
|
25000 kg
|
|

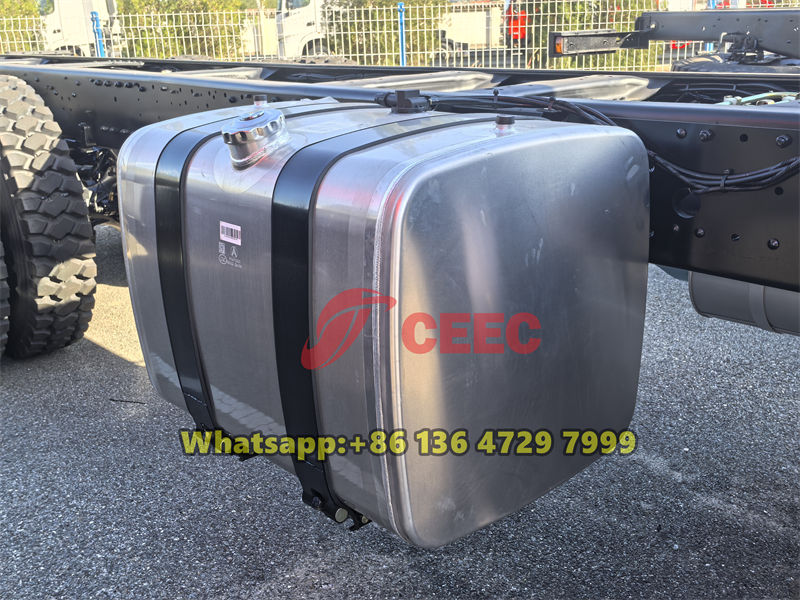

Fuel tank capacity
|
400L Aluminum alloy fuel tank
|
|
Max driving speed
|
90km/h
|

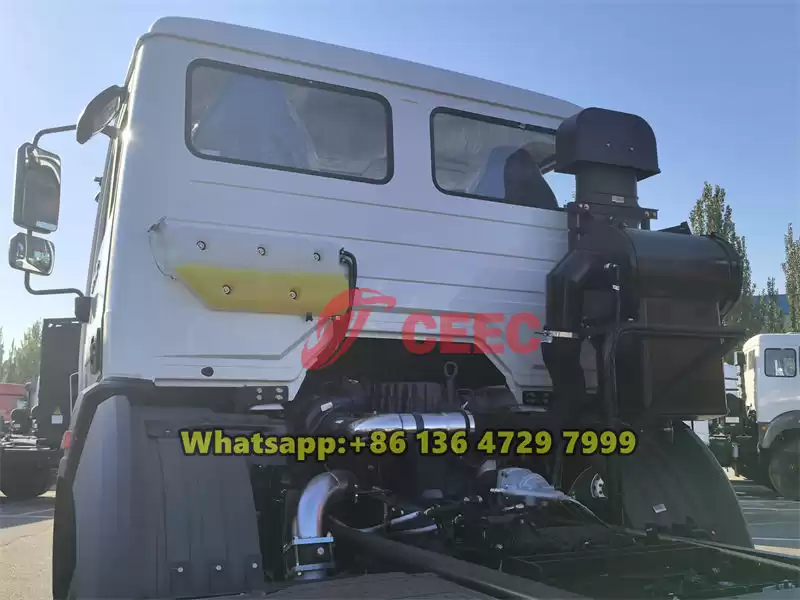

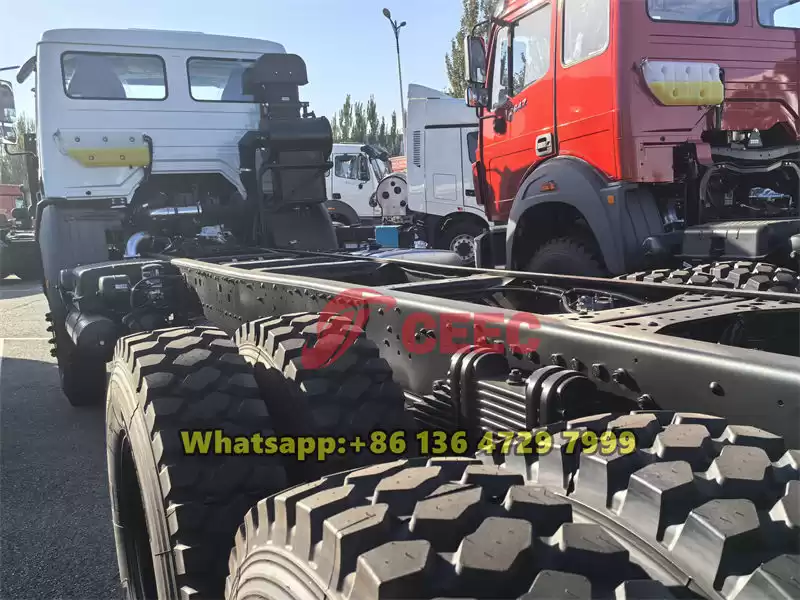

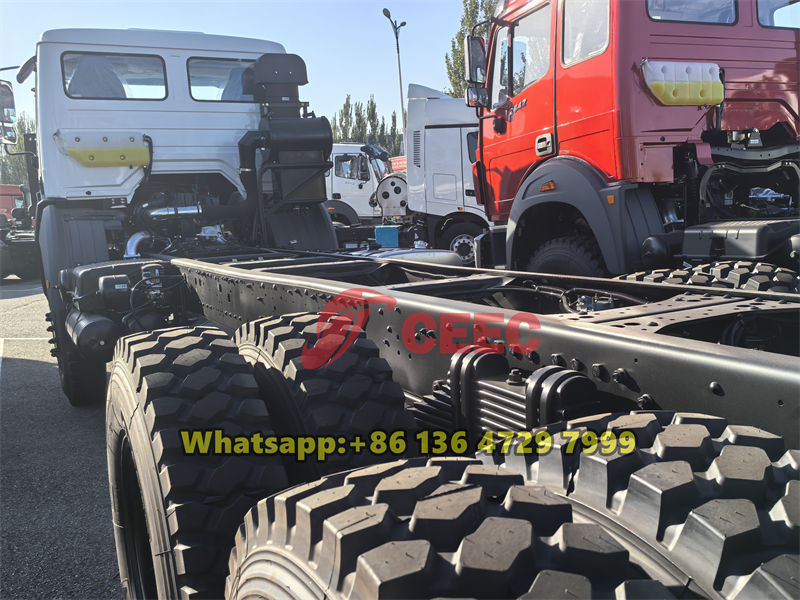

Reference Pictures
