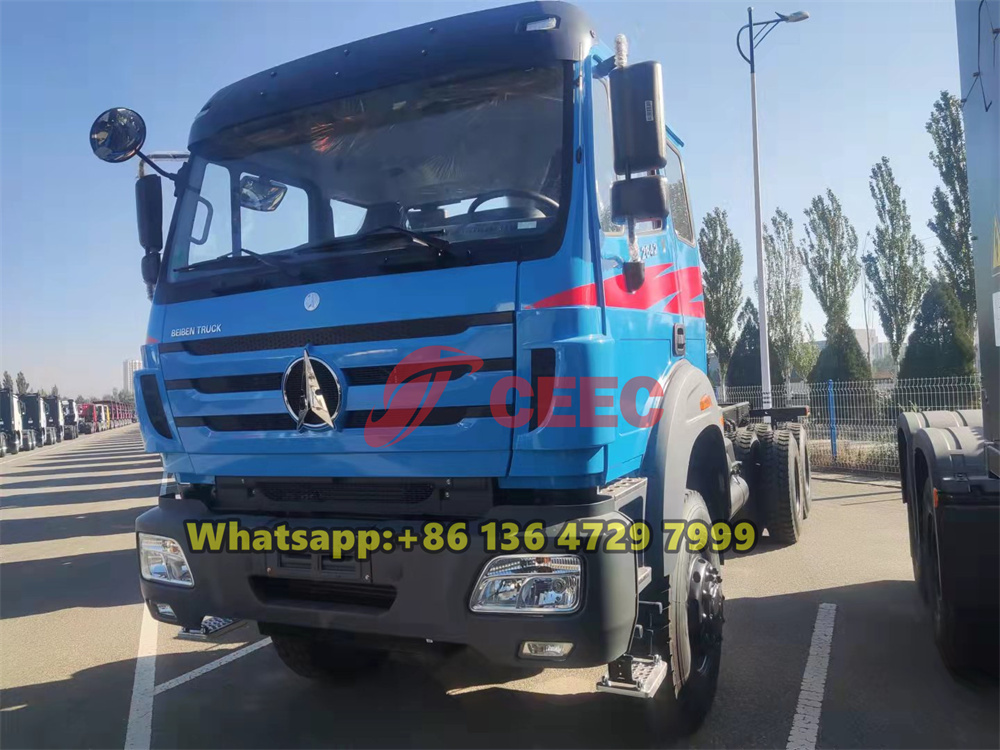

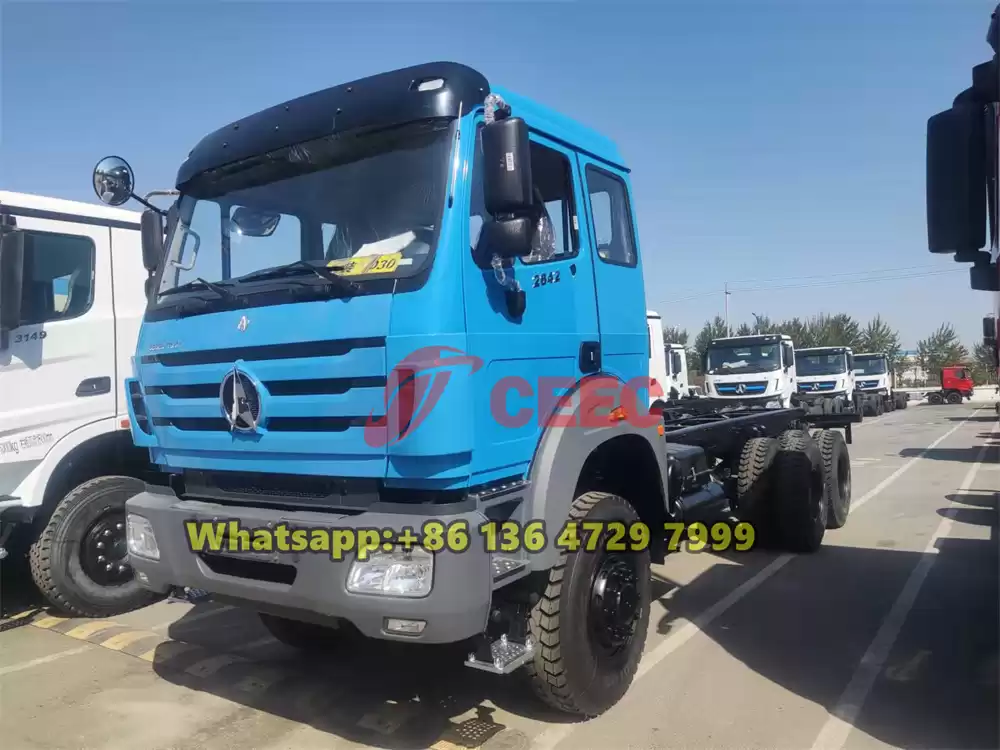

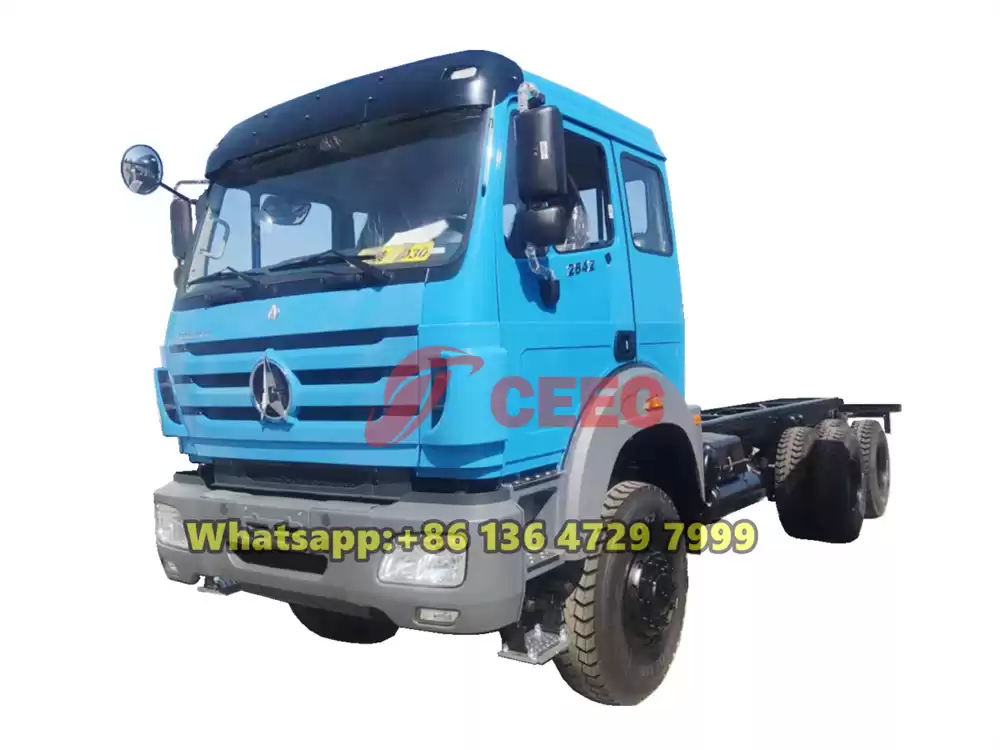

Beiben 2642 heavy duty off road truck

The Beiben 2642 heavy duty off road truck is a powerhouse on wheels, designed to tackle the most challenging terrains with ease. With a massive 6x6 configuration and impressive ground clearance, this off road truck is built to conquer any off-road obstacle in its path.

The Beiben 2642 is equipped with WP12.420 powerful engine that provides the necessary torque and 420 hP horsepower to conquer steep inclines, rocky surfaces, and uneven terrain without breaking a sweat. Its advanced 4 U-bolt spring suspension system and sturdy chassis ensure stability and control, allowing the driver to maneuver with confidence and precision.


  • Drive system6x6, LHD
  • Engine power420HP, WP12.420
  • Working Capcity40 Ton
  • Payment termsT/T
  • Production time40 days

The Beiben 2642 heavy duty off road truck is a rugged and powerful vehicle designed specifically for traversing challenging terrains and tough working conditions. With its impressive 6x6 drive configuration, this truck is capable of handling a variety of off-road tasks with ease. The truck is equipped with a high-torque diesel engine that provides ample power and torque to conquer steep slopes, rough terrains, and heavy loads. With a displacement of 12.8 liters and a maximum output of 420 horsepower, this truck can easily tackle any task at hand.

The truck's chassis is heavy-duty and reinforced to withstand the stresses of off-road driving, providing a stable and reliable platform for carrying heavy loads. The chassis is also designed to provide excellent ground clearance, allowing the truck to navigate obstacles and rough terrain without getting stuck.

The Beiben 2642 is equipped with an advanced suspension system that provides a smooth and comfortable ride, even on rough terrain. The suspension system is designed to absorb shocks and vibrations, minimizing driver fatigue and ensuring that the truck can maintain stability and control in challenging conditions.

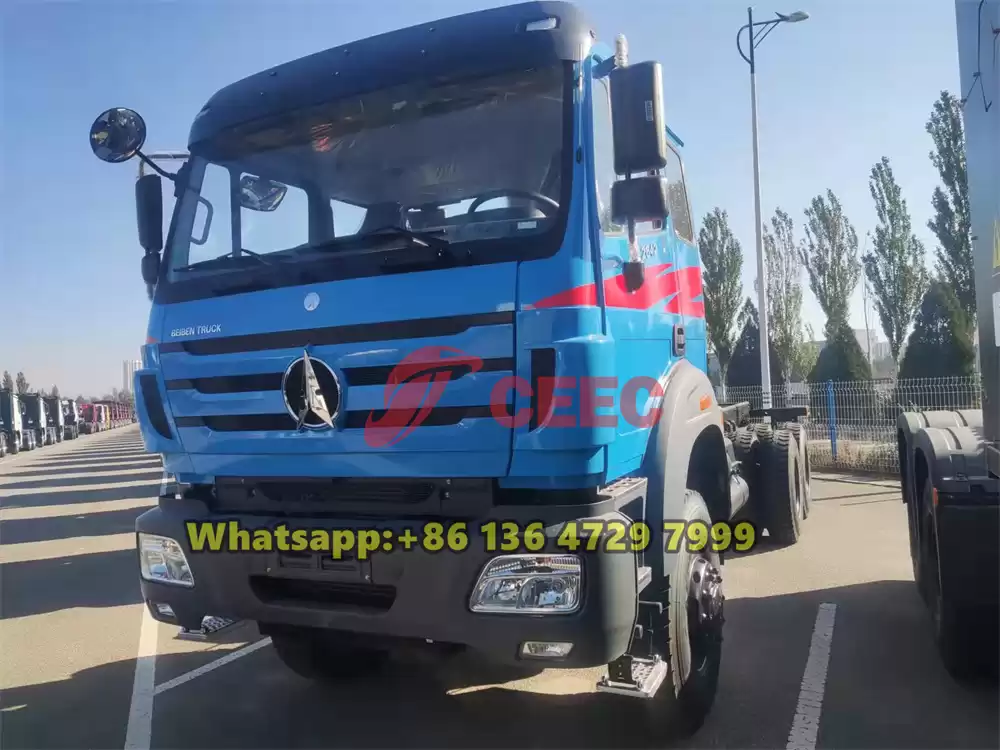

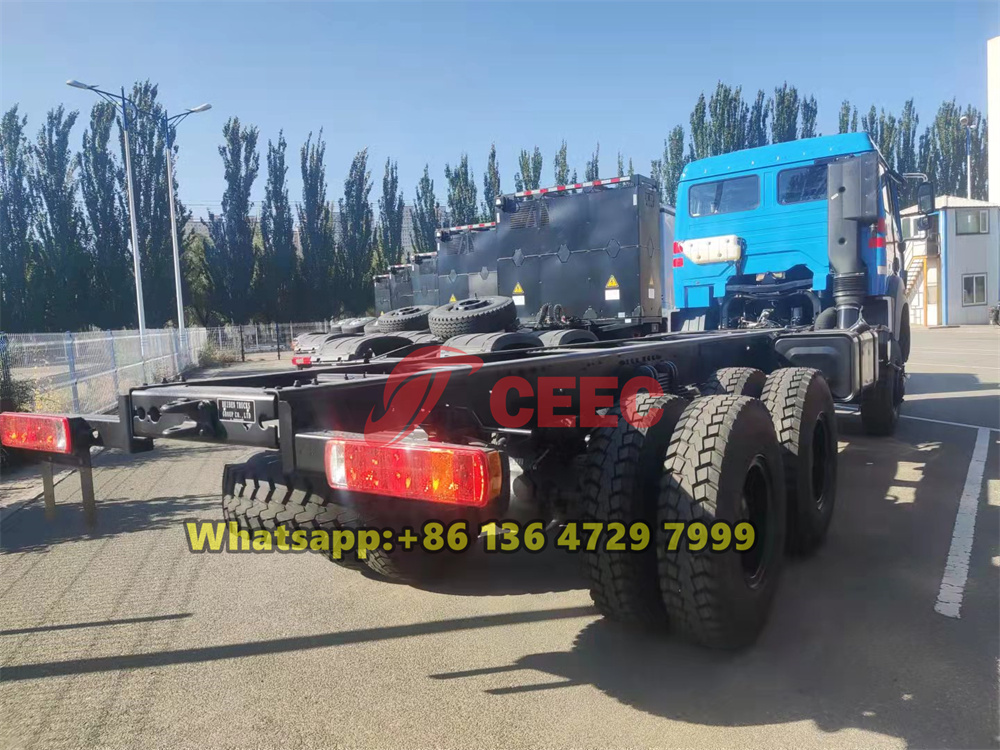

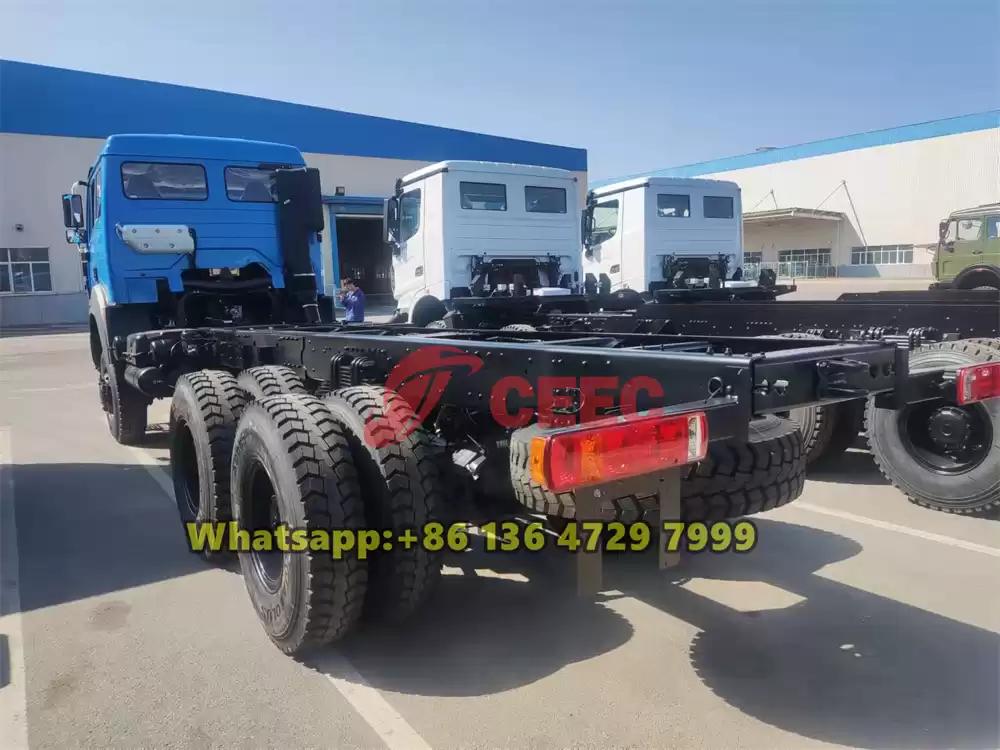

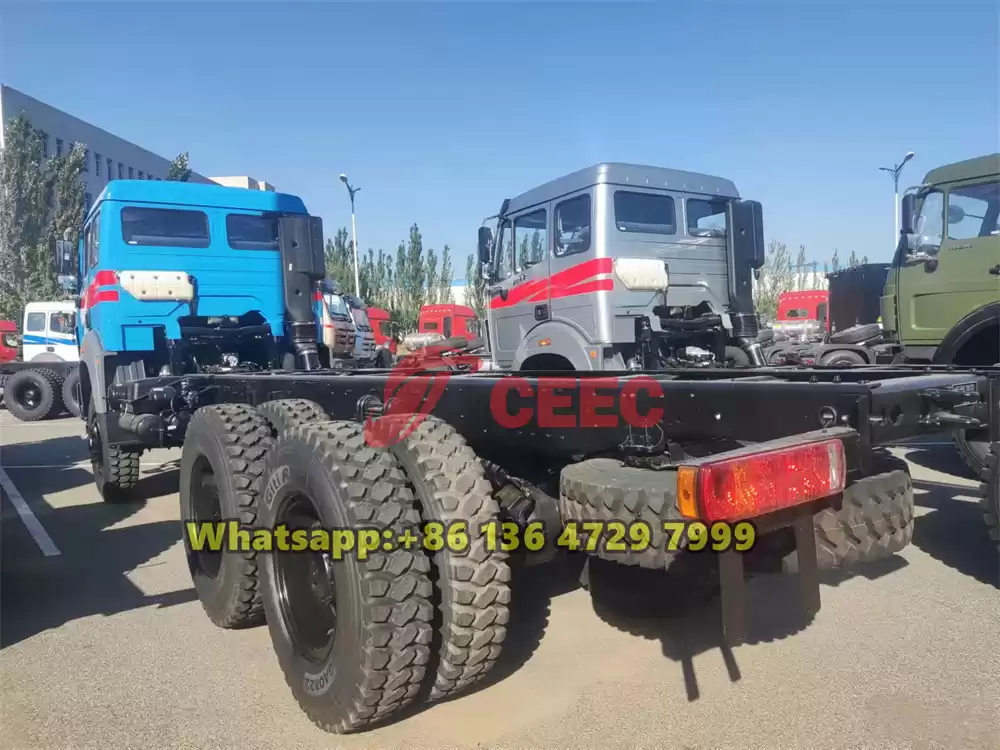

beiben 2642 heavy duty off road truck



 Beiben 2642 heavy duty off road truck

          Basic parameter



Model

2642PZ/6×6

Length×width×height(mm)

9526×2500×3385

Wheel-base(mm)

4450+1450

Curb weight(kg)

11400

Engine parameter

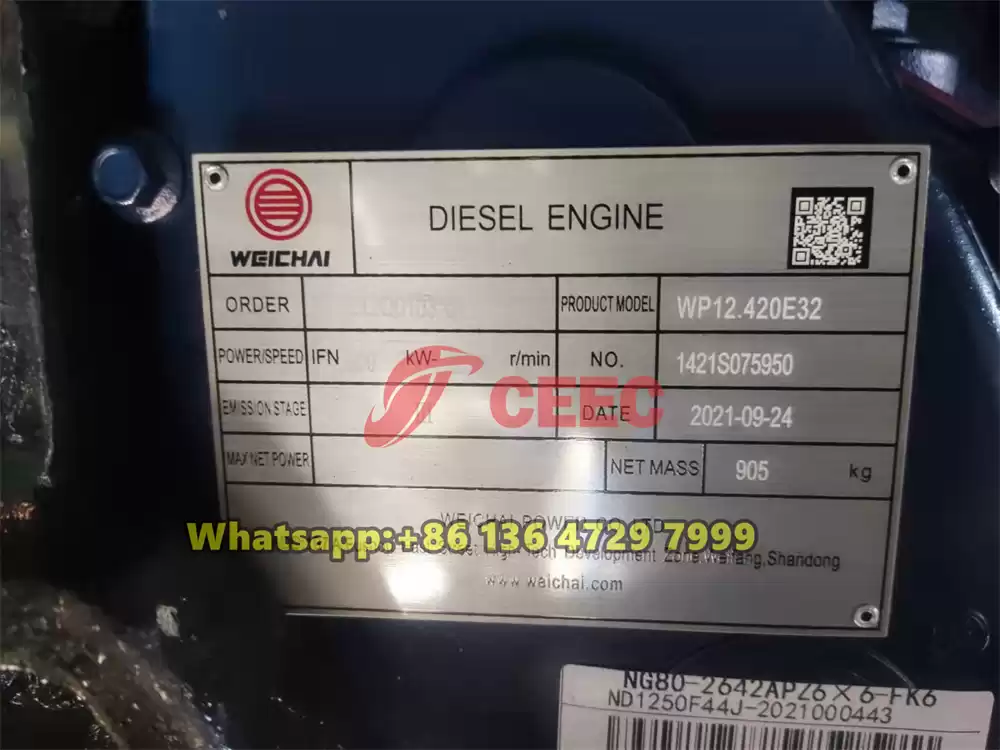

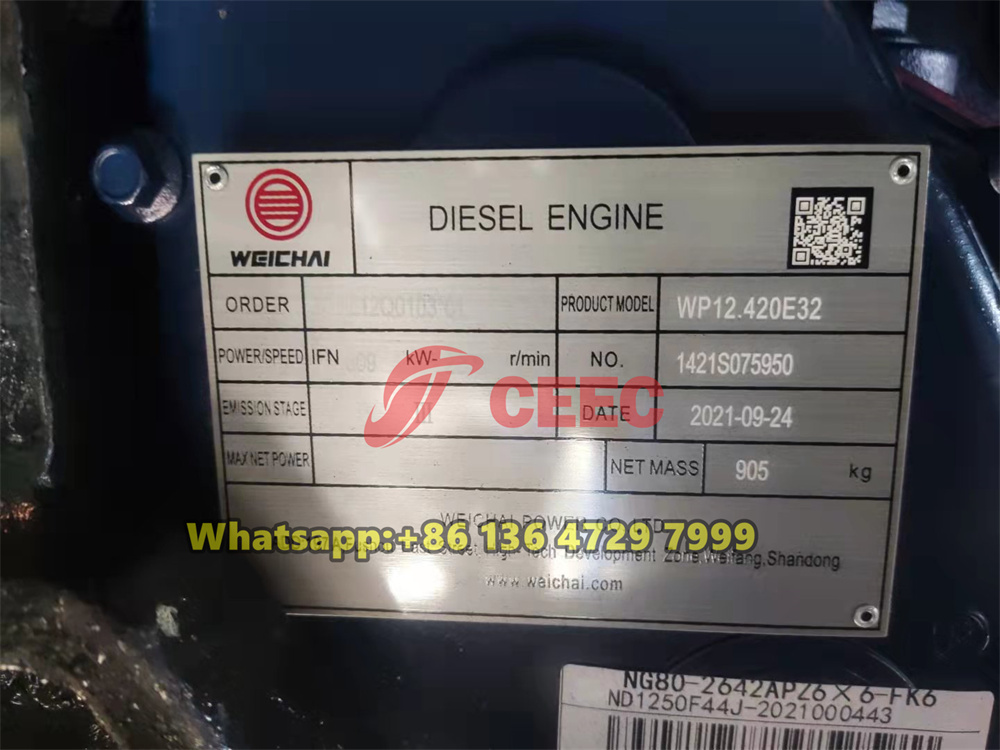

Model (six cylinder in line)

WP12.420E32

Max. Power (HP/rpm)

420

Max. Torque(Nm/rpm)

1400/14001600

Displacement(lit)

11.726 L

Fuel tank capacity

400L Iron oil tanker  400L

Transmission system



Clutch

430 Single disc, dry type, friction clutch

Gearbox

Mechanical, 12JS200T

Steering system



Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system



Service brake

Double circulation air brake system equipped

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake

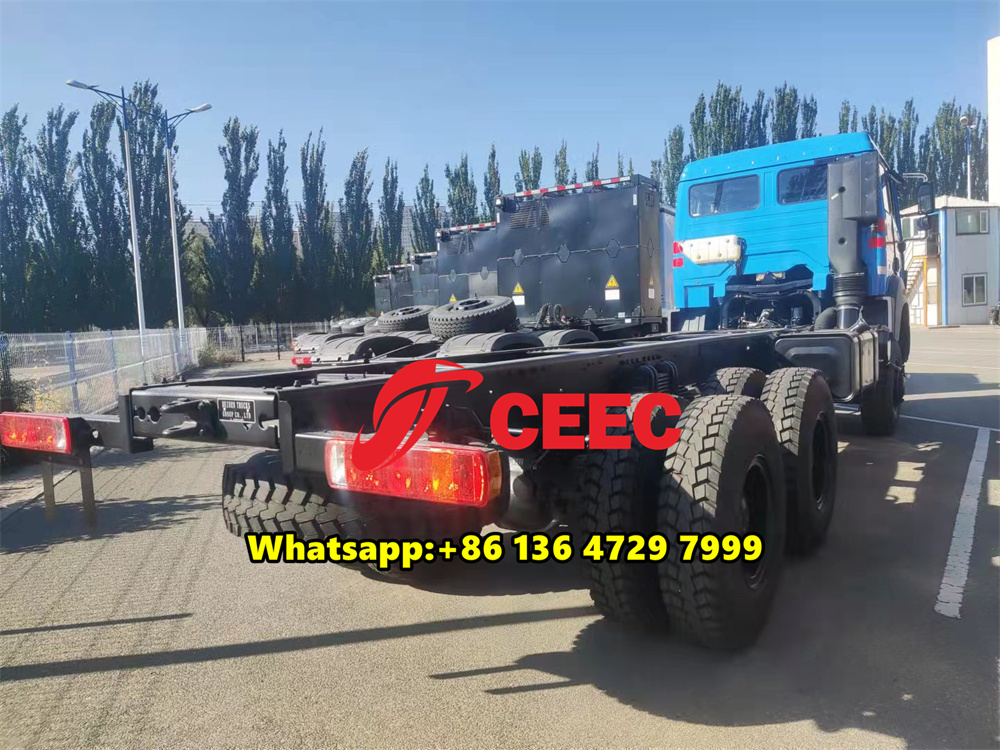

Chassis parameter



Frame

Variable width and section  317×70×8.5+7+8.5 mm

Front axle

7.5 T, no-driving steering axle, drum brake

Middle & Rear axle

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

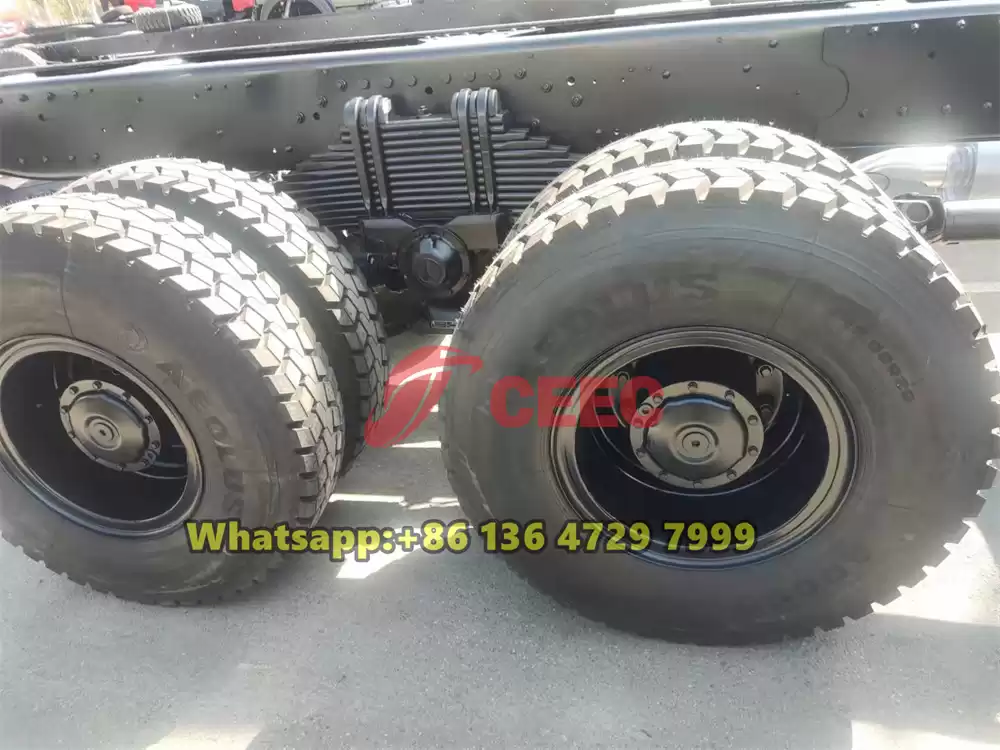

Front and rear suspension

Front/rear: Leaf spring, 13/13 pieces

Tire

12.00R24

Cab



NG80B Long Cabin/ Flat roof/Left drive Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).

Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument

Offer



The Beiben 2642 heavy duty off-road truck is a versatile and powerful vehicle designed for rough and challenging terrains. With its robust construction and reliable performance, this truck can be used in various locations across Africa for a wide range of applications. Below are four key areas where the Beiben 2642 heavy duty off-road truck can be utilized effectively:

1. Mining sites: The Beiben 2642 heavy duty off-road truck is well-suited for use in mining sites across Africa. Its powerful engine and rugged chassis allow it to navigate through uneven and rugged terrain with ease, making it ideal for transporting heavy loads of minerals and materials in mining operations.

2. Construction sites: The Beiben 2642 heavy duty off-road truck is also commonly used in construction sites throughout Africa. Its high ground clearance and excellent off-road capabilities make it a reliable choice for transporting construction materials, equipment, and machinery to remote and challenging construction sites.

3. Agricultural areas: In rural areas of Africa, the Beiben 2642 heavy duty off-road truck is a valuable asset for farmers and agricultural workers. Its strong engine and durable build enable it to carry large quantities of agricultural produce, livestock, and farm supplies over rough and uneven terrain, helping farmers to efficiently transport their goods to market.

4. Remote areas: The Beiben 2642 heavy duty off-road truck is well-suited for use in remote and hard-to-reach areas across Africa. Its sturdy construction and reliable performance make it an essential vehicle for delivering crucial supplies, aid, and relief to communities in remote locations, especially during emergencies or natural disasters.

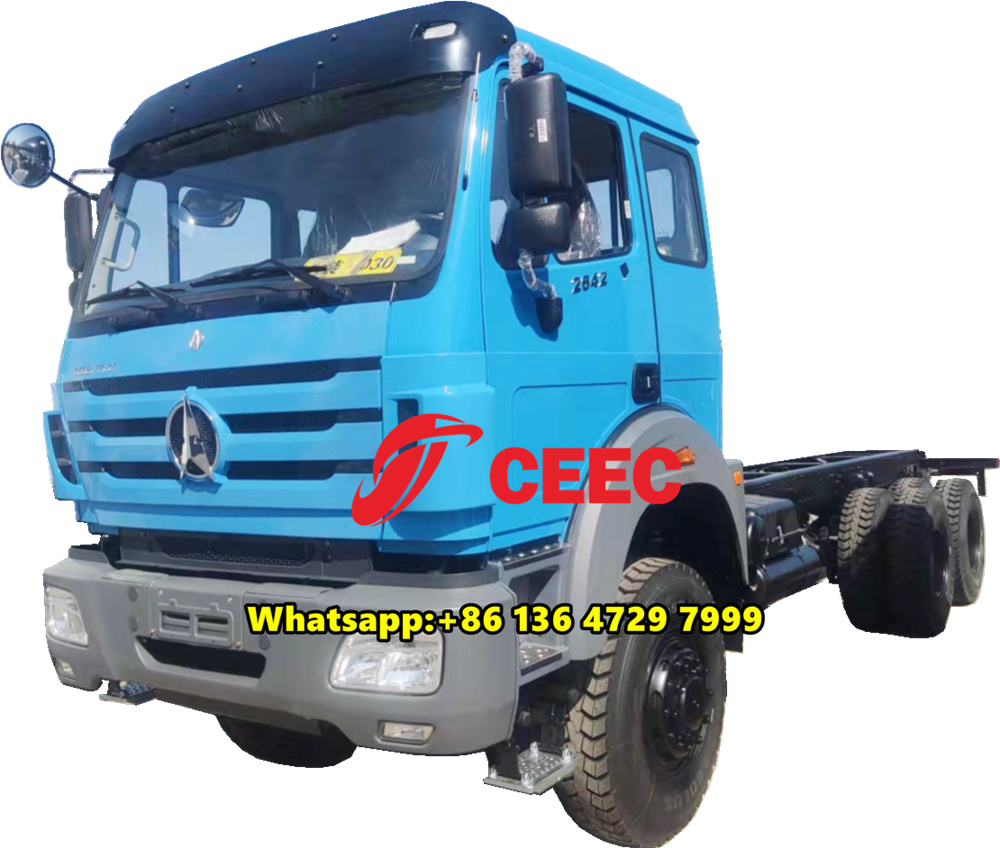

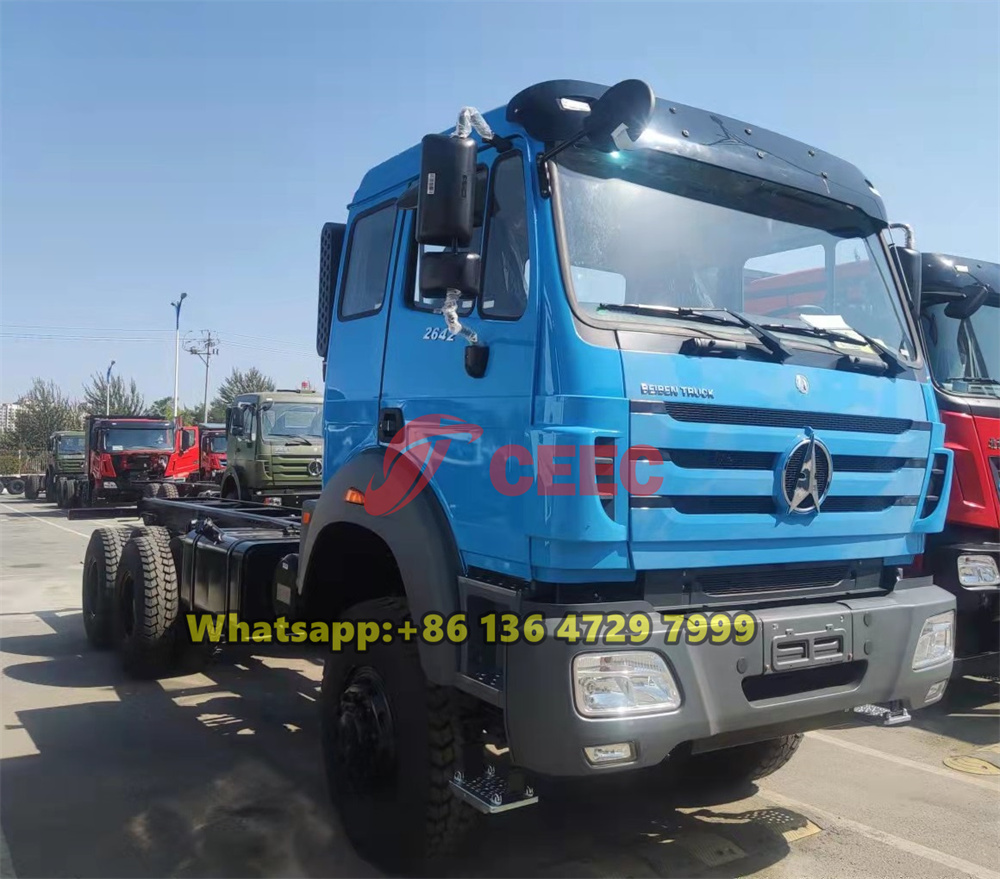

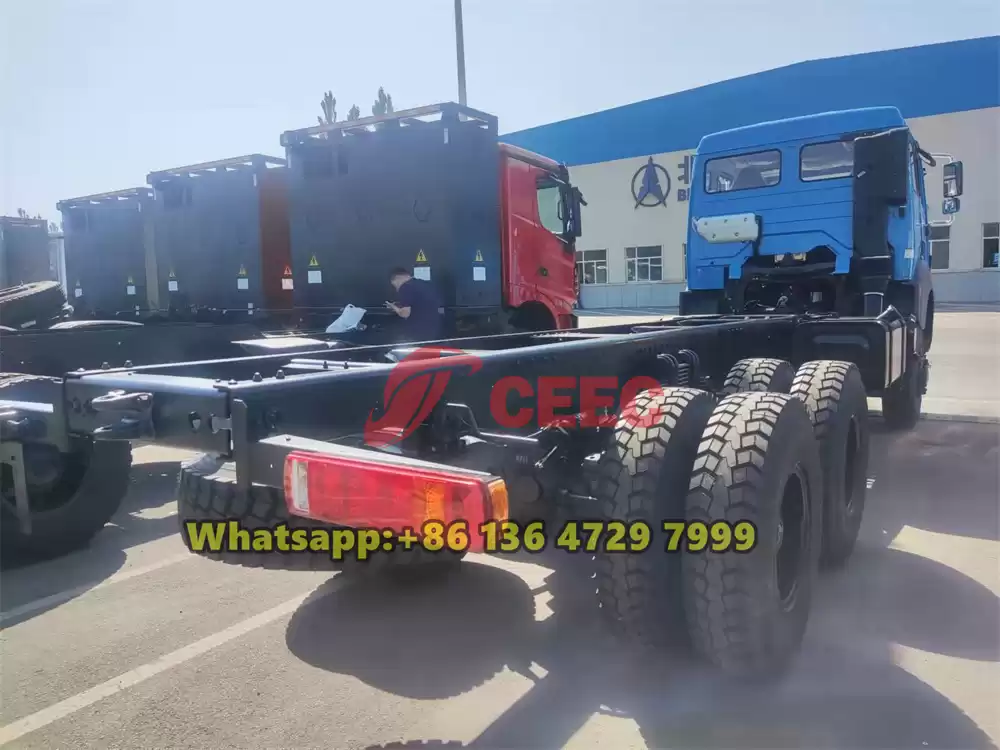

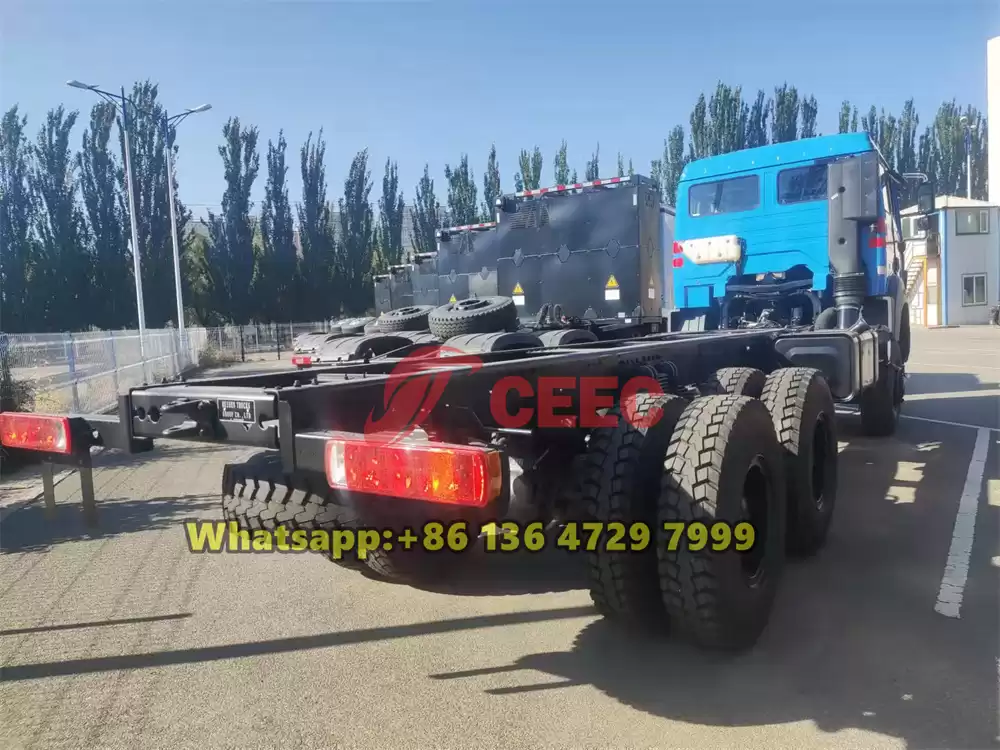

beiben 2642 heavy duty off road truck

beiben 2642 heavy duty off road truck

beiben 2642 heavy duty off road truck
