Product Descriptions

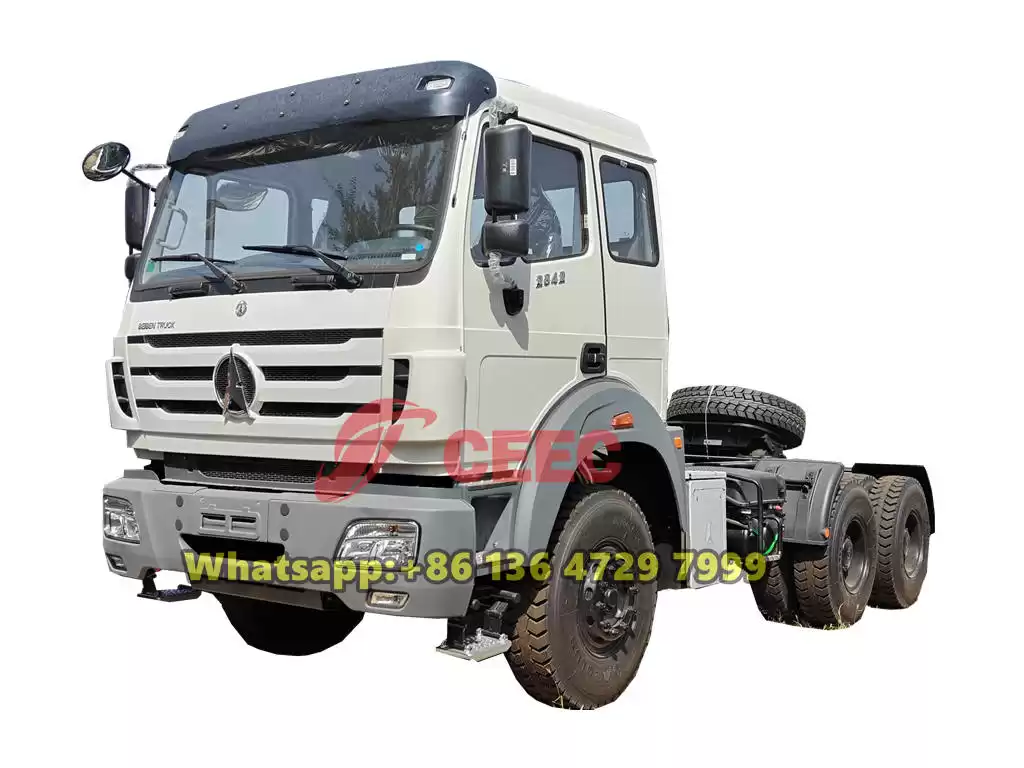

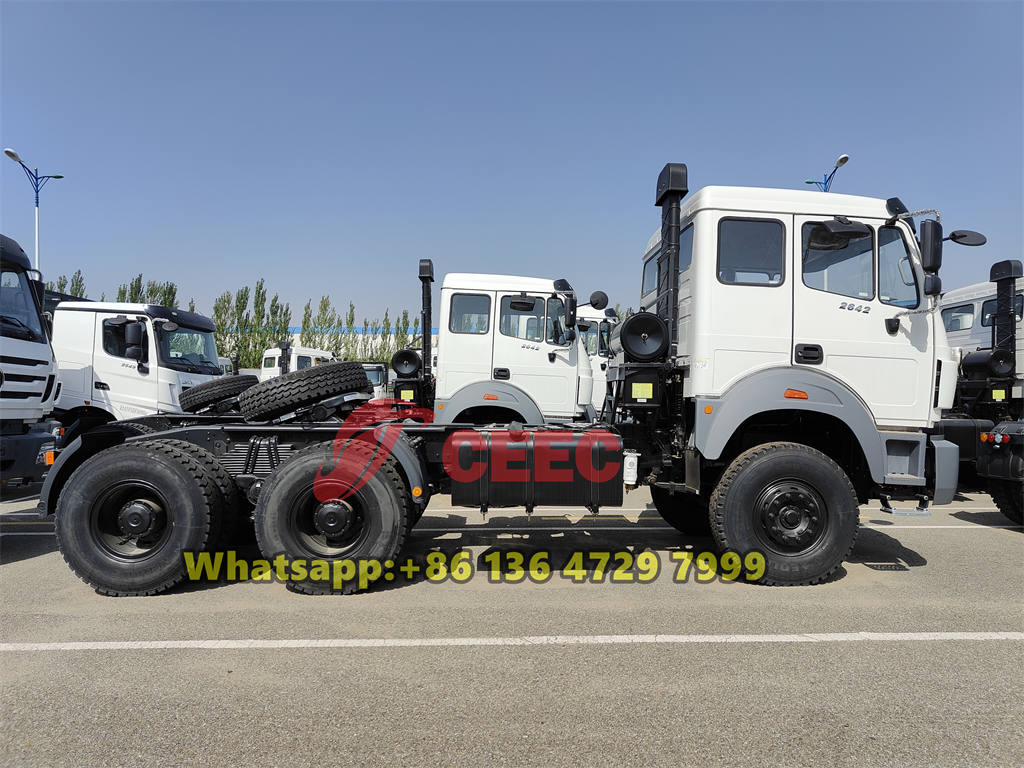

In the heavy-duty transport sector, the Beiben 2642 tractor head has earned widespread recognition in the market for its outstanding performance and reliable quality. As a 6X4 drive type tractor, it not only excels in its power system but also demonstrates a high level of professionalism and practicality in its overall design and configuration.

The Beiben 2642 tractor truck is equipped with a WP12.420E32 engine. This engine adopts water-cooling, four-stroke, exhaust valve braking, direct injection, turbocharging, and intercooling technologies, with a displacement of 11.596 liters. Its maximum power output is 420 hp (308 kw), and its maximum torque is 1350 Nm (achieved at 1600 RPM). This power configuration allows the vehicle to easily handle various road conditions, providing ample power support for both high-speed driving and climbing slopes. Complementing the powerful engine is a FAST brand 12JS200T transmission, which features 12 forward gears and 2 reverse gears, ensuring smooth shifting and high transmission efficiency. This transmission configuration not only enhances driving convenience but also helps improve the vehicle's fuel economy, thereby reducing operating costs.

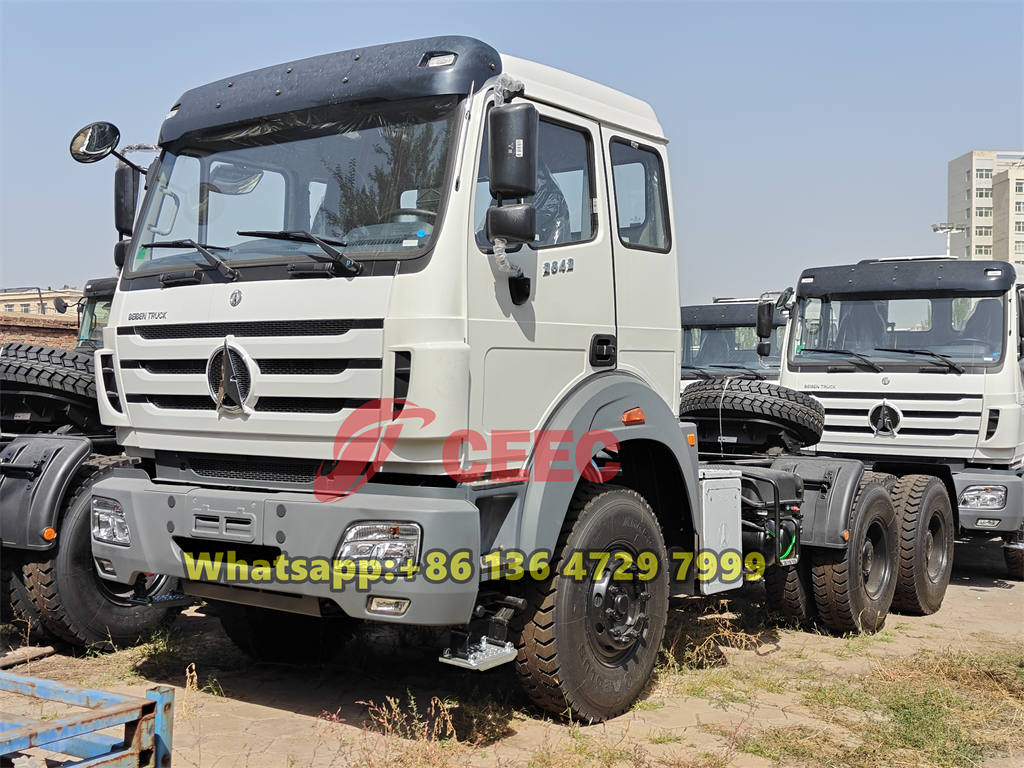

In terms of comfort, the Beiben 2642 tractor unit does not disappoint. It is equipped with an NG80B flat-top cab that offers a spacious and well-organized internal space. The cab interior features a humanized design, with comfortable and adjustable seats, as well as a lightweight and flexible steering wheel. Additionally, the vehicle is equipped with air conditioning, audio systems, and other comfort amenities, providing drivers with a pleasant driving environment. Furthermore, the cab is fitted with large windshield and side windows, offering drivers a broader field of vision during driving, thereby enhancing driving safety.
Leveraging its excellent performance and flexible configuration, the Beiben 2642 trailer tractor is widely used in various heavy-duty transport applications. In long-haul logistics transport, it can easily handle cross-provincial or international cargo transportation needs, ensuring safe and timely delivery of goods to their destinations. In construction transport, it can carry heavy equipment and materials, adapting to rugged construction roads and providing strong support for construction projects.

Product Specifications
Model
|
Beiben 2642
|
Traction type
|
6X4
|
Driving type
|
Left Hand Driving
|
Overall Dimension (LxWxH)
|
7180x2490x3180
|
Wheelbase (mm)
|
3450+1450mm
|
Curb weight(kg)
|
9200
|
Total mass(kg)
|
25000
|
Traction force(kg)
|
396700
|
Engine
|
Model
|
WP12.420E32
|
Type
|
Water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged and intercooled
|
Displacement(L)
|
11.596
|
Bore X stroke (mm)
|
126mm/130mm
|
Max power(kw/rpm)
|
420HP/308Kw
|
Max torque (Nm/rpm)
|
1350NM@1600/rpm
|
Emission
|
EURO 3
|

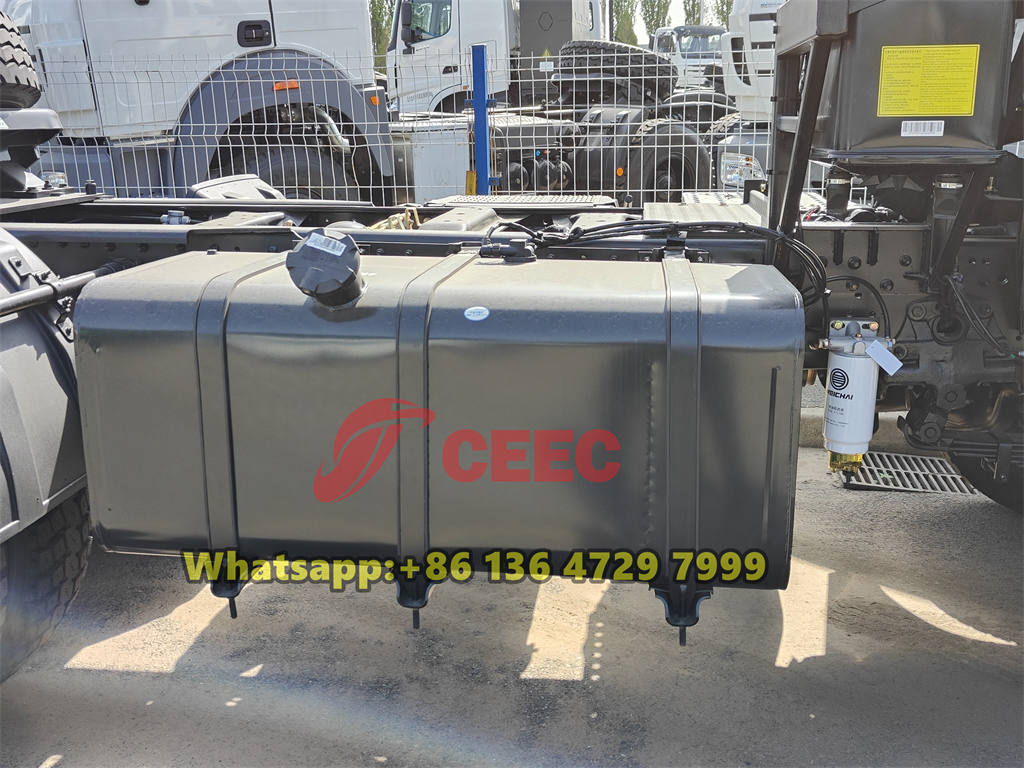

Fuel tanker(L)
|
400 steel fuel tank
|
Gearbox
|
Brand
|
FAST
|
Model
|
12JS200T
|
Shift mode
|
12 forwards speed, 2 reverses speed
|
Steering system
|
Model
|
ZF8098
|
Clutch
|
Model
|
430 Diaphragm type
|
Frame
|
317x70x8.5+7+12mm
|
Front axle
|
7.5T front non-driving steering axle
|
Middle and Rear axle
|
13T double reduction driving axle
|
Tyre
|
12.00R20
|
Number of tyre
|
10+1 spare
|

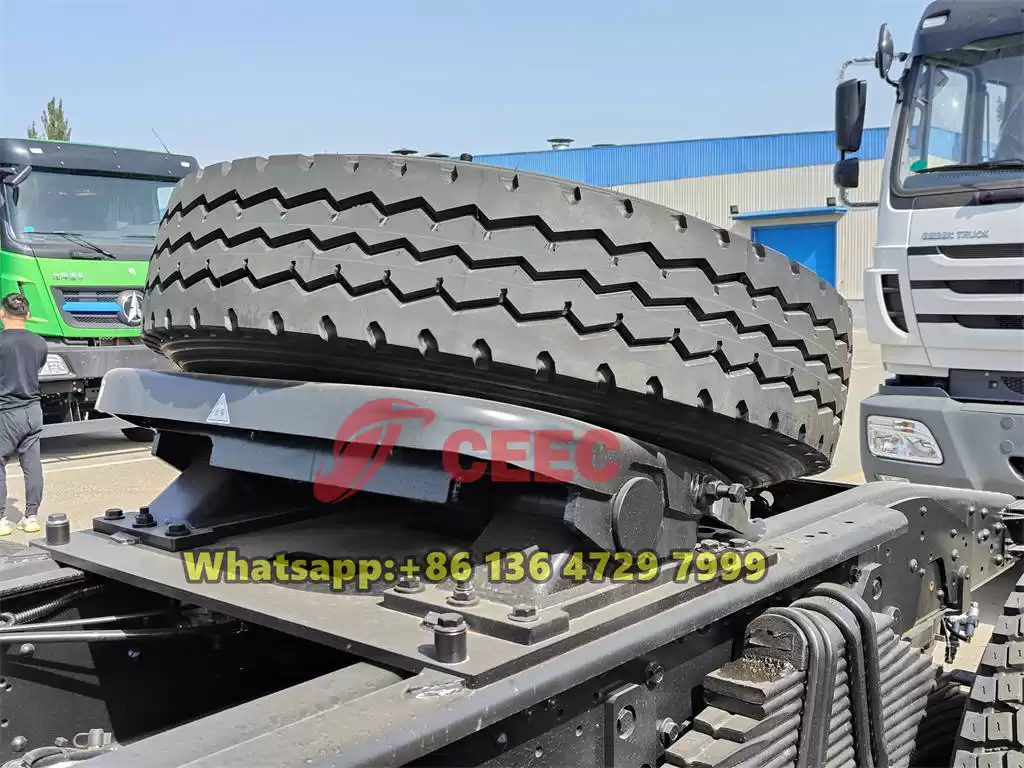

Fifth wheel
|
90# (3.5inch)
|

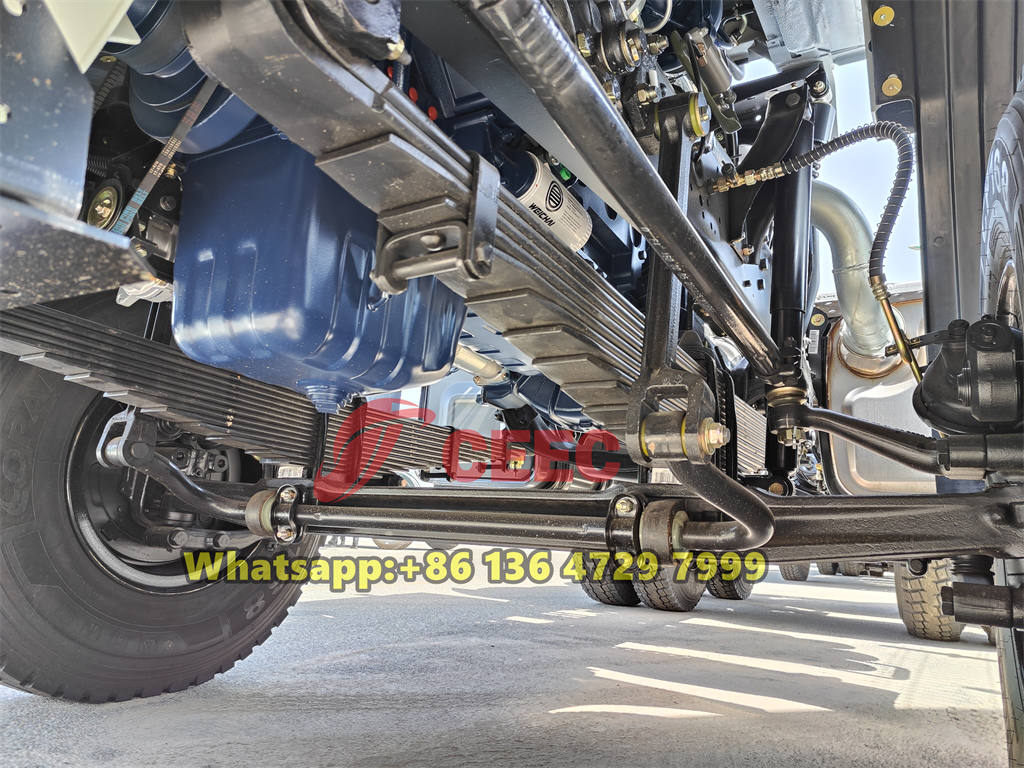

Suspension
|
Leaf spring type
|
Color
|
Optional
|

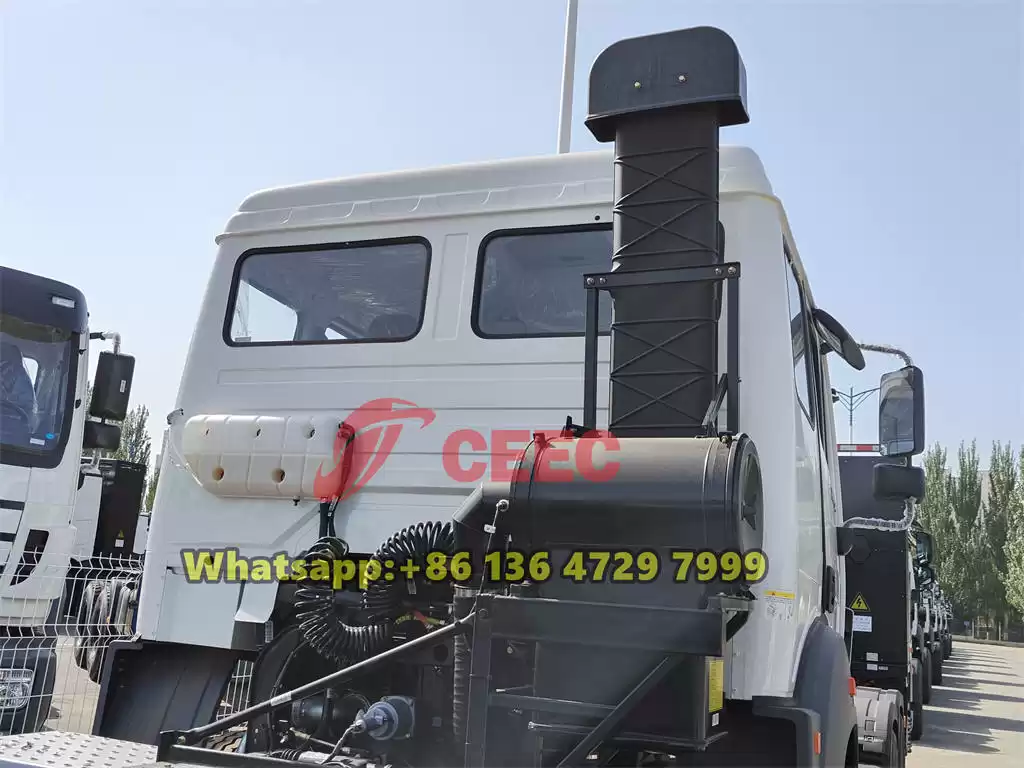

Cabin
|
NG80B flat roof cabin with one sleeper and ABS, A/C.
|

Product Details
