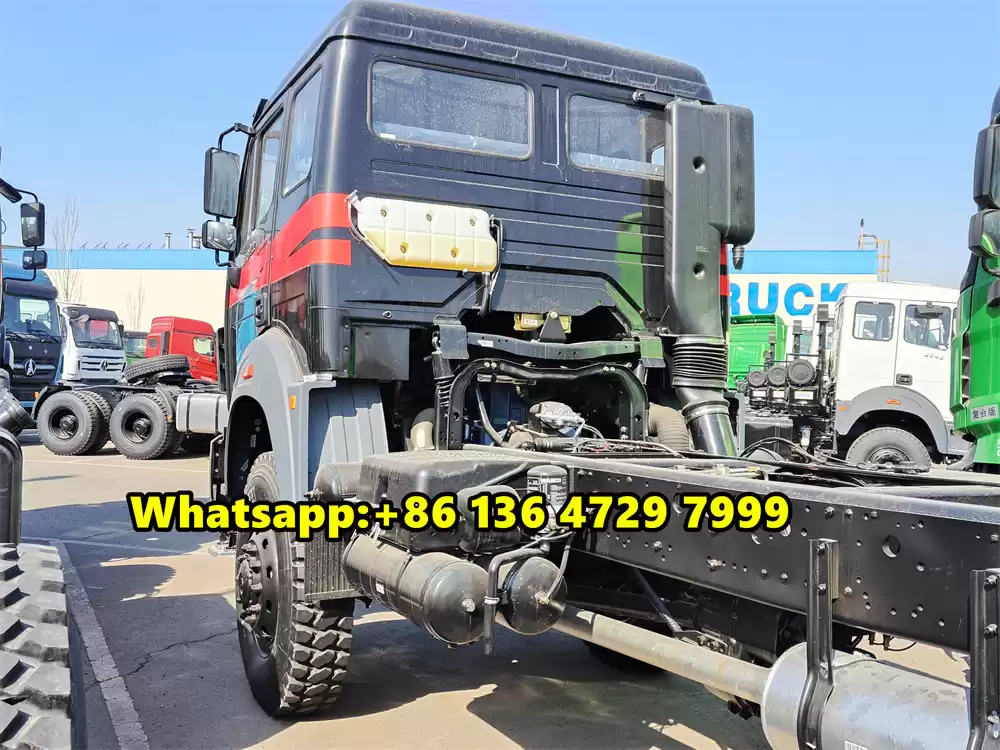

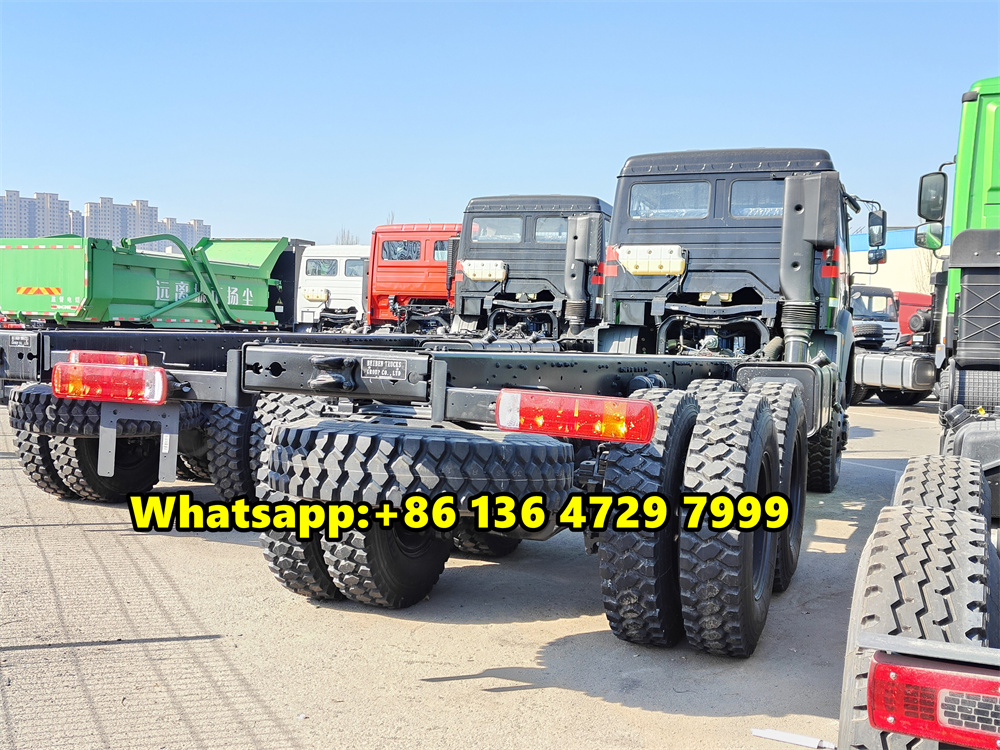

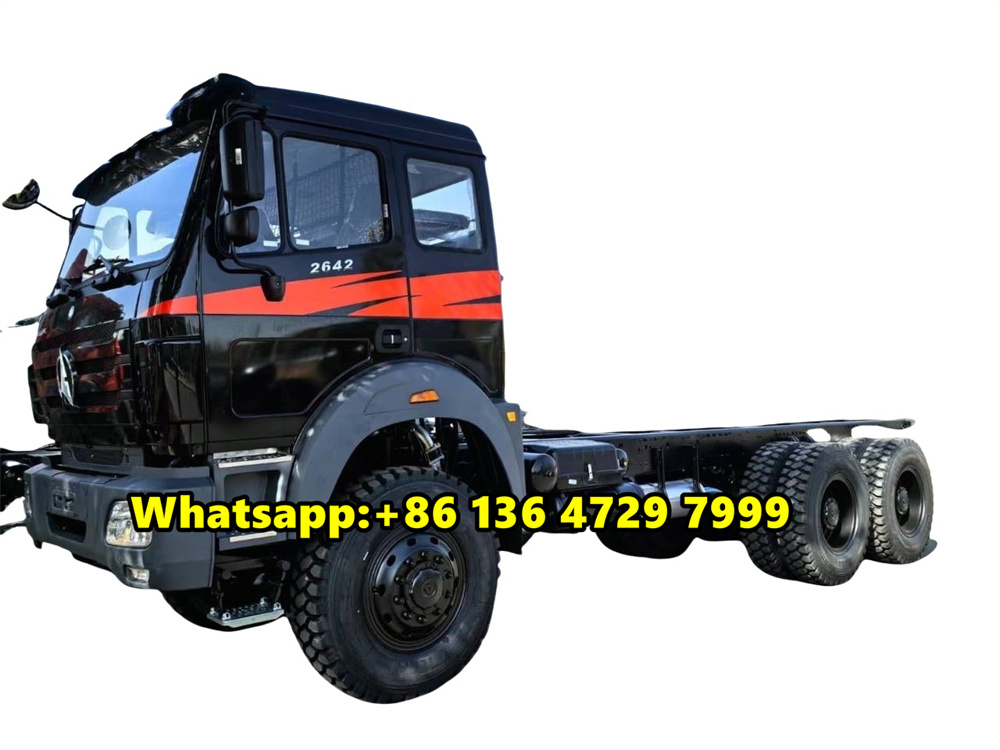

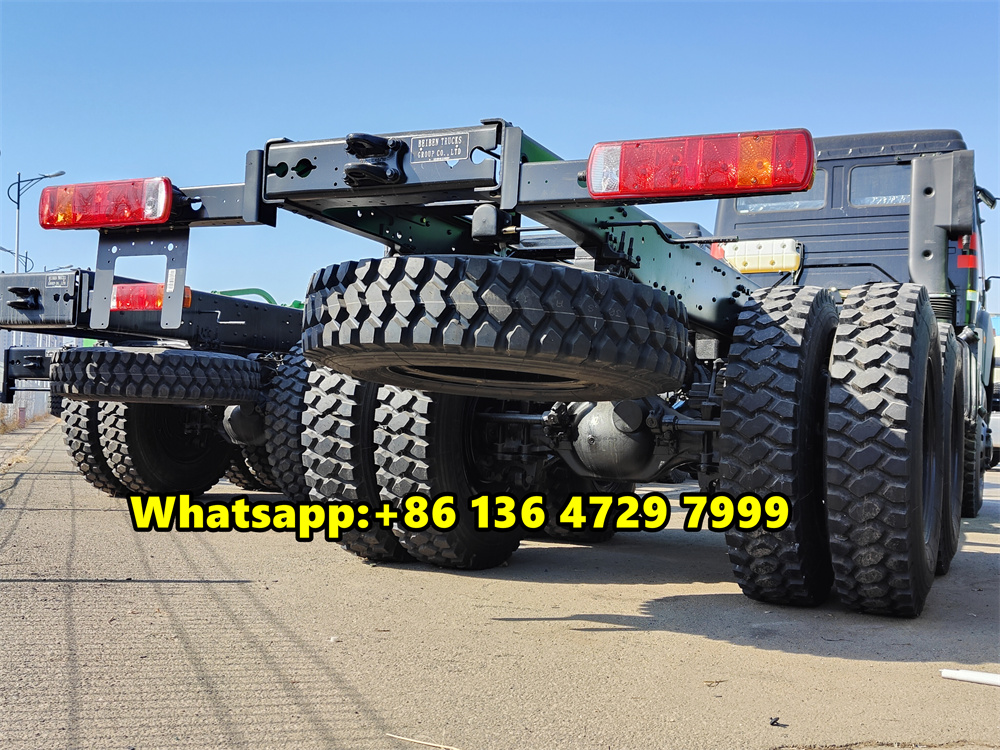

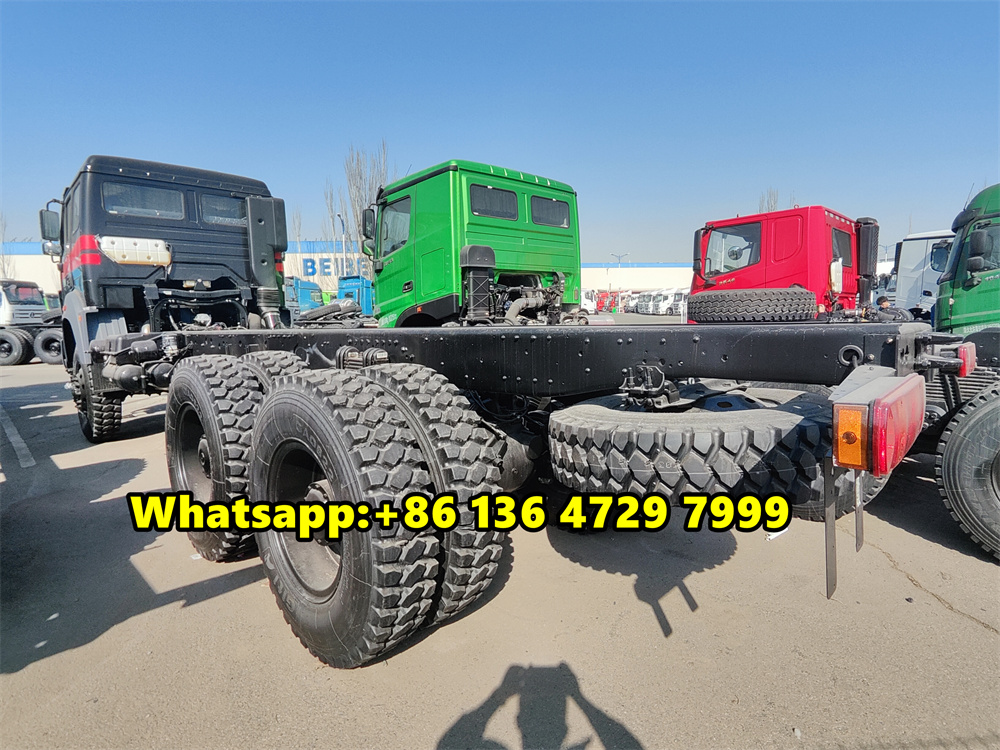

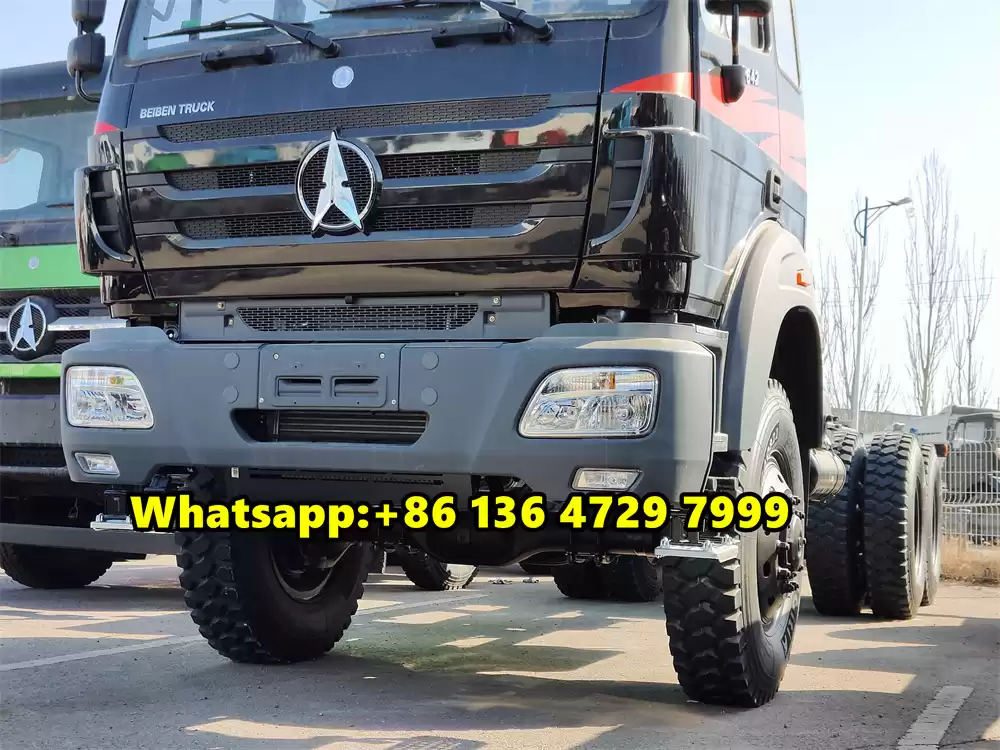

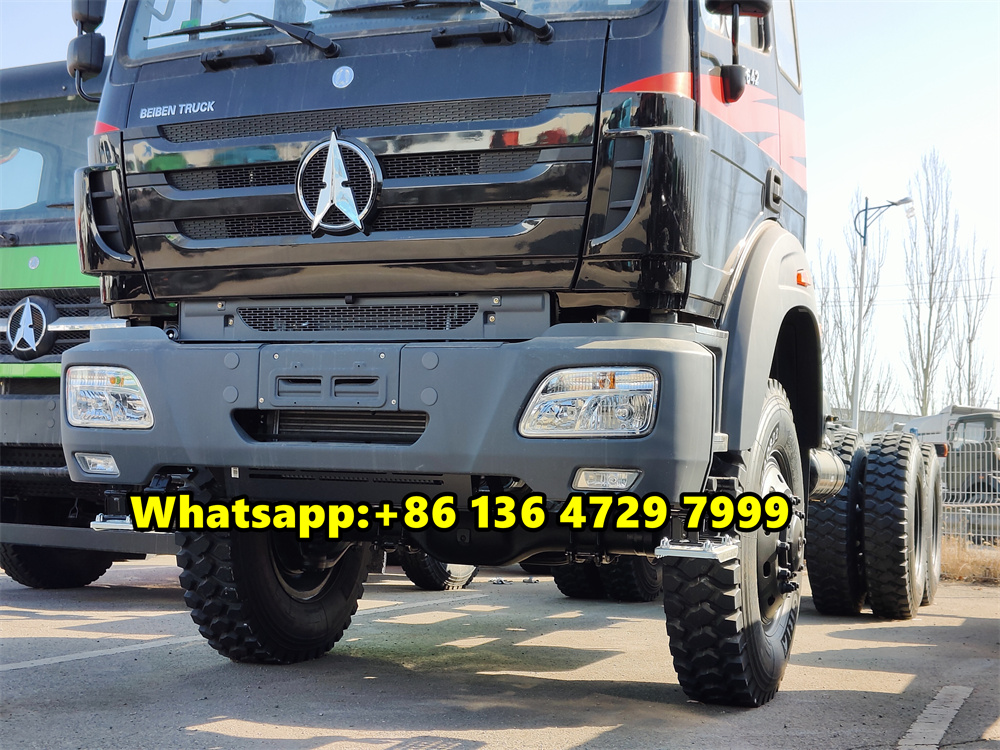

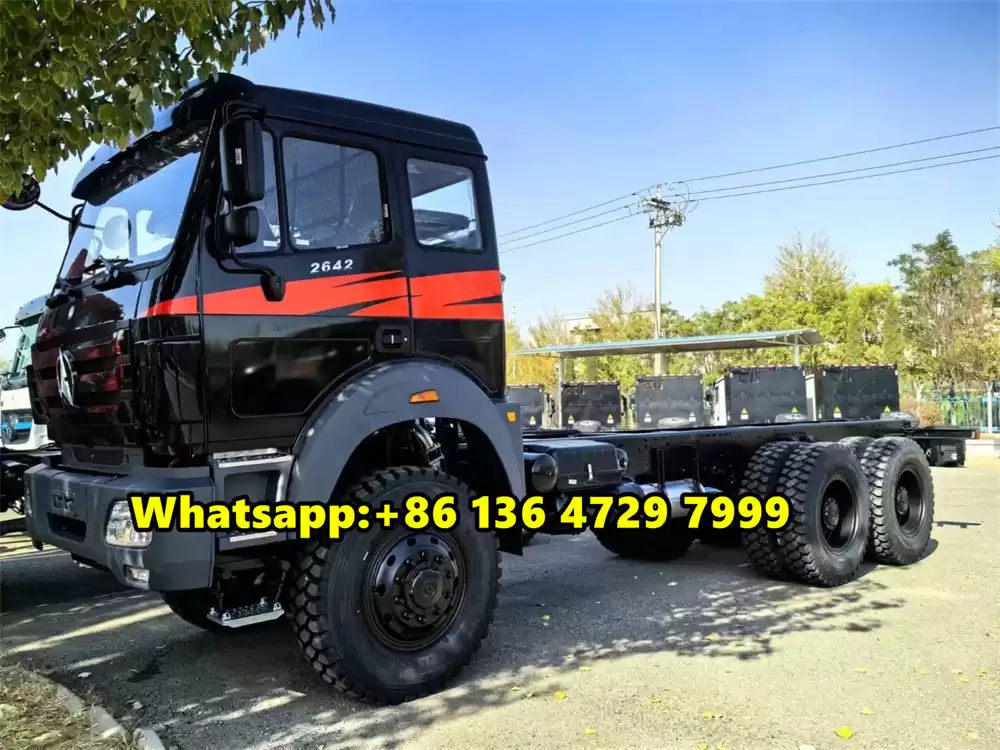

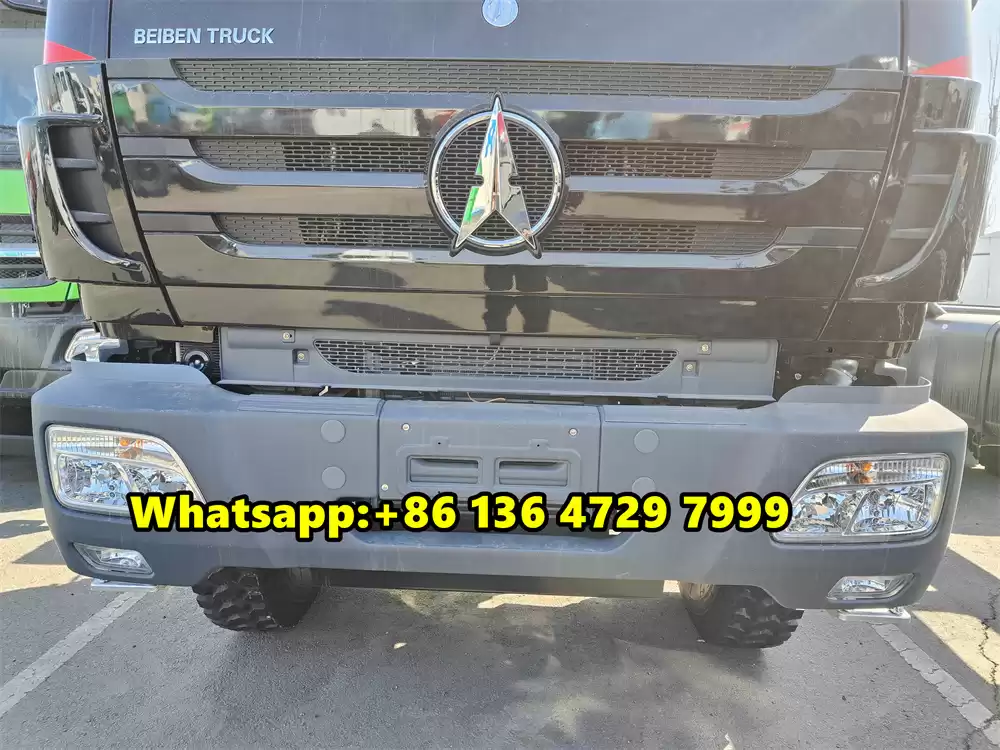

Beiben 2642 off road truck with 12.00R24 tyre

The Beiben 2642 off-road truck equipped with 12.00R24 tires is a rugged and reliable vehicle designed for challenging terrains and heavy-duty tasks. With its powerful engine and robust construction, this truck is capable of handling tough off-road conditions with ease. The 12.00R24 tires fitted on the Beiben 2642 provide excellent traction and stability, ensuring optimal performance in all types of terrain. These tires are designed to withstand heavy loads and rough surfaces, making them ideal for off-road applications.


  • Engine power420HP, WP12.420
  • Working Capcity50 Ton
  • Payment termsT/T
  • Production time30 days
  • Drive system6x6

The Beiben 2642 off road truck equipped with 12.00R24 tyres offers a range of benefits that make it a top choice for off-road driving. The advantages of these tyres can be divided into four key points:



1. Enhanced traction: The 12.00R24 tyres on the Beiben 2642 off-road truck provide excellent traction on various terrains, including mud, gravel, and rocky surfaces. The deep grooves and aggressive tread patterns help the tyres grip the ground firmly, reducing the risk of slippage and improving overall stability.

2. Increased durability: The 12.00R24 tyres are specifically designed to withstand the rigors of off-road driving. Their robust construction and tough sidewalls make them highly resistant to punctures, cuts, and abrasions, ensuring long-lasting performance even in challenging conditions.

3. Improved ride comfort: Despite their rugged construction, the 12.00R24 tyres on the Beiben 2642 off-road truck offer a smooth and comfortable ride. The advanced design of the tyres helps absorb shocks and vibrations, reducing driver fatigue and providing a more pleasant driving experience, even on rough terrain.

4. Superior load-carrying capacity: The 12.00R24 tyres have a high load-carrying capacity, allowing the Beiben 2642 off-road truck to transport heavy payloads with ease. The sturdy construction of the tyres ensures that they can support the weight of the truck and its cargo without compromising safety or performance.

Overall, the Beiben 2642 off-road truck with 12.00R24 tyres is a reliable and capable vehicle that is well-suited for off-road applications. With its excellent traction, durability, ride comfort, and load-carrying capacity, it excels in demanding environments and provides a dependable solution for off-road transportation needs.

beiben 2642 truck with 12.00R24 tyre



Required Technical Specification

Basic parameter



Mode

2638PZ/6×4

Length×width×height(mm)

9526×2500×3385

Wheel-base(mm)

4450+1450

Curb weight(kg)

11400

Engine parameter

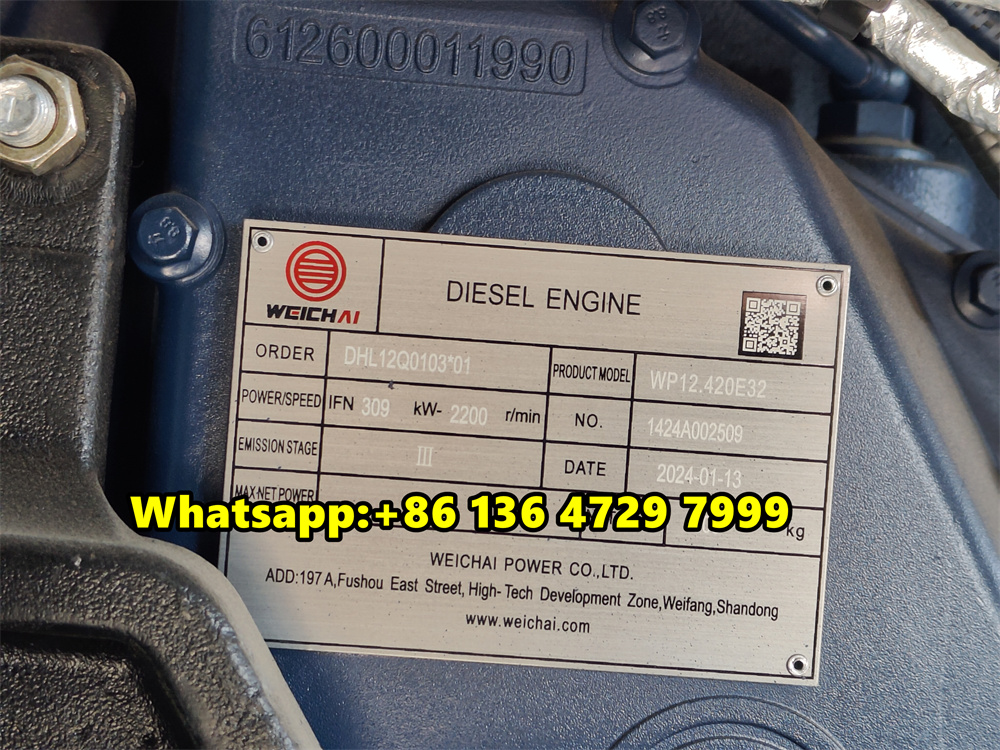

Model (six cylinder in line)

WP12.420E32

Max. Power (HP/rpm)

420

Max. Torque(Nm/rpm)

1600/14001600

Displacement(lit)

11.726 L

Fuel tank capacity

400L Iron oil tanker  400L

Transmission system



Clutch

430 Single disc, dry type, friction clutch

Gearbox

Mechanical, 9JS150A

Steering system



Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system



Service brake

Double circulation air brake system equipped

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake



Chassis parameter



Frame

Variable width and section  317×70×8.5+7+8.5 mm

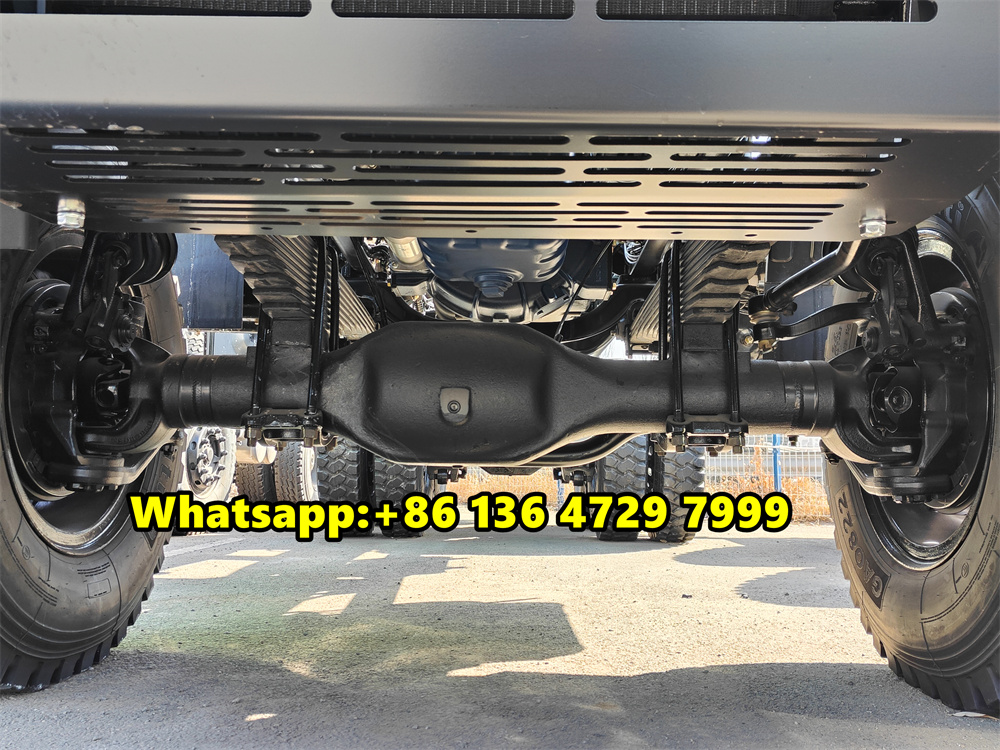

Front axle

7.5 T, no-driving steering axle, drum brake

Middle & Rear axle

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

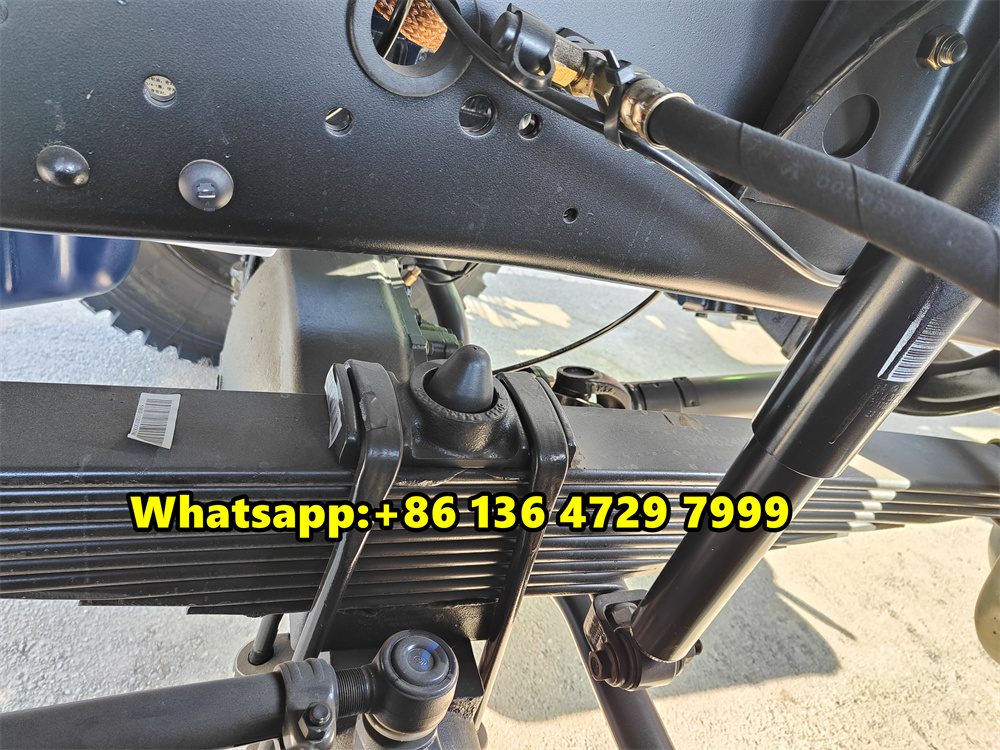

Front and rear suspension

Front/rear: Leaf spring, 13/13 pieces

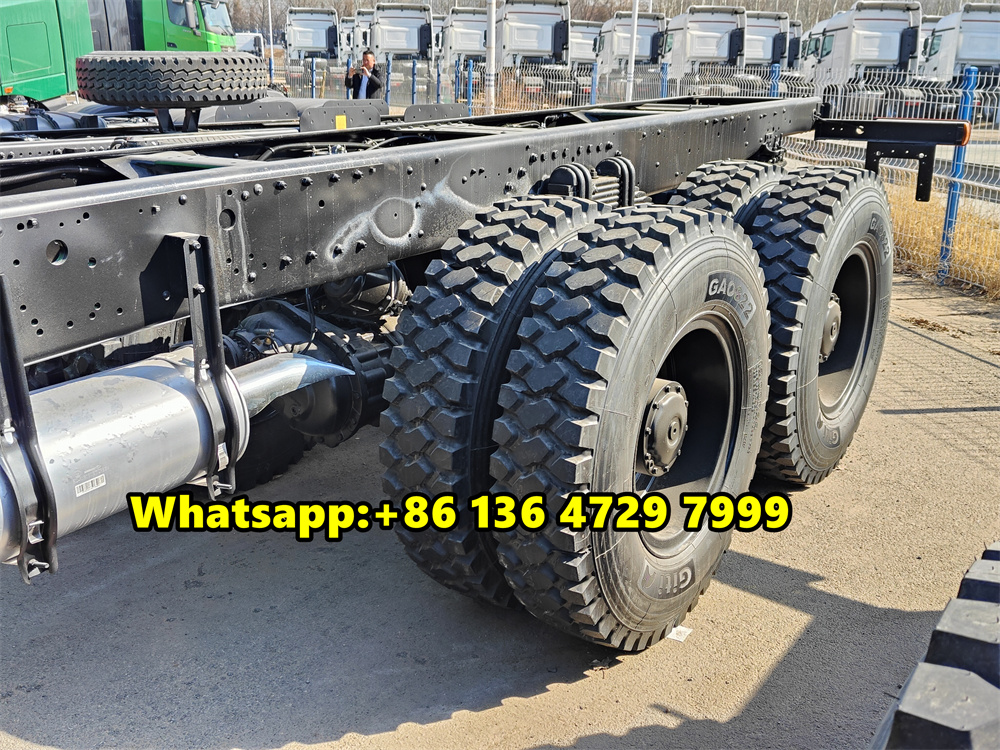

Tire

12.00R24

Cab



NG80B Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).



Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument



Offer



beiben 2642 truck with 12.00R24 tyre

beiben 2642 truck with 12.00R24 tyre

beiben 2642 truck with 12.00R24 tyre



beiben 2642 truck with 12.00R24 tyre



beiben 2642 truck with 12.00R24 tyre

beiben 2642 truck with 12.00R24 tyre


Product Tags beiben 2642 off road truck          beiben 2642 heavy duty truck          beiben 2642 all wheel drive truck          beiben 2642 military truck          beiben 2642 cabin 6x6 drive truck
