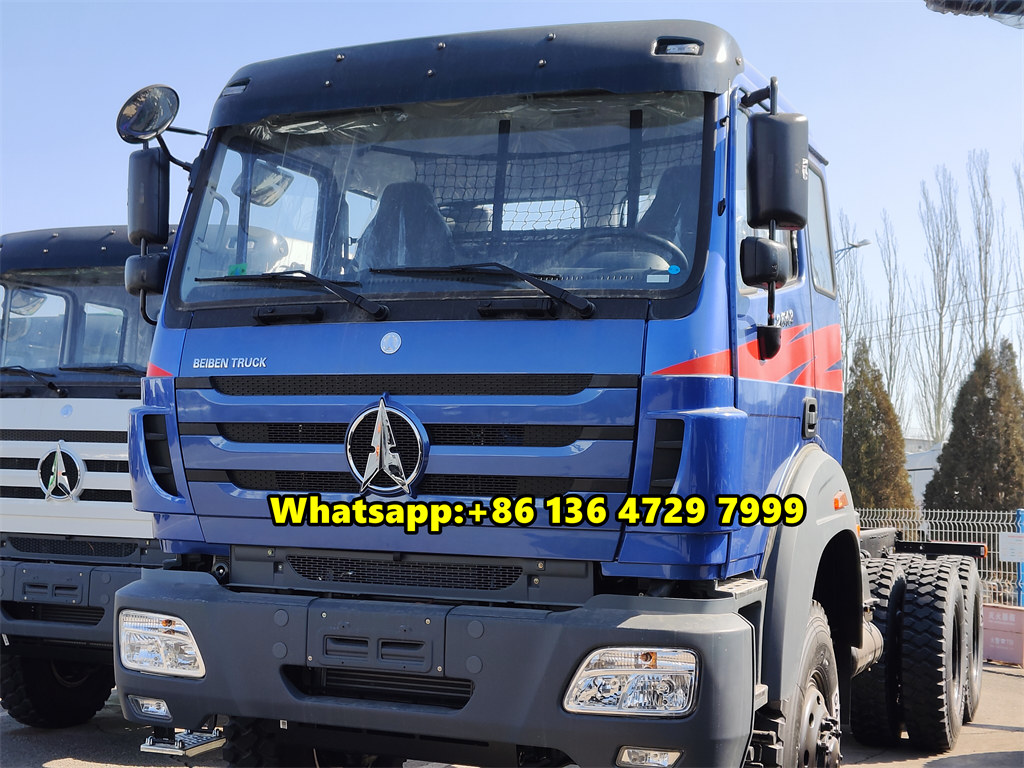

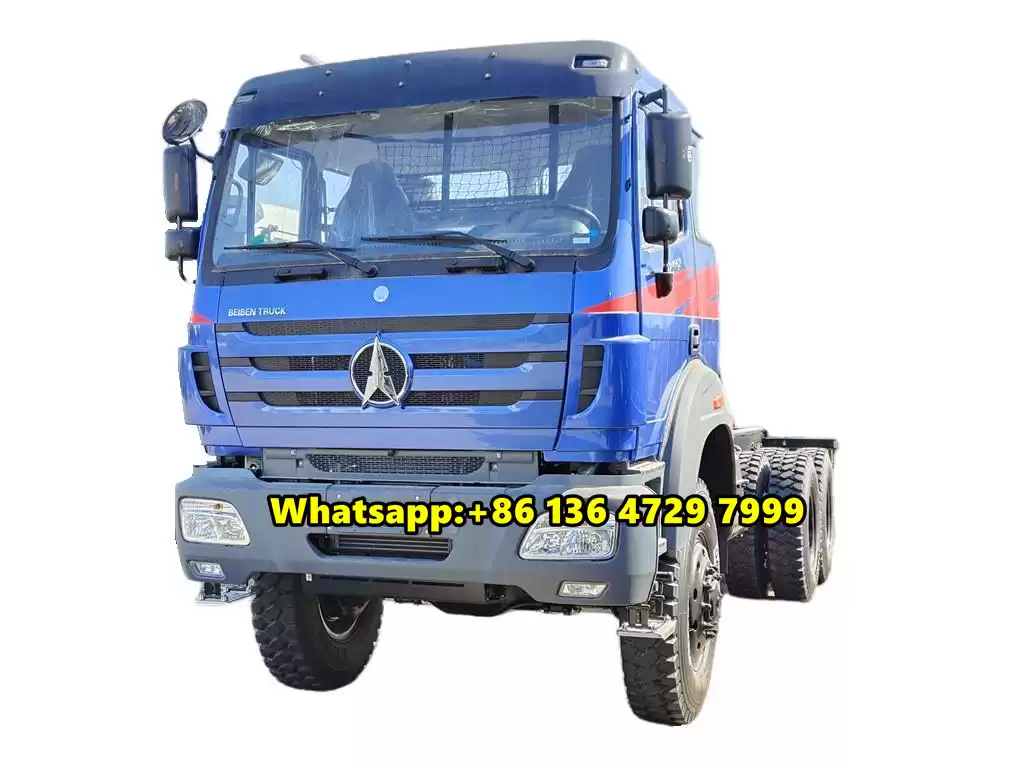

Beiben 2642 offroad 6x6 cargo truck

Beiben 2642 cargo truck chassis, offroad Beiben 6x6 all wheel drive truck, equipped with WEICHAI WP12.420E32 diesel engien with 420HP, FAST 12-shift manual gearbox with 12 forward and 2 reverse back, Beiben truck wheelbase 4450+1450mm, and overall dimension 9500x2500x3200mm, Classical NG80B cabin with comfortable driver seat and customized double sleeper bed. equipped with ZF8098 steering system, which is whole circulation in ball type and hydraulic boosting. Front axle 7tons and rear double axle 13tons, durable quality double reduction with speed ration 5.263. Mounted with 12.00R24 radial tires, which is much higher and very suitable for rough road in Africa countries DR Congo, Tanzania, etc.


  • Drive system6x6
  • Engine power420HP
  • Working Capcity30-40 tons
  • Payment termsTT
  • Production time30-35days

Beiben all-wheel drive chassis refers to a truck chassis that uses full-time 6x6 all-wheel drive technology. Beiben 2642 offroad 6x6 cargo truck full-time all-wheel drive means that all wheels of the vehicle can provide driving force at any time, and the torque output by the Beiben truck mounted WEICHAI WP12.420E32 engine can be distributed to all front and rear wheels in different proportions according to the different conditions of the driving road. This driving method can effectively avoid the occurrence of understeer and oversteer and improve the driving stability of the vehicle.

BEIBEN Trucks is one of the famous domestic top-class heavy-duty truck in China. With abundant technical staff, advanced equipment and modern managing system, our company has series of products, such as heavy-duty trucks, dump trucks, tractors and special trucks. The driving type includes 4x2, 4x4, 6x2, 6x4, 6x6, 8x4 and 8x8. With WEICHAI diesel engine. As far as power concerned, we have covered series types from 240 to 480Ps, and can also meet customers' different needs.

Regarding the world-leading technology used in Beiben 6x6 offroad truck chassis, according to my knowledge, the following are some possible aspects:

Drive and suspension system:
Beiben trucks adopts 6x6 all-wheel drive design to provide excellent off-road capability and stability.
It may be equipped with advanced suspension systems such as non-independent suspension, balanced suspension, etc. to improve off-road performance and ride comfort.

Chassis design:
The Beiben 2642 offroad 6x6 cargo truck chassis design may be optimized to adapt to extreme off-road environments and ensure the reliability of the vehicle under various terrain conditions.
It adopts an equal-width straight beam frame, and the width and thickness design of the upper and lower fenders of the side beam may be accurately calculated to provide good load-bearing capacity and stability.

Engine and gearbox:
Beiben 6x6 offroad cargo truck may be equipped with a high-performance engine such as Weichai WP12.420E32/420HP, turbocharged and intercooled, with excellent power and economy.
The gearbox may adopt 12JS200T 12-speed, manual, mechanical, providing a smooth shifting experience and a wide speed range.

Braking and steering system:
Benz 2642 beiben 6x6 cargo truck equipped with a dual-circuit pneumatic brake system that can automatically adjust the brake clearance, as well as auxiliary braking methods such as engine exhaust braking to ensure braking effect.
Adopting the ZF8098 integral circulating ball steering gear, hydraulic power assistance, providing sensitive and precise steering response.

Body and interior:
The North benz 2642 Beiben 6x6 truck equipped with NG80B cabin body may be made of all-steel material, with a front hydraulic flip cab design to provide good safety protection.
The interior design is simple and practical, and the main driver's seat may adopt a lifting design to provide a comfortable driving experience.

Wheel base(mm) 4450+1450
L*W*H 9500X2500X3300
Curb weight(kg) 9900
Front overhang/rear overhang (mm) 1410/1940
Approach angle/Departure angle 26/20
Max Speed:(Km/h) ≤85
Model WP12.420E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
Engine  Fuel type Diesel
Min rate of consuming fuel(g/(kw.h)) 192g/kw.h
Rated Power / rotating(kw/(r/min) 309Kw(420HP)/2200rpm
Emission EURO3
Maximum Torque / rotating speed(n.m/(r/min) 1750Nm/1500-1800rpm
Displacement(ml) 11.596
Fuel tanker capacity(L) 400L+400L Iron
Transfer case LF200
Clutch Model #430, Single dry frictional disc,Hydraulic boosting
Gearbox Model 12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear.
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system Model 8098 whole circulation in ball type, hydraulic boosting

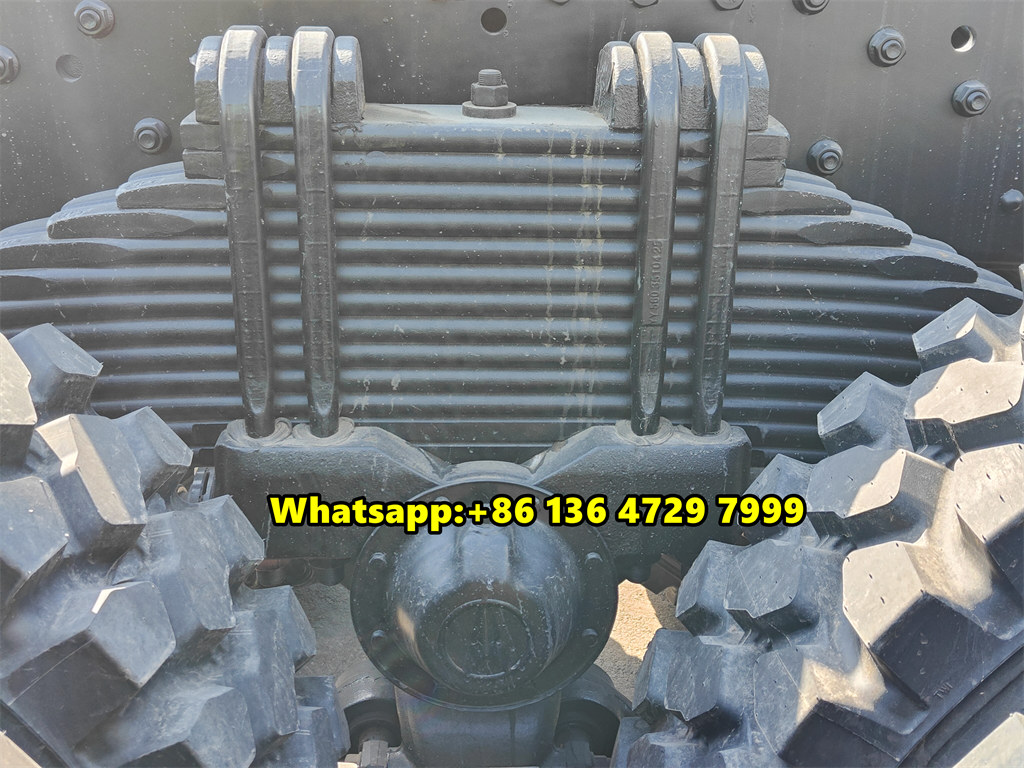

Suspension System Front Suspension Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,10 pcs springs.
Rear Suspension Non-free standing stabilization spring, stabilization suspension,13 pcs springs
Frame Fish belly shape, variable width, variable sections, Based on Germany Benz Technology
Cross section dimension of frame(mm) 317×70×8.5+7+8mm
Front axle (Mercedes Benz Technology) Double-shoe pneumatic brake, 8 ton driving steering axle

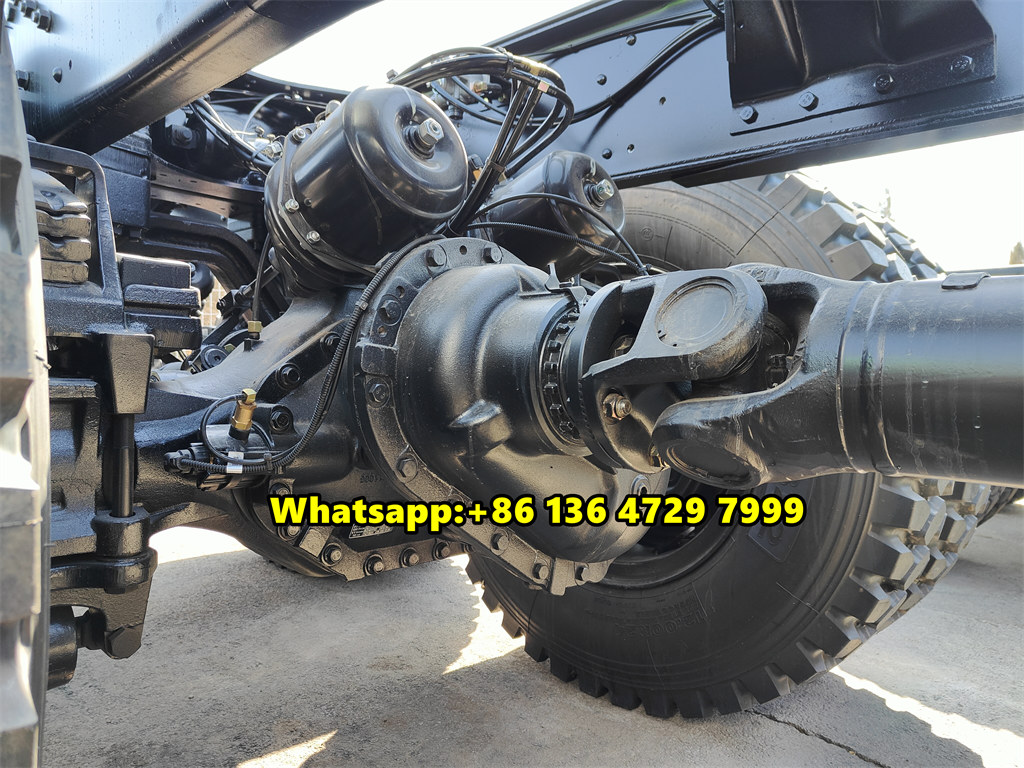

Middle and Rear axle (Mercedes Benz Technology)  Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263
Tire 12.00R20 OR 12.00R24  radial tire
Electrical system Battery 2X12V/135Ah
Generator 28V-70A
Starter 5.58Kw/24V
Cab NG80B left hand drive
Long cab with one sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C
Exterior trimming:
Metal bumper, two steps, new mirror.
Other specifications Two-stage air filter, 76°Tropical thermostat.
Upbody Longth 7m
  • #

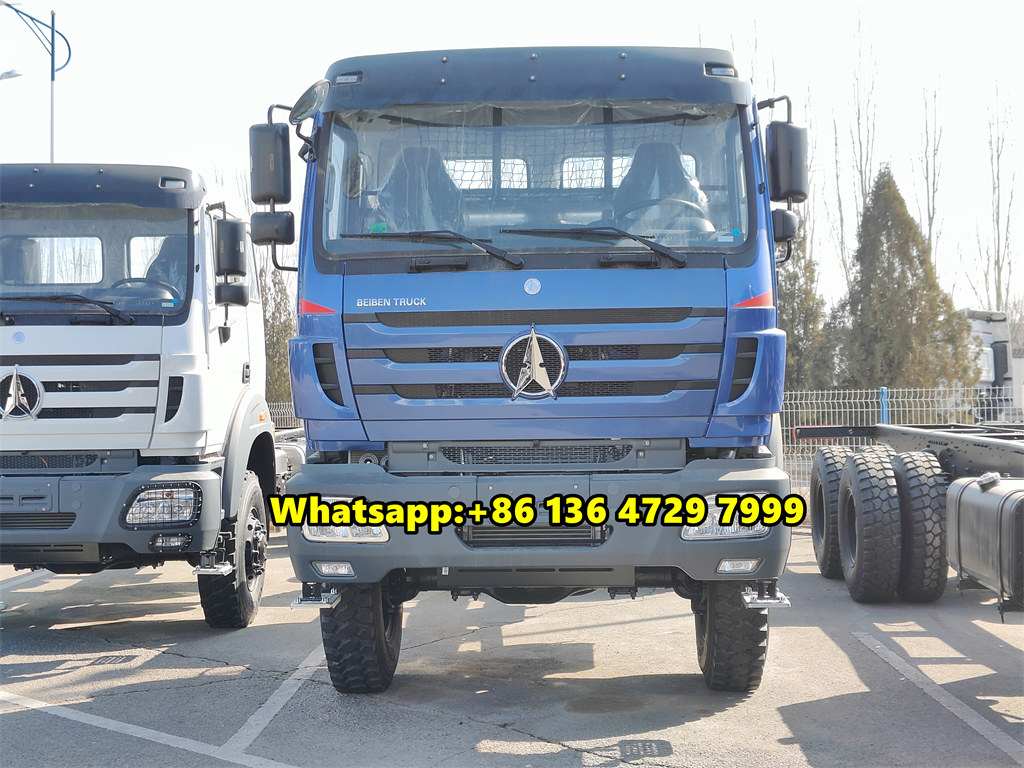

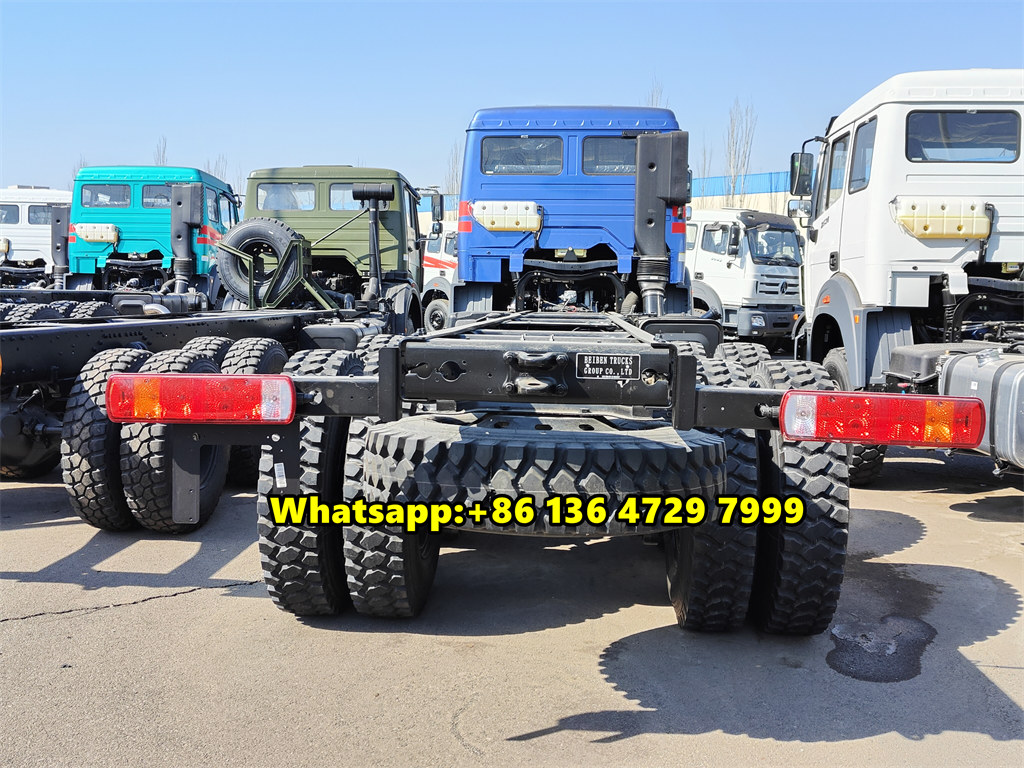

    Beiben 2642 offroad truck chassis
  • #

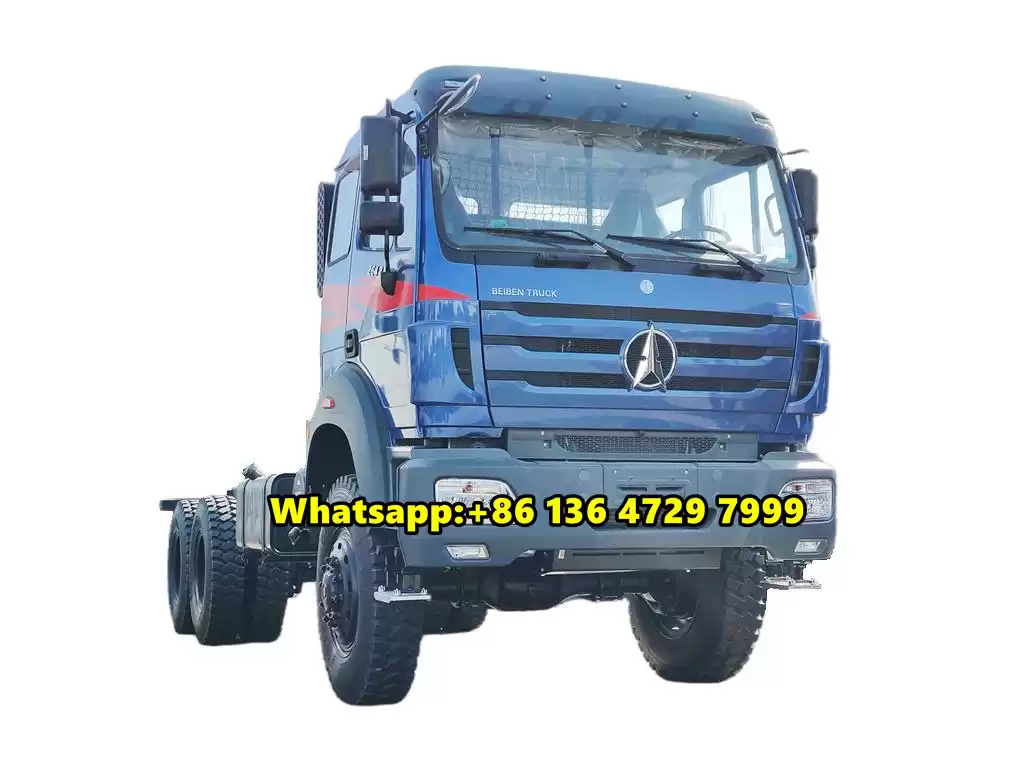

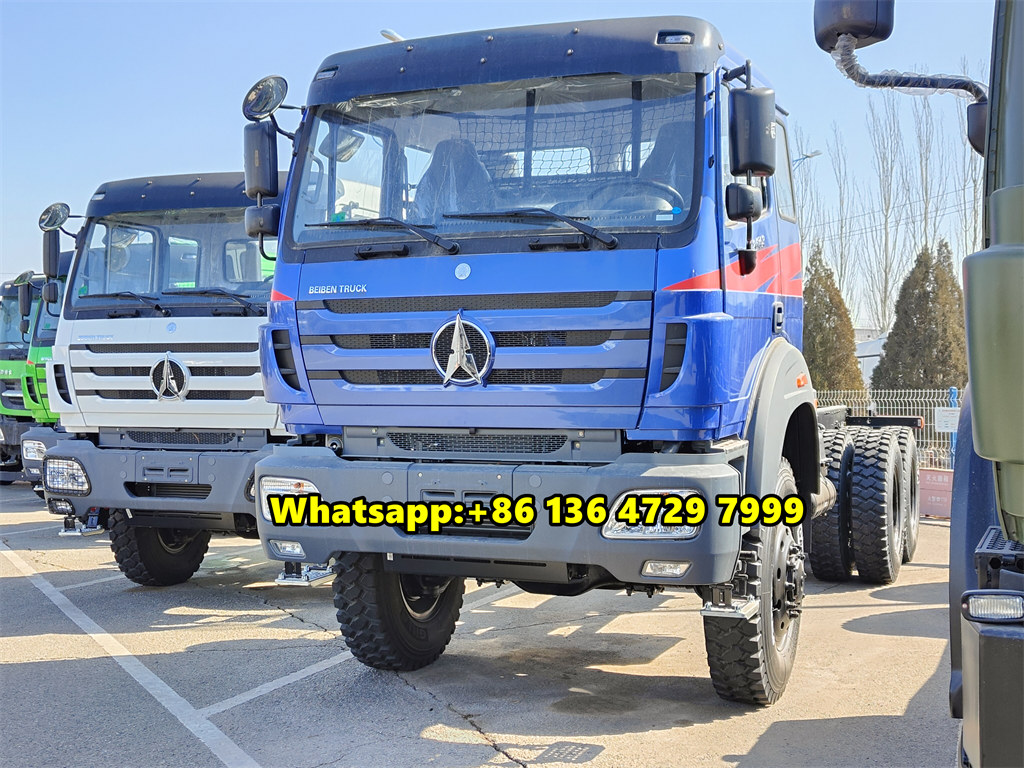

    Beiben 2642 lorry truck chassis NG80
  • #

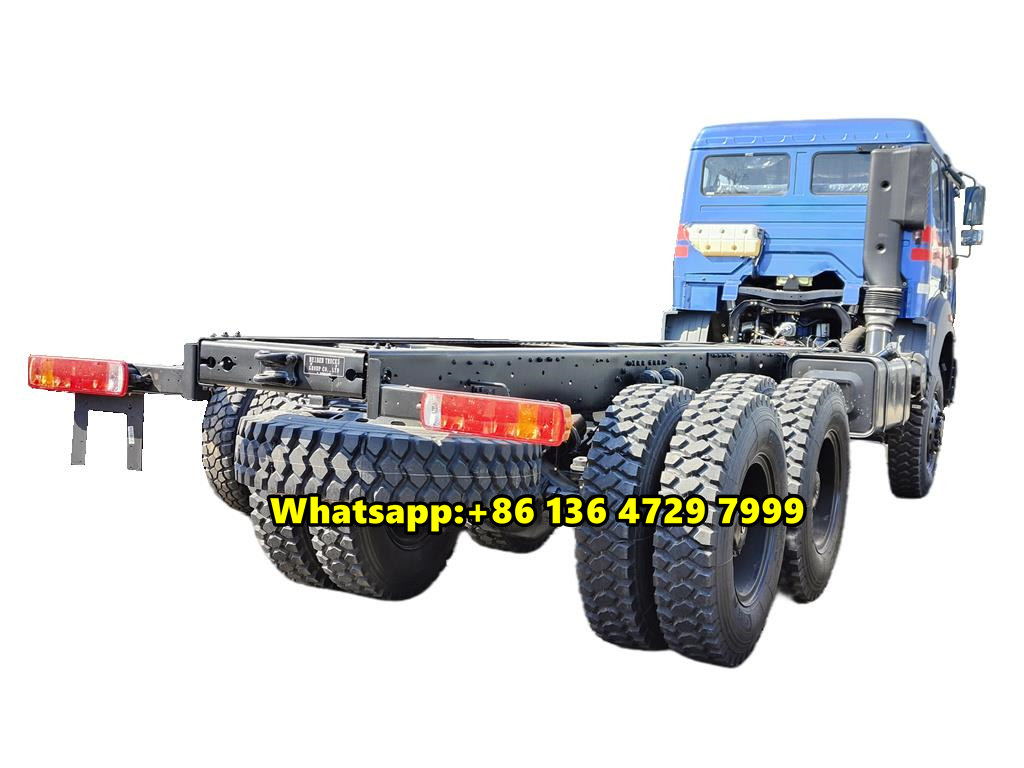

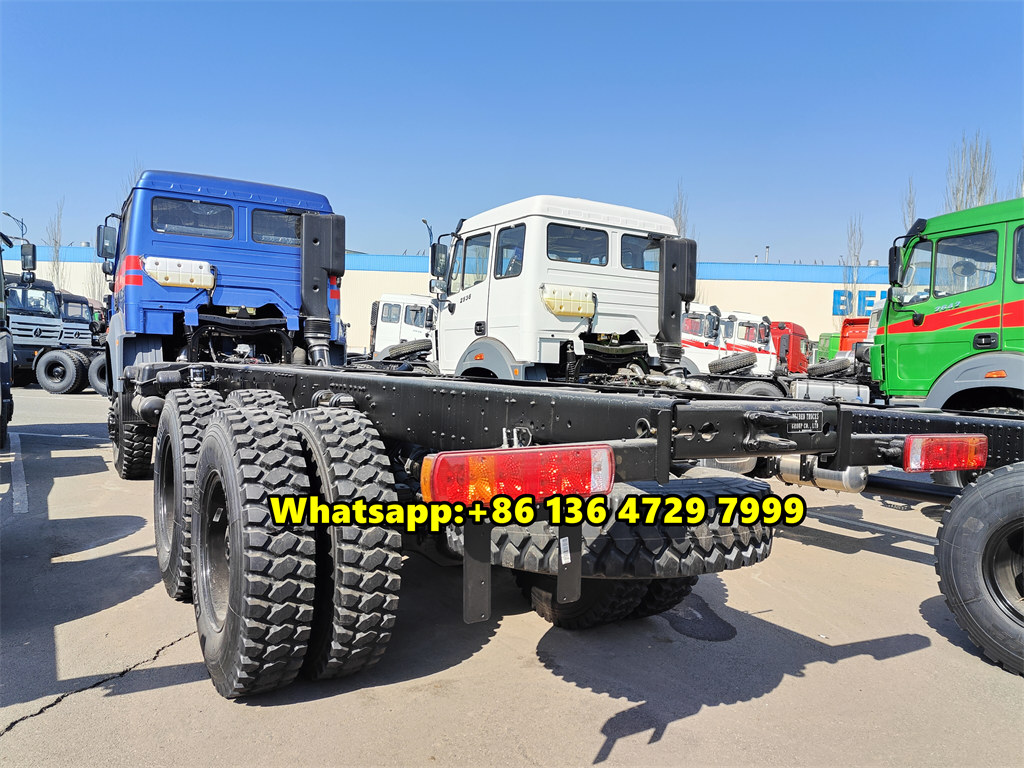

    Beiben 6x4 cargo truck chassis stronger frame
  • #

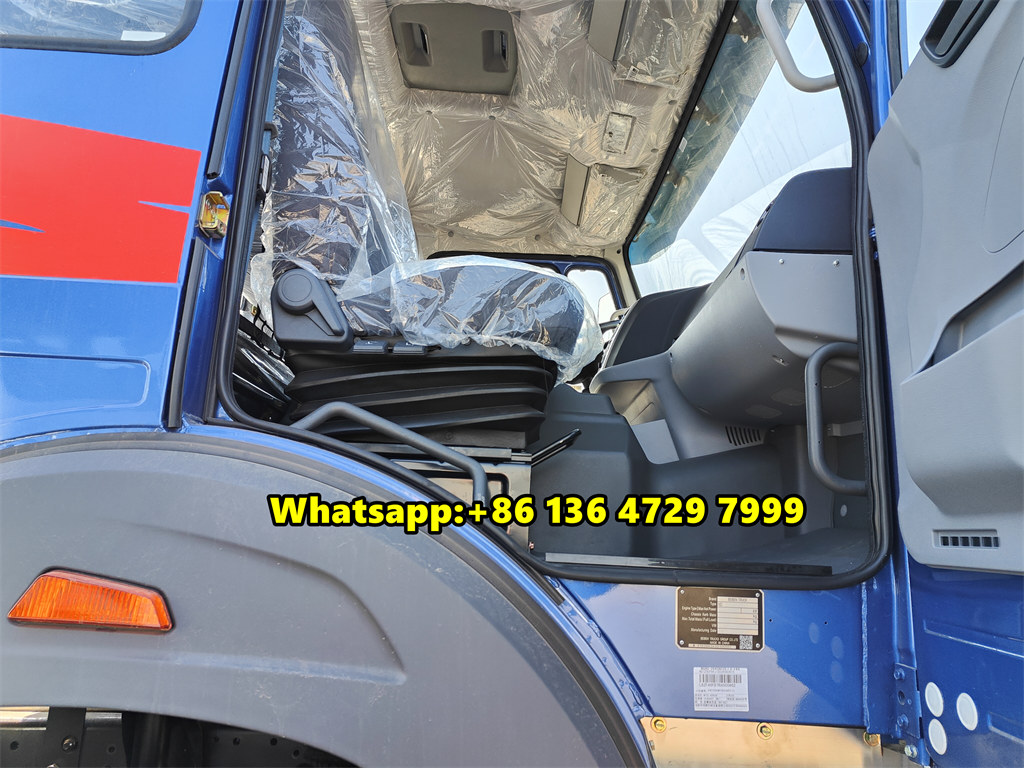

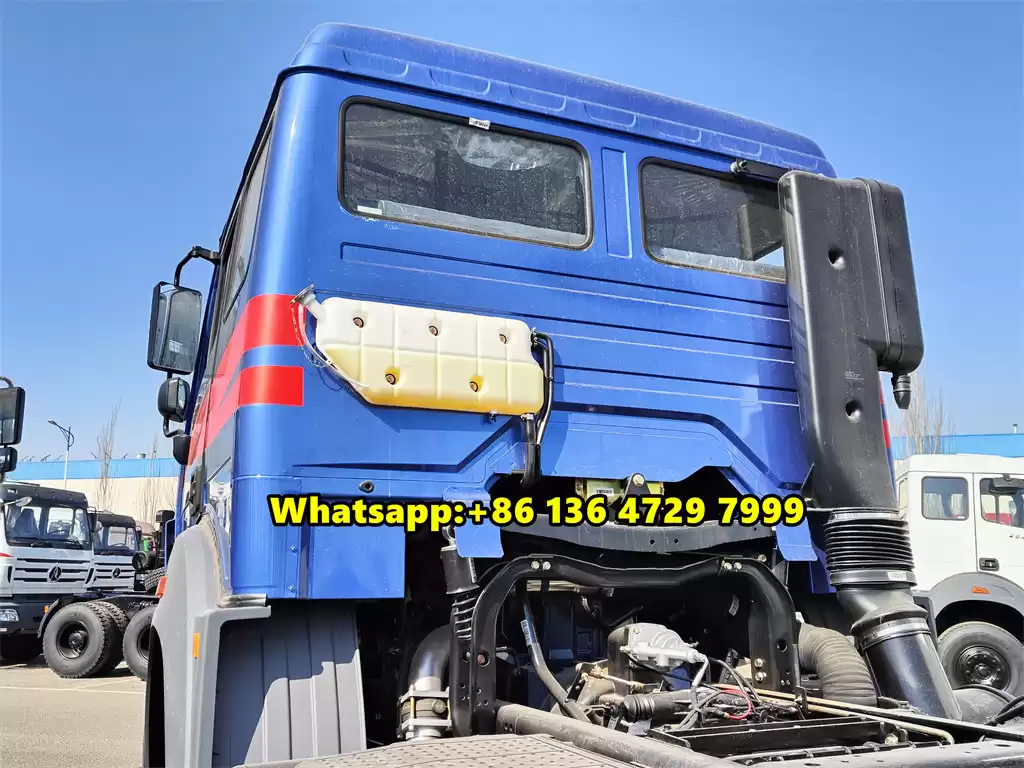

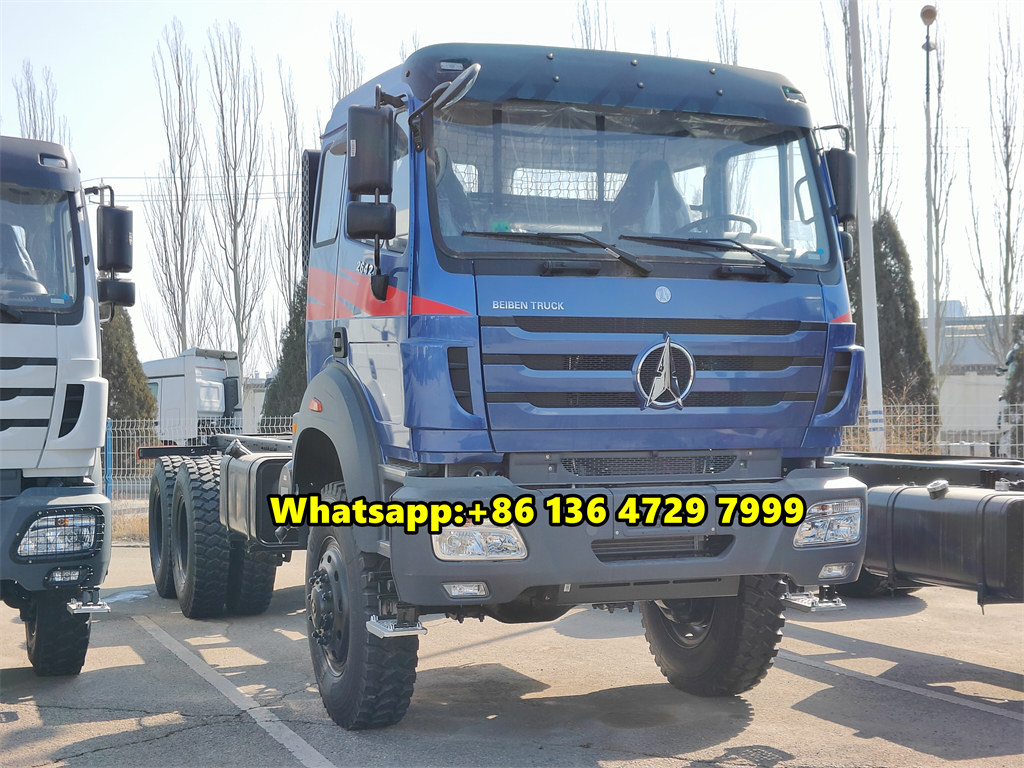

    Beiben 2642 truck chassis NG80 Cabin
  • #

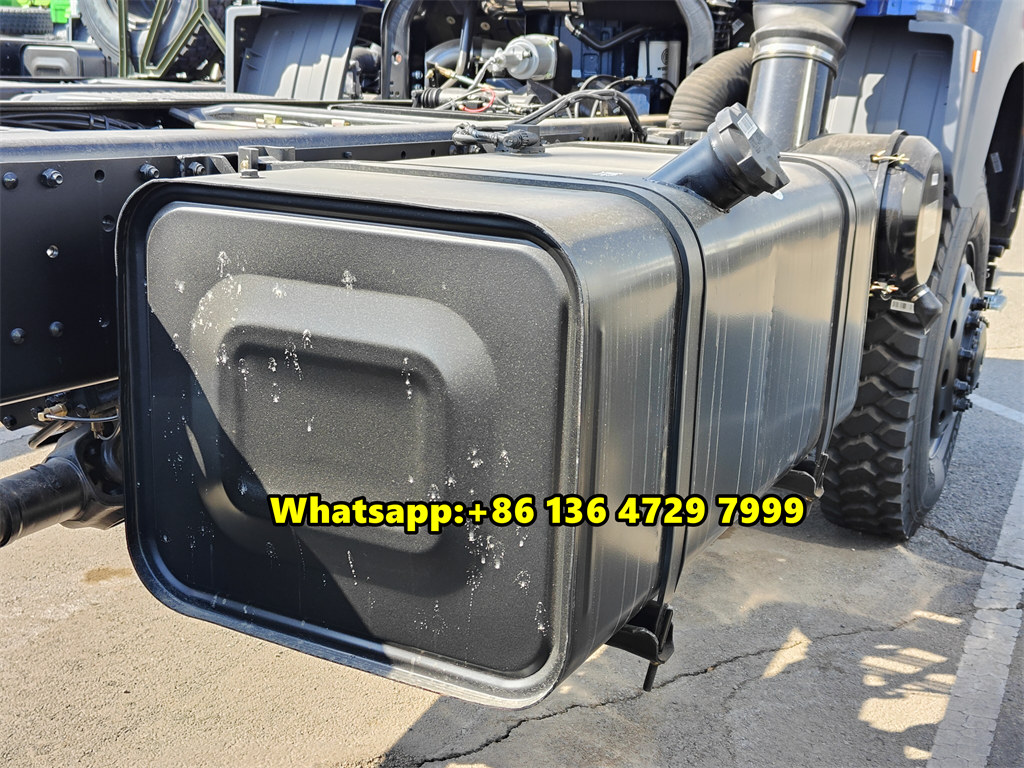

    Beiben 2642 NG80 truck fuel tanker 400L
  • #

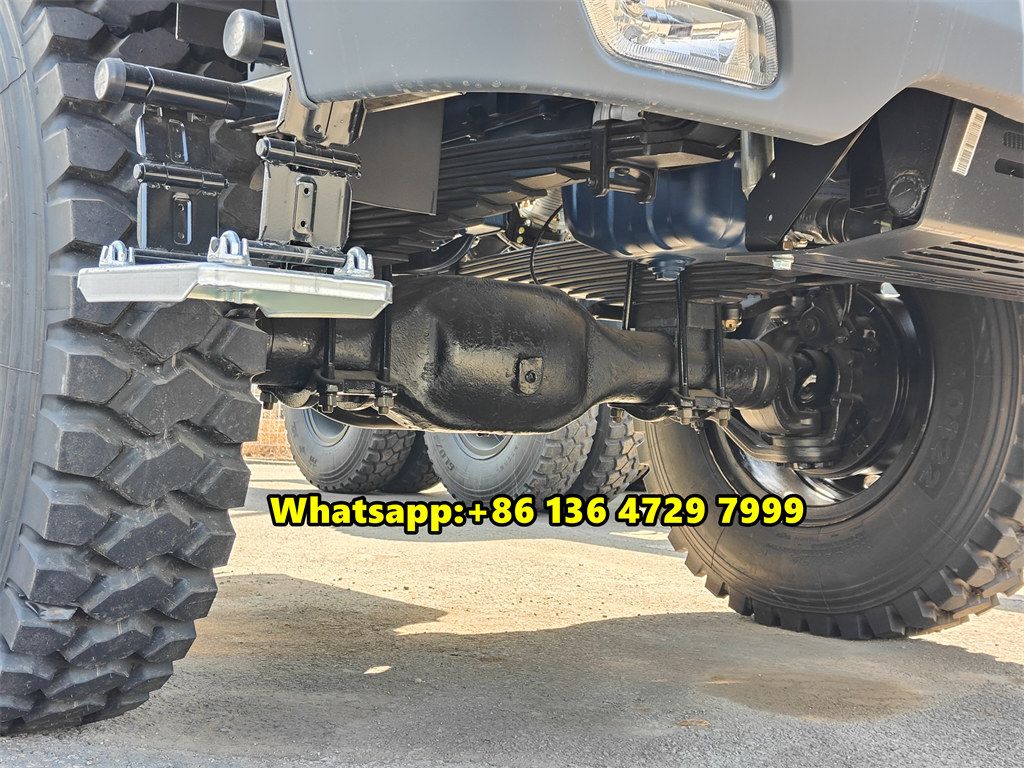

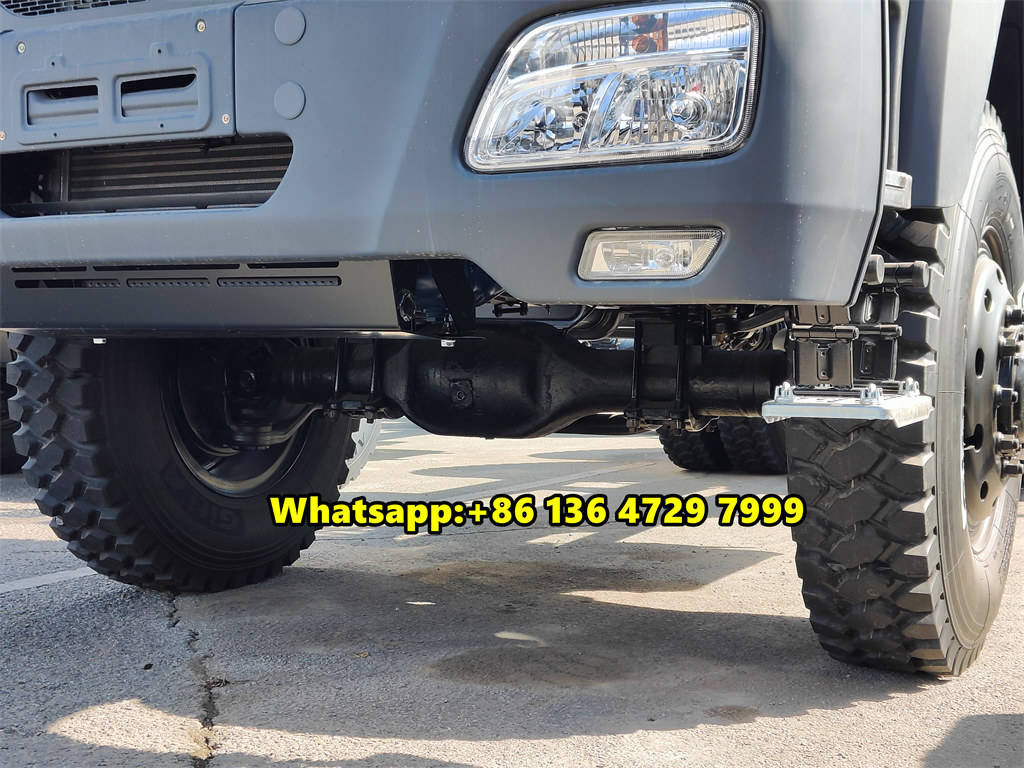

    Beiben 6x6 truck chassis front axle
