Product Descriptions
The Beiben 2642 tractor truck, designed specifically for long-distance transportation and heavy-load operations, stands out in the industry with its exceptional performance and robust structure. With a wheelbase of 3450+1450mm, it provides a stable foundation for smooth driving. The curb weight of 8800kg demonstrates its sturdy construction and impressive load capacity. Furthermore, with a maximum towing capacity of 40,000kg, it fully meets the demands of long-distance logistics and high-load transportation.

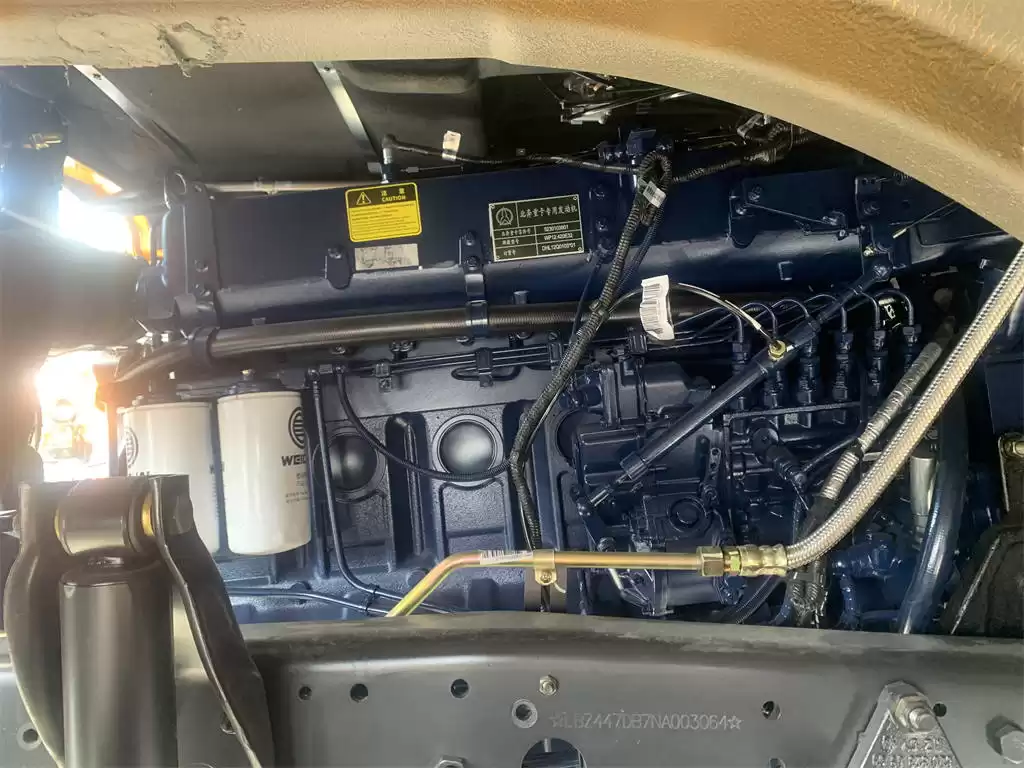

The Beiben 2642 tractor head is equipped with the WP12.420E32 engine, which utilizes water cooling, a four-stroke cycle, an inline six-cylinder layout, and turbocharging technology, powered by diesel fuel. This engine not only delivers strong power but also meets EURO 3 emission standards, ensuring both power output and environmental compliance. The 12L displacement provides ample power reserves for the vehicle.
The steering and suspension systems are also key features of the Beiben 6×4 tractor truck. It incorporates the 8098 steering system, which offers flexible and convenient operation. The suspension system combines a front non-independent suspension with leaf springs and a telescopic shock absorber with a stabilizer bar, as well as a rear non-independent suspension with stabilizing springs and a stable suspension setup, ensuring a smooth and comfortable driving experience.
Product Specifications
|
Wheel base (mm)
|
3450+1450
|
|
Curb weight (kg)
|
8800
|
|
Max. towing weight (kg)
|
40000
|
|
Max Speed (Km/h)
|
≥90
|
|
Dimension (Length*Width*Height)
|
6935*2495*3340mm
|
|
Engine
|
Model
|
WP12.420E32
|
|
Power
|
420HP/309KW
|
|
Type
|
water-cooled, four strokes, 6 cylinders straight in line, turbocharged
|
|
Fuel type
|
Diesel
|
|
Emission
|
EURO 3
|
|
Displacement(L)
|
12
|
|
Fuel tanker capacity (L)
|
400L
|
|
Clutch
|
Model
|
Φ430, Diaphragm Spring, Hydraulic boosting
|
|
Gearbox
|
Model
|
12JS160T, mechanical type,12 Forward speed gear.
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
Model
|
8098
|
|
Suspension system
|
Front Suspension
|
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,
|
|
Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension,
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Cross section dimension of frame(mm)
|
317×70×8.5+7mm
|
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.921
|
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Middle axle: HD7/016DGS-13/5.921
Rear axle: HL7/015DS-13/5.921
|
|
Tire
|
12.00R20
|
|
Qty of tire
|
11
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cab
|
Long cab with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly
|
|
Interior trimming:
High back/shock absorption seat for driver. Inner A/C, Manual door locks, manual glass lift
|
|
Exterior trimming:
NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.
|
|
Fifth wheel
|
#50 single direction
|

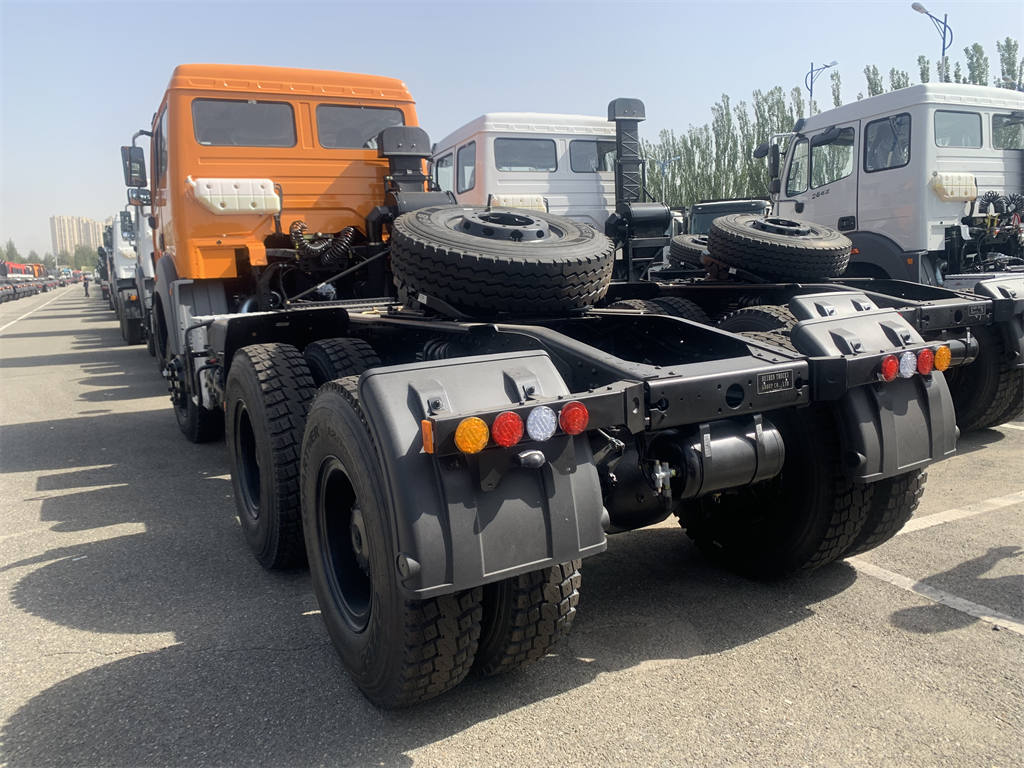

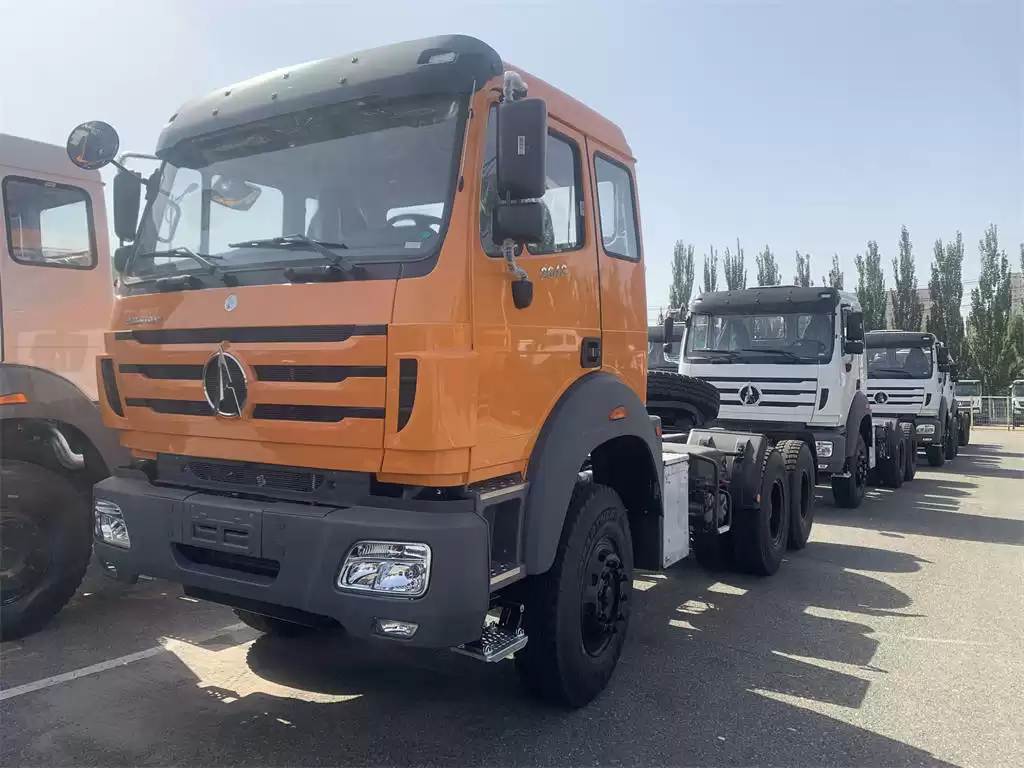

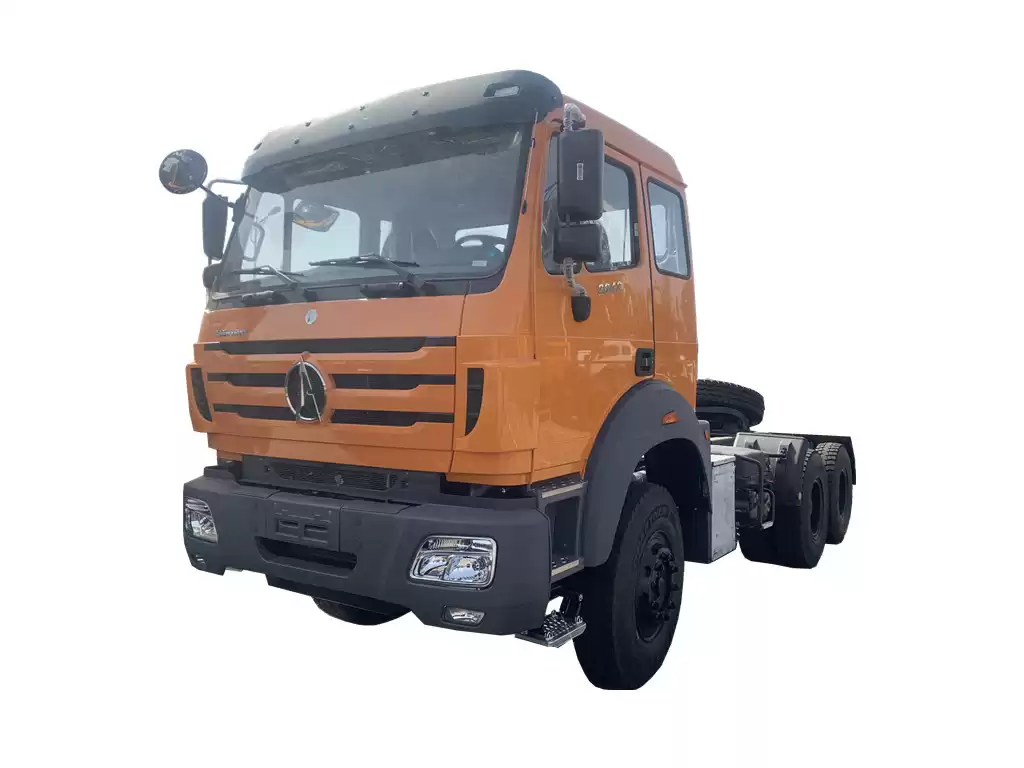

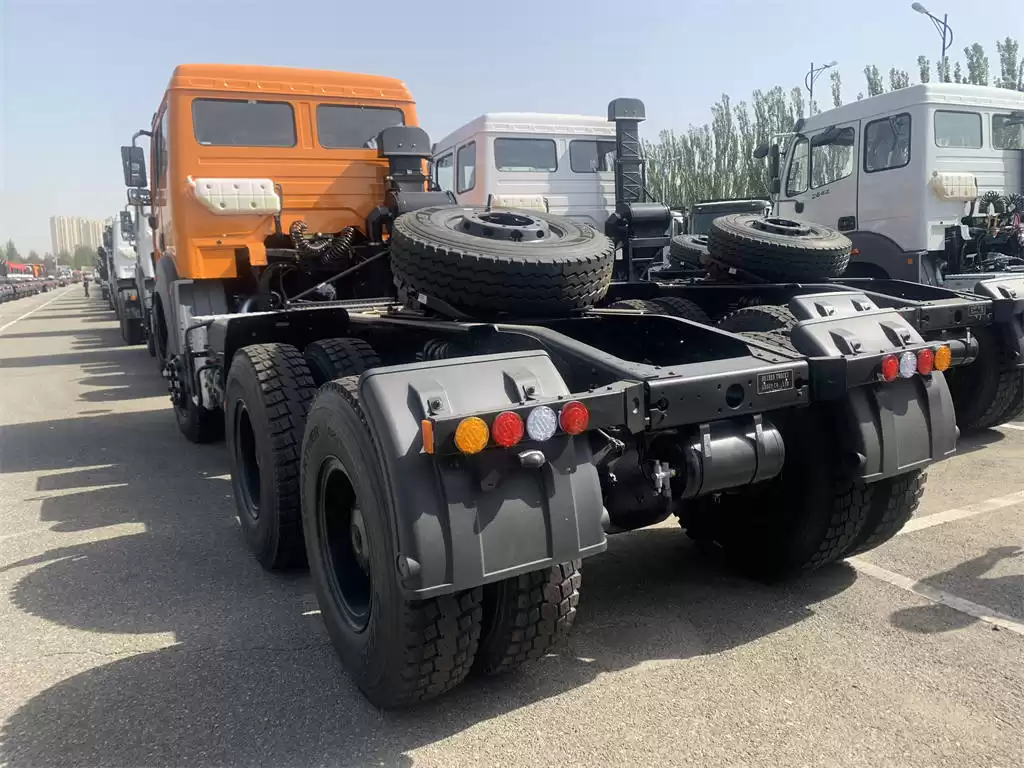

Product Details
