Beiben 2642 trailer tractor head

The Beiben 2642 tractor head, leveraging German Benz technology, is specifically designed for heavy-duty transport. With overall dimensions of 7140×2500×3200 mm and a wheelbase of 3450+1450 mm, it is equipped with a WP12.420E32 diesel engine that delivers a maximum power of 308 kW (420 hp) at a rated speed of 2100 rpm, complying with EURO III emission standards. The vehicle features a 12JS200T mechanical transmission with 12 forward gears and a 400-liter fuel tank to ensure long-distance driving capability. Its dual-circuit air brake system, complemented by an ABS system, guarantees safe driving. With a maximum towing capacity of 40 tons, the Beiben 2642 tractor is an ideal choice for long-haul logistics and heavy-load transportation.


  • Engine power420 HP
  • Working Capcity40 tons
  • Payment termsTT
  • Production time30 days
  • Drive system6×4

Product Description



In the field of heavy-duty transport, the Beiben 2642 tractor truck has become the preferred choice for numerous logistics enterprises and individual transporters due to its outstanding performance, reliable quality, and wide applicability. Built upon German Benz technology, this tractor head not only inherits the exquisite craftsmanship and exceptional quality of the Benz brand but also undergoes optimization and innovation tailored to the Chinese market to meet various complex transportation needs.





The Beiben 2642 tractor head is equipped with the classic NG80 cab, featuring a full steel frame structure covered with double-layer steel plates, ensuring both sturdiness and safety. The cab can tilt forward, facilitating easy maintenance and repairs. The high-back seat, standard sleeper berth, heating and air conditioning system, high-top box, electric glass lifter, standard steering wheel, 24V power supply, radio with MP3 functionality, digital instrumentation, manually adjustable headlights, and central clock provide the driver with a comfortable and convenient driving environment.

Powered by the WP12.420E32 diesel engine, the Beiben 2642 trailer tractor utilizes water cooling, a four-stroke cycle, six-cylinder inline configuration, and turbocharging technology. With a maximum power output of 308 kW (420 hp) at a rated speed of 2100 rpm, this engine configuration ensures impressive performance during starting, acceleration, and climbing, with a maximum speed of no less than 90 km/h, fully satisfying the demands of long-distance high-speed transportation.

As a tractor head specifically designed for heavy-duty transport, the Biben 2642 prime mover boasts a maximum towing capacity of 40 tons. It finds wide application in long-distance logistics transport, heavy cargo transport, and construction material transport. Whether on highways or complex mountain roads, the Beiben 2642 tractor can easily handle the task, providing transport enterprises with efficient and reliable transportation solutions.





Product Specifications



Overall Dimension (L*W*H) (mm)

7140×2500×3200

Wheelbase (mm)

3450+1450

Curb weight (kg)

8800

Max towing weight (kg)

40000

Max Speed (km/h)

≥90

Engine

Model

WP12.420E32

Type

water-cooled, four strokes, 6 cylinders straight in line, turbocharged

Fuel type

Diesel

Maximum output power

308kw

Maximum hose power

420hp

Rated speed

2100 rpm

Emission

EURO III

Displacement (ml)

11596

Fuel tanker capacity (L)

400L fuel tank

Clutch

Model

430, Single dry frictional disc, hydraulic boosting

Gearbox

Model

12JS200T mechanical type, FAST brand ,12 Forward speed gear.

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake, with ABS system

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

TAS85 ZF8098

Suspension System

Rear Suspension

Non-free standing stabilization spring, stabilization suspension

Frame

Fish belly shape, variable width, variable sections
Based on Germany Benz Technology

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

HEAVY DUTY TYPE for Mongolia market. Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tire

12.00R20 radial tires

Qty of tire

11

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

With one sleeper (NG80 Cabin)
Full steel skeleton structure, covered with double layer steel plate;
Can be tilted forwardly;

high back seat for driver, one sleeper, standard sleeper box, heating and air conditioning, high roof box, electric glass riser, standard steering wheel, 24V power, radio (with MP3), digital instrument, manual adjustment of headlamps, with central clock.

Fifth wheel

#90 single direction / JOST

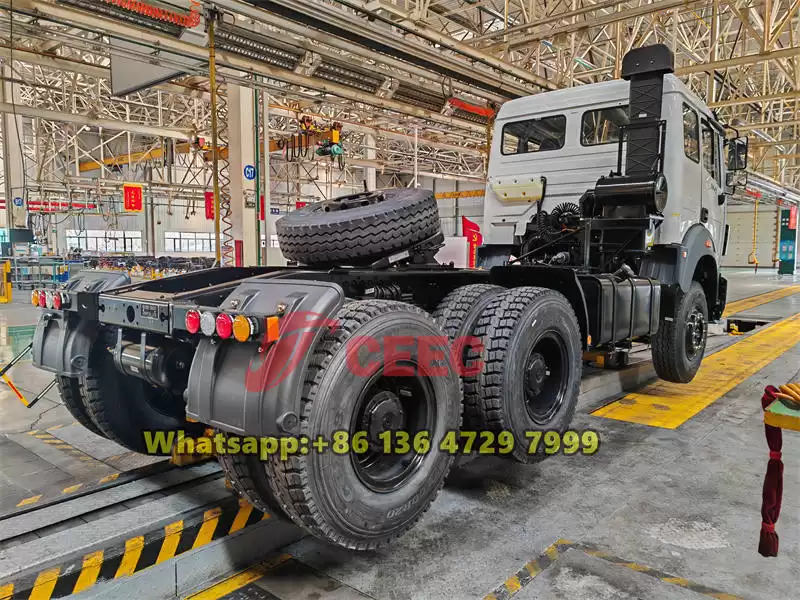

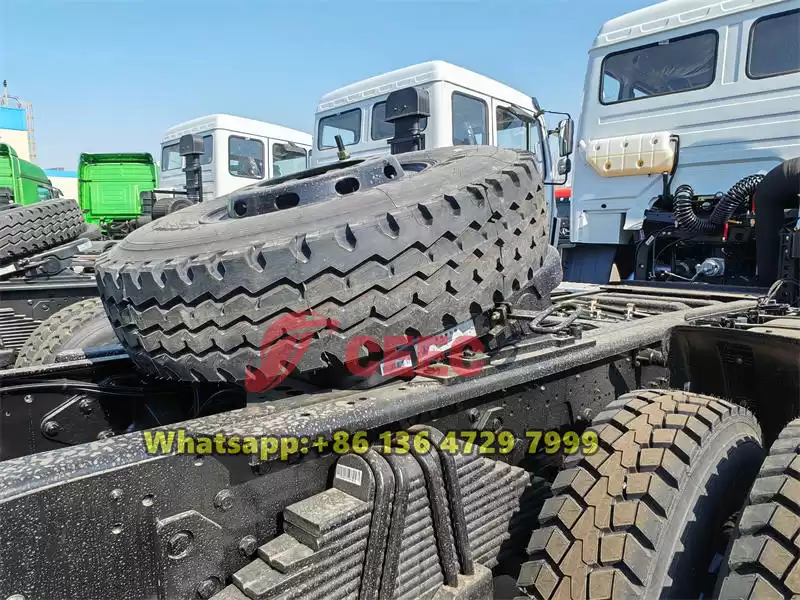

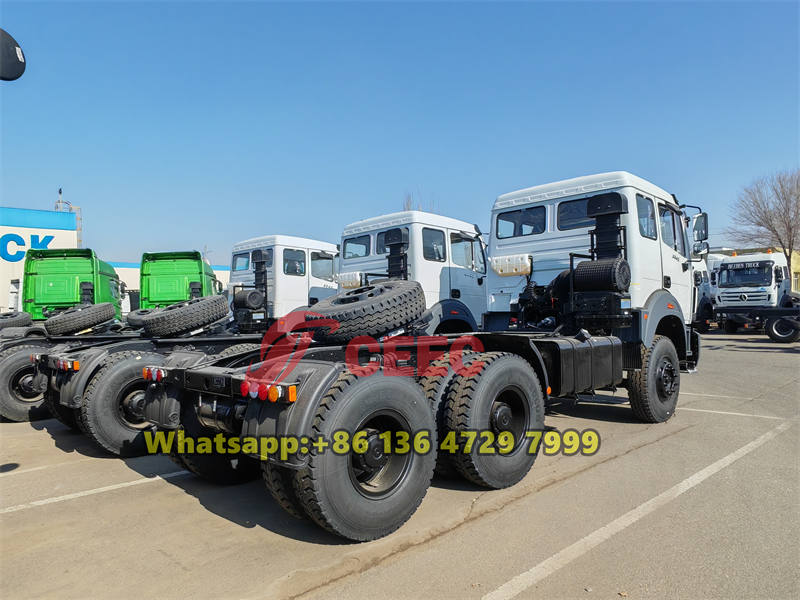

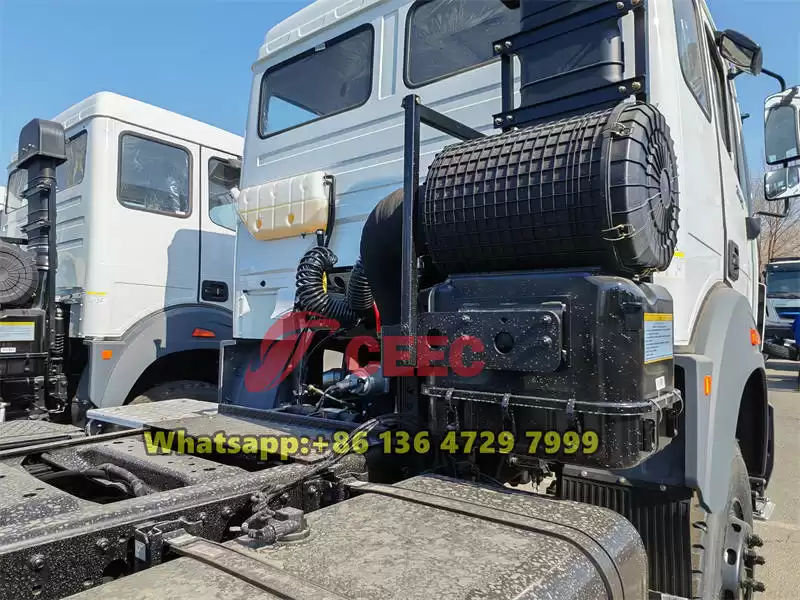

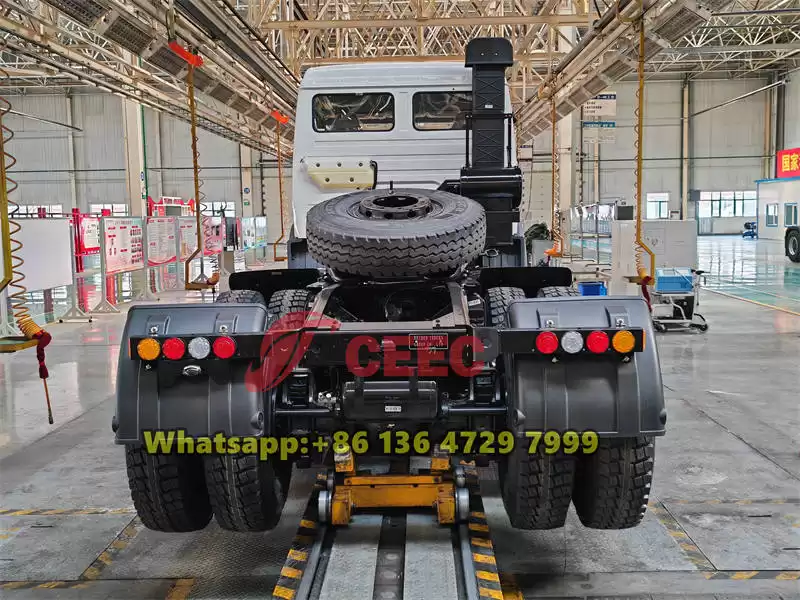

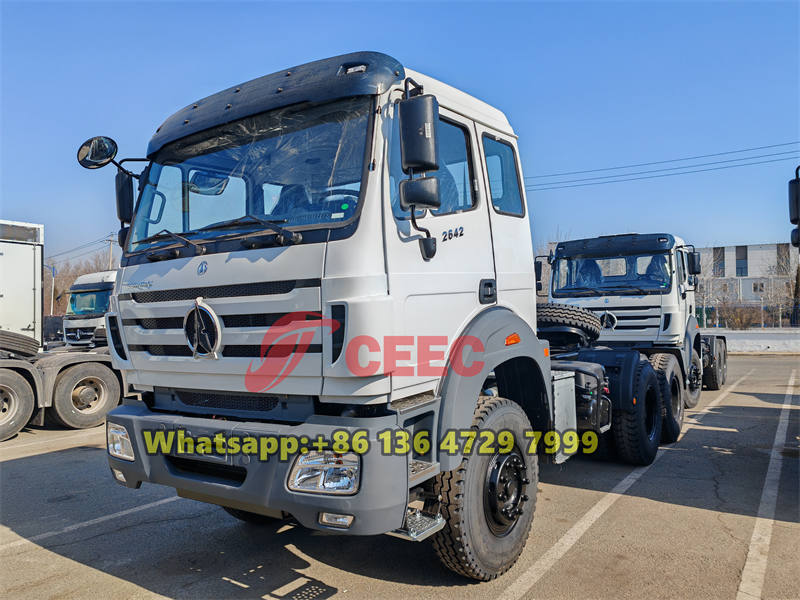

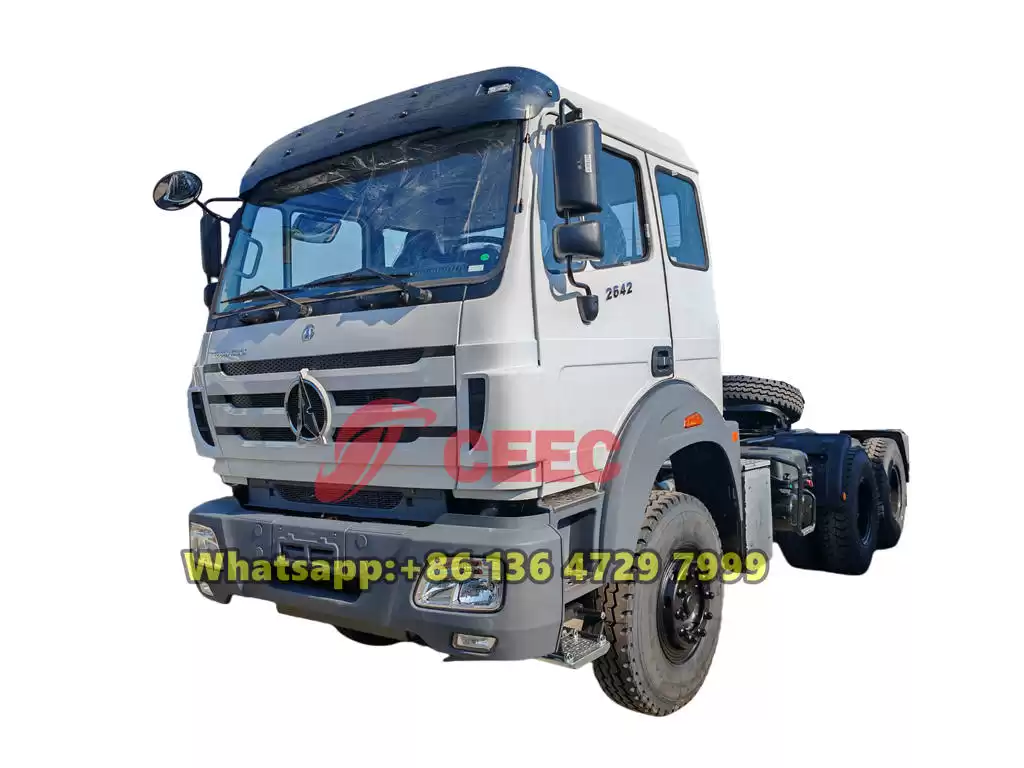

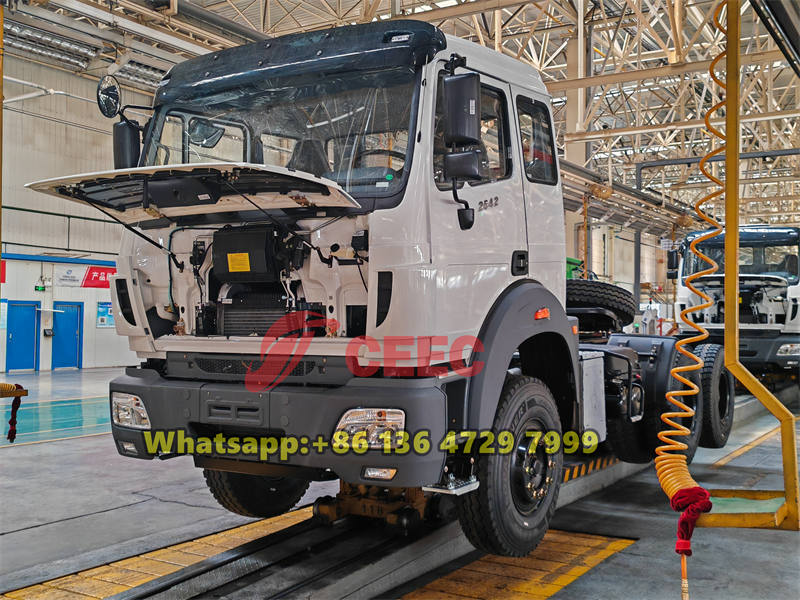

Product Details
