Product Details
Applications:
africa beiben 2642 cargo truck ,also
called as beiben 10 wheeler cargo truck,beiben 6*4 drive cargo truck, beiben 420 hp engine cargo truck, beiben 2642 cargo truck, is designed
for producing beiben 6*6 tanker truck, beiben 6*6 dump truck, beiben 6*6 drive wagon truck, beiben 6*6 drive cargo trucks. This beiben heavy duty truck chassis can loading, transporting and discharging heavy duty
material , also can
be used in for extremely road and weather situation, can be used in wild area, off road area.
china beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.
The north benz 10 wheel drive cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz 2642 chassis, strong military driving system
---- Military quality , Mercedes benz technology
---- 12JS200T transmission, super combination.
---- Patented axle technology, with wheel reducer
---- Completely steel cabin , safety and reliable.
Specifications:
|
Africa beiben 2642 off road truck
|
|
Model
|
ND1255B44J
|
|
Driver's cab
|
Long cabin, one sleeper
|
|
Engine
|
Maker: North Benz
|
|
Diesel 4 stroke direct injection
diesel engine, 6 cylinder in-line with water cooling,turbo-charging &
inter cooling
|
|
Engine model: WP12.420NE32
EURO II/EUROIII emission standard
|
|
Maximum output:420hp@2200rpm
|
|
Number of cylinder:6
|
|
Displacement: 11.726L
|
|
Clutch
|
Single-plate dry coil-spring
clutch,diameter 420mm,hydraulically operating with air assistance
|
|
Transmission
|
Fuller 12JS200T transmission.
|
|
Front Axle
|
Mercedes Benz, drum brake
|
|
Rear Axle
|
Mercedes Benz double
reduction drive axle, ratio=5.2
|
|
Steering
|
ZF8098
|
|
Wheel & Types
|
Rims:8.5-20
|
|
Tyre:12.00R20 tube
|
|
Optional:
12R22.5//315/80R22.5
|
|
Radial tire is optional
|
|
Electrics
|
Operating voltage:
24V,negative grounded
|
|
Dimensions in mm
|
Wheel base : 4450+1450
|
|
Overall size:
10250x2500x3385
|
|
Weight in kg
|
Kerb. mass: 9800 kg
|
|
Total mass: 25000kg
|
|
Performance
|
Maximum driving speed(km/h)
85
|
|
Body in mm
|
7000x2300x800
|
|
The manufacture reserves the
right of technical alteration/change for better improvement prior notice
|

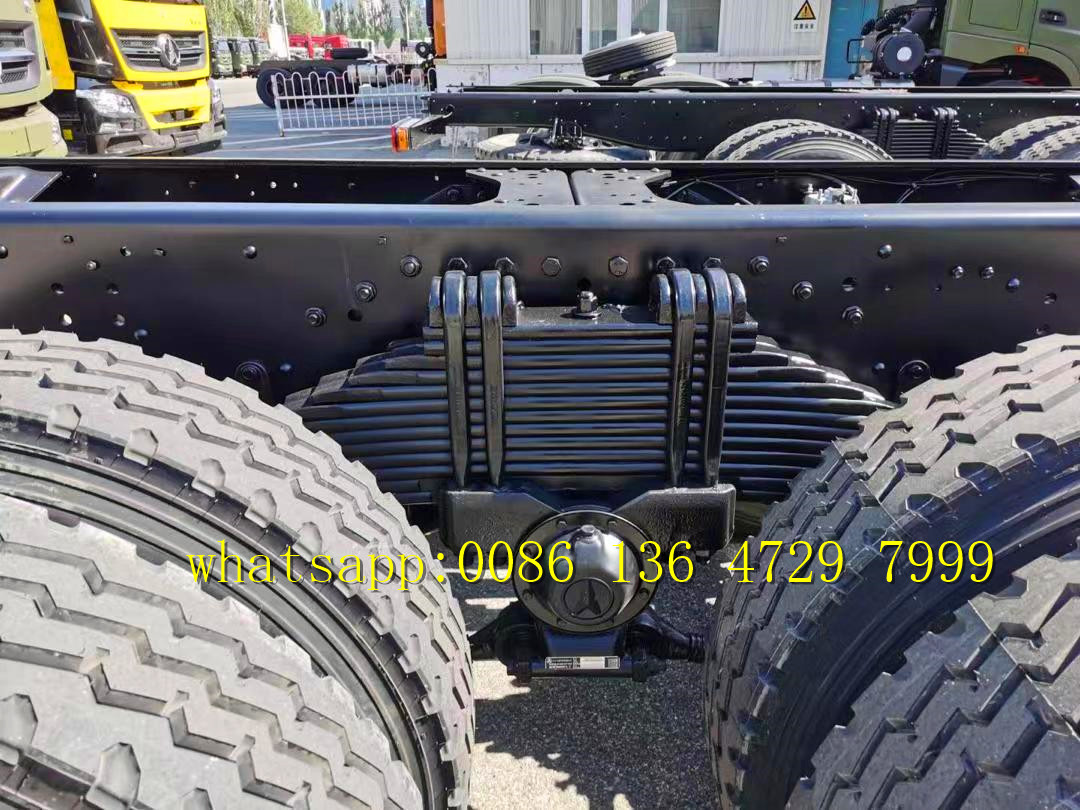

beiben heavy duty suspension system, 4 U-BOLT system for overloading.

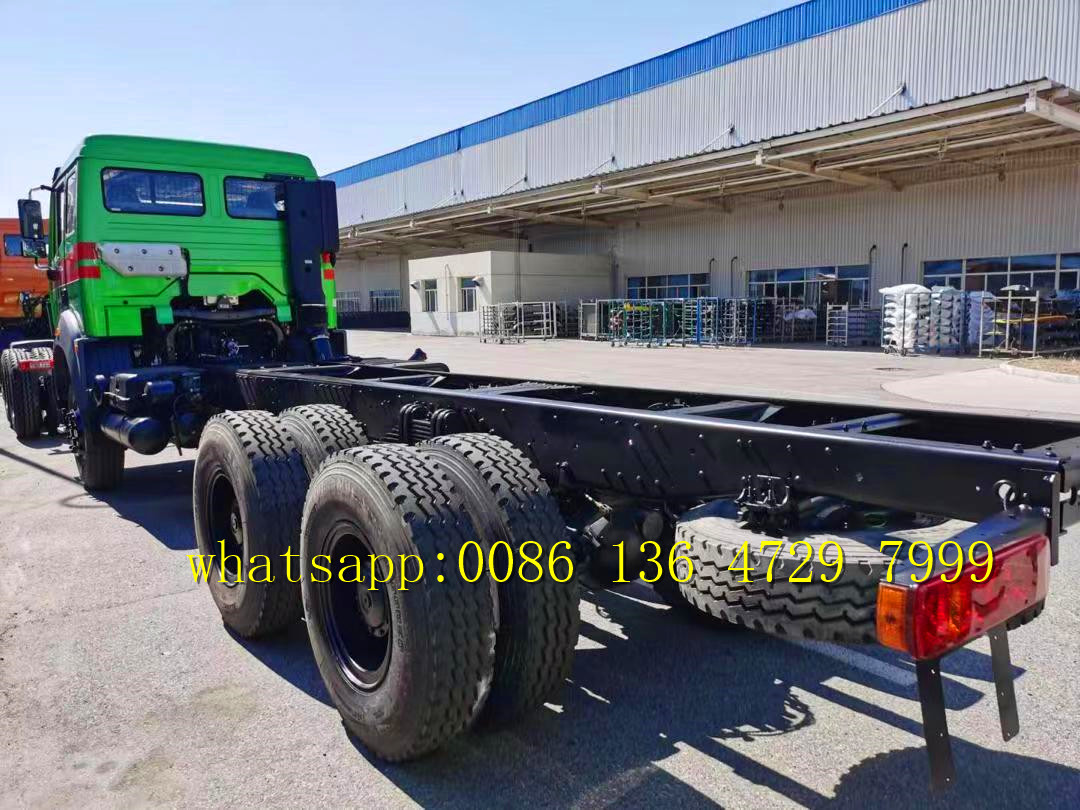

Beiben front axle, with steering system, china beiben 6*6 drive system.
