Applications:
beiben 2642 truck ,also
called as beiben 2642 truck chassis,beiben 2642 cargo truck, beiben 2642 cargo van truck, north benz 2642 truck chassis, congo beiben 2642 truck chassis, is designed
for producing beiben 2642 cargo truck, beiben 2642 cargo van truck. beiben 2642 cargo truck supplier. This beiben heavy duty truck 420 hp engine chassis can loading, transporting and discharging heavy duty material , also can
be used in for earth, sand, rock and mining delivery.
china beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.
The north benz 2642 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz 2642 chassis, strong military driving system
---- Military quality , Mercedes benz technology

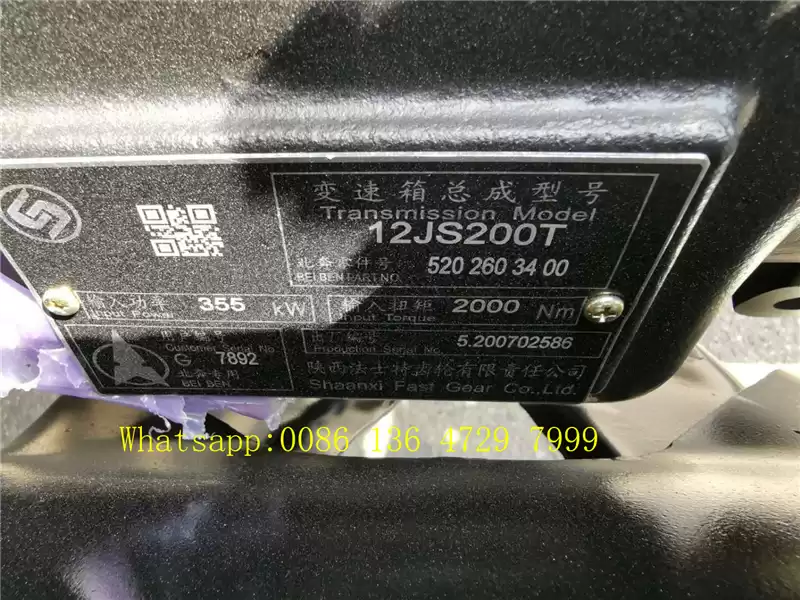

---- 12JS200T transmission, super combination.
---- Patented axle technology, with wheel reducer
---- Completely steel cabin , safety and reliable.
Specifications:
|
NORTH BENZ BEIBEN 6X4 Cargo Chassis Truck 2642
|
|
Model
|
ND1255B50J
|
|
Driver's cab
|
Long cabin, one sleeper
|
|

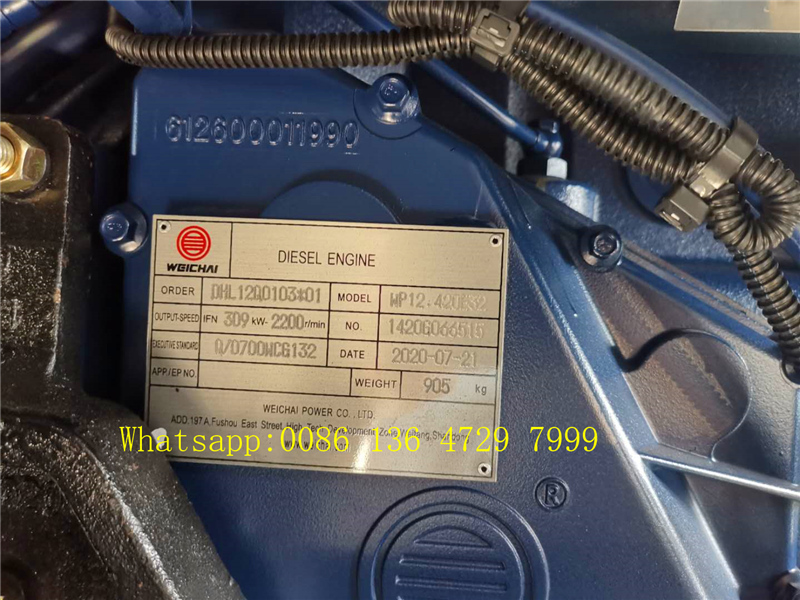

Engine
|
Maker: North Benz
|
|
Diesel 4 stroke direct
injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging
& inter cooling
|
|
Engine model: WP102.420NE32
EURO II/EUROIII emission standard
|
|
Maximum output:420hp@2200rpm
|
|
Number of cylinder:6
|
|
Displacement: 11.986L
|
|
Clutch
|
Single-plate dry coil-spring
clutch,diameter 420mm,hydraulically operating with air assistance
|
|
Transmission
|
Fuller 12JS200T
transmission.
|
|
Front Axle
|
Mercedes Benz, drum brake
|
|
Rear Axle
|
Mercedes Benz double
reduction drive axle, ratio=5.2
|
|
Steering
|
ZF8098
|
|
Wheel & Types
|
Rims:8.5-20
|
|
Tyre:12.00R20 tube
|
|
Optional:
12R22.5//315/80R22.5
|
|
Radial tire is optional
|
|
Electrics
|
Operating voltage:
24V,negative grounded
|
|
Dimensions in mm
|
Wheel base : 5050+1450
|
|
Overall size:
10576x2500x3385
|
|
Weight in kg
|
Kerb. mass: 9800 kg
|
|
Total mass: 25000kg
|
|
Performance
|
Maximum driving speed(km/h)
85
|
|
Body in mm
|
7000x2300x800
|
|
The manufacture reserves the
right of technical alteration/change for better improvement prior notice
|

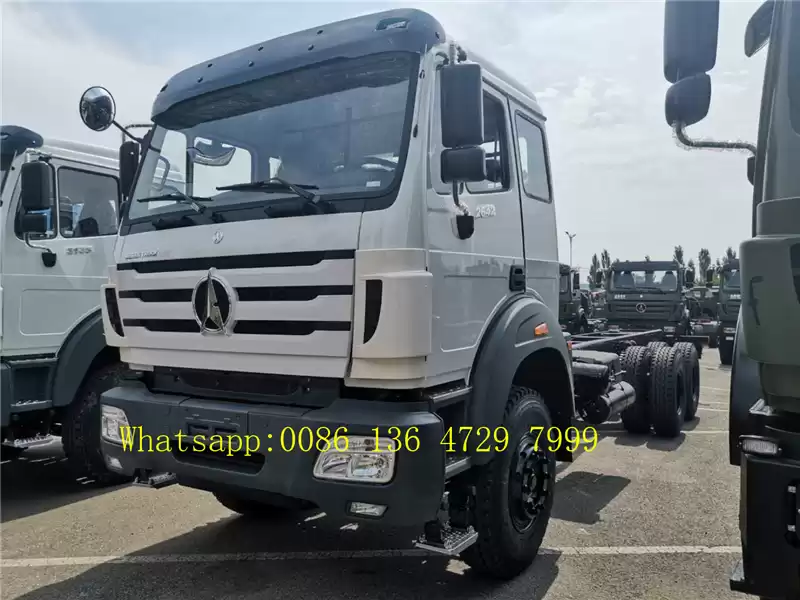

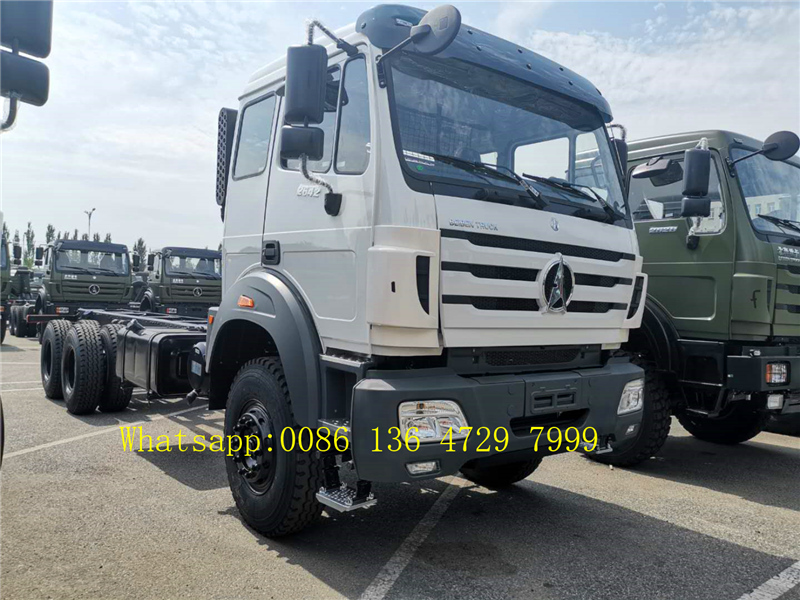

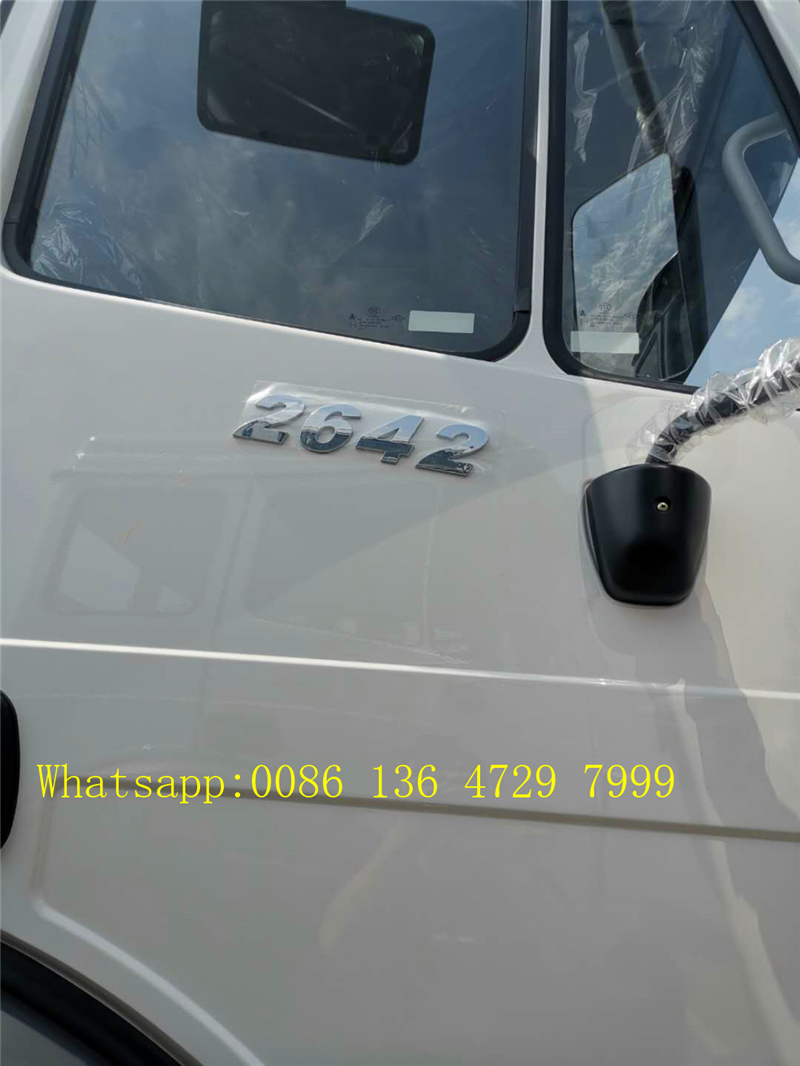

congo beiben 10 wheeler cargo truck chassis,2642 model

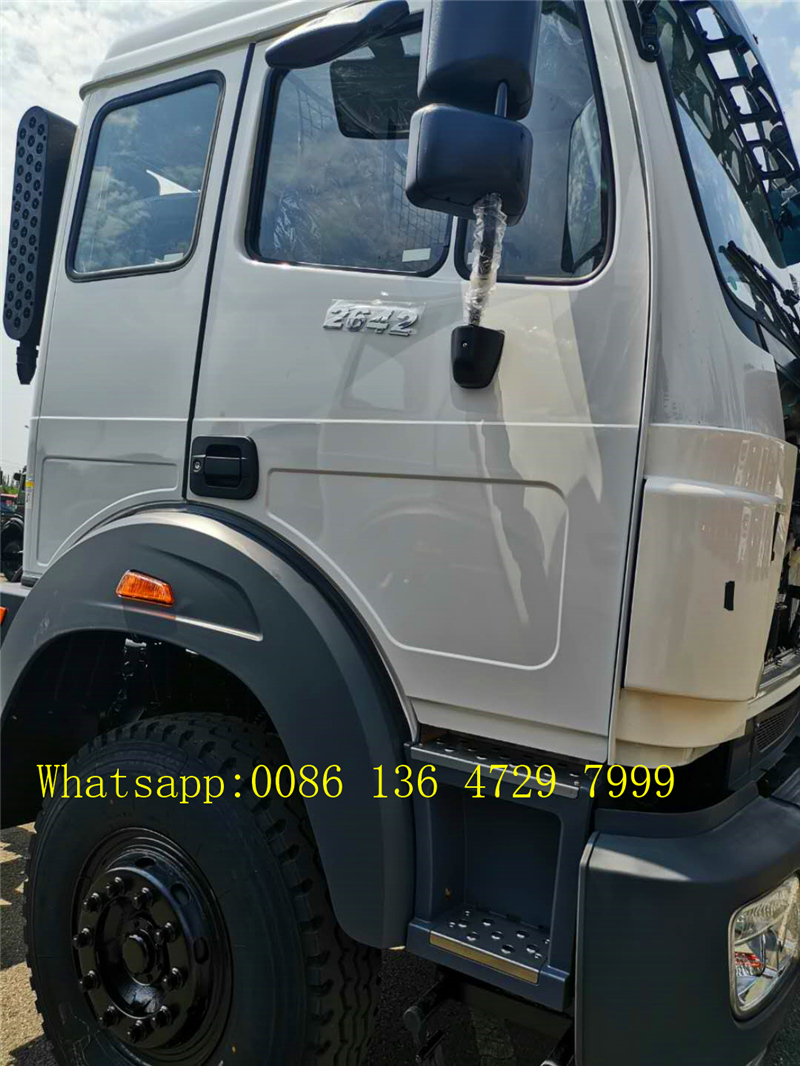

Classis beiben NG80B cabin, 5050+1450 mm wheelbase.

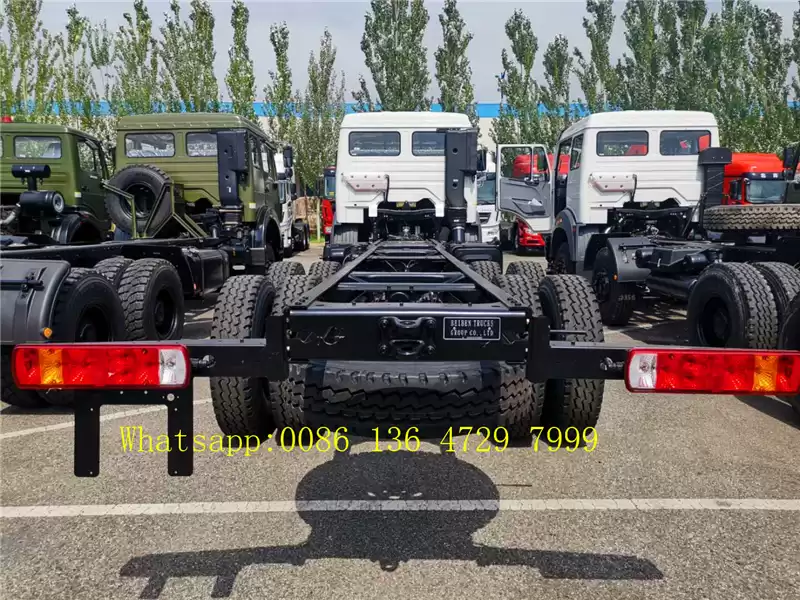

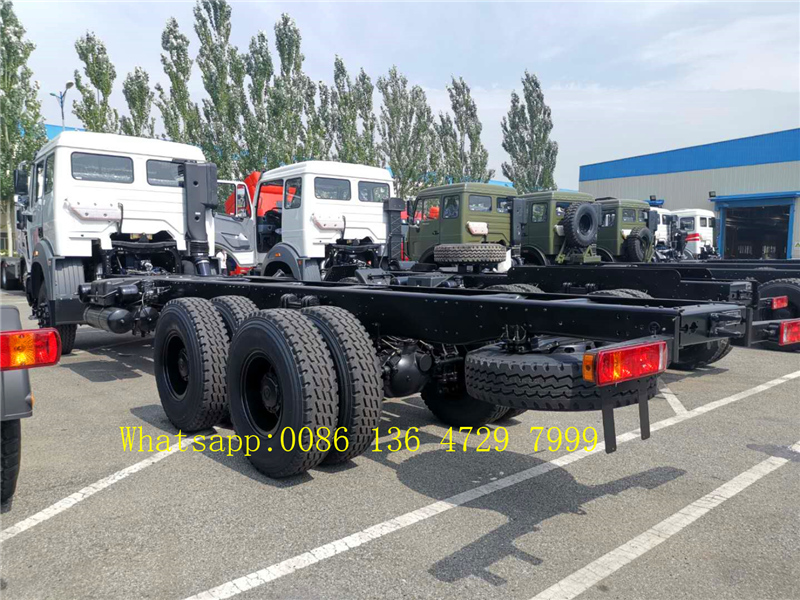

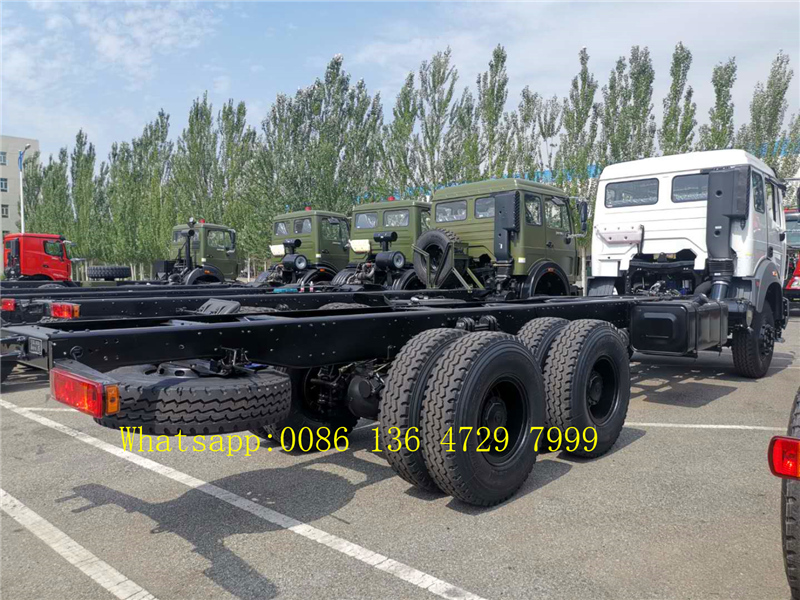

2642 cargo truck chassis, 7.5 meters long behind cabin, can put 8 meters cargo body and body on this chassis.

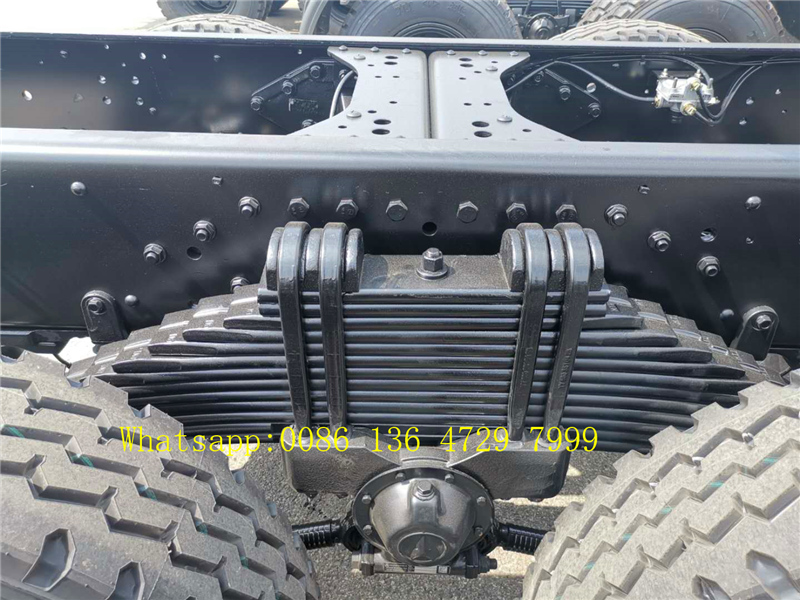

beiben heavy duty 4 u-bolt suspension , suitable for congo road.
