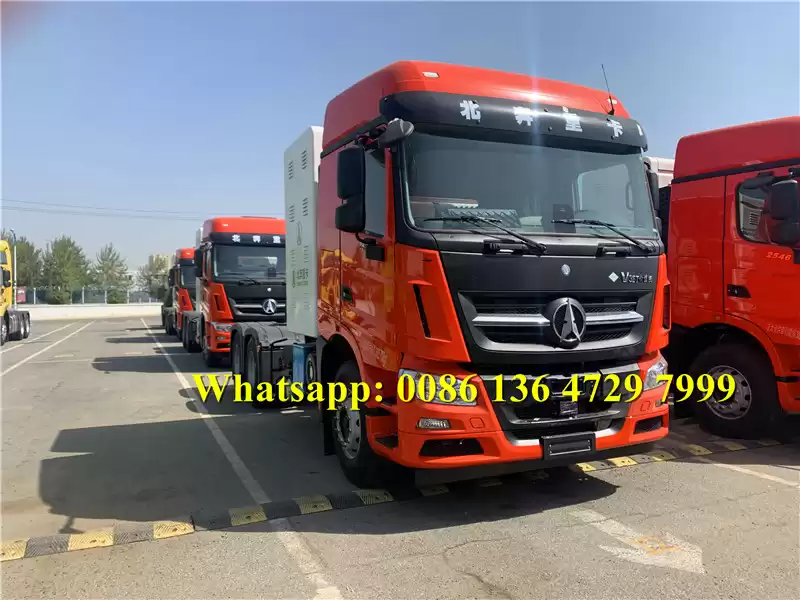

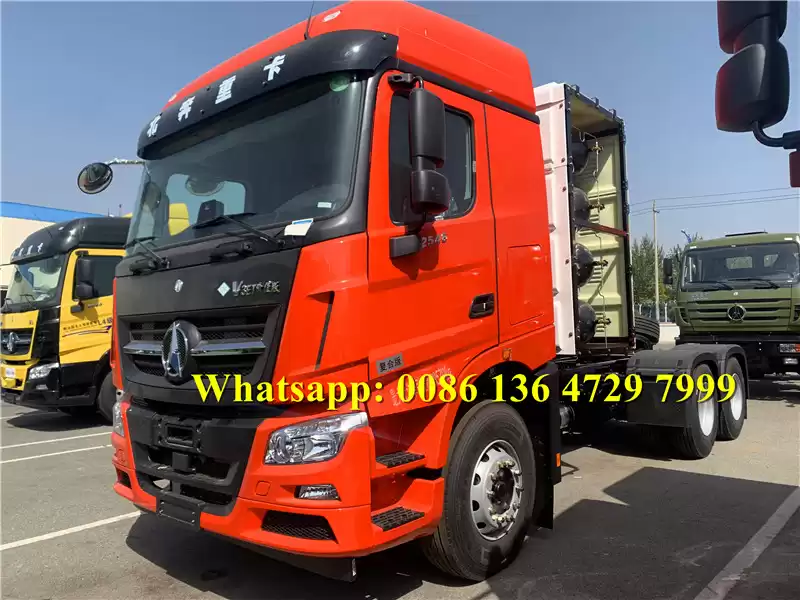

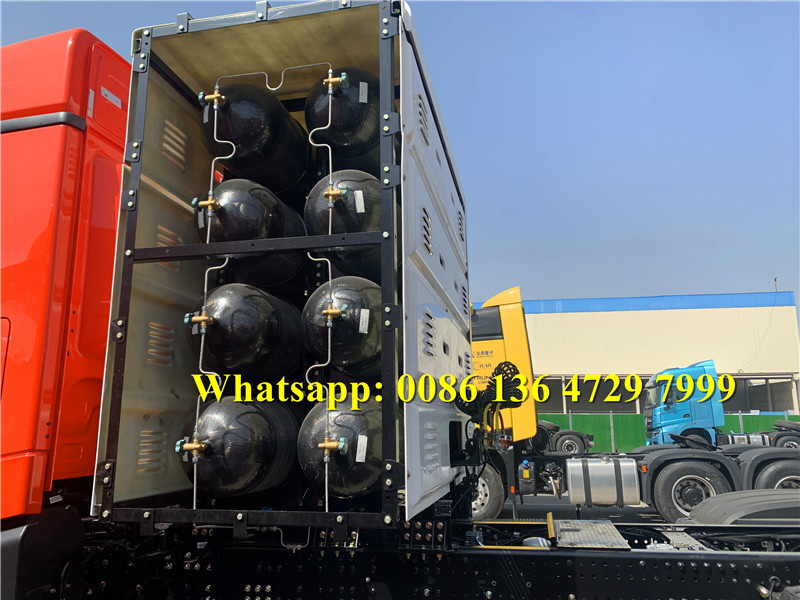

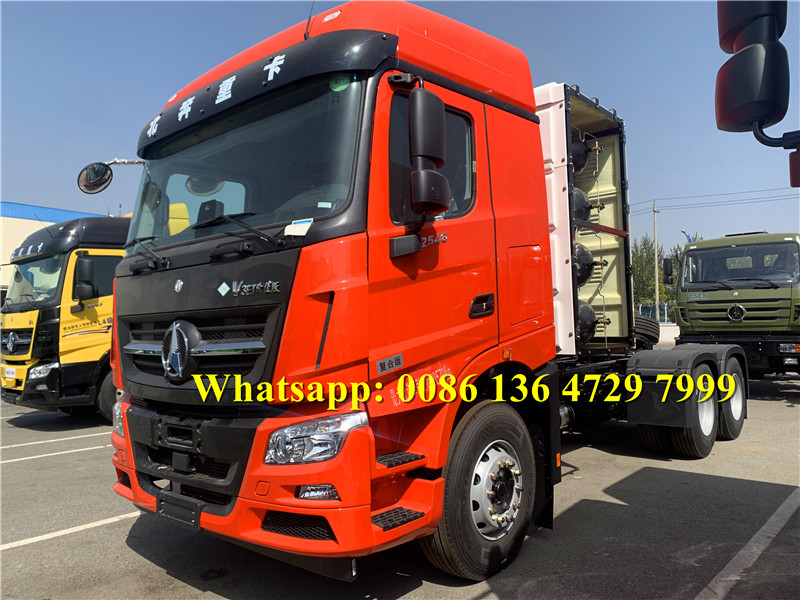

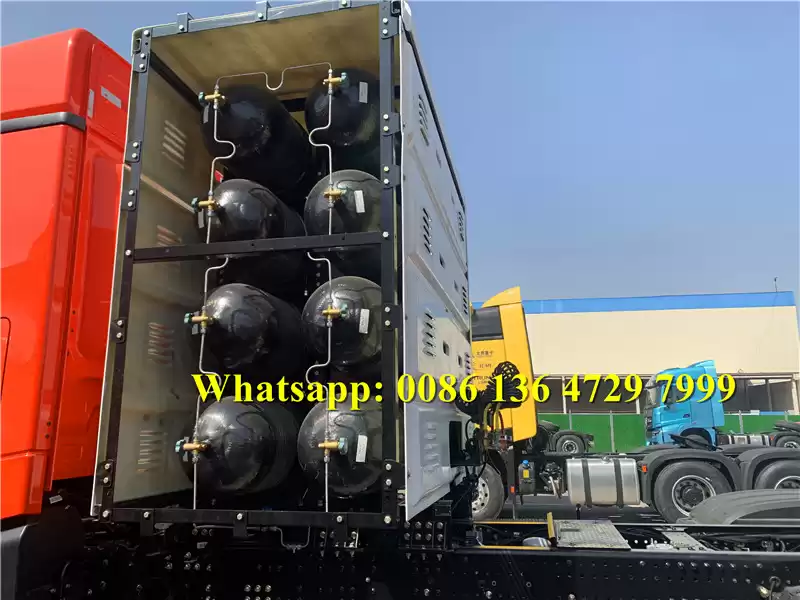

Beiben CNG tractor truck
Applications:
Beiben CNG tractor truck chassis with V3 cabin, also called as beiben V3 prime mover, Beiben V3 towing head, beiben V3 trailer tractor, beiben V3 cabin tractor truck.
This congo beiben truck is equipped with V3 long cabin, with 4450+1450 mm wheelbase , germany benz technology NG80B cabin .
The cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- Germany benz V3 cabin, safety and convenience
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- ZF8098 steering system, RHD for kenya country.
---- extremely heavy duty suspension, maximum payload 80 ton
---- Military Germany mercedes benz technology axle.
Specifications:
|
Dimension
|
7240*2500*3880mm
|
|
Approaching angle/Departure angle
|
16/43°
|
|
Overhang(front/rear)
|
1515/1085mm
|
|
Wheel base
|
3450+1450 mm
|
|
Max speed
|
110km/h
|
|
Curb weight
|
5800kg
|
|
Standard towing weight
|
34260kg
|
|
Max loading on fifth wheel, Permitted(kg)
|
12070kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP12.375E50，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
Displacement
|
11.596L/Diesel
|
|
Stroke
|
126/155mm
|
|
Max. power
|
276/1900 (kw/rpm)(375 HP)
|
|
Max.torque
|
1800/1000-1400（Nm/rpm）
|
|
Emission stantard
|
EuroV with OBD
|
|
Fuel tanker capacity
|
300L
|
|
Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting.WABCO Clutch
|
|
Gearbox
|
12JS200T, mechanism,12forward gears,2
reverse gear, manual operated
|
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00
R: 14.86 3.33
|
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic
shock absorber with stablizer bar suspension
|
|
Rear
|
Non-free standing stablization spring,
balance suspension system
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically,
double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and
rear wheels
|
|
Steering system
|
D50,whole circulation in ball, hydraulic
booster
|
|

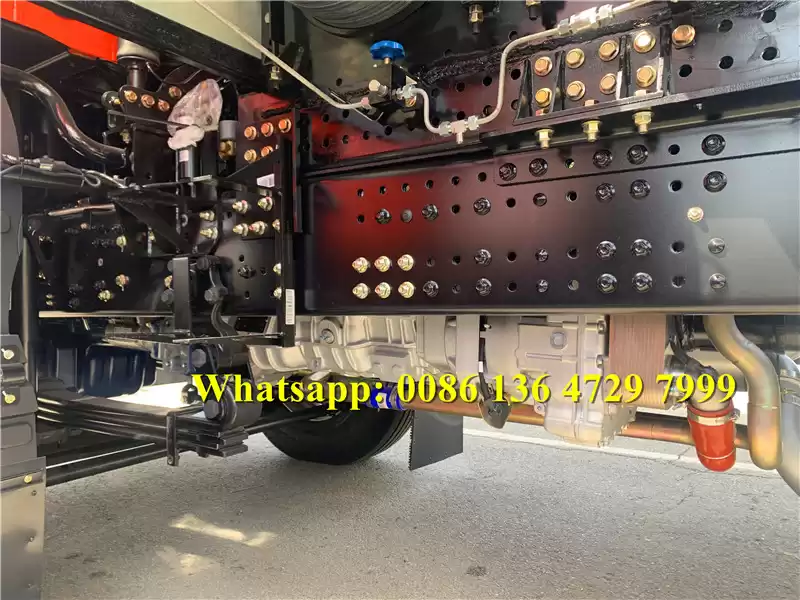

Frame
|
Fish belly shape, variable width,
variable sections
|
|

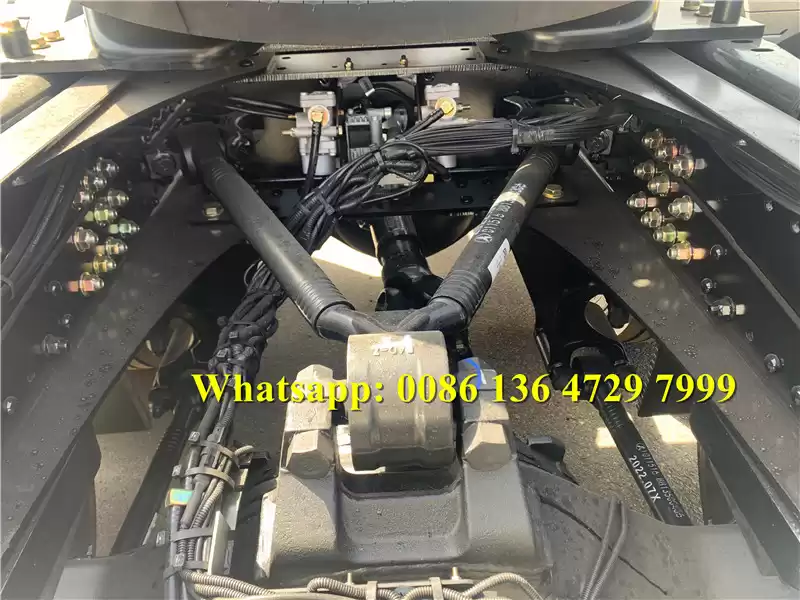

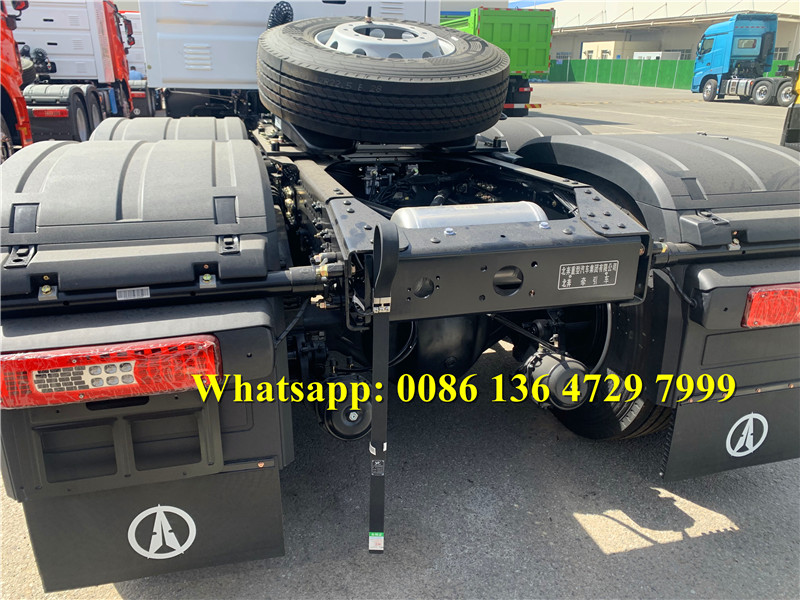

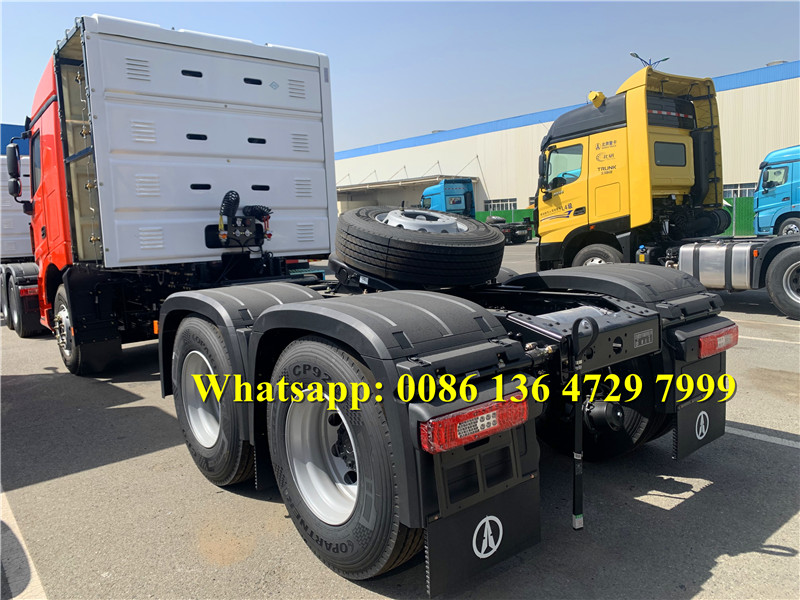

The Fifth wheel
|
Model
|
JOST ∮90 single
direction
|
|
Height of fifth wheel(mm) (unload)
|
1410
|
|
Radius of front gap (mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving
steering axle
|
|
Middle and Rear axle (Mercedes
Technology)
|
Double-shoe pneumatic brake, ductile
casting casing, with hub redactor, double reduction driving axle
|
|

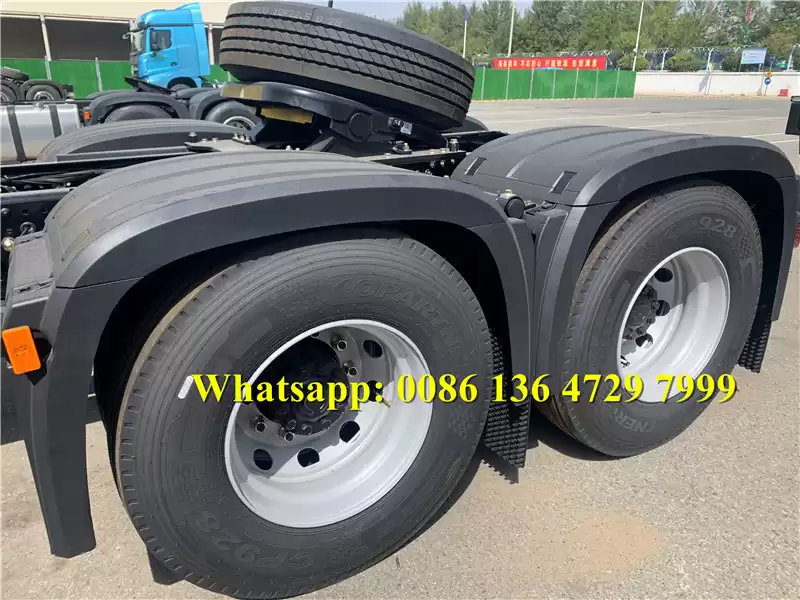

Tyre
|
315/80R22.5
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

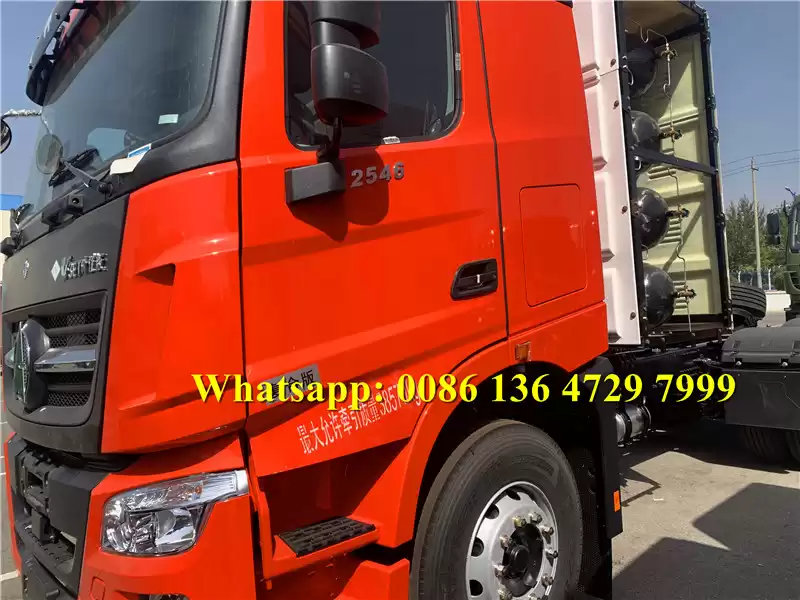

Cabin
|
V3 Long-high roof cabin with double
sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
Beiben V3 cabin truck, with sleeper bed .
