Technical Parameters
|
|
Brand |

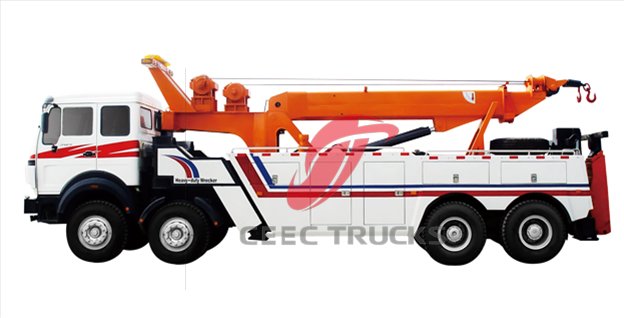

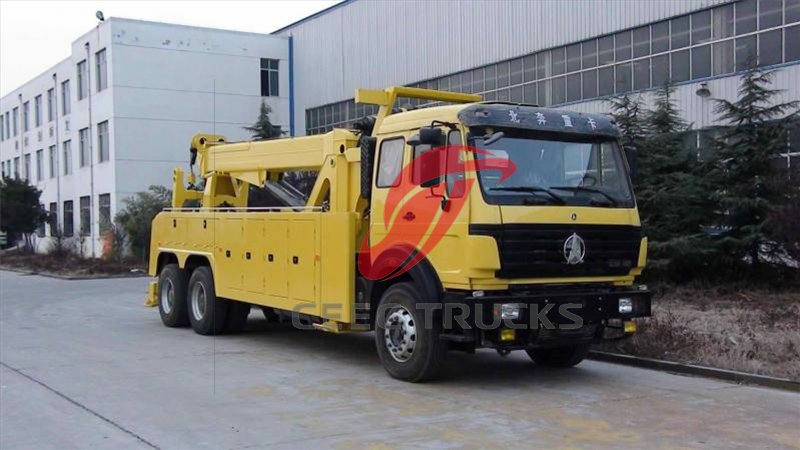

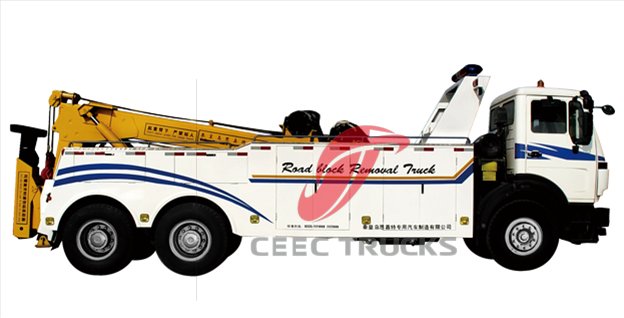

BEIBEN wrecker TRUCK |
|
Vehicle model |
2632EM
|
|
Cabin |
Full steel skeleton structure, covered with double layer steel plate
|
|
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
|
|
Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure
|
|
Persons in cab: 3
|
|
Driving |
6×4
|
|
Wheel base (mm)
|
5050+1450 |
|
Gross Towing Weight(kg)
|
12220
|
|
Engine |
Model
|
Brand WeiChai WD615.44 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders
|
|
Power |
320HP
|
|
Emission
|
EUROⅡ
|
|
Rated power(kw/rpm)
|
235Kw/2200rpm
|
|
Transmission
|
RT11509C, 8-forward &1-reverse gears
|
|
Clutch
|
GFX420, single disc, dry type, diaphragm spring
|
|
Frame
|
BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame |
|
Fish belly, various width, various sections, side beam structure
|
|
Axle |
Front: |
Mercedes Benz Technology, 7.5 ton, non-driving steering axle
|
|
Middle/Rear:
|
Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Suspension
|
Non-free standing stabilization spring, hydraulic shock absorber, stabilization suspension
|
|
Steering
|
ZF8098 (Original ZF technology)
|
|
Wheels and tyre size |
10+1/12.00-R20
|
|
Fuel tank (L)
|
300L
|
|
Dimension of Cargo Box
|
5000x2500x500mm
|
|
Colour
|
White, multi-colored options
|
|
Specification of the Upper body |
|
Wrecker body capacity：
|
20 tons
|
|
PTO
|
QH50
|
|
Boom
|
Max. lift weight when boom all retracted(kg): 20000
|
|
Telescopic distance(mm) :3510
|
|
Max. lift height when boom all extender(mm): 9500
|
|
Max. elevation angle: 50°
|
|
Rotation angle: 360°continuous
|
|
Under-lift
|
Max. parking lift weight when under-lift all retracted(kg): 16000
|
|
Rated running lift weight when under-lift all retracted(kg): 6500
|
|
Max. parking lift weight when under-lift all extended(kg): 4500
|
|
Max. effective length(mm): 2980
|
|
Telescopic distance(mm): 1640
|
|
Range of elevation angle: -9°～93°
|
|
Fold angle: 102°
|
|
Outriggers
|
Span between front and rear outriggers(mm): 6690
|
|
Transverse span between front outriggers(mm): 5110
|
|
Transverse span between rear outriggers(mm): 4225
|
|
Rated tow weight(kg)
|
25000
|
|
Rated pull of winches(KN)
|
2×100
|
|
Length of cable wire(m)
|
40
|
