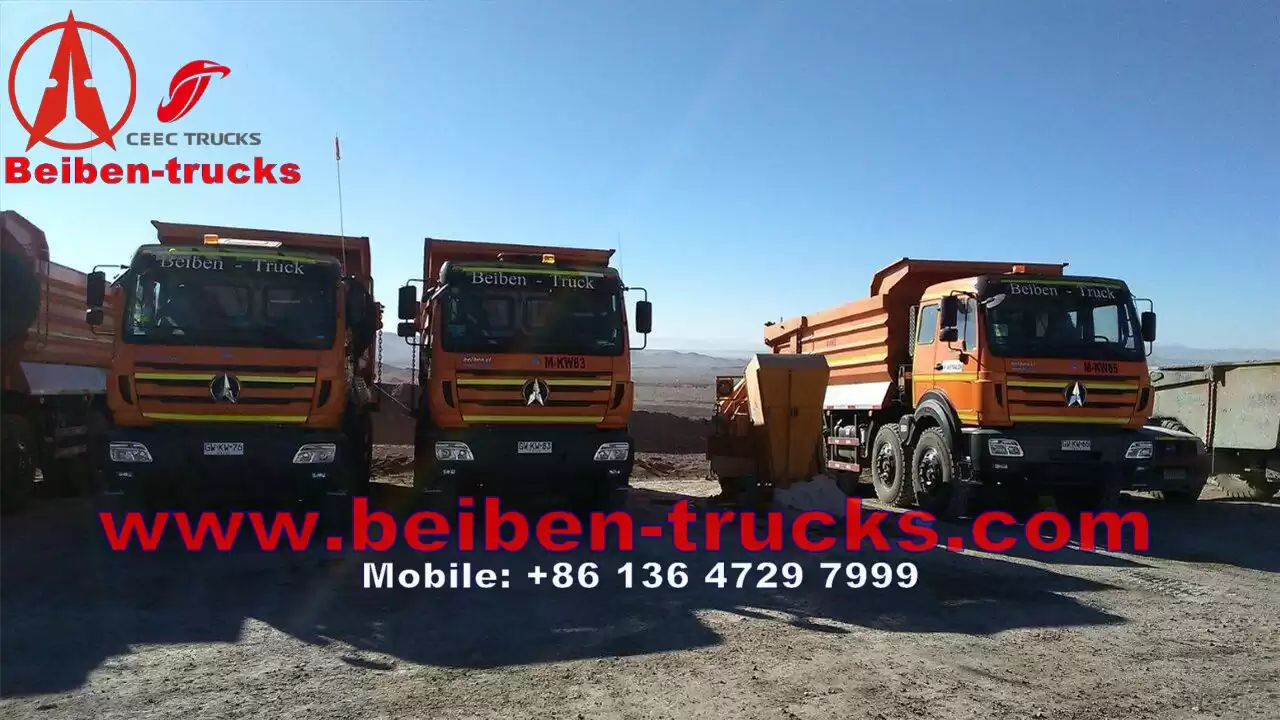

beiben 3134 type 12 wheeler camions benne manufacturer from china ,
We can supply an unlimited number of different beiben 8*4,6*4 tipper trucks to any country in the world
Beiben military Strong chassis with proven technology make these the work horse of your fleet. With low cost and high profitability, these are the beiben tipper trucks that constructors use.
Many options available:
- 6×4, 6×6, 8×4
- front or mid body tipping system
- LHD or RDH
- strengthened chassis
- chose your body type and size; 10 m2, 15 m2, 20 m2
- With or without backdoor – depending on your demands
- with different cab types available
- HP ranges from 280 – 480 HP, with gear boxes to match the power requirements
| Overall dimension(mm) |
9950x2500x3180 |
Wheel base (mm)
|
1500+4450+1450
|
Curb weight kg
|
11200
|
Engine
|
Model
|
WP10.336(Wei Chai engine.Euro II,Based on Styre technology, made in China)
|
Power, max kw/rpm
|
247/2200
|
Max torque(Nm/rpm)
|
1250/1200-1600
|
Emission standard
|
EUROII
|
Fuel tanker capacity L
|
300
|
Clutch
|
Model
|
GFX420, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
Model
|
ZF5S-112GP(ZF technical, mechanism,9gears,1 reverse gear, manual,made in China,produed by Bei Ben Transmission)
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
Model
|
ZF8098
|
Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C
|
