Beiben 3138 truck chassis

This Beiben 3138 truck chassis , with china beiben 8*4 drive system, mercedes benz technology NG80B cabin, benz 7 T front axle, benz 13 T rear axle, with wheel reducer.


  • Production time40 days
  • Payment termsT/T

                                                                Beiben 3138 cargo truck chassis



beiben 3138 truck



 Applications:



beiben 3138 cargo truck ,also called as beiben 3138 cargo truck chassis, beiben 12 wheeler cargo truck 380 hp engine, north benz 12 wheeler truck, beiben 3138 cargo van truck,  is designed for producing beiben oil tanker truck, beiben cargo van truck, and beiben dump truck. This beiben truck chassis can  loading, transporting and discharging heavy duty material , also can be used in for earth, sand, rock and mining delivery.



china beiben 3138 truck chassis apply germany benz technology device, with extremely work performance.



The cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- North benz 3138 chassis, strong military driving system

---- Military quality assurance, Original germany benz technology

---- Extremely work service , long terms maintenance

---- Patented axle technology, with wheel reducer

---- Completely steel cabin , safety and reliable.



 Specifications:



Beiben 3138 cargo truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

10500*2490*3340 mm

GVW / Kerb Weight

45,000 kg / 14,800 kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

380 HP (279 KW)

Displacement

9726 ml

Emission Standard

Euro 3

Chassis

Drive Type

8X4, (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

1950+5050+1450 mm / 4

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body Capacity

40 T-  80 T

Tilting Device

Front lifting device

Hydraulic Cylinder

China brand

Discharging model

Rear discharging

Dump Body Dimension
7600*2300*1500 mm

Thickness

Side Board: 8mm

Floor Board: 10 mm

Control panel

English or Your language

All standard accessories: basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 12.00-24 tyre, 14.00R20 tyre, 13.00R22.5 tyre avaiable.

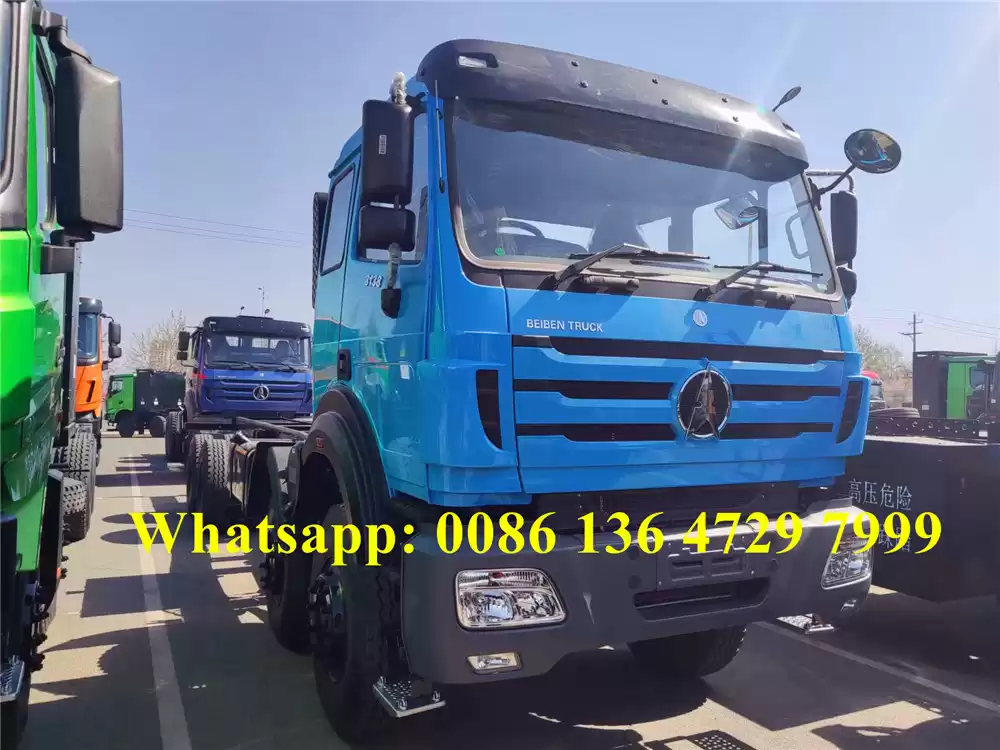

Beiben  3138  truck chassis , military quality assurance, with strong merdeces benz technology axle and cabin.

beiben 3138 truck

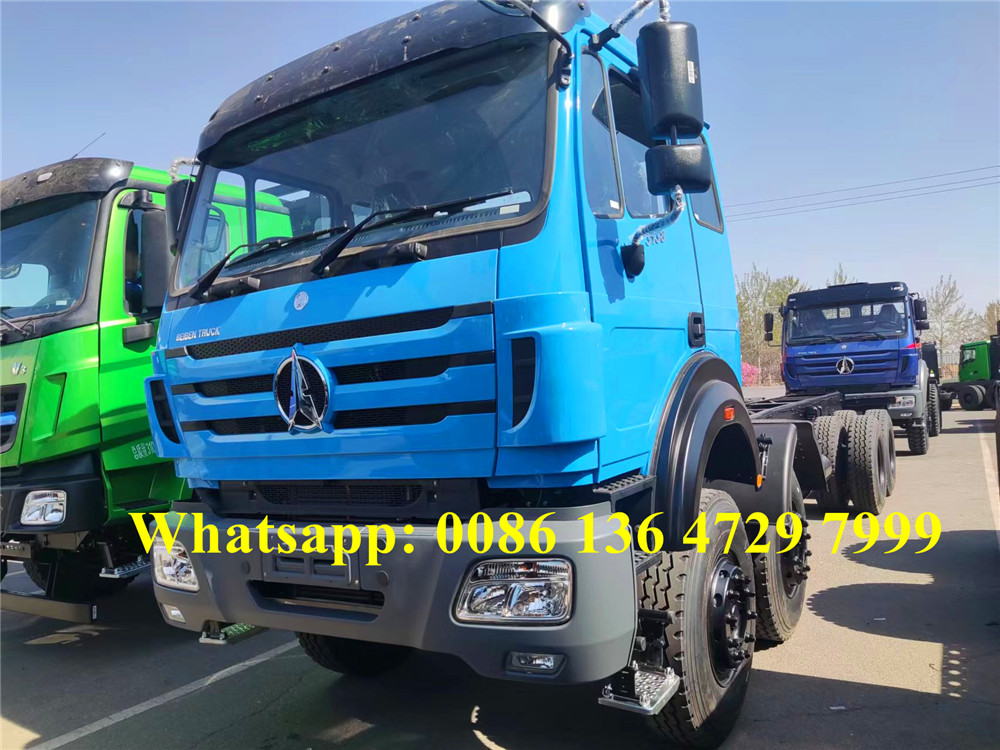

Beiben NG80B new cabin, 3138 model with strong diesel 380 hp engine.

beiben 3138 truck
