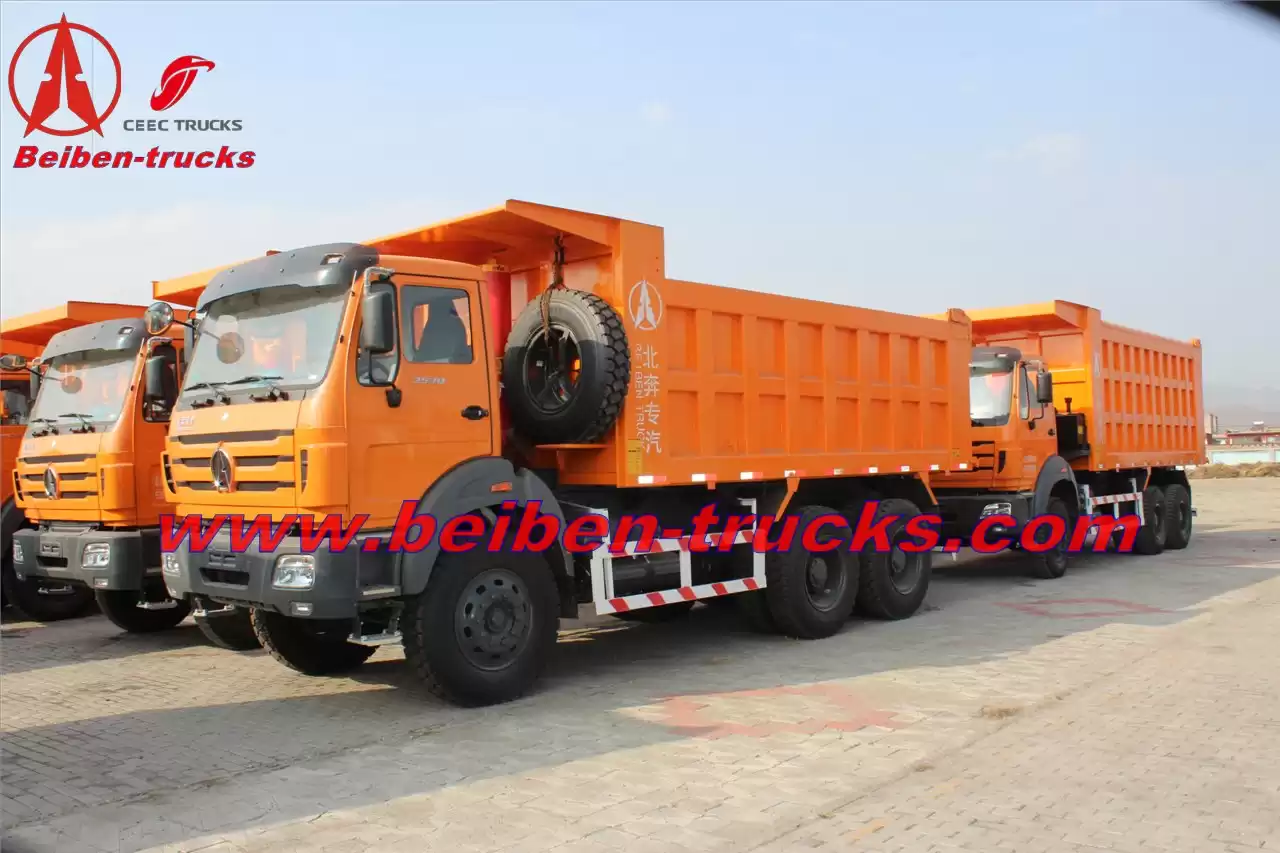

Beiben 380hp 8x4 50ton dump truck

Beiben 380hp 8x4 50ton dump truck, based on beiben 8*4 dump truck chassis, beiben 3129,3134,3138,3142 dump truck chassis.



  Beiben 8x4 heavy dump truck benz technology



1.Type: DUMP TRUCK  Model: 3138K  Brand: BEIBEN(North Benz)

Traction type: 8x4

Driving type: LHD

Cabin: NG80B long cabin with sun visor, inner A/C, adjustable steering wheel, radio and player(with USB), safety belt, Dash board with all necessary gauges.

Engine brand: WEICHAI

Engine model: WP10.380E32

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.

Displacement: 9.726 liters

Max.output: 380hp/2200rpm

Max.torque: 1600N.m/1800r/min

Bore x stroke: 126x130mm

Transmission model:12JS200T, FAST brand (Manual, 12forward and reverse)

Steering: TAS85 hydraulic steering with power assistance

Clutch: GFX420, Single dry frictional disc,Hydraulic boosting

Frame: Fish belly shape, variable width, variable section side beam structure
