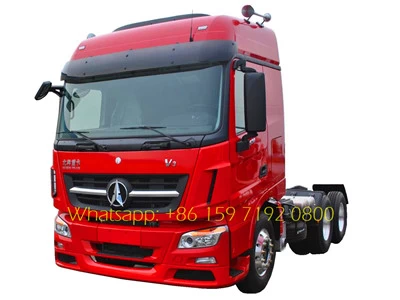

Beiben 380HP V3 Prime Mover 10 wheel 2538 tractor head

Beiben V3 2538 prime mover export Ivory Coast, super powerful 380HP engine, FAST 12-shift manual gearbox for sale, newly designed Beiben V3 cabin, JOST single direction, wholesale in Africa countries



Beiben 2538 V3 Tractor Truck



Beiben 2538 V3 TOWING TRUCK supplier



Advanced features for Beiben 2538 V3 prime mover:

German BENZ actros CABIN .The beiben V3 tractor truck cabin was designed by the same design team of the Mercedes Actros, and is similar to the Actros. Clean, simplistic and comfortable with a full sleeper cabin.

World famous  Weichai Engine .The north benz V3 trailer truck is powered by a 12L WP12E40 / WP12E50 engine meeting Euro IV and Euro V emission standards. The WP12 engine is designed with Austria's AVL and utilizes BOSCH Common Rail as its fuel system, similar to MAN and Cummins.

beiben V3 2538 prime mover

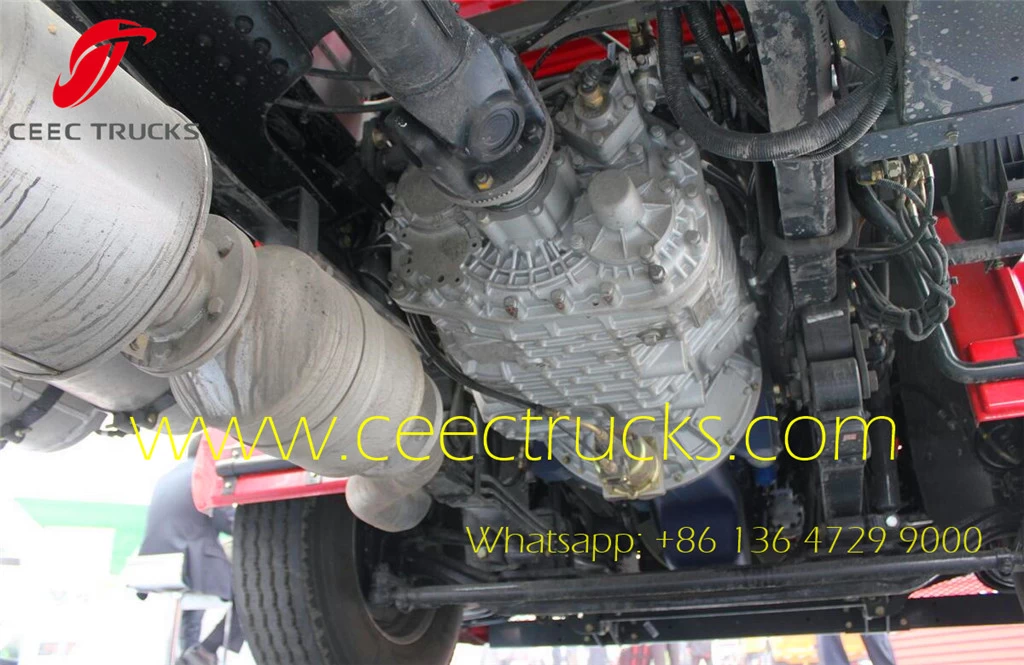

ZF Gearbox.Choose from the 9-speed ZF manual or efficient 12/16-speed FAST manual gearboxes. For ultimate comfort, there is the option of the FAST F-SHIFT AMT

Benz Front & Rear Axle .BEIBEN V3 tractors is equipped with the VR-4 front axle (7.5T) and the HL-7 (16T) rear axle.  The 6x4 is equipped also with the HD-7 throughdrive axle. Mercedes Benz licensed front and rear axles for trucks and buses.

ZF 8098 Steering Gear .All BEIBEN V3 trucks are equipped with ZF 8098 steering gear. This is the same steering gear equipped on certain Mercedes, MAN, IVECO, Scania and Volvo trucks.



China famous brand beiben 2538 V3 tractor truck,for using in logistic, seaport, airport, fuel transporation



Beiben 2538 V3 TOWING TRUCK manufacturer



Beiben 2538 V3 TOWING TRUCK manufacturer



Similar key words: beiben 2538 tractor truck, north benz 2538 prime mover, beiben 2538 towing truck, beiben 2538 trailer truck. kenya beiben 2538 tractor truck, tanzania beiben 2538 tractor truck, china beiben 6*4 drive v3 tractor truck supplier, baotou beiben V3 tractor truck manufacturer. africa beiben NG80 tractor truck



Dimension

7240*2500*3600mm

Approaching angle/Departure angle

16/60°

Overhang(front/rear)

1515/825mm

Wheel base

3450+1450mm

Max speed

110km/h

Curb weight

8800kg

Max towing weight

40000kg

Max loading on fifth wheel, Permitted(kg)

16070kg

Slope climbing capability

Max.40%

Engine

Model

WP10.380water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail

Displacement

9.876L/Diesel

Stroke

126/155mm

Max. power

250/2100 (kw/rpm)

Max.torque

1780/1200-1500Nm/rpm

Emission stantard

EuroIII

Fuel tanker capacity

400L

Clutch

430, Single dry frictional discHydraulic boosting

Gearbox

12JS200T, mechanism,12forward gears,2 reverse gear, manual operated

Gear ratio of gear box

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33

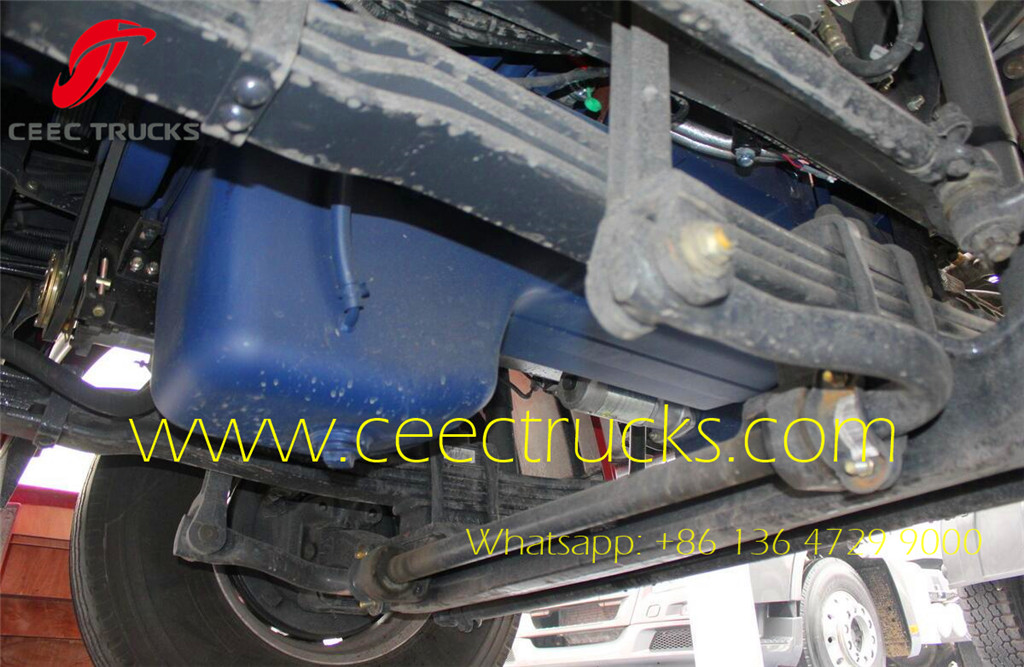

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 ,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

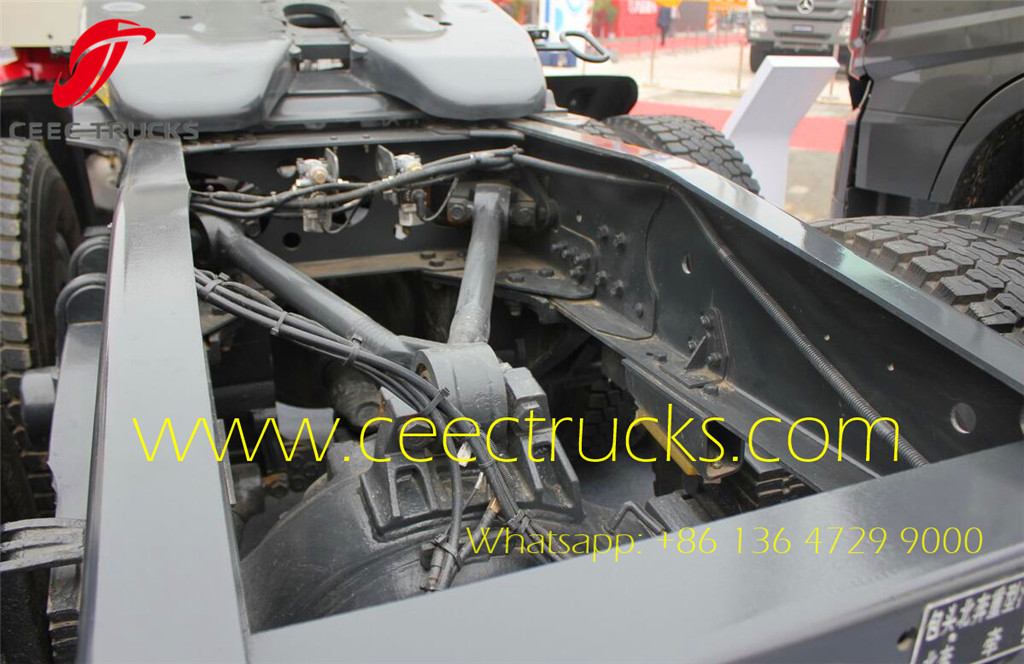

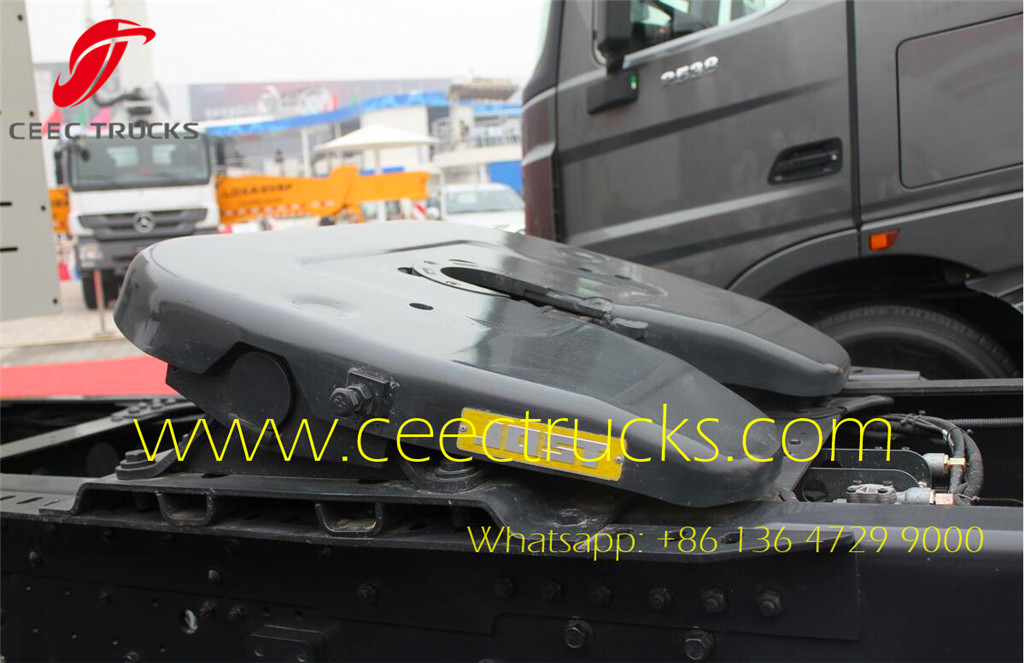

The Fifth wheel

Model

JOST 90 single direction

Height of fifth wheel(mm) (unload)

1410

Radius of front gap (mm)

2300

Radius of rear slew (mm)

2600

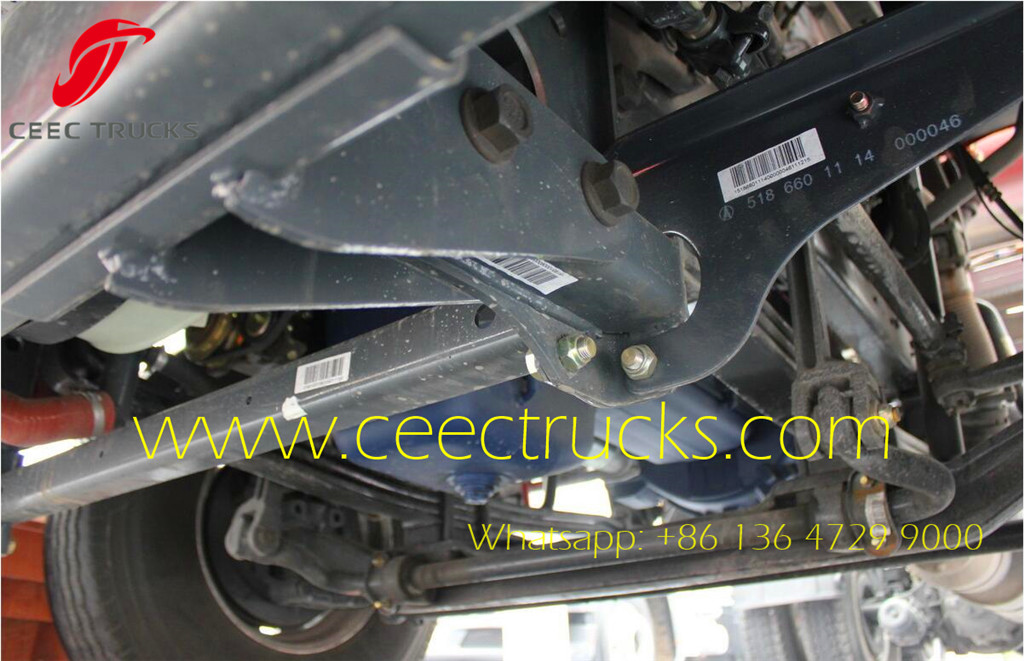

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

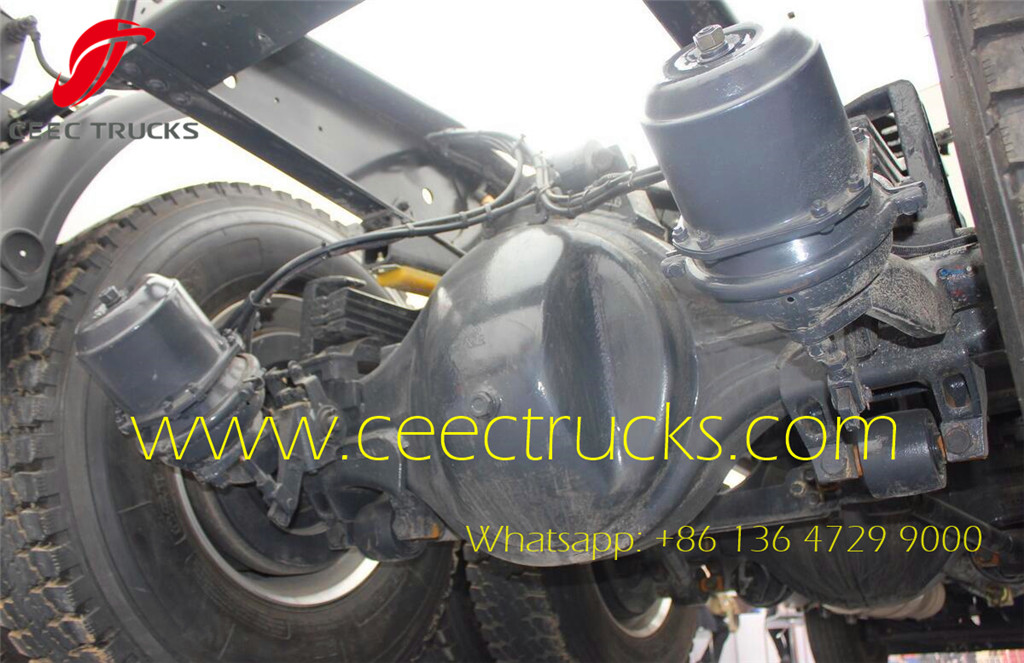

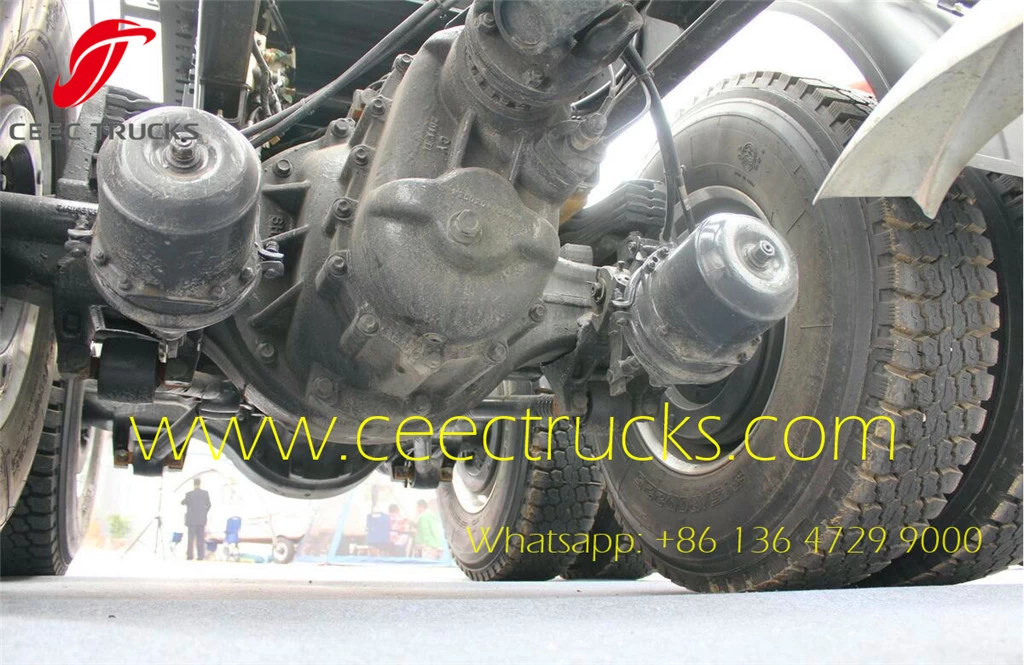

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00-R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

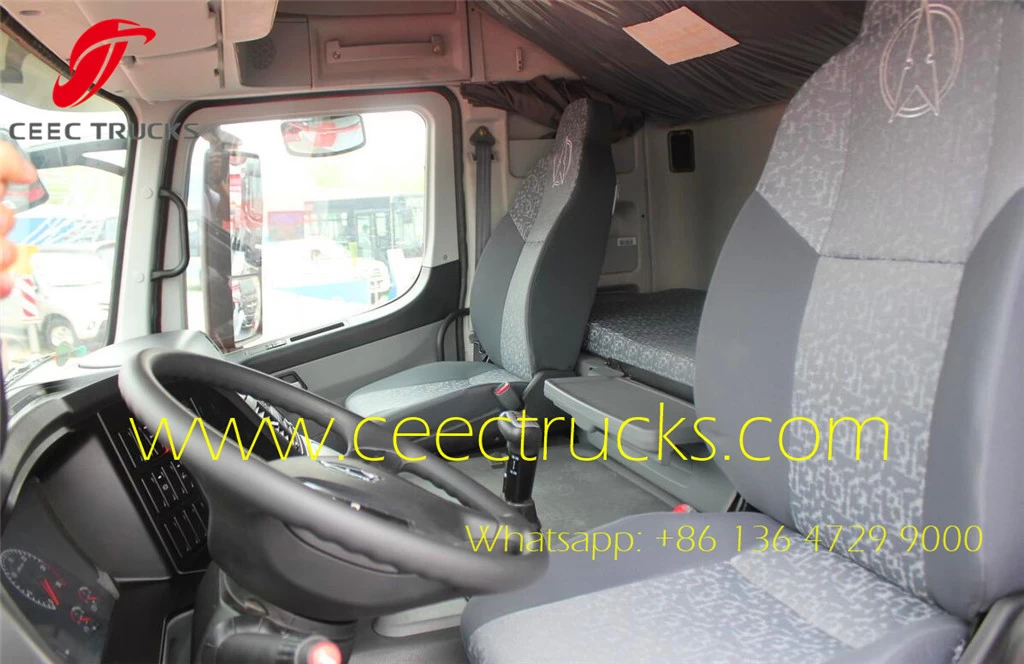

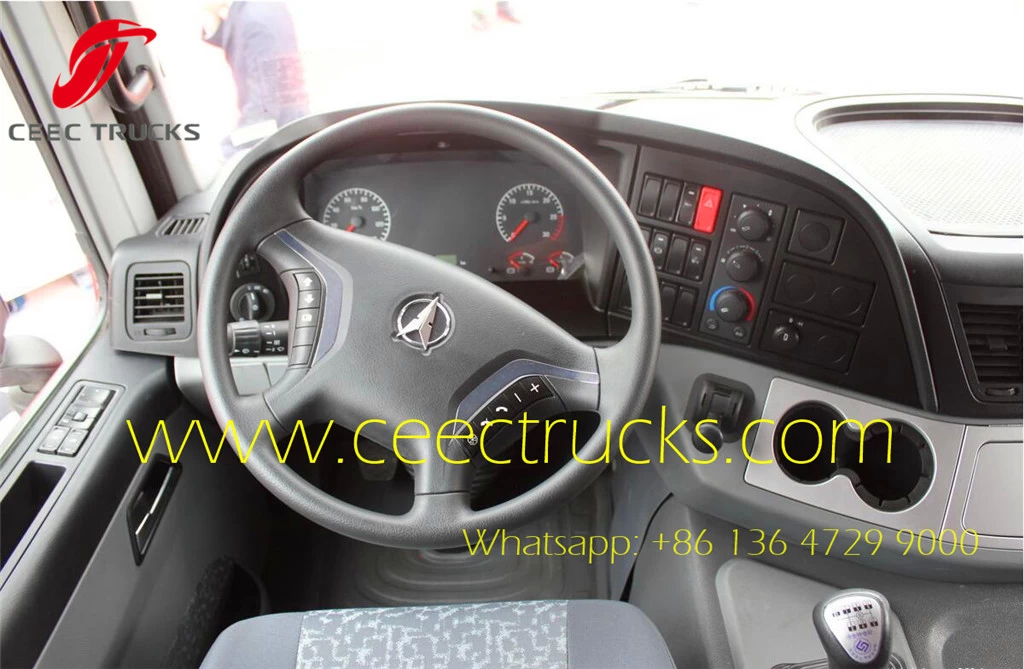

Cabin

V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C



Beiben 2538 V3 TOWING TRUCK



Beiben 2538 V3 TOWING TRUCK    Beiben 2538 V3 TOWING TRUCK



Beiben 2538 V3 TOWING TRUCK



Beiben 2538 V3 TOWING TRUCK    Beiben 2538 V3 TOWING TRUCK



Beiben 2538 V3 TOWING TRUCK    Beiben 2538 V3 TOWING TRUCK



Beiben 2538 V3 TOWING TRUCK    Beiben 2538 V3 TOWING TRUCK



Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale
