Product Description
Beiben 4×2 truck chassis, as a high-performance chassis designed for heavy-duty transportation and operations, can demonstrate excellent driving and operating capabilities in various complex environments with its outstanding design and powerful functions. The chassis has a wheelbase of 4500mm and an overall size of 7990×2495×2965mm, providing it with a stable driving foundation. Beiben 4×2 chassis adopts NG80B short cab (no sleeper) and left-hand steering wheel design. The cab has an all-steel skeleton structure, covered with double-layer steel plates, and can be flipped forward. The interior decoration is luxurious and comfortable, equipped with integrated interior, digital instrument, radio (with USB interface + MP3), high back/shock-absorbing driver's seat, high back co-pilot seat, etc. The steering wheel can be adjusted and equipped with an in-car air conditioning system.
Beiben 6 wheeler chassis is equipped with WP10.240 engine, which is a water-cooled, four-stroke, inline six-cylinder, turbocharged diesel engine. Its rated power is 175Kw (240HP), output at 2200rpm, with strong power performance. At the same time, the engine has a minimum fuel consumption rate of 196g/kw.h, showing high fuel economy. In addition, the engine has a maximum torque of 1000Nm, output in the speed range of 1200-1600rpm, providing a strong load capacity for the vehicle. The Beiben 4×2 truck chassis uses the FAST 9JS150A mechanical gearbox with 9 forward gears, smooth and reliable shifting. The clutch uses the #430 single dry friction plate and hydraulic power-assisted clutch, which is easy to operate and completely separated.
In terms of axle configuration, the front axle of the Beiben 4×2 chassis uses double-shoe pneumatic brakes and a 7.5-ton non-driven steering axle (Mercedes-Benz technology), while the middle and rear axles use double-shoe pneumatic brakes, ductile iron housings, pulley-side reducers, and 13-ton double-stage reduction drive axles (Mercedes-Benz technology), with a speed ratio of 5.263. This configuration gives the vehicle better stability and load-bearing capacity during driving.
Product Specifications
|
Wheel base(mm)
|
4500
|
|
L*W*H (mm)
|
7990×2495×2965
|
|
Gross vehicle weight (kg)
|
18000
|
|
Curb weight(kg)
|
6300
|
|
Front overhang/rear overhang (mm)
|
1435/2100
|
|
Approach angle/Departure angle
|
15/13
|
|
Max Speed:(Km/h)
|
≤90
|
|
Model
|
WP10.240, water-cooled, four strokes,6 cylinders straight in line, turbocharged,
|
|
Engine
|
Fuel type
|
Diesel
|
|
Min rate of consuming fuel(g/(kw.h))
|
196g/kw.h
|
|
Rated Power / rotating(kw/(r/min)
|
175Kw(240HP)/2200rpm
|
|
Emission
|
EURO 3
|
|
Maximum Torque / rotating speed(n.m/(r/min)
|
1000Nm/1200-1600rpm
|
|
Displacement(ml)
|
9726
|
|
Fuel tanker capacity(L)
|
400L
|
|
Transfer case
|
LF200
|
|
Clutch
|
Model
|
#430, Single dry frictional disc,Hydraulic boosting
|
|
Gearbox
|
Model
|
9JS150A mechanical type, mechanical type, 9 forward speed gear.
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
Model
|
ZF 8098, recirculating ball steering gear, hydraulic boosting
|
|
Suspension System
|
Front Suspension
|
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs.
|
|
Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension
|
|
Frame
|
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology
|
|
Cross section dimension of frame(mm)
|
317×70×8.5+7mm
|
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, 7.5 ton non-driving steering axle
|
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263
|
|
Tire
|
10.00R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-70A
|
|
Starter
|
5.58Kw/24V
|
|
Cab
|
NG80B left hand drive
Short cab without sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
|
|
Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C
|
|
Exterior trimming:
Metal bumper, two steps, new mirror.
|
|
Other specifications
|
Two-stage air filter, 76° Tropical thermostat.
|

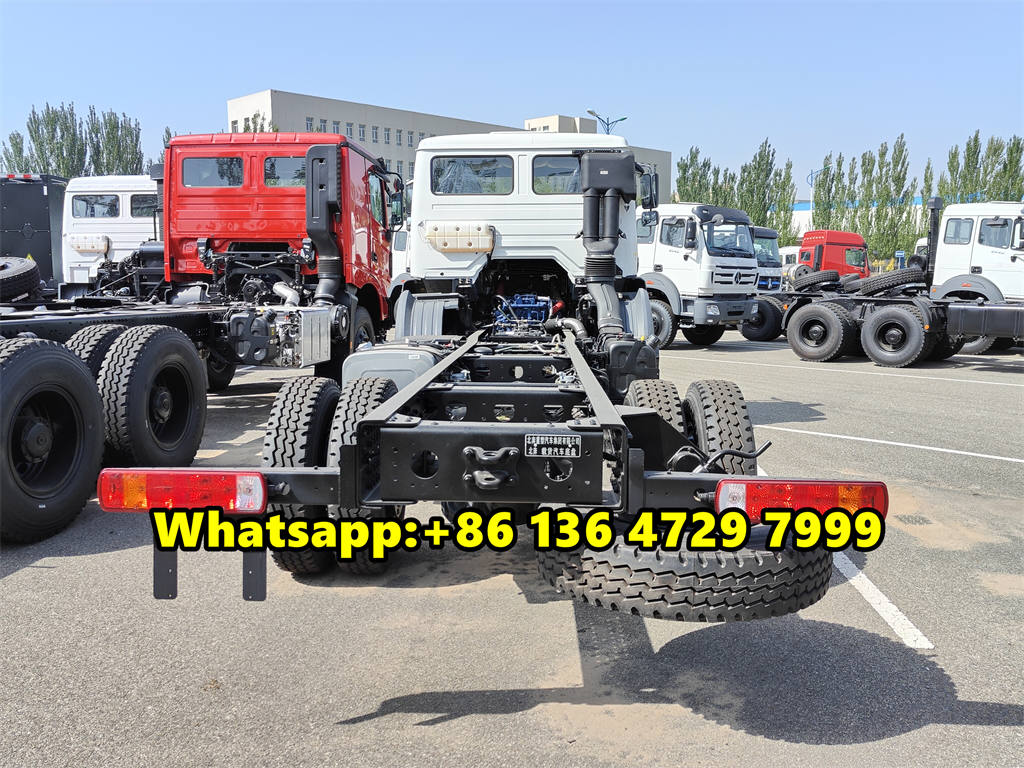

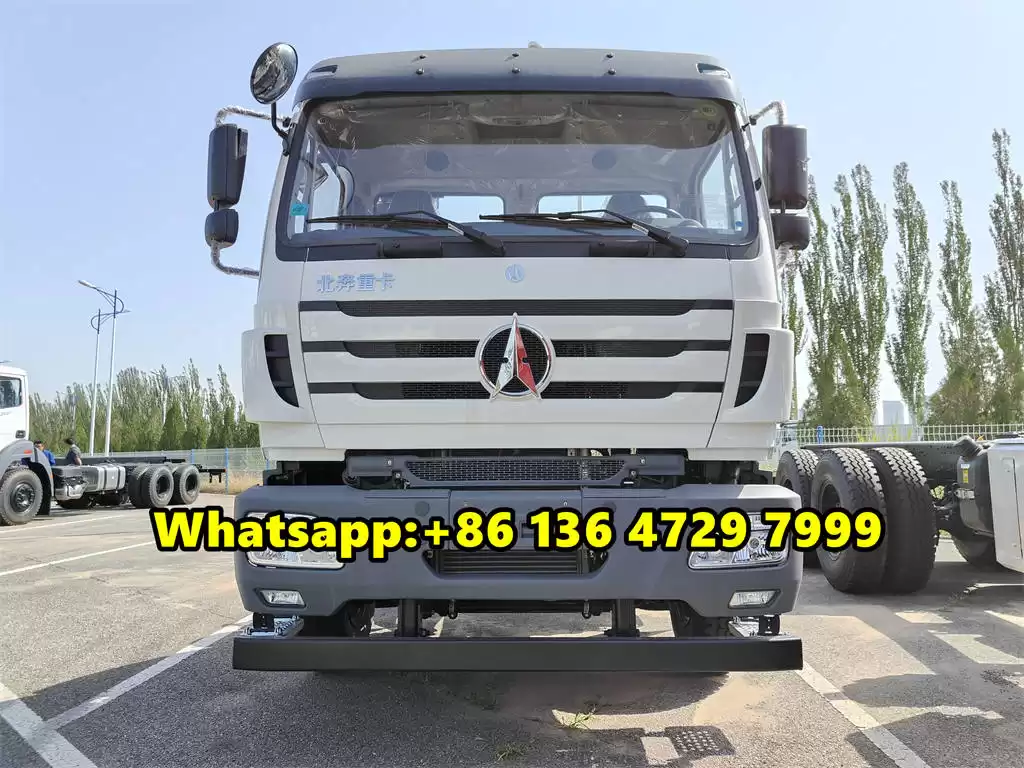

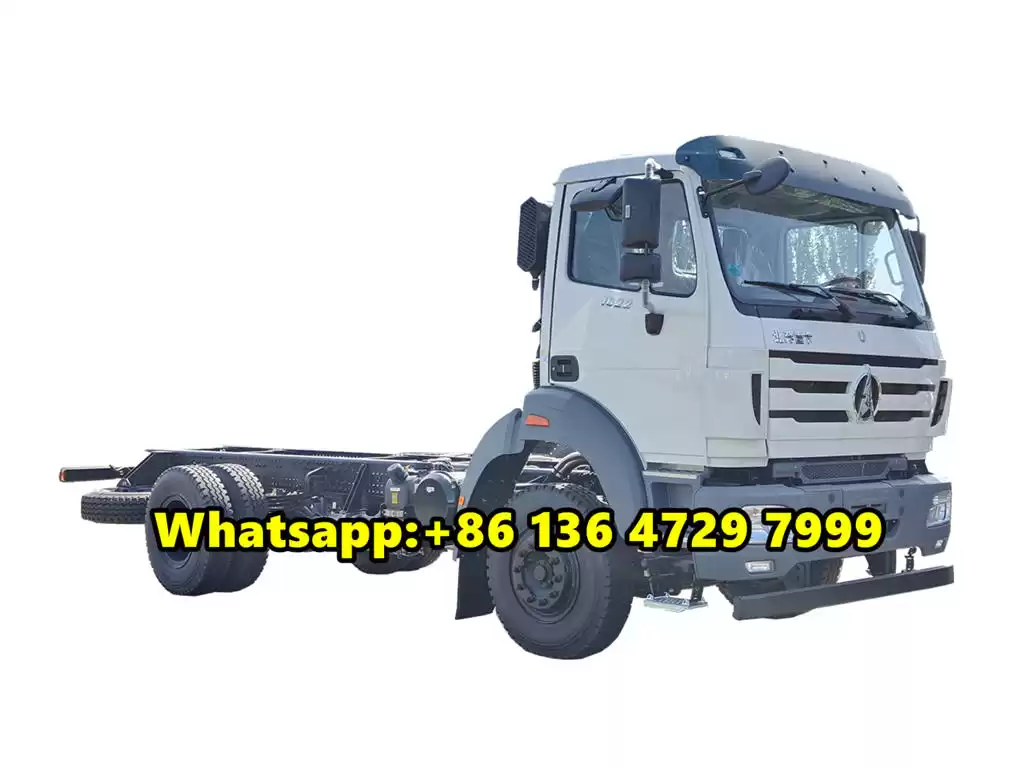

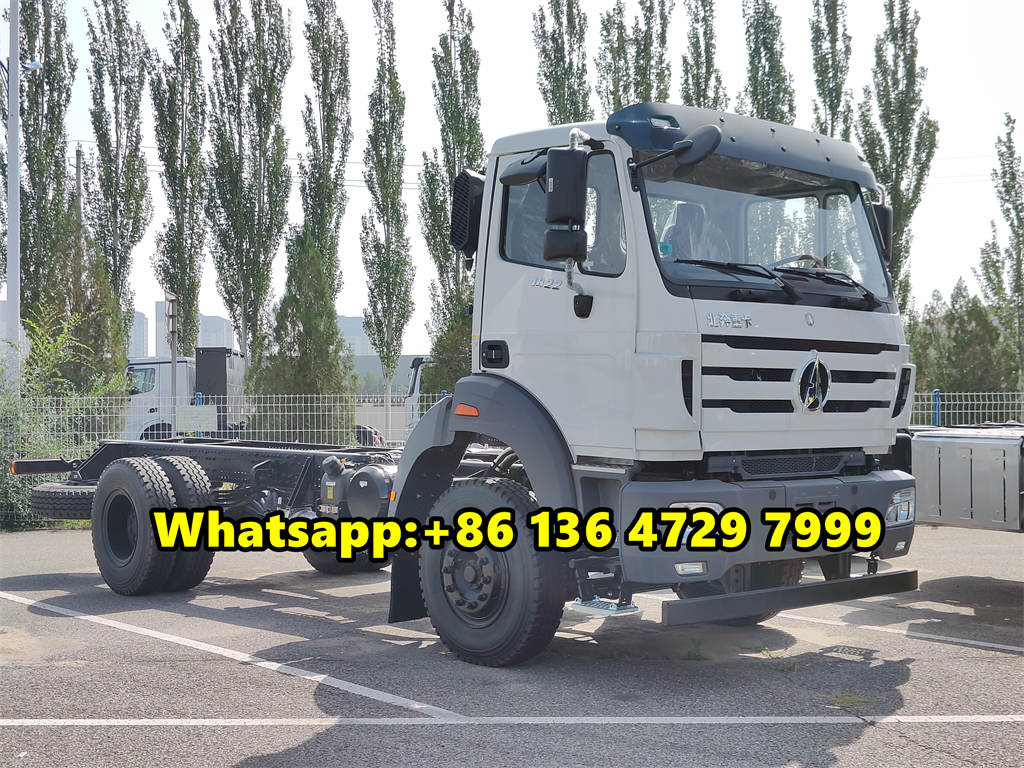

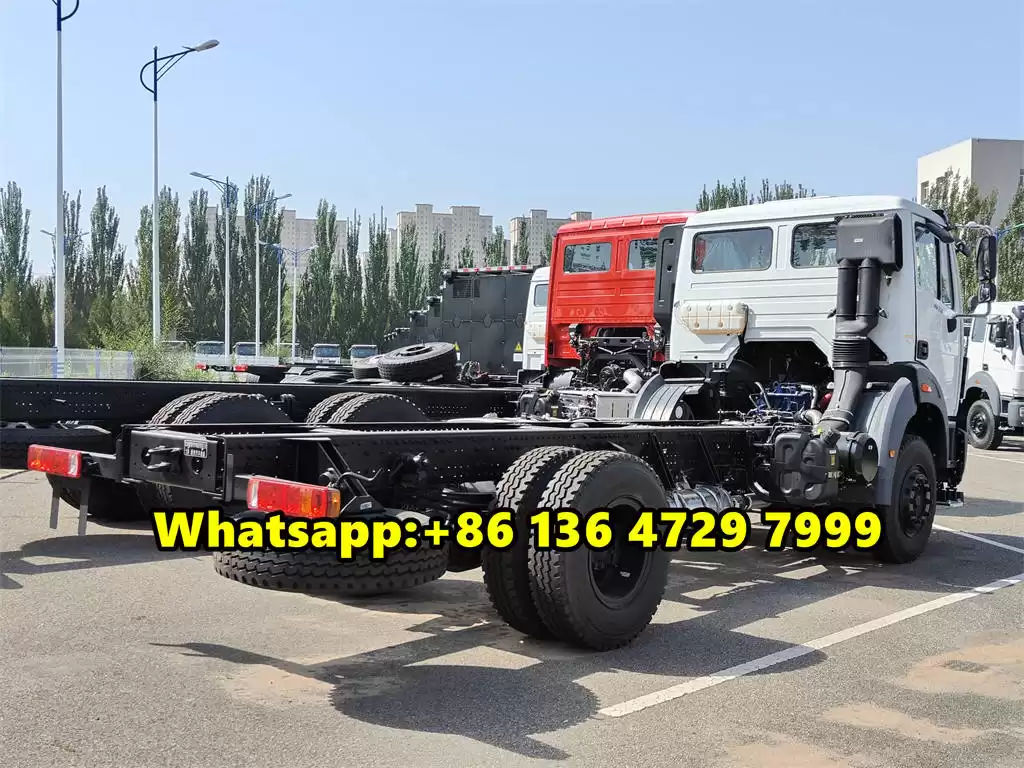

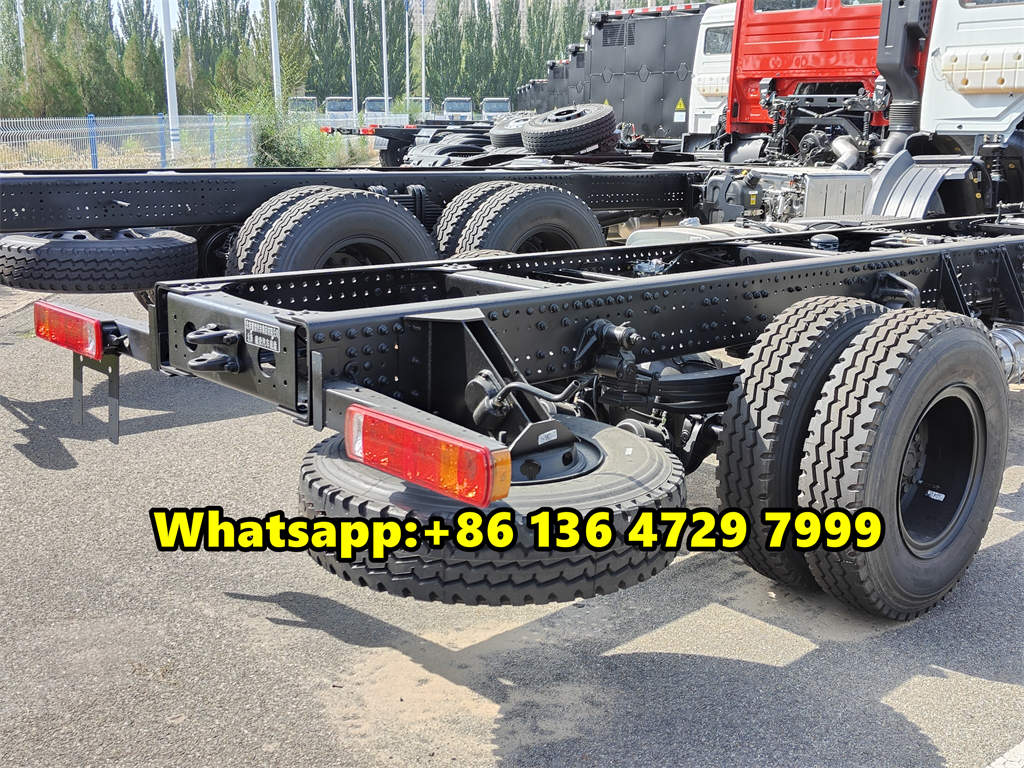

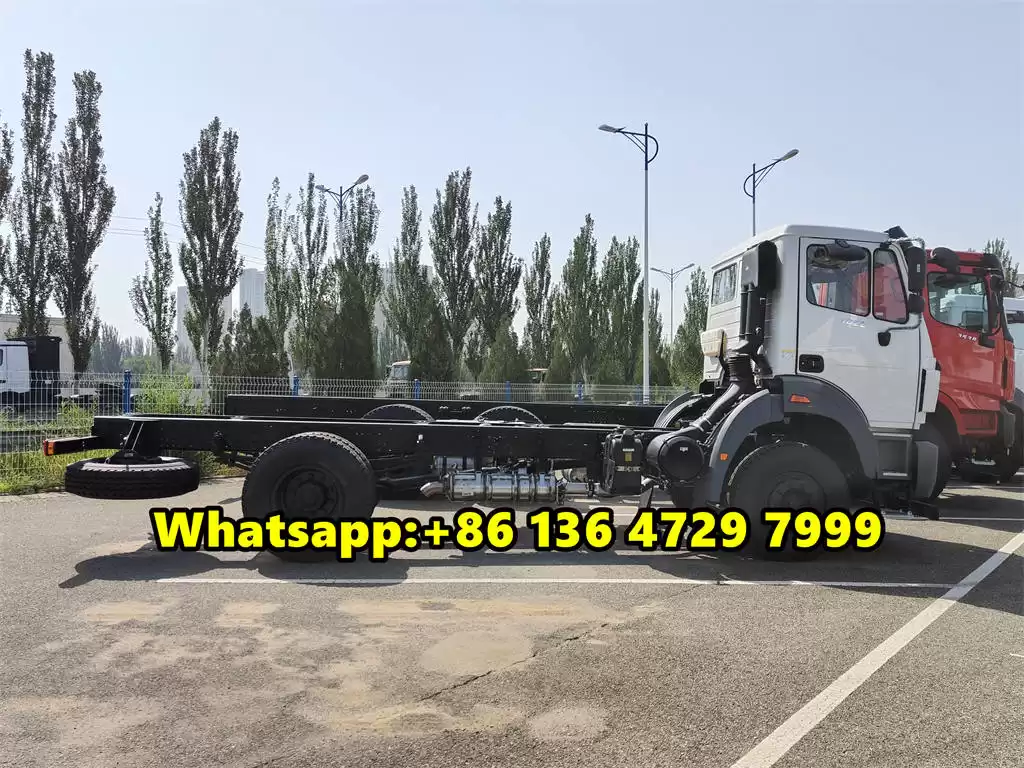

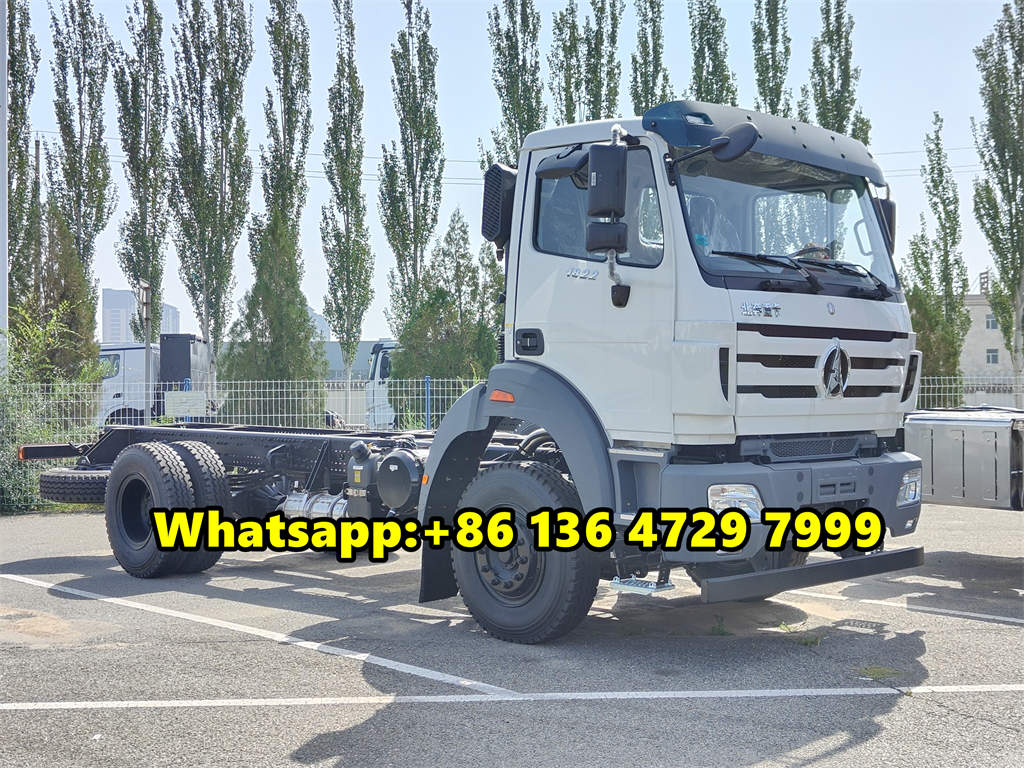

Product Details
