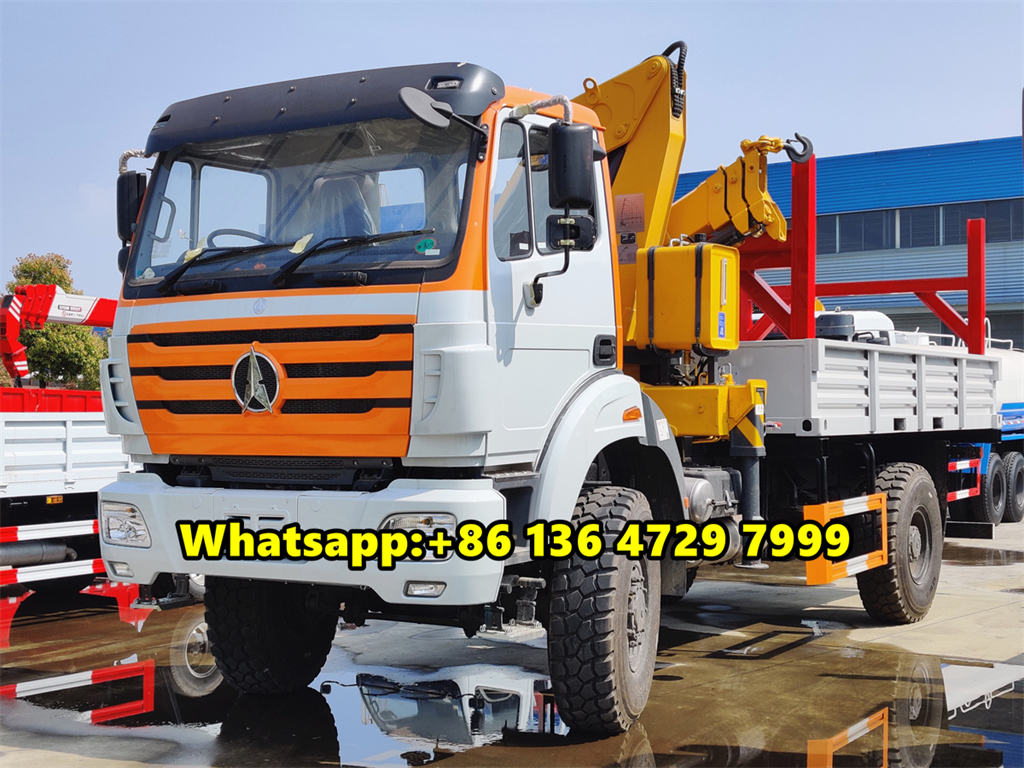

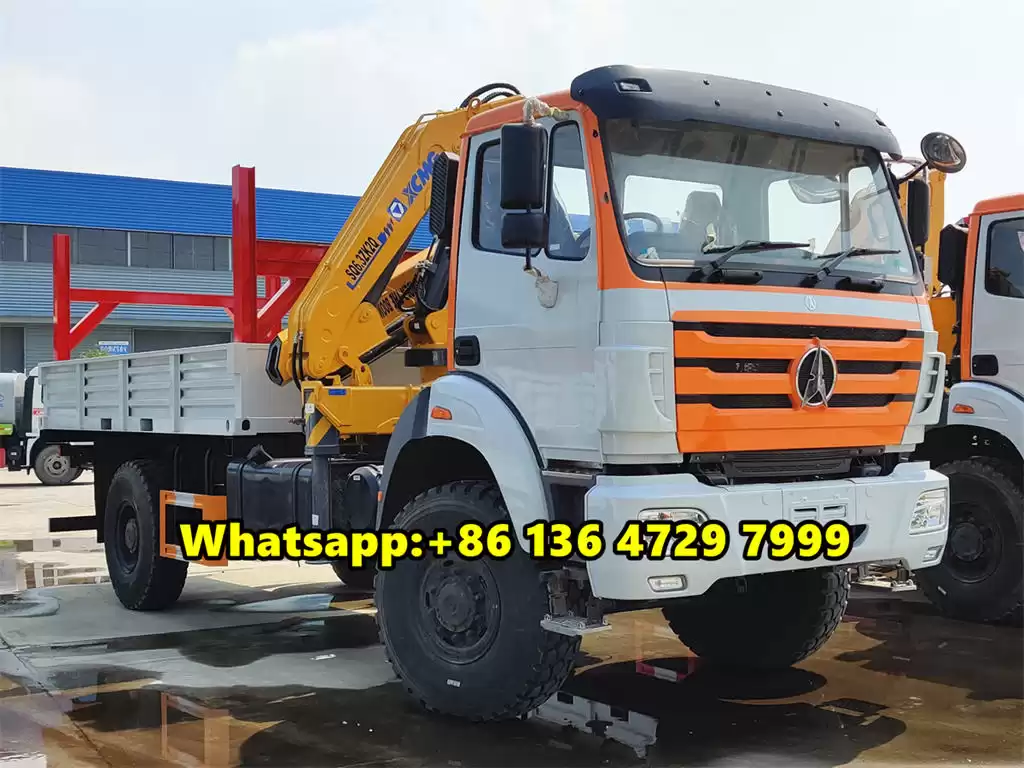

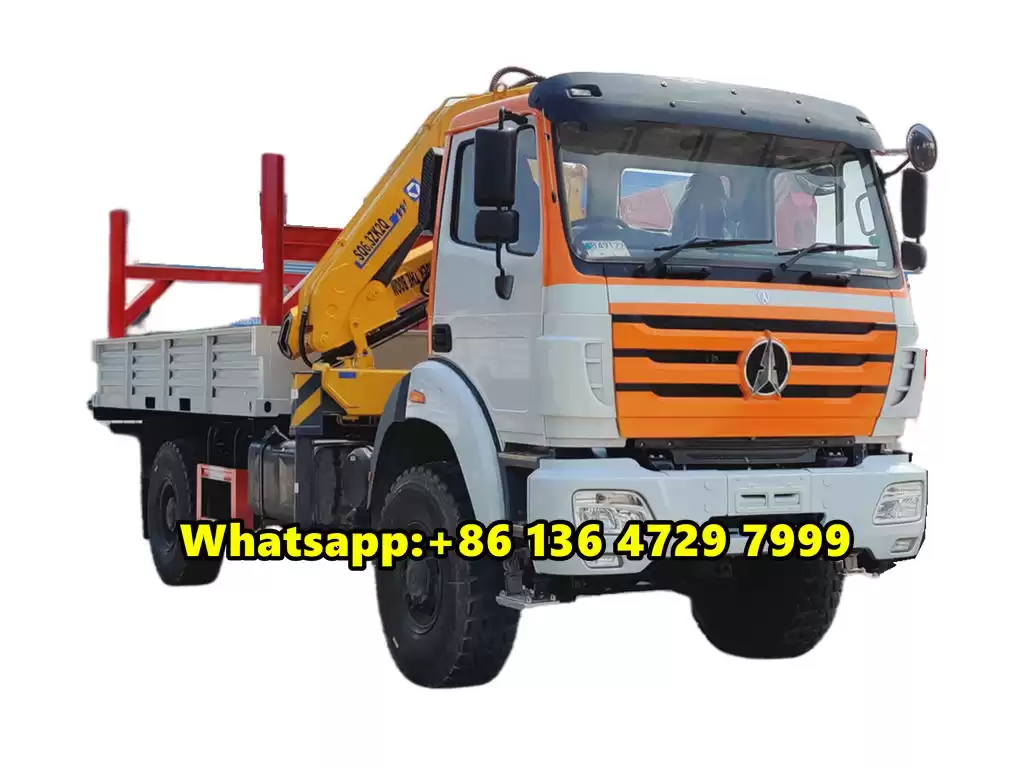

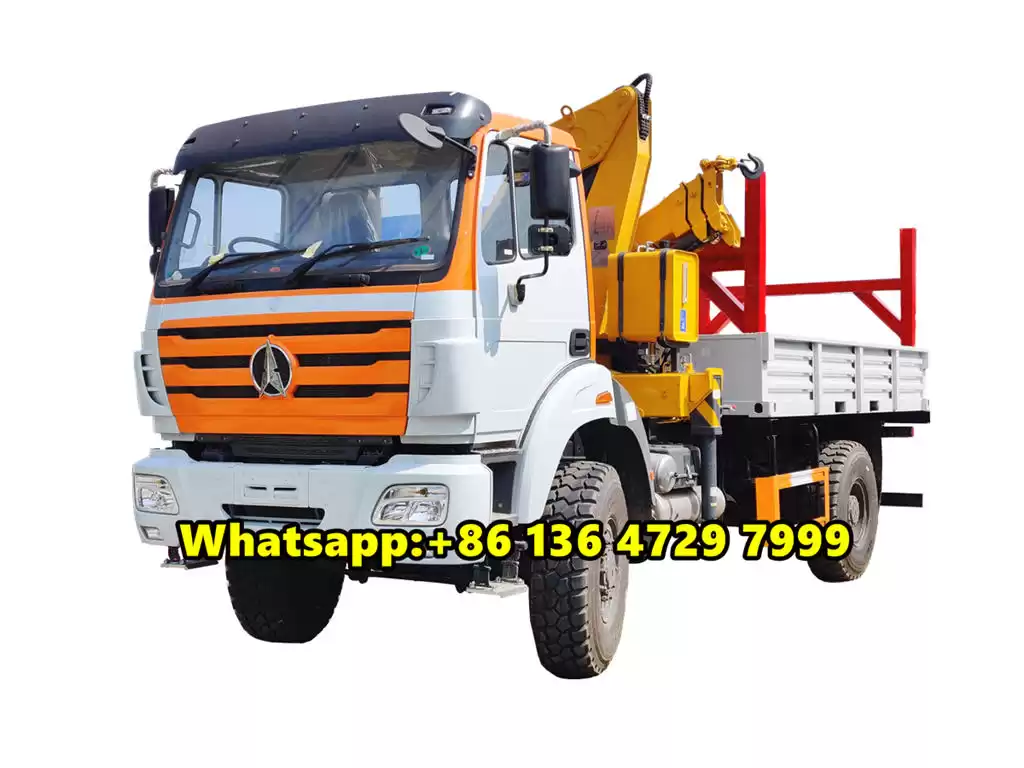

Beiben 4×4 off-road truck mounted crane

Beiben 4×4 all-wheel drive truck mounted crane is equipped with XCMG brand knuckle boom crane, with a maximum lifting weight of 6.3 tons, a maximum lifting height of 12.5 meters, and a working radius of 9.9 meters. It is equipped with WEICHAI WP10.290 engine with a power of up to 290HP and a FAST 9-speed gearbox, providing powerful power.


  • Drive system4×4
  • Engine power290 HP
  • Working Capcity6.3 tons
  • Payment termsT/T
  • Production time40 days

Product Description

Beiben 4×4 crane truck is based on BEIBEN brand chassis, which provides a solid foundation for the whole vehicle. Its vehicle weight reaches 11590 kg and the wheelbase is 4300 mm, which ensures stability and safety during driving. The vehicle size is 7265×2500×3750 mm, which allows it to shuttle flexibly in various environments. At the same time, the front and rear overhangs are 1500 mm and 2250 mm respectively, with a 14° approach angle and a 12° departure angle, so that the vehicle can still be at ease in complex terrain.





Beiben 4×4 off-road truck mounted crane is equipped with WEICHAI brand WP10.290 model engine, with a displacement of 9726 ml and a maximum power of 290 HP, which is about 213KW. Such a power configuration ensures the efficient operation of the vehicle under various working conditions. The Beiben crane truck is equipped with a manual FAST transmission with 9 forward gears and 1 reverse gear, providing drivers with a wealth of driving options. At the same time, the vehicle is equipped with a reinforced diaphragm clutch and air brake system to ensure the accuracy and safety of the control. In addition, the vehicle also uses a hydraulic power steering system, making driving easier and more labor-saving.

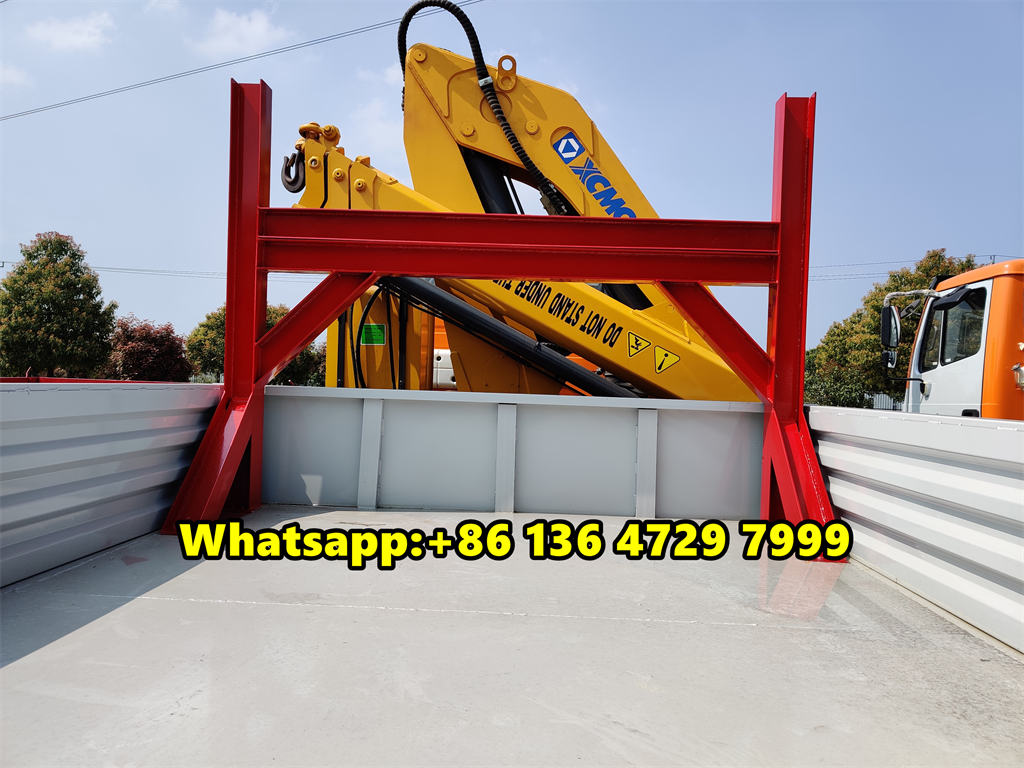

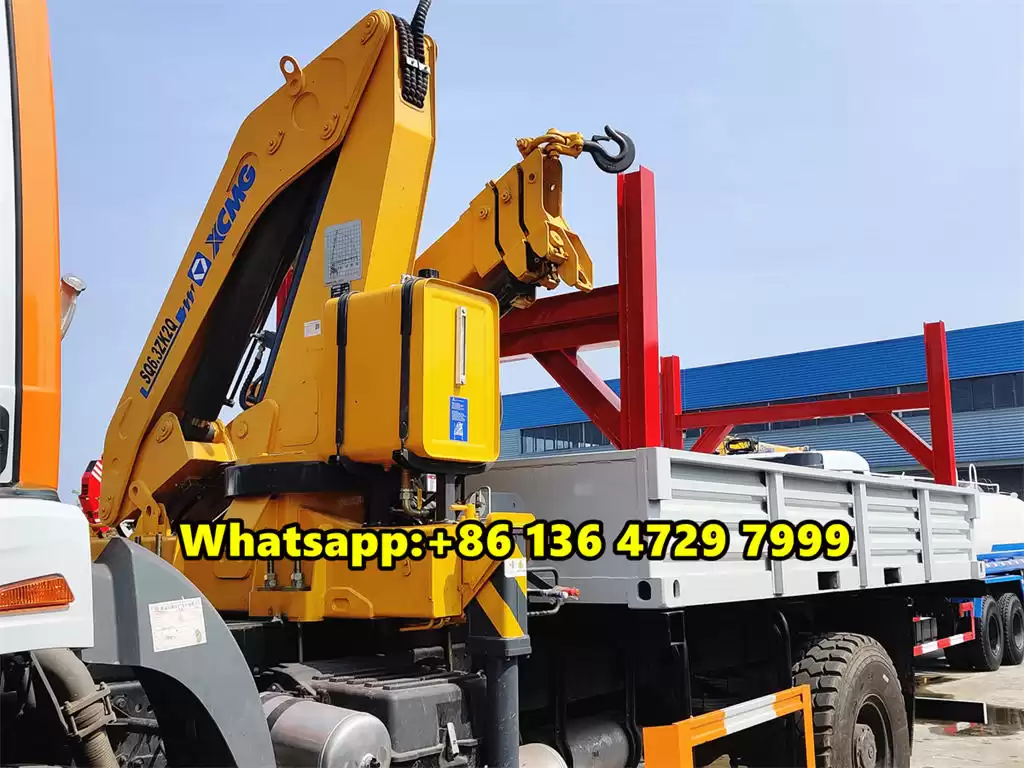

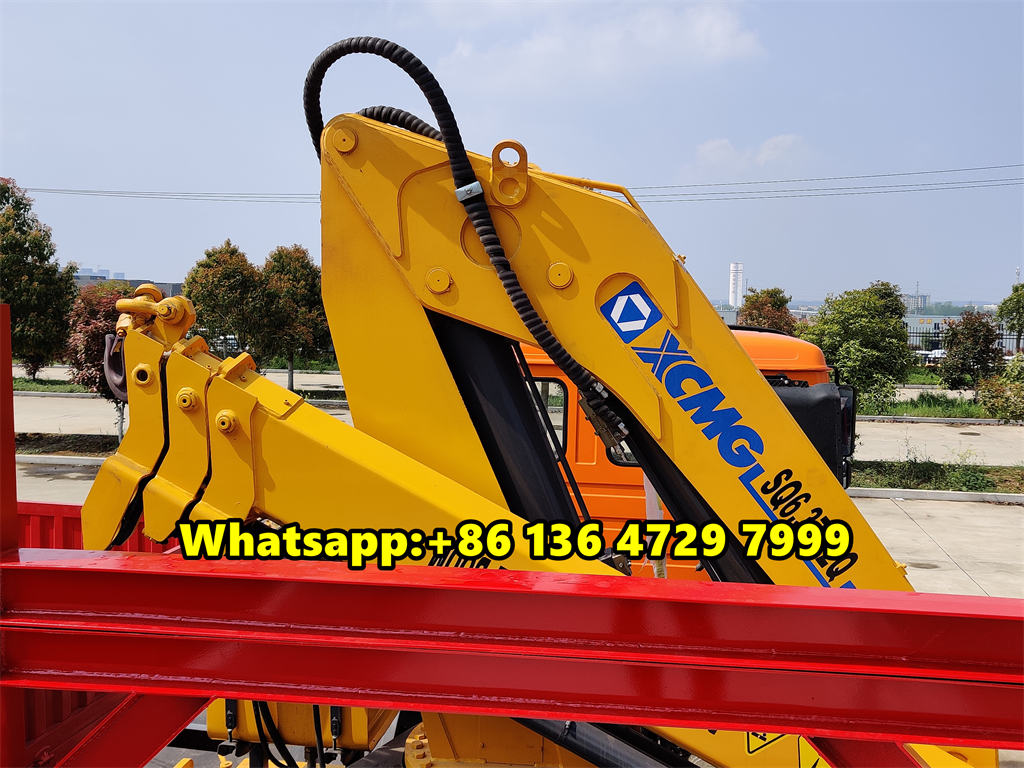

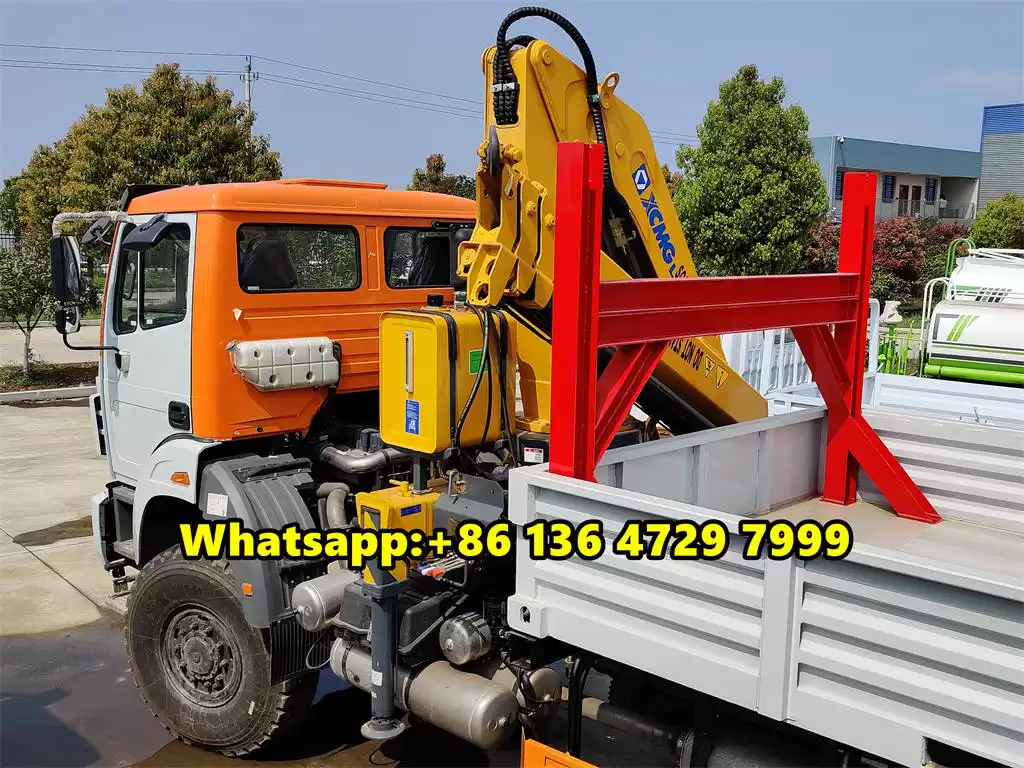

The crane of the Beiben 4×4 all-wheel drive truck with crane is an XCMG 4-section knuckle boom crane, with a maximum lifting weight of 6.3 tons, a maximum lifting height of 12.5 meters, and a working radius of 9.9 meters, making the lifting operation more flexible and changeable. In addition, the boom of the Beiben truck with crane is made of carbon steel material, which has the advantages of high strength and wear resistance, ensuring the safety and reliability of the lifting operation.





Product Specifications



Product name

Beiben 4×4 truck mounted crane

Chassis

Brand

BEIBEN

Curb weight(kg)

11590 kg

Wheelbase(mm)

4300 mm

Dimensions(mm)

7265×2500×3750 mm

Overhang (front/rear) (mm)

1500/2250 mm

Approach/Departure angle(°)

14/12

Axle Load(kg)

9000/16000kg

Max. driving speed(km/h)

80 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Air brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Number

6pcs with one spare tire

Specifications

10.00R20

Transmission

FAST, manual, 9 Forwards and 1 Reverses

Cabin

It can accommodate two people, with Air conditioner

Engine

Brand

WEICHAI

Model

WP10.290

Displacement(ml)

9726 ml

Power(kw)/Horsepower/(HP)

290 HP

Emission standard

Euro 3

Crane

Boom Type

Knuckle type, Folding arm

Material

Carbon Steel

Brand

XCMG

Max. Lifting Weight

6.3 tons

Max. Lifting Height

12.5 m

Working radius

9.9 m

Extendable boom section

4



Product Details

  • #
  • #
  • #
