Beiben 4*2 dump truck chassis 20ton tipper chassis weichai engine

BEIBEN NG80B EURO II 20TONS DUMP TRUCK FOR SALE, north benz 1628 tipper truck, super 280HP engine, FAST 9-shift manual gearbox for easy operation, middle lifting system for better performance. Q235 material dumper body with thickness over 8mm



Being the best supplier of beiben 1628 tipper truck, beiben 6*4 drive dump truck, beiben 6*6 dump truck, we have more than 15 years experience in manufacturing beiben 2527,2529,2532,2534,2538 dumpers. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck, beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks for congo, kenya, tanzania, etc.



Beiben 4*2 dumper 1628 tipper trucks supplier



Beiben 1628 dumper trucks



Why kenya, Algeria, Nigeria, Tanzania, Cameroon customer choose beiben 4*2 dump trucks from CEEC TRUCKS:

Beiben 1628 tipper truck chassis, also named Germany BENZ technology dumper chassis with high durability and reliability
Weichai WD615.50 diesel engine with 280hp super powerful. combined with original Benz rear axle reducer gear and differential gear
Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
Enhanced dumper body, and the motherboard adopts variable cross-section beams.

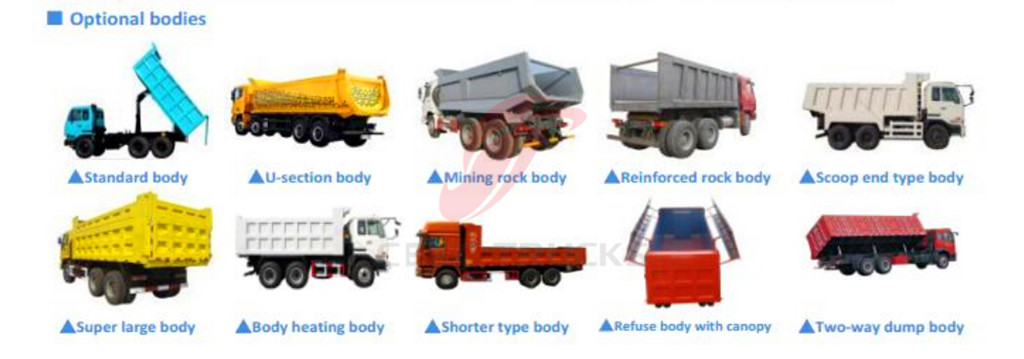

Special beiben Dump Body Design are optional as below



Beiben 1628 dumper truck supplier



Beiben 1628 dumper truck supplier



Similar key words: beiben 1628 dumper truck, north benz 1630 dump truck, beiben 1638 sand transportation truck, beiben 6 wheel tipping truck, beiben 4*2 dump truck price, africa beiben dumper manufacturer

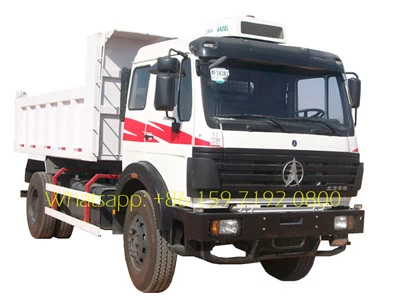

BEIBEN 1628 NG80 series 20Tons 6 tyres 4x2 dumpt truck

1628K /4×2/4100/Short Cab/LHD or RHD

Dimension

7880*2500*3430mm

Cargo box

4800x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4100mm

Max speed

85km/h

Curb weight

10110kg

Engine

Model

WDH615.50, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

280/2200 (kw/rpm)

Max.torque

1600/1800(N.m/rpm)

Emission

Euro III

Fuel tanker capacity

300L

Clutch

430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs

Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/



Beiben 1628 dumper trucks for sale



Beiben 1628 dumper trucks for sale



Beiben 1628 dumper trucks for sale    Beiben 1628 dumper trucks for sale



Beiben 1628 dumper trucks for sale    Beiben 1628 dumper trucks for sale

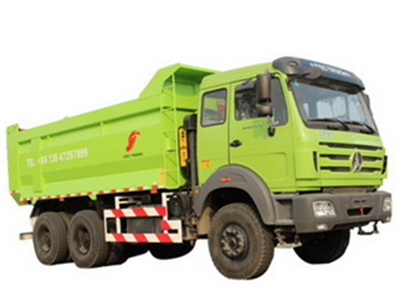

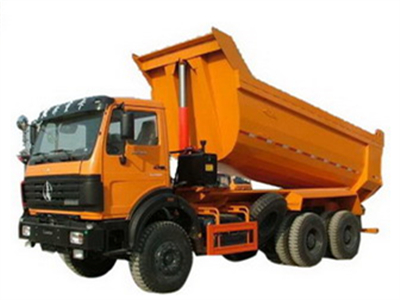

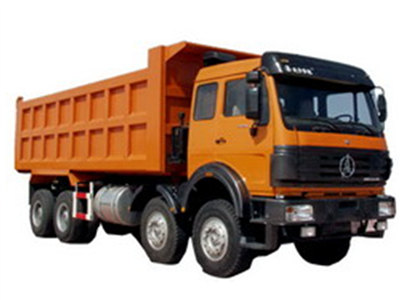

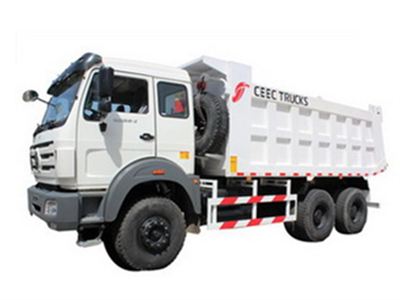

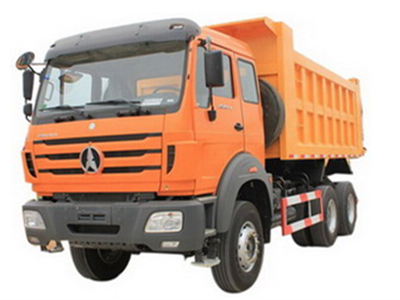

Recommend China beiben dump trucks on sale
