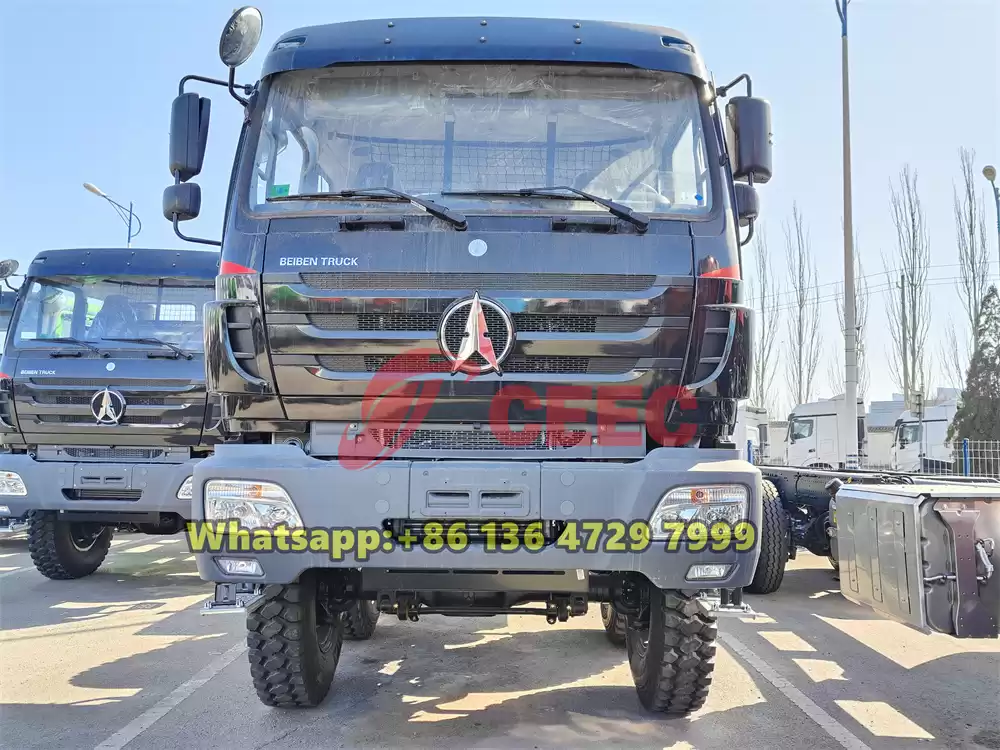

Beiben 4142 off road military truck

Beiben 4142 off-road military truck is a powerful vehicle designed for rugged terrain and challenging environments. Equipped with a robust WP12.420 engine, this truck is capable of delivering superior performance . With its 8x8 off-road drive system, the Beiben 4142 can traverse rough and uneven terrain with ease, making it ideal for military operations, disaster relief efforts, and other specialized missions. The truck's NG80B full steel cabin provides a safe and comfortable environment for the driver and passengers,


  • Engine power420HP
  • Working Capcity30-40 tons
  • Payment termsT/T
  • Production time25-30days
  • Drive system8x8

Beiben 4142 off-road military truck is a formidable vehicle equipped with a powerful WP12.420 engine, an 8x8 off-road drive system, an NG80B full steel cabin, and Benz technology front and rear axles. Beiben 8x8 off road military truck is designed for use in rugged and challenging terrains, making it ideal for military operations, off-road missions, and extreme weather conditions.

The WP12.420 engine provides the Beiben 4142 with the necessary power and torque to navigate through rough terrain and carry heavy loads over long distances. The 8x8 off-road drive system ensures excellent traction and stability on uneven surfaces, allowing the truck to maneuver through mud, sand, snow, and other challenging environments.

NG80B full steel cabin offers superior protection to the driver and passengers, providing a safe and comfortable environment even in the harshest conditions. The Benz technology front and rear axles further enhance the truck's performance, durability, and reliability, making it a trusted vehicle for military and off-road applications.

In military operations, the Beiben 4142 off-road military truck can be used for troop transport, cargo transportation, logistics support, equipment mobilization, and other essential tasks. Its robust construction, high payload capacity, and off-road capabilities make it a versatile and reliable asset for military units operating in challenging environments.








Required Technical Specification

Basic parameter

Model

4142 / 8×8

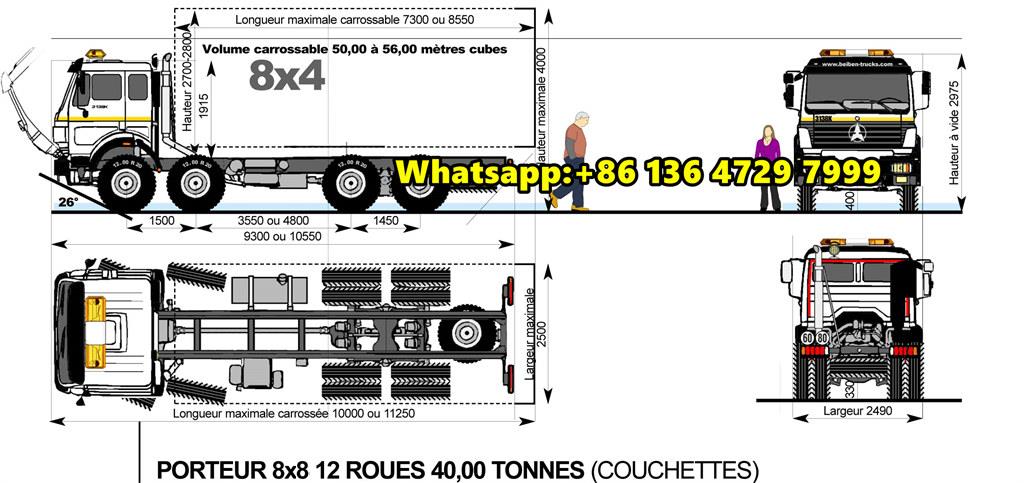

Length×width×height(mm)

11800×2500×3385

Wheel-base(mm)

1850+4450+1450

Curb weight(kg)

14400

Engine parameter

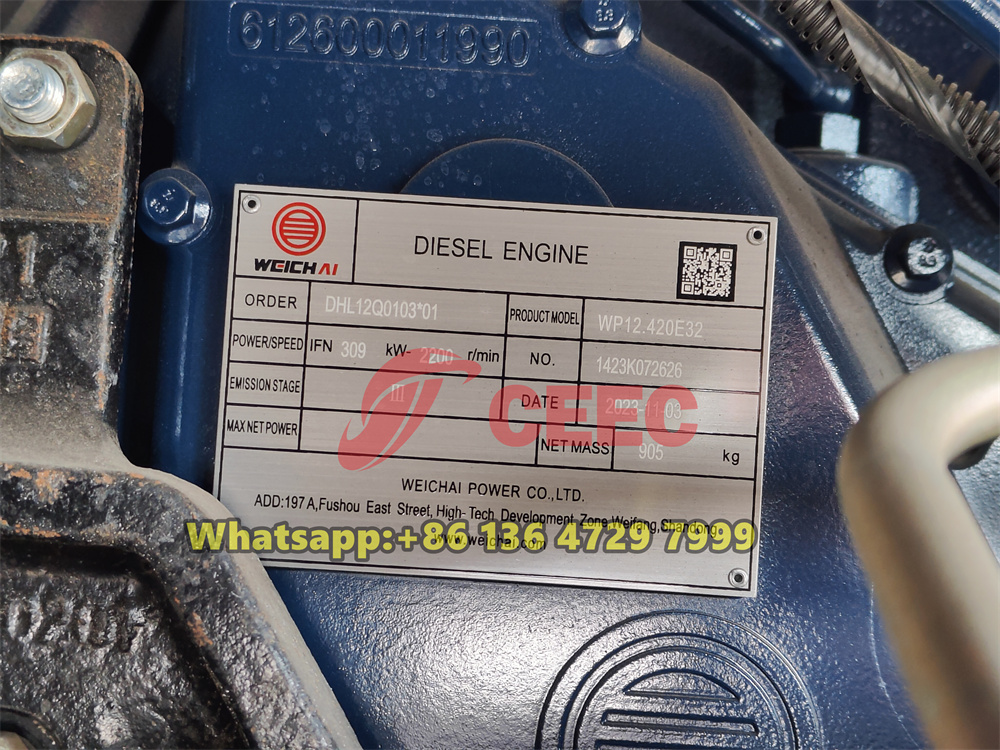

Model (six cylinder in line)

WP12.420E32

Max. Power (HP/rpm)

420

Max. Torque(Nm/rpm)

1600/14001600

Displacement(lit)

11.596 L

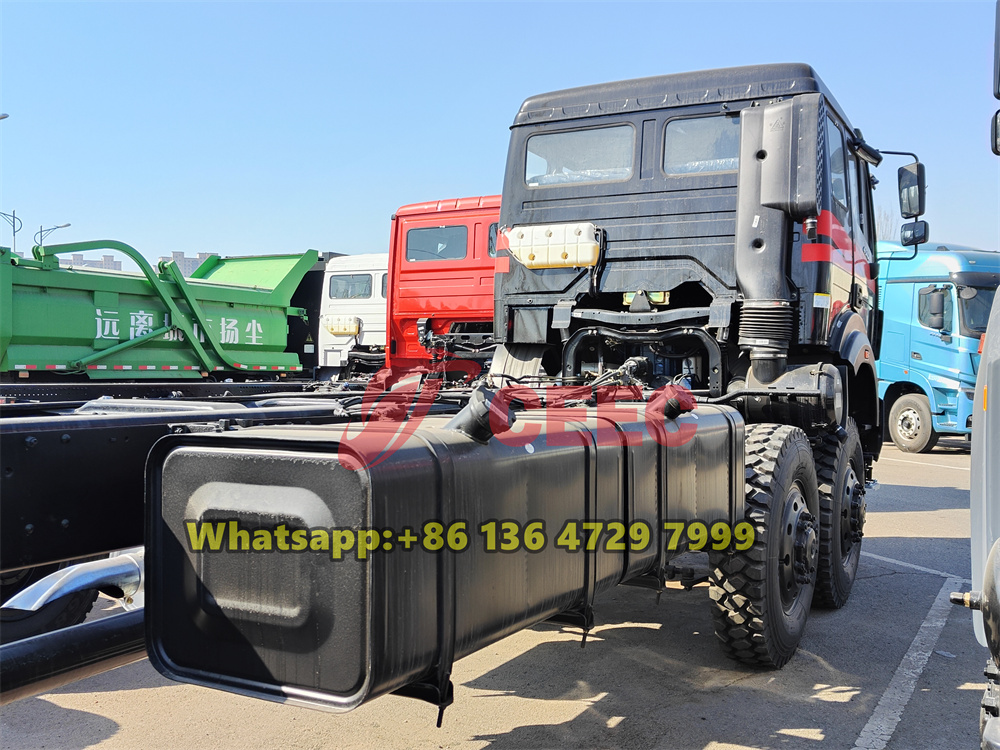

Fuel tank capacity

400L Iron oil tanker

Transmission system

Clutch

430 Single disc, dry type, friction clutch

Gearbox

Mechanical, 12JS200A

Steering system

Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system

Service brake

Double circulation air brake system equipped

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake

Chassis parameter

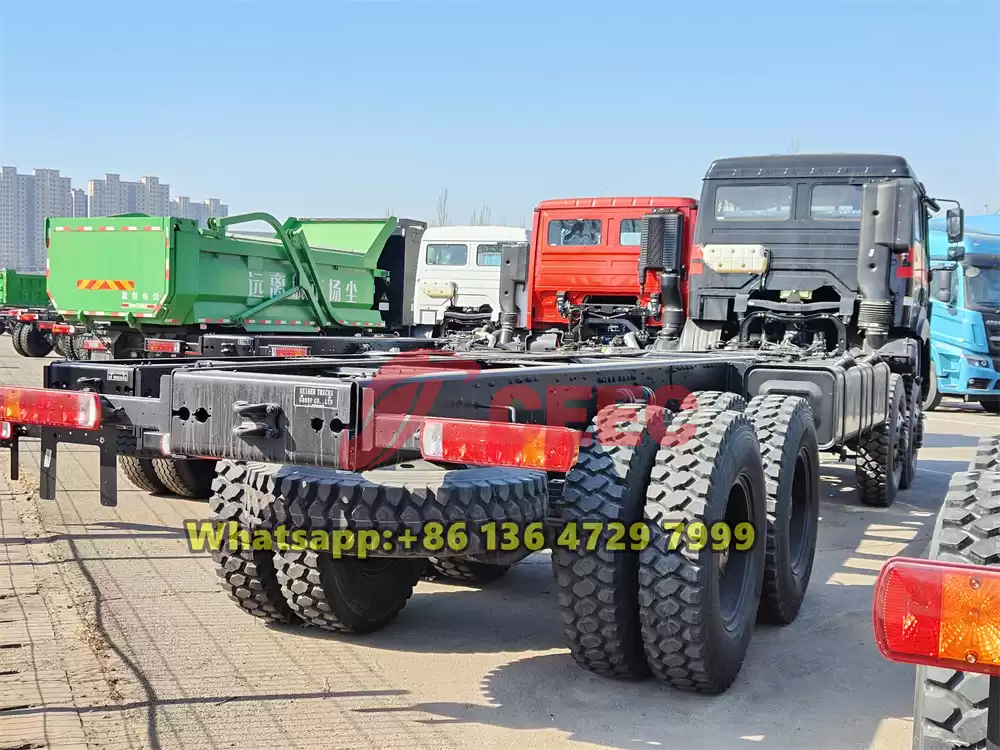

Frame

Variable width and section  317×70×8.5+7+8.5 mm

Front axle

7.5 T, no-driving steering axle, drum brake

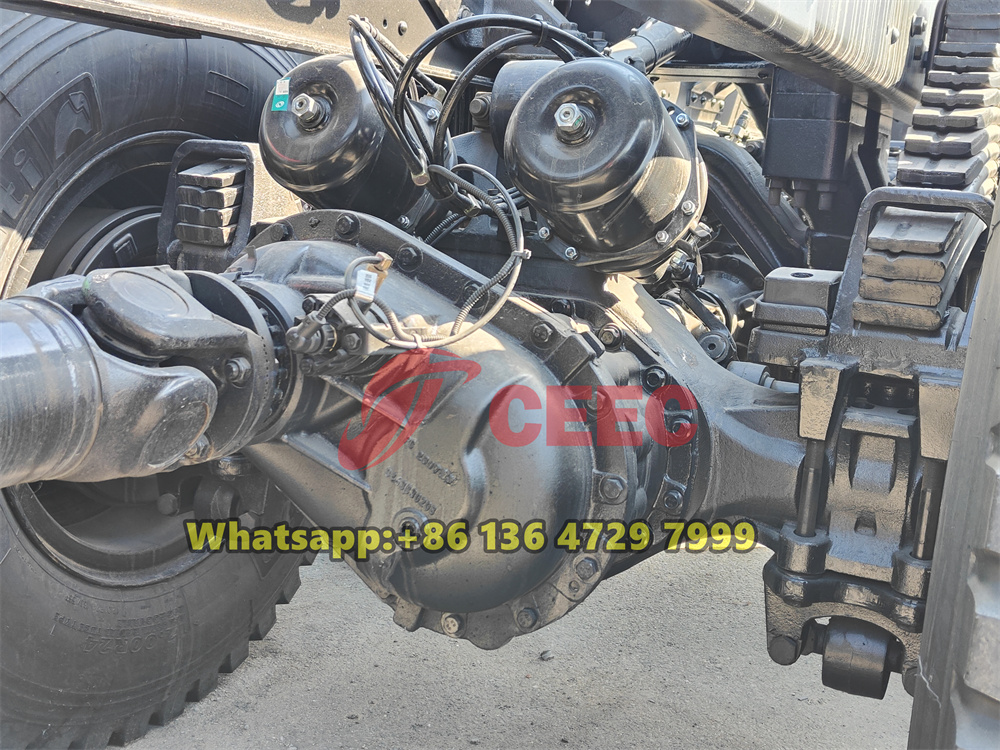

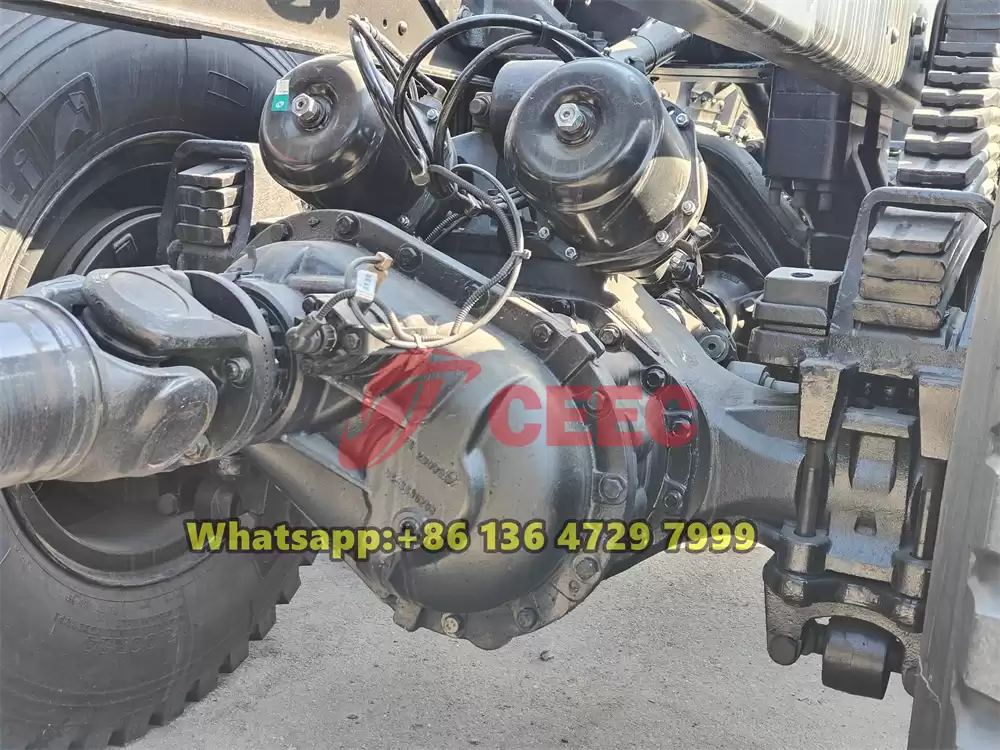

Middle & Rear axle

13 T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

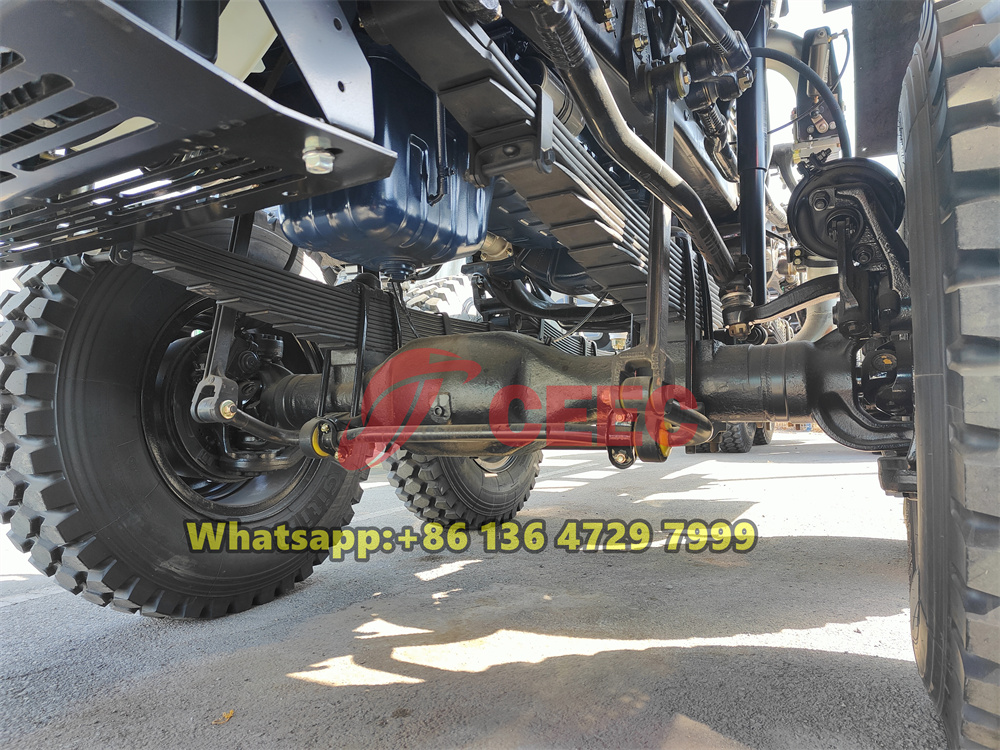

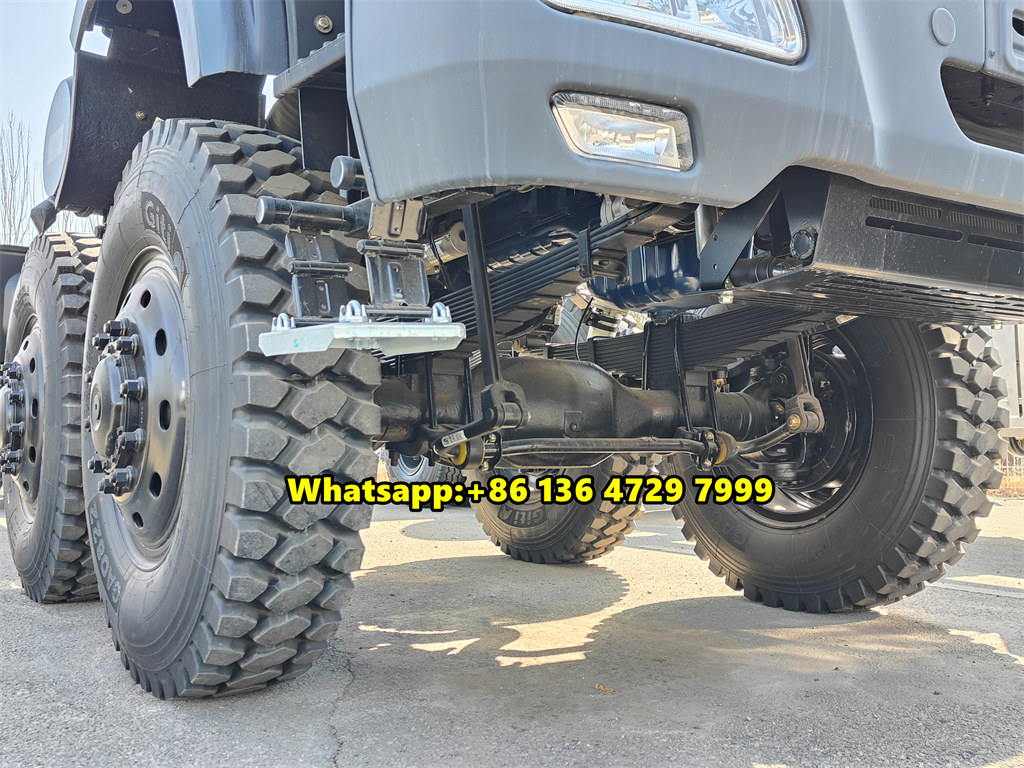

Front and rear suspension

Front/rear: Leaf spring, 13/13 pieces

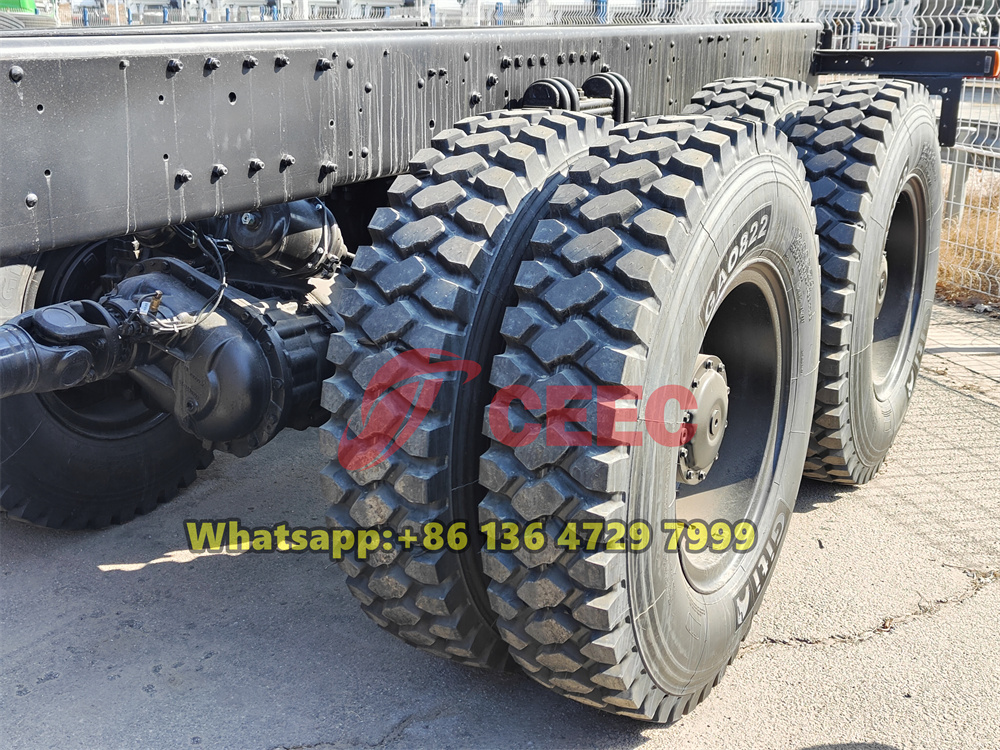

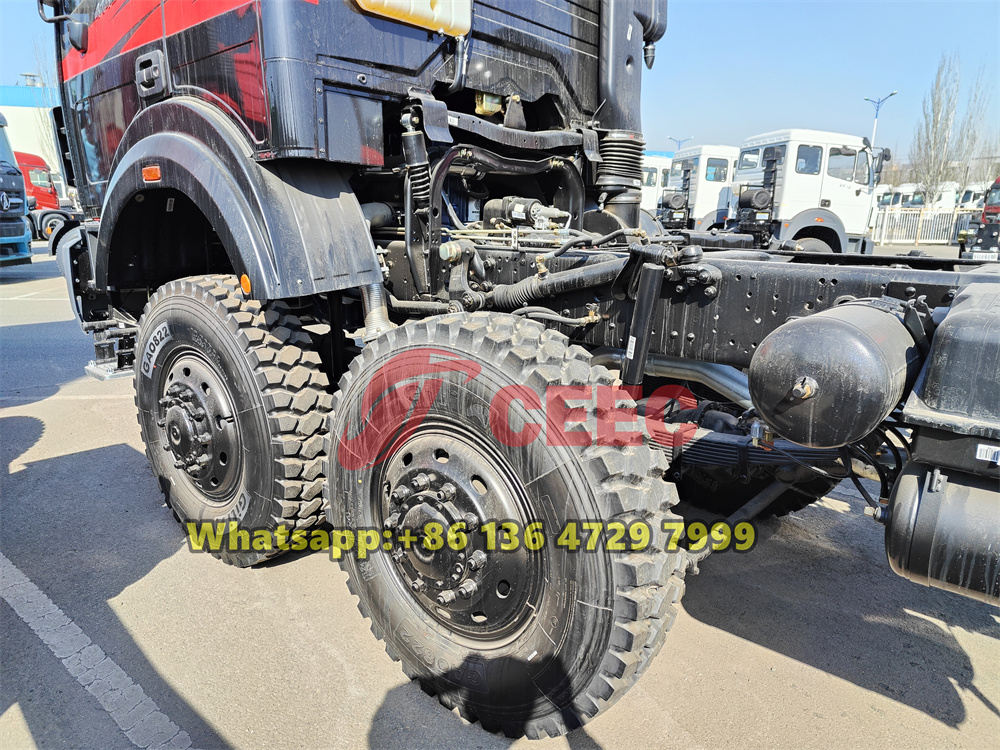

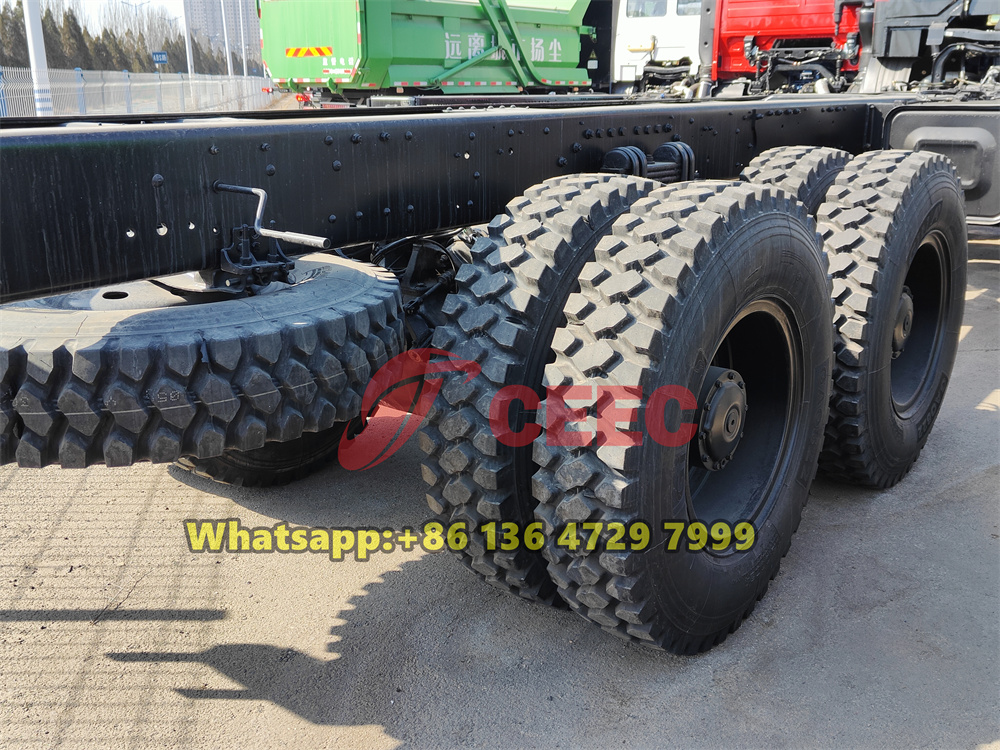

Tire

12.00R24

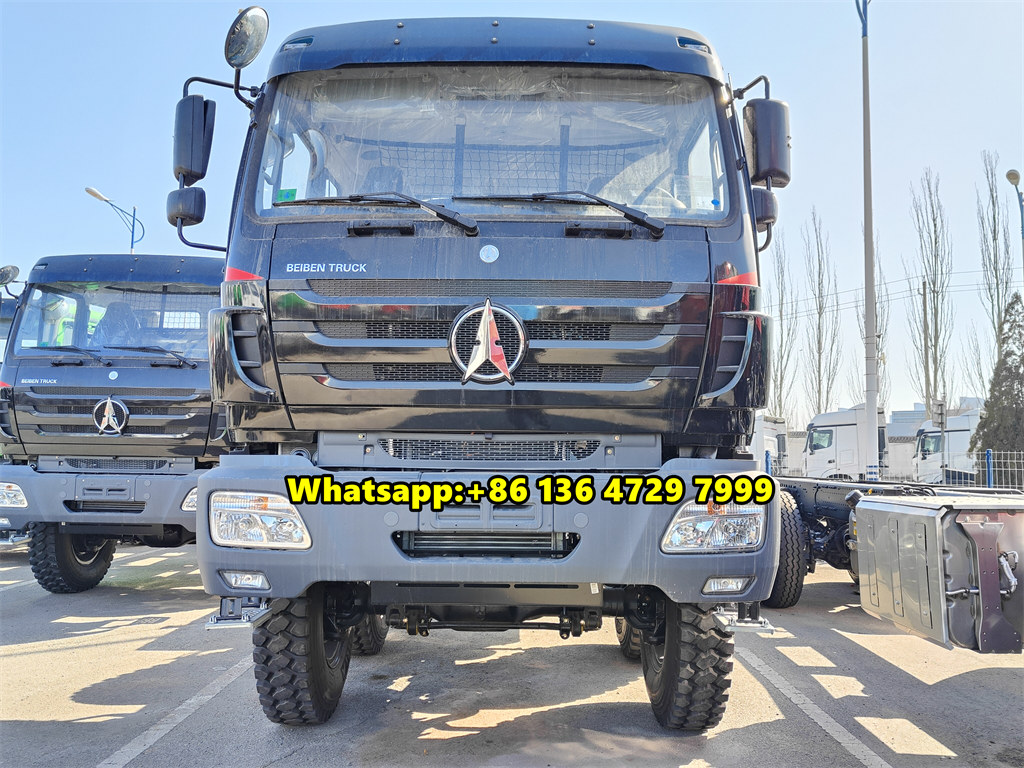

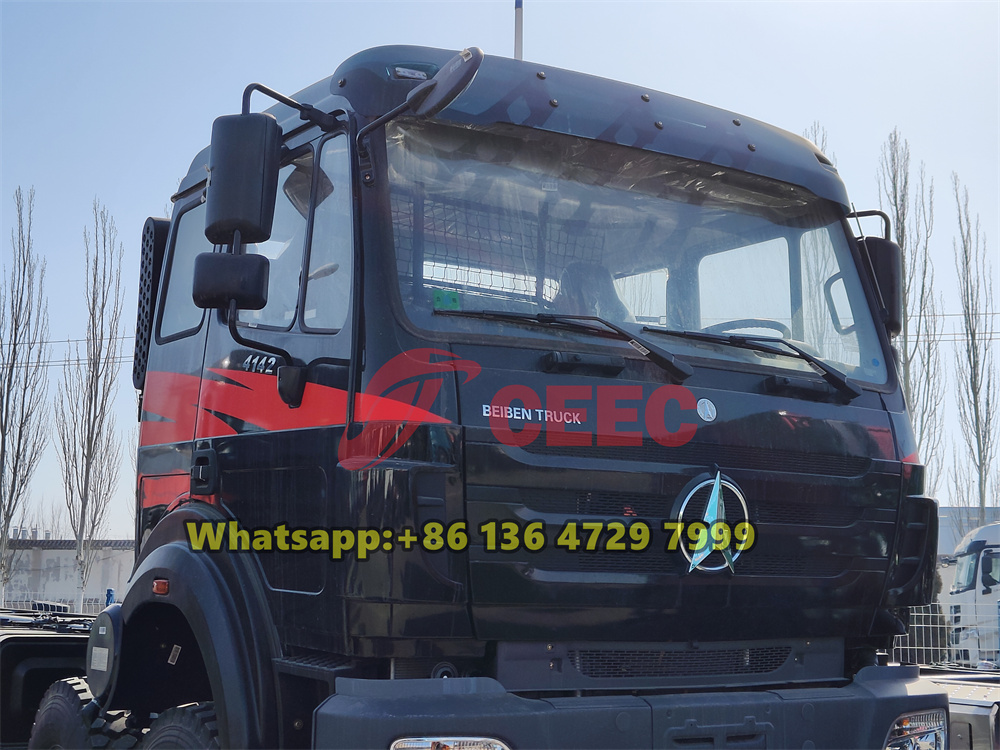

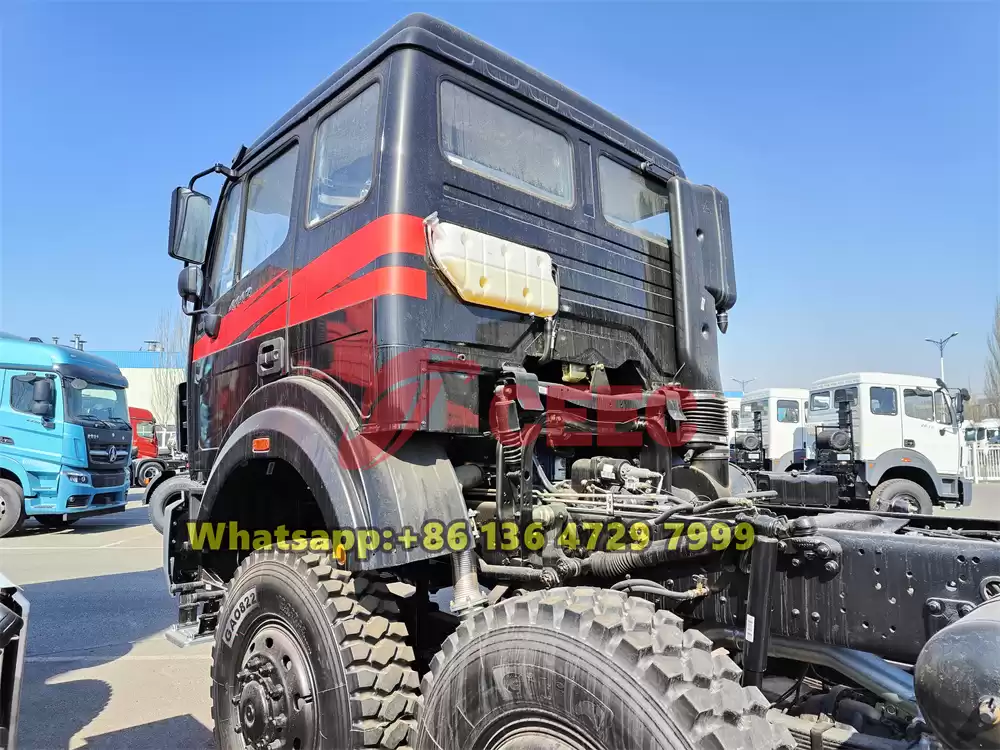

Cab

NG80B Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).

Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument

Robust 8x8 Drive Type: The BEIBEN 8x8 offroad cargo truck boasts an impressive 8x8 drive type, providing exceptional traction and stability across varied terrains. This feature ensures reliable performance even in challenging environments, making it suitable for diverse construction and industrial applications.

Powerful Engine: Equipped with the WP12.420 diesel engine model, delivering a formidable 420HP engine power, this Beiben 8x8 model truck combines high performance with efficiency. The potent engine ensures ample power for lifting operations while maintaining fuel efficiency, and optimizing productivity on the job site.

Beiben 4142 off-road military truck is a powerful and reliable vehicle designed for various military operations and missions. With its rugged construction and advanced features, this truck is capable of performing a wide range of tasks in challenging terrains. Here are four key uses of the Beiben 4142 off-road military truck:

1. Transportation of personnel and equipment: The Beiben 4142 off-road military truck is ideal for transporting soldiers, supplies, and equipment across rough terrain. Its robust design, high ground clearance, and powerful engine allow it to traverse difficult landscapes with ease, ensuring that troops and supplies reach their destination safely and effectively.

2. Cargo transportation: The spacious cargo bed of the Beiben 4142 off-road military truck can accommodate a large volume of goods and supplies. Whether it's carrying ammunition, food, medical supplies, or other essential items, this truck provides secure and reliable transportation for cargo in military operations.

3. Recovery and towing: In challenging off-road environments, vehicles may get stuck, break down, or require towing assistance. The Beiben 4142 off-road military truck is equipped with a winch and towing capabilities, making it an essential asset for recovery operations. Its towing capacity and durable construction ensure that stranded vehicles can be rescued and moved to safety.

4. Mobile command center: The Beiben 4142 off-road military truck can also serve as a mobile command center for military operations. Its spacious interior, communication equipment, and power supply capabilities allow it to function as a command post for coordinating troops, monitoring missions, and maintaining communication with headquarters.

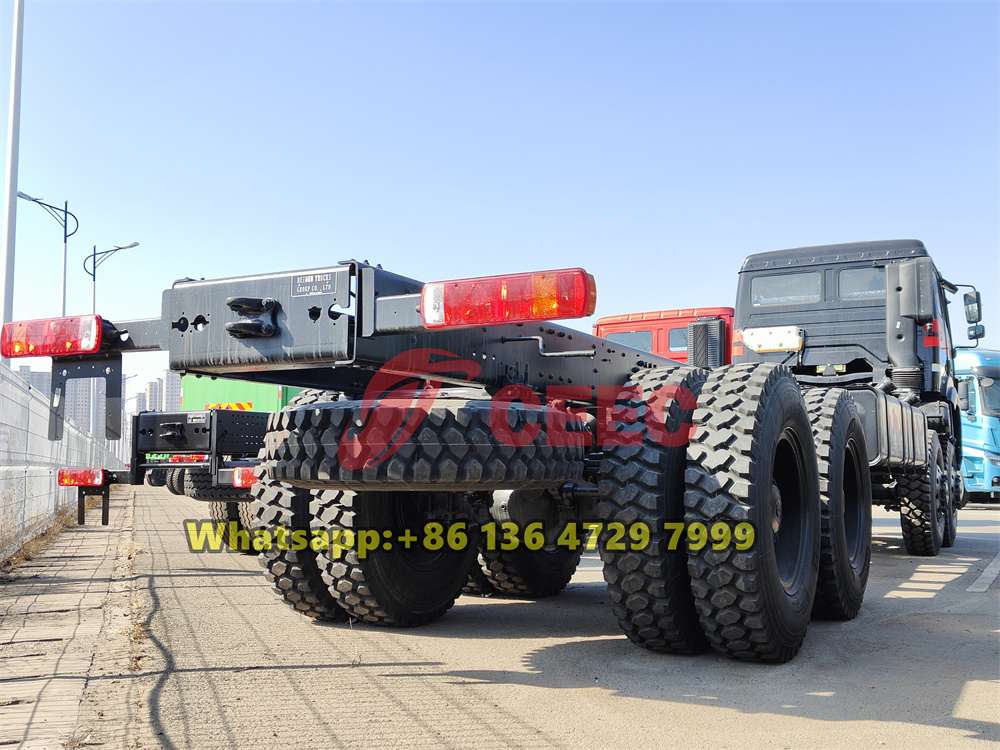

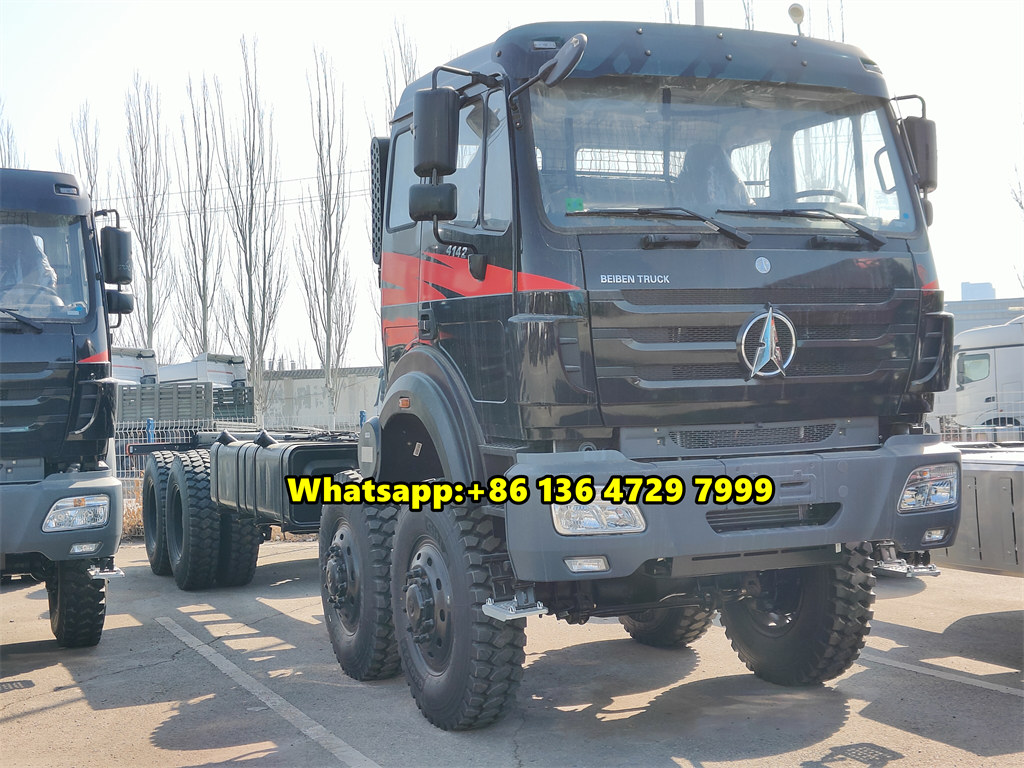

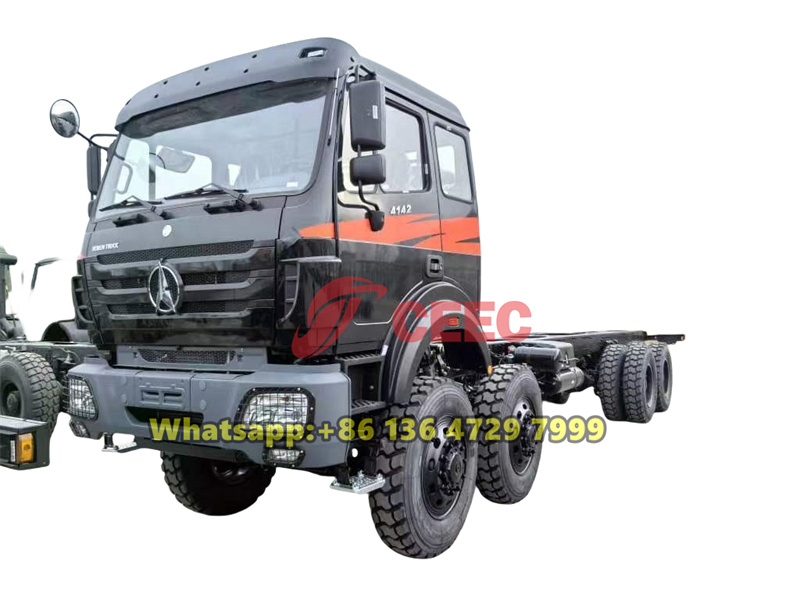

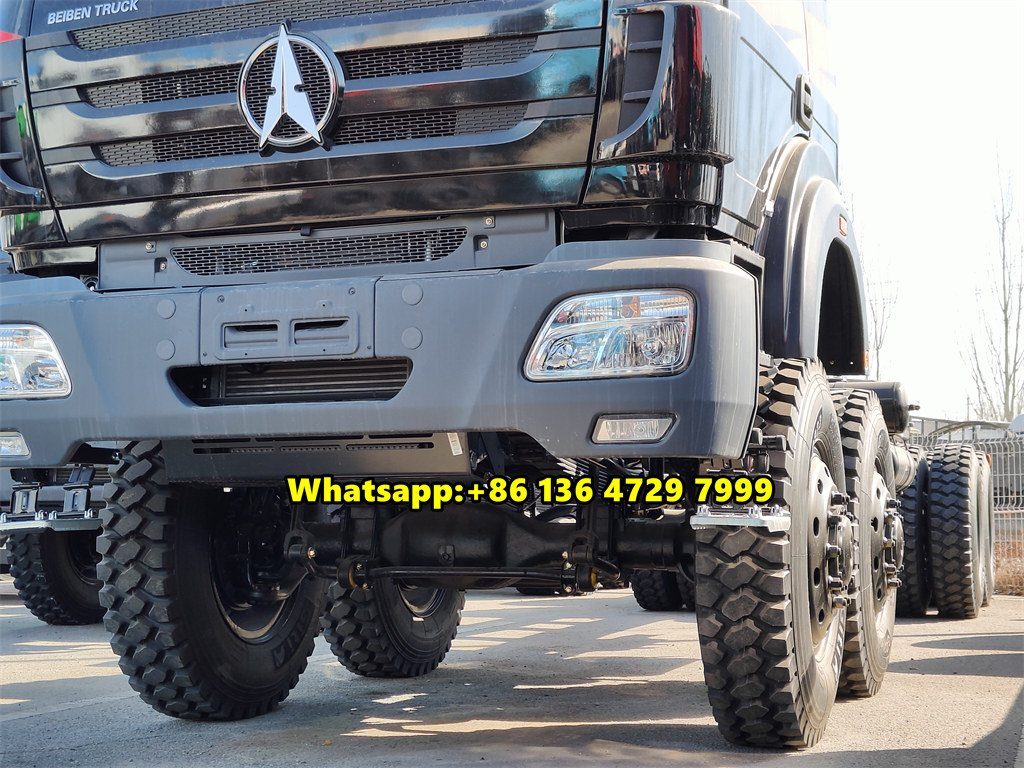

beiben 8x8 off road military truck
beiben 8x8 truck
