Beiben 420HP LHD truck chassis

The Beiben 2642 chassis is equipped with a Weichai WP12.420E32 engine, delivering a maximum output of 309 kilowatts, and paired with a FAST 12-speed manual transmission, boasting a powerful engine system and stable performance. It is widely used in engineering transportation, logistics, and specialized vehicle modifications, adapting to complex road conditions and urban daily transportation. The spacious cab and humanized design enhance driving comfort, making it an ideal choice in the heavy-duty truck sector.


  • Production time30 days
  • Payment terms30% TT deposit and balance before delivery
  • Working Capcity30 tons
  • Engine power420 HP
  • Drive system6×4

Product Description

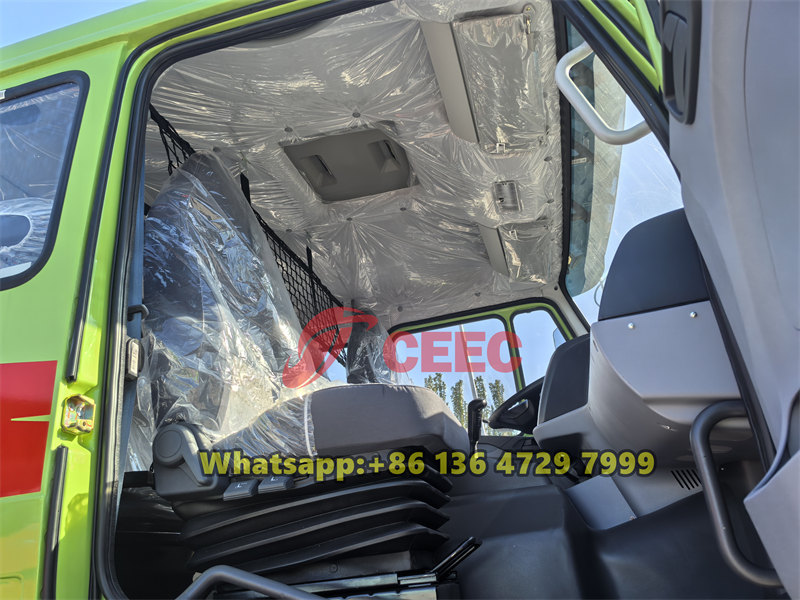

In the heavy-duty truck sector, the Beiben 2642 chassis has become the preferred choice for many industry users due to its exceptional performance and wide applicability. This vehicle is equipped with an NG80 long cab, offering a spacious and well-organized interior. Drivers can enjoy a comfortable driving experience while also having ample space for personal items and work tools.





The Beiben 2642 truck is powered by a WP12.420E32 engine produced by Weichai Power. This engine features six cylinders, a displacement of 11.596 liters, and compliance with the Euro III emission standards. With a maximum output power of 309 kw (approximately 420 hp) and a peak torque of 1750 Nm at a rated speed of 2100 rpm, this engine adopts a water-cooled, four-stroke, direct injection, turbocharged, and intercooled design. It not only delivers robust power output but also exhibits excellent fuel economy and low emissions.



The Beiben 2642 truck chassis is equipped with a FAST 12-speed manual transmission, which ensures smooth gear shifting and high transmission efficiency, fully harnessing the engine's performance. Additionally, the transmission offers a wide range of gear ratios, allowing the vehicle to maintain optimal power output and fuel economy under various road conditions. Furthermore, the chassis features a 7.5-ton front axle and 13-ton dual rear axles with a main reduction ratio of 5.263, ensuring stability and passability under various loads.



Thanks to its outstanding performance and diverse configurations, the Beiben 2642 chassis is widely used across various fields. It supports multiple modification options, such as dump trucks, water sprinklers, garbage compression trucks, and more. Users can select suitable modification solutions based on their actual needs, achieving customized vehicle production.





Product Specifications



Chassis model

Beiben 2642

Drive Type

6x4, LHD

Wheelbase

3800+1450mm

Gross vehicle weight

25000 kg

Cab

NG80, long cab with sleeper

Overall length

8715 mm

Overall width

2500mm

Overall height

3170 mm

Fuel type

Diesel

Track

Front track: 1995    Rear track: 1800/1800mm

Front / rear overhang

1410/2055 (mm)

Approach angle

26 degrees

Departure angle

26 degrees

Engine

Engine Model: Weichai WP12.420E32

Number of cylinders:6

Fuel type: Diesel fuel

Displacement: 11.596L

Emission standard: Euro III

Horsepower:420hp

Maximum output power:309KW

Max. Torque:1750 N.m

Rated Speed: 2100 rpm

Engine Type: Water-cooled, four-stroke with the exhaust valve brake,

mechanical injection, direct injection, turbocharged and intercooled

Transmission

Transmission Type: FAST 12-speed, manual

Chassis

Front Axle:7.5ton

Drive Axle:13Ton double rear axle

Ratio:5.263

Steering

TAS85

Tire

Number of tires:10+1(spare tire)

Tire Size:12.00R20

Tank

Fuel tank capacity:400L

Suitable for modified vehicles

Beiben dump truck, Beiben water truck, Beiben garbage compactor truck, Beiben cargo truck, Beiben fire truck, Beiben vacuum tank truck, etc.

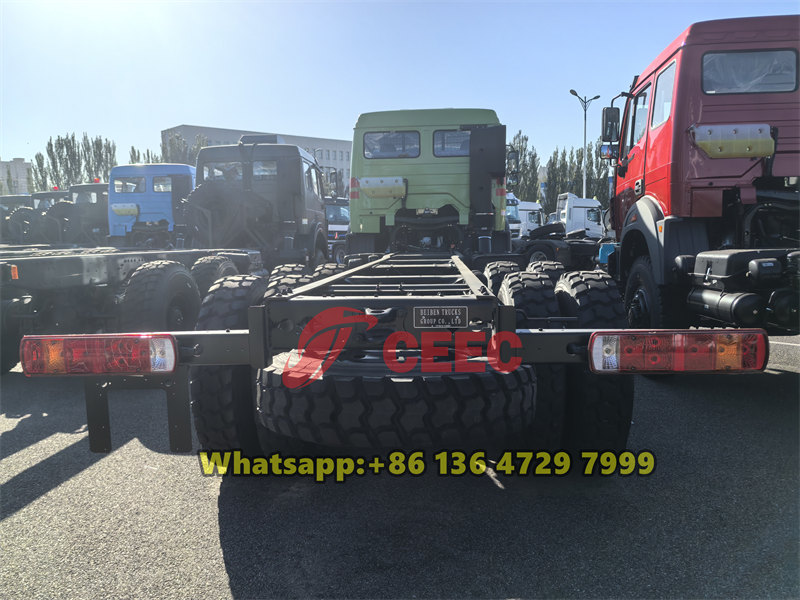

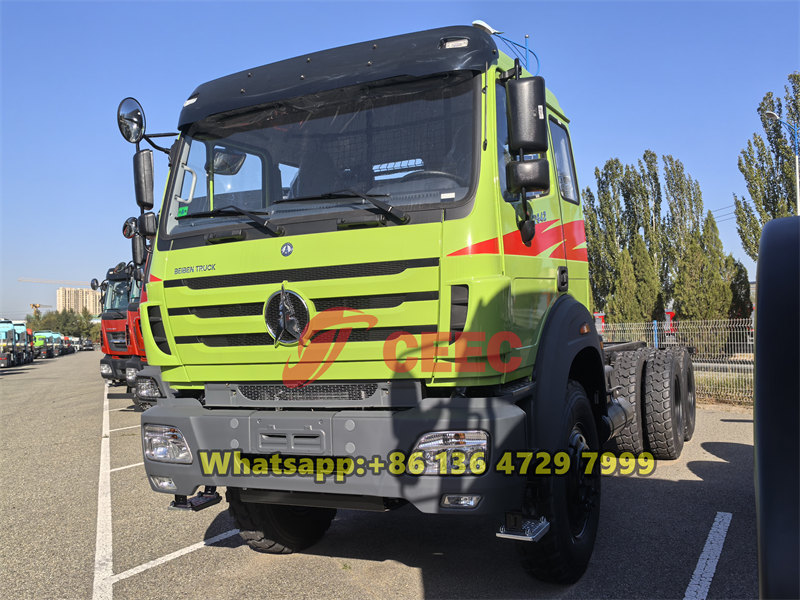

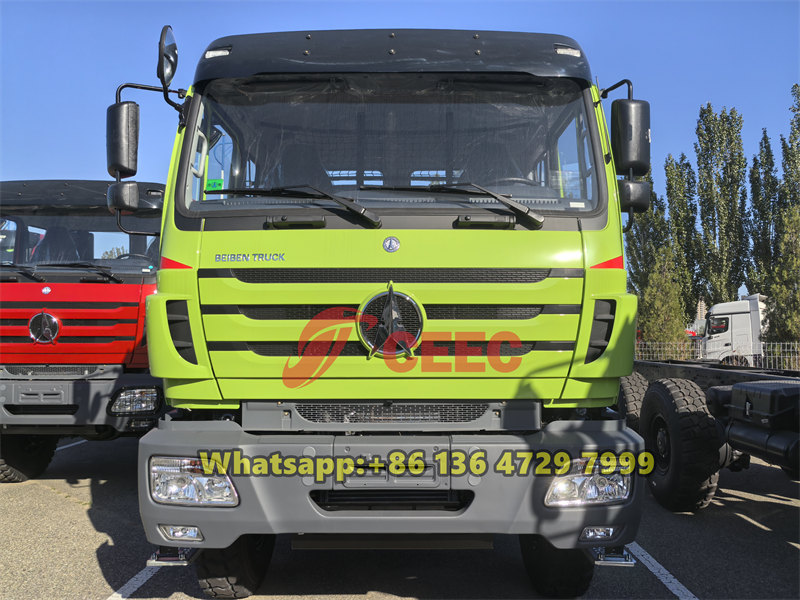

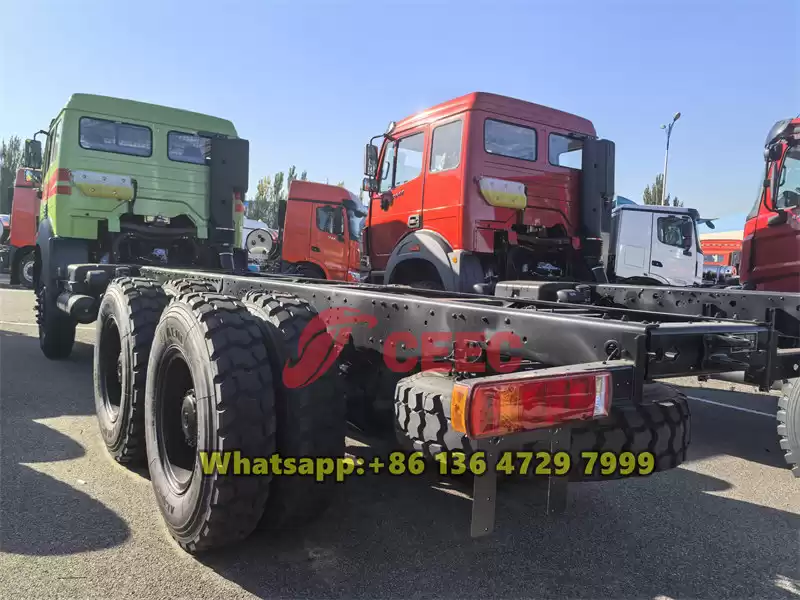

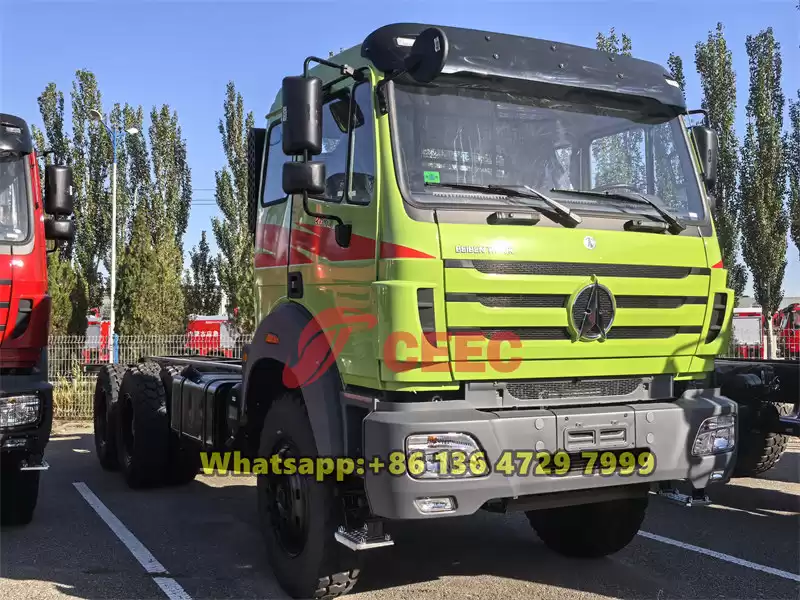

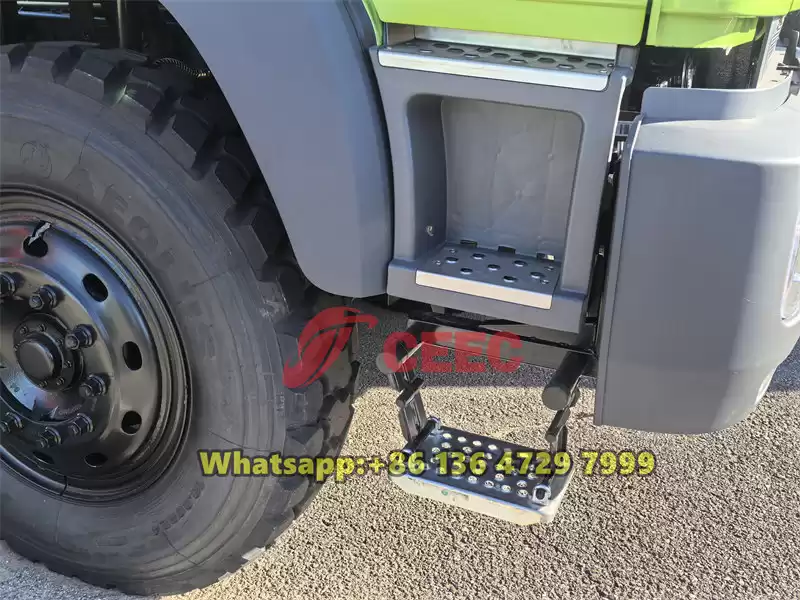

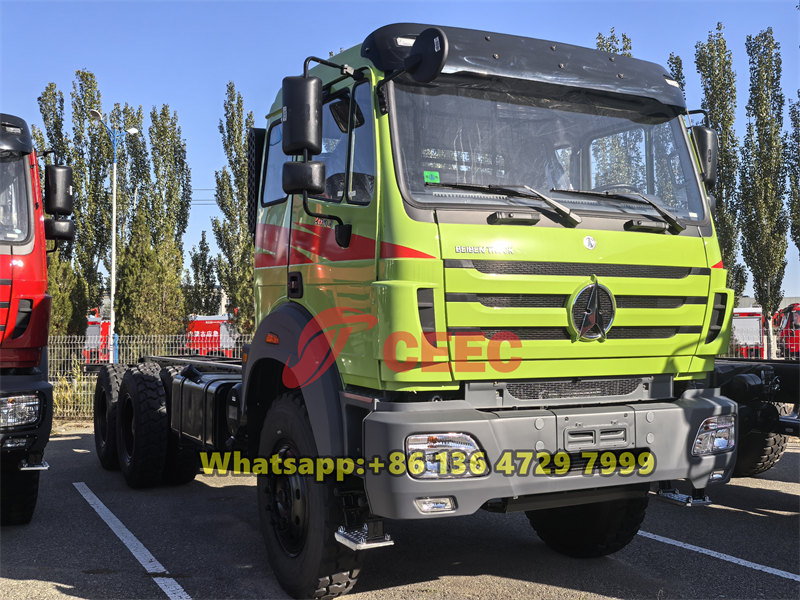

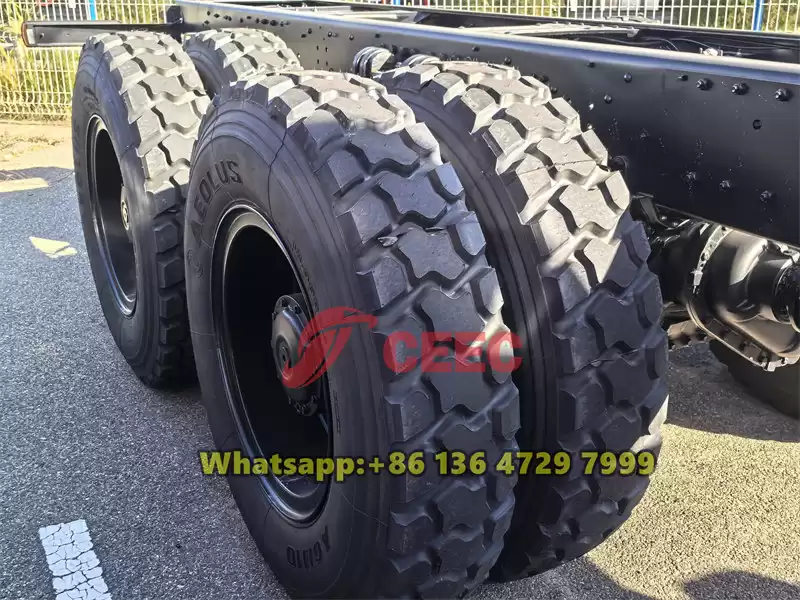

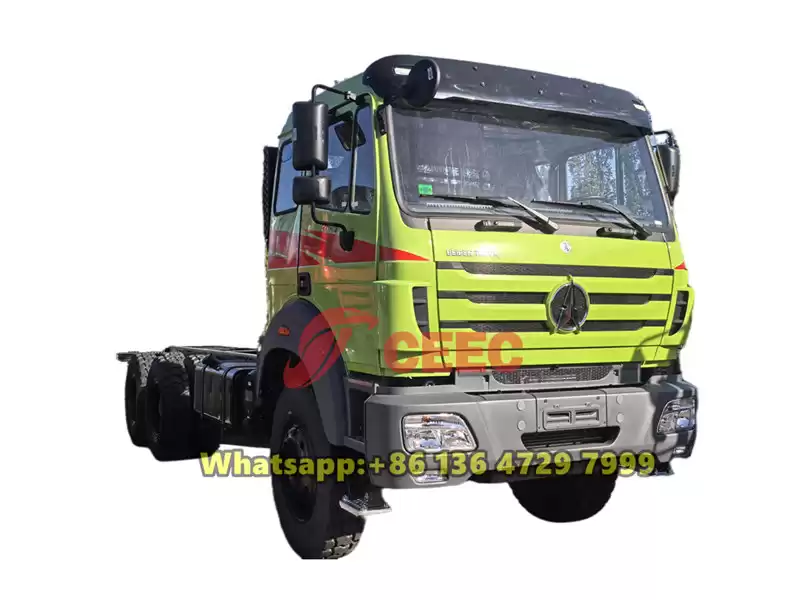

Product Detailed Pictures
