Powerful 420HP Beiben dumper trucks

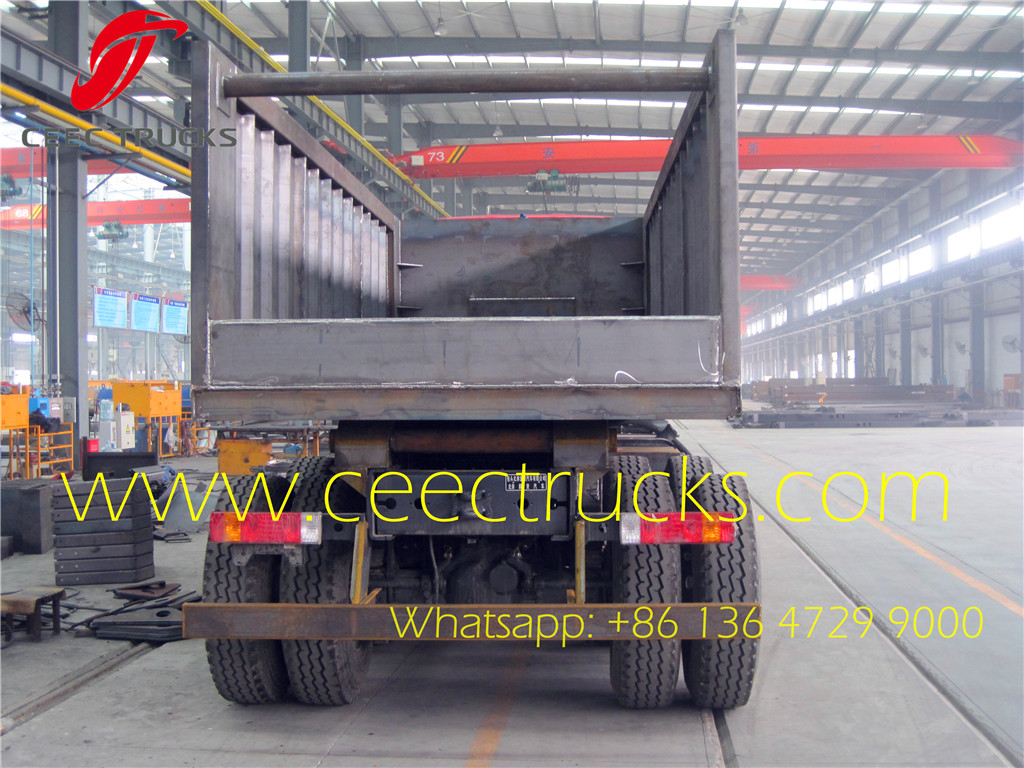

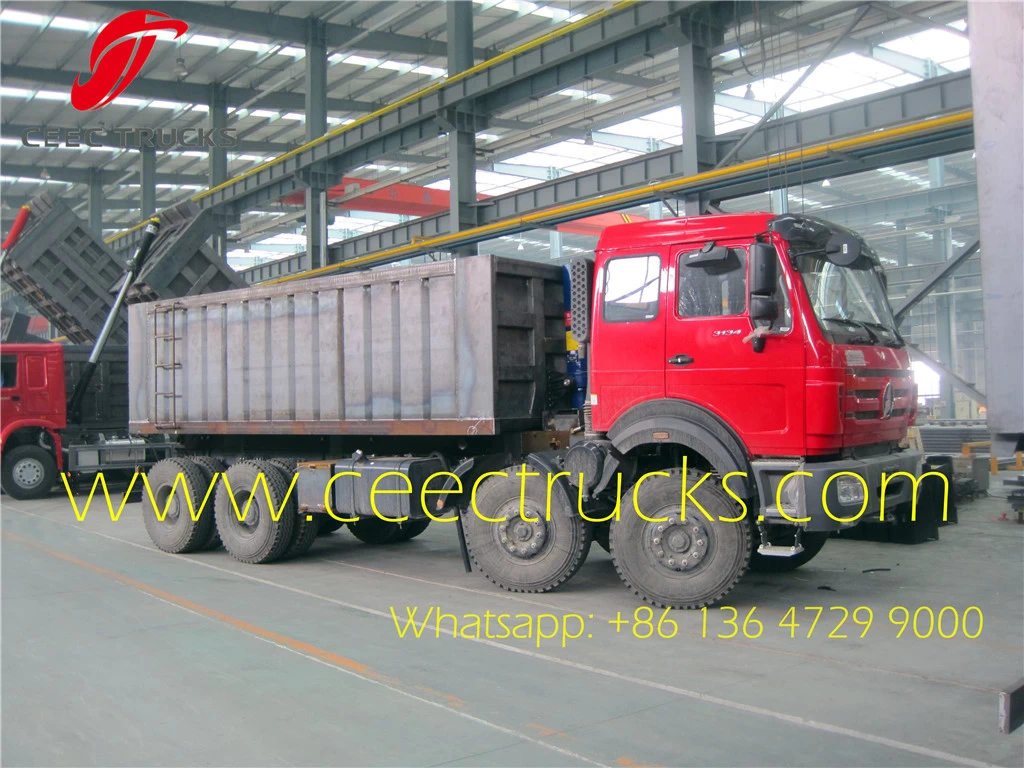

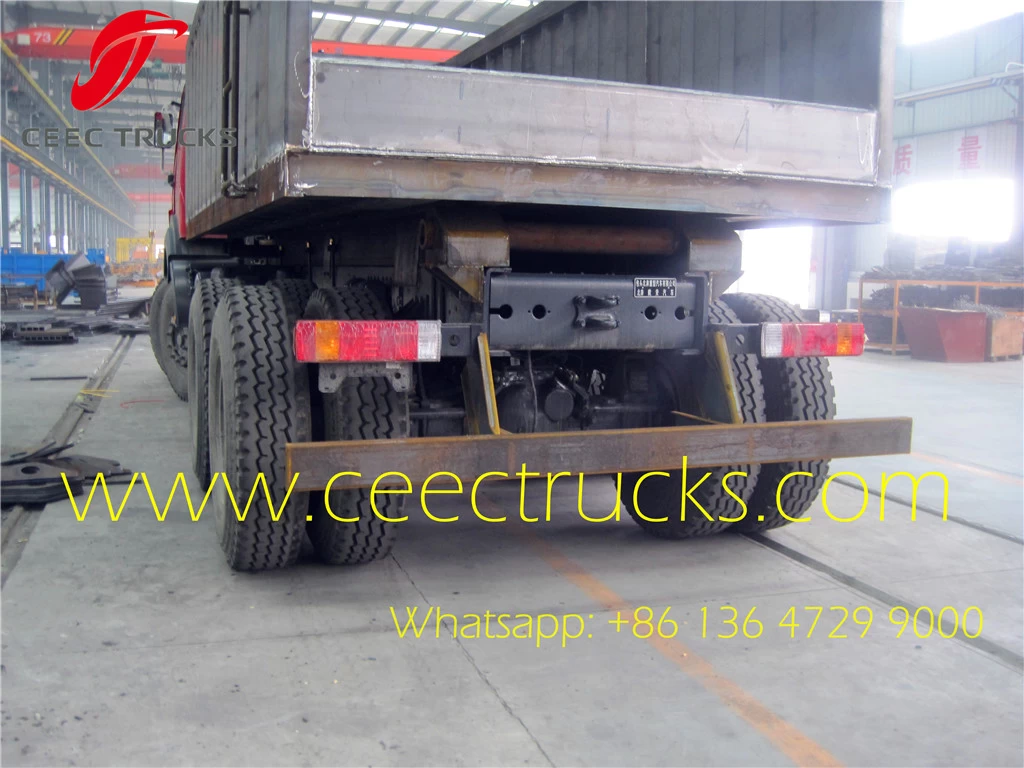

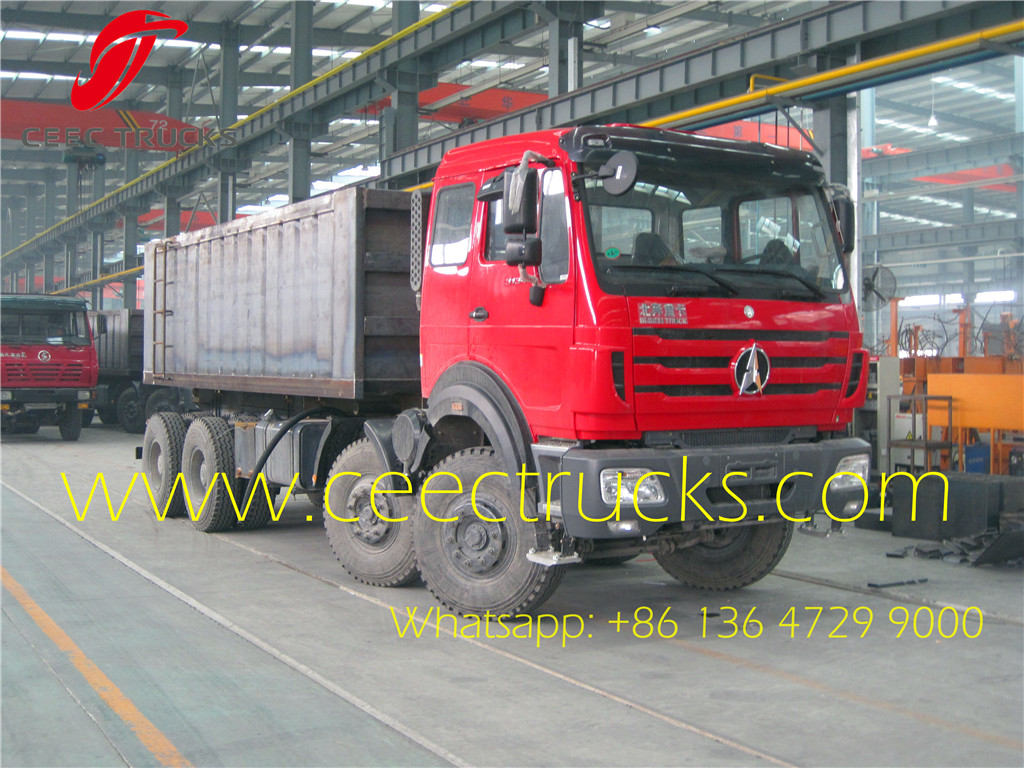

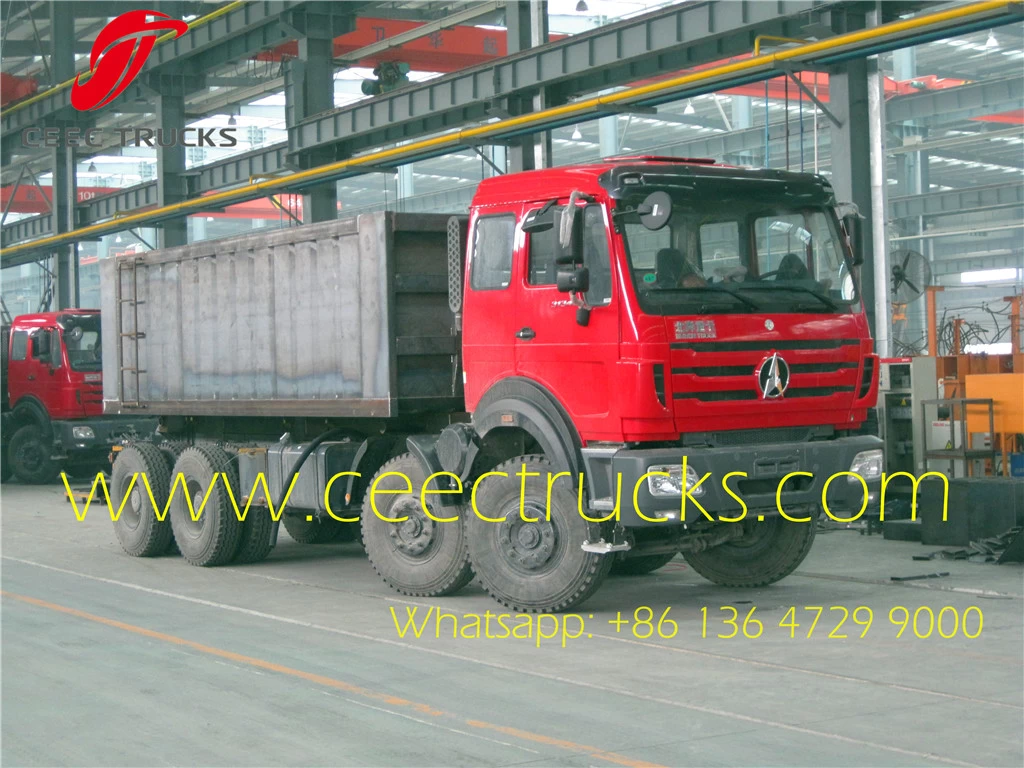

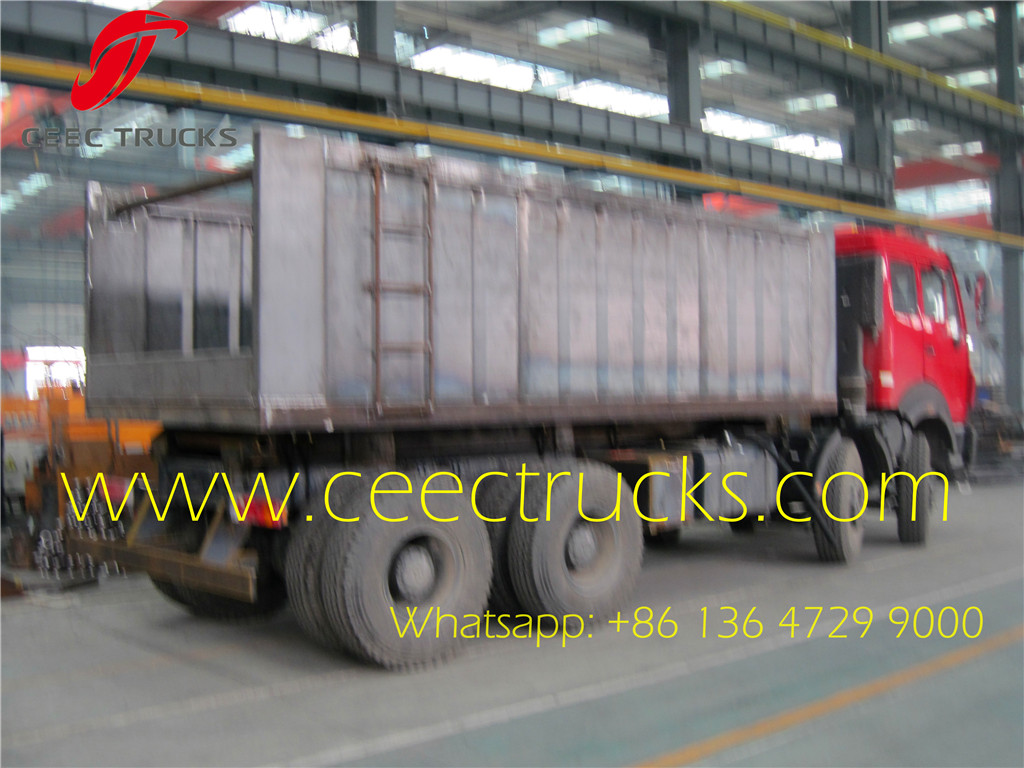

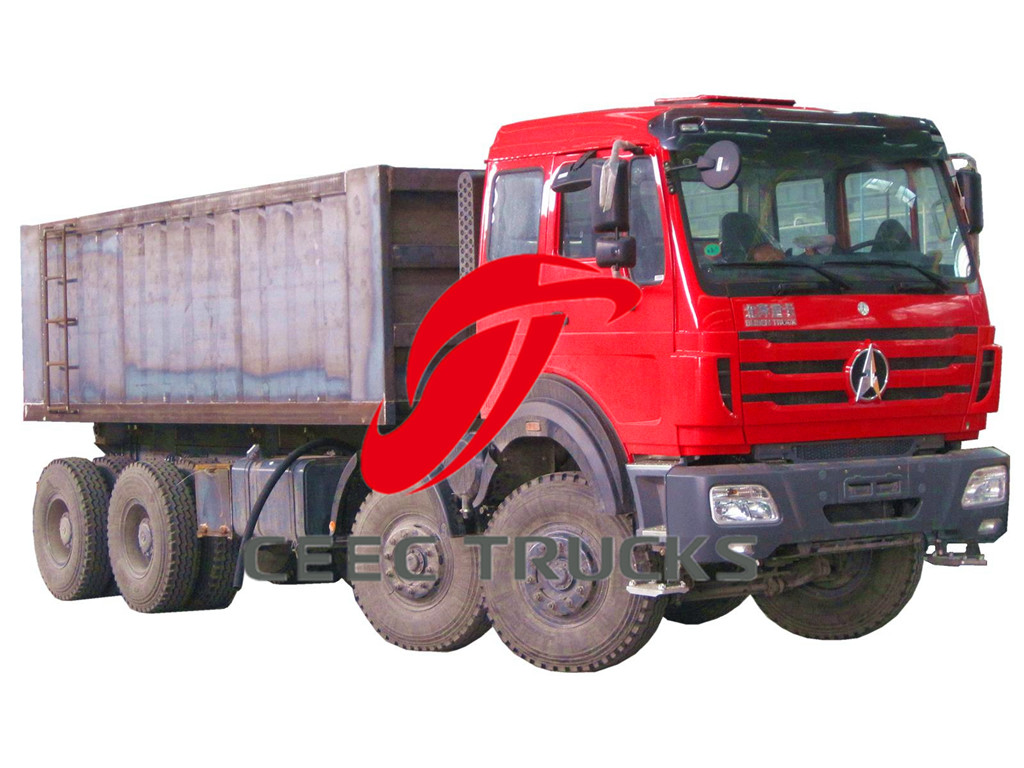

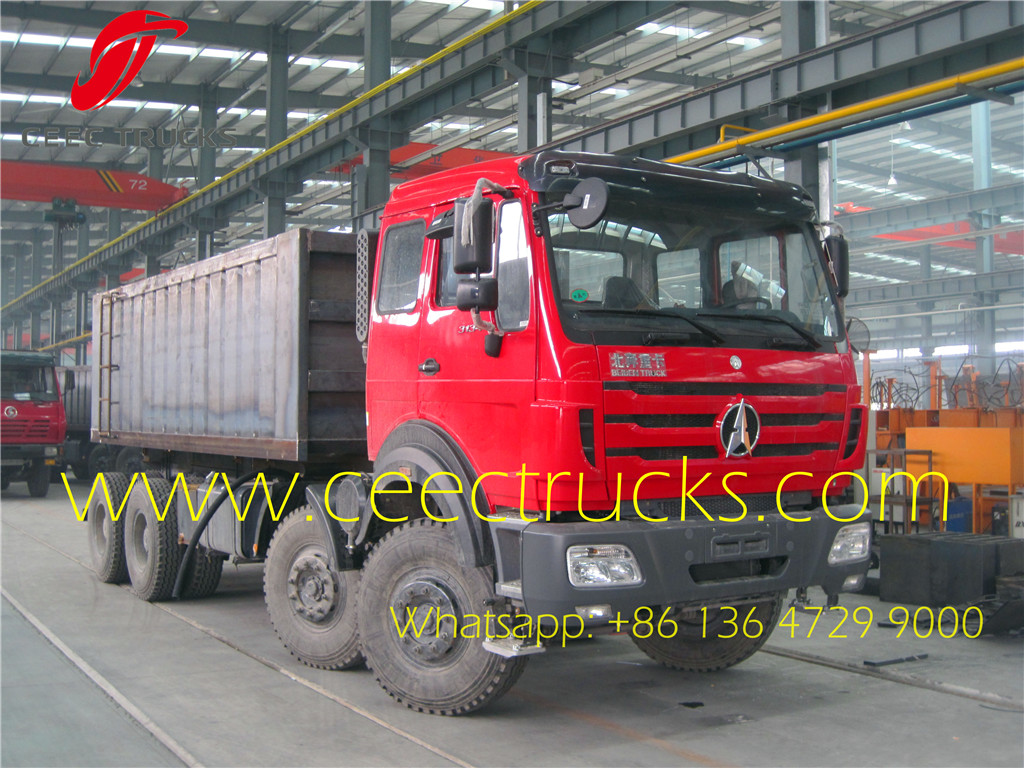

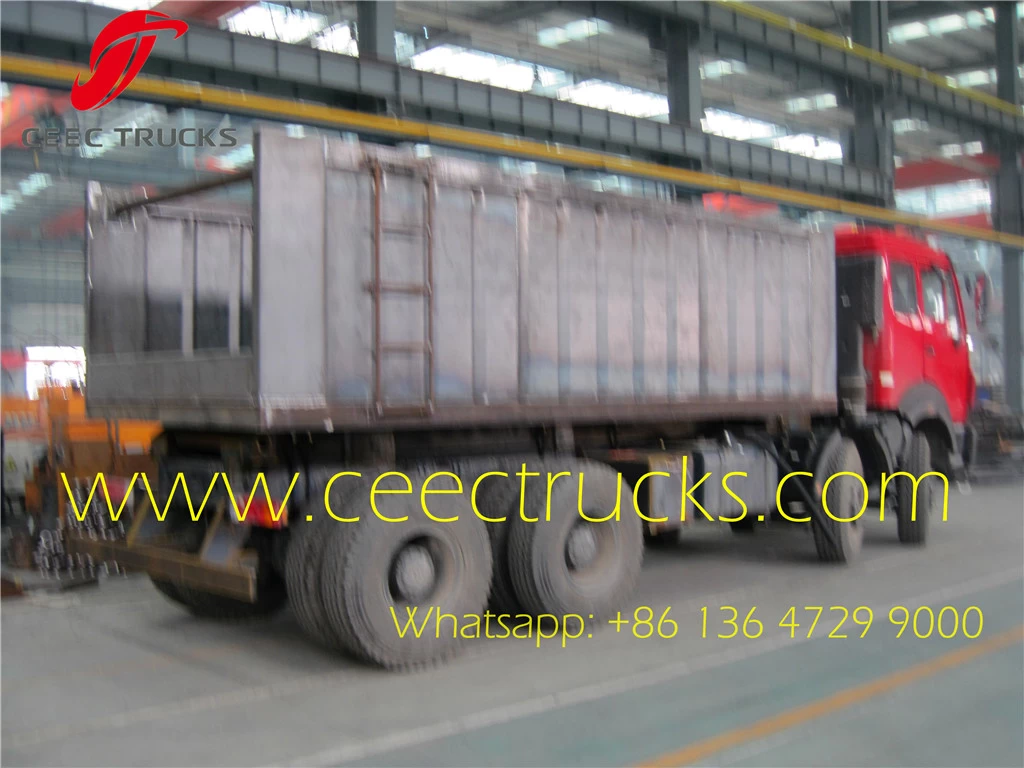

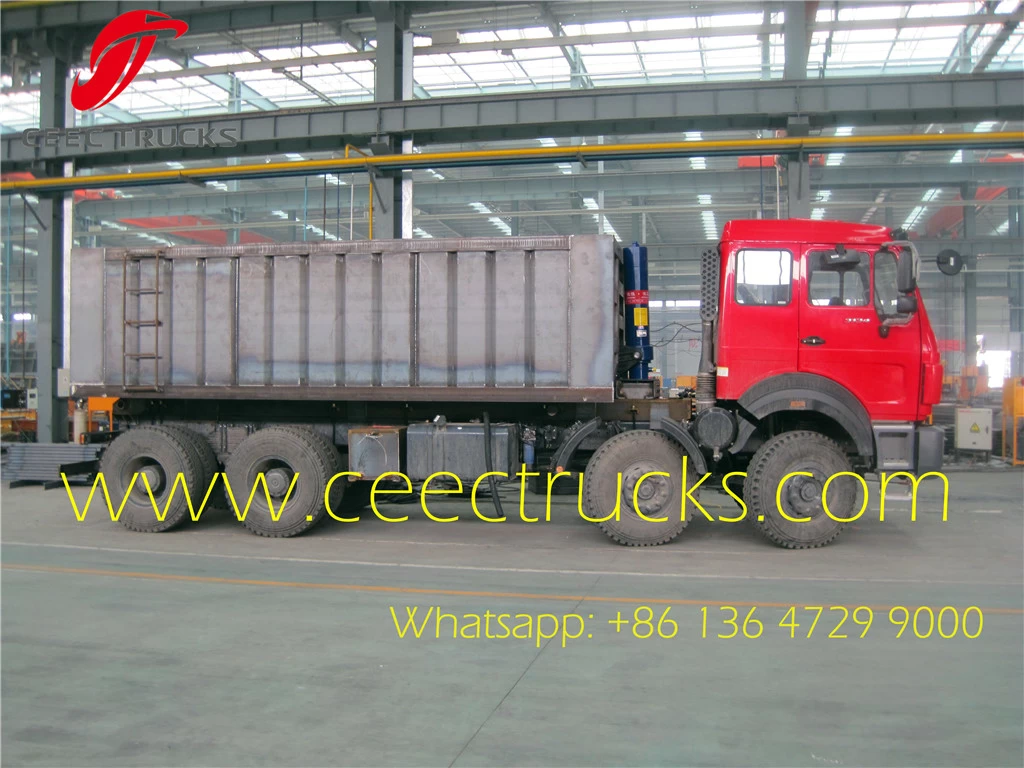

CONGO customer buying beiben 12 wheeler 80T dumper truck advanced features:

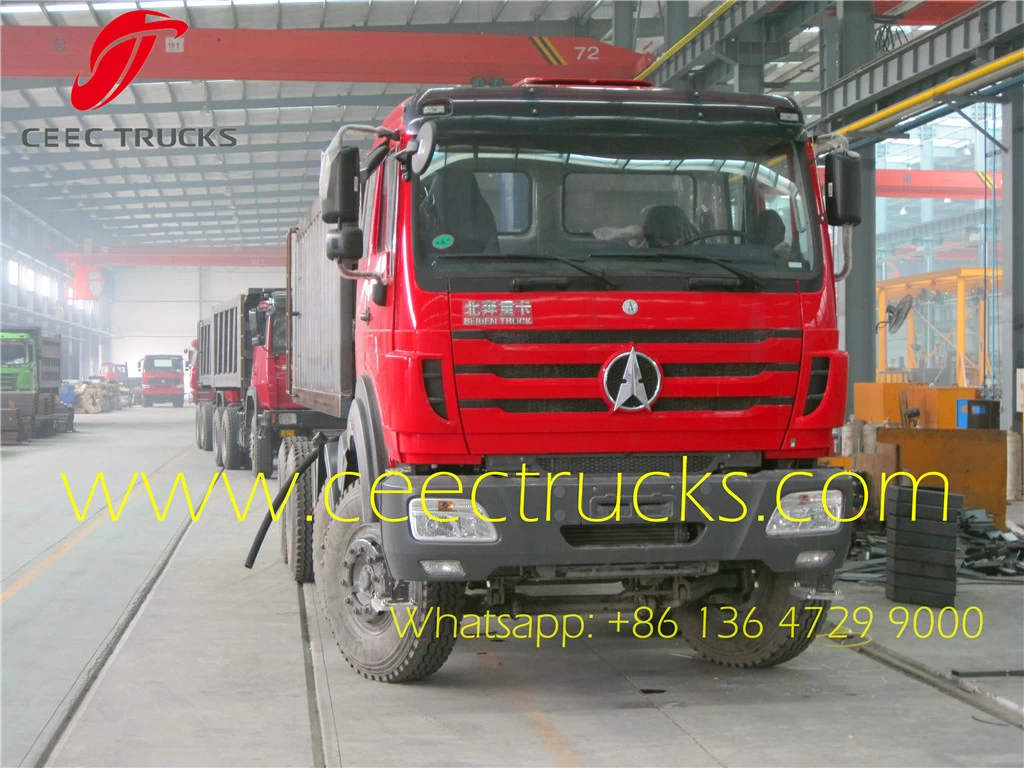

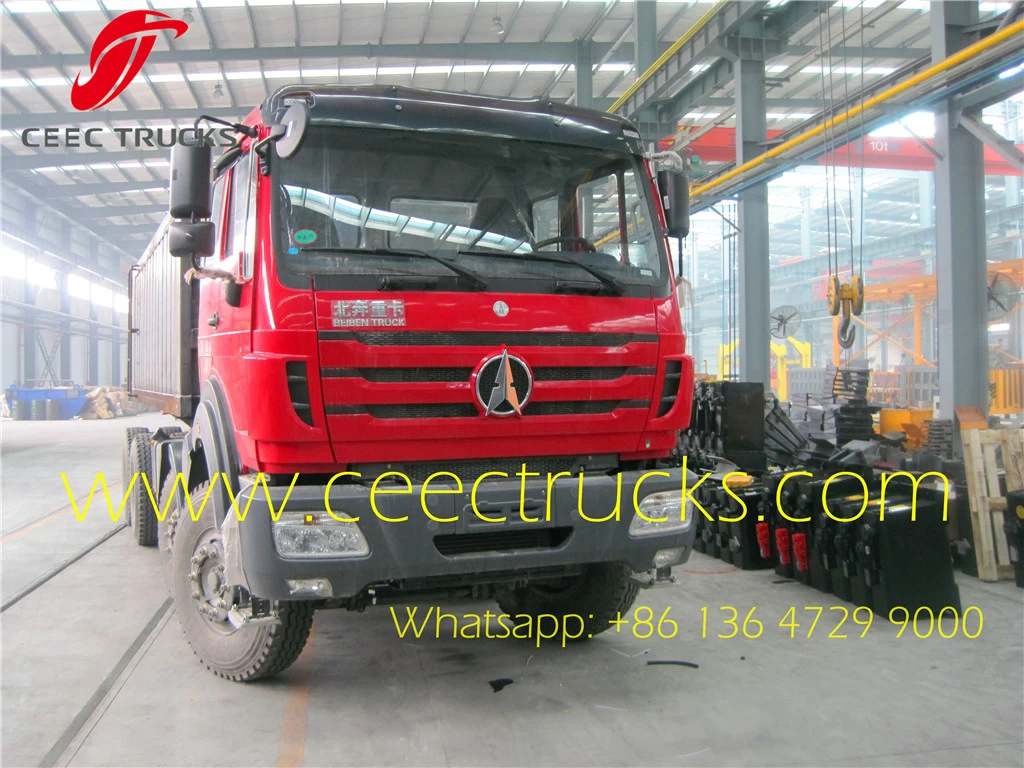

★ Beiben 3142 dumper truck equipped with new NG80B cabin, which has attractive appearanc, and export to congo, kenya and tanzania
★ WEICHAI engine WP10.420E32 with 340ps, and FAST 12shift manual mechinical gearbox for easy operation
★ Beiben 12 wheeler tipper trucks loading capacity can be up to 70 T
★ Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

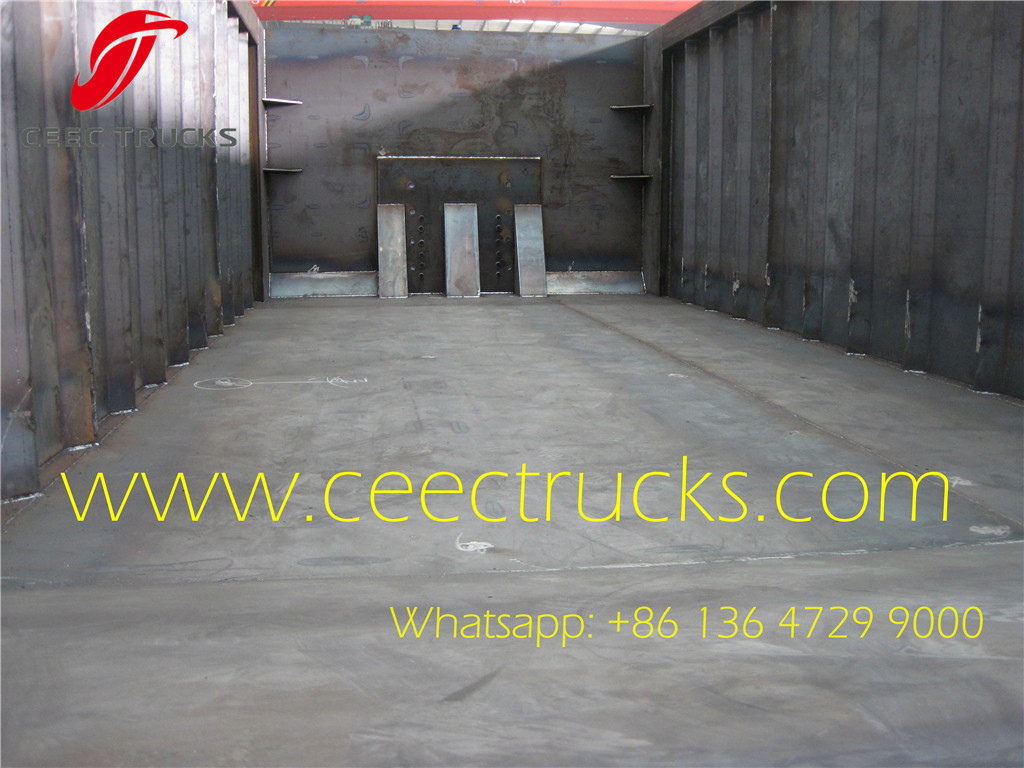

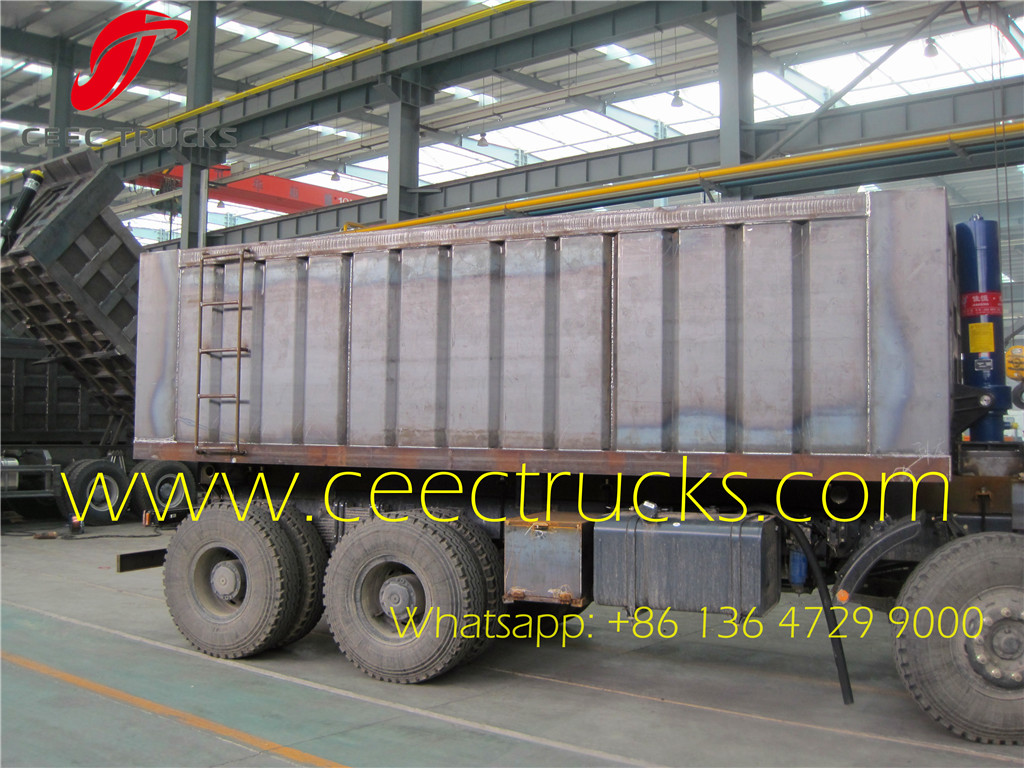

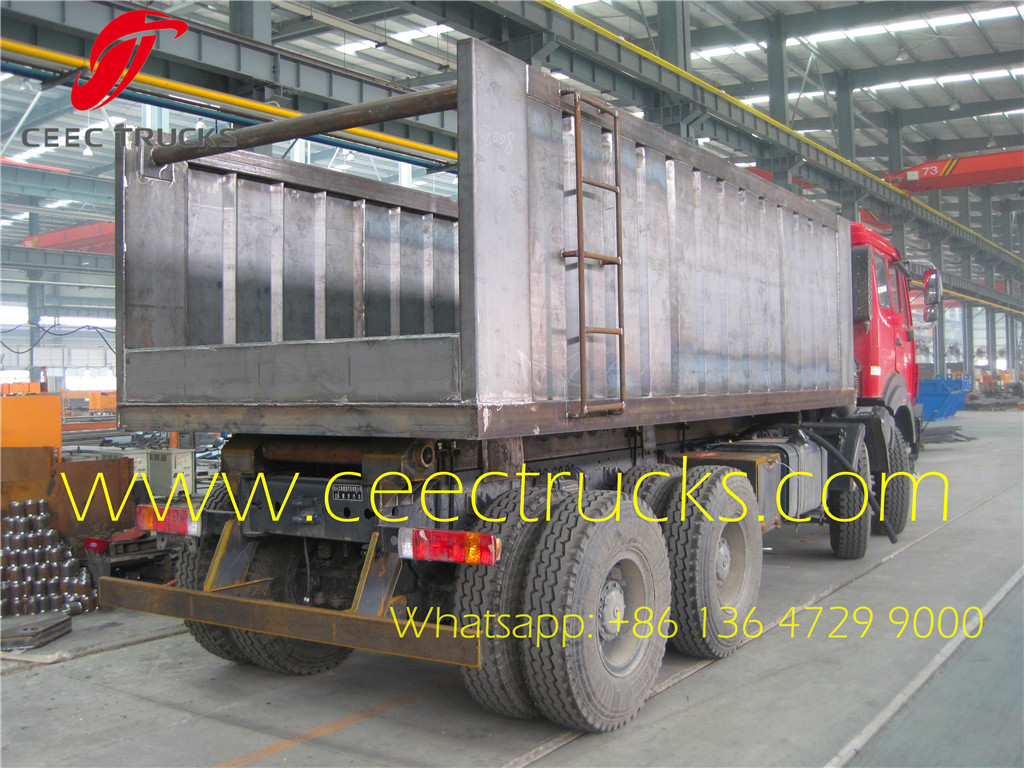

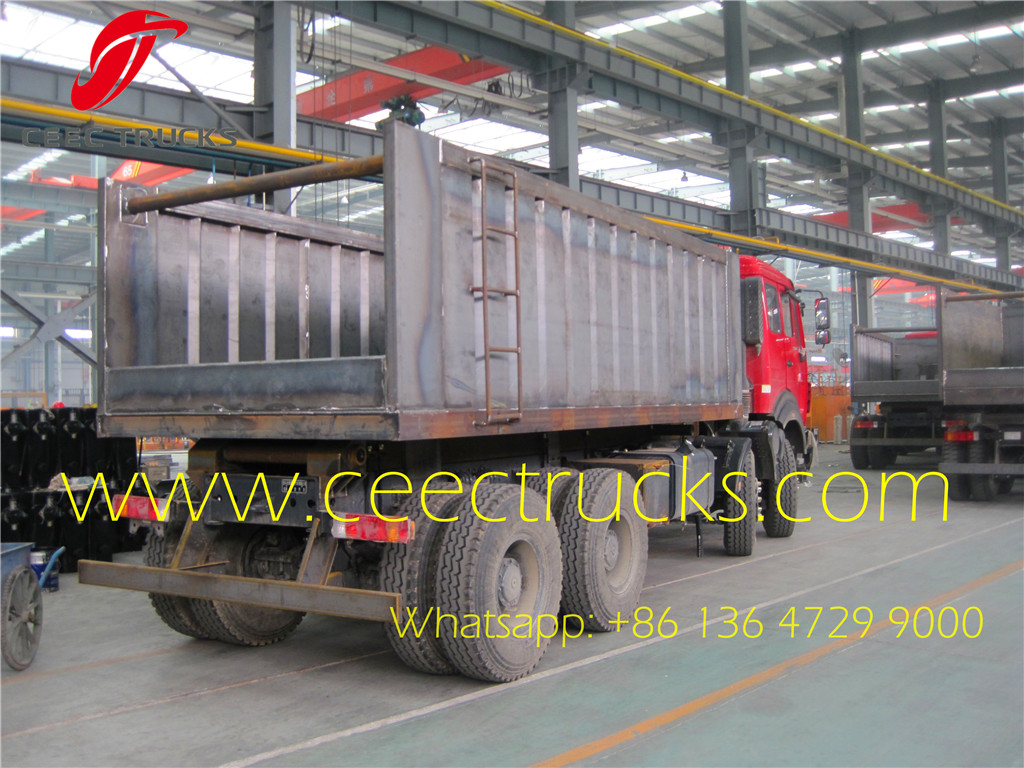

★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

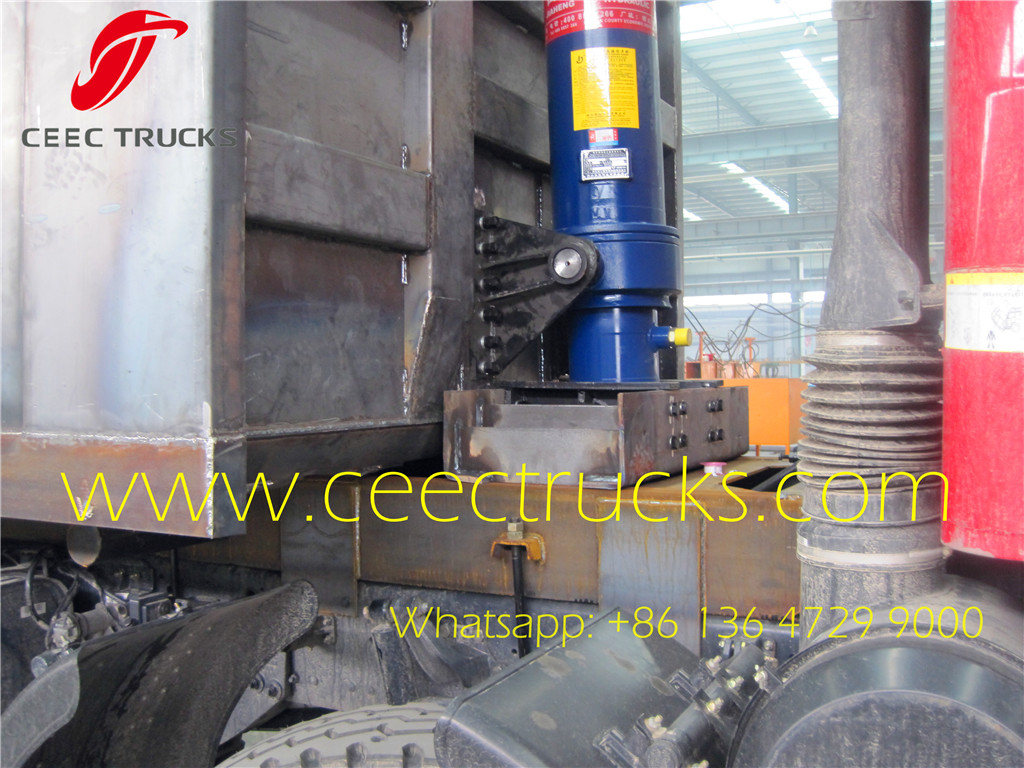

★ Hydraulic system can be original import brand HYVA hydraulic system
★ Optional dumper body can be normal shape, square shape, U-shape, etc
we provides greater durability and superior performance with its newly Beiben NG80B 3142 reinforced heavy-duty trucks of responding to customer’s needs, our beiben tipper trucks widely export Asia countries and Africa contries. mainly include Kenya, Algeria, Congo, Zambia, Tanzania, Cameroon, etc.
Similar key words: beiben 3142dumper truck, north benz 3138 tipper trucks, beiben 12 wheeler dumpers, beiben100T dumper trucks, north benz 80 T tipper truck, beiben U-shape tipper
Beiben 3142 dumper truck / beiben 8*4 tipper truck manufacturer
|
Overall dimension(mm)
|
11380x2500x3484
|
Wheel base (mm)
|
1500+4450+1450
|
Curb weight kg
|
11200
|
Engine
|
Model
|
WP10.420E32 (Wei Chai engine. Euro II, Based on Style technology, made in China)
|
Power, max kw/rpm
|
247/2200
|
Max torque(Nm/rpm)
|
1250/1200-1600
|
Emission standard
|
EUROII
|
Fuel tanker capacity L
|
300
|
Clutch
|
Model
|
GFX420, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
Model
|
ZF5S-112GP(ZF technical, mechanism,9gears,1 reverse gear, manual,made in China,produed by Bei Ben Transmission)
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
Model
|
ZF8098
|
Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C
|

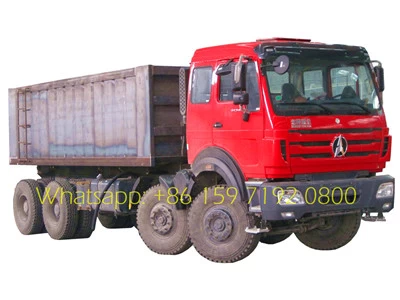

Optional beiben dump trucks on sale
