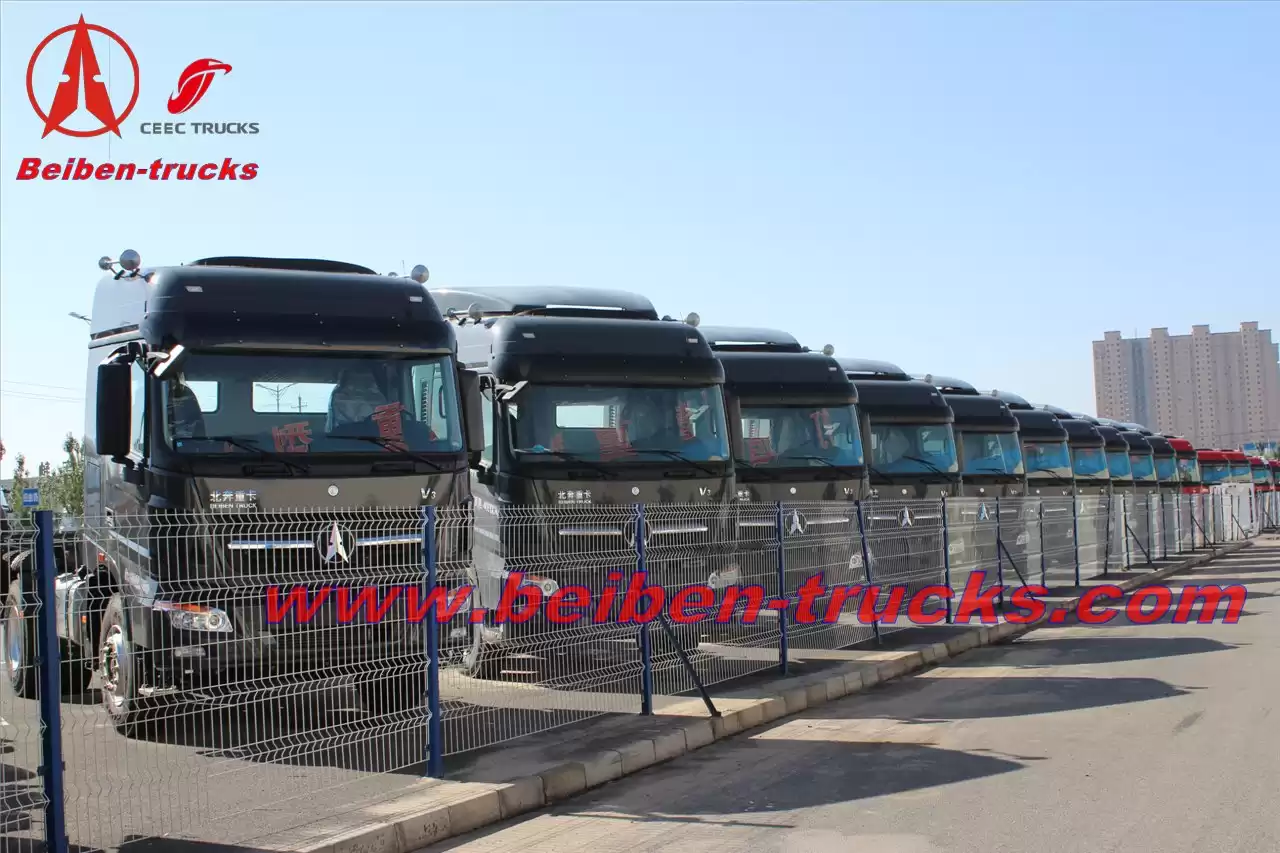

2542SZ /6×4/3450+1450/Long Cab/LHD
|
Dimension
|
7136*2495*3180mm
|
Approaching angle/Departure angle
|
26/64°
|
Overhang(front/rear)
|
1410/825mm
|
Wheel base
|
3450+1450mm
|
Max speed
|
90km/h
|
Curb weight
|
9200kg
|
Max towing weight
|
36900kg
|
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
Slope climbing capability
|
Max.40%
|
Engine
|
Model
|
WP10.420,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
|
Displacement
|
9.726L/Diesel
|
Stroke
|
126/130mm
|
Max. power
|
280/2200 (kw/rpm)
|
Max.torque
|
1460/1200-1600(Nm/rpm)
|
Emission stantard
|
EuroⅢ
|
Fuel tanker capacity
|
400L
|
Clutch
|
430, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|
Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
Frame
|
Fish belly shape, variable width, variable sections
|
Model
|
JOST 90 single direction
|
Height of fifth wheel(mm) (unload)
|
1410
|
Radius of front gap (mm)
|
2300
|
Radius of rear slew (mm)
|
2600
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00-R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
