Product Description
The Beiben 4×4 Fuel Tanker Truck is a high-performance fuel tanker meticulously modified based on the Beiben 4×4 all-wheel-drive off-road chassis. It integrates the classic Beiben NG80 cab, which not only boasts a stylish exterior and comfortable interior but also comes equipped with reinforced anti-collision bumpers and 12.00R24 off-road tires, ensuring safe and stable driving in various harsh environments. The fuel tank has been carefully designed with a capacity of 10,000L, divided into two independent compartments, each equipped with European-standard aluminum alloy manhole cover for easy operation and enhanced safety.
The Beiben 4×4 Mobile Fuel Bowser features a 4×4 all-wheel-drive system, where each wheel receives power from the engine, ensuring stability and passability in complex road conditions. Whether on slippery mud roads or rugged mountains, the Beiben 4×4 Fuel Truck can easily handle the challenges, providing a stable and reliable driving experience for the driver.
The fuel tank is one of the core components of the Beiben 4WD Oil Tanker Truck. With a capacity of 10,000L, it is divided into two independent compartments, each equipped with aluminum alloy European-standard manhole cover for convenient loading, unloading, and inspection. The tank body is made of high-quality carbon steel with a thickness of 4mm, ensuring its durability. Additionally, the tank is equipped with baffles to effectively reduce fuel sloshing and impact during transportation. Furthermore, the tank body has undergone corrosion treatment to extend its service life.

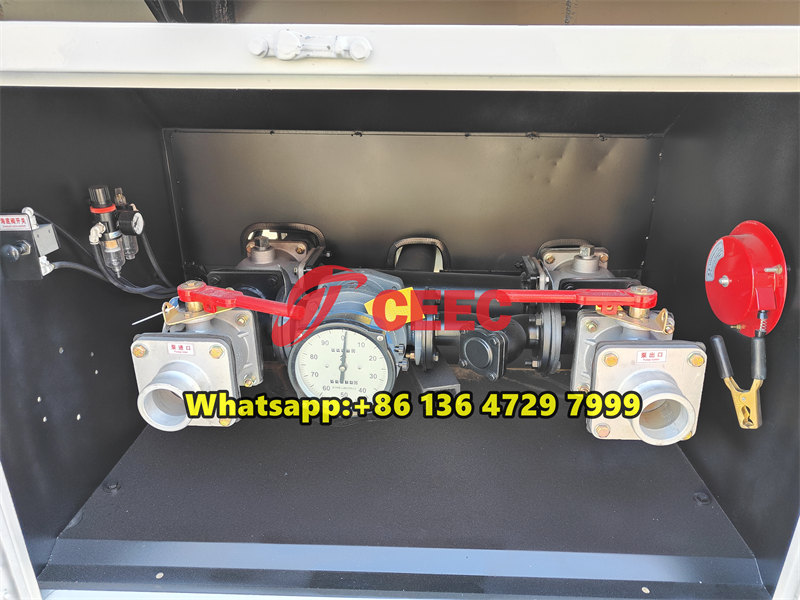

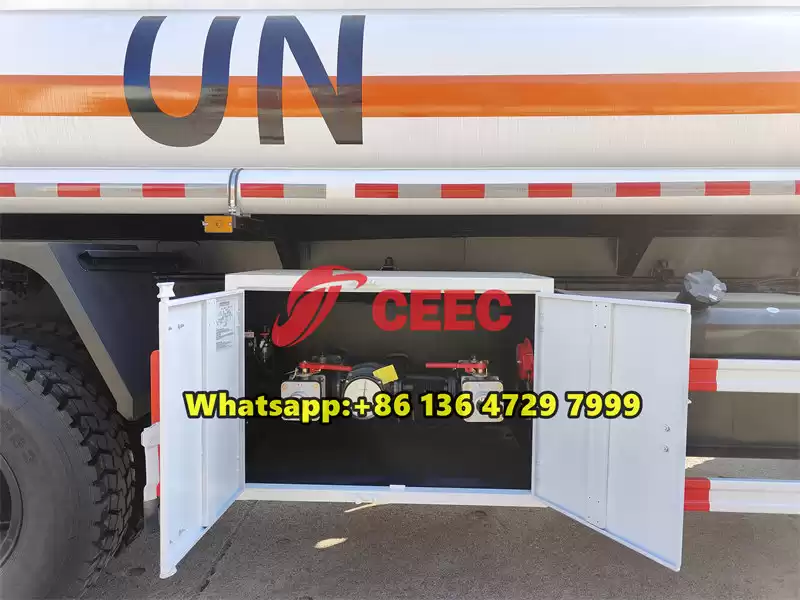

The Beiben 4×4 Fuel Tanker Truck is equipped with a well-known Chinese brand fuel pump, model 80YHCB-60. This fuel pump offers advantages such as high flow rate, stable pressure, and reliable operation, with a flow rate of up to 60m³/h, fully meeting the needs of various fuel transportation tasks. Moreover, the fuel pump has a self-priming capability with a maximum self-priming height of 6 meters, facilitating fuel loading and unloading operations in different environments.
As a customized model for UN projects in Africa, the Beiben Off-road Fuel Delivery Tanker Truck fully considers the specific needs and environmental conditions of the African continent. From the chassis, cab to the fuel tank and other components, everything has been carefully designed and optimized to ensure the vehicle's stable operation in the harsh environments of Africa. Furthermore, CEEC TRUCKS provides customized services, allowing for personalized configuration and modification of the vehicle based on customer needs.
Product Specifications
|
Beiben 4×4 Fuel Tanker Truck Technical Specifications
|
|
Product Name
|
Beiben Fuel Tanker Truck
|
|
Drive Model
|
4×4, all wheel drive
|
|
Chassis Model
|
ND2161
|
|
Cabin
|
NG80, with A/C
|
|
Vehicle main dimensions (mm)
|
|
Overall dimensions (L×W×H)
|
8200*2500*3000
|
|
Tank dimensions
|
4800*2000*1320
|
|
Wheel base
|
480 0
|
|
Front overhang
|
1410
|
|
Rear overhang
|
2616
|
|
Min. ground clearance
|
500
|
|
Weight data (kg)
|
|
G.V.W
|
18000
|
|
Curb weight (chassis)
|
10500
|
|
Load capacity
|
10000
|
|
Whole vehicle main performance
|
|
Max. speed (km/h)
|
90
|
|
Max. slope of climb (%)
|
30
|
|
Engine
|
|
Model
|
WP10.290
|
|
Emission Standards
|
Euro 3
|
|
Maximum power
|
213kw / 290hp
|
|
Maximum output
|
2200rpm
|
|
Maximum torque
|
1160N.m
|
|
Maximum torque speed
|
1200~1600rpm
|
|
Number of cylinders
|
6
|
|
Displacement (L)
|
9.726
|
|
Engine Manufacturer
|
WeiChai ENGINE
|
|
Gearbox
|
FAST,9 forward gears & 1 reverse
|
|
Number of leaf springs
|
10/8+6 pcs
|
|
Left / Right hand drive
|
LHD
|
|
Brake system
|
Air braking
|
|
Electric device
|
24V
|
|
Tire & Quantity
|
14.00R20 & 6+1 off-road tires
|
|
Upper Body Description
|
|
Tank capacity
|
10000 liters
|
|
Compartment
|
2 compartments, with 2 European standard aluminum alloy manhole cover
|
|
Tank dimensions(mm)
|
4800*2000*1320
|
|
Shape
|
Ellipse
|
|
Material
|
Carbon steel Q235
|
|
Thickness
|
4 mm
|
|
Fuel pump
|
Model
|
80YHCB-60
|
|
Fuel flow rate
|
60m3/h
|
|
Working pressure
|
0.6 Mpa
|
|
Speed
|
900 rpm
|
|
Self-suction height
|
6 m
|

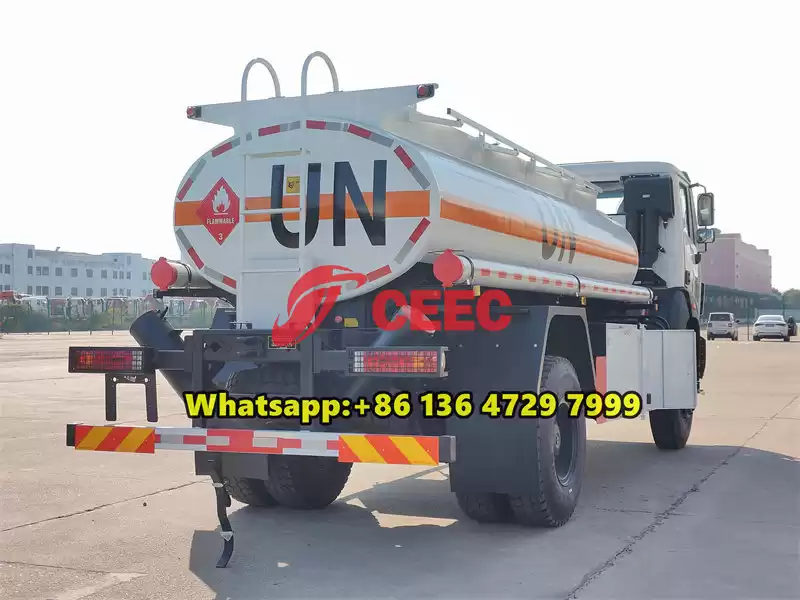

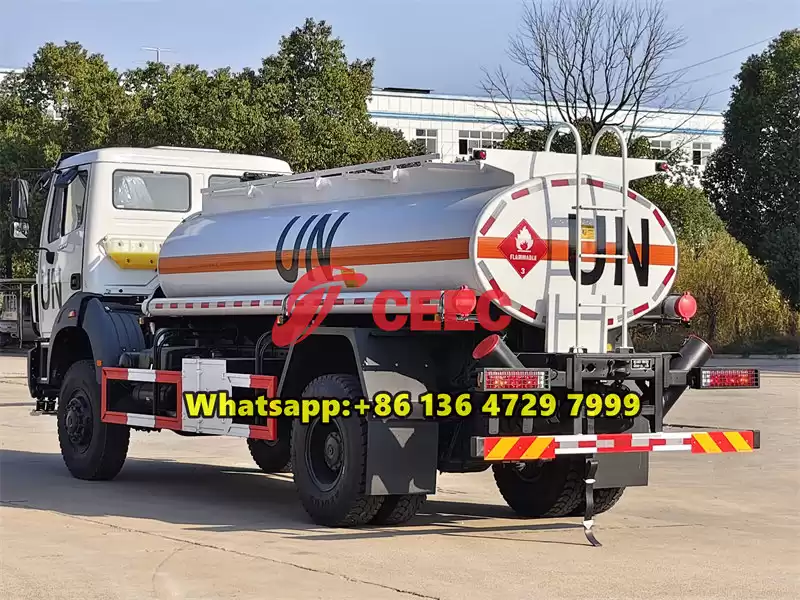

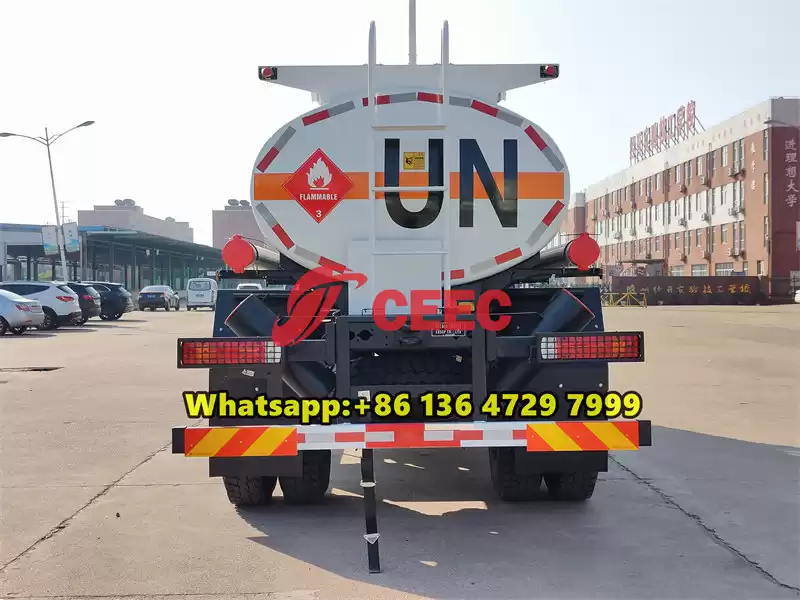

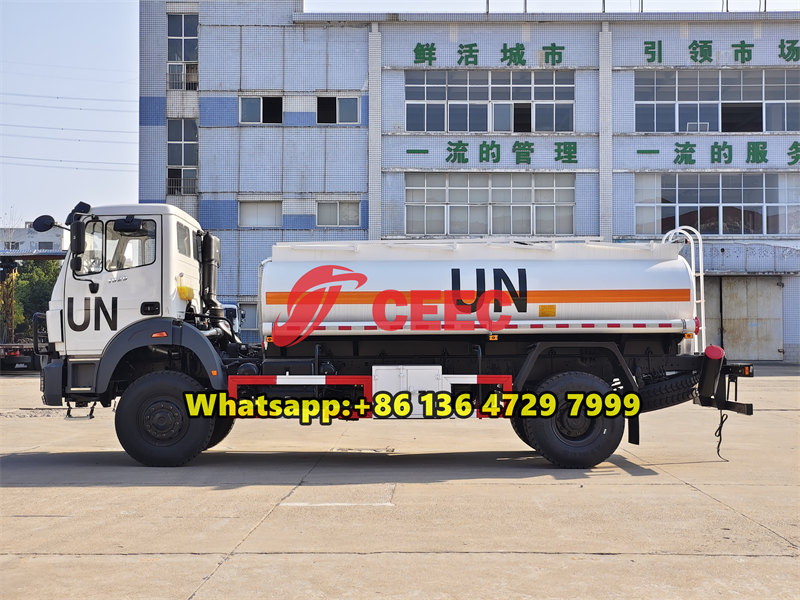

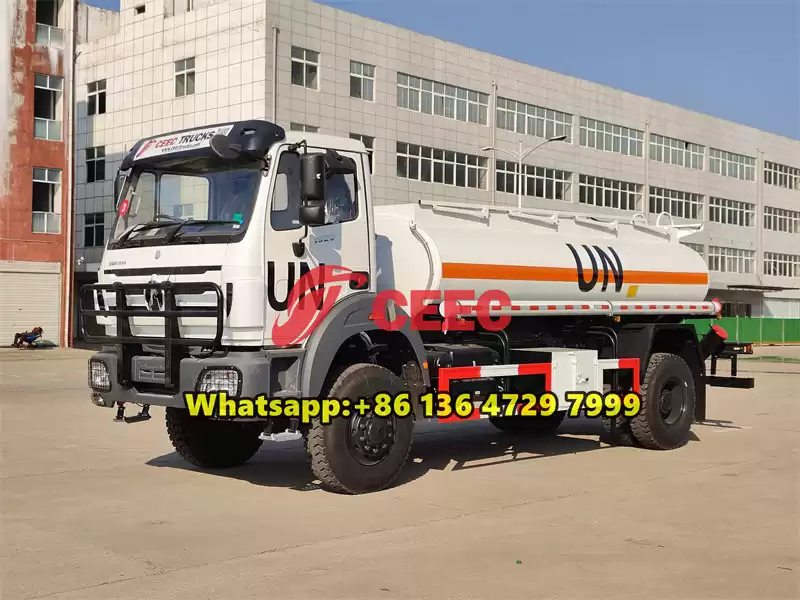

Product Pictures
