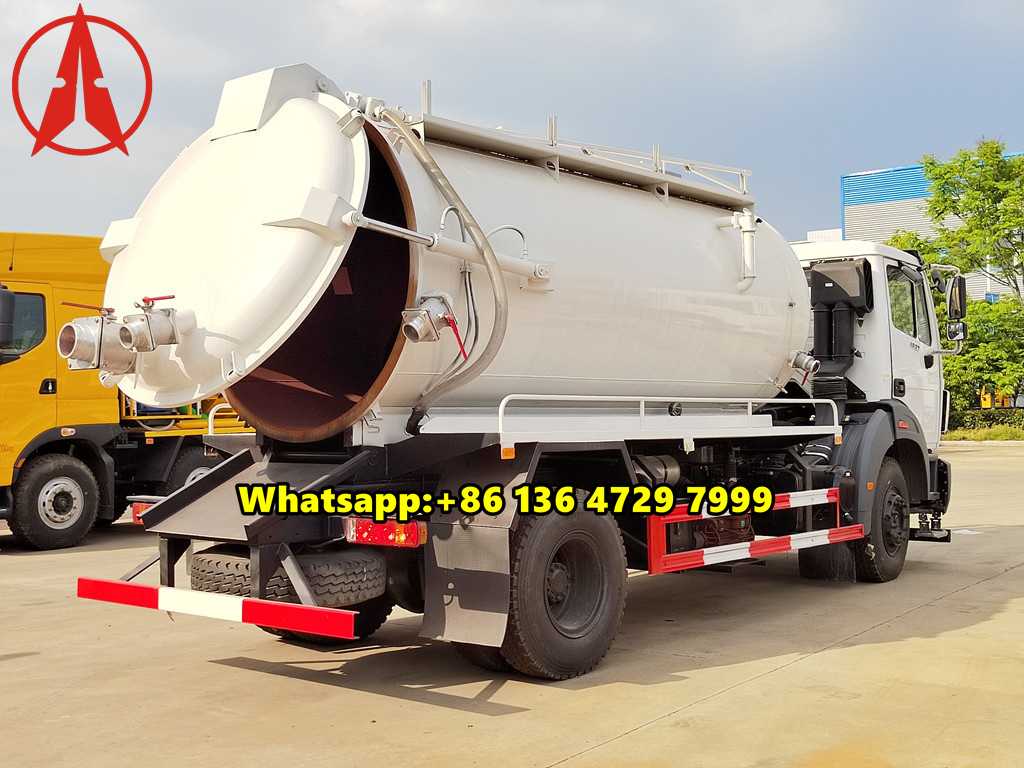

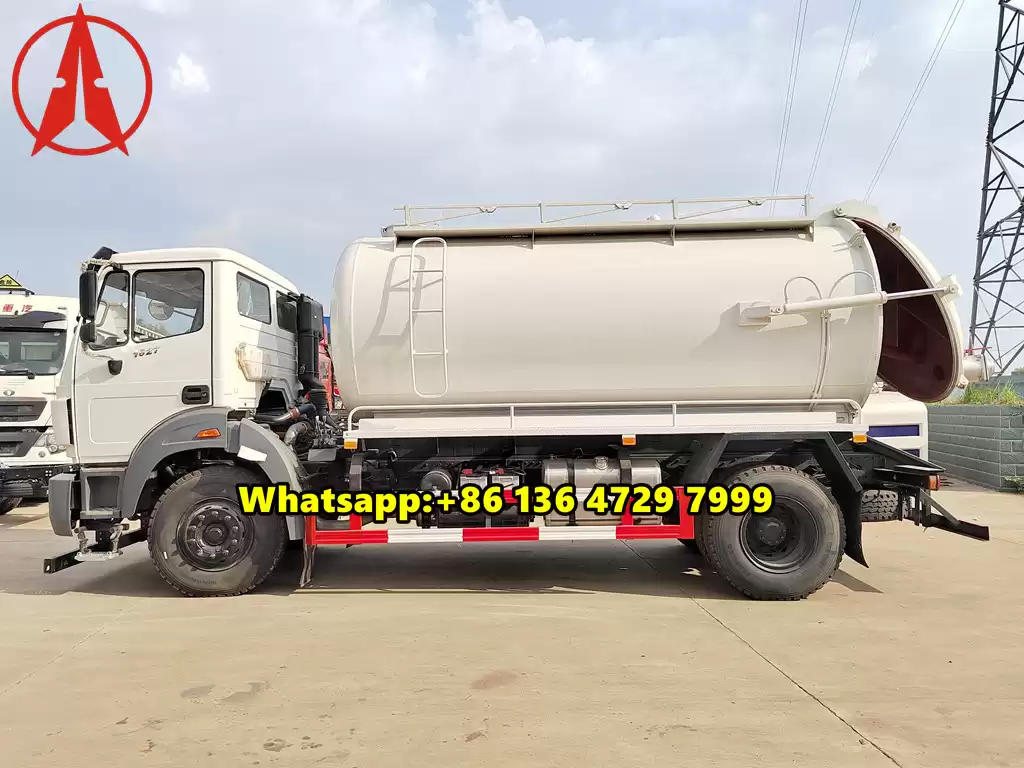

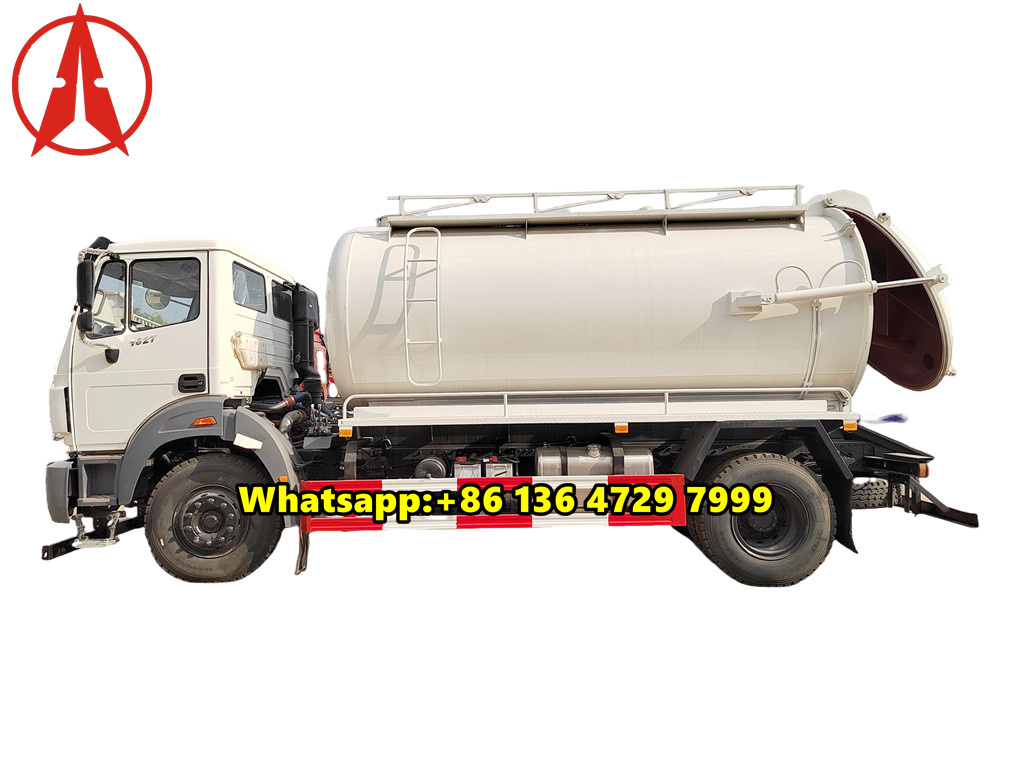

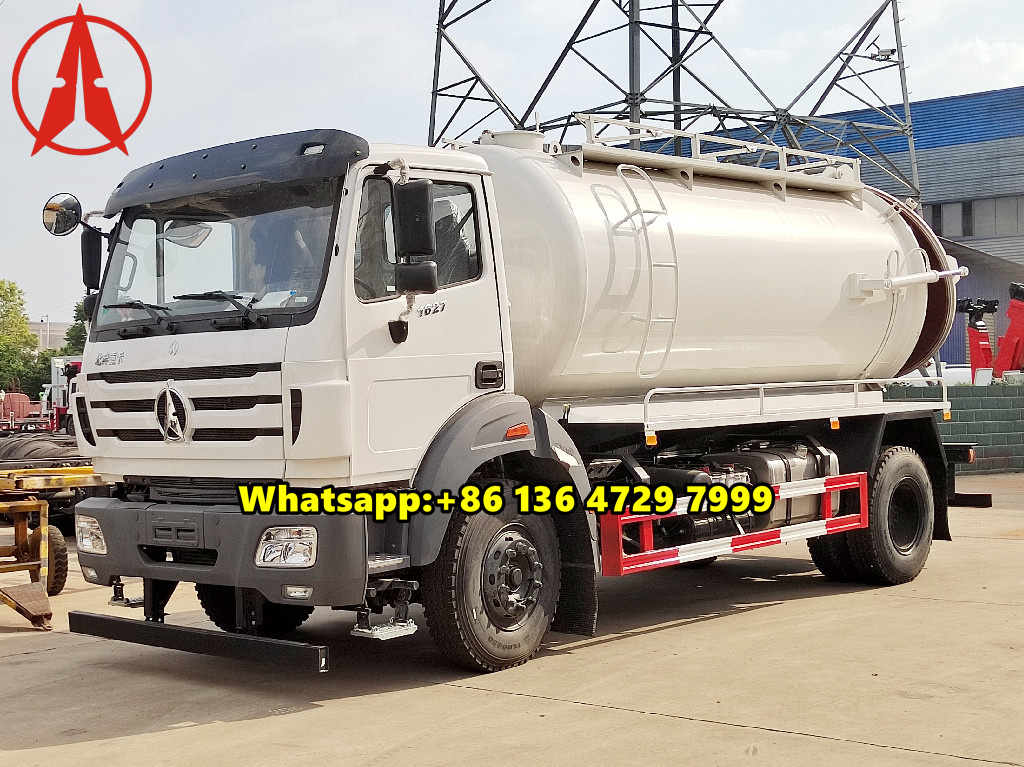

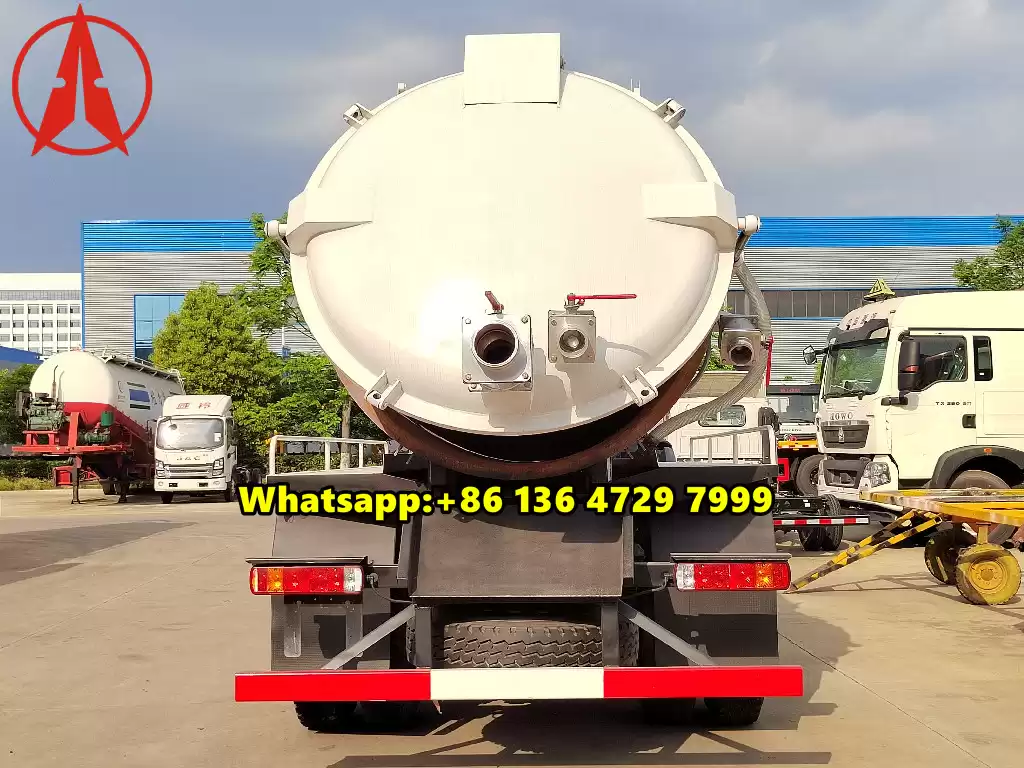

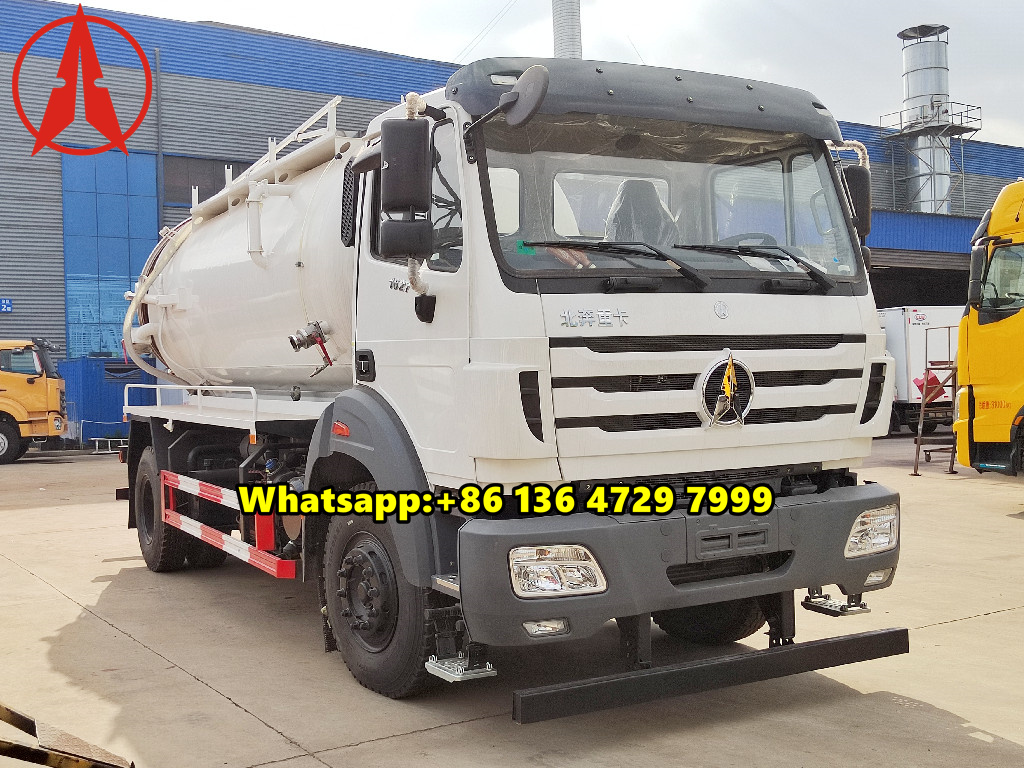

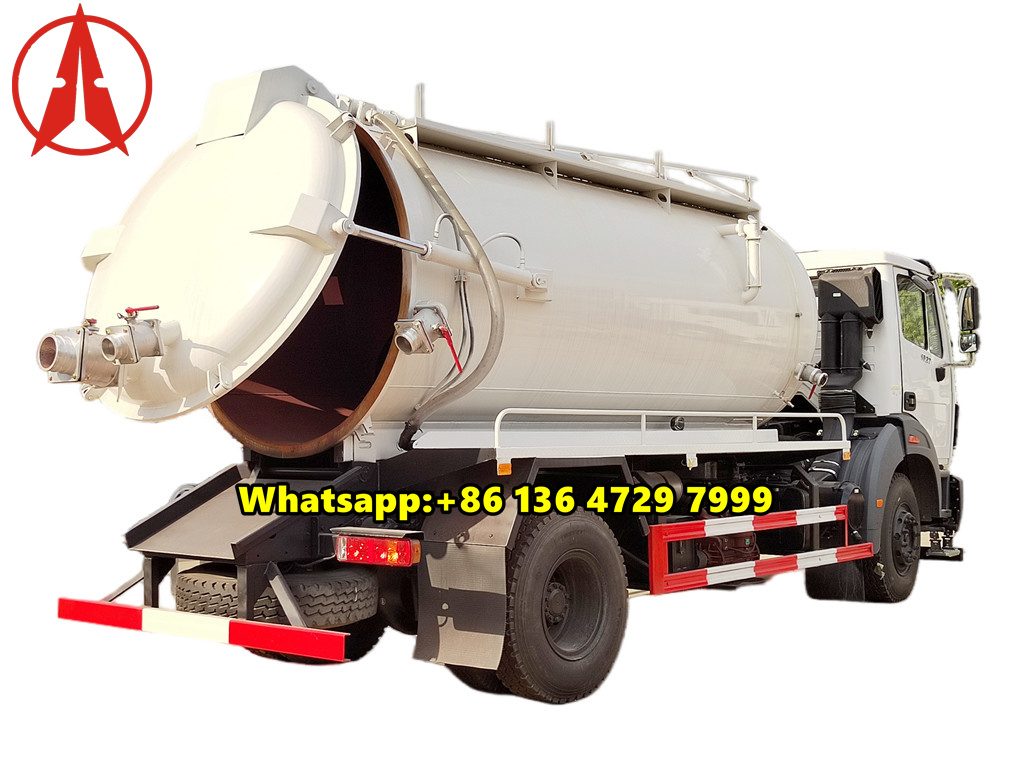

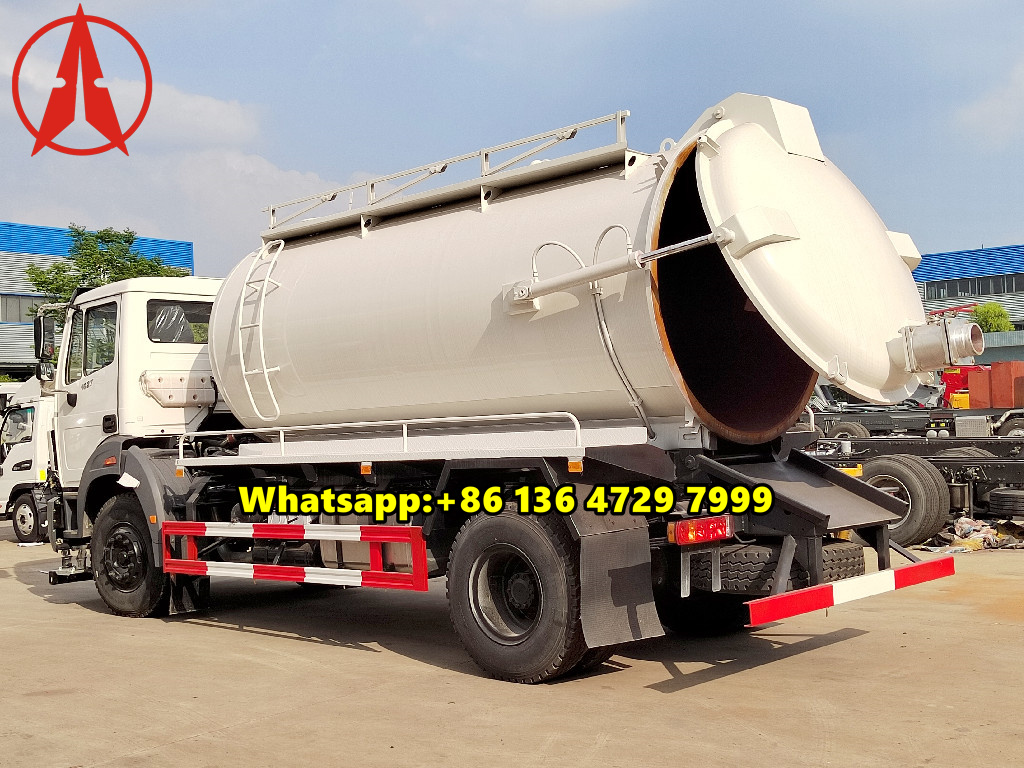

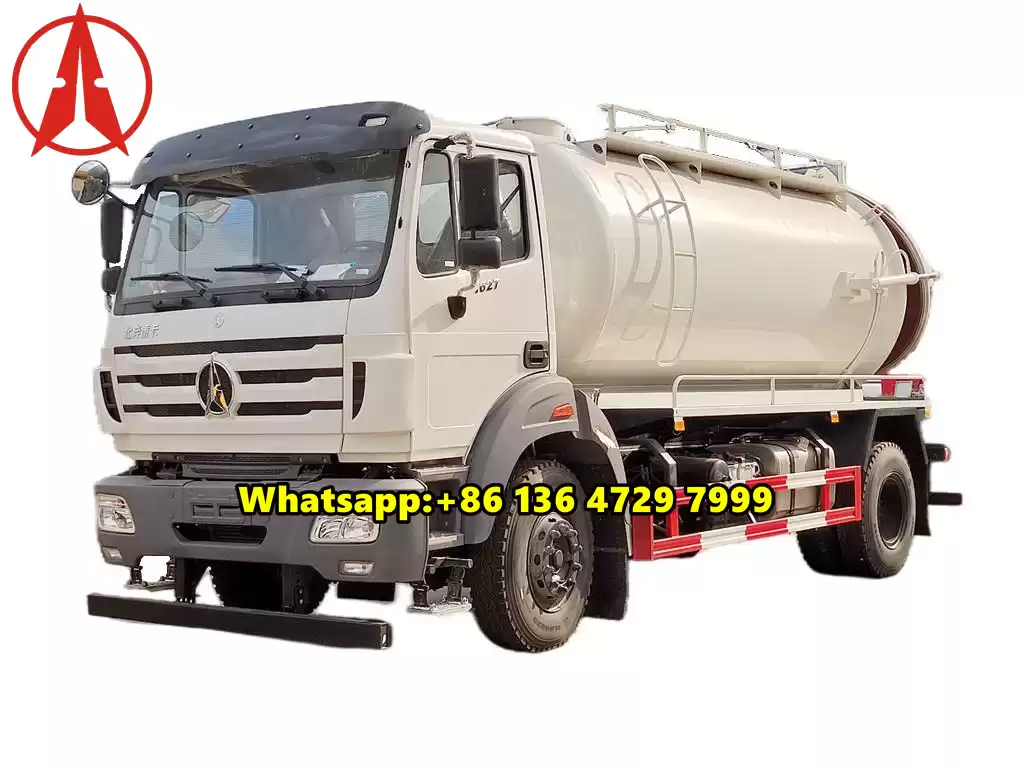

Beiben 4x2 NG80 Vac Tanker 1627 sewage truck

China north benz vacuum truck, vacuum tanker, vactor truck, vactor, vac-con truck, vac-con is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.
A common material to be transported is septage (or more broadly: fecal sludge) which is human excreta mixed with water, e.g. from septic tanks and pit latrines. They also transport sewage sludge, industrial liquids, or slurries from animal waste from livestock facilities with pens. Vacuum trucks can also be used to prepare a site for installation or to access underground utilities. These trucks may use compressed air or water to break up the ground safely, without risk of damage, before installation may begin. Beiben Vacuum trucks can be equipped with a high pressure pump if they are used to clean out sewers from sand.


  • Working Capcity10 Ton
  • Payment termsT/T
  • Production time45 days
  • Engine power270HP, WP10.270
  • Drive system4x2

1. What is a Beiben 1627 sewage suction truck?
The sewage suction truck is suitable for the suction,discharge,and transportation of sludge,excrement,or chemical sewage tank sludge in sewers, rain wells,septic tanks, and various ditches. Beiben liquid vacuum tanker is suitable for working rainwater in small streets,sub-streets,communities,etc.The suction and cleaning operations of wells, sedimentation wells, and ditches are also suitable for the suction, shipment, and discharge operations of wastewater and sediments in oil refining, steelmaking, chemical, housing pipe, and environmental sanitation industries.

2.
According to the effective volume of the sewage tank, the China north benz 1627 sewage suction tank capacity range from 2000 liters to 30000 liters.

1) Suction device: Adopt well-known brand vacuum pump (Import vacuum pump are available), high absolute working pressure, large flow rate, large suction force, and long suction range.

MORO Vacuum Pump: PM60A, PM70A, PM80A, PM110W model

JUROP Vacuum Pump: PN84, PN106, PN130, PN140, PN155 model

BP Vacuum Pump: MEC3000, MEC5000, MEC6500, MEC8000 model

2) With high vacuum and powerful cleaning function, it can effectively suck particles smaller than the diameter of the suction pipe.

3) Equipped with a suction pipe that can be quickly disassembled, which greatly increases the scope of work.

4) Beiben 4x2 super vac tanker truck integrates the functions of sewage suction and sewage rotating filtering and self-draining, reducing the number of vehicle trips, improving work efficiency, and reducing use costs.

5) Sewage tank material:Carbon steel(Q235A),stainless steel(Q304/Q316L),PE lined steel is optional.

3. Beiben vacuum tanker truck is a special sanitation vehicle, which mainly uses the vacuum negative pressure principle to collect and transport feces, liquid sewage and other flowable sewage. The newly designed China north benz Beiben vac tanker, also known as sewage suction truck or sewage suction truck, is a special vehicle mainly used for sanitation cleaning work, especially for septic tanks, sewers and other places. This model Benz 4x2 model 10000L cesspit emptier generates negative pressure through a vacuum pump, sucks the sewage from the collection point into the vacuum pressure tank on the vehicle, realizes the containerized collection of sewage, and effectively reduces secondary pollution.


Beiben liquid vacuum truck is mainly composed of the following parts:
Power system: provides power for vehicle driving and vacuum pump operation.
Vacuum pump system: including vacuum pump, oil-gas separator, pipeline, etc., is the key part of generating negative pressure and sucking sewage.
Tank system: usually made of corrosion-resistant and high-strength materials, used to store sucked sewage.
Operation control system: including the operation panel and control switch in the cab, which is convenient for the driver to operate and monitor.



Cabin Short cab,A/C,Front bumper optional
Vehicle Main Dimensions Overall dimensions
(L x W x H)mm
8950×2495×3240
Wheel base  (mm) 4600
Wheel track  (front/rear) (mm) 1800/1860
Weight in (KGS) Tare Weight 10400
payload 10000
Front axles loading capacity 7500
Rear axles loading capacity 13000
Max. driving speed(km/h)
Engine Brand Weichai Engine
Model WP10.270E32
Type 4 stroke,straight 6-cylinder in line,Turbocharge with inter-cooling,diesel engine
Engine dispacement(L)
Horse Power(HP)
Engine displacement: 9.726L
270HP, other engine power are optional
Emission standard Euro 2
Gearbox Manual operation,FAST brand, 9 speed forward and 1 reverse gear
Steering Hydraulic steering with power assistance
Clutch Reinforced diaphragm clutch
Tire 11.00R20 tyre 6+1 pcs (including one spare tire)

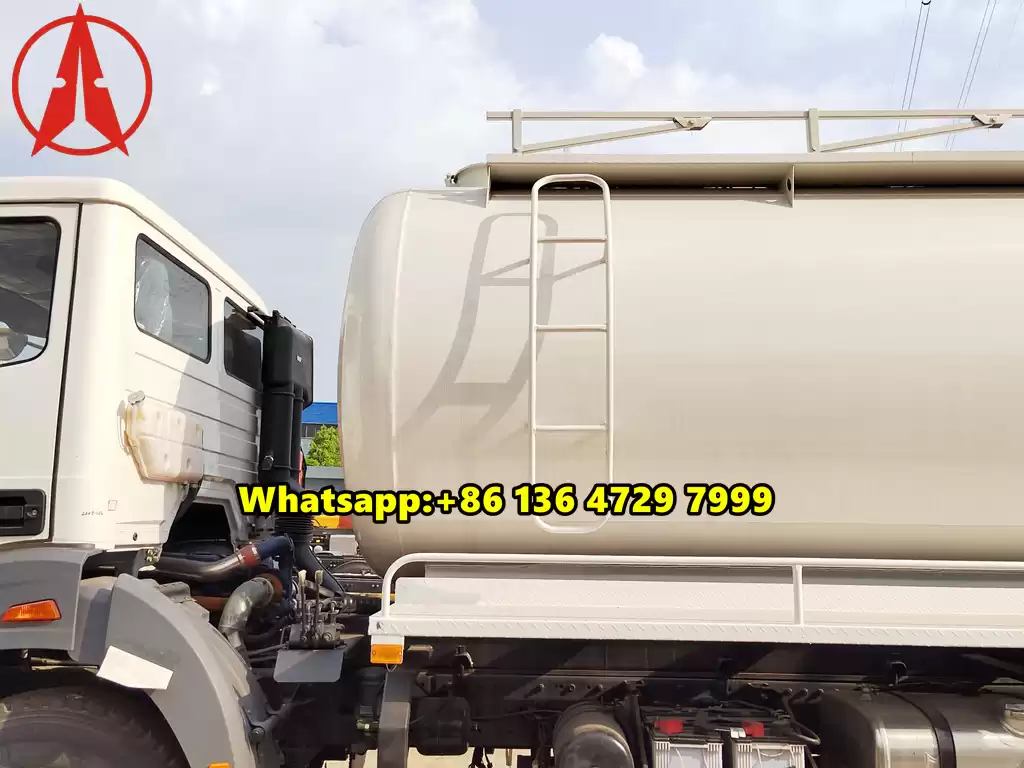

Vacuum sewer suction Tank specification 3000 Gallons vacuum sewer tank
Tank materia:Carbon steel Q235.(Carbon steel,Stainless steel or Aluminum alloy are optional)
Equipped with :Sewage suction pipe

Equipped with: High powerful vacuum pump(Italy Vacuum pump is optional)
Vacuum pump vertical suction height: More than 7m
Equipped with: Inspection window to inspect tank inner situation

Equipped with: Gravition valve,vacuum anti-overflow valve,hydraulic rear door




Features and advantages for Beiben 4x2 NG80 Vac Tanker 1627 sewage truck:
High efficiency and environmental protection: the vacuum negative pressure principle is used to collect sewage, effectively reduce secondary pollution and improve work efficiency.
Strong adaptability: can be used for sewage collection in various complex environments, such as septic tanks, sewers, etc.
Easy to operate: Equipped with advanced operation control system, the driver can easily complete various operations.
Safe and reliable: The vehicle is reasonably designed and meets safety standards to ensure safety and reliability during operation.
Beiben 1627 cesspit emptier trucks are efficient, environmentally friendly and reliable sanitation vehicles, which have made important contributions to the cleaning and beautification of the urban environment.
