Product Description
Beiben 4×4 all-wheel drive tractor has become one of the heavy-duty tractors that is popular among African customers for its powerful traction capacity and excellent off-road performance. Beiben 4×4 tractor head is equipped with WEICHAI brand WP10.340E32 engine, which is water-cooled, four-stroke, inline six-cylinder, turbocharged design, providing surging power. Its displacement reaches 10 liters, ensuring that the vehicle has sufficient power reserve under various complex road conditions. The vehicle has a curb weight of 5800kg and a total mass of 18000kg, which provides a stable driving foundation. Its maximum traction weight reaches 35000kg, fully demonstrating its powerful traction capacity. Whether it is transporting heavy equipment or pulling a large amount of cargo, this tractor can easily handle it.
Beiben 4×4 off-road tractor adopts 4×4 all-wheel drive, with a wheelbase of 3800mm and a front and rear wheelbase of 1995/1800mm respectively, ensuring the stability and passability of the vehicle under complex road conditions. Its approach angle is 19 degrees and its departure angle is 28 degrees, which further enhances the off-road performance of the vehicle. The maximum speed can reach 110km/h, and it can travel quickly and stably on both urban roads and highways.

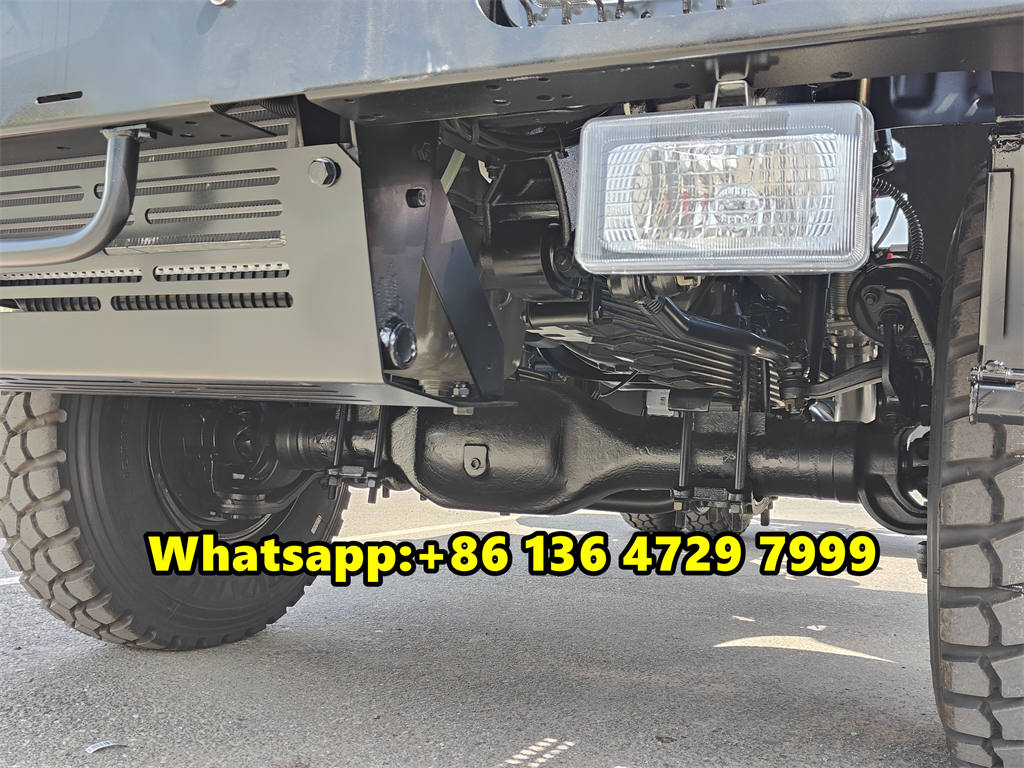

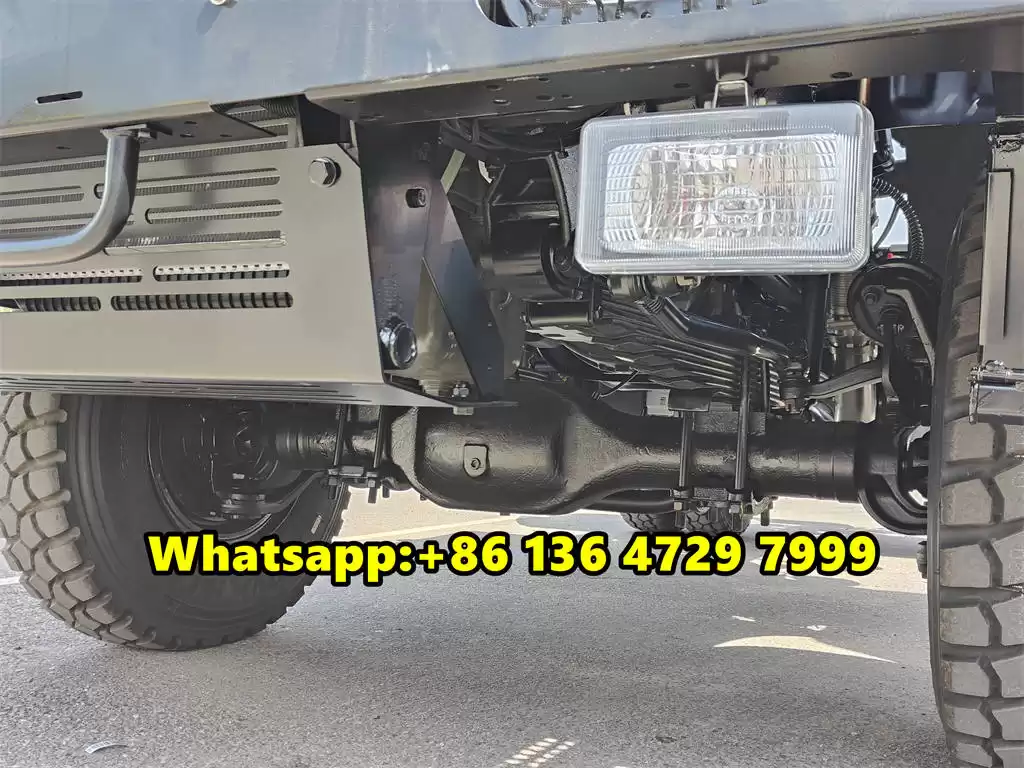

The front axle of the Beiben 4×4 trailer tractor adopts Mercedes-Benz technology, which is a double-shoe pneumatic brake and a 7-ton drive steering axle design. The rear axle also adopts Mercedes-Benz technology, with a load capacity of 13 tons. With 12.00R20 off-road tires, it ensures the vehicle's stable driving and good grip under various road conditions.
Product Specifications
|
North Benz Beiben 4×4 Tractor Truck
|
|
Wheel base (mm)
|
3800
|
|
Curb weight (kg)
|
5800
|
|
Gross vehicle weight (kg)
|
18000
|
|
Max. towing weight
|
35000kg
|
|
Max Speed:(Km/h)
|
110
|
|
Dimension(Length*Width*Height)
|
5995×2495×3200mm
|
|
Front /rear wheel track (mm)
|
1995/1800
|
|
Approach angle/Departure angle
|
19/28
|
|
Engine (WEICHAI)
|
Model
|
WP10.340E32,
|
|
Type
|
water-cooled, four strokes, 6 cylinders straight in line, turbocharged
|
|
Fuel type
|
Diesel
|
|
Emission
|
EURO III
|
|
Displacement(L)
|
10 L
|
|
Fuel tanker capacity (L)
|
400L Aluminum alloy
|
|
Clutch
|
Φ430, Diaphragm Spring, Hydraulic boosting
|
|
Gearbox
|
FAST 9JS150A, mechanical type,9 Forward speed gear.
|
|
Steering system
|
ZF8098
|
|
Front axle (Mercedes Benz
Technology)
|
Double-shoe pneumatic brake,7 tons driving steering axle
|
|
Rear axle
(Mercedes Benz technology)
|
13 ton
|
|

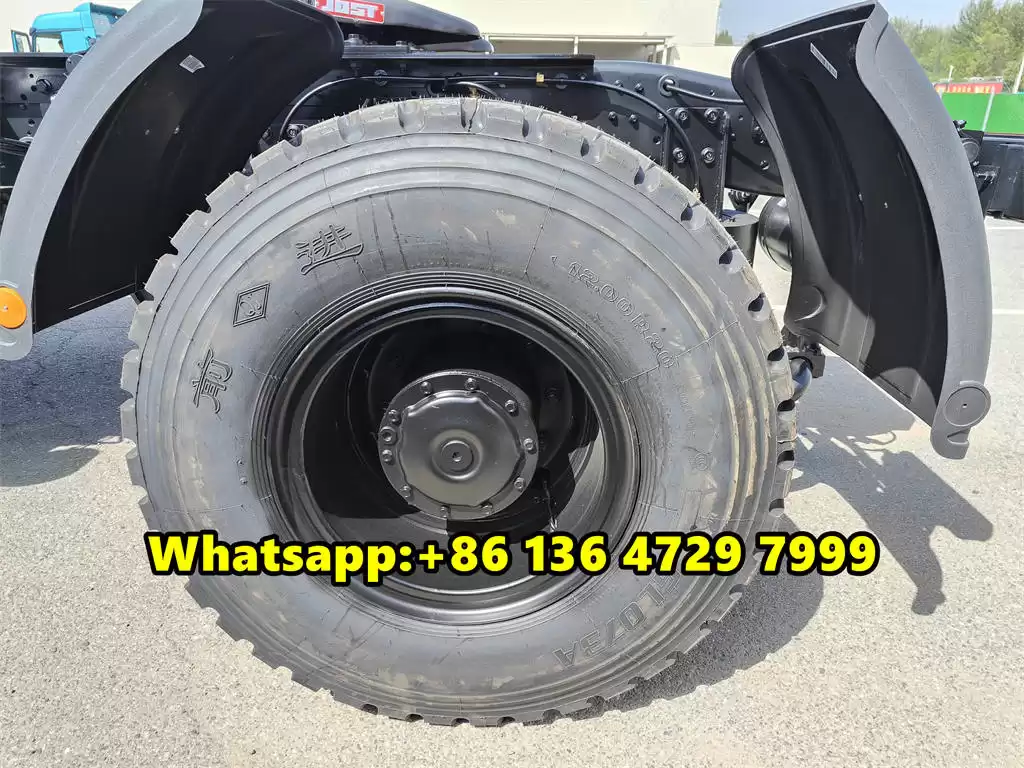

Tire
|
12.00R20 radial tire, 7pcs (6+1)
|
|

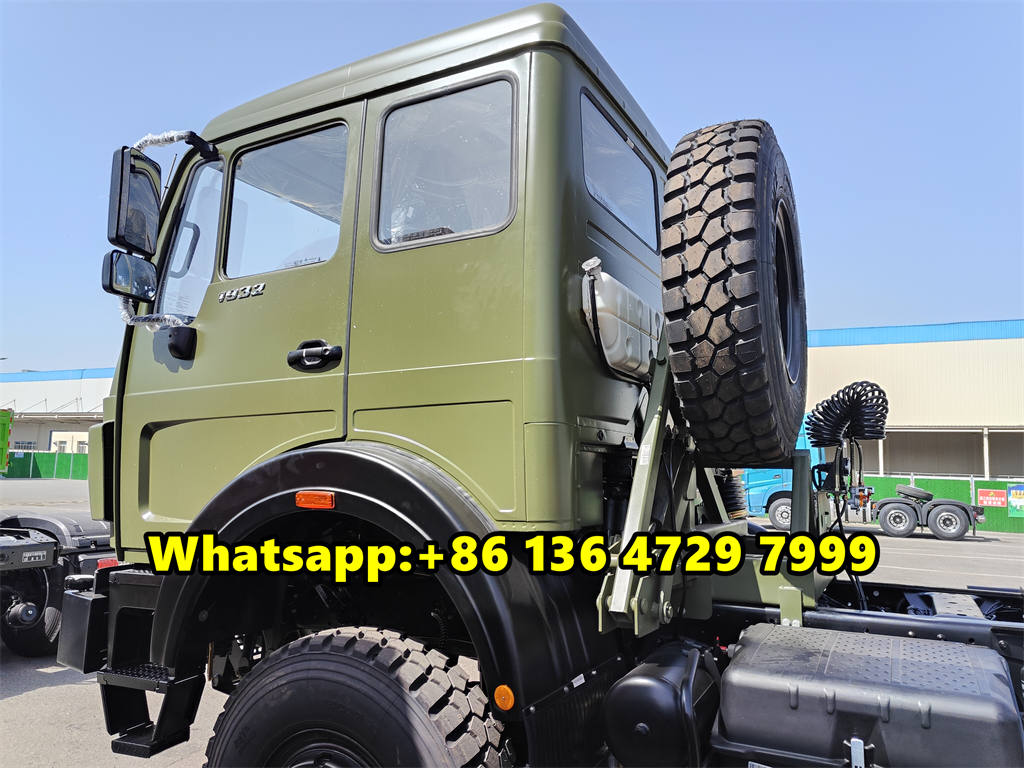

Cab
|
NG80B Long cab with single sleeper,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
|
|

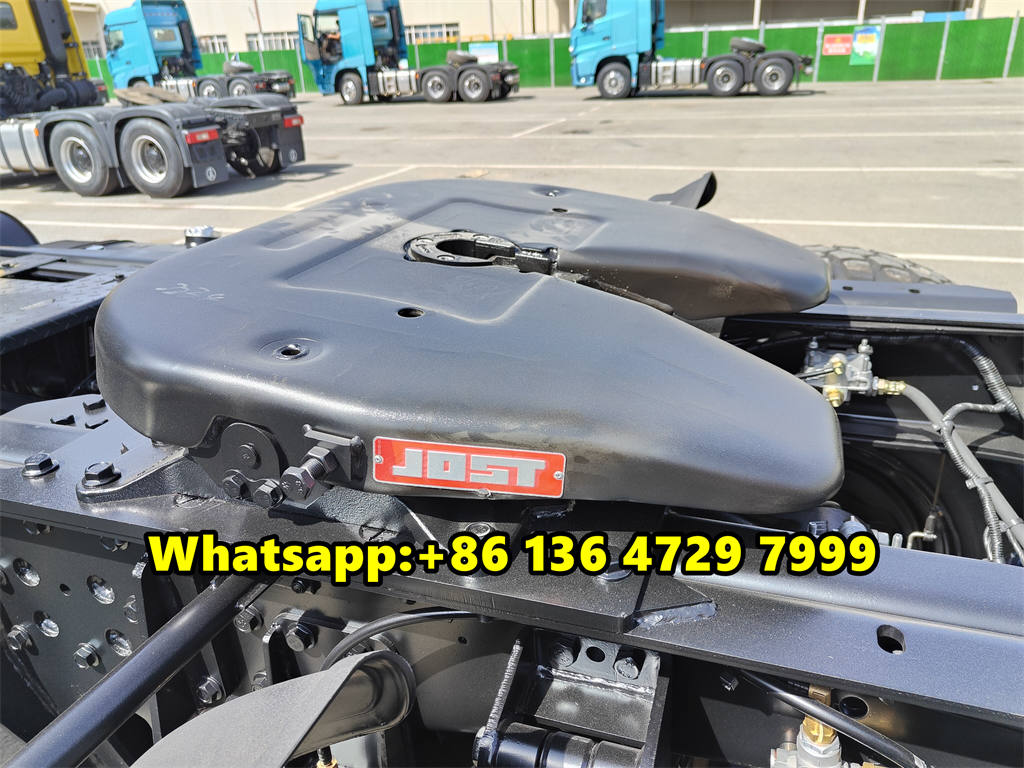

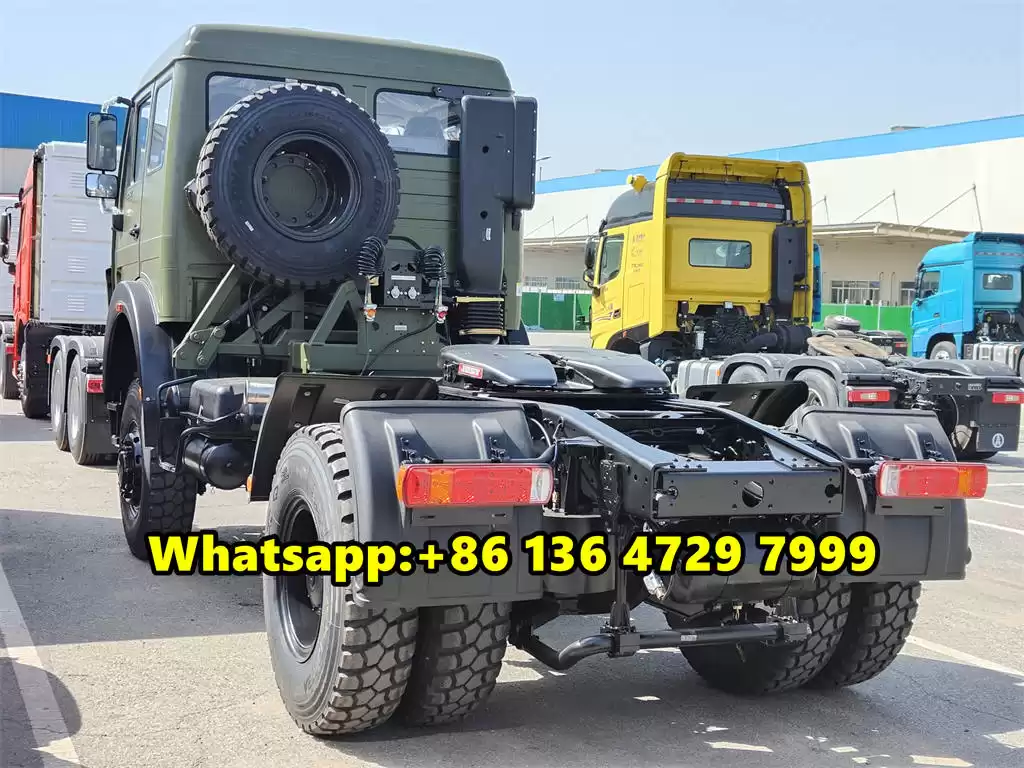

Fifth wheel
|
#90 single direction
|

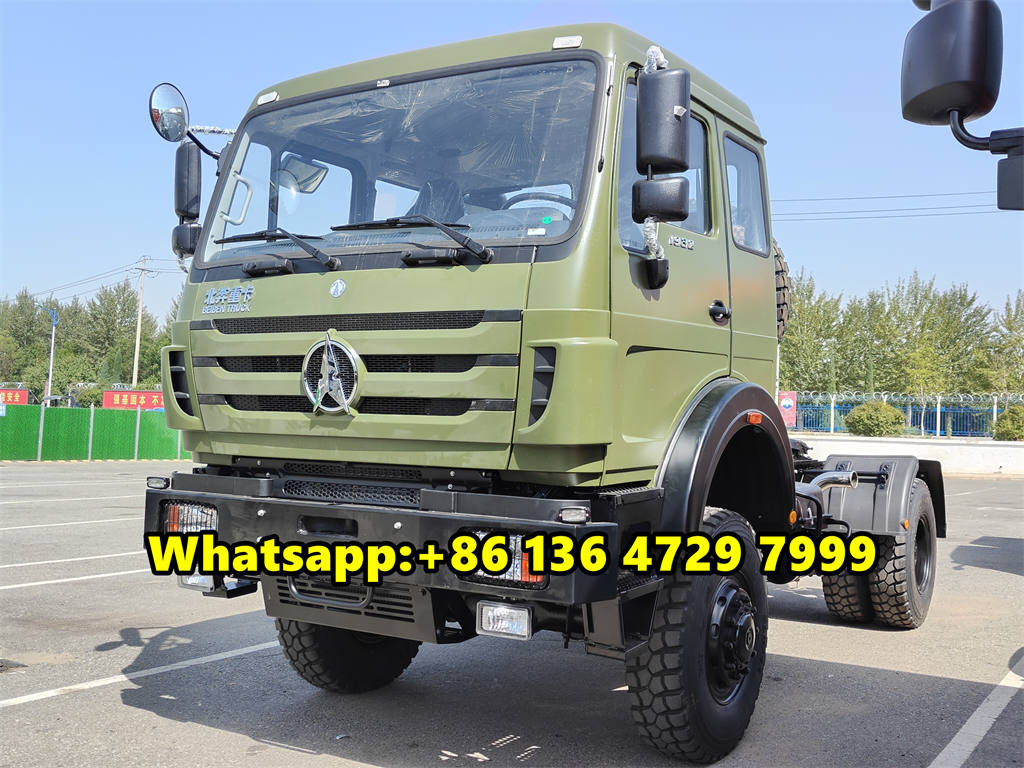

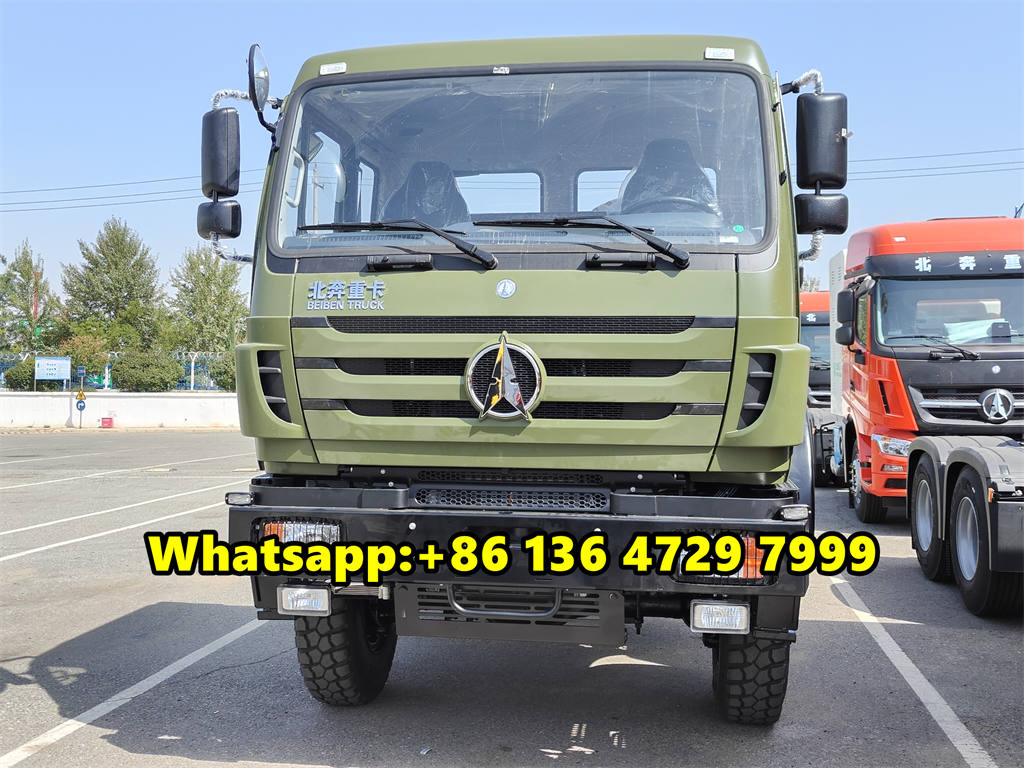

Product Details
