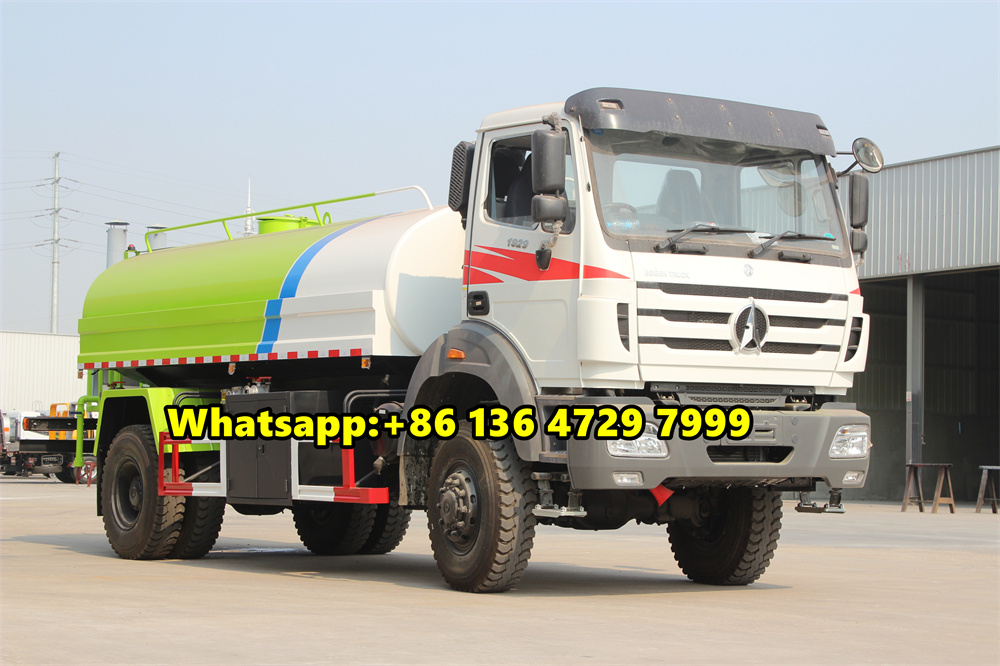

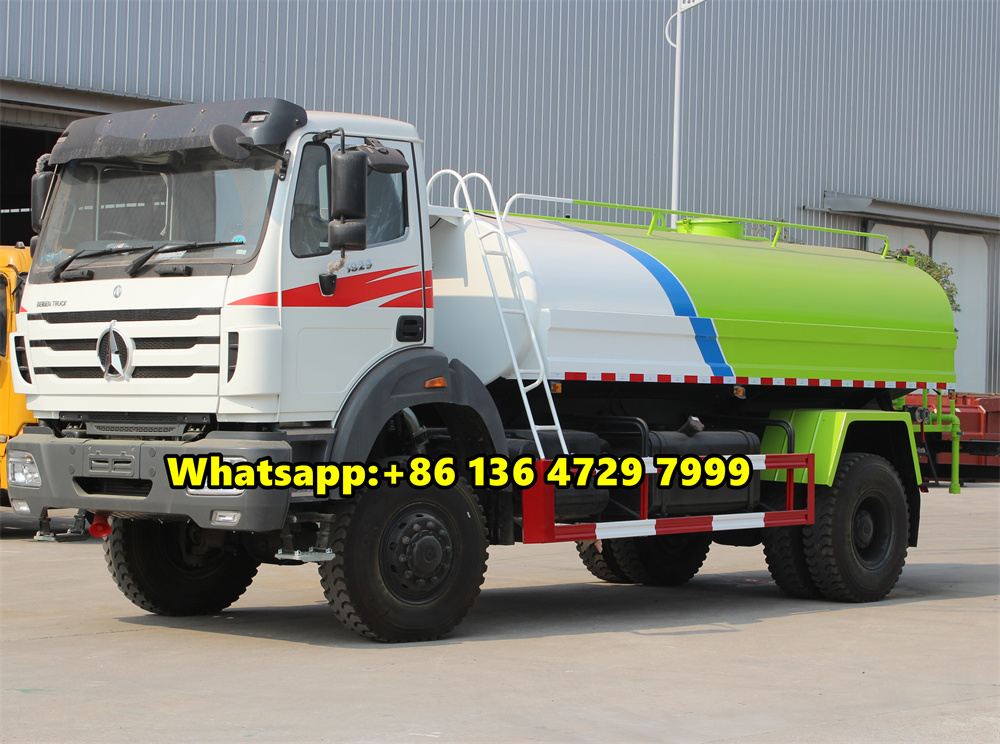

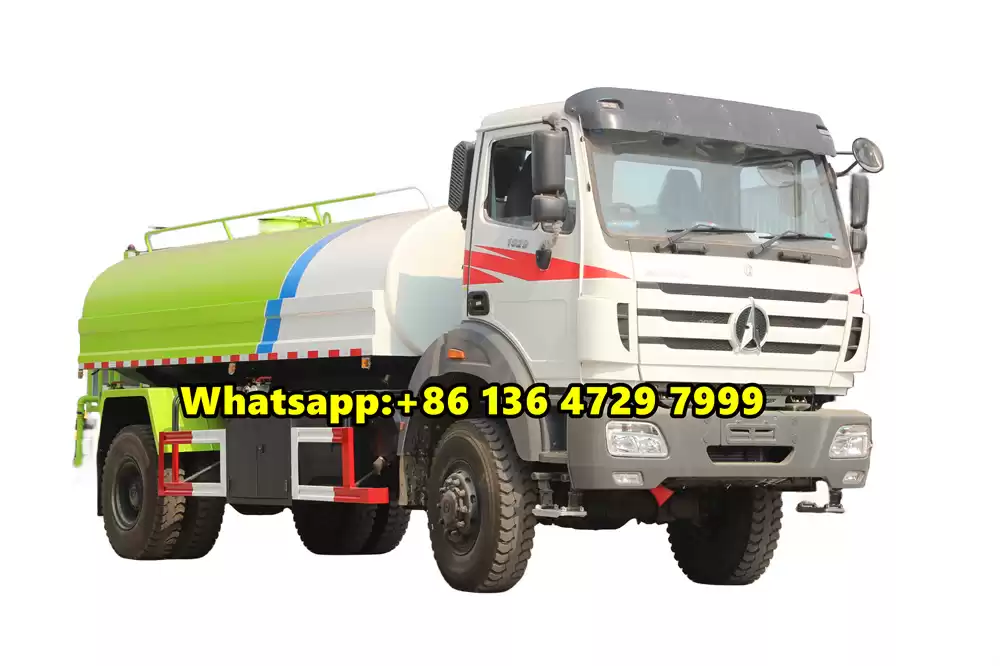

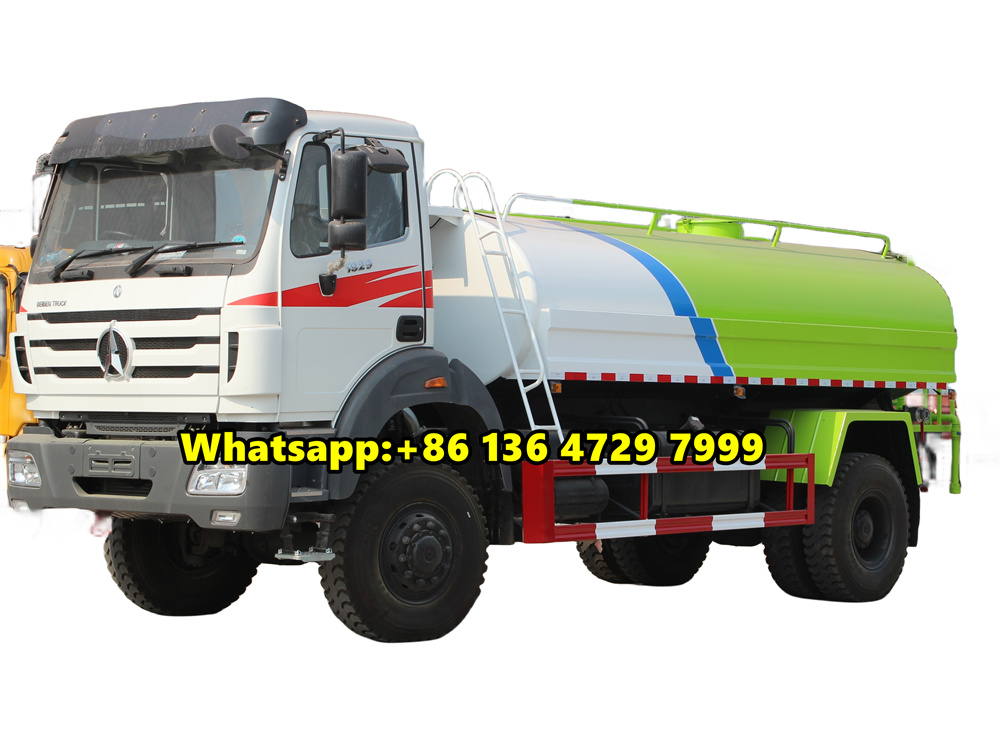

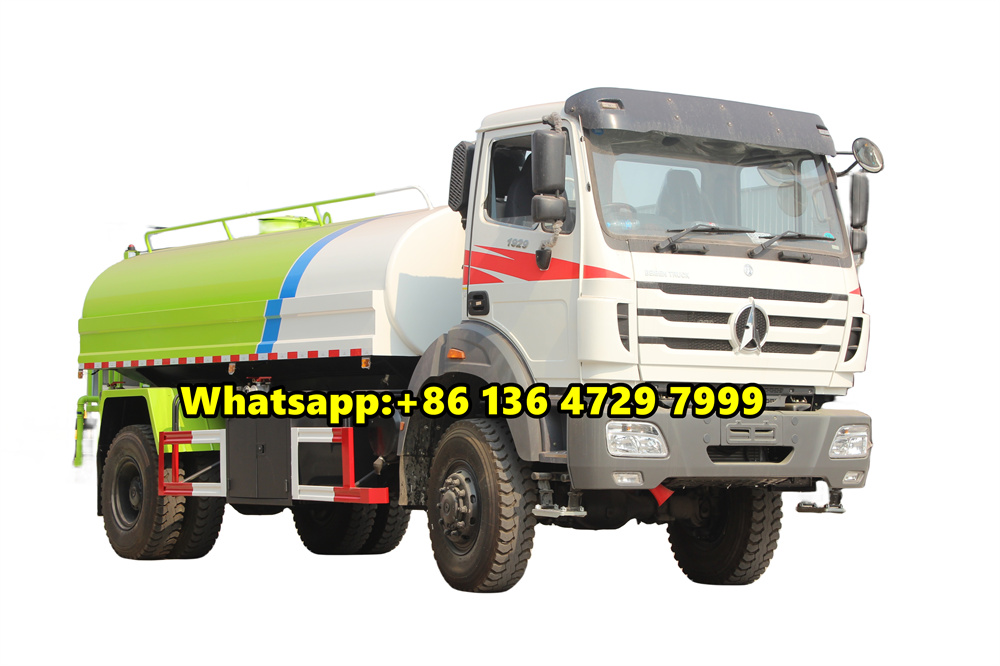

The Beiben 4x4 off road 1927 water tanker truck is a rugged and durable vehicle designed for tough terrains and challenging environments. With a 4x4 drivetrain, this truck can easily navigate off-road trails, muddy roads, and rocky landscapes with ease.

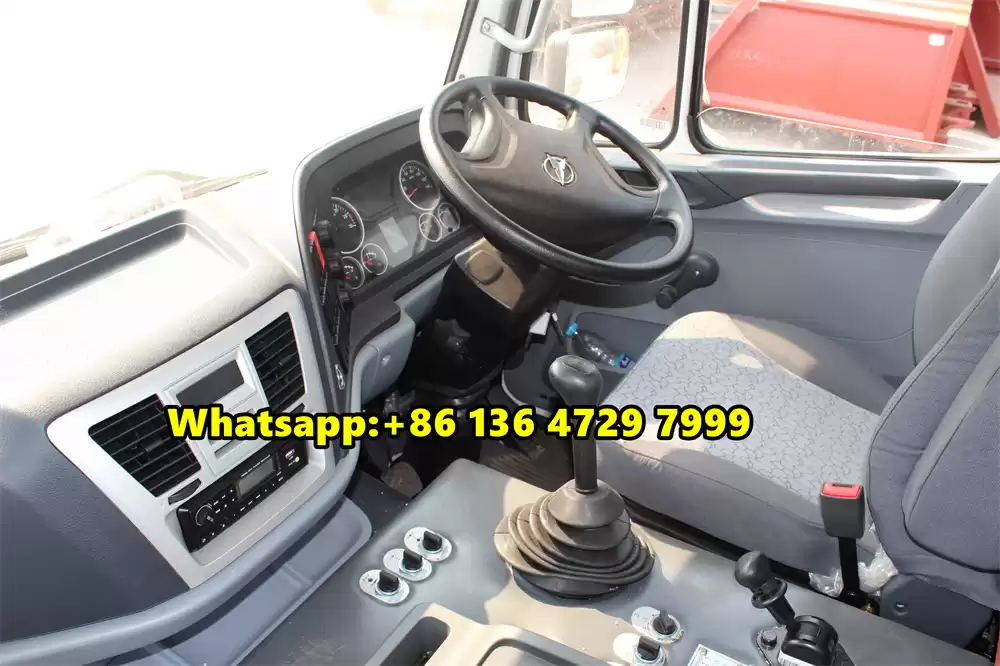

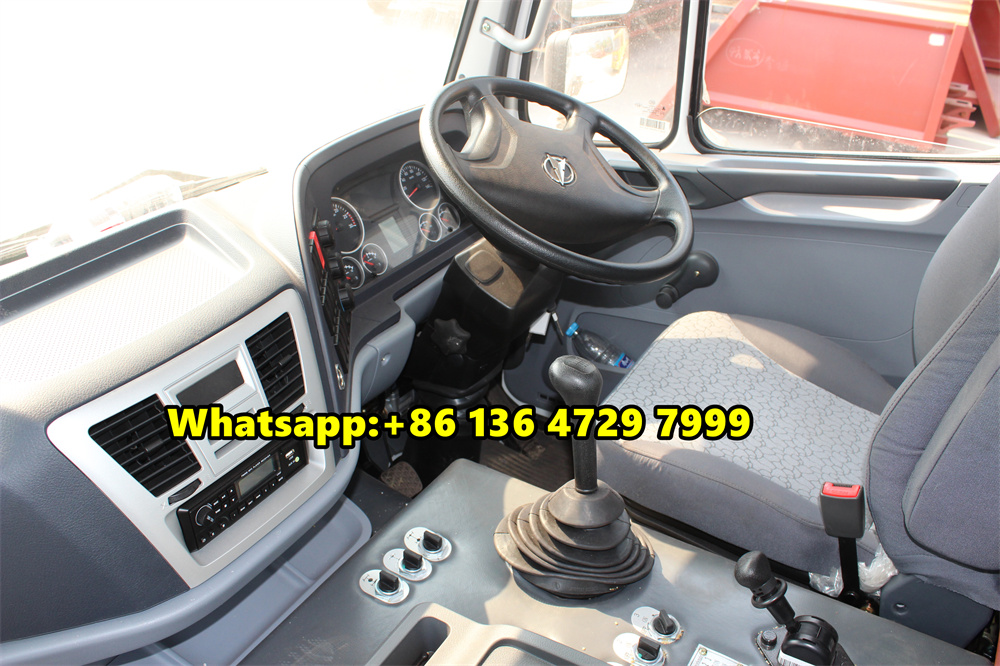

Featuring a spacious cab with comfortable seating for the driver and passengers, the Beiben 4x4 water tanker truck offers a smooth and stable ride even on rough terrain. The truck is equipped with a powerful engine that provides ample torque and horsepower to tackle steep inclines and heavy loads.

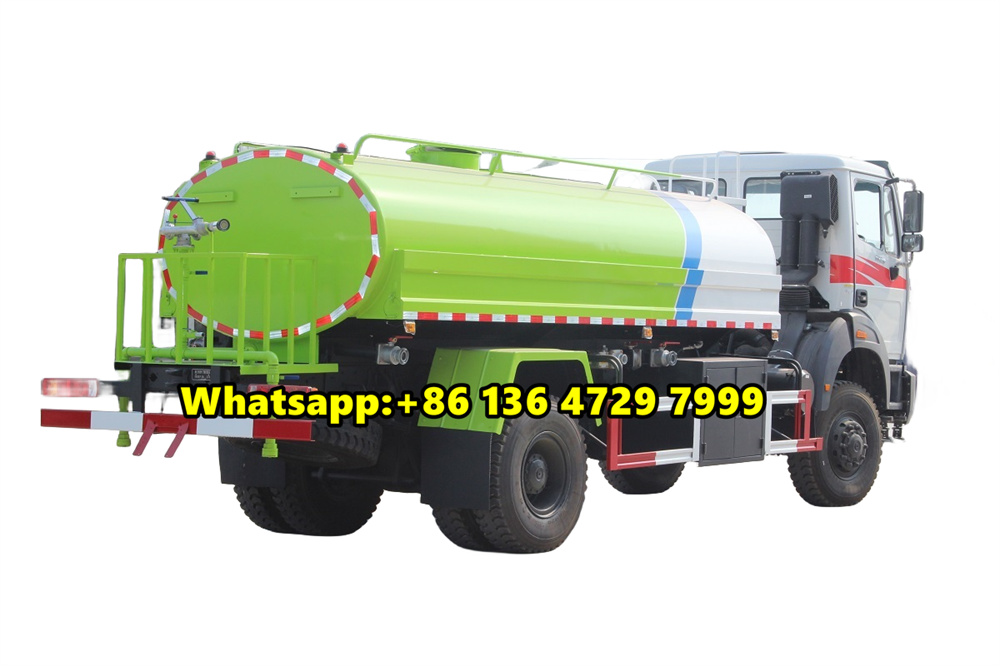

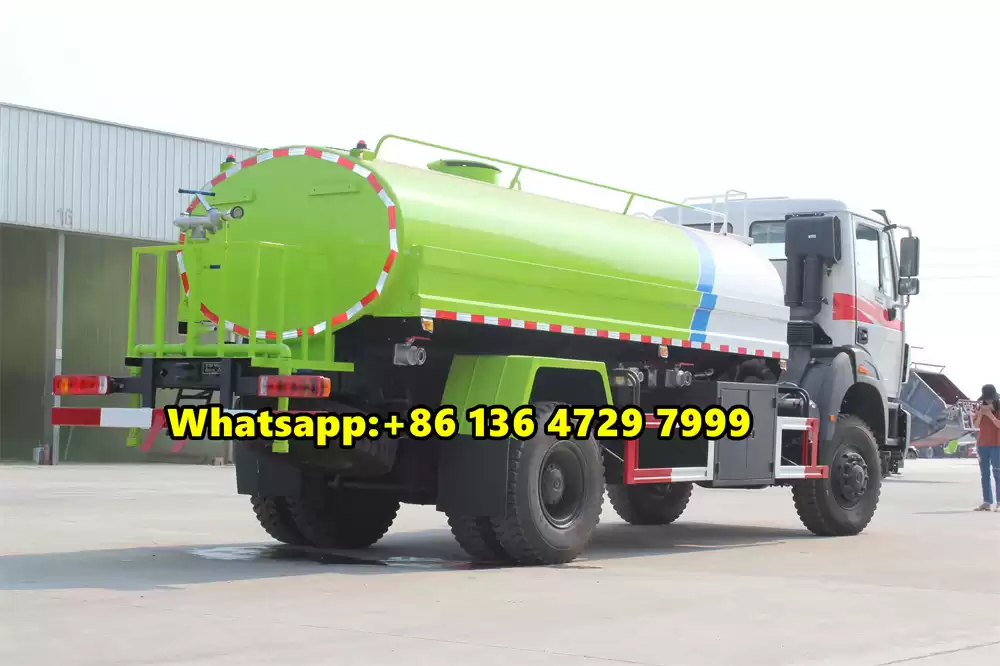

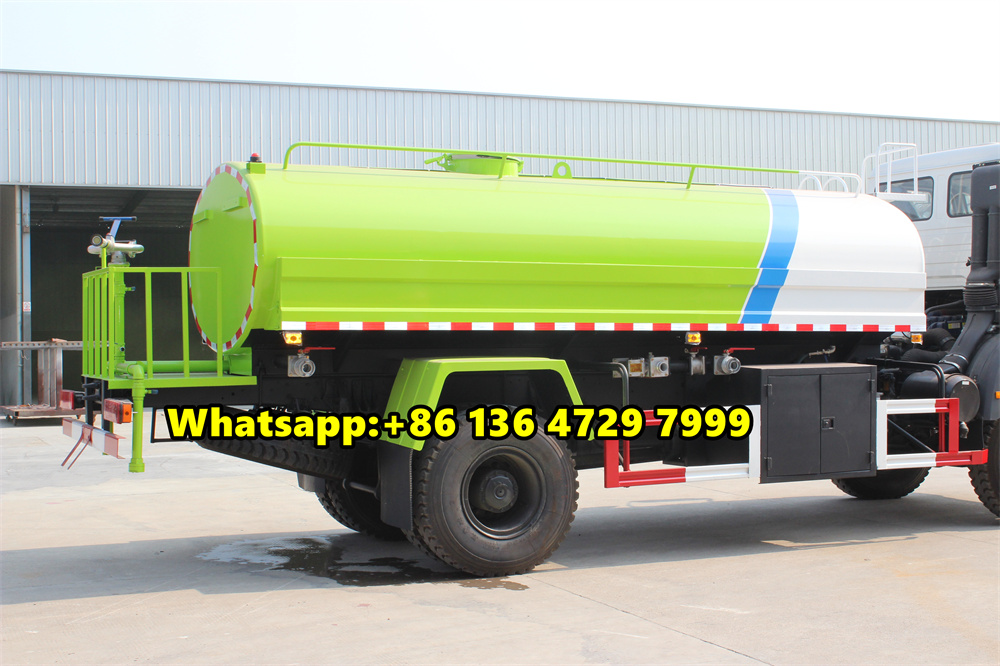

The water tanker on the truck has a large capacity, allowing it to carry a significant amount of water for various applications such as construction sites, firefighting, agriculture, and municipal services. The tanker is built with high-quality materials and a reliable pumping system to ensure efficient water delivery and distribution.
BEIBEN 1627 NG80 cab 4x4 10CBM water sprayer tank truck specifications
| Cabin |
Flat shortcab,A/C |
| Vehicle Main Dimensions |
Overall dimensions
(L x W x H)mm |
8900×2485×3250 |
| Wheel base (mm) |
4600 |
| Wheel track (front/rear) (mm) |
1960/1860 |
| Weight in KGS |
Tare Weight |
9850 |
| payload |
10000 |
| Front axles loading capacity |
7000 |
| Rear axles loading capacity |
13000 |
| Max. driving speed(km/h) |
|
| Engine |
Brand |
Weichai Engine |
| Model |
WP10.270E33 |
| Type |
4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and
inter-cooling |
Engine dispacement(L)
Horse Power(HP) |
Engine displacement: 9.726L
270HP, other engine power are optional |
| Emission standard |
Euro 3 |
| Gearbox |
Manual operation, FAST brand 9JS119, 9 speed forward and 1 reverse gear |
| Steering |
Hydraulic steering with power assistance |
| Clutch |
Reinforced diaphragm clutch |
| Tire |
12.00-20 tyre 7 pcs including one spare tire.Off-road tire is optional |

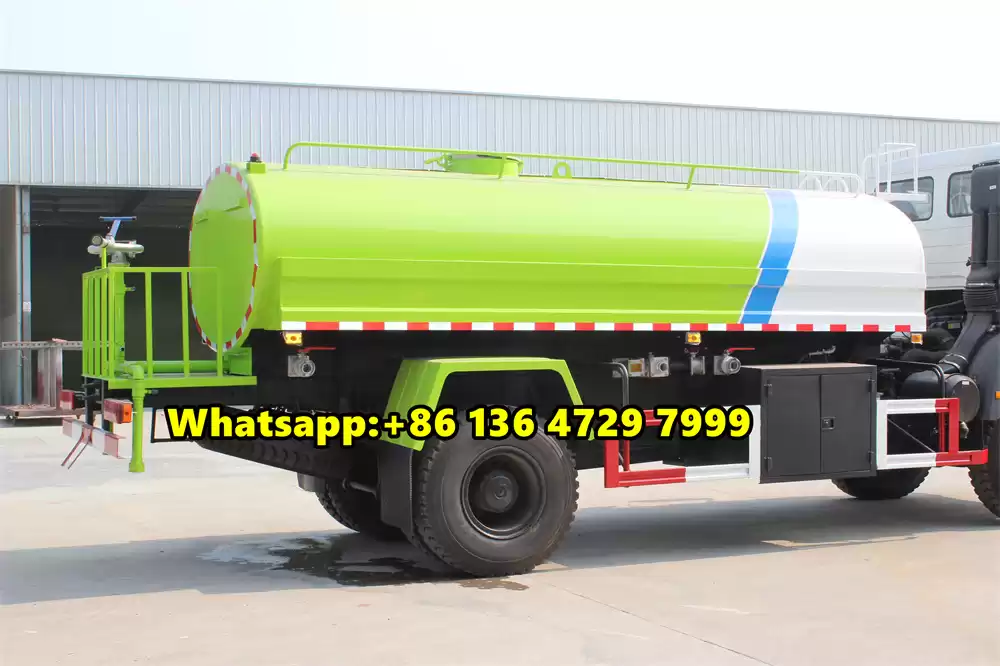

| Tank specification |
10000 liters
Tank materia:Carbon steel Q235.(Carbon steel,Stainless steel or Aluminum alloy are optional)

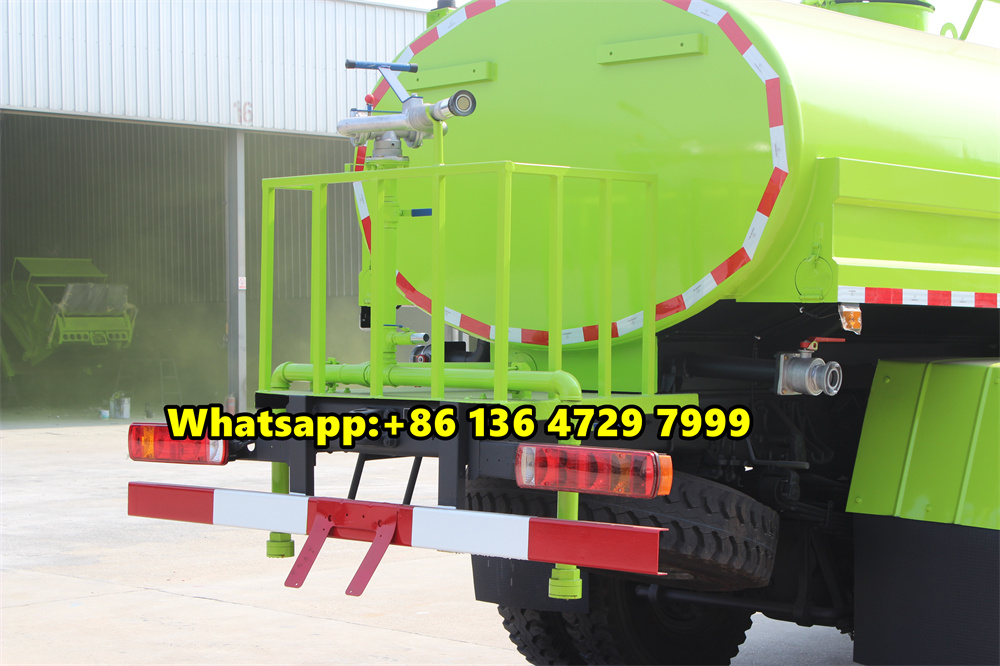

Equipped with front(rear,side)sprinkler
Equipped with high powerful water pump

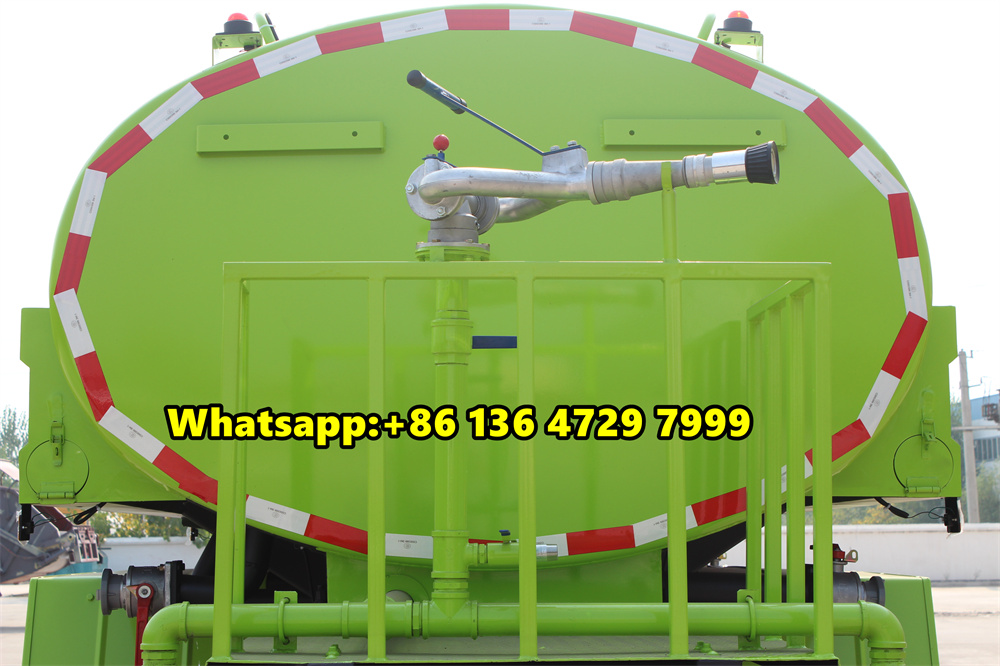

Equipped with water monitor & Water Gun & Water cannon

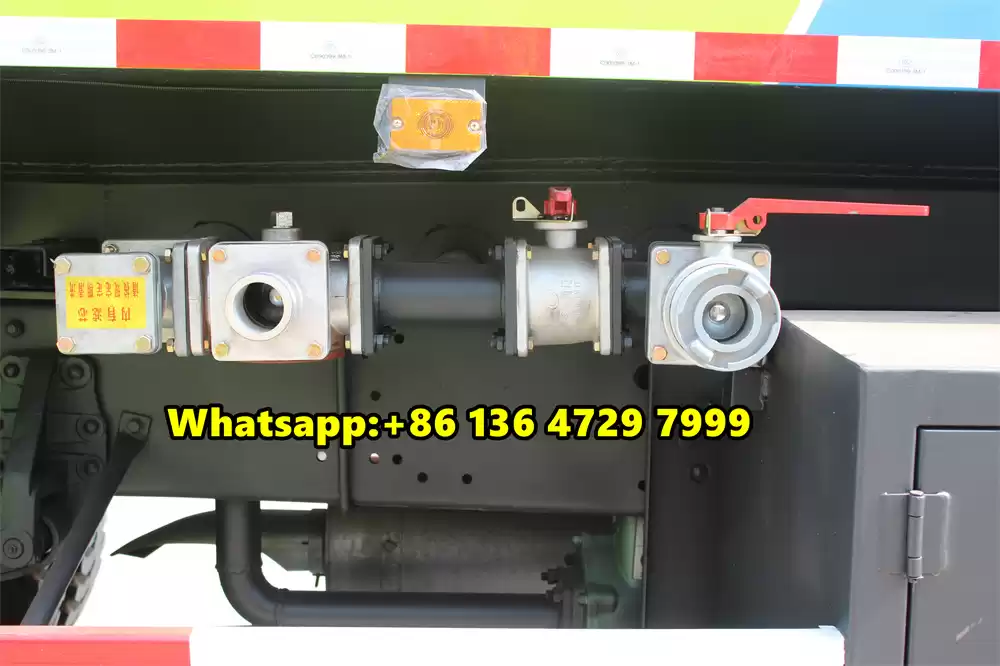

Equipped with fire valve,water valve,and filter gauze |
