Beiben 4x4 off-road water bowser

The Beiben 4×4 Water Tank Truck, modified based on the Beiben 4×4 all-wheel-drive chassis, is equipped with a 290-horsepower Weichai diesel engine, a 10,000-liter carbon steel anti-corrosion water tank, and a 60m³/h high-efficiency water pump. Its excellent all-wheel-drive performance, large-capacity design, efficient spraying system, and high-quality materials and craftsmanship make it an ideal choice for urban road cleaning, green space irrigation, construction site dust suppression, and emergency firefighting. The luxurious and comfortable cab, coupled with easy operation, makes it a valuable assistant for urban cleaning and green space maintenance.


  • Engine power290 HP
  • Working Capcity10000 liters
  • Payment termsTT
  • Production time40 days
  • Drive system4×4, LHD

Product Description

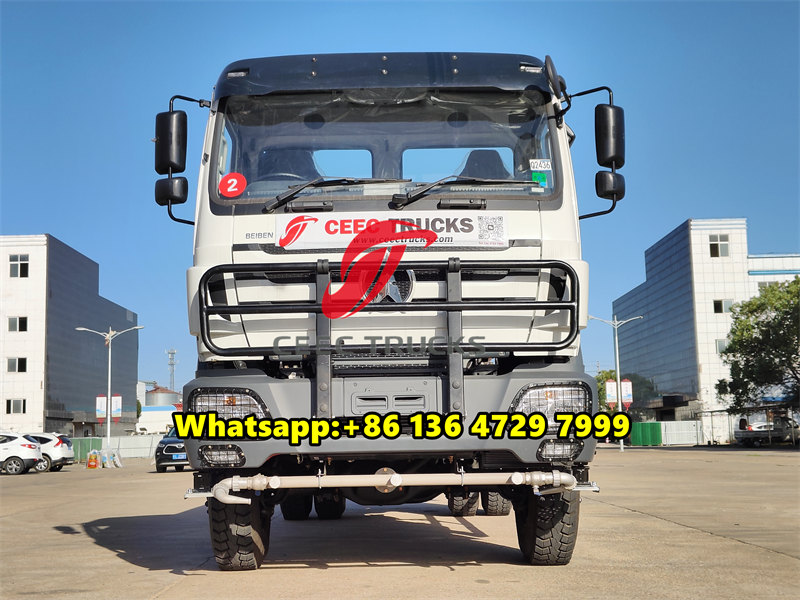

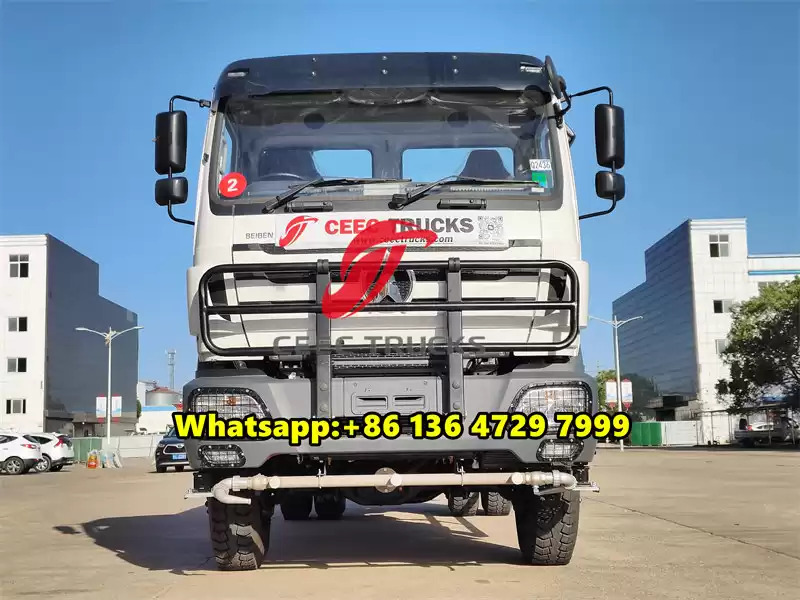

The Beiben 4×4 Water Tank Truck is a highly efficient water sprinkler meticulously modified based on the Beiben 4×4 all-wheel-drive off-road chassis. It adopts the classic NG80 cab design of Beiben, featuring not only an atmospheric appearance and smooth lines but also a luxurious interior with rich configurations. Additionally, a reinforced anti-collision bumper is installed at the front of the cab, further enhancing the vehicle's safety performance.





In terms of power, this Beiben 4WD water bowser is equipped with a Weichai WP10.290E32 inline six-cylinder diesel engine, delivering a robust 290 horsepower and a maximum torque reserve of 1160Nm. Coupled with a 9JS150A transmission and a 4×4 all-wheel-drive system, the vehicle maintains excellent off-road capability and stability under various complex road conditions.

The Beiben 4×4 Water Spray Truck also boasts a series of advanced specialized configurations and functions. Its water tank has a capacity of 10,000 liters, made of high-quality carbon steel with a thickness of 4mm, ensuring the tank's durability. The tank is equipped with baffles to effectively reduce water wave impact during driving, and it has undergone anti-corrosion treatment to extend its service life. The water pump, selected from a well-known Chinese brand, has a flow rate of up to 60m³/h, ensuring efficient water sprinkling operations.

Scope and Scenarios of Use

With its outstanding performance and reliable quality, the Beiben 4WD Water Tank Truck is widely used in various road and site water sprinkling operations. The following are its main areas of application and scenarios:

1. Road Cleaning: In the daily maintenance of urban roads, water sprinklers play a crucial role. The Beiben all-wheel-drive water bowser, with its large-capacity water tank and efficient sprinkling system, can quickly clean roads, remove dust and dirt, and keep the road surface clean and tidy.

2. Green Space Irrigation: Regular irrigation is key to maintaining the healthy growth of vegetation in urban green belts, parks, and lawns. The Beiben 4×4 water truck, with its high water pump flow rate and high lift, can easily cover large areas, providing sufficient water for green plants.

3. Dust Control on Construction Sites: On construction sites, dust generated during construction poses serious impacts on the environment and workers' health. The Beiben off-road water tanker can effectively reduce the concentration of dust particles in the air by spraying water mist, improving the site environment.

4. Emergency Firefighting: In emergencies such as sudden fires, water sprinklers can also be used as emergency firefighting equipment. The Beiben 4WD water bowser, with its large-capacity water tank and powerful water pump system, can quickly provide sufficient water to the fire scene, assisting firefighters in extinguishing and rescue operations.





Product Specifications



General Specification

Chassis Model

Beiben 1929

Series

NG80

Wheel Traction / Drive Style

4×4

Gross Vehicle Weight

kg

19000

Steering Wheel Position

LHD/RHD

LHD (Left Hand Drive)

Engine

Model

WP10.290E32

Brand

WEICHAI

Displacement

9.726L

Type

In-line, Six-cylinder, Four-stroke, Water-cooled, Direct Injection, Intercooled Turbocharged Diesel Engine

Engine Classification / Standard

EURO III EGR

Bore/Stroke

mm

126/130

Rated Horse Power

hp

290

Net Power

KW/rpm

213KW/2200rpm

Torque (Nm/rpm):

Nm/rpm

1160Nm @ 1200-1600rpm

Clutch & Gear Box Systems

Clutch

BEIBEN's 430 diaphragm spring clutch

Gear Box

9JS150A

Gear Speed/Lever

9 forward/ 1 reverse

Gear Ratio

12.57,8.39,6.15,4.59,3.4,2.47,1.81,1.35
reverse1: 13.14

Axle & Steering

Steering Model

8098

Front Axle

7T

Rear Axle

13T  , Drum Brake

Ratio of Rear Axle

5.263

Loading Capacity per Axle

front

7000kg

rear

13000kg

Brake System & Suspension

Service Brake

 dual circuit compressed air brake

Auxiliary Brake

 engine exhaust valve brake

Parking Brake

front

spring energy

rear

compressed air

Suspension Type

front

10pcs leaf spring

rear

13pcs leaf spring

Wheels & Tires

Wheel Type

Radial Tires

Number of Tires

6+1 (spare tire)

Tire Type/Size

12.00R24

Track

front

1995mm

rear

1800mm

Upper body specifications

Tank

Capacity

10000 liters

Material

4mm carbon steel

Water pump

Flow

60m3/h

Vertical Suction

≥6 m

Priming Time

<5 min

Lift of pump

45m

Spraying system

Spray width

≥14

Water cannon range

≥23

Nozzles

Front and rear nozzles

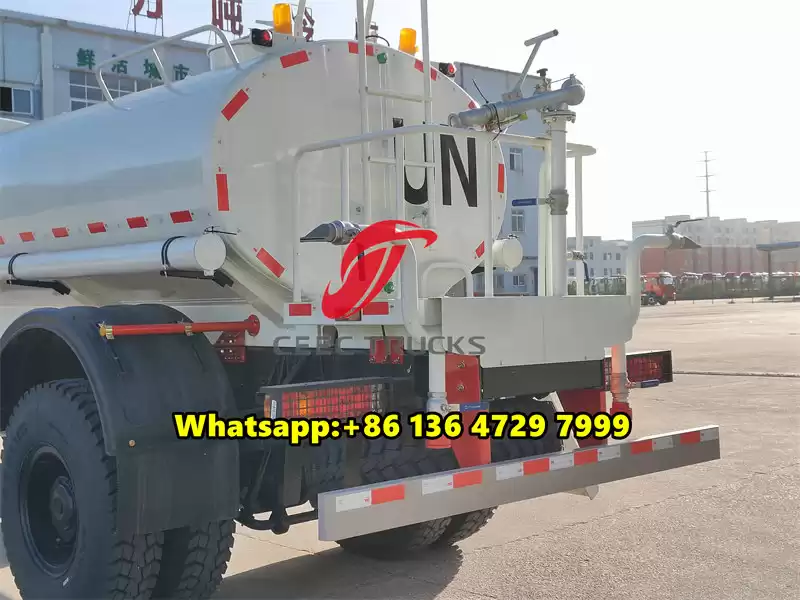

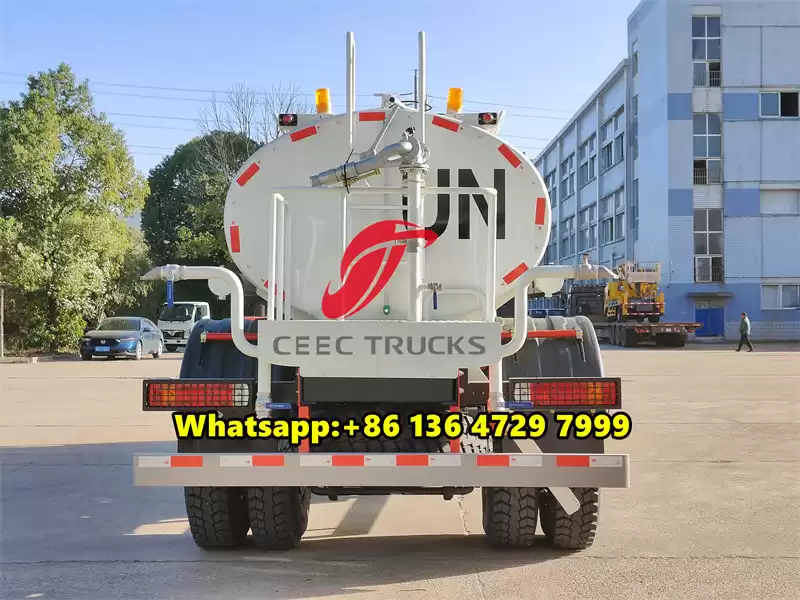

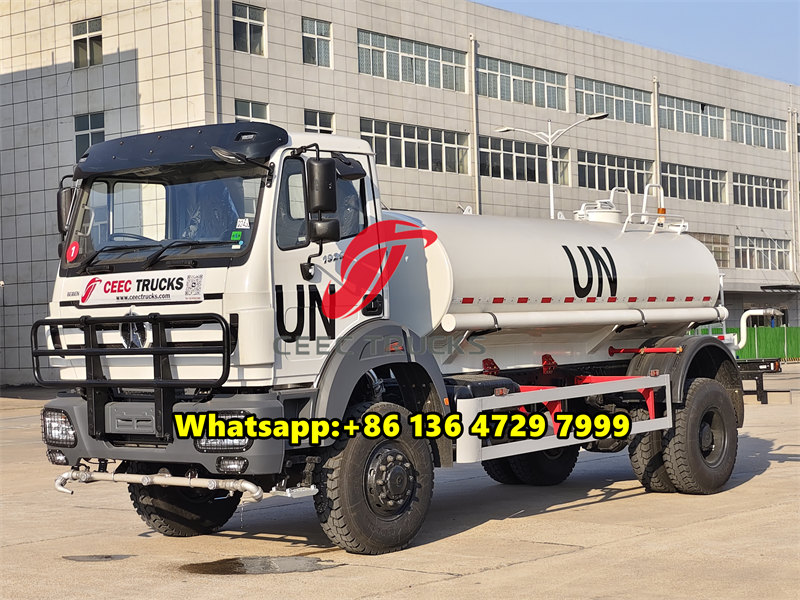

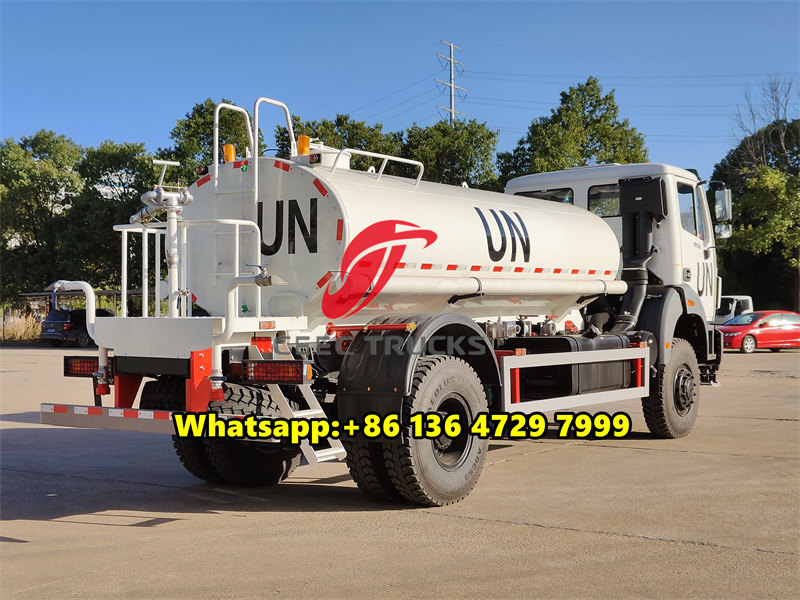

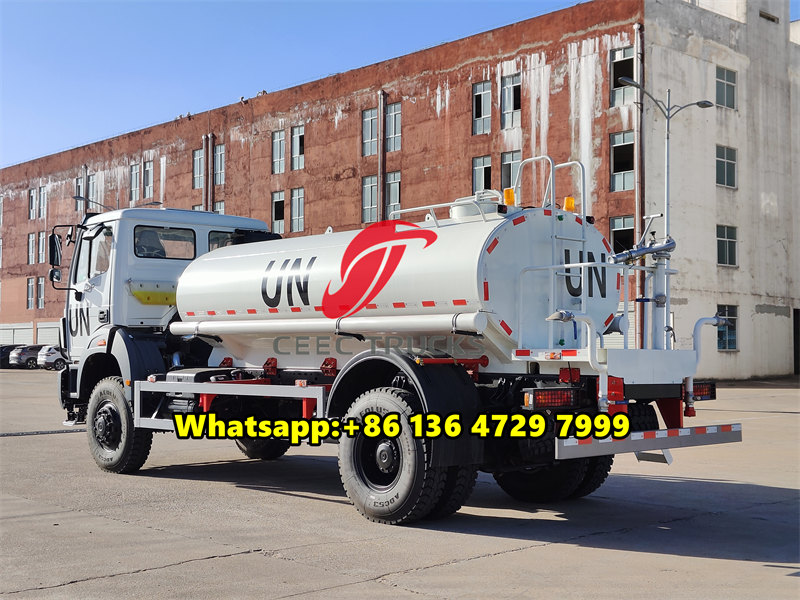

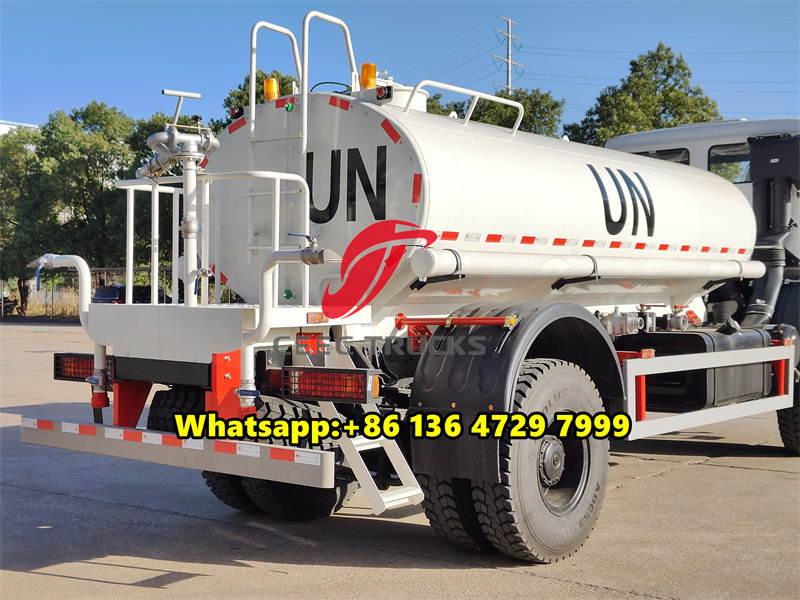

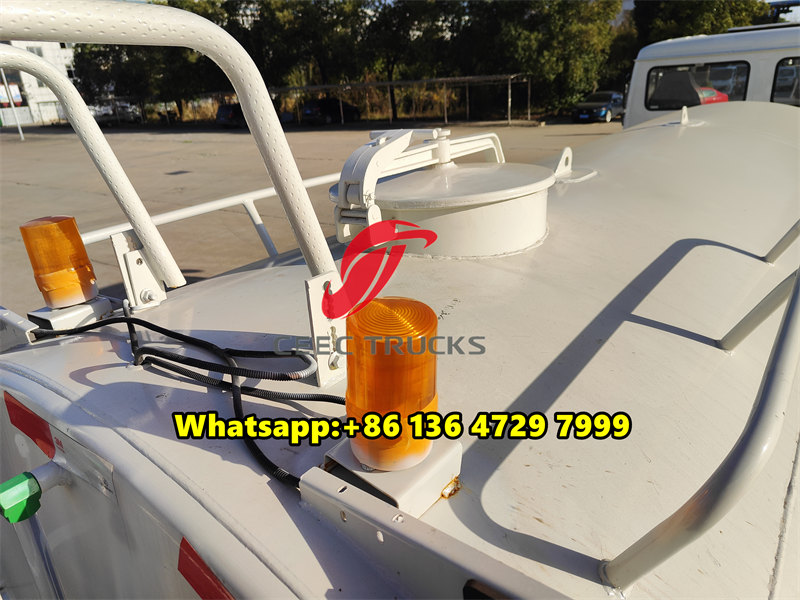

Product Details

  • #
  • #
  • #
