Product Description

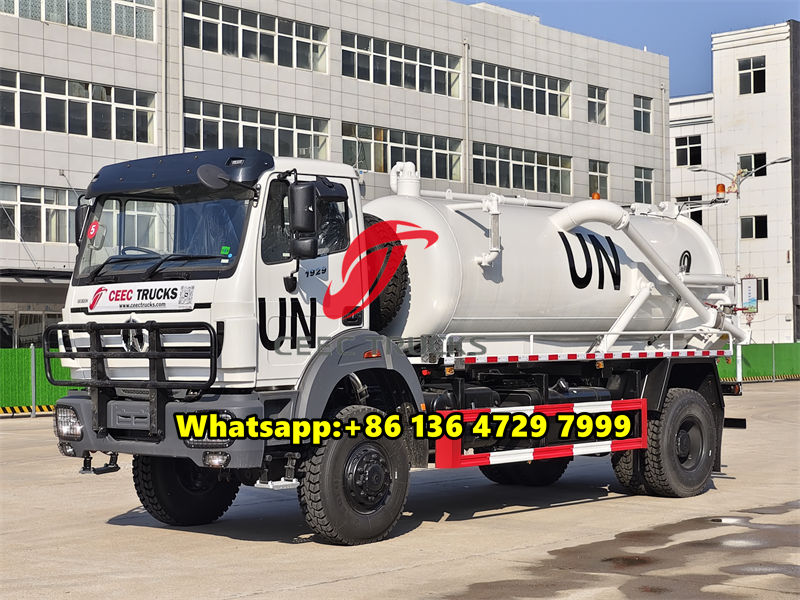

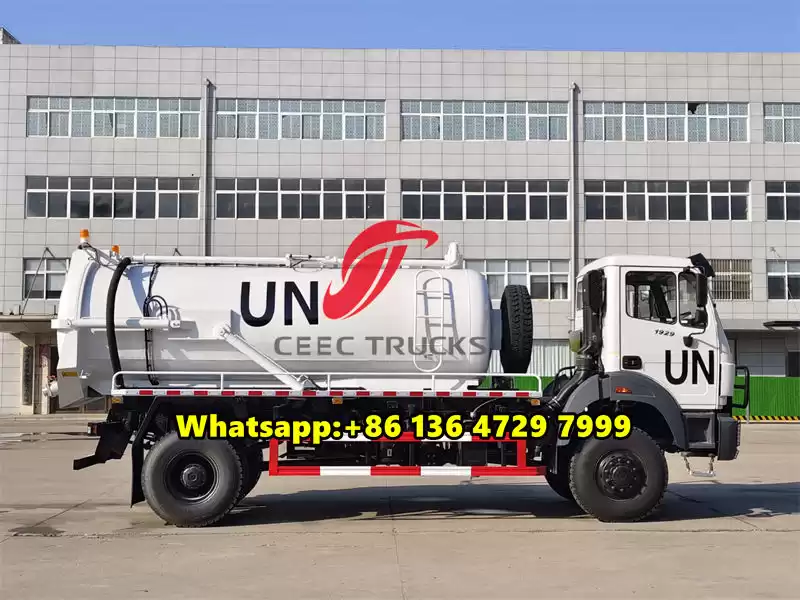

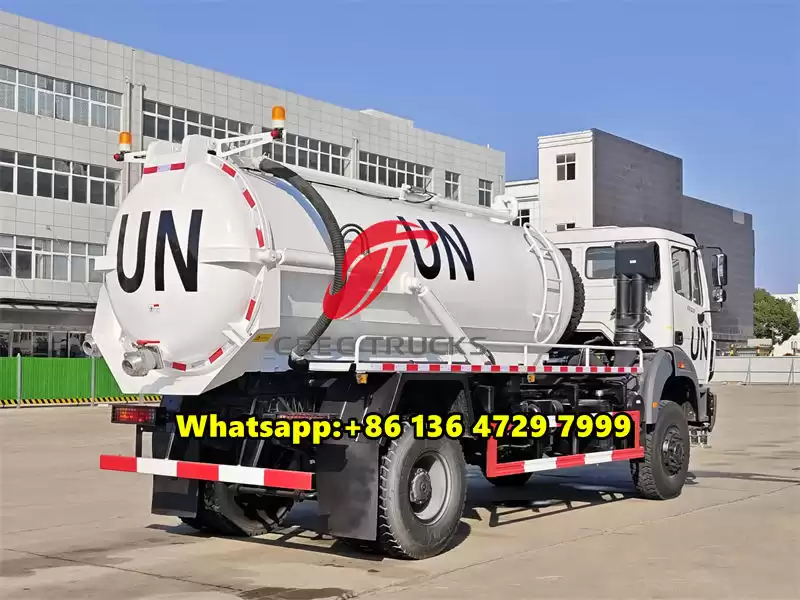

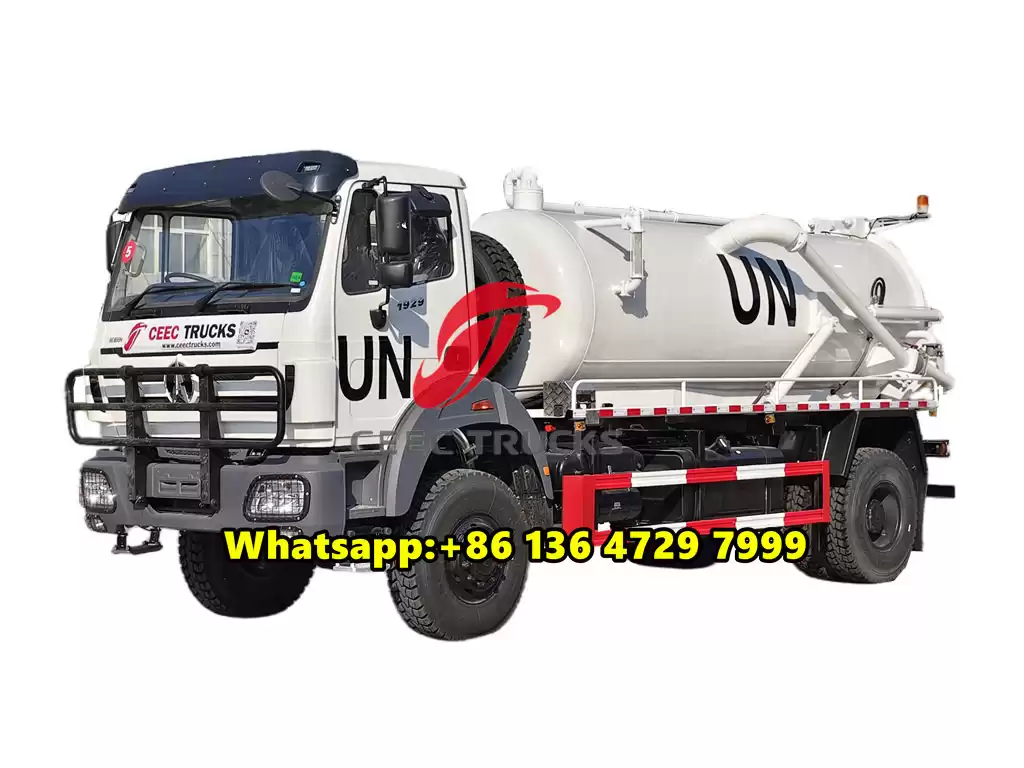

The Beiben 4×4 Vacuum Tank Truck is built on a robust Beiben 4×4 all-wheel-drive off-road chassis, with moderate overall dimensions that ensure both excellent maneuverability and sufficient working space. The vehicle is equipped with a Weichai-branded WP10.290E32 engine, boasting a power output of 290 horsepower. Combined with a sturdy chassis and six large tires (including one spare), it guarantees stable driving and efficient operation under various complex road conditions.

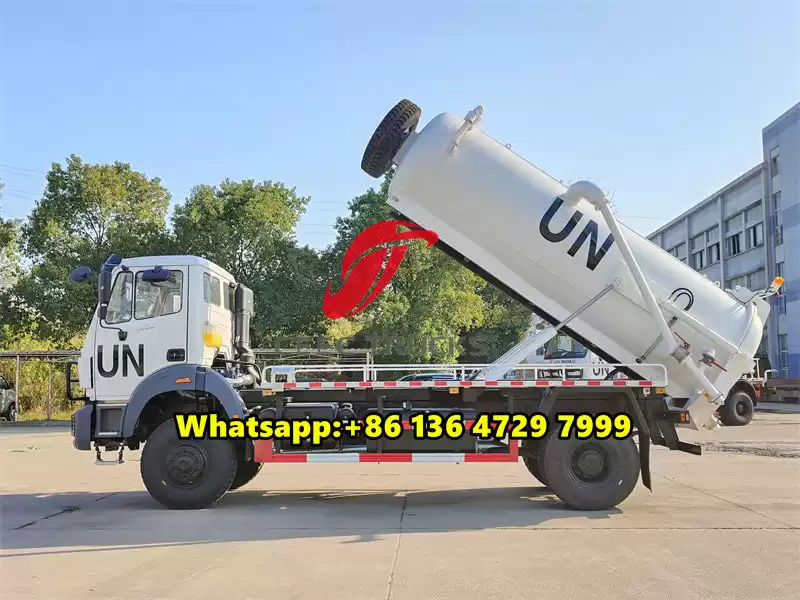

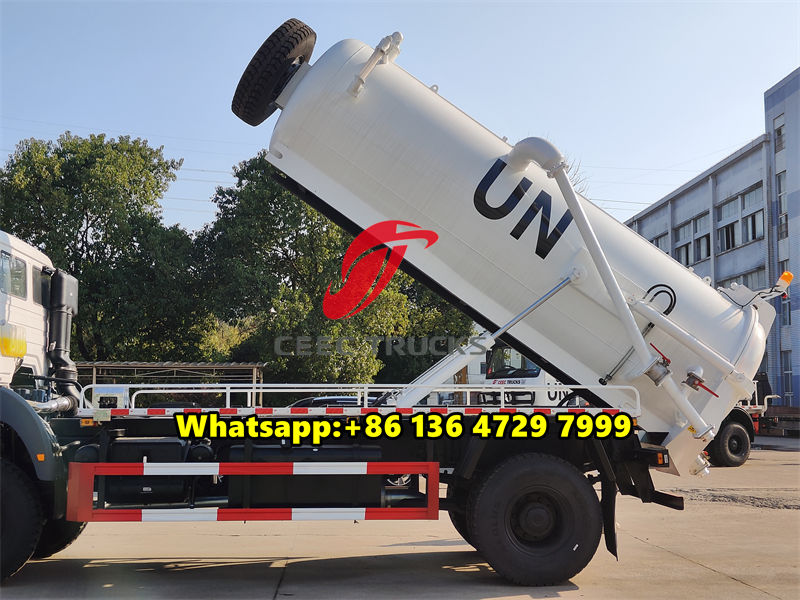

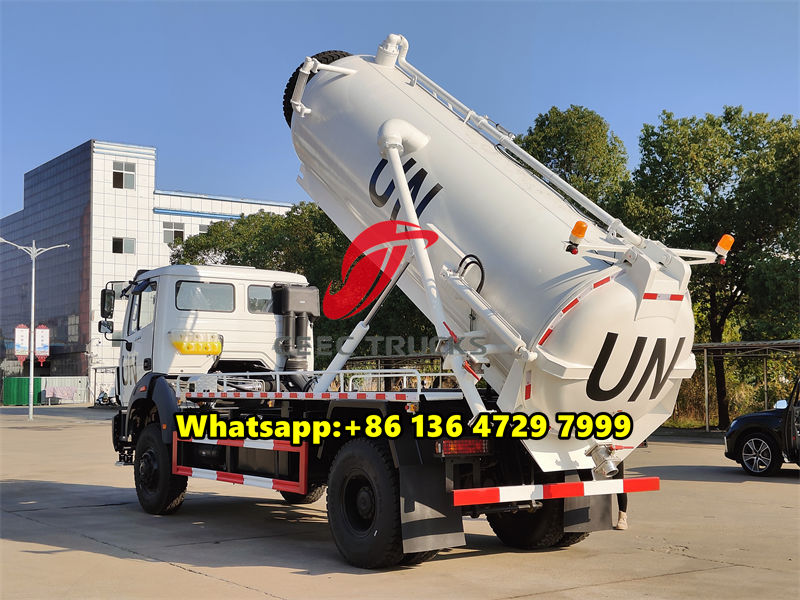

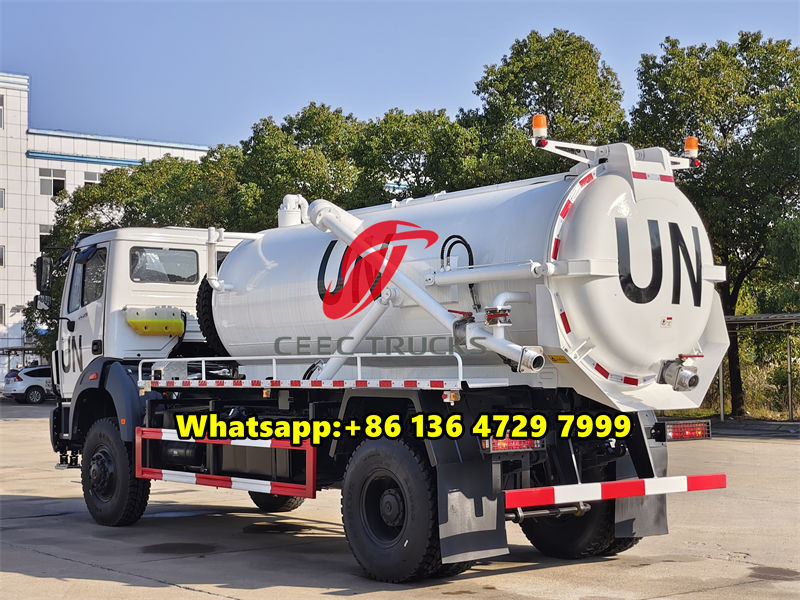

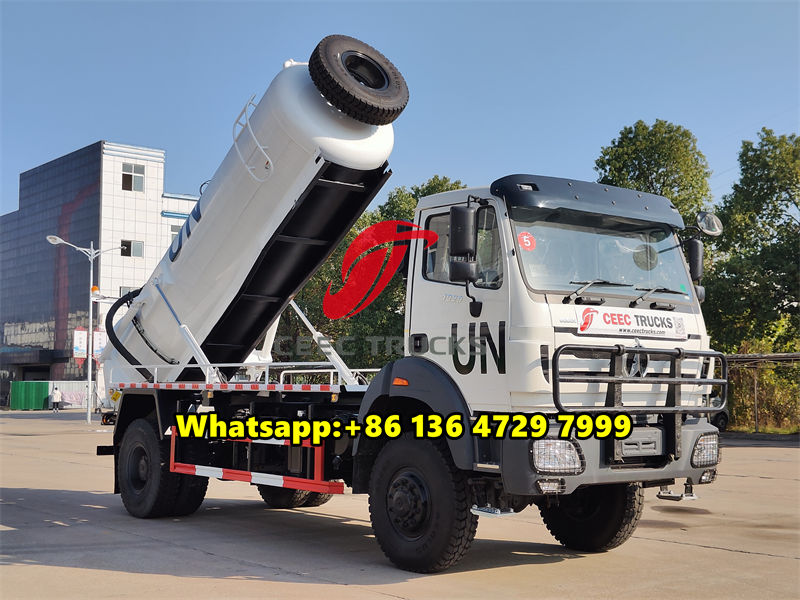

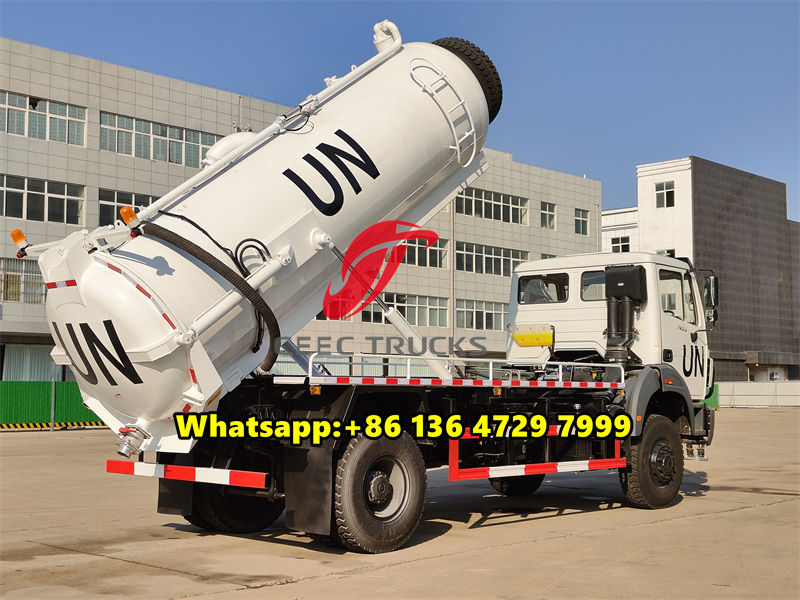

The vacuum tank, as the main working component of Beiben sewer vacuum truck, has a capacity of up to 10m³. It is made of high-quality 6mm thick carbon steel, with internal baffles and corrosion-resistant treatment, ensuring the tank's strength, durability, and reduced risk of liquid sloshing and corrosion. The tank can be lifted via hydraulic cylinders at an angle of 45°, facilitating easy sewage discharge. Additionally, the tank's rear cover can be hydraulically opened and closed, simplifying operation and further enhancing work efficiency.
In terms of the suction system, the Beiben off-road septic tank truck is equipped with vacuum pumps from the renowned Chinese brand Wloong, featuring two 68/7000 models that provide even stronger suction power. These vacuum pumps have an ultimate pressure of 7000Pa, a suction rate of 68L/s, and a rotation speed of 800r/min, ensuring efficient and rapid suction capabilities.
Product Specifications
|
Beiben 4×4 Vacuum Tank Truck Technical Specifications
|
|
Vehicle
|
Brand
|
BEIBEN
|
|
Overall Dimensions L*W*H
|
8900*2550*3250mm
|
|
Weights
|
GVW
|
19,000kgs
|
|
Curb Weight
|
9800kgs
|
|
Rated Payload
|
10000kgs
|
|
Chassis
|
Chassis Brand
|
Beiben
|
|
Drive Type
|
4×4, all wheel drive
|
|
Steering
|
LHD
|
|
Engine
|
Brand
|
Weichai engine
|
|
Model
|
WP10.290E32
|
|
Power
|
213 Kw /290 HP
|
|
Displacement
|
9726 ml
|
|
Rated speed
|
2200 rpm
|
|
Emission standard
|
EURO III
|
|
Wheel base
|
4800 mm
|
|
Tyre Specifications
|
12.00R24
|
|
No. of Tyre
|
6 pcs (1 spare tyre included)
|
|
Cab
|
Model
|
NG80
|
|
Cab Capacity
|
2 persons allowed
|
|
Superstructure
|
Vacuum tank
|
Capacity
|
10 m³
|
|
Material
|
6mm high quality carbon steel
|
|
Lifting angle
|
45°，hydraulic lifting
|
|

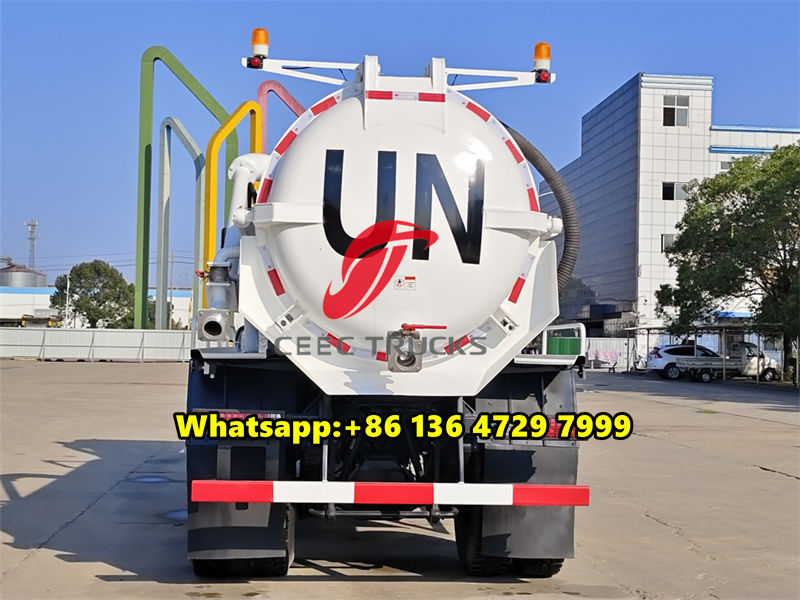

Rear cover
|
Can be opened and closed hydraulically
|
|
Vacuum pump
|
Model
|
68/7000, China famous brand Wloong
|
|
Number of pump
|
2
|
|
Ultimate pressure
|
7000 Pa
|
|
Pumping speed
|
68 L/s
|
|
Rotating speed
|
800 r/min
|
Product Features
1. Dual Vacuum Pump Design: This Beiben sewage suction truck is equipped with two Wloong 68/7000 vacuum pumps, providing enhanced suction power for efficient and rapid sewage suction. This design not only improves work efficiency but also enhances the vehicle's adaptability in complex environments.

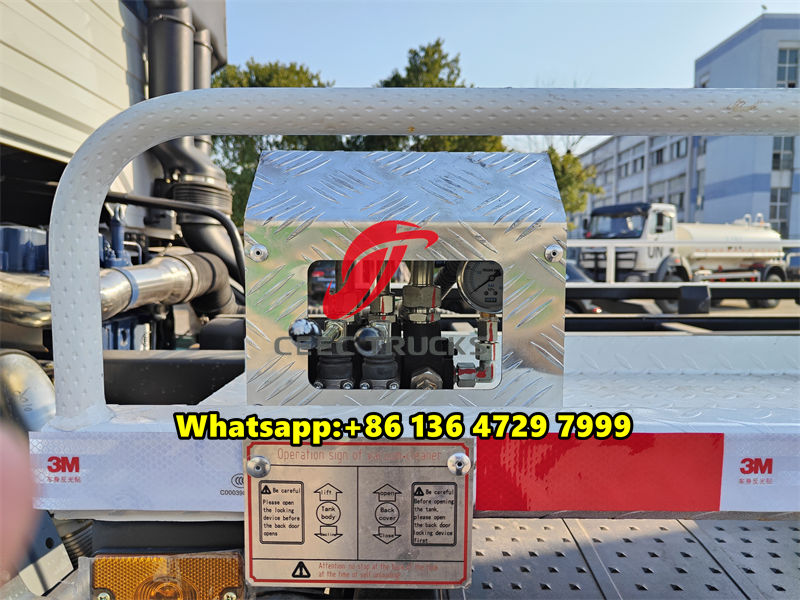

2. Hydraulic Operating System: The lifting of the tank and the opening and closing of the rear cover are all hydraulically operated, making the operation simple, effortless, and improving the stability and safety of the work.

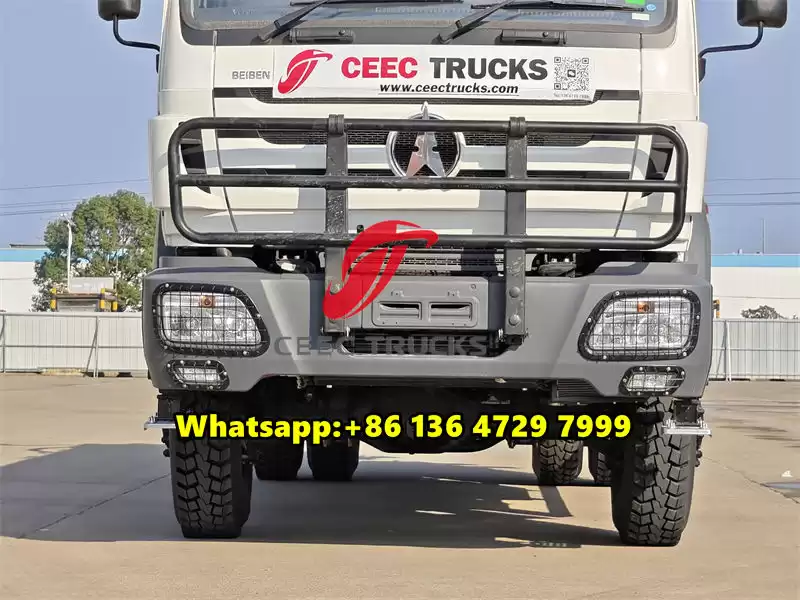

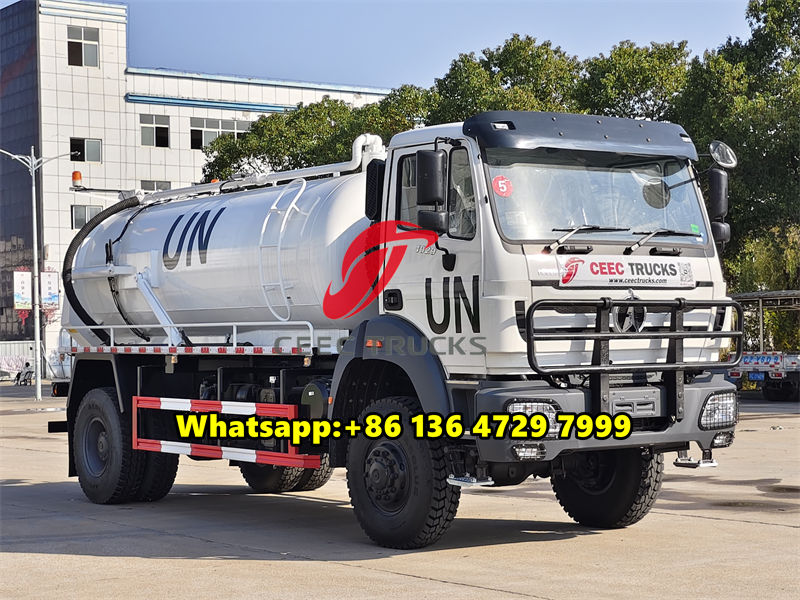

3. Reinforced Anti-collision Bumper: The front of the cab is equipped with a reinforced anti-collision bumper, effectively enhancing the vehicle's safety performance in harsh environments and protecting the driver and vehicle.
4. Excellent Maneuverability: The 4×4 all-wheel-drive system enables the Beiben vacuum pump truck to maintain excellent maneuverability and stability when facing complex terrains, ensuring smooth operation.
