Product Description
The Beiben 6×6 Log Transport Truck is a powerful vehicle specifically designed for heavy-load transportation. Its exceptional load-bearing capacity and stable driving performance make it a leader in the field of log transportation. The vehicle adopts the Beiben 2642 chassis, with a gross vehicle weight of 26,000kg, demonstrating its impressive load-bearing capability. It features a 6×6 drive configuration, meaning all six wheels have driving capability, providing excellent traction and driving stability.
The Beiben 6×6 logging truck is equipped with a WEICHAI brand WP12.420E32 engine, which meets Euro 3 emission standards and adopts a mechanical injection system. With a rated power of 309KW/2100r/min, it provides strong power output for the vehicle. The tire size is 12.00R20, with a configuration of 10+1 pcs, ensuring good grip and driving stability. The wheelbase of the chassis is configured as 3800+1450mm, and the transmission system adopts the FAST 12JS200T gearbox, which provides smooth shifting and high transmission efficiency. The front and rear axles have load-bearing capacities of 7500kg and 13000kg, respectively, ensuring the safety of the vehicle when carrying heavy loads.
The trailer part of this Beiben 2642 Log Transport Truck adopts Fuwa brand axles with a load-bearing capacity of 13000kgx3, ensuring the stability of the trailer under heavy loads. The wheel hubs are made of steel with a size of 9.0-22.5, and the tire size is 12.00R22.5, providing good grip and wear resistance. The main beam of the trailer is made of Q345 steel, with a beam height of 500mm, an upper plate thickness of 14mm, a middle plate thickness of 8mm, and a lower plate thickness of 16mm, ensuring the load-bearing strength and stability of the trailer. The crossbeams and side beams adopt 16# and 25# channel steel, respectively, enhancing the overall structural strength of the trailer.
Product Specifications
|
Chassis specifications
|
|
Model
|
Beiben 2642
|
Gross Vehicle Weight
|
26000kg
|
|
Driving type
|
6×6
|
Driving Position
|
RHD
|
|
Engine
|
Brand WEICHAI
|
Dead Weight
|
12600kg
|
|
Model: WP12.420E32 Euro 3（Mechanical Injection System）
|
Tyres
|
12.00R20, 10+1 pcs
|
|
Wheelbase(mm)
|
3800+1450
|
Transmission
|
FAST 12JS200T
|
|
Rated engine power
(KW/r/min)
|
309/2100
|
Cab
|
Beiben NG80B, no bed
|
|
Air-condition
|
|
Front Axle
|
Beiben, max. loading: 7,500kg
|
Steering
|
8090
|
|
Rear Axle
|
Beiben, max loading: 13,000kg
|
Color
|
Green
|
|
Log transport trailer specifications
|
|
Dimension
|
Size(LxWxH)
|
9800x2500x3600mm or customization
|
|
Curb weight
|
10.7Ton
|
|
Loading weight
|
40 Tons
|
|
Chassis
|
Main beam
|
Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Down plate is 16mm.
|
|
Cross beam
|
16# channel steel
|
|
Side beam
|
25# channel steel
|
|
King pin
|
JOST 2'' or 3.5'' traction pin
|
|
Floor
|
3mm diamond steel plate
|
|
Fence
|
1.5m steel plate 600mm height, fence 500mm+200mm
|
|
Support leg
|
China brand 28Tons (Double speed)
|
|
Suspension
|
Type
|
Common mechanical
|
|
Steel spring
|
90(W)mm*13(Thick)mm*10 Layer
|
|
Axle
|
Brand
|
Fuwa(13000kgx3)
|
|
Wheel rim
|
9.0-22.5 steel wheel rim
|
|
Tire
|
12.00R22.5
|
|
Brake system
|
Brake chamber
|
WEBCO, 6 big chamber
|
|
Brake valve
|
KTL/WEBCO
|
|
Brake system
|
Dual line brake system,With ABS
|
|
Other
|
Light
|
Tail lamp with tum signal, brake light & reflector, side lamp etc
|
|
Landing gear
|
28 Ton manual operating, heavy duty landing gear
|
|
Tool box
|
1 set standard tool box
|
|
Spare tire carrier
|
2 pcs
|
|
Painting
|
1 coat of anti-corrosive prime, 2 coats of final paint.
|

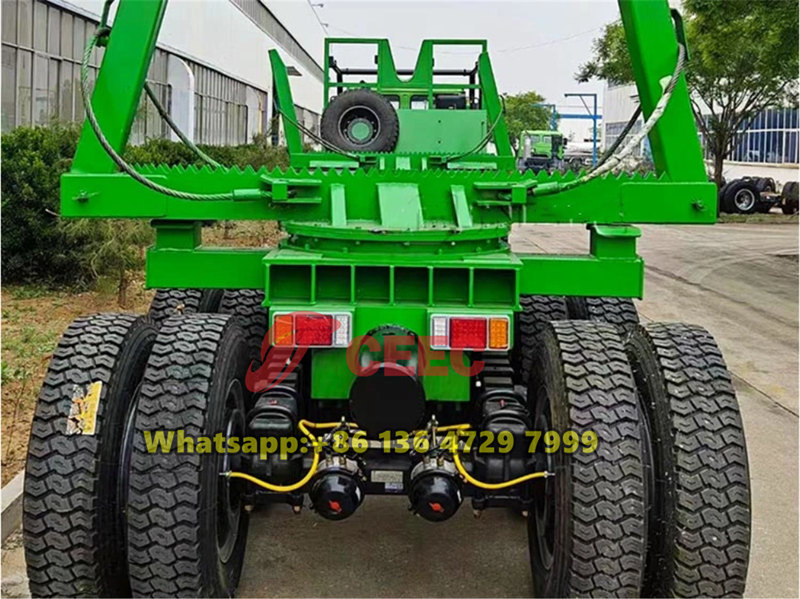

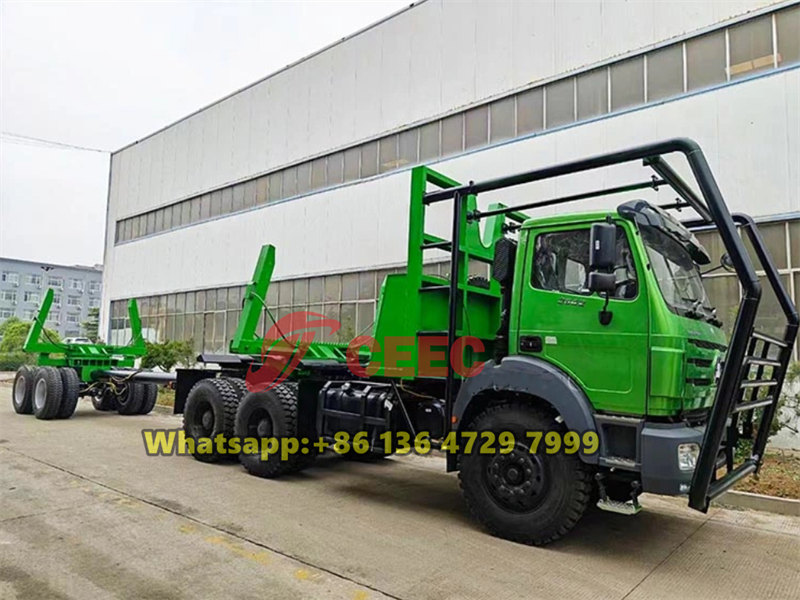

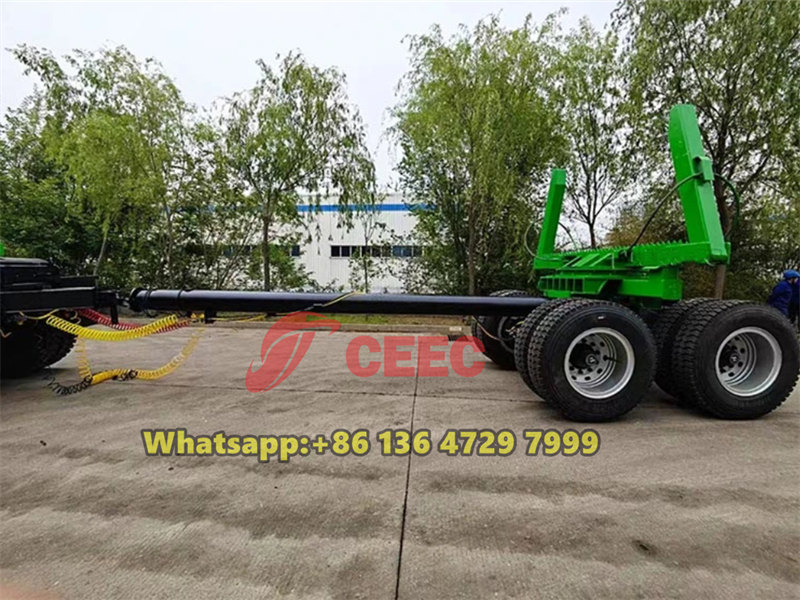

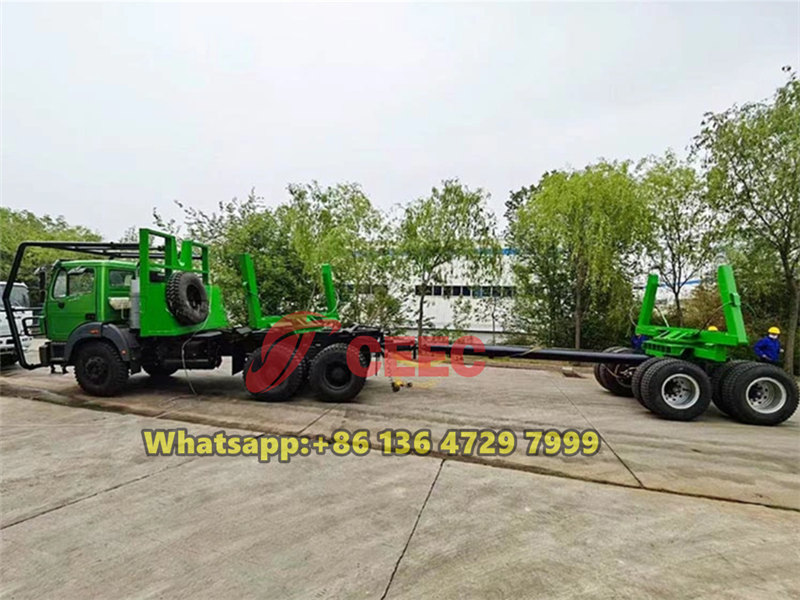

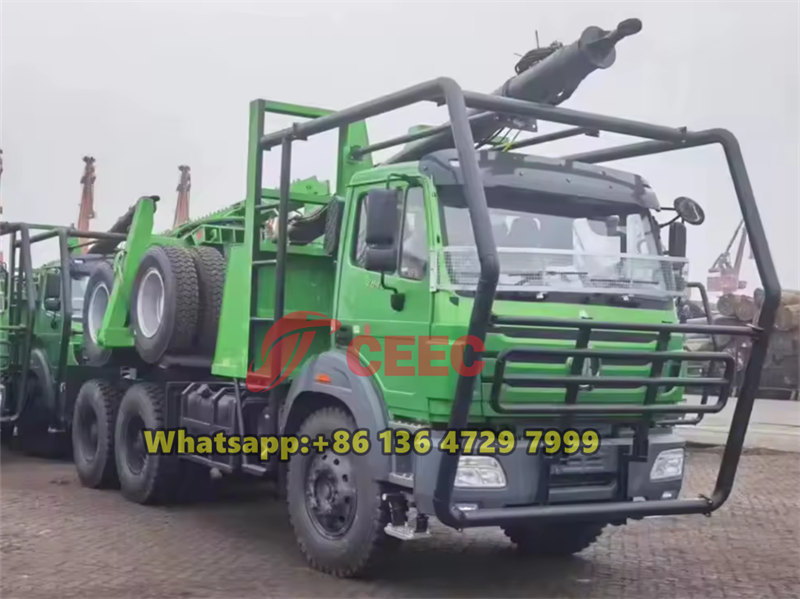

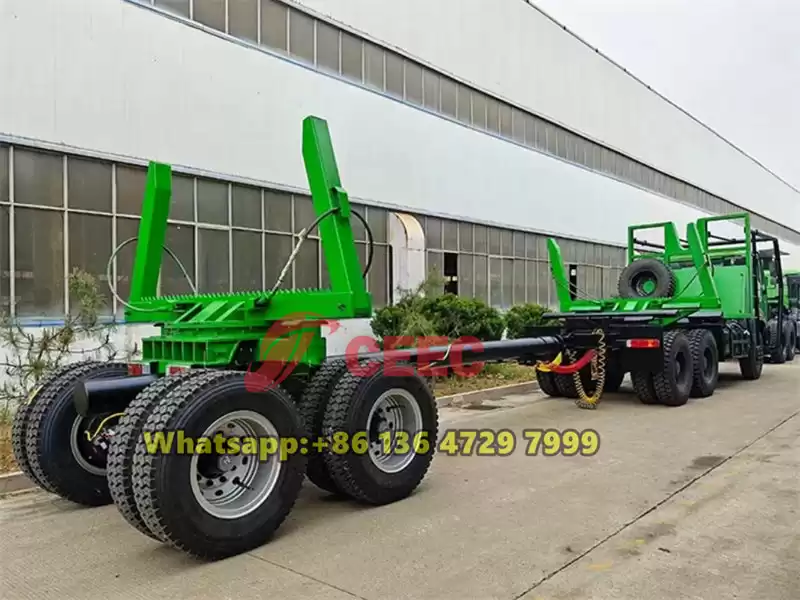

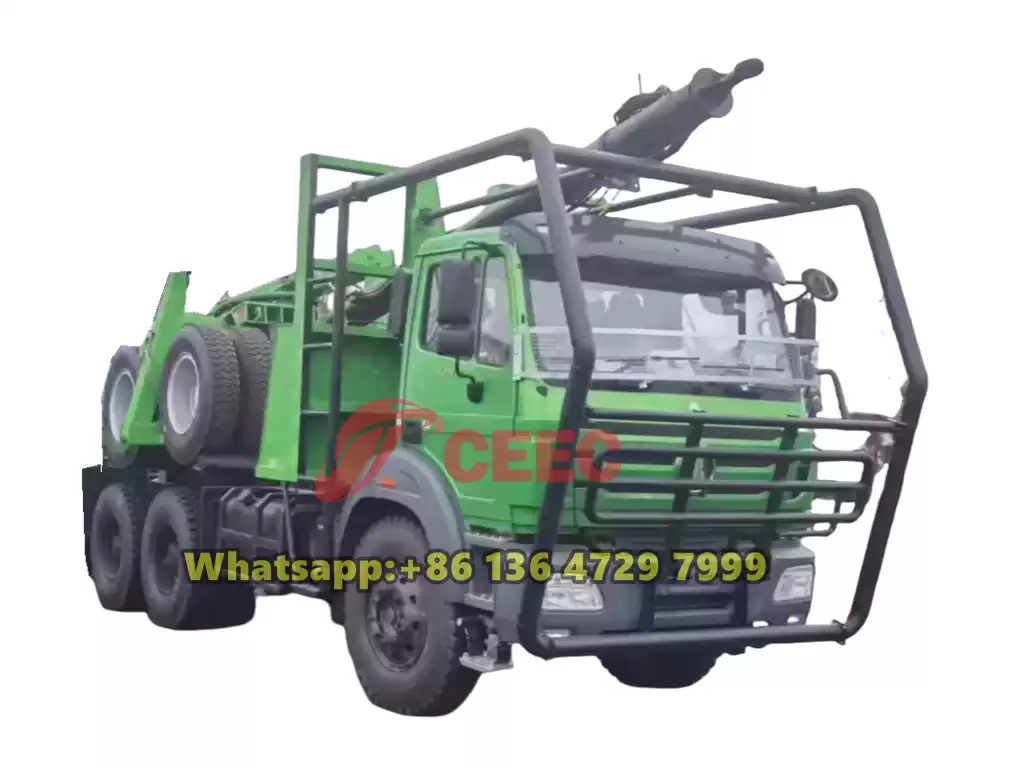

Product Details
