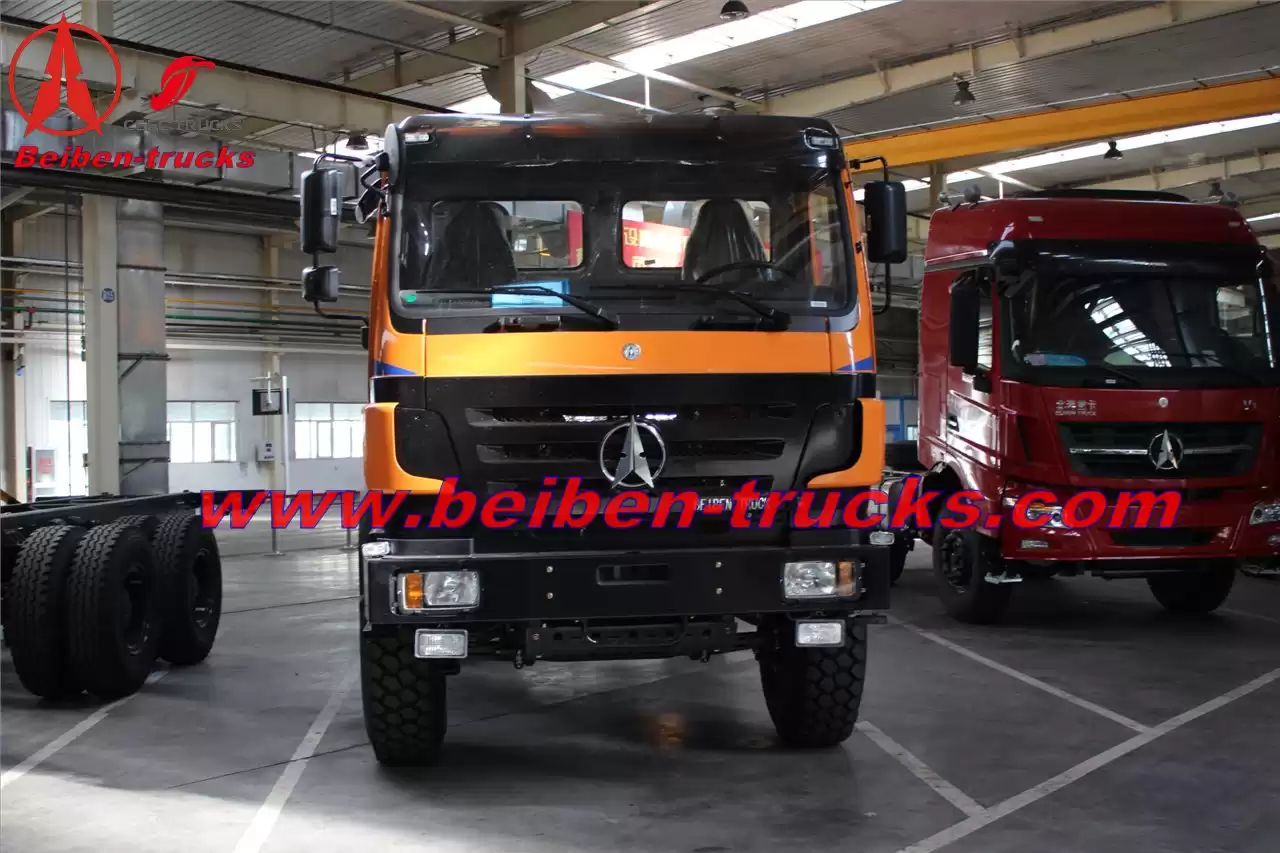

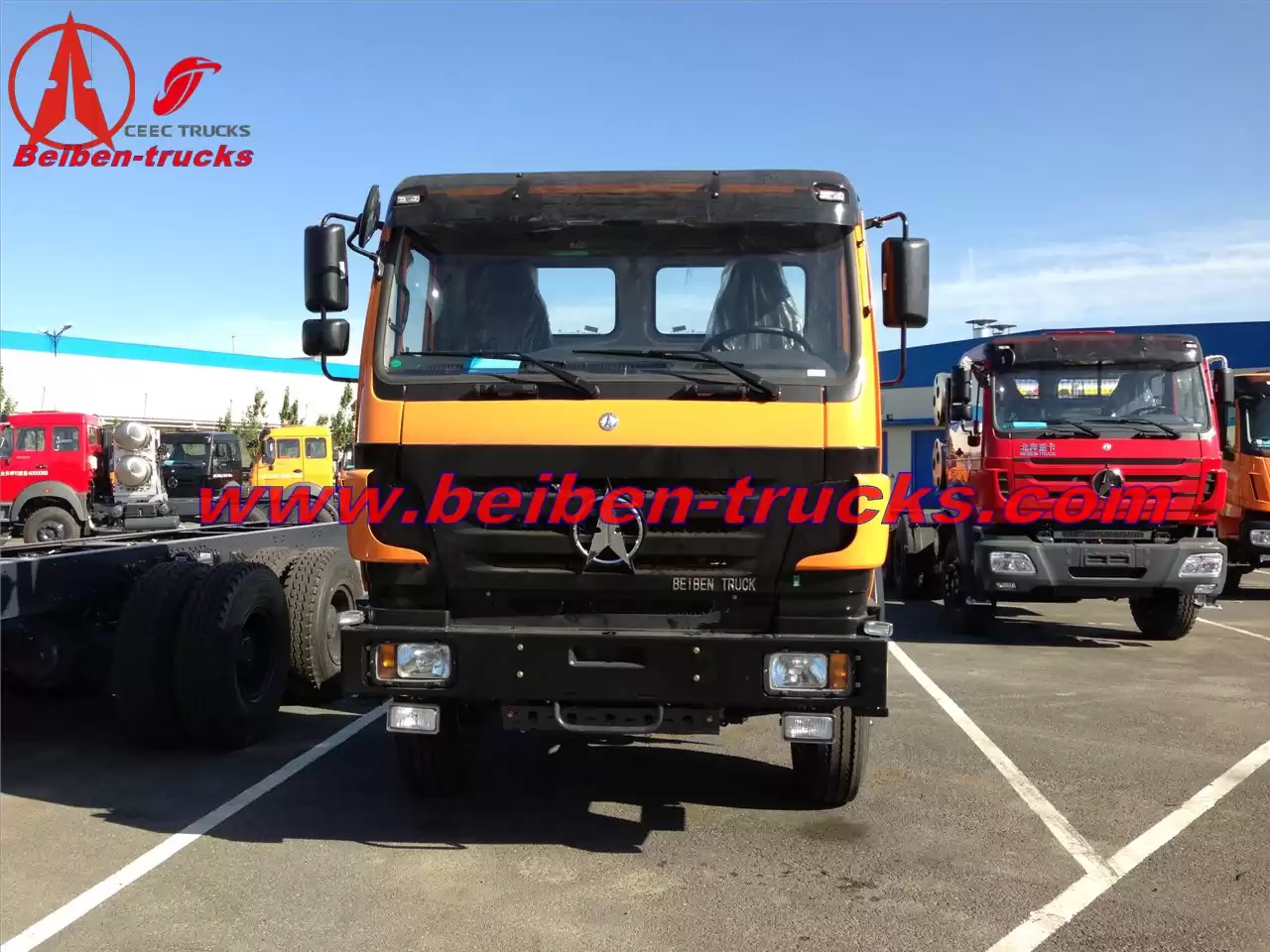

Beiben 6*4 420 hp dump trucks
We are the authorized dealer and manufacturer of beiben dump trucks, beiben tractor trucks and beiben tanker trucks. have exported more than 1000 units kinds of beiben 340 hp dumpers,beiben 380 dumper and beiben 420 hp dumper to overseas market. No 1 beiben 420 horse power 10 wheeler dump trucks supplier in china, our production capacity of beiben dump trucks amounts to 6000 units annually.
Beiben 2542K dumpers /6×4/4100+1450/Short Cab/LHD or RHD
|
| Dimension
|
8880*2500*3430mm
|
| Cargo box
|
5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm
|
| Approaching angle/Departure angle
|
26/28°
|
| Overhang(front/rear)
|
1410/1720mm
|
| Wheel base
|
4100+1450mm
|
| Max speed
|
85km/h
|
| Curb weight
|
12650kg
|
| Engine
|
Model
|
WP12.420E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection
|
|
Displacement
|
11.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
308/2200 (kw/rpm)
|
|
Max.torque
|
1600/1800(N.m/rpm)
|
|
Emission
|
Euro III
|
| Fuel tanker capacity
|
300L
|
| Clutch
|
∮430, Single dry frictional disc,Hydraulic boosting
|
| Gearbox
|
9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated
|
