beiben 6*6 wheel drive trucks

we are china best beiben 6*6 wheel drive trucks supplier, can provide customer with the best quality beiben 6*6 drive truck chassis, beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis



Beiben truck manufactured underthe license of Mercedes Benz technology, which has excellent performance withreasonable price.

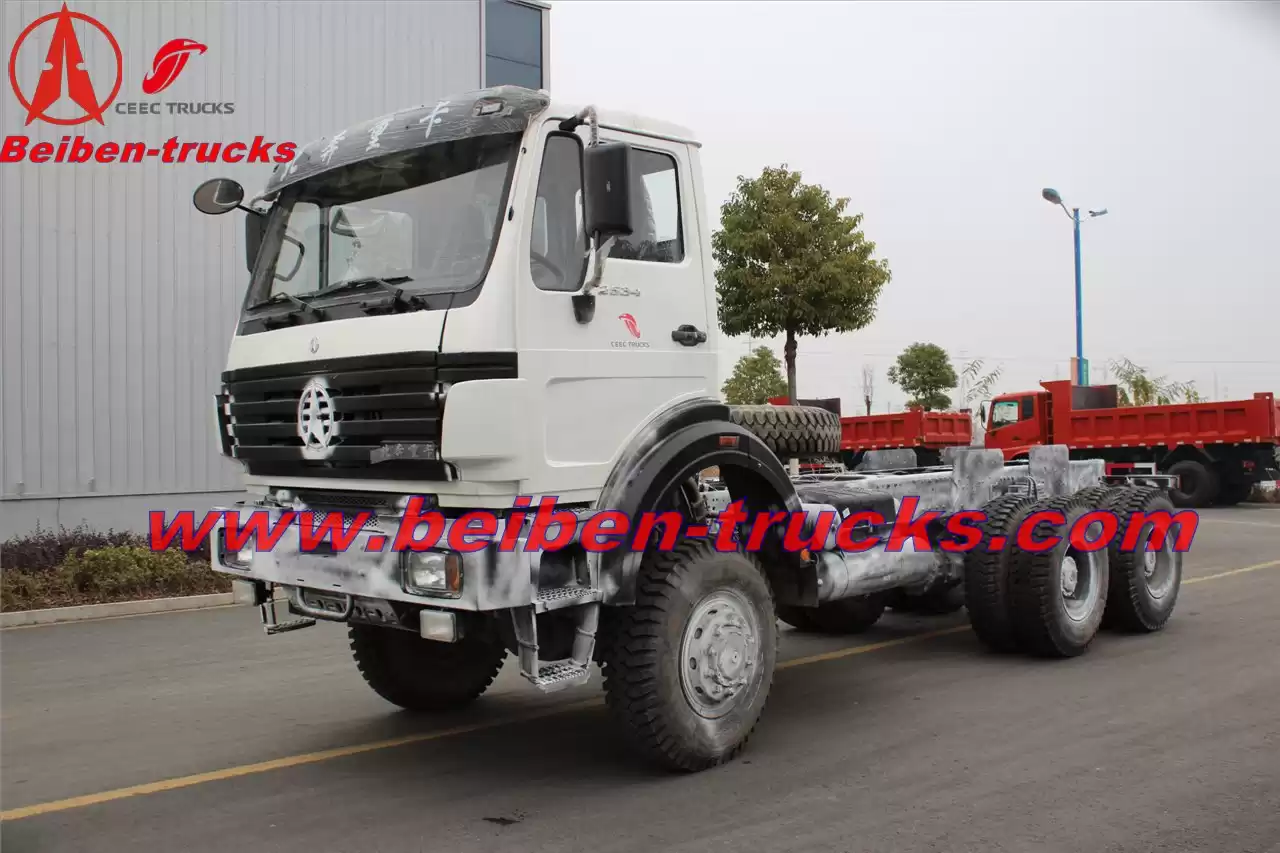

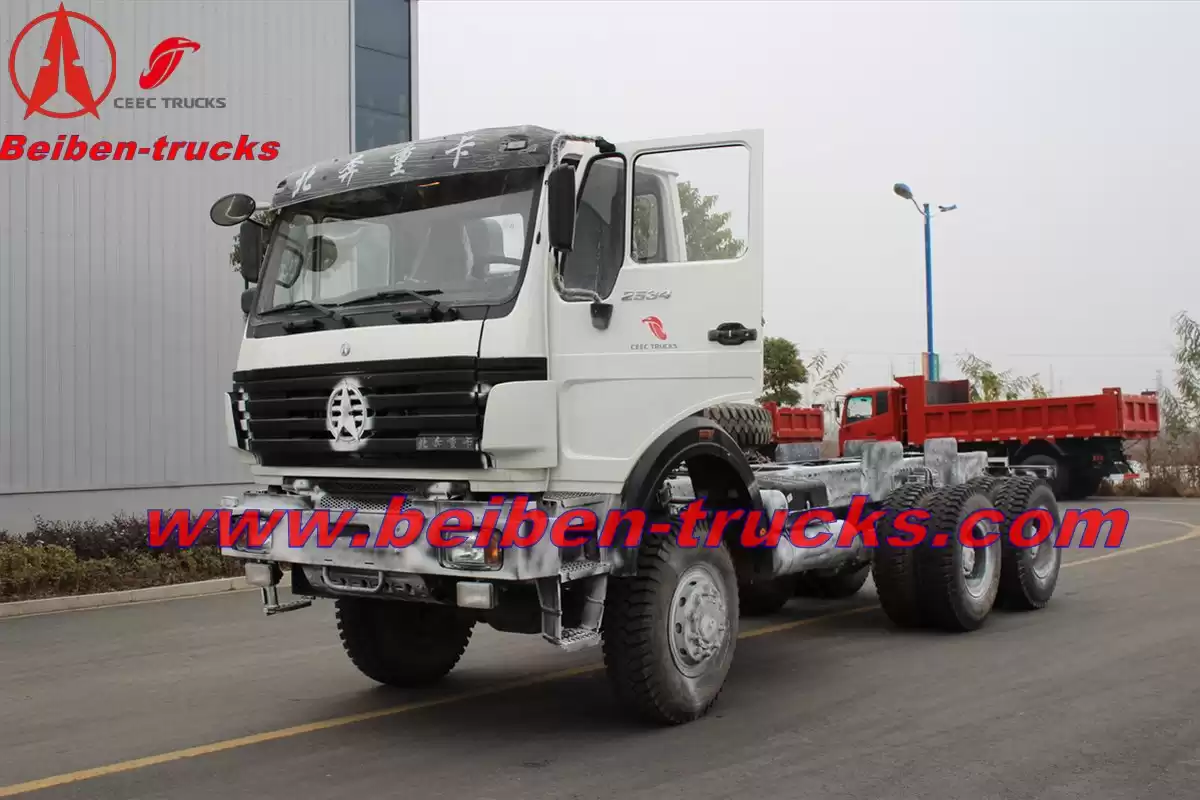

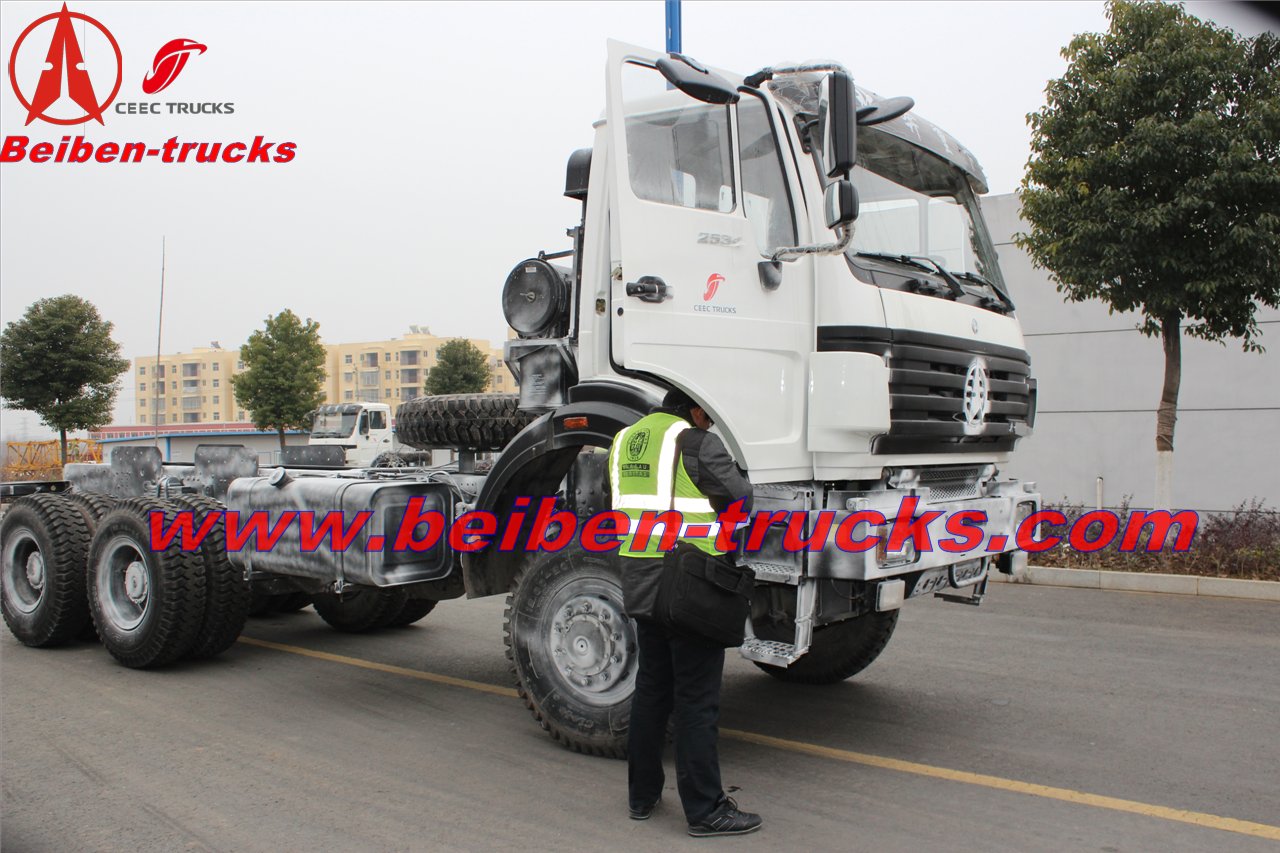

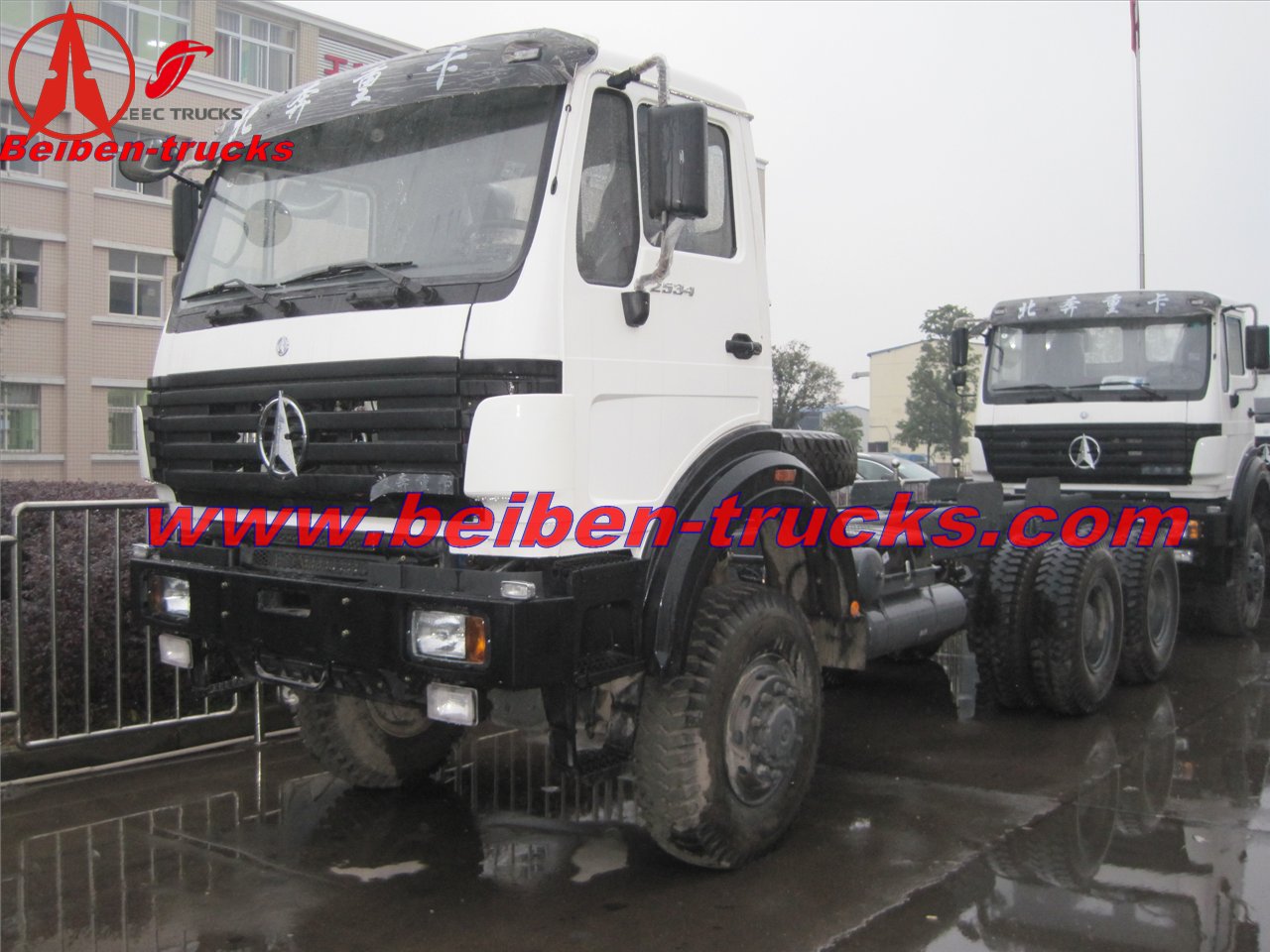

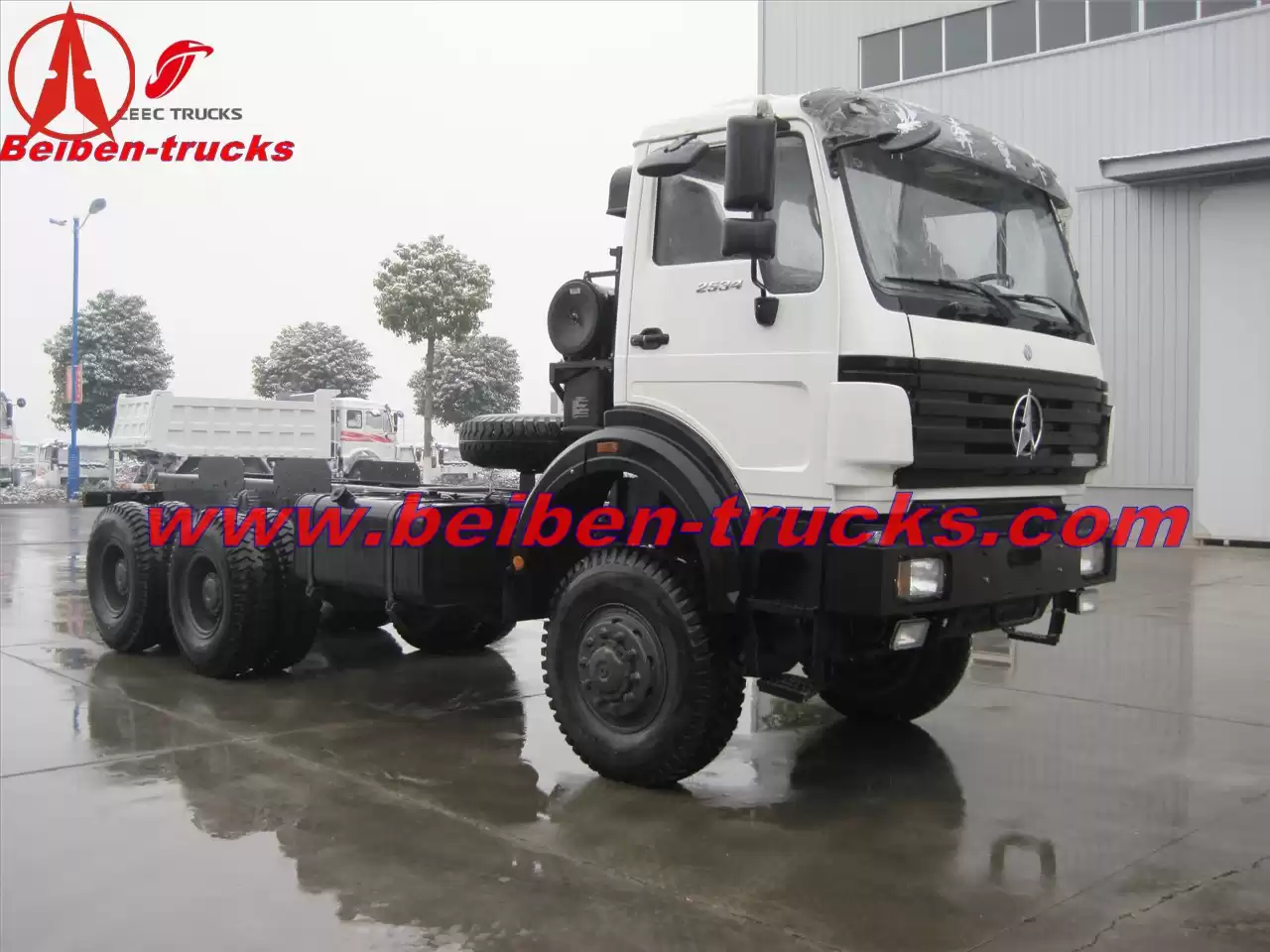

Beiben 6 wheel drive timber truck

Vehicle Name:

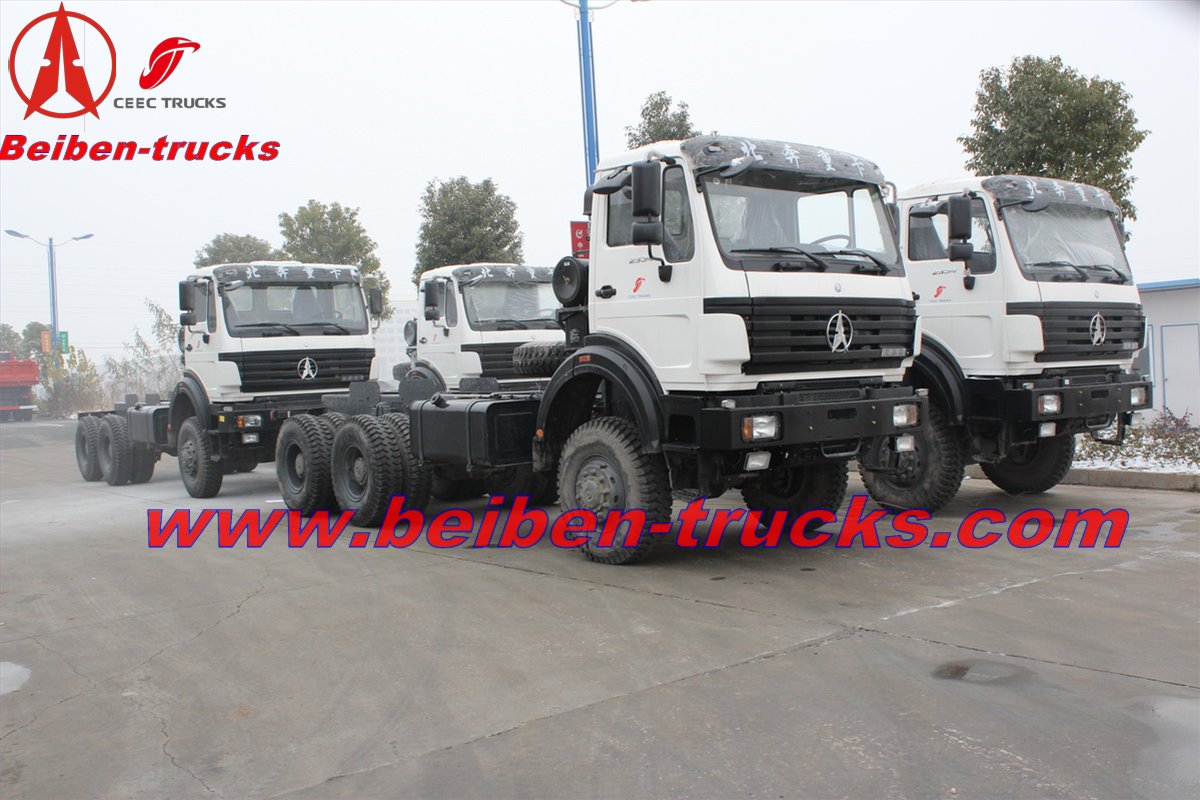

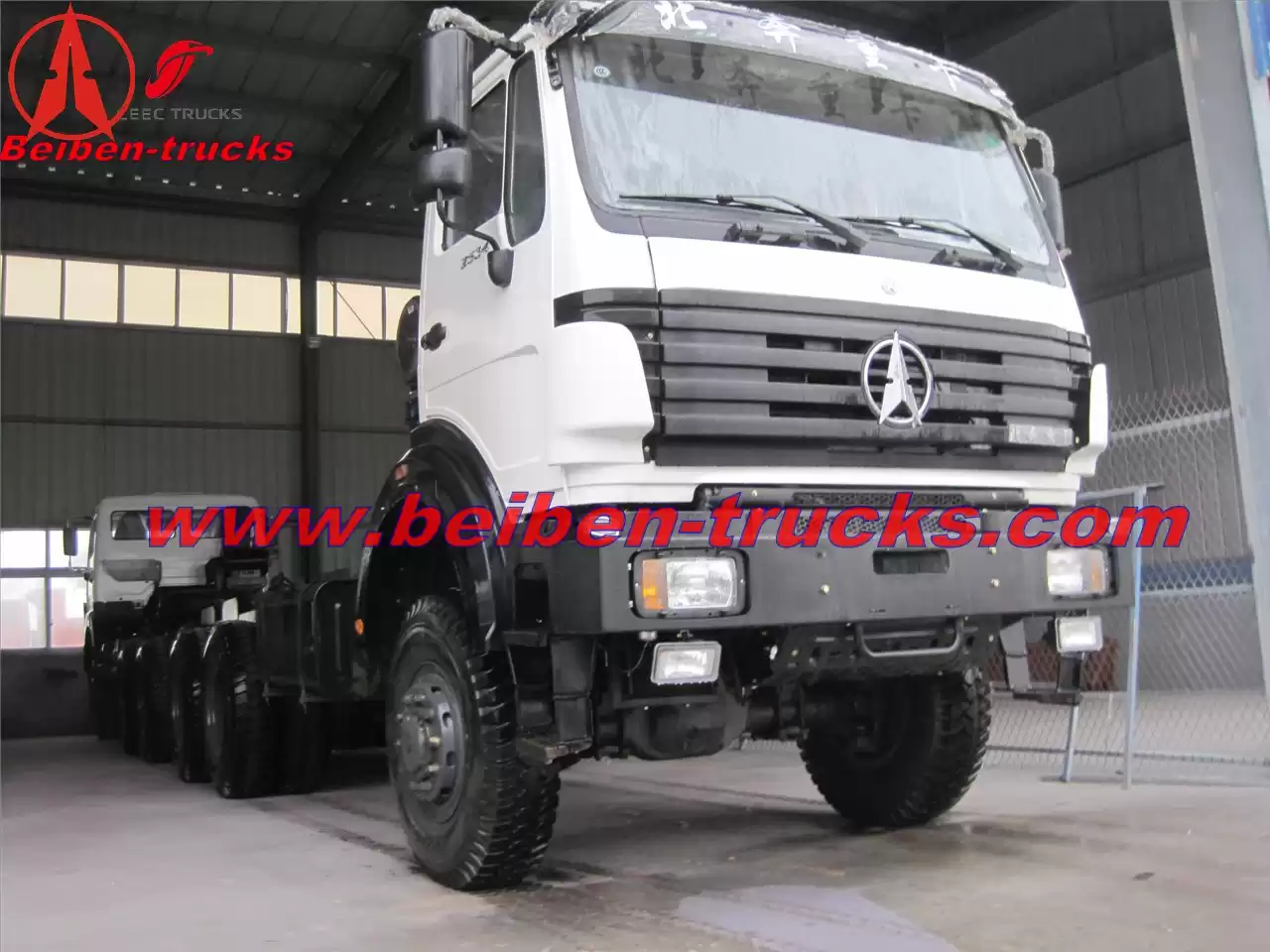

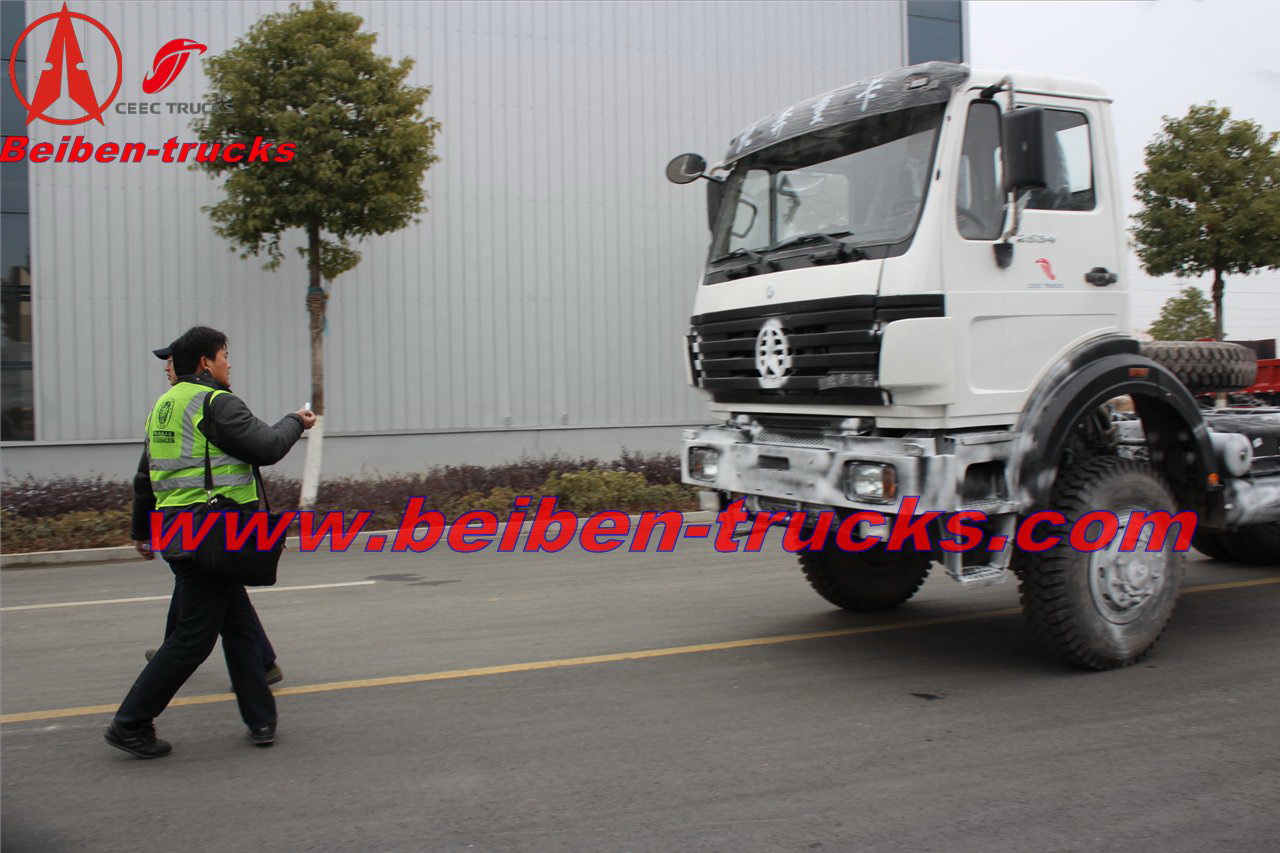

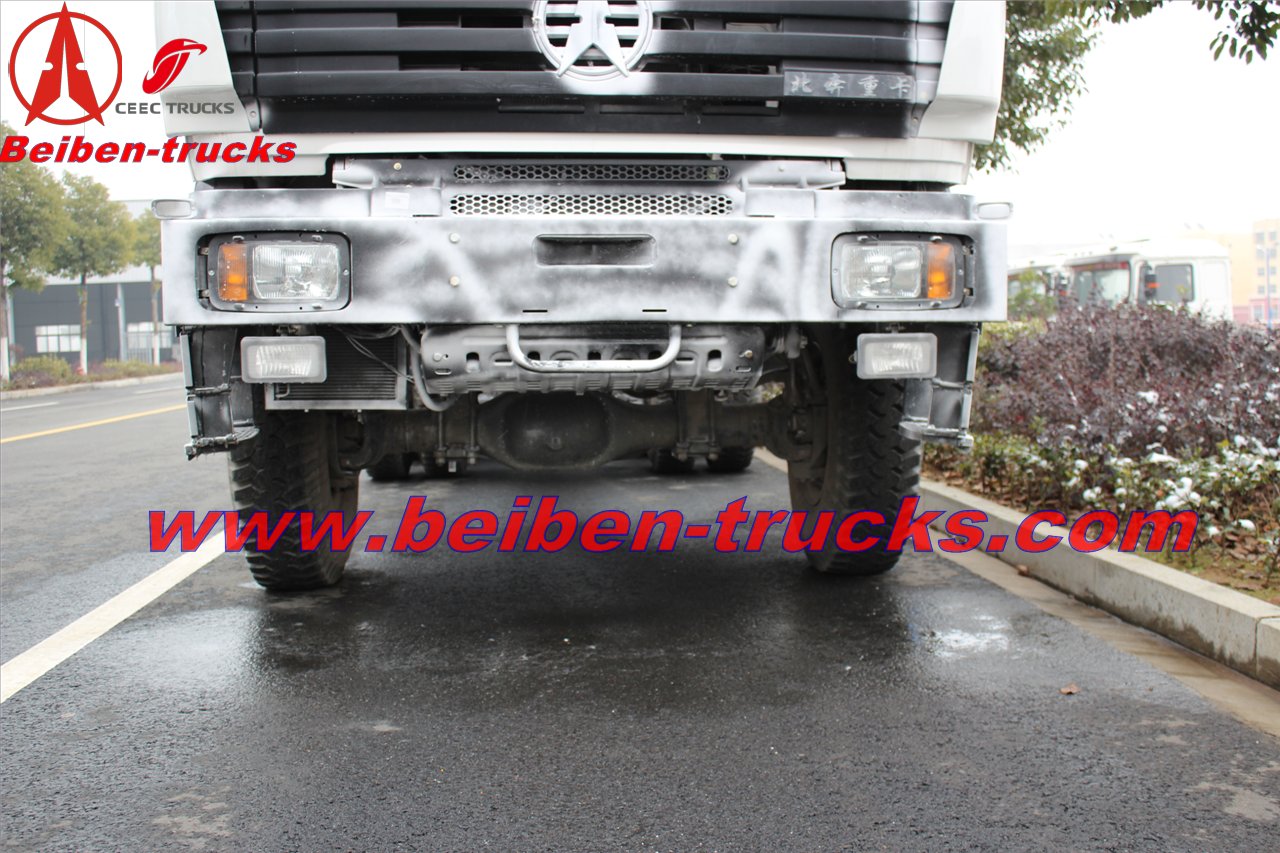

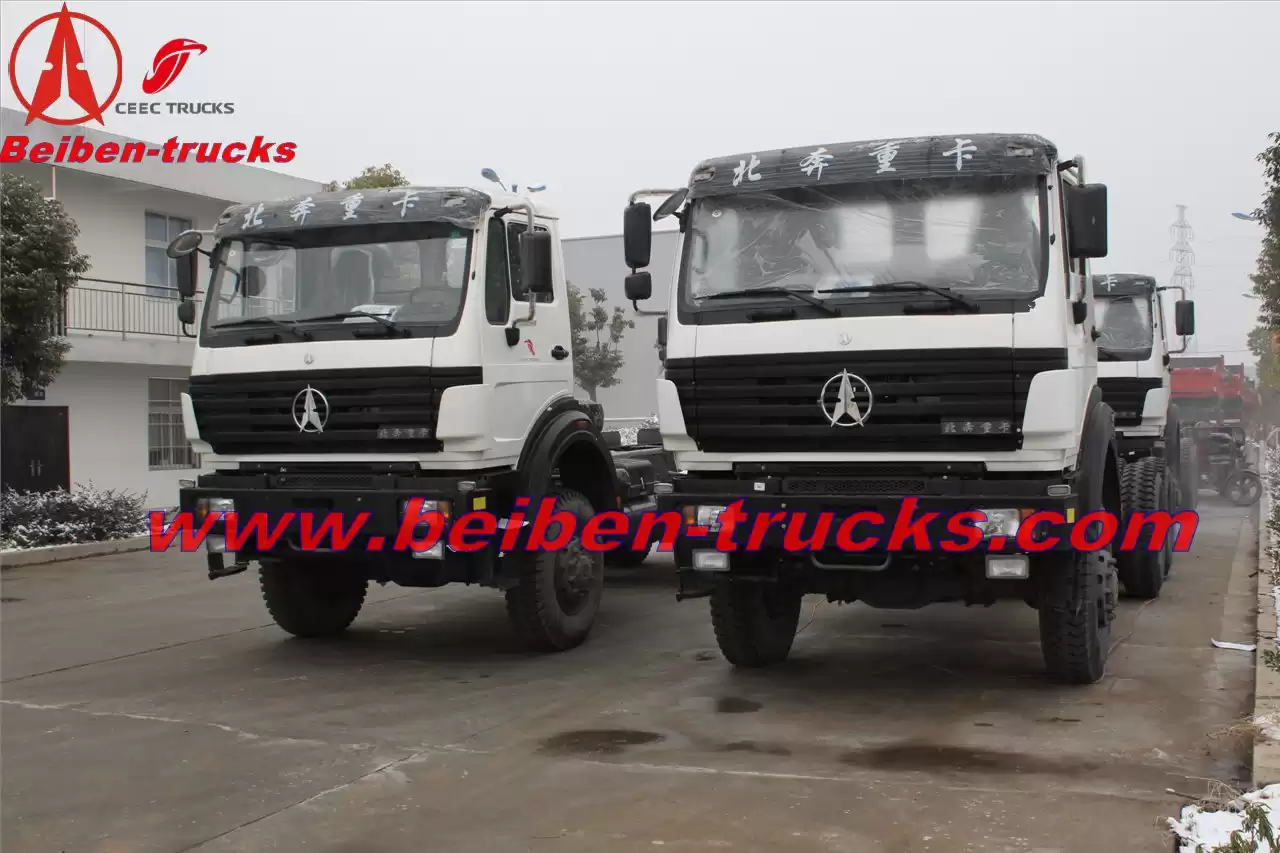

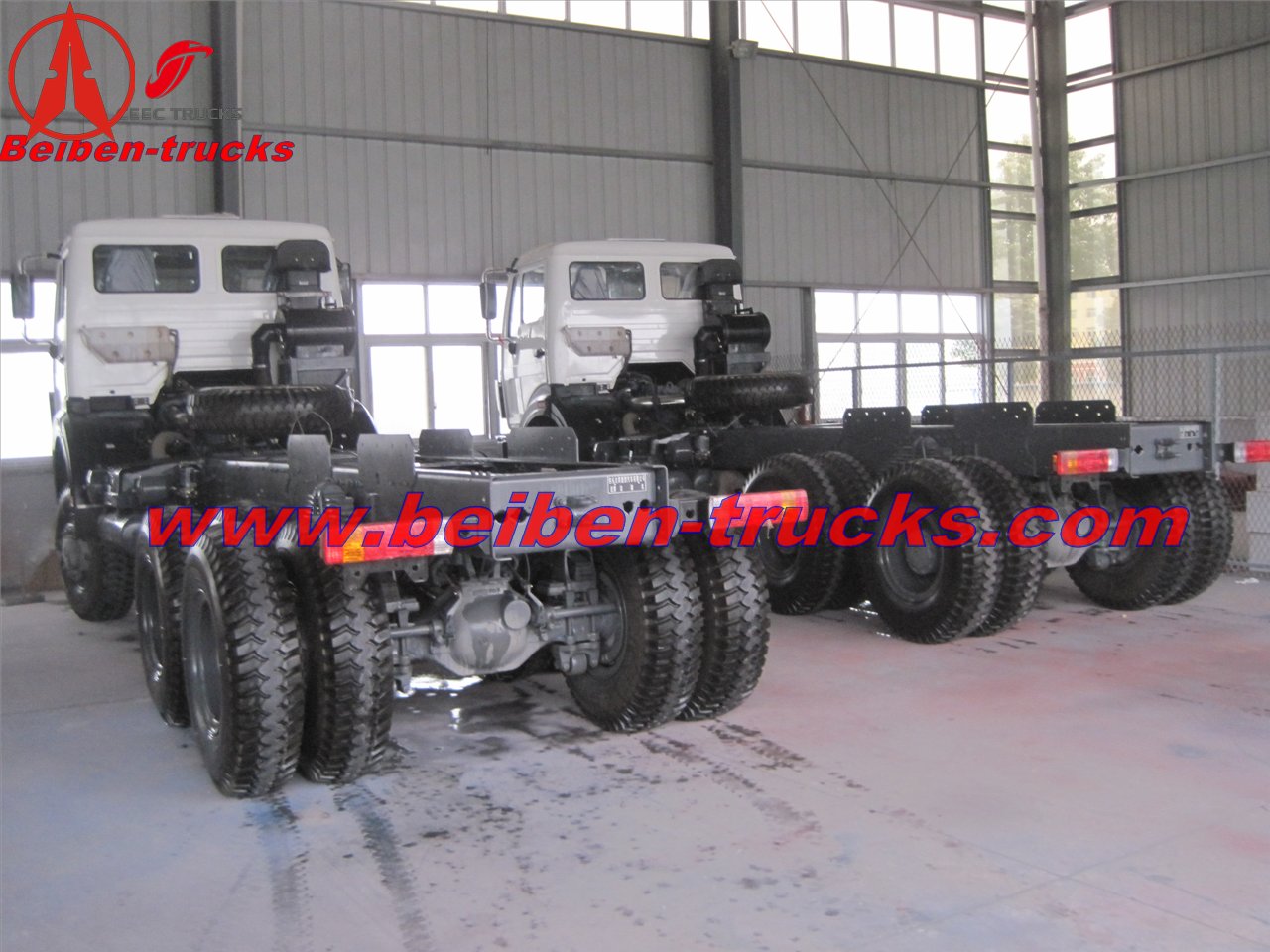

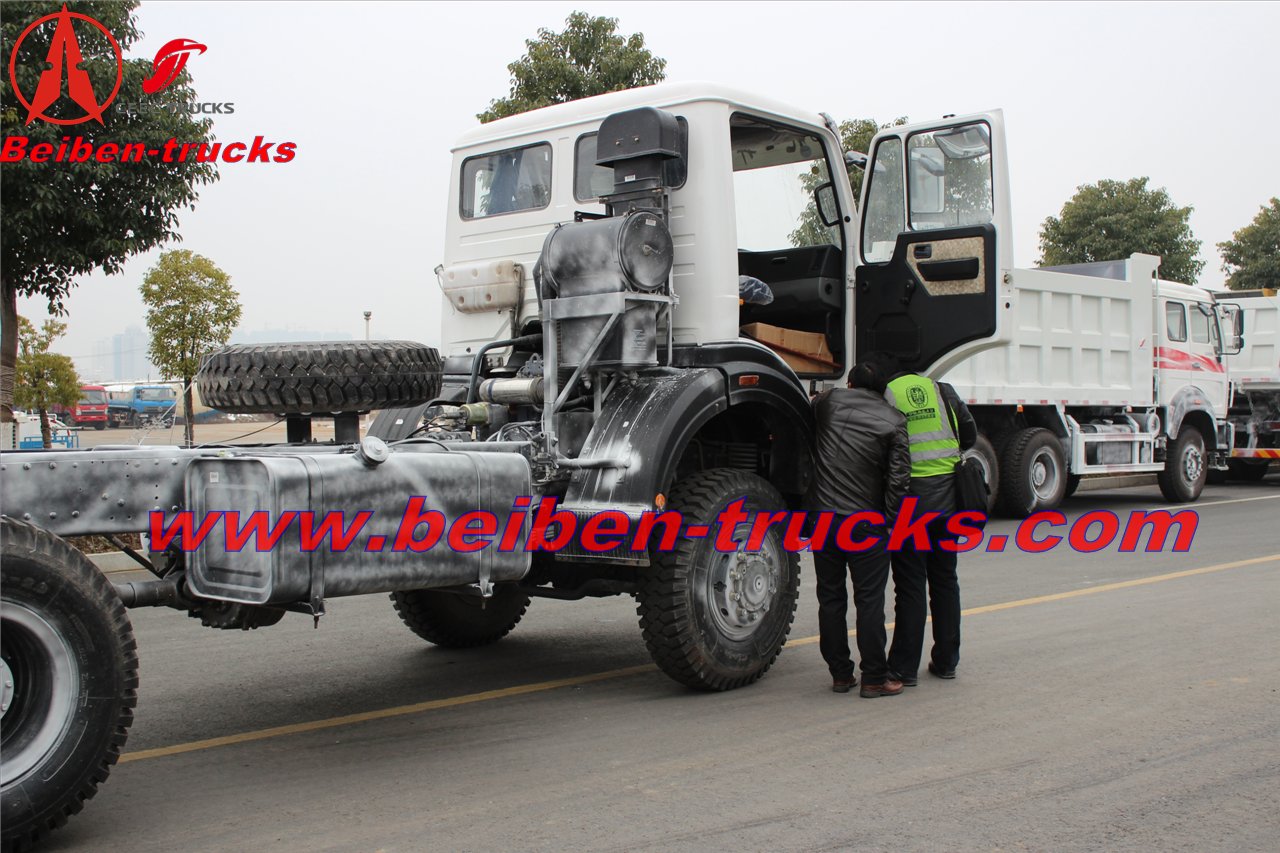

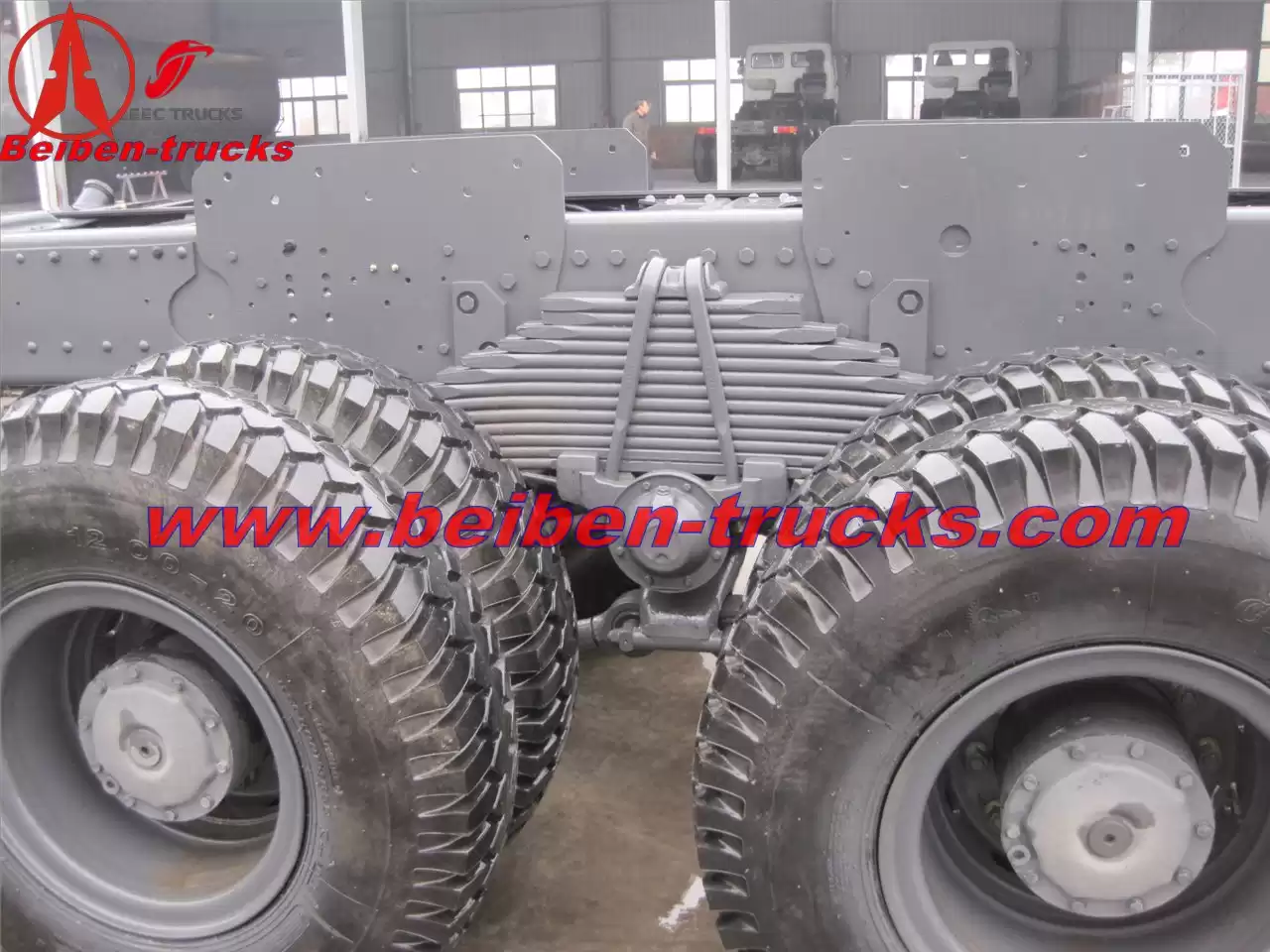

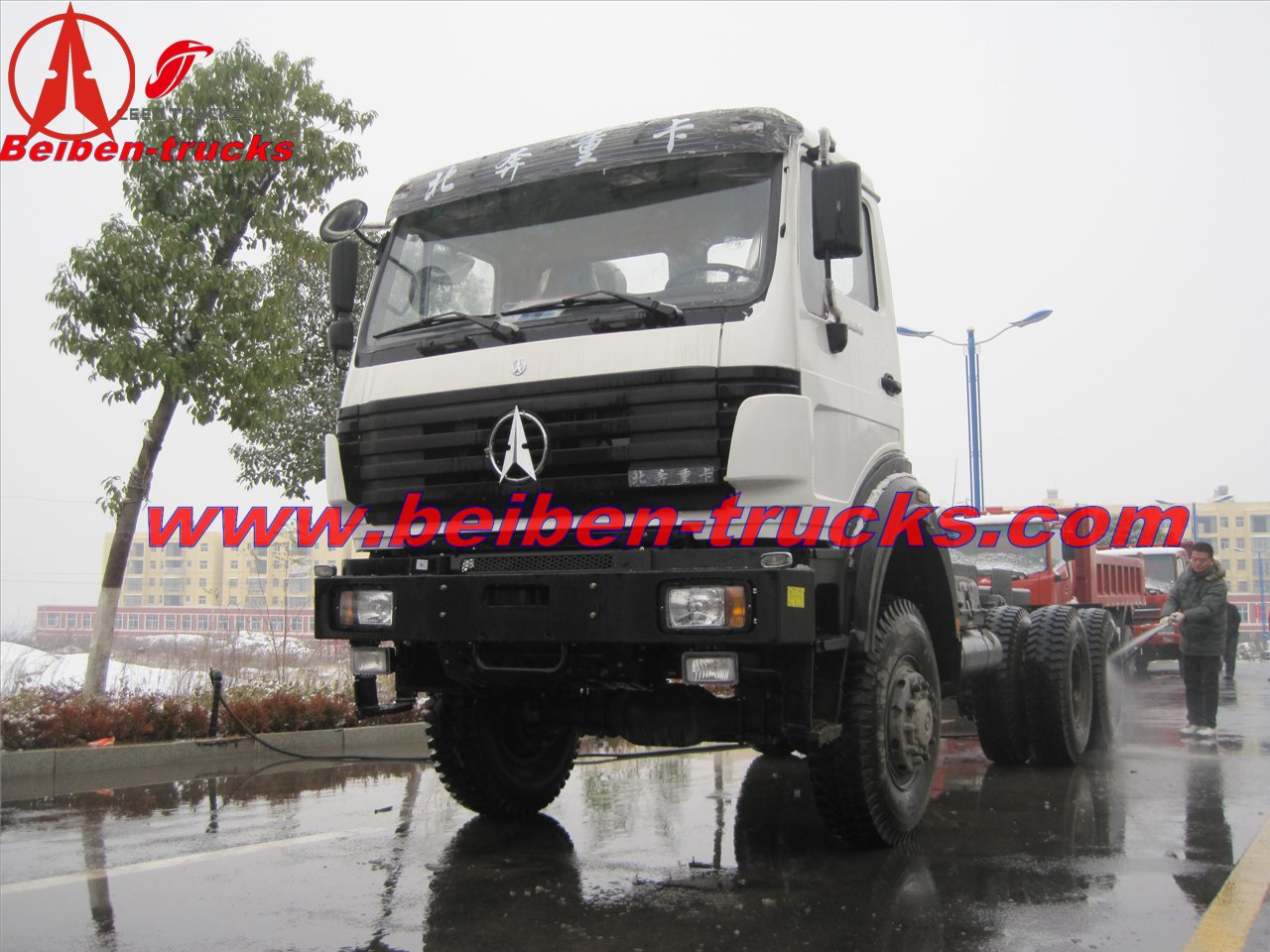

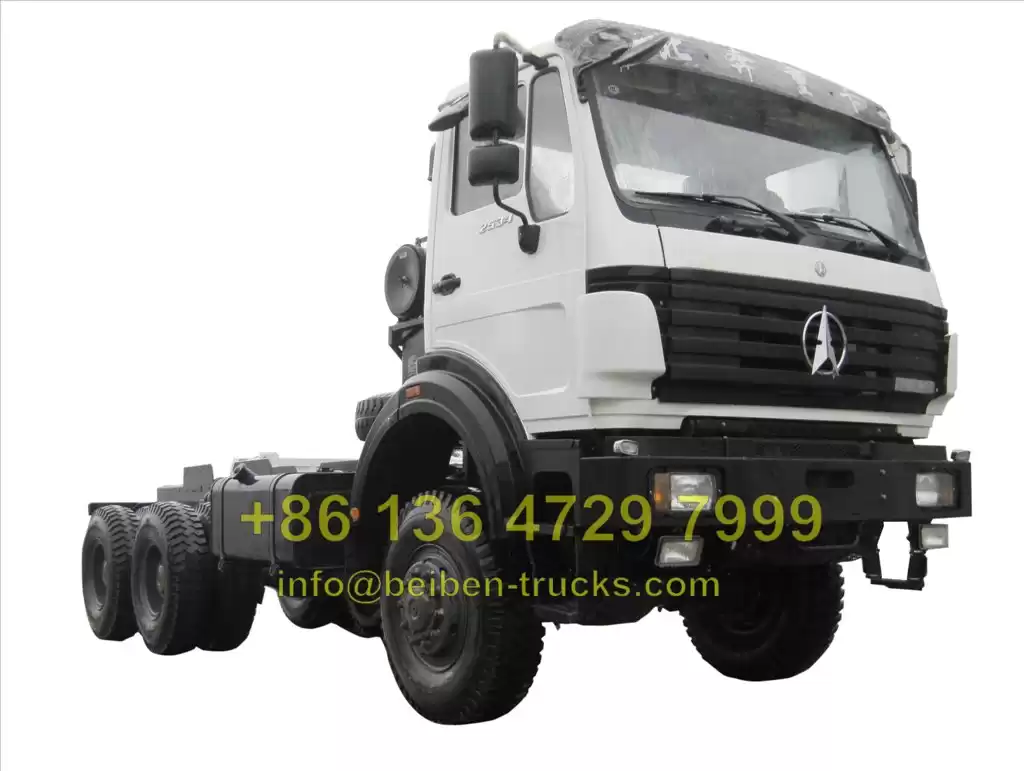

Beiben 6*6  truck chassis

Types of drive

Left hand drive (LHD )

Truck model number

2538S

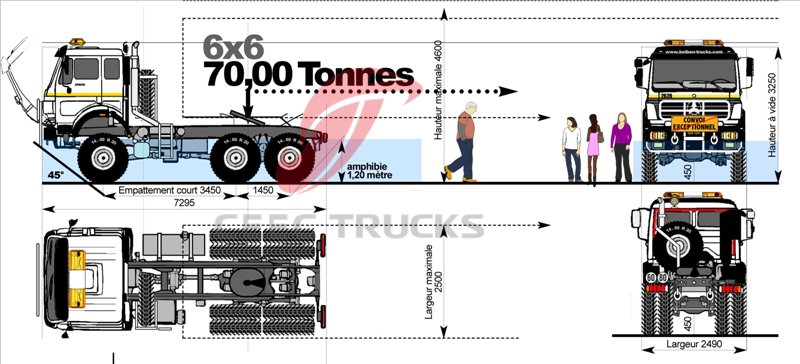

Dimension ( mm)

9365*2495*3130

Curb weight (kgs)

9900

Drive wheel

6×6

Engine model

WD10.380 Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Horsepower(hp)

380

Bore*stroke (MM)

126*150

Displacement (L)

9.726

Rated speed (R/min)

2200

Max torque (Nm)

1460

Max Torque speed( R/min)

1200-1600

Lowest fuel consumption (G/kw.h)

< 198

Net weight (KG)

900

Meridian tire

12.00-20

Number of tires

10 + 1(spare wheel)

Saddle types

None

Transmission types :

9JS180 , 9 shift transmission, FAST technology

Steering mechanism:

TAS85

Wheelbase (mm)

44500+1450

Approach/departure angle

33/32

Cab style

Long with beds, Benz technology
