Beiben 6 wheel drive Recreational Vehicle

Beiben 6 wheel drive Recreational Vehicle, 6*6 drive system , LHD & RHD steering system, benz technology front axle and rear axle, 14.00R20 tyre, with latest Beiben 6 wheel drive Recreational Vehicle upper structure



Beiben 6 wheel drive Recreational Vehicle

beiben 6*6 recreational vehicle

China best beiben 6*6 drive recreational vehicle manufacturer, supply beiben 4*4, 6*6,8*8 drive recreational vehicle. We can supply beiben 2534,2538,2542,1927,1930 all wheel drive customrized recreational vehicle.


Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.

Beiben truck features and advantages:

1: Driving room: the steel structure, high safety,lower wind resistance coefficient

2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient

3: The suspension system: Mercedes suspension, high intensity

4: Benz axle: double deceleration bridge, high efficiency, carrying large

5: Transmission system: high efficiency, bigger torque, climbing superior performance

6: Steering system:high safe and reliable, and flexible

7:Braking system, high security, brake with high efficiency

8: Electric system: stronger load ability, high reliability and easy maintenance



Beiben truck manufactured under the license of Mercedes Benz technology, which has excellent performance with reasonable price.

Vehicle Name:

Beiben 6*6  truck chassis

Types of drive

Right hand drive (LHD )

Truck model number

2534S

Drive wheel

6×6

Engine model

WD10.340 Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Horsepower(hp)

340

Bore*stroke (MM)

120*150

Displacement (L)

9.876

Rated speed (R/min)

2200

Max torque (Nm)

1750

Max Torque speed( R/min)

1300-1600

Lowest fuel consumption (G/kw.h)

< 198

Net weight (KG)

905

Meridian tire

12.00-20

Number of tires

10 + 1(spare wheel)

Saddle types

None

Transmission types :

12JS200T , 12 shift transmission, FAST technology

Steering mechanism:

TAS85

Wheelbase (mm)

4450+1450

Cab style

Long with 2 beds, Benz technology

Air-condition

With air-condition

Cab body style

The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology.

Steering system

High safe and reliable, and flexible, ZF8098

Brake system

Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB

Electric system:

Stronger load ability, high reliability and easy maintenance

Truck frame style

Fish maw shape, inequilaterally section, equal intensity, Benz technology

Front axle

Benz 7.0T Transaxle

Rear axle

Benz Technology,double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Ratio=5.263

Electric system:

Stronger load ability, high reliability and easy maintenance,24 V

Emission standard

Eur 2 & EURO 3

Fuel tank capacity (L)

400

Optional equipment

Saddle , upper berth, ABS , squareness silencer.

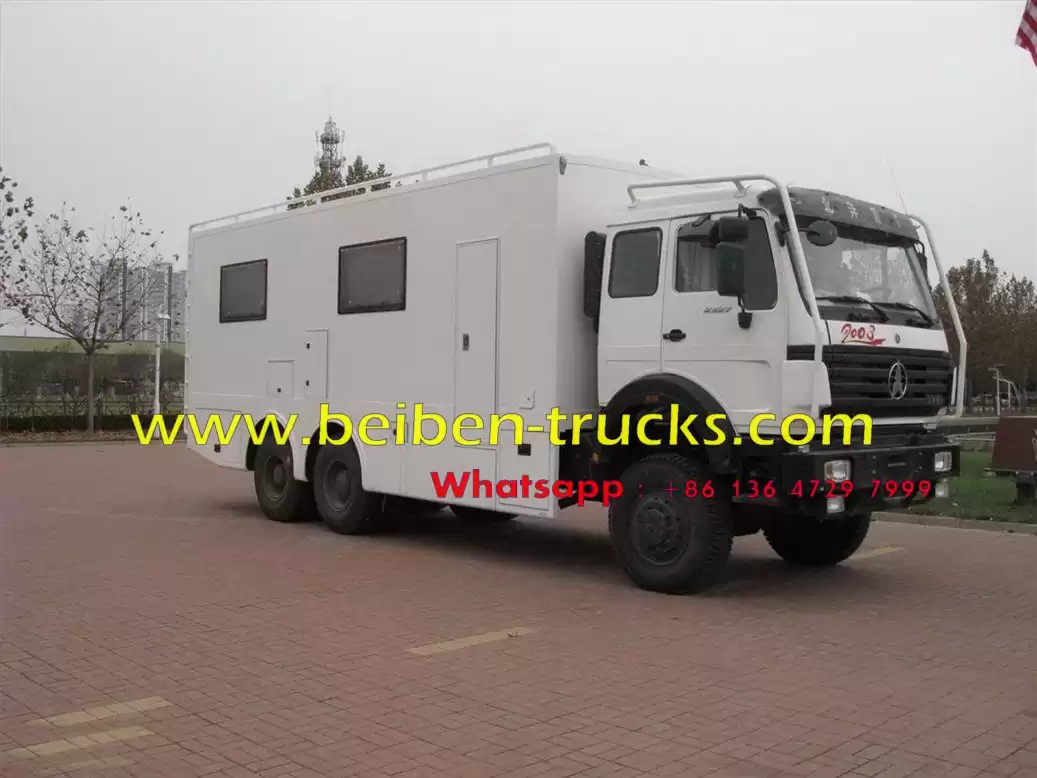

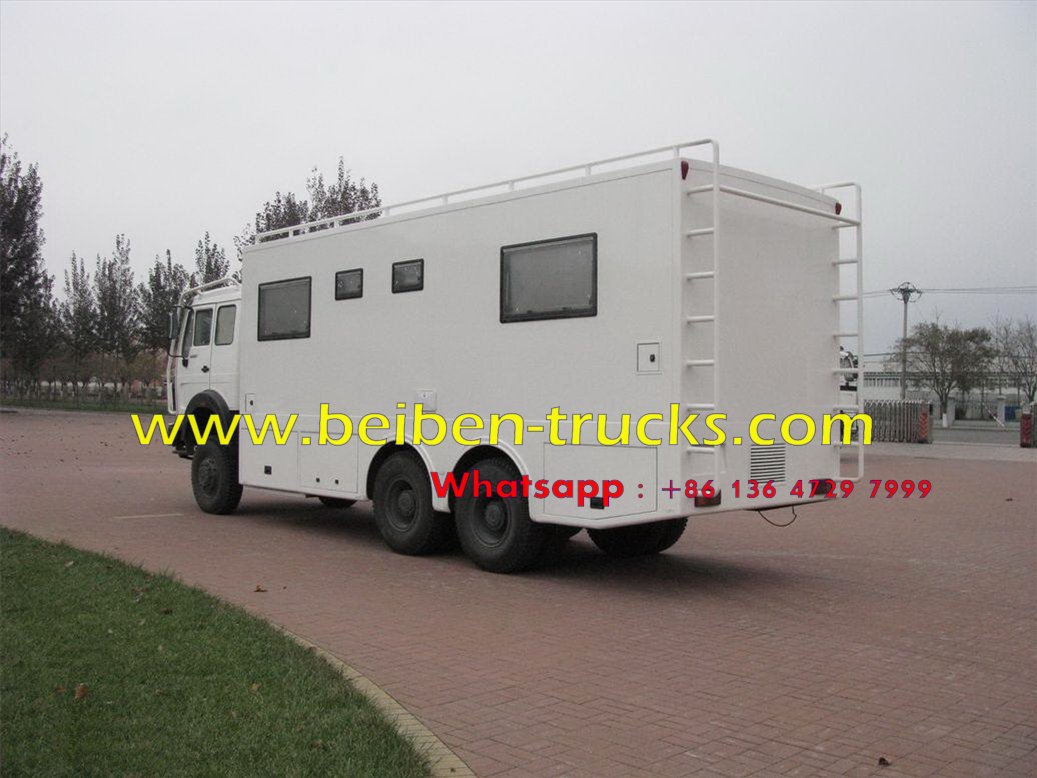

Beiben 6 wheel drive Recreational Vehicle

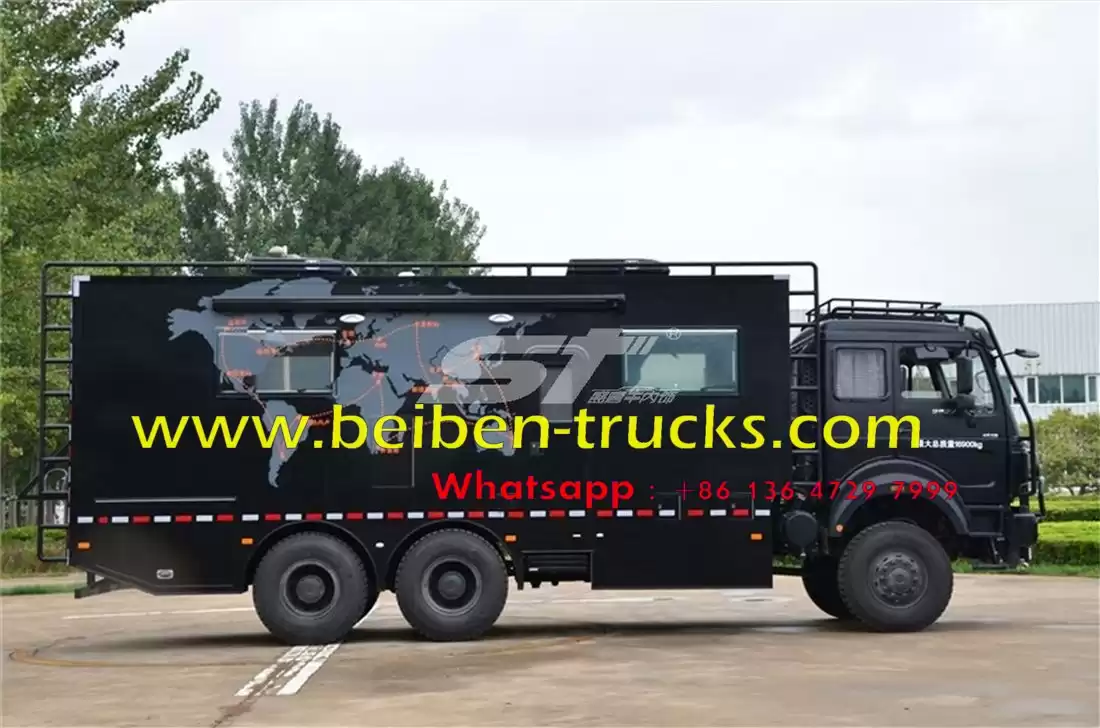

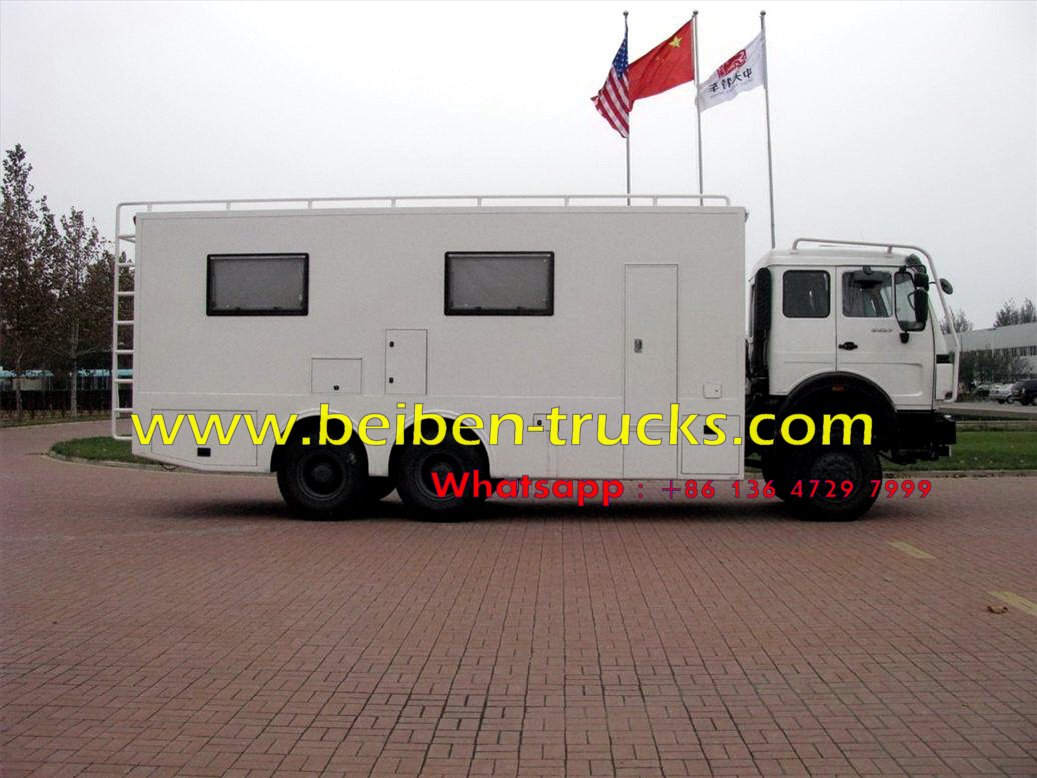

Beiben 6 wheel drive Recreational Vehicle

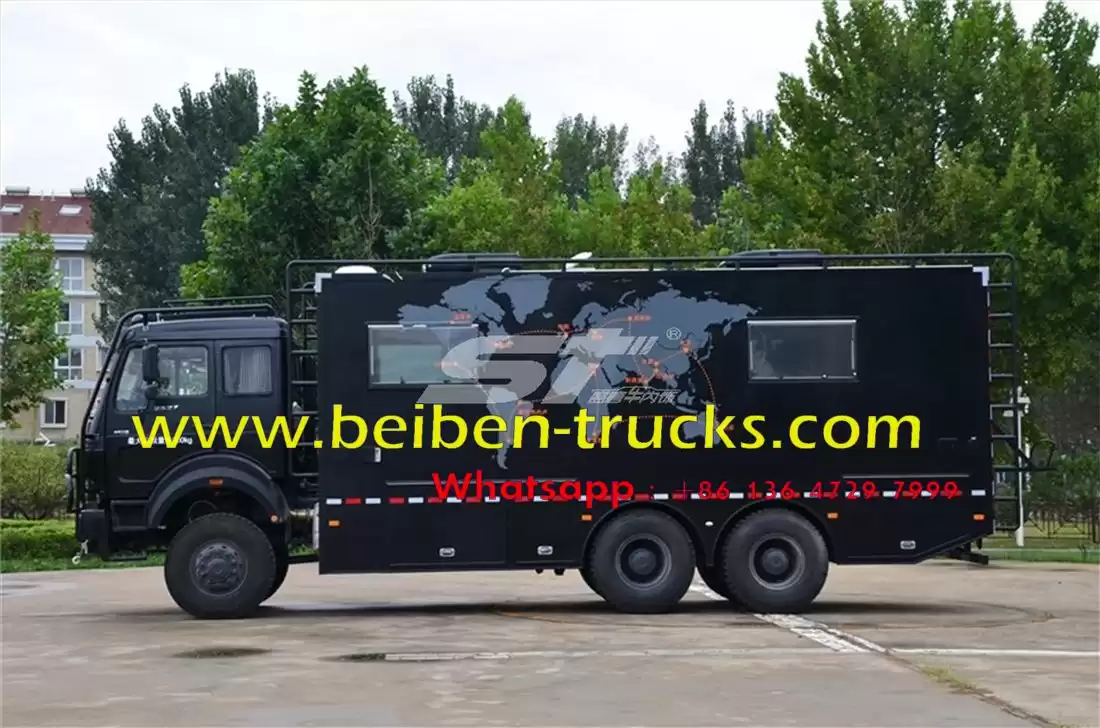

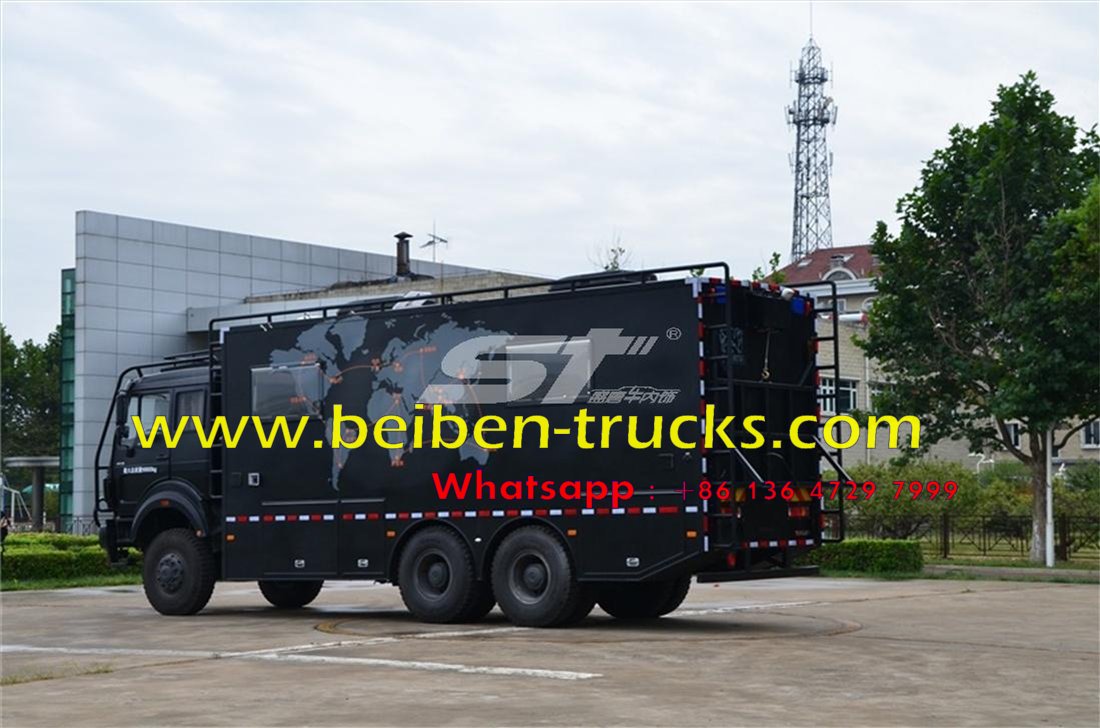

Beiben 6 wheel drive Recreational Vehicle

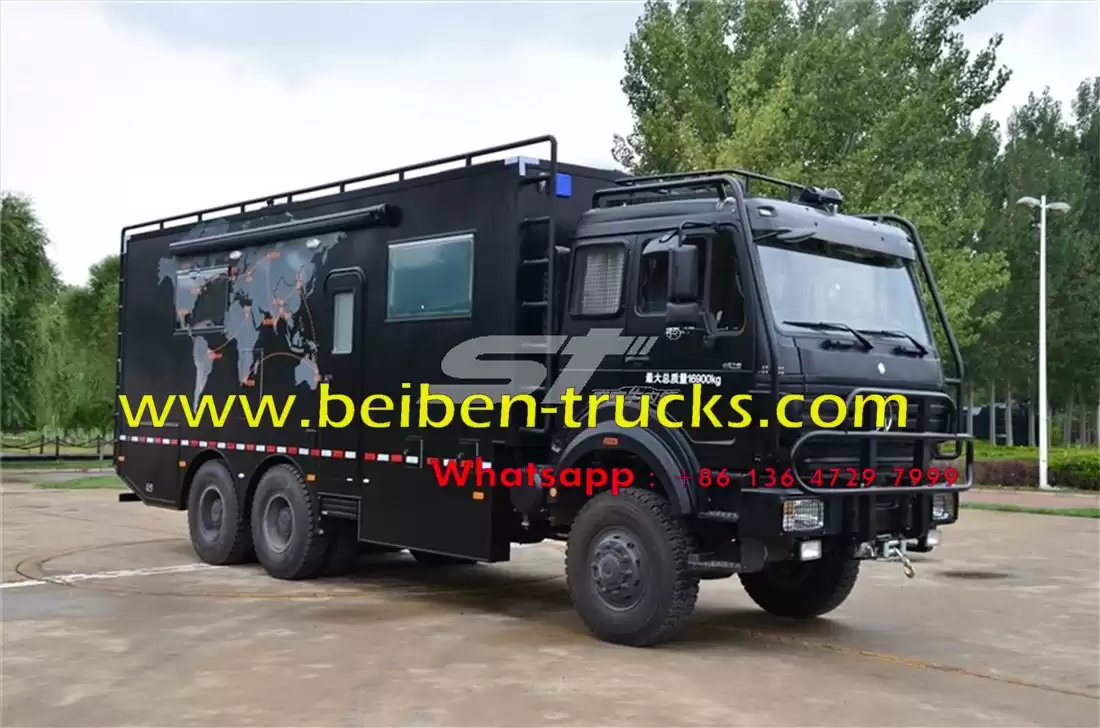

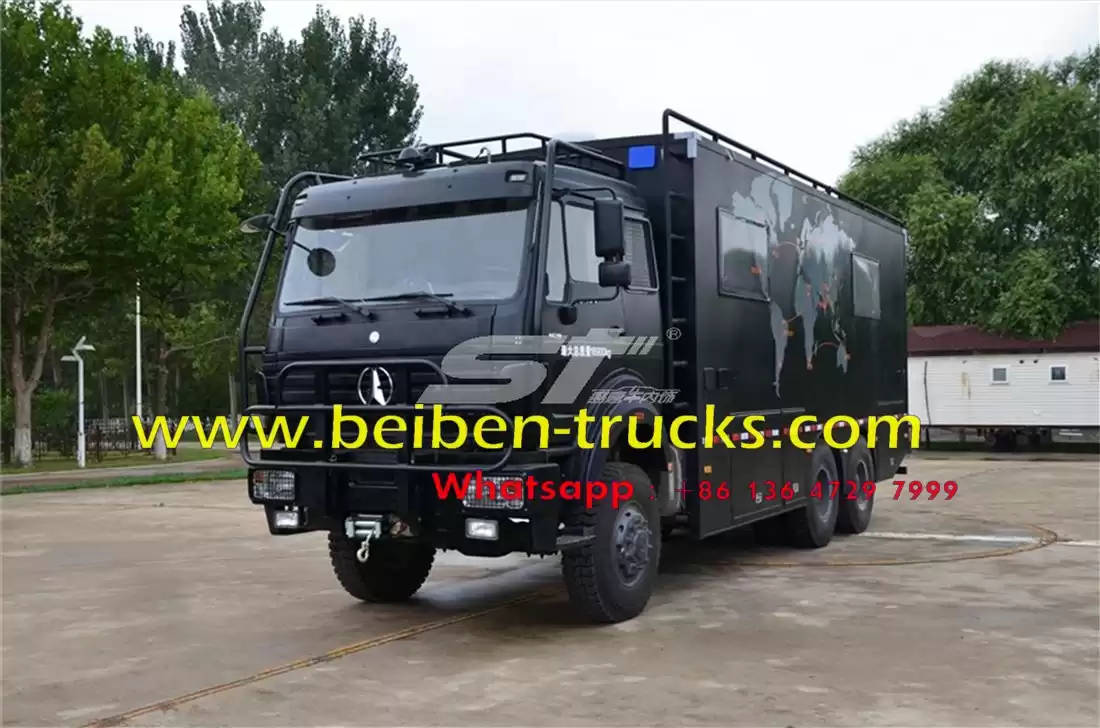

Beiben 6 wheel drive Recreational Vehicle

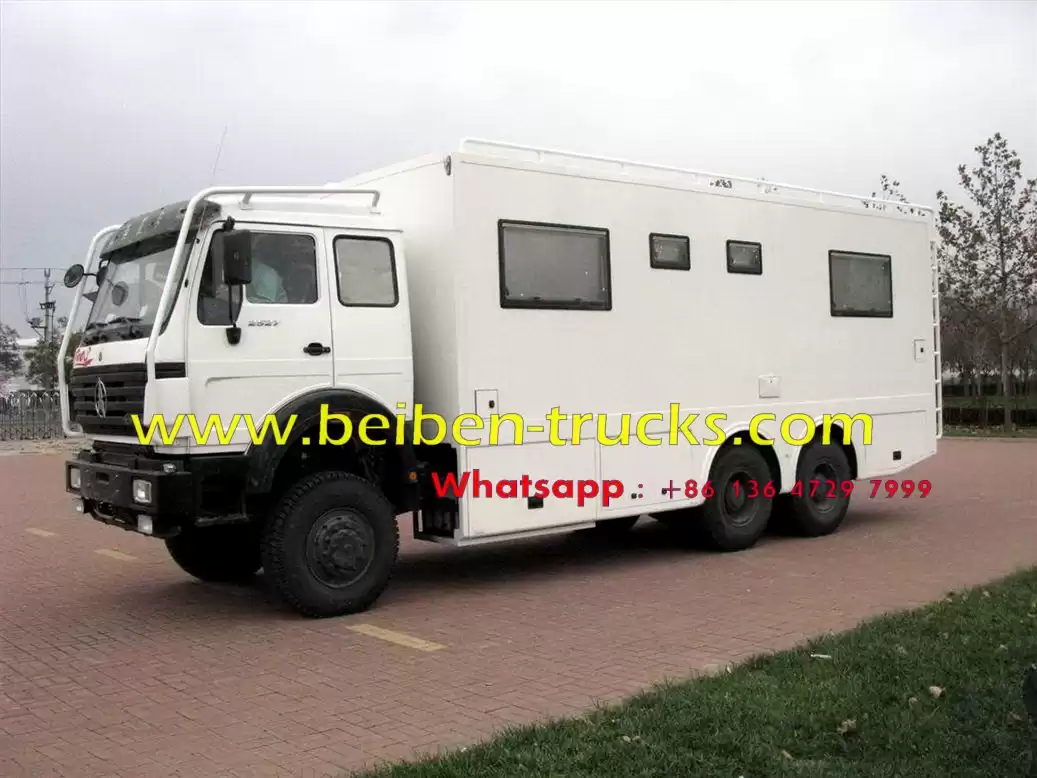

Beiben 6 wheel drive Recreational Vehicle

Beiben 6 wheel drive Recreational Vehicle

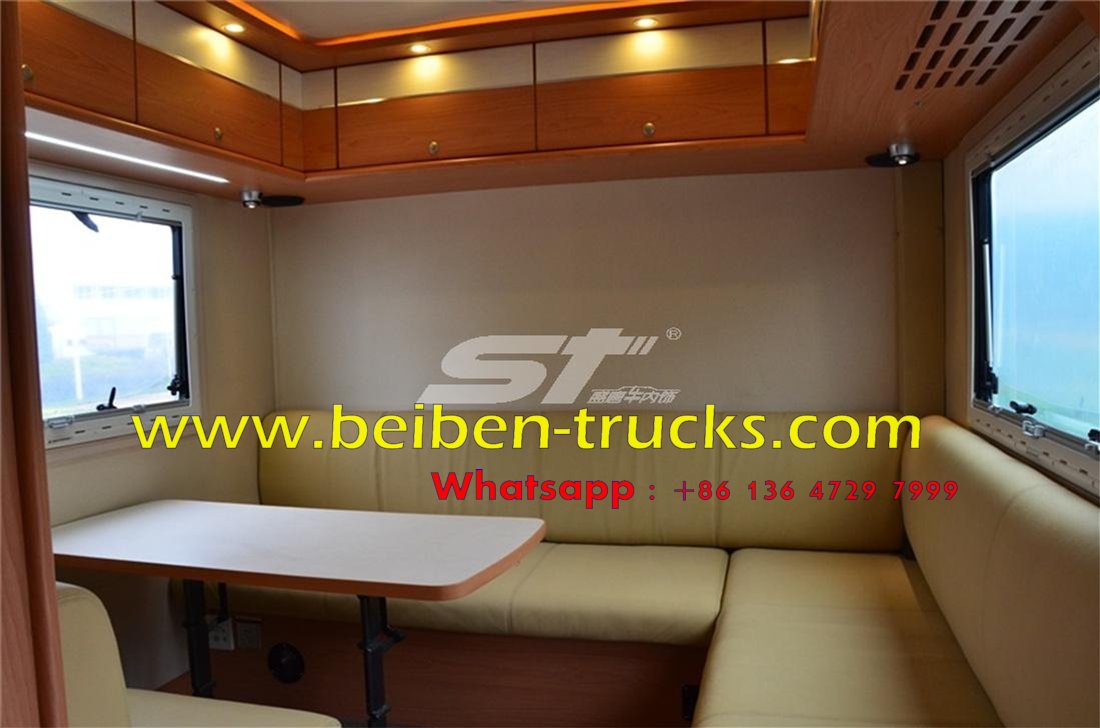

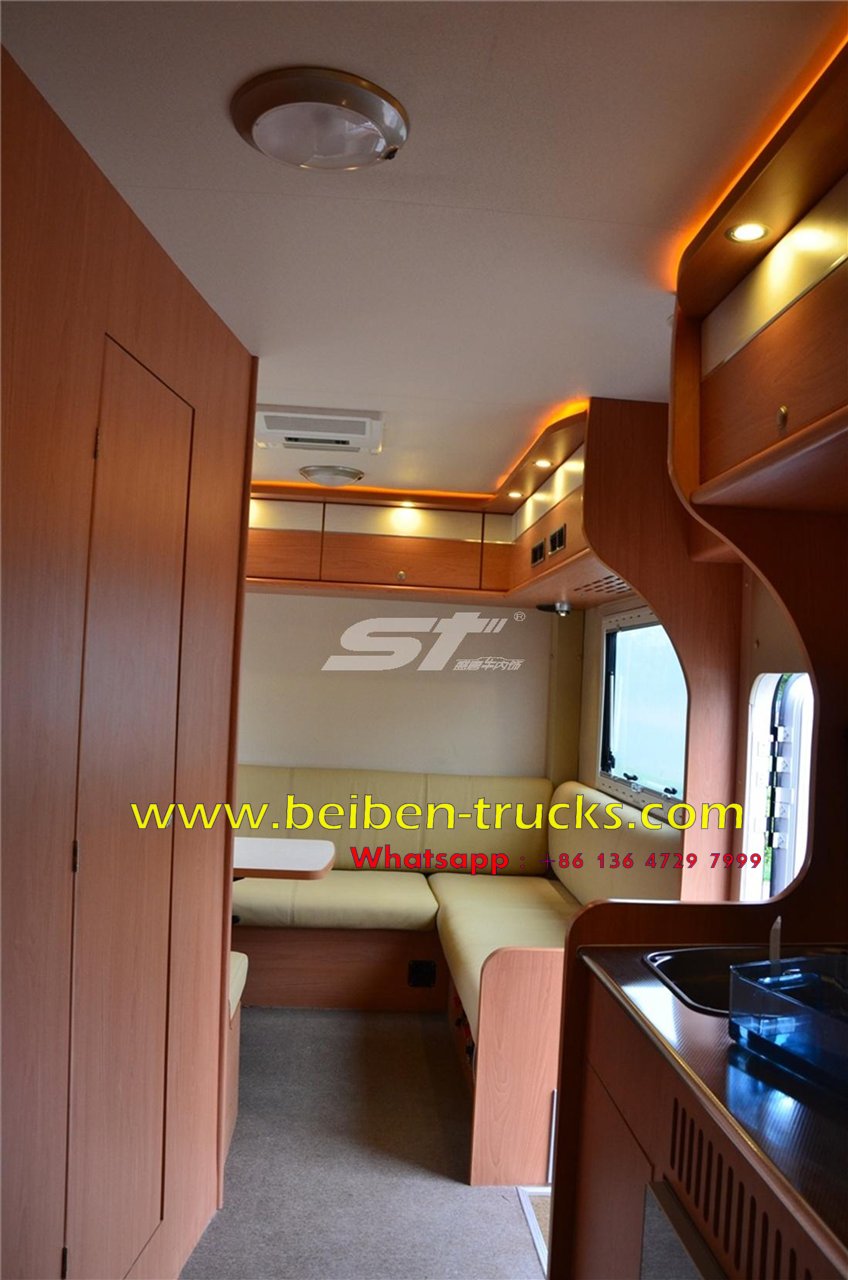

Beiben 6 wheel drive Recreational Vehicle interior

Beiben 6 wheel drive Recreational Vehicle

Beiben 6 wheel drive Recreational Vehicle

Beiben 6 wheel drive Recreational Vehicle
