Specifications

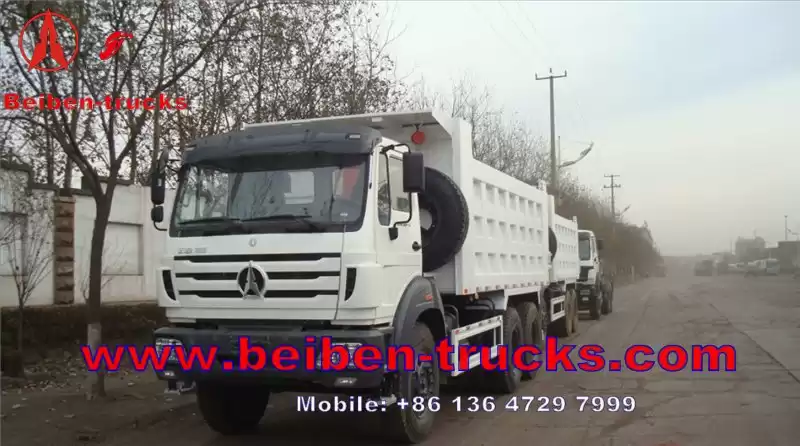

BeiBen 6x4 340hp dump truck for hot sale
1Competive price
2Best after sales service
3Weichai Engine
Beiben Dump Truck 340HP North Benz 6x4 Dump Truck Traction type: 6x4
Driving type: LHD (RHD)
Truck body material: E380TM alloy steel which is adopted by Mercedes-Benz.
Cabin:
JC1 Long-cab (NG90 front boarding, new designed wing mirror system,
radio, integrated inner decoration, NG801 panel, electrical instruments,
metal bumper, two steps ladder, NG80 front lights, outside sun
protection, one sleep bed, comfortable driver’s and passenger’s seats,
unadjustable steering wheel),Tilting whole steel cabin. 70°leaning
forward, convenient to maintain. (A/C)
Engine brand: WD (WEI DIESEL brand)
Engine model: WD615.34
Engine type: Four-stroke, 6 cylinders in line, turbo intercooler, water-cooled, diesel engine.
Displacement: 9.726 liters
Rated power: 250kW (340hp)/2200rpm
Max.torque: 1350Nm/1100-1600rpm
Bore x stroke: 126x130mm
Min.fuel consumption: ≤198g/kW.h
Transmission: FULLER technology RT-11509C, 9-gears (ZF 9T-160, FASTER 9JS180)
Clutch: Strengthen GFX420, hydraulic-type booster, with liquid-vapor booster.
Steering box: Imported American TAS85 steering wheel. (ZF8098)
Brake system: Service Brake; Parking Brake; Auxiliary Brake (ABS)
Front axle: Pneumatic dual disk brake, non-driving steering bridge
Rear
axle: Pneumatic dual disk brake, hyperbolic gear, driving axle, cast
nodular iron axle housing wheel edge reducer. Ratio: 5.9
Electric system: tachometer; odometer; high-capacity low temperature storage batteries (165Ah, 180Ah)
Tire: 12.00R20 (rim 8.5-20) (12.00-20, 11.00-20, 11.00R20) 12 tires+1 spare tire
Max. travel speed: 85km/h
Dump body inner size: 5400x2300x1500mm (optional)
Capacity: 18.63CBM
Thickness of steel body: floor 8mm, side & back 6mm (floor 8mm, side & back 4mm; floor 10mm, side & back 8mm)
