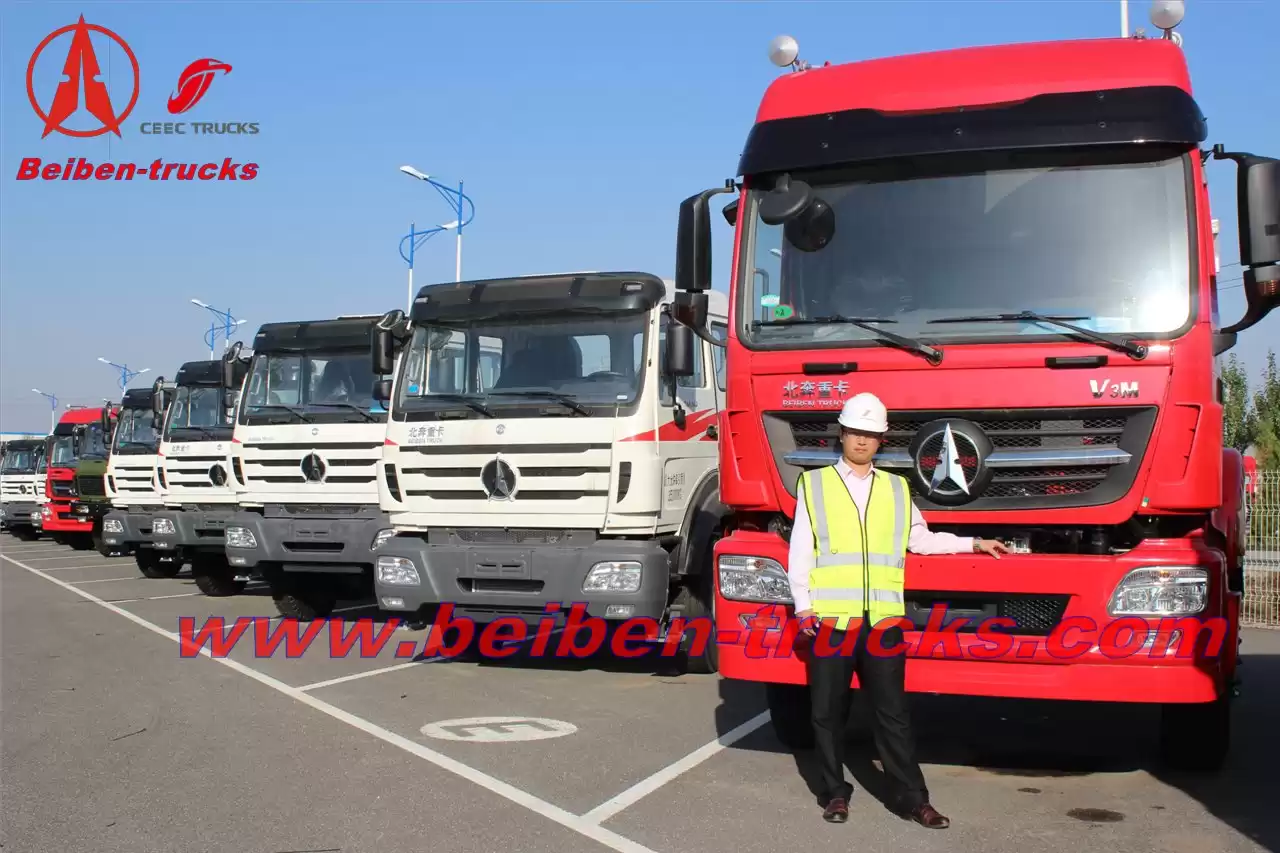

Beiben 6x4 Heavy tractor truck With Benz Technology

Model: ND4251B34J7

Traction type: 6x4

Driving type: Left hand drive

Cabin: Mercedes Benz (double Sleeper), with A/C, electric window lift.



Engine brand: Weichai   EURO III

Engine model: WP12.480

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling



Beiben 6x4 Heavy tractor truck With Benz Technology

Product Description

Model: ND4251B34J7

Traction type: 6x4

Driving type: Left hand drive

Cabin: Mercedes Benz (double Sleeper), with A/C, electric window lift.



Engine brand: Weichai   EURO III

Engine model: WP12.480

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling

Displacement: 11.6 liters

Max. Output: 480hp@2200rpm

Max torque: 1970NM@1200-1600rpm

Bore/Stroke (mm):126/155



Gear box:Fuller 12 speeds(12JS200T)

Steering: TAS85

Clutch: Φ430 diaphragm type

Front axles: Benz 7.5T front axle

Rear axles: Benz double reduction drive axle

Ratio:1:5.921

Tyre: 12.00R20     radial tires  10+1

Spring: 13/13

Fuel tank capacity (L): 300

Max. speed (km/h): 100

Kerb. mass: 8800 kg

Total mass: 25000kg

Wheel base (mm): 3450+1450

Front overhang (mm): 1515

Rear overhang (mm): 825

Front track (mm): 1995

Rear track (mm): 1800

Approach angle: 16 degree

Departure angle: 60 degree

Dimension (mm): 7240x2500x3940

5TH wheel: 2.0’’ (3.5" is optional)
