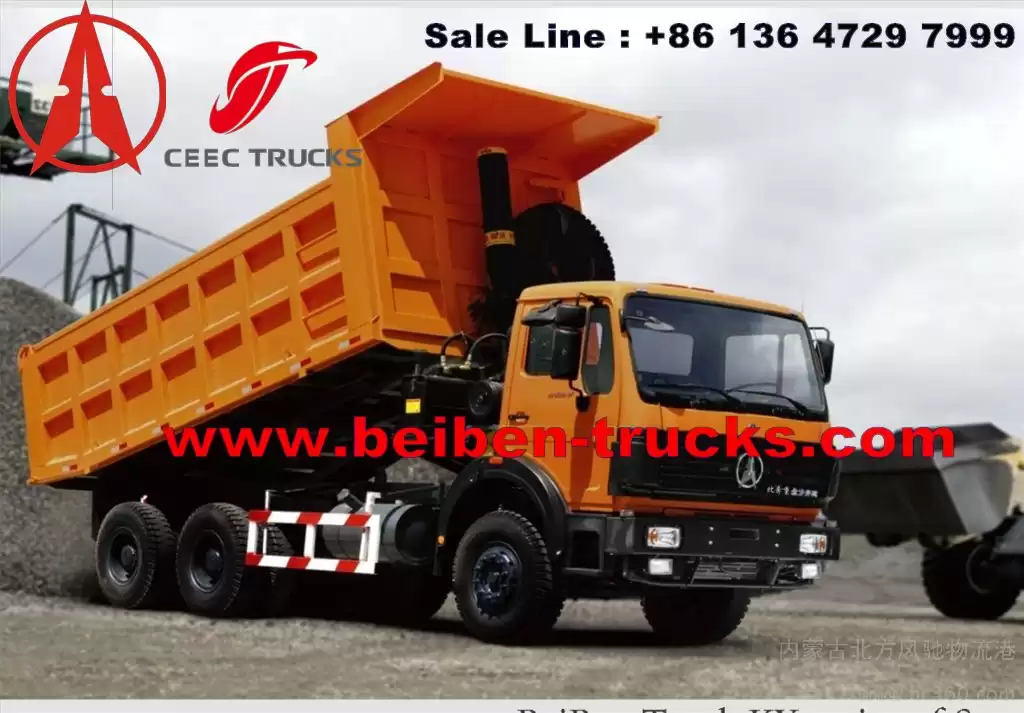

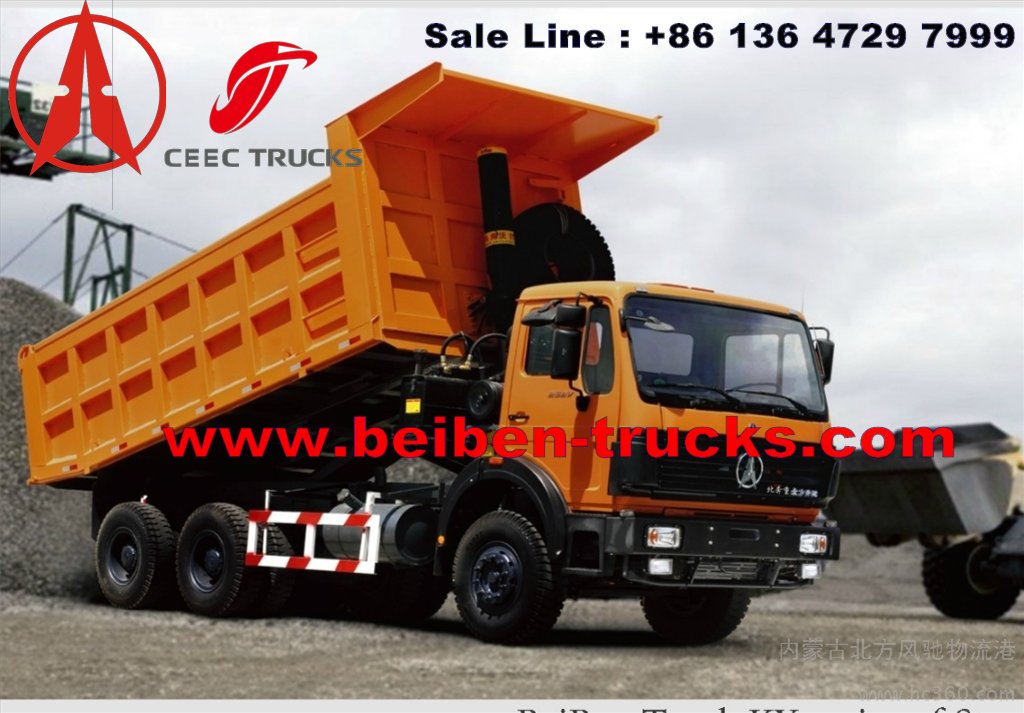

2014 Beiben 6x4 290hp Dump Truck In Low Price Sale
1Competive price
2Best after sale service
3Good quality
Best beiben dump trucks manufacturer in china, more than 15 years great experience on beiben dumper truck manufacturing.

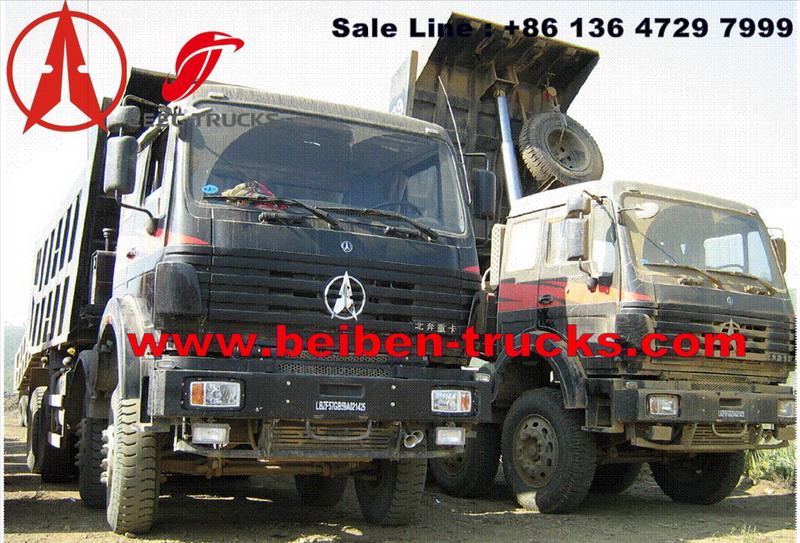

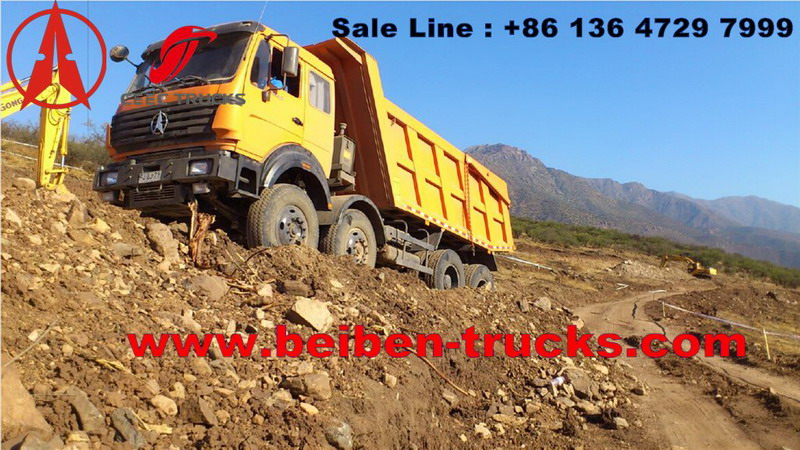

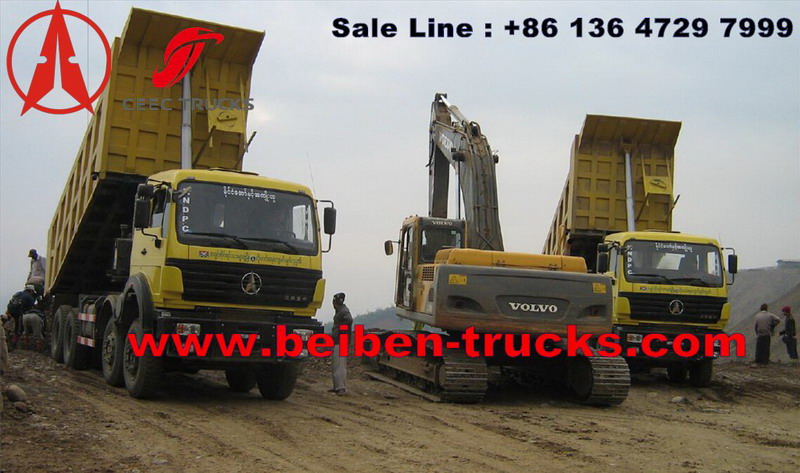

Beiben trucks in customer working site.
We welcome Kenya customer , tanzania customer, congo customer, mogolia customer to buy beiben trucks from us.

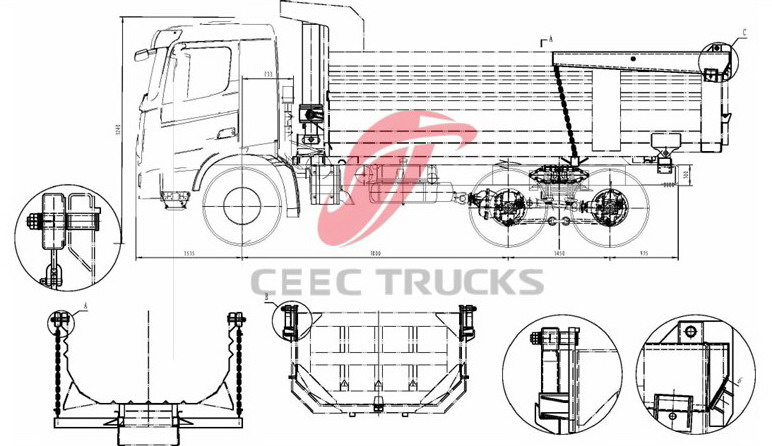

| Truck wheel base (mm) |
3450+1450 |
| Curb weight kg |
9700 |
| Engine |
Model |
WP10/WP12.290HP (Based on Styre technology, made in China) |
| Power, max kw/rpm |
2200 |
| Max torque(Nm/rpm) |
1160/1100-1600 |
| Emission standard |
EUROIII(II) |
| Fuel tanker capacity L |
300 |
| Clutch |
Model |
GF420/430diaphragm, Single dry frictional disc,Hydraulic boosting |
| Gearbox |
Model |
RT11509C/9JS119/9JS180T/12JS160T ZFS6-90/ ZF5S-111GP/ 6T-90/ 6T-120 ZF 9S-109/ ZF 16S-1650/16S-221 |
| Transfer-case |
VG1400(Benz technical,made by BEIBEN AXLE) |
| Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake |
Engine exhaust brake |
| Park brake |
Potential springs pressing on middle and rear wheels |
| Steering system |
Model |
ZF8098/ TAS85 |
| Frame of vehicle |
Fish belly shape, variable width, variable section side beam structure |
| Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
| Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Tyre |
12.00R20/12.00-20/315/80R22.5 |
| cabin |
sleeper and A/C, Sun protection on cabin, Radio player(with MP3), Electric glass lifter |
| Electrical system |
Battery |
2X12V/135Ah |
| Generator |
28V-35A |
| Starter |
5.4Kw/24V |
