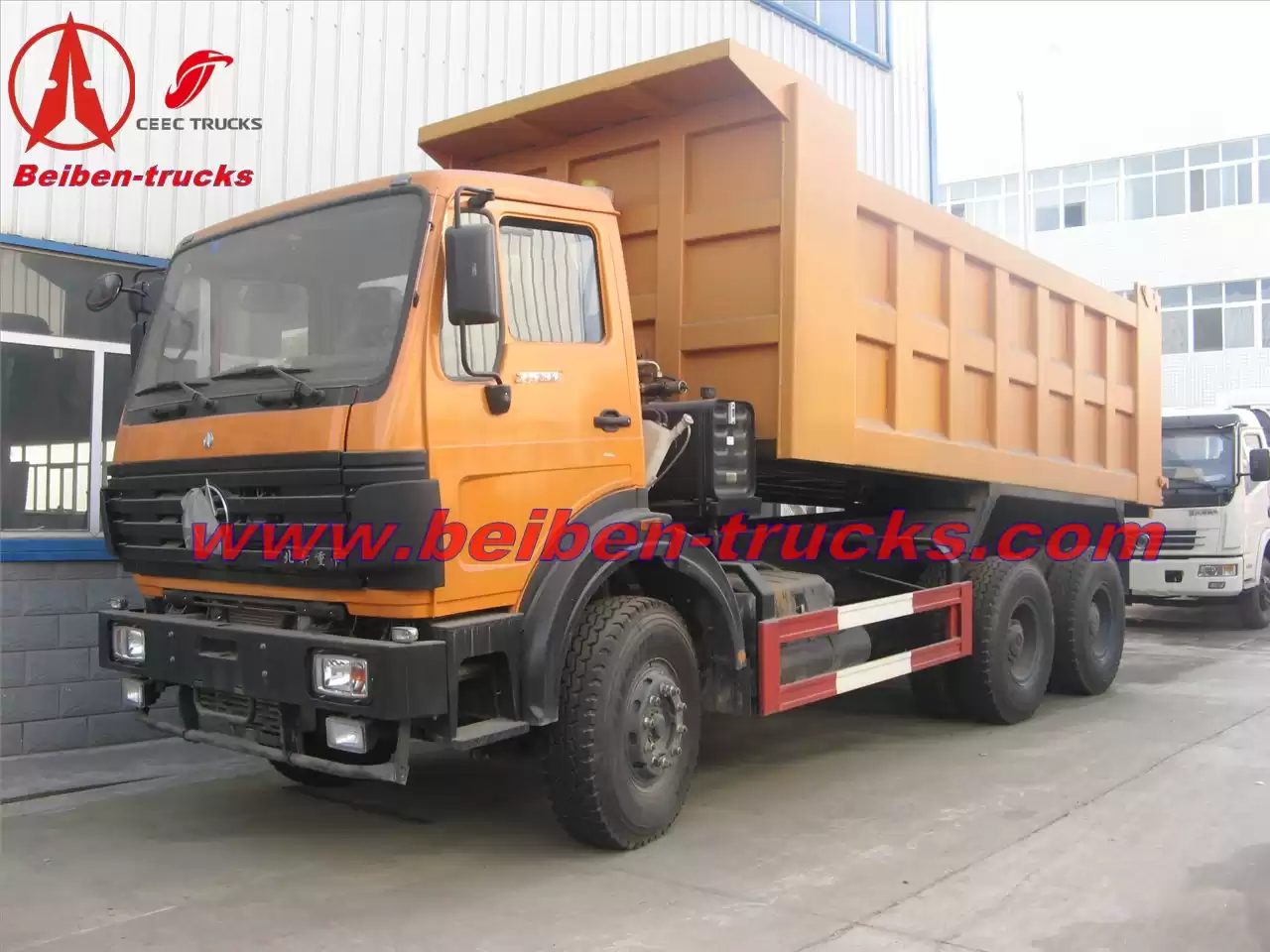

Beiben 6x4 mining tipper/dump truck for mining

Beiben 6x4 dump truck for mining
weichai engine
Benz technolgy
Military quality
Favorable price



Beiben 6x4 dump truck for mining
weichai engine
Benz technolgy
Military quality
Favorable price

Beiben dump truck for mining/mining tipper truck

Wheel base  (mm)

3800+1450

Curb weight kg

12430

Engine   Model

WP10.336
Displacement     L

10.52/Diesel

Emission

EURO3

Fuel tanker capacity  L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

RT11509C
Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology

Double-shoe pneumatic brake, non-driving steering axle


Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle


Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C
