Beiben 6x4 cargo truck chassis is a specific product in the automotive manufacturing industry, mainly used to build the basic structure of heavy-duty cargo vehicles. The following is a detailed definition of Beiben 6x4 cargo truck: Chassis type is 6x4, which means that the vehicle has three axles, two of which are facing the front of the vehicle and one axle facing the rear of the vehicle.And the "6" in 6x4 means that the vehicle has 2 tires in the front and 8 tires at rear, of which "4" means that there are 4 tires supporting the single axle at the rear and the other 2 tires supporting the driving single axle at the front.
Structural features for Beiben 2527 LHD 6x4 cargo trucks as below showing:
1. Number of axles and tires: The configuration with three axles and six tires provides strong load-bearing capacity and stability.
2. Drive mode: Usually a front dual-drive axle design to ensure the vehicle's driving capacity and stability under heavy loads.
3. Chassis model: Beiben trucks can be customized all as required, Beiben 2527 cargo truck, Beiben 2638 cargo truck, Beiben 2642 cargo truck.
4. Wheelbase: The wheelbase will vary depending on the model and purpose, but is usually designed to support high loads and stability.
5. Engine: It may be equipped with a high-power diesel engine to meet the needs of heavy loads and long-distance transportation.
6. Transmission: A multi-speed transmission FAST 9-shift and 12-shift is used to adapt to driving needs under different road conditions and load conditions.
7. Suspension system: Equipped with a suspension system with strong load-bearing capacity and good stability to ensure the smooth operation of the vehicle under various road conditions.
Logistics industry: Due to its high load-bearing capacity and stability, Beiben tractor trucks and Beiben cargo trucks has a wide range of applications in the logistics industry, such as long-distance cargo transportation, container transportation, etc.
Construction industry: Beiben 6x4 cargo truck, Beiben 6x6 cargo truck can be used to transport heavy items such as building materials and equipment.
Mining: In mining, it is used to transport materials such as ore and waste rock.
Beiben 6x4 cargo truck is a heavy truck chassis with strong load-bearing capacity and stability, which is widely used in logistics, construction, mining and other fields. It adopts a three-axle six-tire configuration, a front dual drive shaft design, and is equipped with advanced technologies such as a high-power diesel engine and a multi-speed transmission to ensure the excellent performance of the vehicle under various road conditions and load conditions.
-

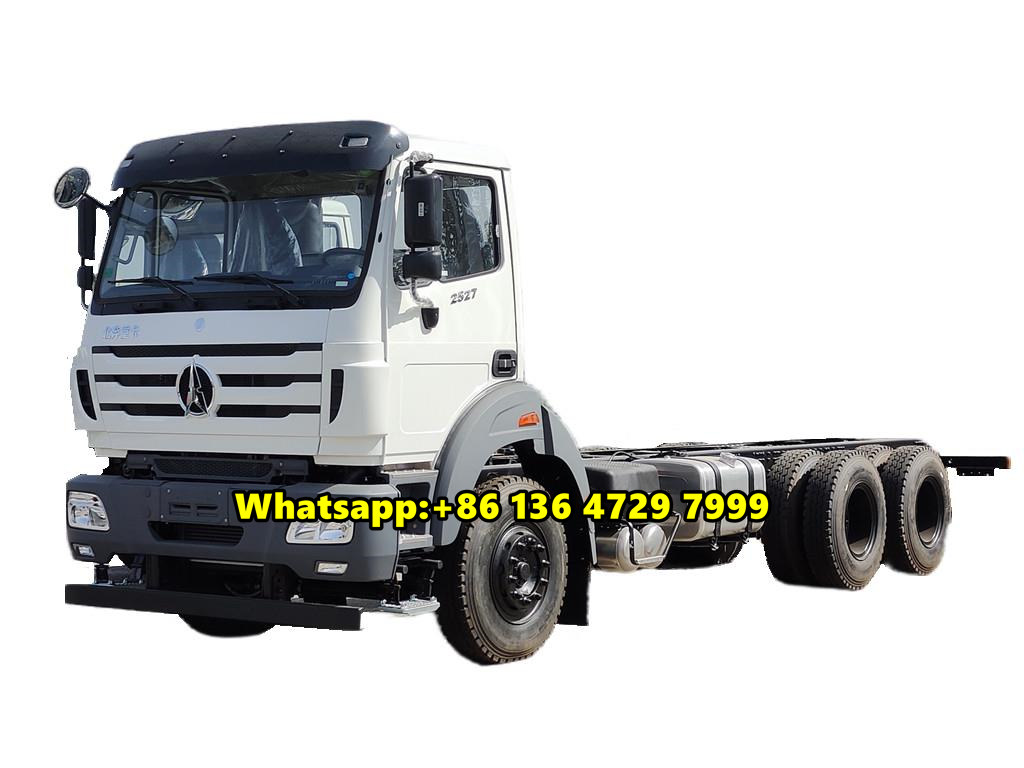

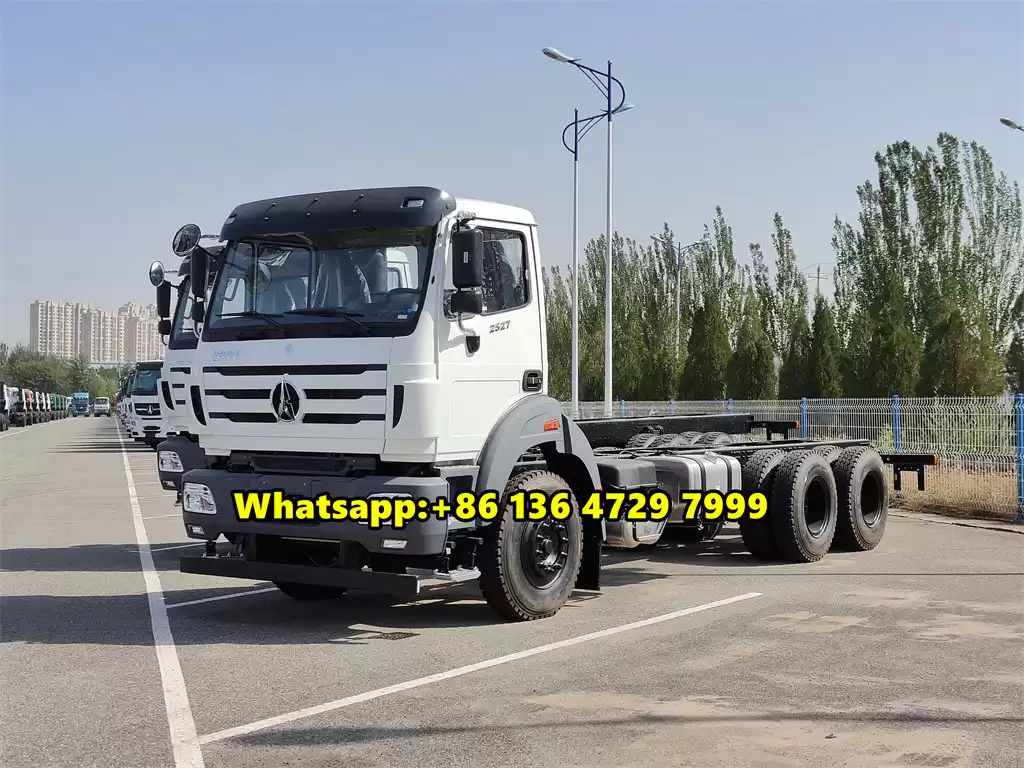

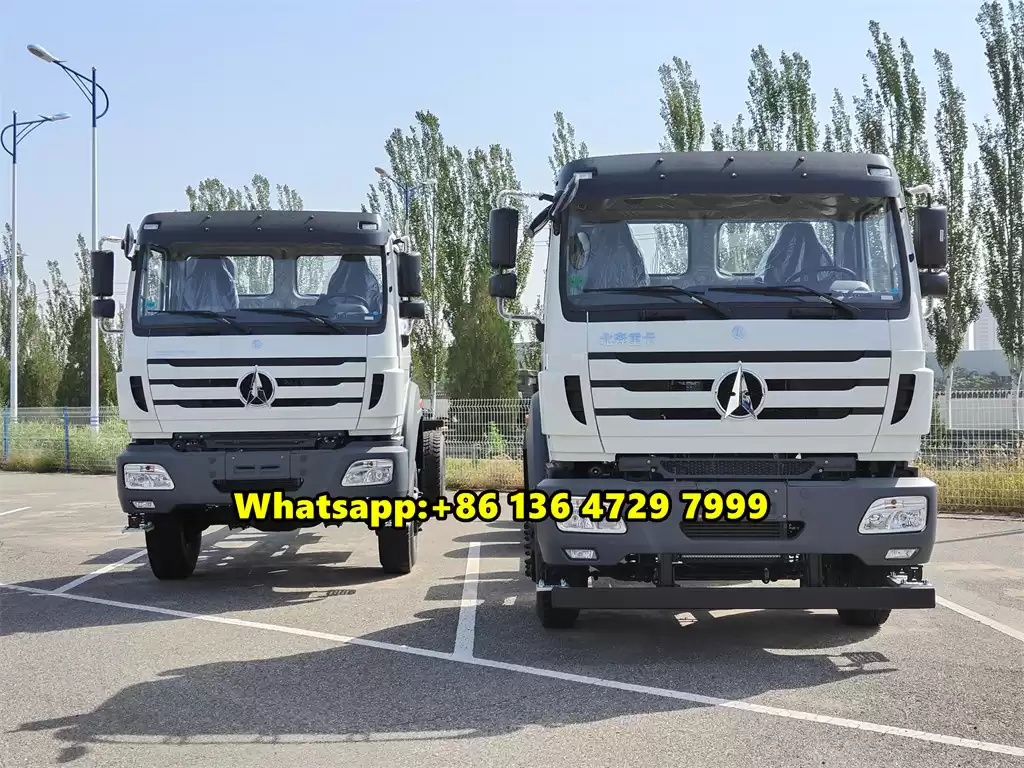

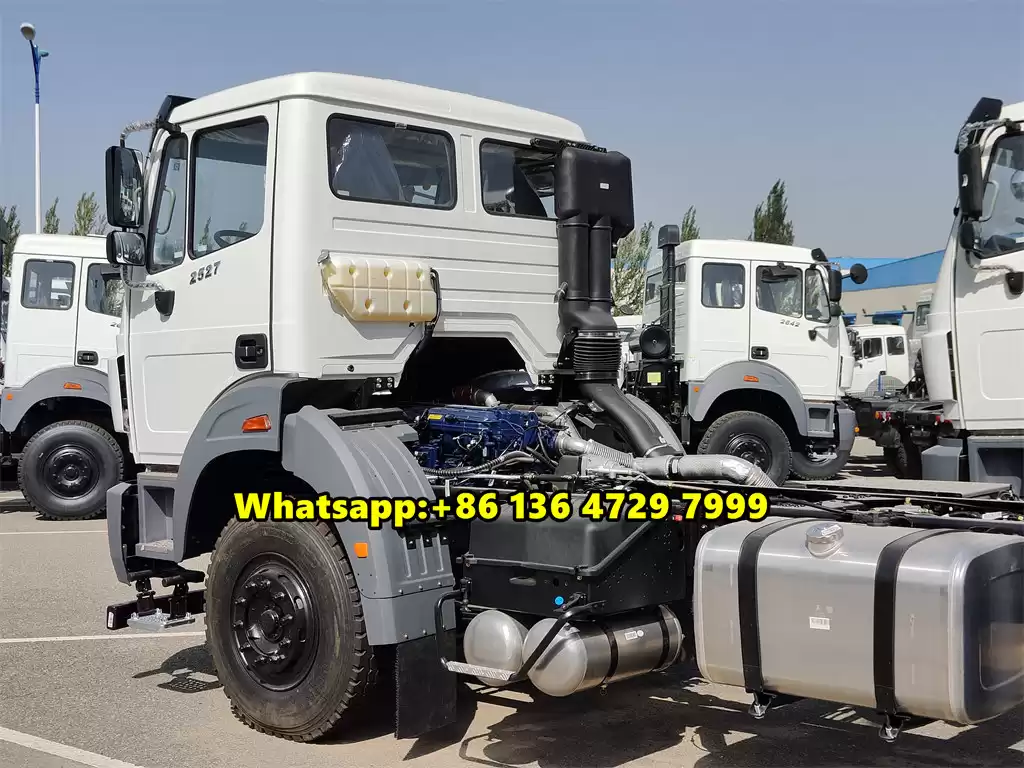

Beiben 6x4 truck with NG80 cabin
-

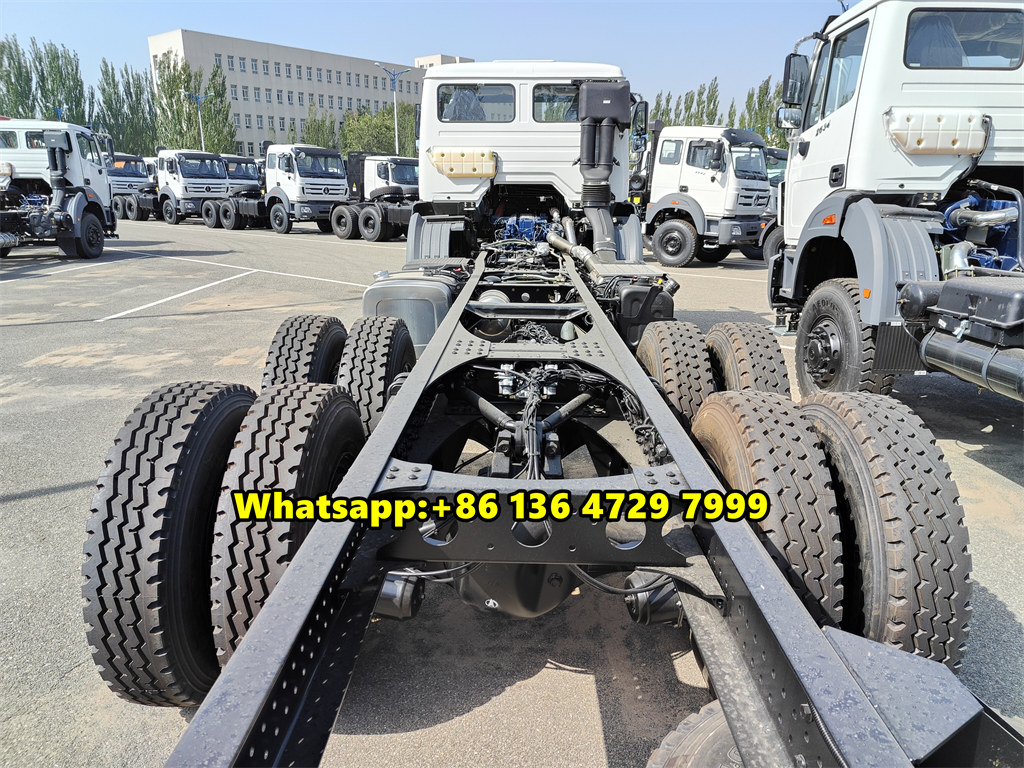

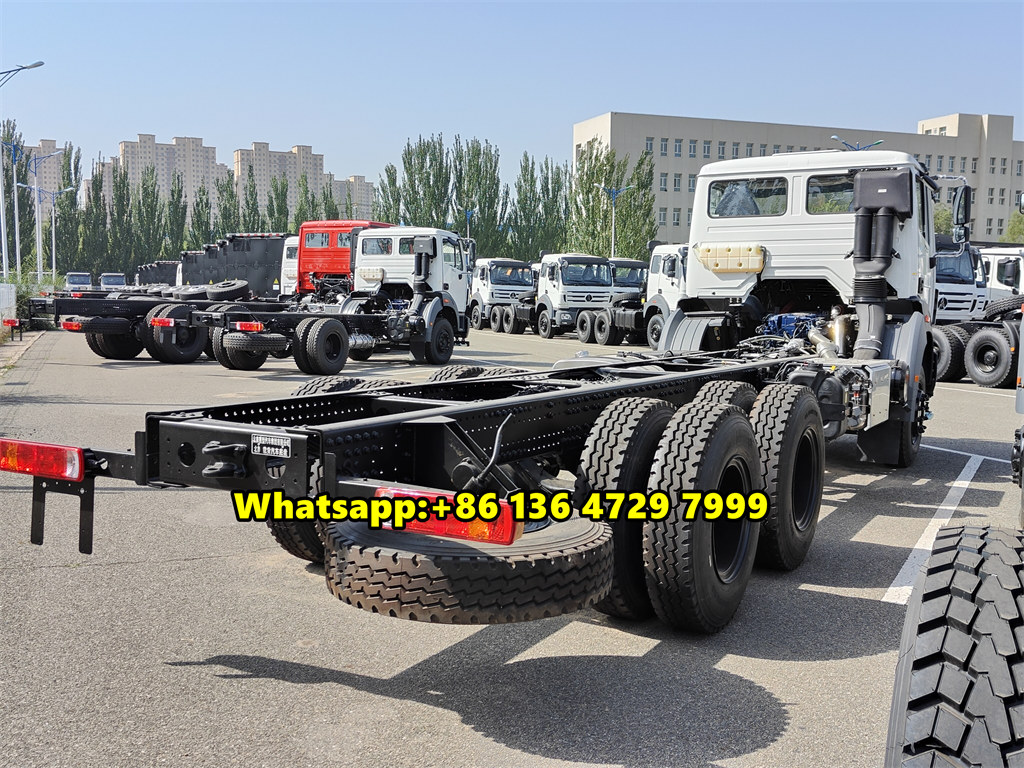

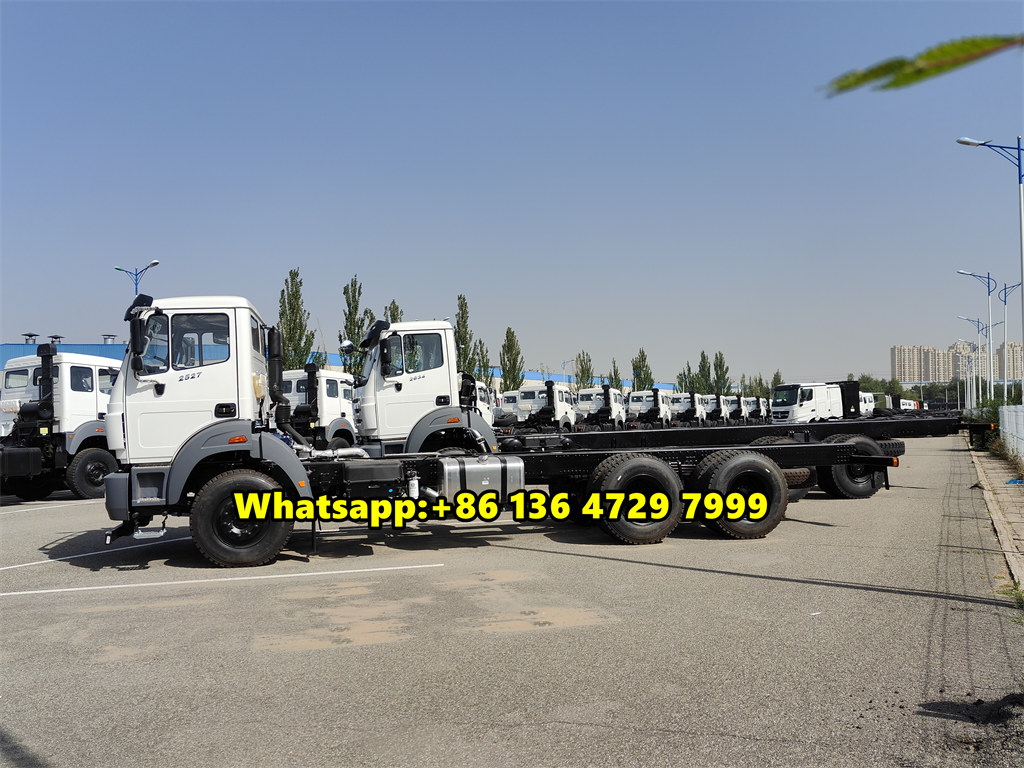

Beiben truck with BENZ technology frame
-

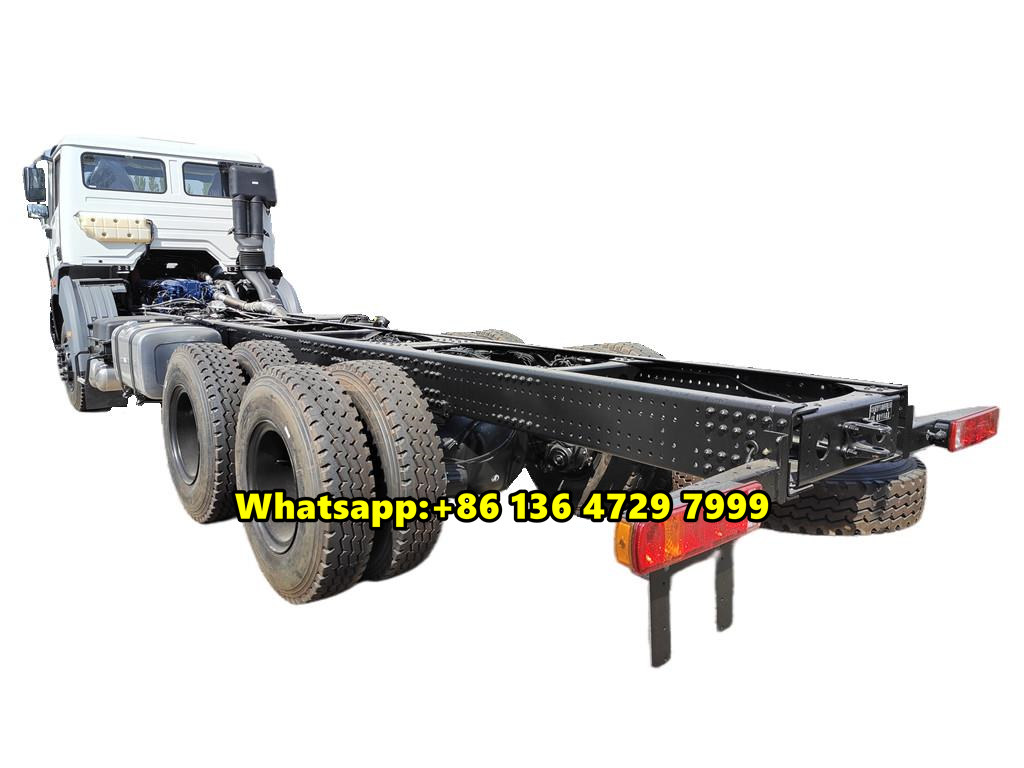

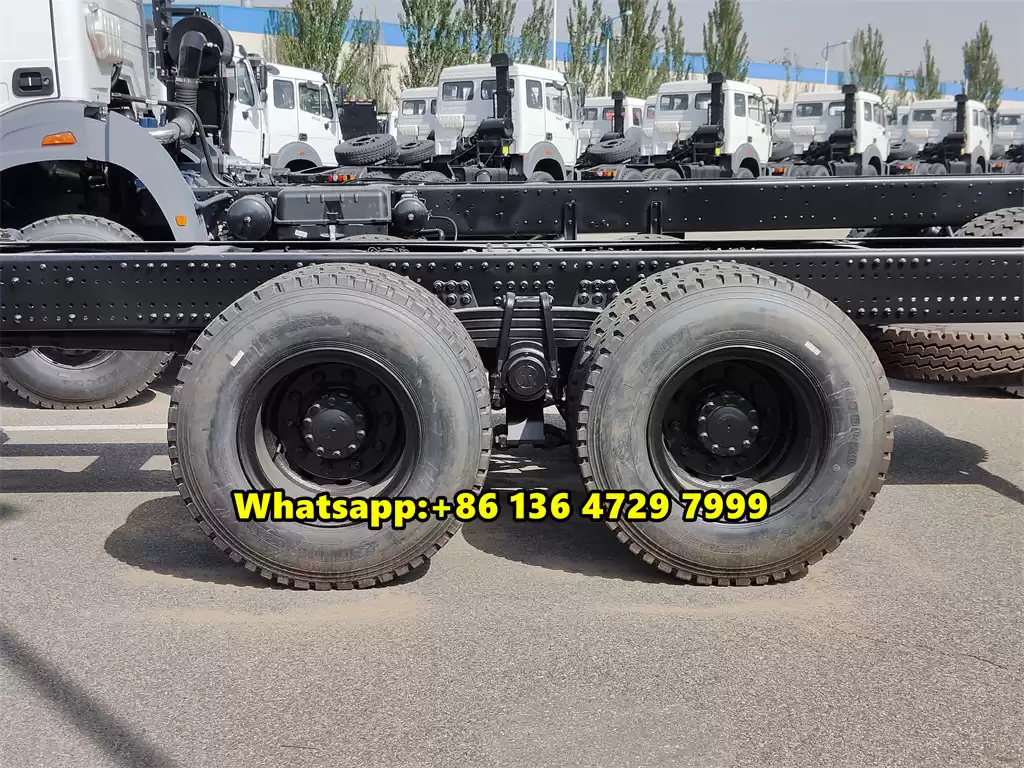

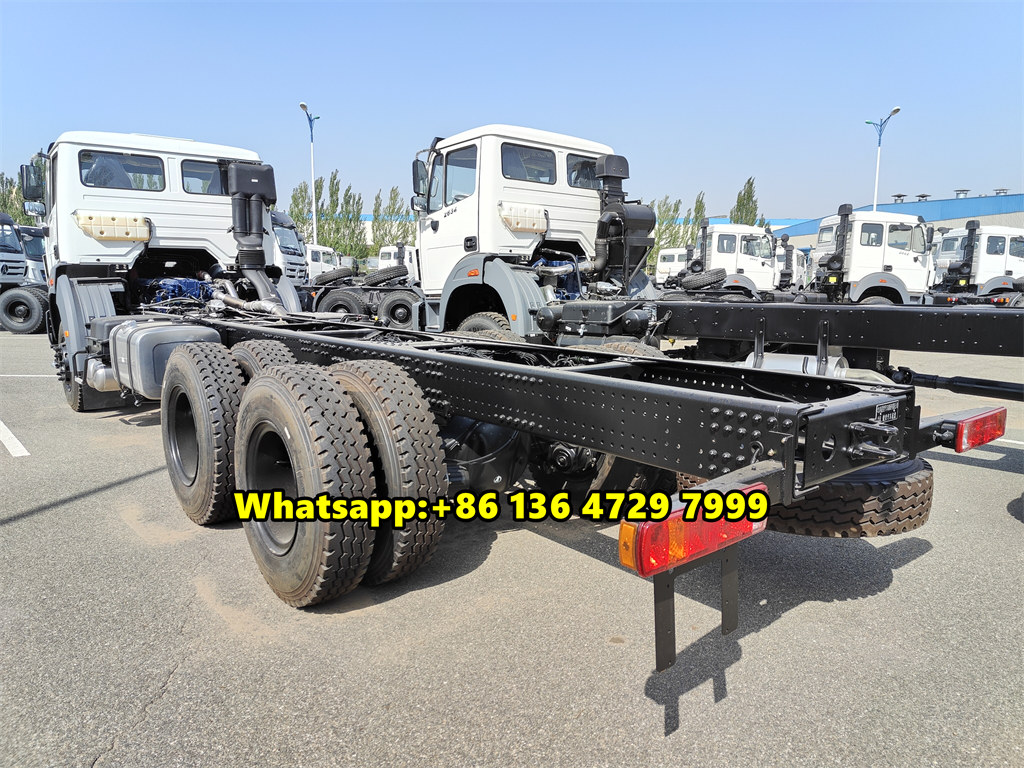

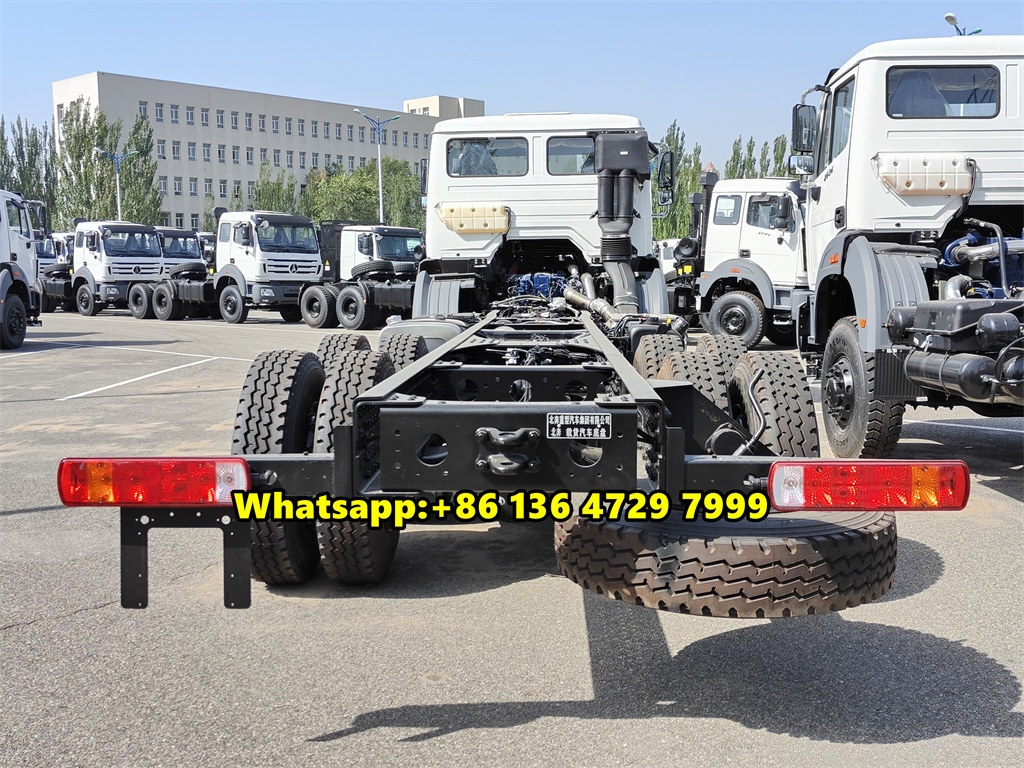

Beiben 2527 truck chassis with 2 / 4 bolts
| Heavy Duty Beiben 6X4 Cargo Lorry Truck Chassis |
| Wheel base (mm) |
4450+1450 |
| Curb weight (kg) |
9200 |
| Gross towing trailer weight (kg) |
Overloading up to 100 tons |
| Max Speed:(Km/h) |
≤90 |
| Dimension(Length*Width*Height) |
9200×2500×3200mm |
| Front overhang/rear overhang (mm) |
1410/740 |
| Approach angle/Departure angle |
26/64 |
Engine(WEICHAI)
|
Model |
WP10.290E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged |
| Fuel type |
Diesel |
| Emission |
EUROIII |
| Displacement(L) |
9.726 |
| Fuel tanker capacity (L) |
400L Carbon Steel
|
| Clutch |
Φ430, Diaphragm Spring,Hydraulic boosting |
| Gearbox |
FAST 9JS150, mechanical type,9 Forward speed gear. |
| Steering system |
ZF8098 |
Front axle (Mercedes Benz
Technology) |
Double-shoe pneumatic brake,7.5tons non-driving steering axle |
Middle and Rear axle
(Mercedes Benz technology) |
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263 |
| Tire |
12.00R20 radial tire 11 (10+1) |
Cab
|
NG80B Long cab with single sleeper,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly; |
Painting & Logos
|
100% customized
|
