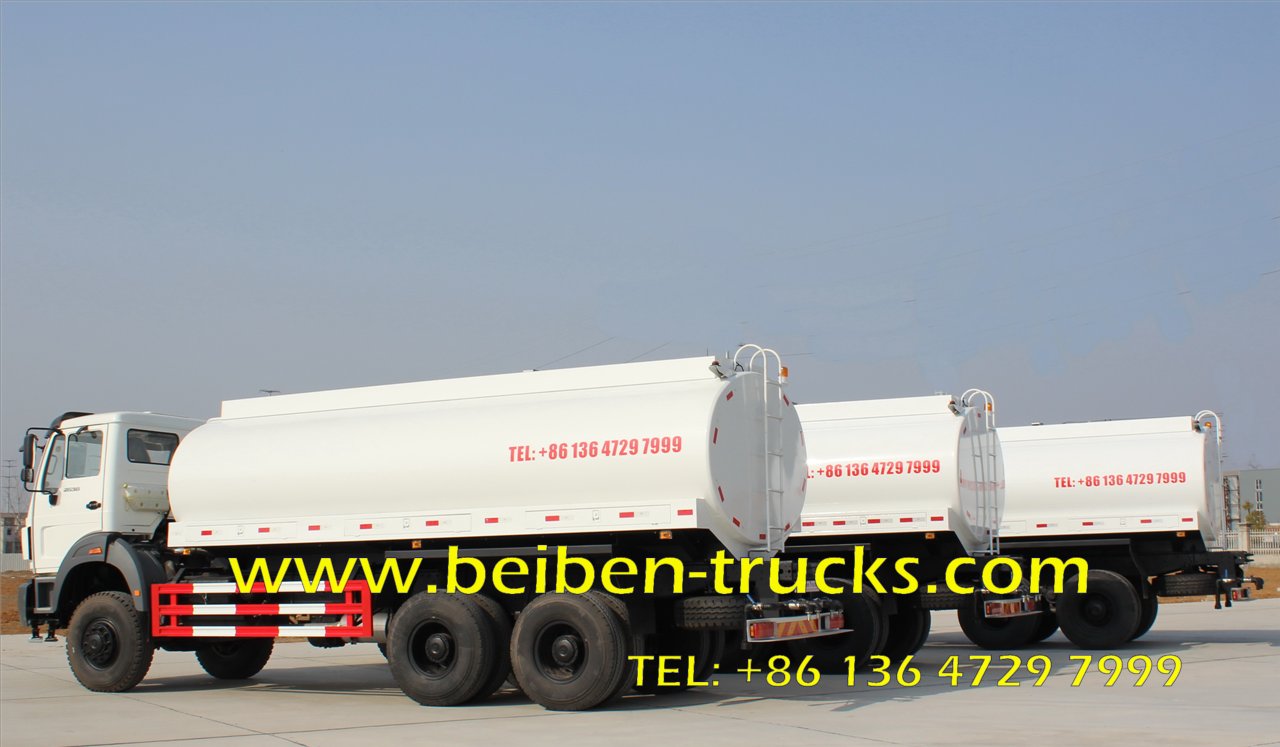

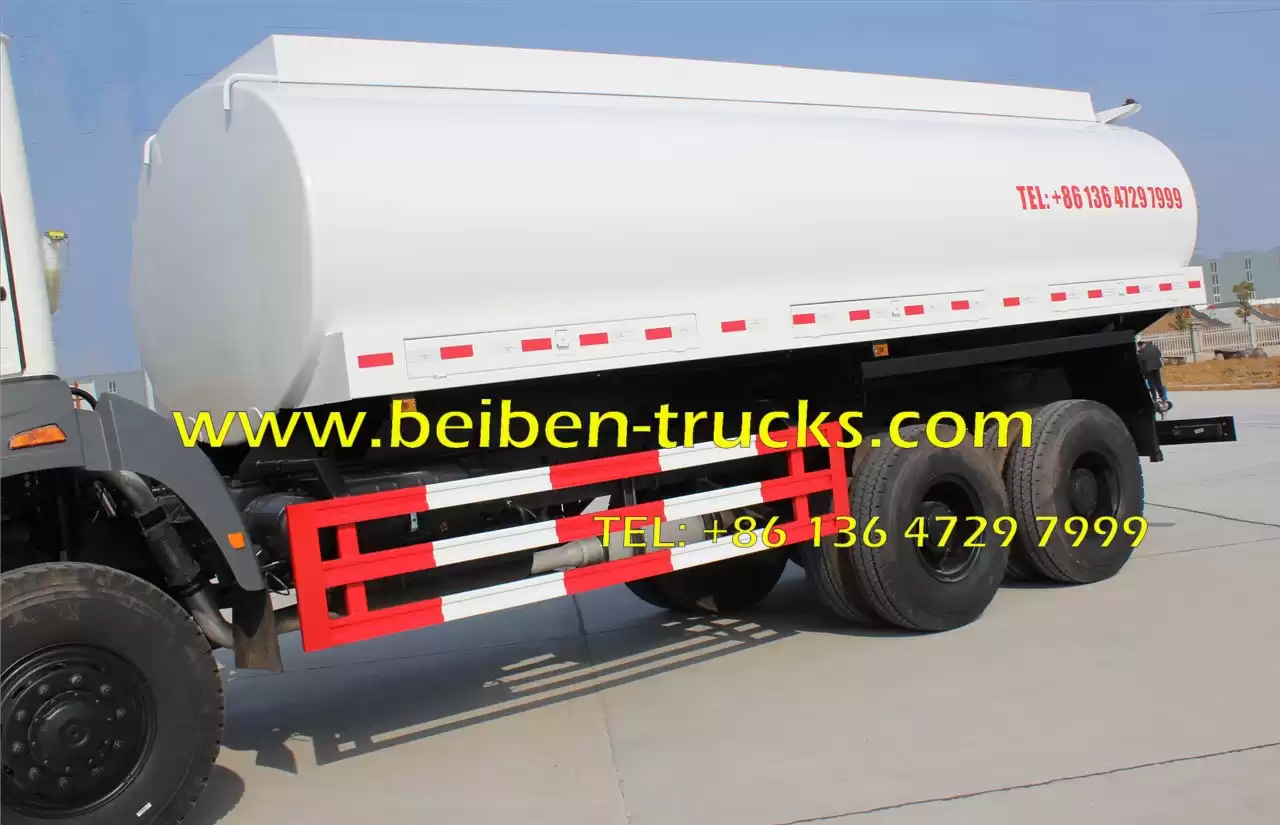

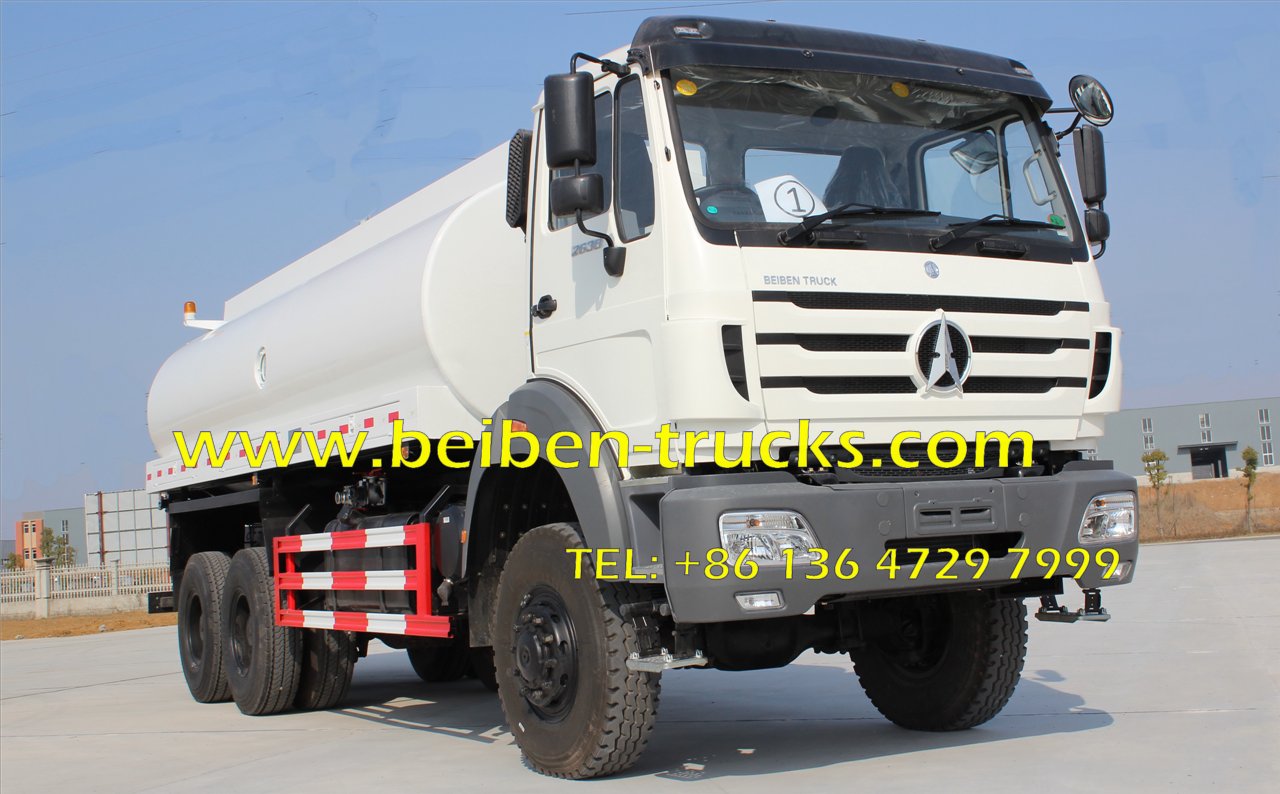

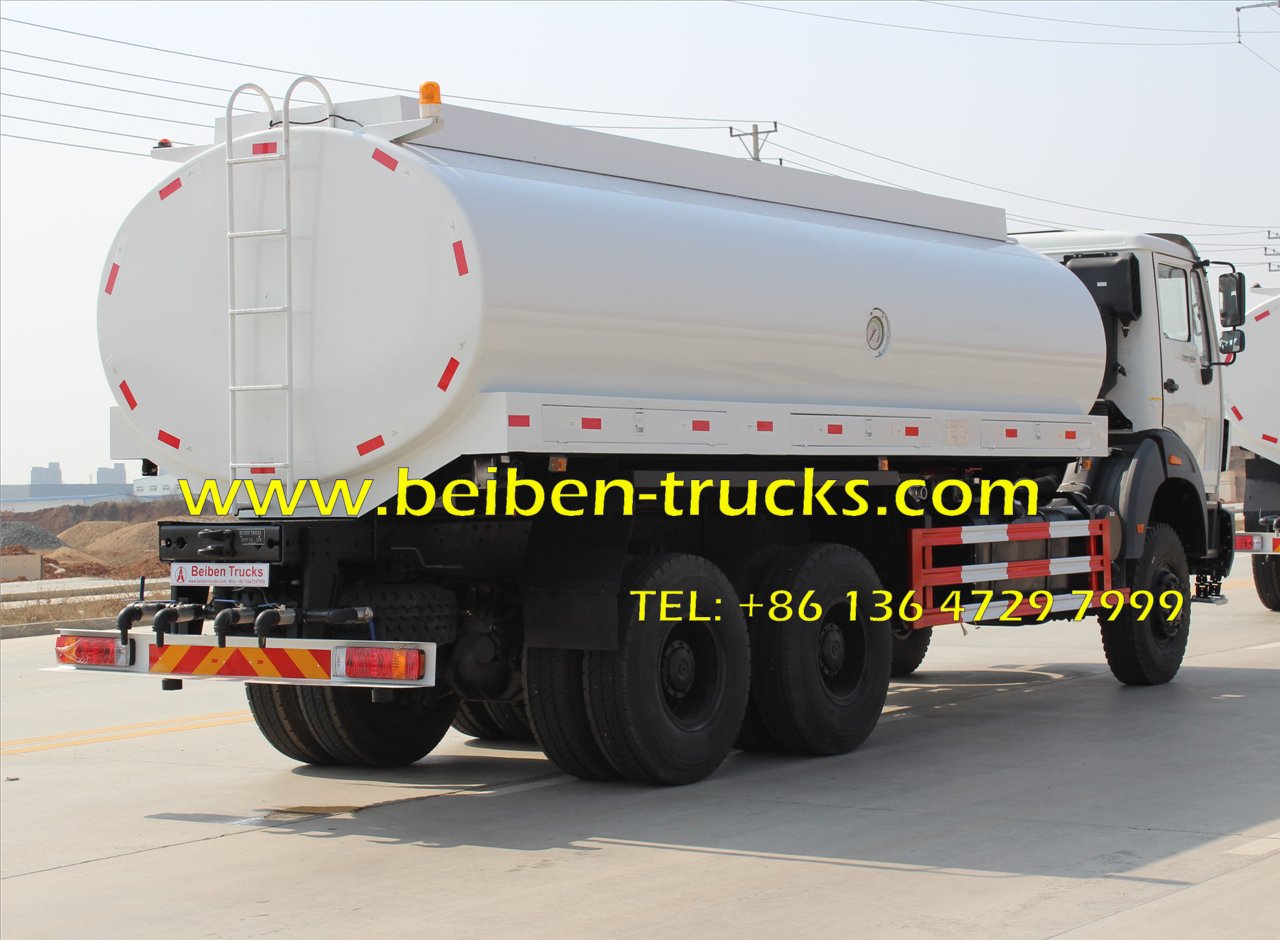

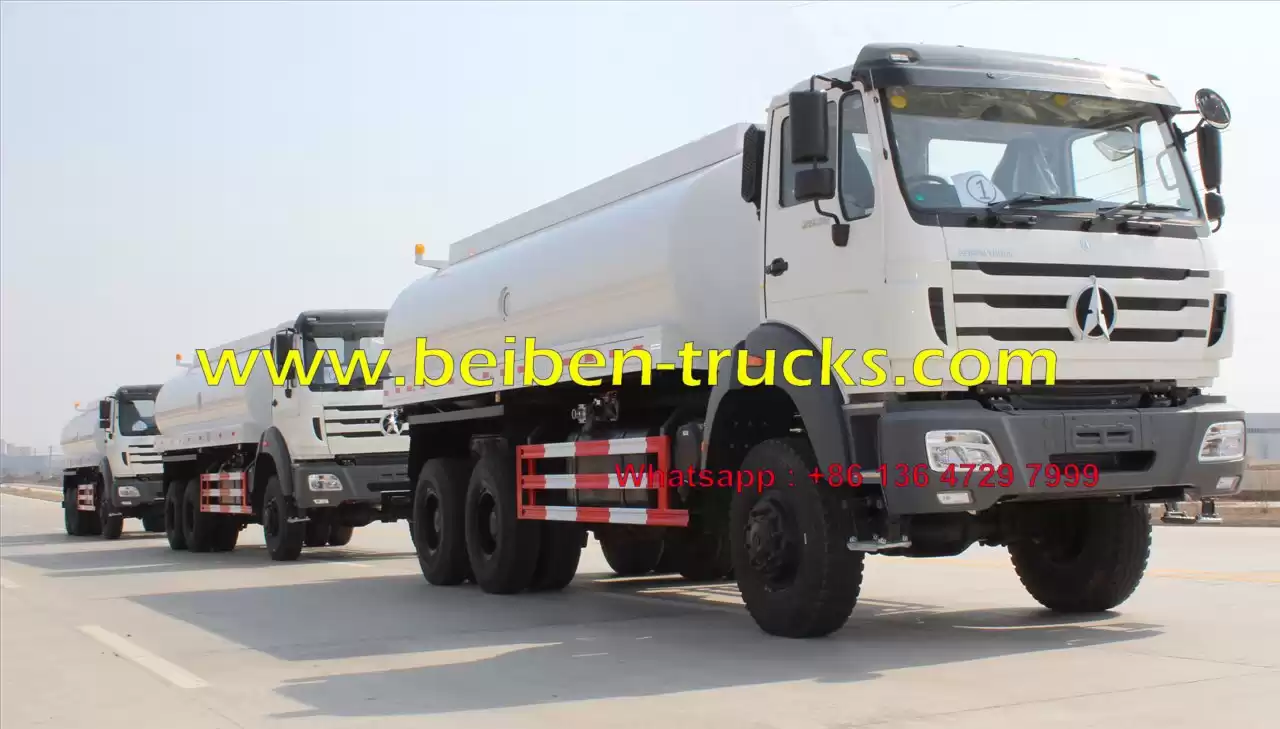

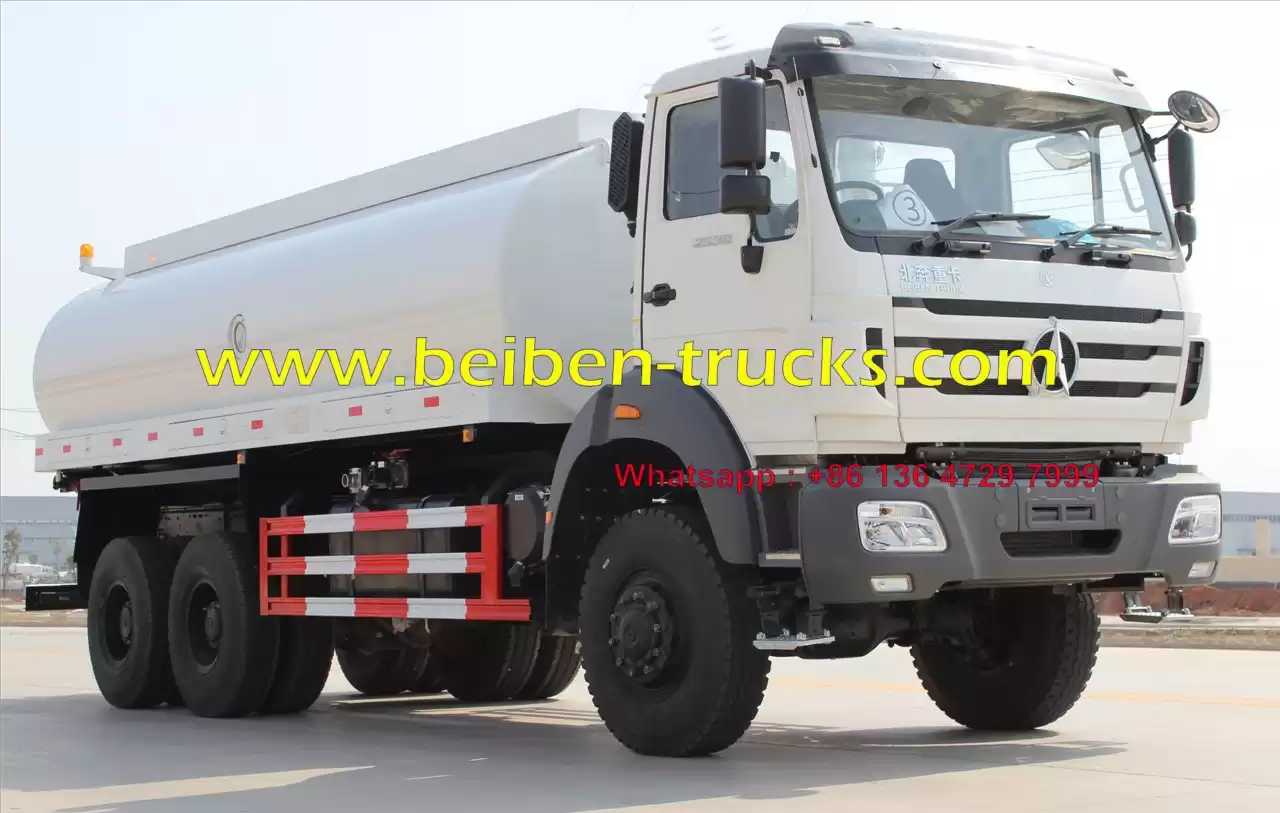

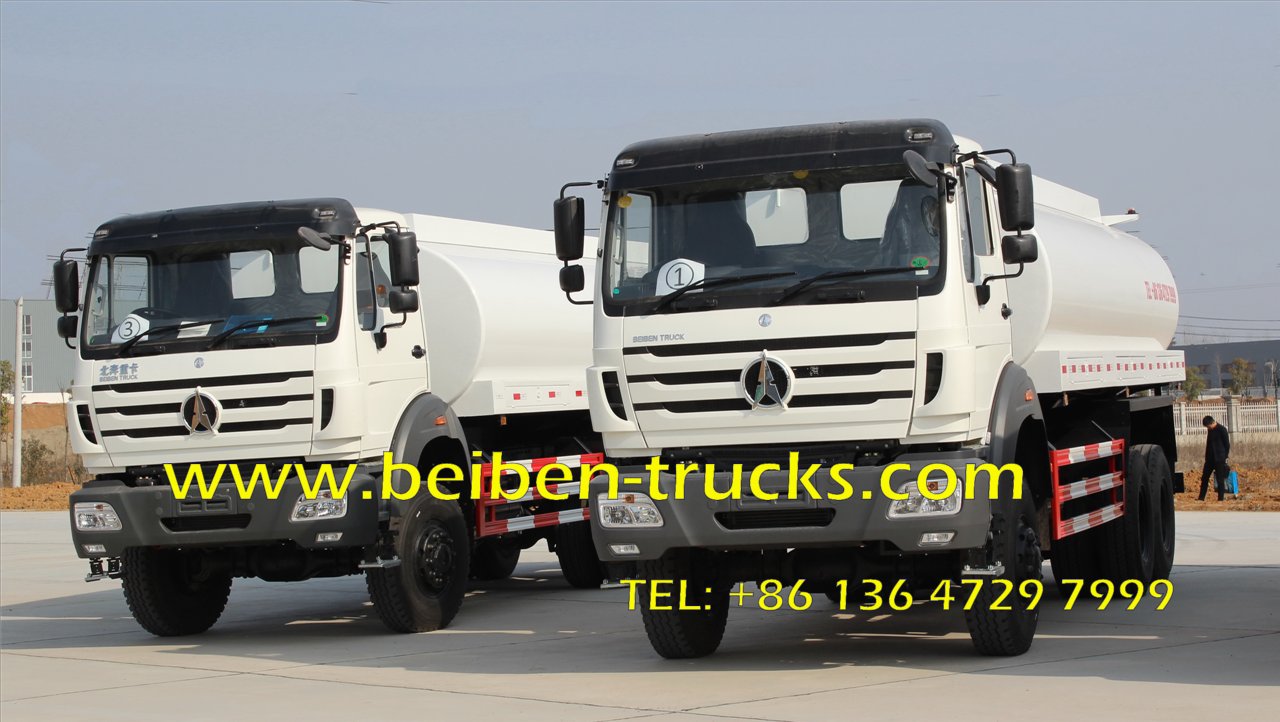

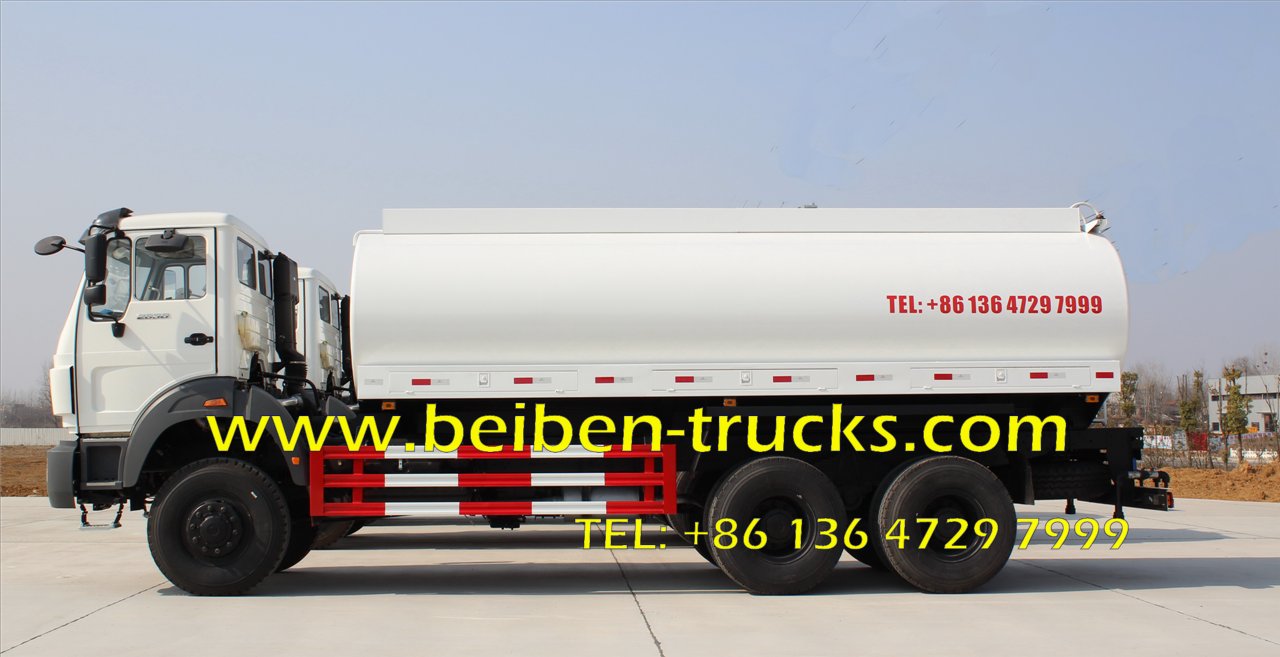

Beiben 6x4 water carrier truck water spray truck for sale

Beiben 6x4 water carrier truck water spray truck for sale
1 Powerful ability
2 Famous brand engine
3 Long history
SGS,BV,CCIC



Beiben 6x4 water carrier truck water spray truck for sale


Beiben 6x4 water carrier truck water spray truck for sale

1 Powerful ability
2 Famous brand engine
3 Long history
SGS,BV,CCIC







----Beiben 4*4,6*6,8*8 drive water tanker trucks in hot sales!


Description:

  1. Comfort: Beiben brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.
  2. Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.
  3. Effective: Save more oil, attendance is high. And the mixing volume of tank is huge, with the huge horse power engine, can be adapted into all kinds of construction field.

Traction type

6X4

Driving type

Left hand driving

Dimension(Lx W xH)(unloaded)

10576×2500×3130

Approaching angle/Departure angle(°)

26/20

Overhang(front/rear)          (mm)

1410/2666

Wheel base                   (mm)

5050+1450

Max speed                 (km/h)

90

Curb weight                 (kg)

12000

Loading Weight          (kg)

15,000-20,000

Engine

Steyr technology, made in China

Model

WD12 336,water-cooled,four strokes,

6 cylinders in line,

turbocharged,

directly injection With the exhaust valve brake

Displacement     (L)

11.596/Diesel

Bore X stroke     (mm)

126/155

Max power      (kw/rpm)

248/2200 (336hp)

Max torque   (Nm/rpm)

1350/1300-1600

Emission

EURO III

Fuel tanker            (L)

400

Clutch

Model

430 Diaphragm type

Gearbox

Model

9JS150A (Fuller)

mechanism,9gears,1reverse gear, manual,

Brake system

Service brake

Brake gap can be adjusted automatically,

double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing

 on middle and rear wheels

Steering system

Model

TAS85

Frame

Fish belly, shape, variable width, variable sections,

side beam structure

Front axle

Double-shoe pneumatic brake,

non-driving steering axle



Middle and Rear axle

Double-shoe pneumatic brake, casting,

double reduction driving axles



Tyre

12.00-20 bias tyre Number of tyre:10+1 spare

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

                       Water tank

Steel quality

Q304 stainless steel

Compartment

Single

Loading valve

1

Discharge valve

1

Pump

1

Tube

10meters

Tank capacity (Liter)

20m3

Thickness of the tanker body

the thickness of the shell is 4mm approx;

Dish ends

the thickness of the shell is 5mm approx;

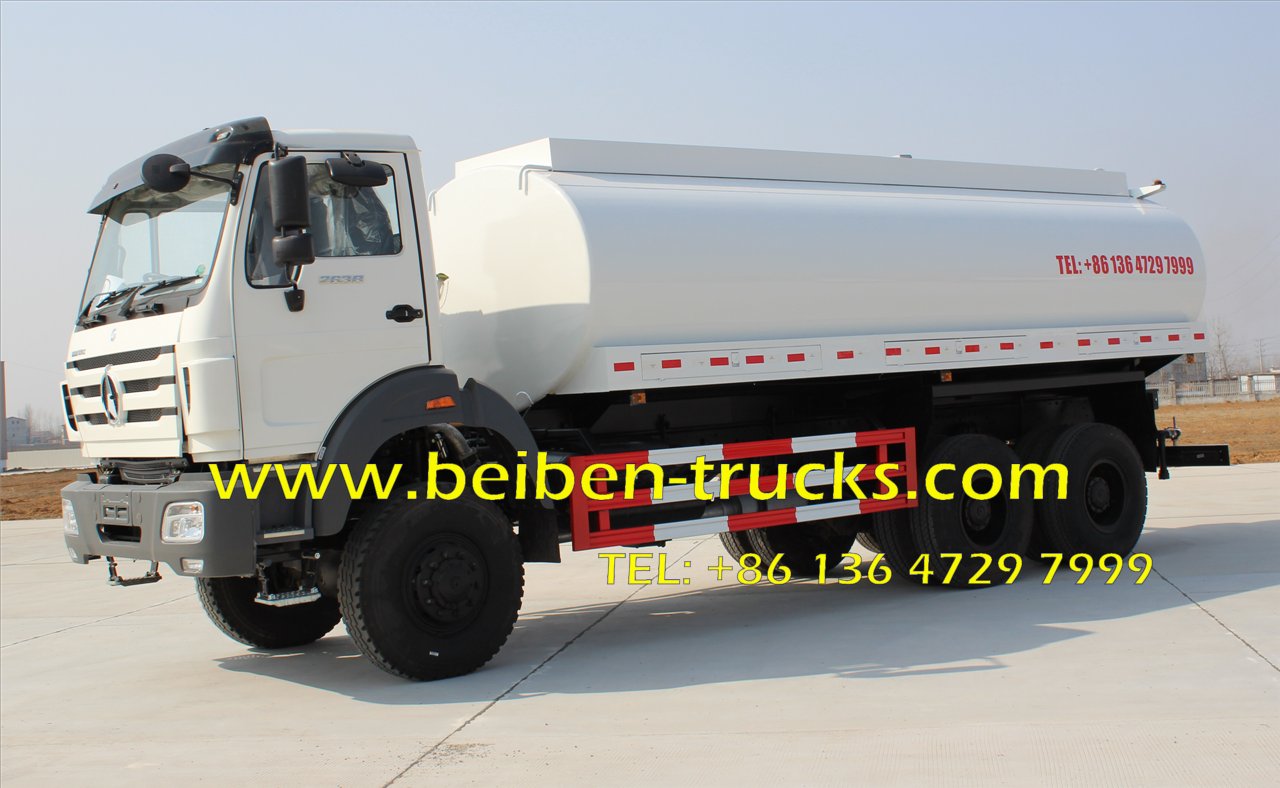

Beiben 6x4 water carrier truck water spray truck for sale

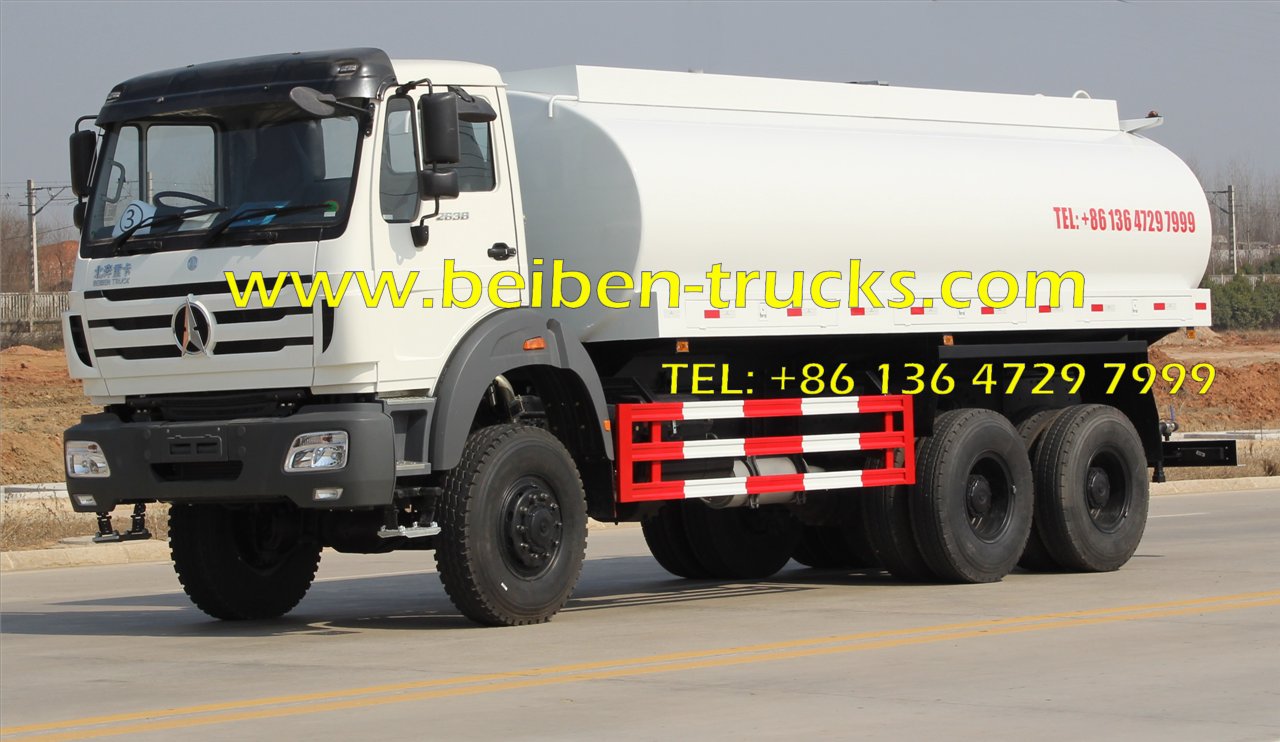

Beiben 6x4 water carrier truck water spray truck for sale

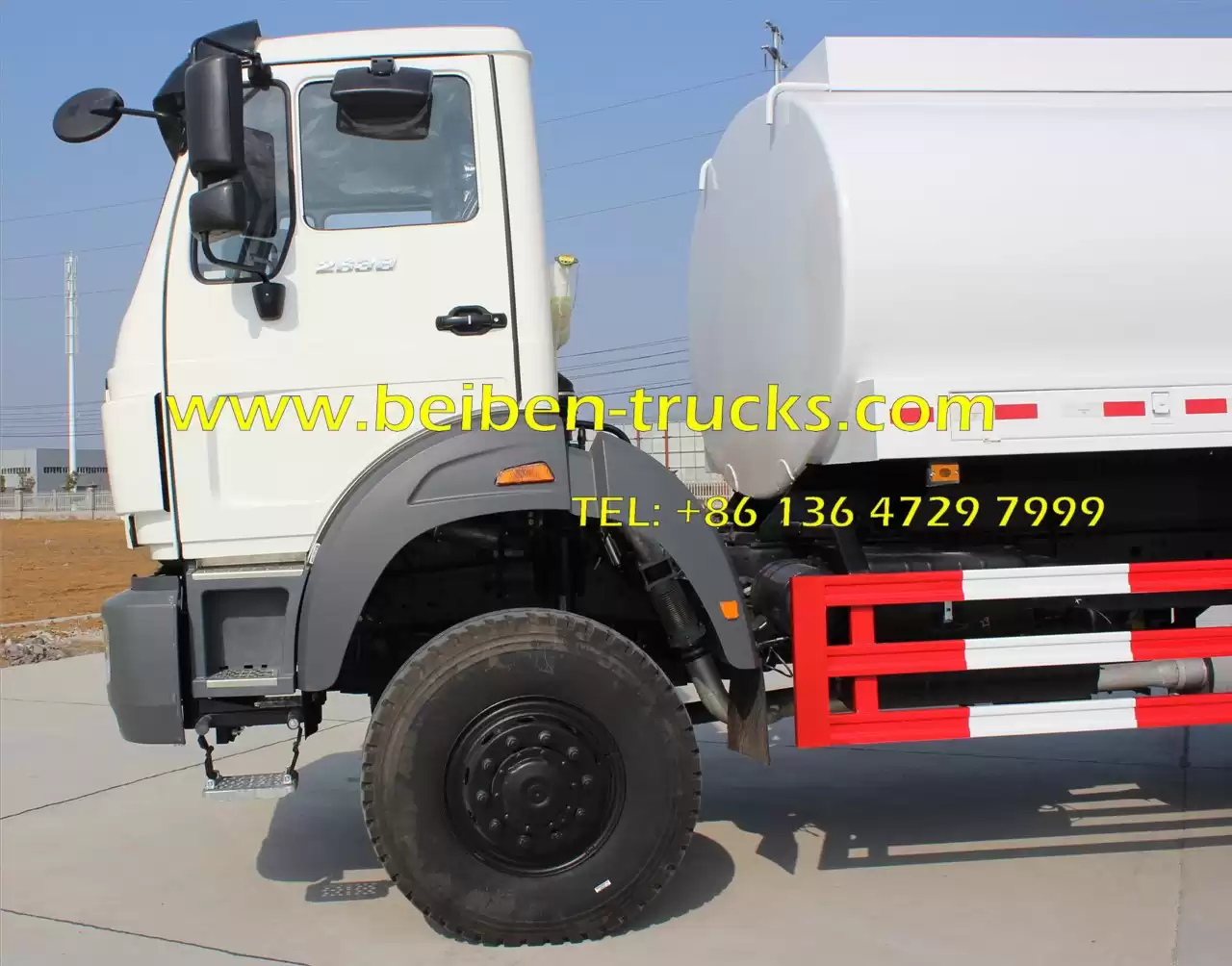

Beiben 6x4 water carrier truck water spray truck for sale

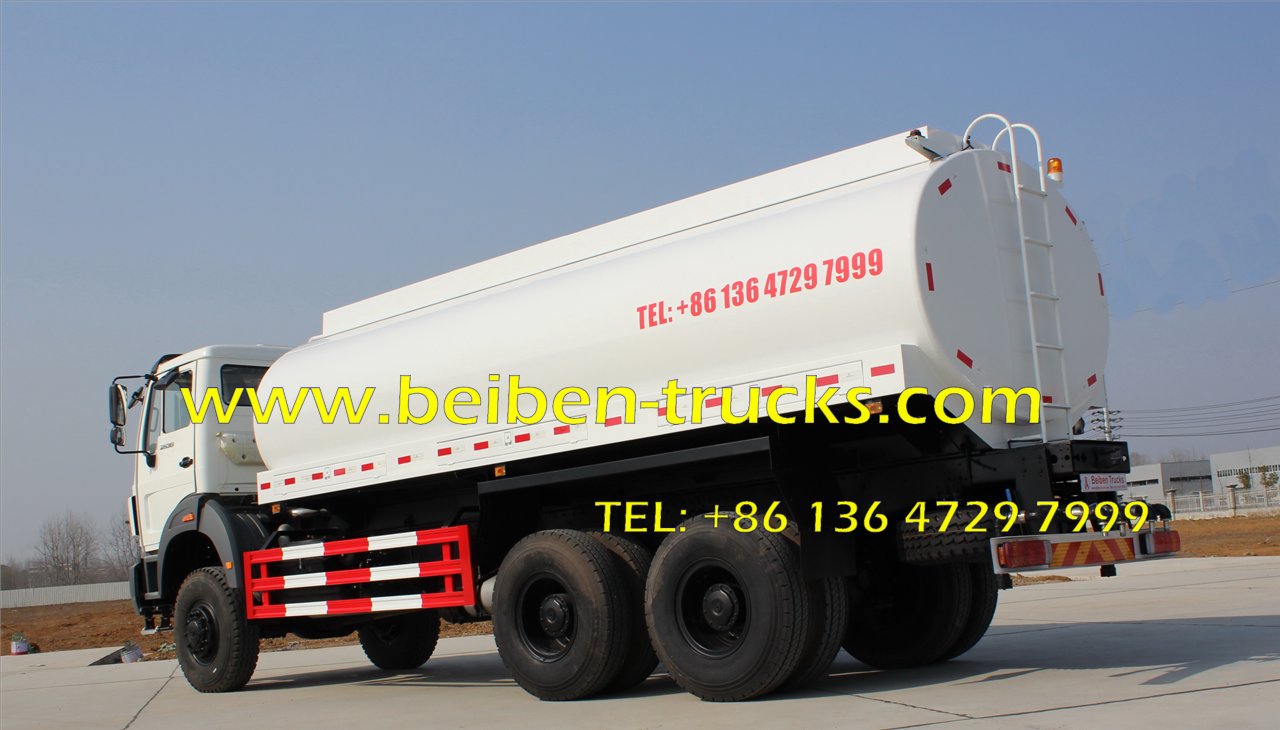

Beiben 6x4 water carrier truck water spray truck for sale
