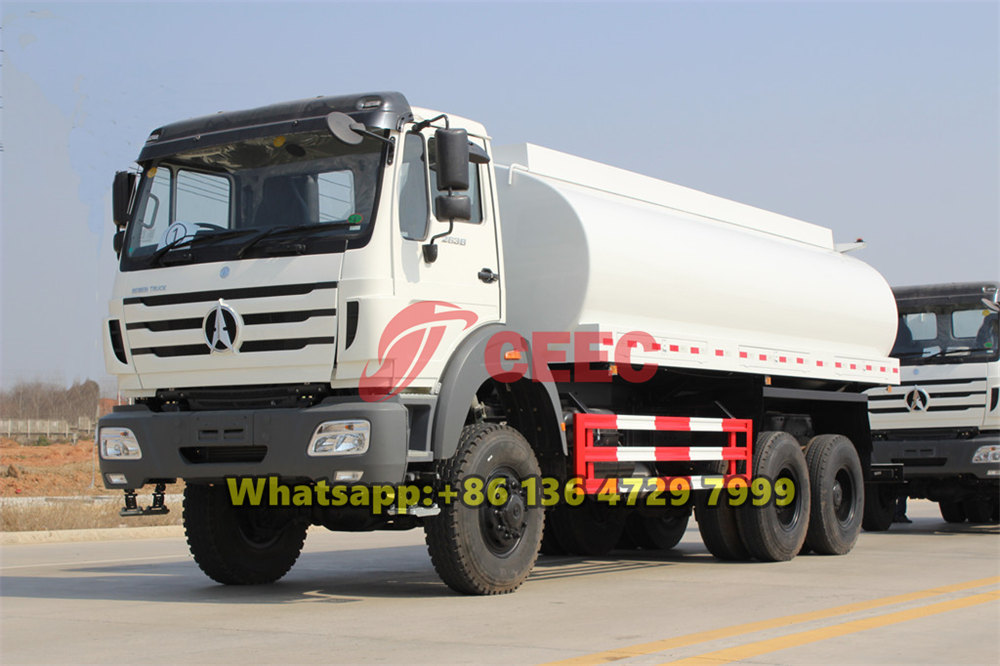

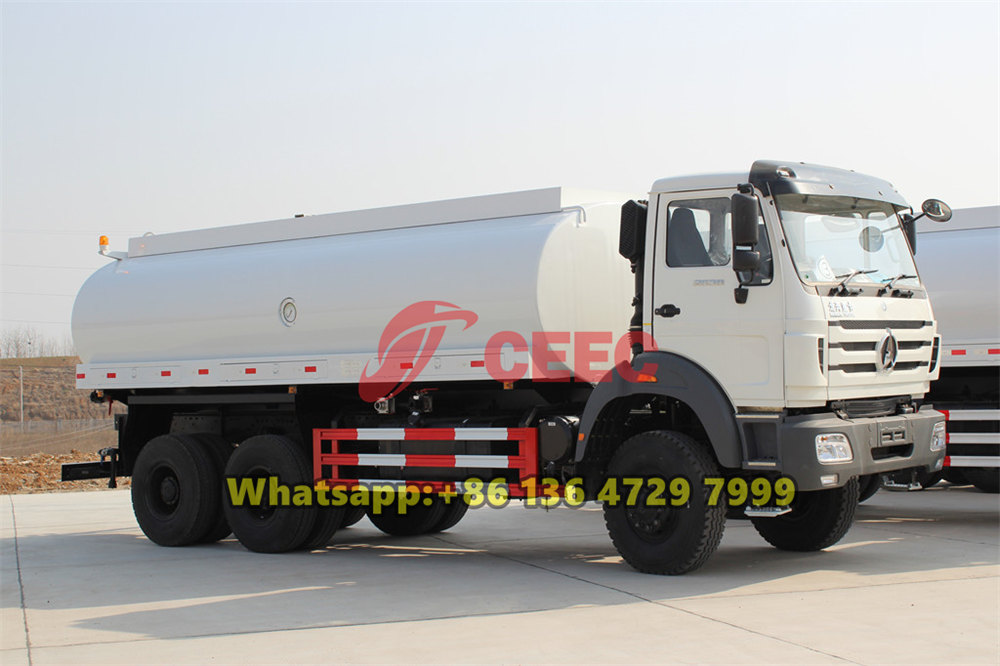

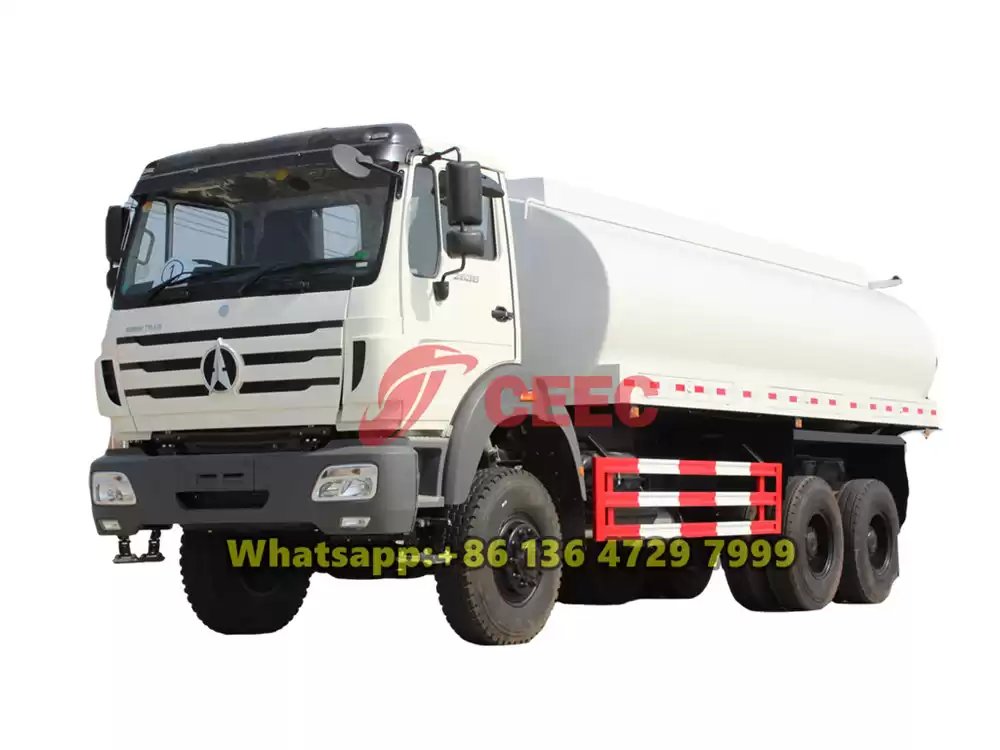

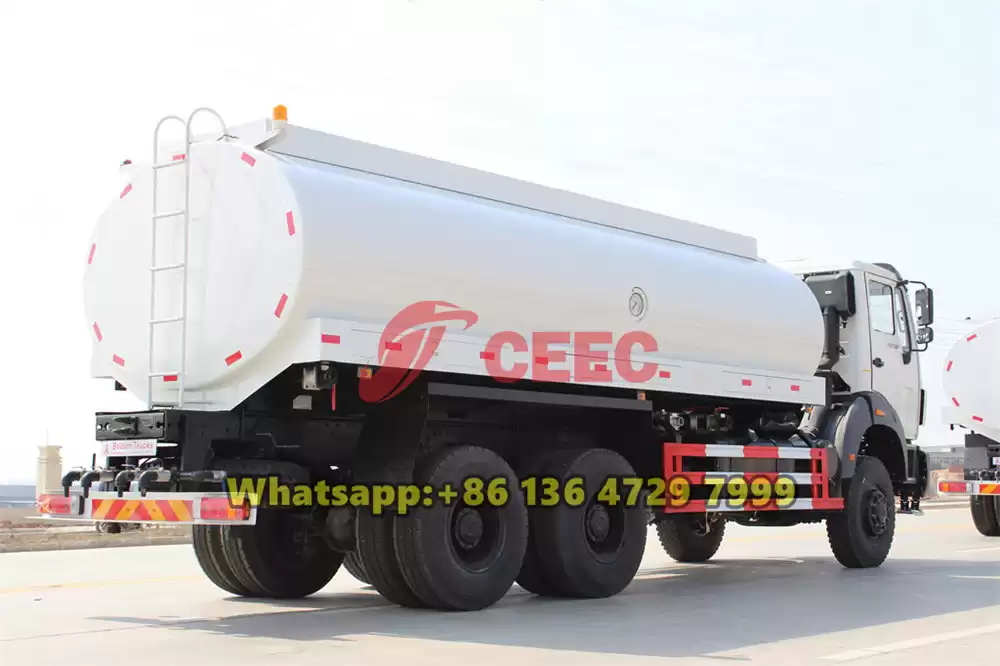

Beiben 6x6 20000 liters water tanker truck

The Beiben 6×6 all-wheel drive water truck, with a gross vehicle weight of 25,000kg, is equipped with a Weichai 380HP engine, a 20,000-liter large-capacity water tank, and an efficient water pump. It features front, rear, side spraying capabilities, as well as a high-pressure water gun. Its sturdy design, powerful engine, efficient operational capabilities, and convenient operation make it an ideal choice for urban road cleaning, fire-fighting assistance, and green space irrigation.


  • Production time40 days
  • Payment termsT/T
  • Working Capcity20000 liters
  • Engine power380 HP
  • Drive system6×6 all wheel drive

Product Description



The Beiben 6×6 all-wheel drive water truck is a professional vehicle that combines efficient operation, powerful performance, and versatile applications, specifically designed to tackle complex terrains and diverse tasks. With a 6×6 drive configuration, it boasts excellent off-road capability and stability, effortlessly navigating rugged terrains and challenging road conditions. The gross vehicle weight (GVW) is 25,000kg, providing strong load-carrying capacity that fully meets the demands of large-scale water transportation. With a wheelbase of 3,800+1,450mm and dimensions of 10,200×2,500×3,050mm, it ensures vehicle flexibility while offering ample loading space. The front axle has a load-carrying capacity of 7.5 tons, and the rear axle 13 tons, coupled with 12.00R20 standard tires (10 tires + 1 spare tire), ensuring stability and safety under full load conditions.





One of the core advantages of the Beiben 6×6 AWD water tanker truck is its 20,000-liter large-capacity water tank. Made of high-quality carbon steel (Q235) with internal corrosion protection, it possesses high strength and corrosion resistance, ensuring long-term and stable operation. The vehicle is equipped with an 80QZF-60/90N water pump, with a flow rate of 60 cubic meters per hour, a lift of 90 meters, and a self-priming function that takes only 1.5 minutes at a height of 4 meters, boasting an efficiency of up to 95%. The pump's matched power is 22kW, enabling it to complete large-scale water spraying tasks in a short period.

The Beiben 6×6 off-road water bowser is equipped with multiple spraying functions to meet the operational needs of different scenarios. It features front, rear, and side spraying capabilities, enabling comprehensive road cleaning and dust suppression operations. The rear working platform is also equipped with a high-pressure water gun, suitable for fire-fighting assistance and localized cleaning tasks. Additionally, the vehicle has gravity flow and self-priming functions, allowing for rapid water extraction and discharge. These versatile designs make this water truck not only suitable for urban road cleaning but also play a significant role in fire fighting, green space irrigation, and other fields.





Product Specifications



Main Specification

Product Name

Beiben water truck 20000 liters

Driving Type

6x6, left hand drive

Weights

GVW (kg)

25000

Curb weight(kg)

11545

Dimensions

Wheelbase(mm)

3800+1450

Overall Dimension(mm)

10200×2500×3050

Tank

20000liters

Engine

Engine model

WP10.380E32

Engine type

4 stroke water-cooled, Inter-cooling, turbocharged

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726L

Rated power (Kw/rpm)

280kw/2200rpm

Hose power

380HP

Max Torque (N*m)/Rev(rpm)

1600N.m/1500~1800rpm

 Drive Line

Transmission

9JS150,9 forwards,1 reverse gear, manual operation

Steering

With power steering

Brake system

Air brake

Cab

Cab

NG80B short cabin

Standard configuration

A/C

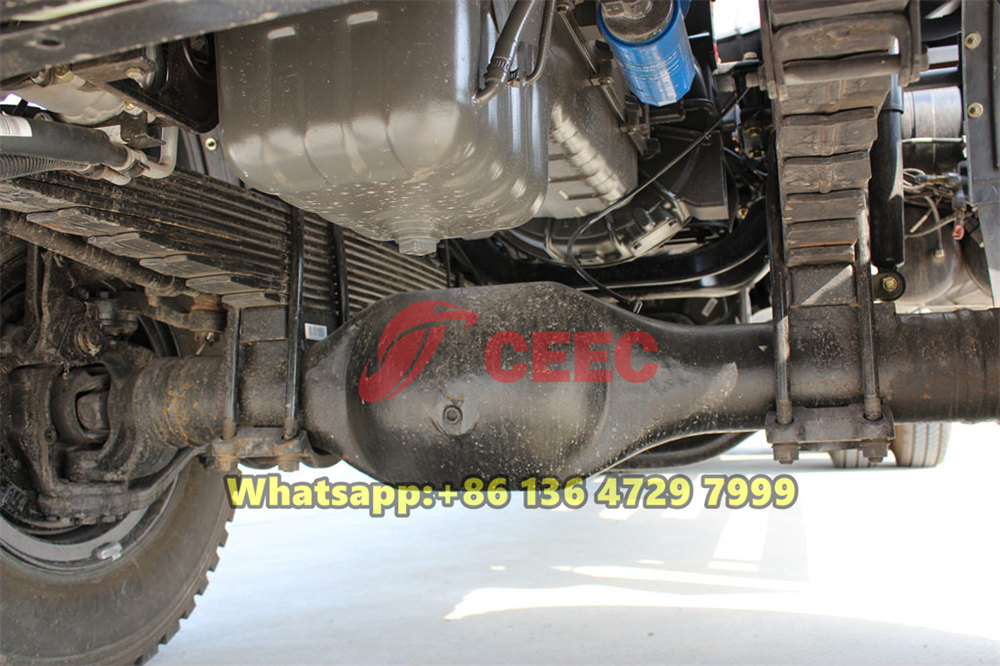

Axle

Front axle

7.5 tons

Rear axle

13 tons

Tire specification

Tire specification

12.00R20 standard tire,10 tires+1 spare tire

Specification of water truck

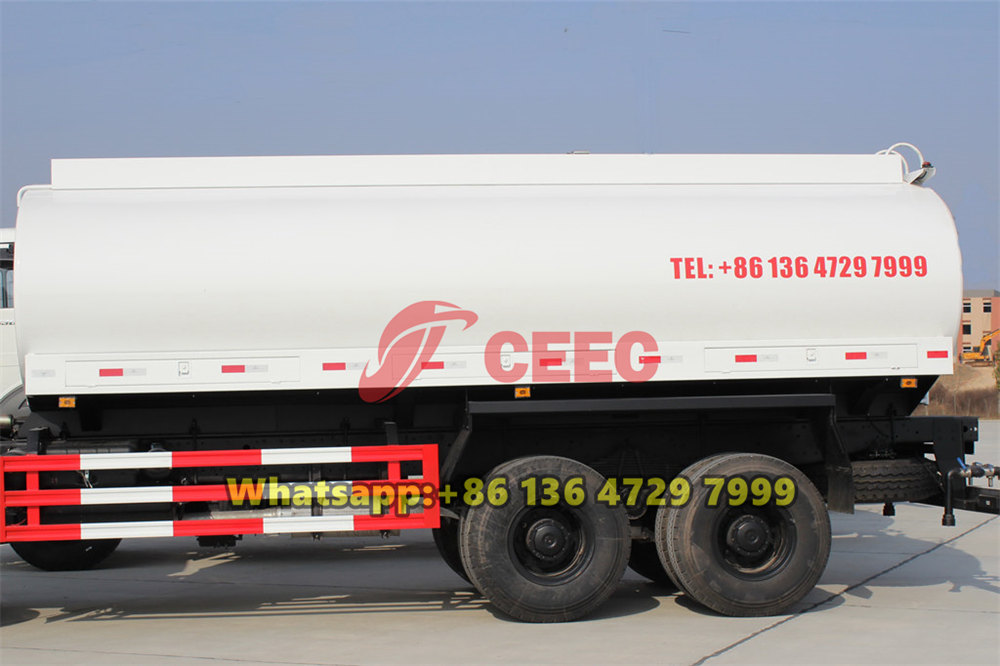

Water tank

20000liters

Water tanker material

High quality carbon steel (Q235)

Standard equipment

with water pump

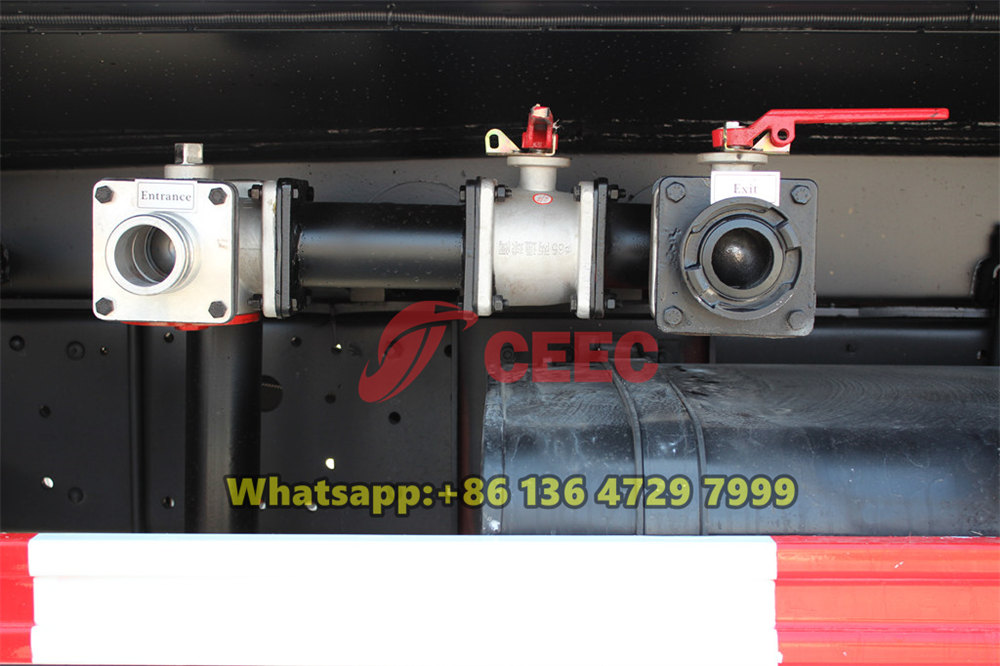

with fire coupling, self-flow and self- priming function.
with front spray, back spray and side spray function,
with high-pressure water spray gun on the working platform at the back of truck.

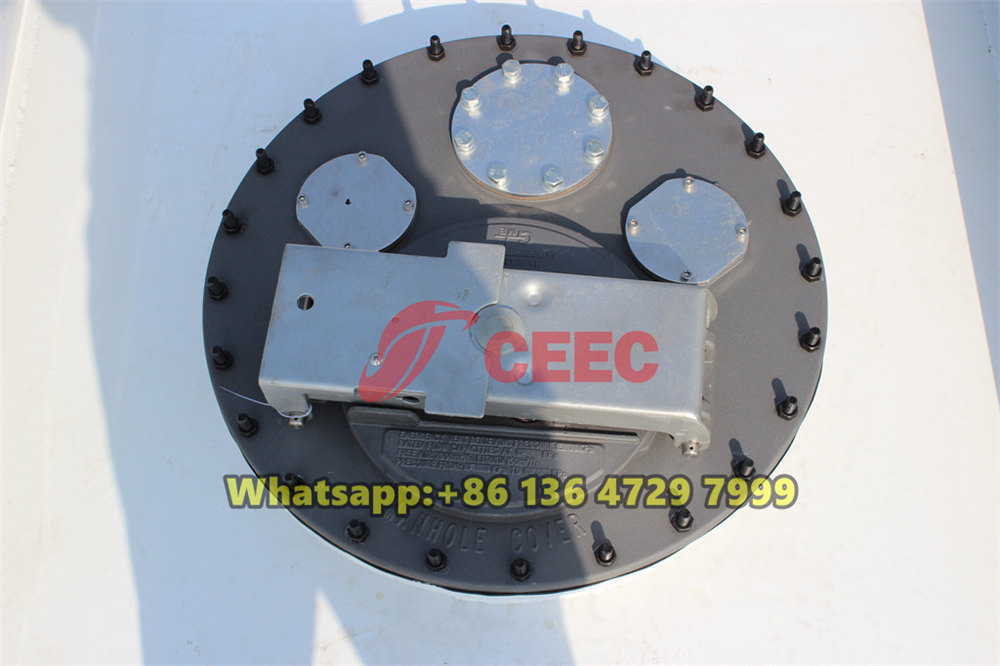

Manhole

1 units DN500mm manhole

Horse reels

2 pcs hose reels at each side of the truck

Water pump

Water pump model: 80QZF-60/90N
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Self-priming function(min/4m):1.5
Efficiency(%):95%
Related rotate speed(r/min)1180
matched power(kw):22

Water tank

20000liters

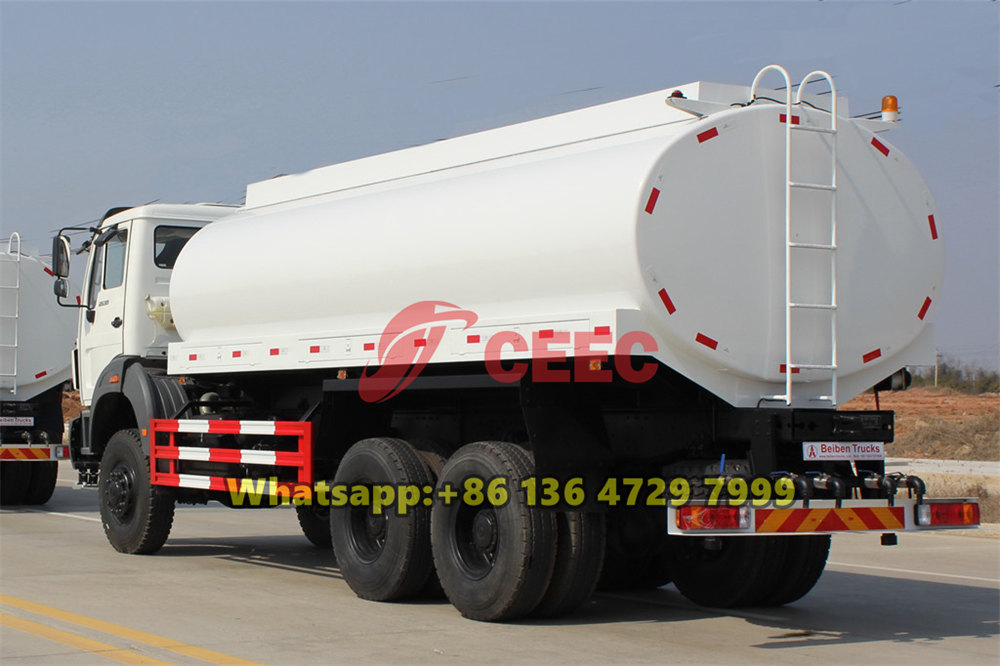

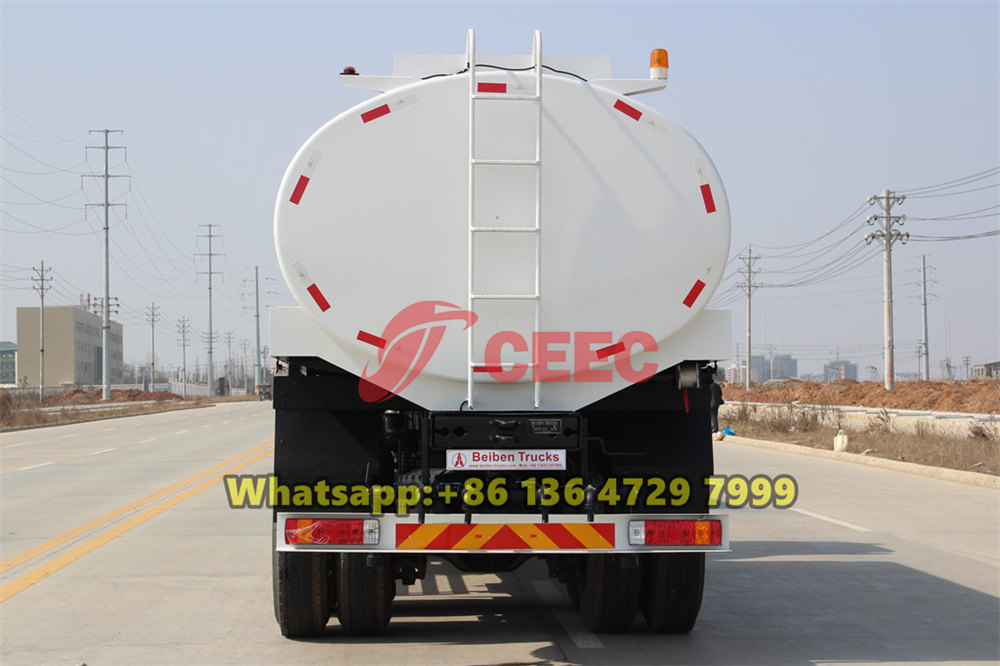

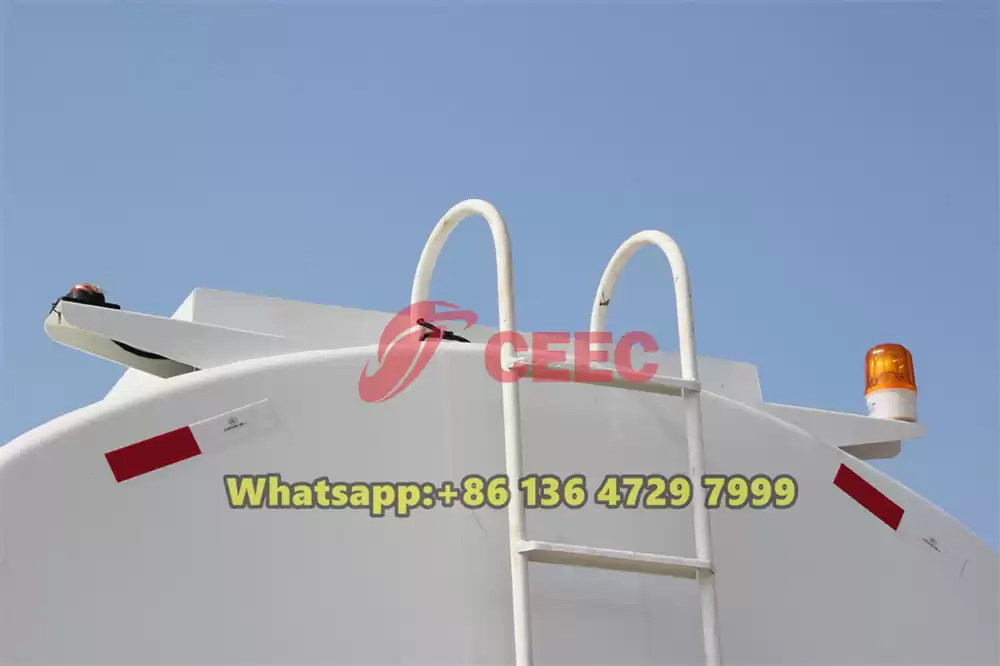

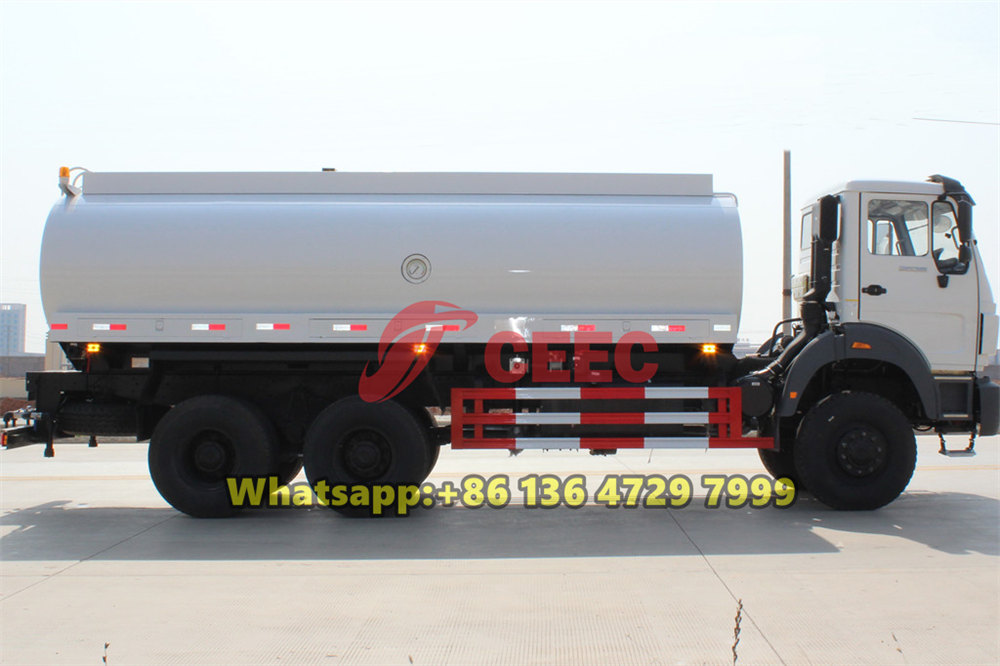

Product Details
