Beiben 6x6 AWD heavy duty truck chassis

The Beiben 6×6 AWD truck chassis is renowned for its excellent performance and sturdy structure, making it suitable for logistics transportation, off-road exploration, and other fields. It features a 6×6 all-wheel-drive system and is equipped with a 420 horsepower diesel engine, paired with a 12-speed manual transmission for powerful performance. The chassis frame is welded with high-strength steel, ensuring strong load-bearing capacity. With a wheelbase of 4450+1450 millimeters, a gross vehicle weight of 25 tons, and a payload capacity exceeding 20 tons, it boasts impressive specifications. The dual-circuit air brake system and WEVB auxiliary braking enhance safety. The comfortable cab is equipped with amenities such as heating and air conditioning.


  • Production time30 days
  • Payment termsTT
  • Working Capcity40 tons
  • Engine power420 HP
  • Drive system6×6 all wheel drive

Product Description



In the field of heavy-duty transportation, the Beiben 6×6 off-road truck chassis has become the preferred choice across multiple industries, thanks to its unique all-wheel-drive system, powerful load-carrying capacity, and exceptional off-road capability.





The Beiben 6×6 AWD truck chassis is equipped with a WP12.420E32 diesel engine, delivering robust power output. This engine not only boasts high power and torque but also incorporates advanced turbocharged intercooling technology, enhancing fuel economy and emission performance. Coupled with a 12-forward and 2-reverse synchronized manual transmission, it ensures smooth gear shifting and agile handling, providing a solid foundation for efficient transportation.

With its powerful performance and reliable quality, the Beiben 6×6 chassis is widely utilized in various fields, including logistics transportation, off-road exploration, construction engineering, and special-purpose vehicle modifications. Whether it's heavy-load transportation, challenging road conditions, or specialized needs, this chassis can handle them all with ease. Its broad adaptability and diverse application scenarios offer users more options and possibilities.

Performance Features:

• Superior Off-Road Capability: The 6×6 all-wheel-drive system, combined with a 34° approach angle and a 24° departure angle, enables the Beiben 6×6 AWD truck to effortlessly navigate steep slopes, muddy roads, and other complex terrains, making it the top choice for off-road transportation.


• Efficient Power Output: The WP12 series engine is renowned for its efficiency and low emissions. Not only does it meet the EURO 3 emission standards, but it also achieves high power output and low fuel consumption through advanced turbocharging technology, reducing operational costs.


• Safety and Reliability: The dual-circuit air brake system, coupled with WEVB auxiliary braking, provides multiple layers of safety. Even during long downhill descents, it effectively controls vehicle speed, preventing brake overheating and ensuring safety.


• Comfortable Driving Experience: The NG80 long cab design features a sleeper berth, heating and air conditioning, a hydraulically suspended driver's seat, seat belts, and an FM/AM radio with a USB port. This creates a comfortable working environment for the driver, enhancing the comfort of long-distance driving.





Product Parameters



BEIBEN 6x6 AWD truck chassis Specifications

Emission Standard

EURO 3

Chassis type

Cargo truck type

Chassis model

ND1250

Driving Type

6×6, AWD

Dimensions

Wheelbase(mm)

4450+1450

Overall Dimension(mm)

Appro 9960×2500×3348

Weight parameters

GVW(kg)

25,000kgs

Curb weight(kg)

Appro 13,550kgs

Real load weight(kg)

More than 20,000kgs

Chassis parameter

Front axle

7 Ton load capacity, drum brake

Rear/middle axle

18Ton/axle (2 axle combined)
Dual-circuit air brake system, Benz double reduction with wheel side reducer

Front wheel track(mm)

1940

Rear wheel track(mm)

1847/1847

Front/rear overhang(mm)

1410/2530

Approach angle(°)

34

Departure angle(°)

24

Max speed(km/h)

85

Suspension

Leaf spring suspension

Engine performance

Engine model

WP12.420E32

Engine type

Straight in-line, 4 strokes, water-cooling, turbocharged with inter-cooling, diesel engine

No. of cylinders

6 cylinders

Displacement(L)

11.596 L

Max. output (KW)

309kw (420hp)

Fuel type

Diesel

Rated speed

2100 rpm

Max torque

1750 N.m

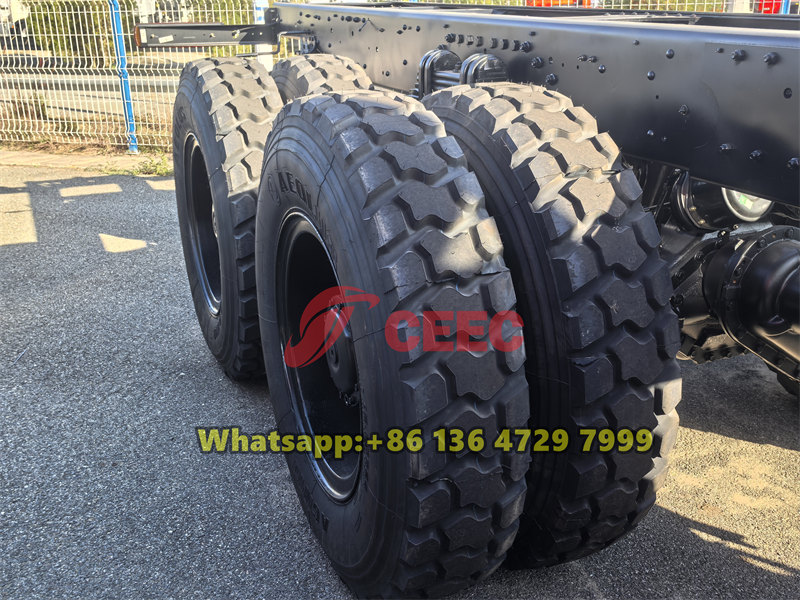

Tire specification

12.00R24, total 10 units tire+1 spare tire

Drive Line

Clutch description

φ430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance

Transmission

 12 forwarders, 2 reverse gear, synchronous meshing by manual

Braking system

 Service brake: Brake gap can be adjusted automatically double circulation air brake system
Assistant brake: WEVB (Engine exhaust brake)
Park brake: Spring brake effect to middle and rear tires

Suspension system

Front axle

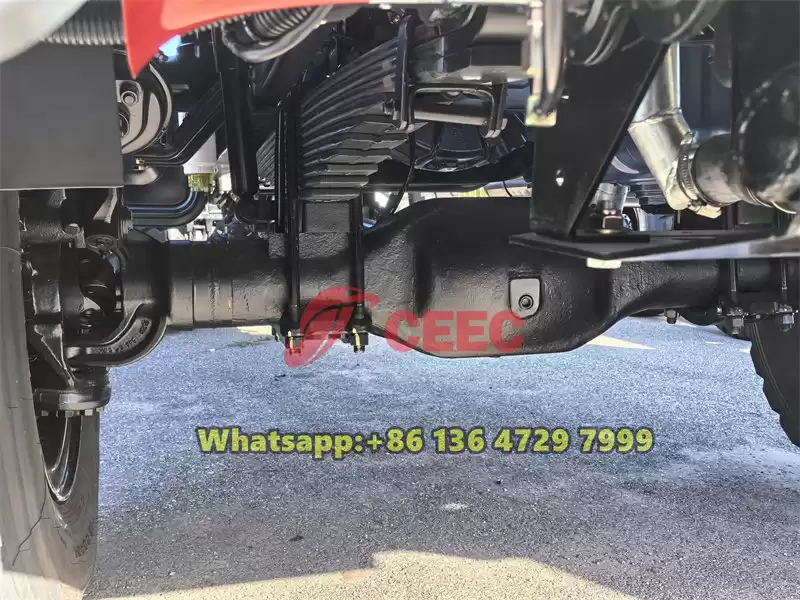

Semi-elliptic leaf springs shock absorbers

Rear axle

Torsion bar semi-elliptic leaf springs

Electrical Equipment

Voltage

24V

Batteries

2X12V/135Ah

Starter

6.2Kw/24V

Cab description

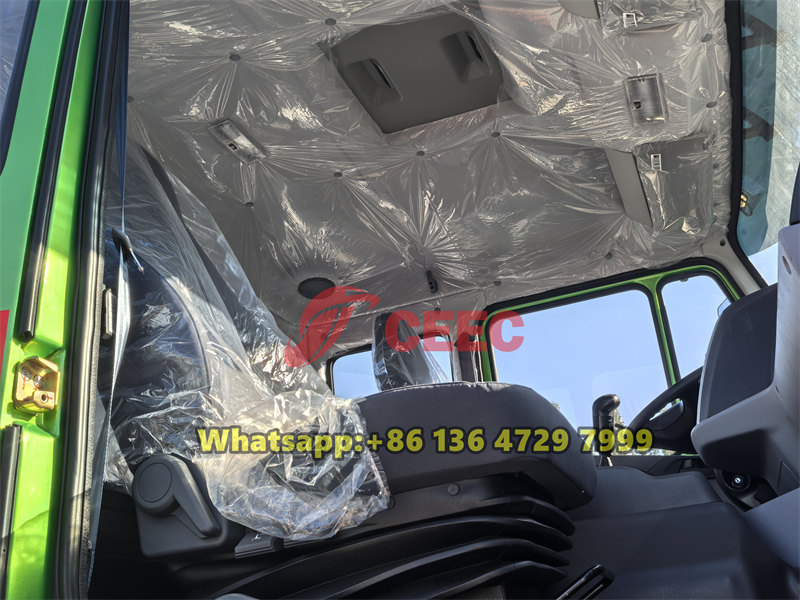

NG80 long cab, with one sleeper, cooling and heating air-conditioner, hydraulic suspension driver's seat, safety belt for driver and co-driver, with FM/AM radio player, USB interface

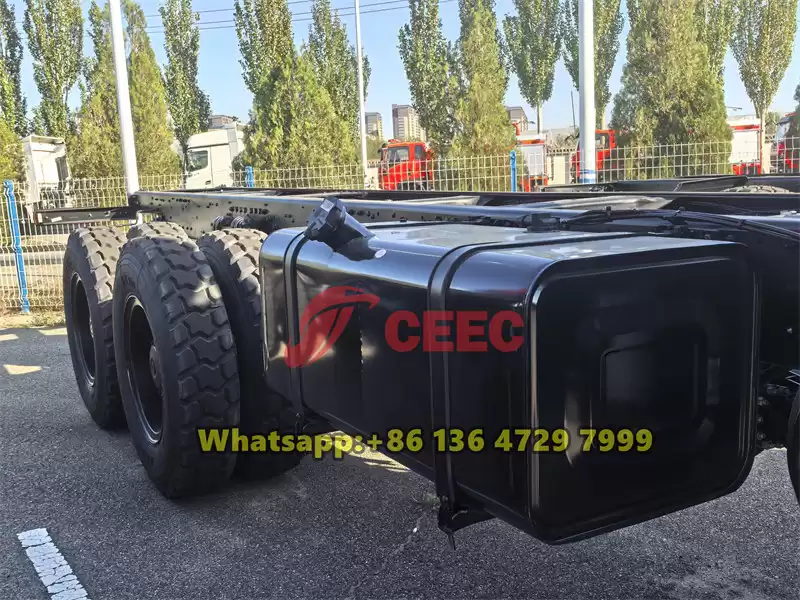

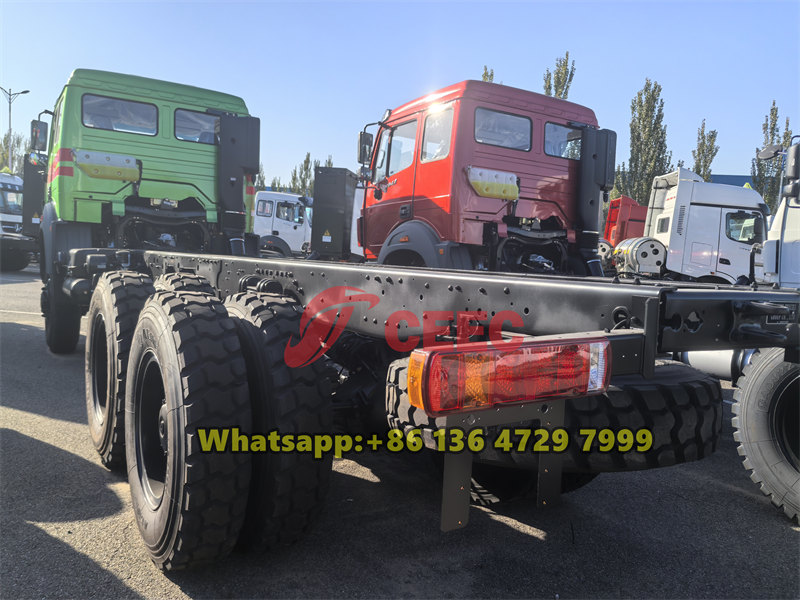

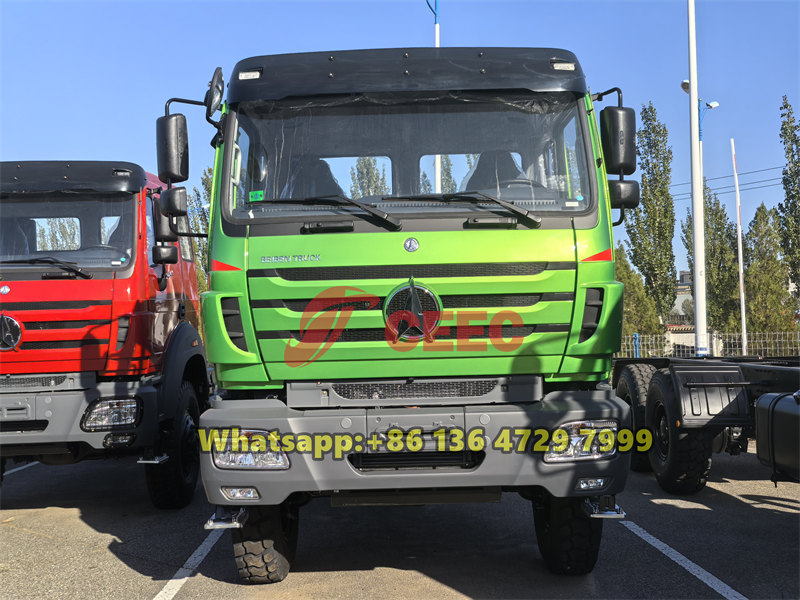

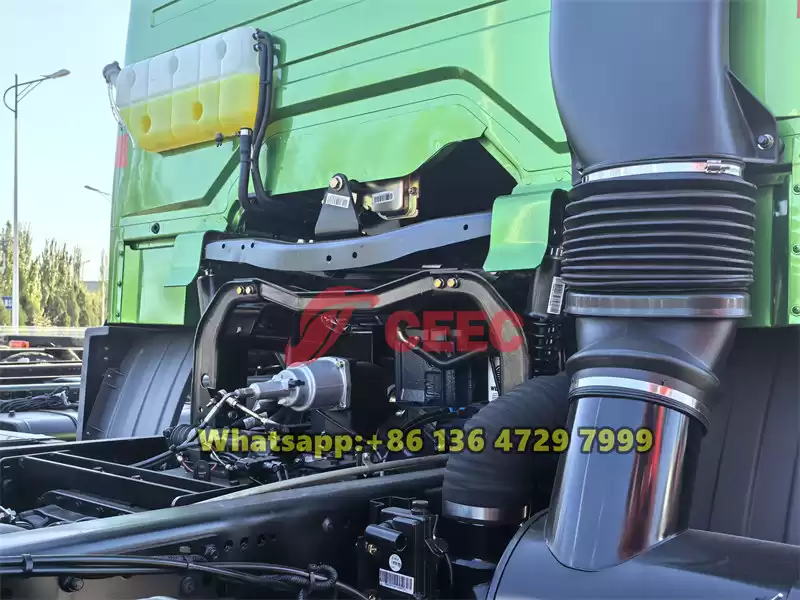

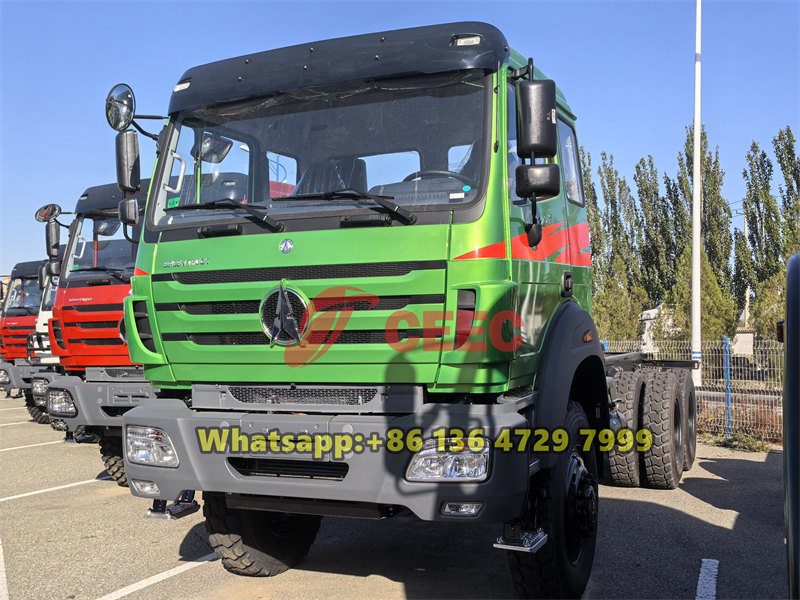

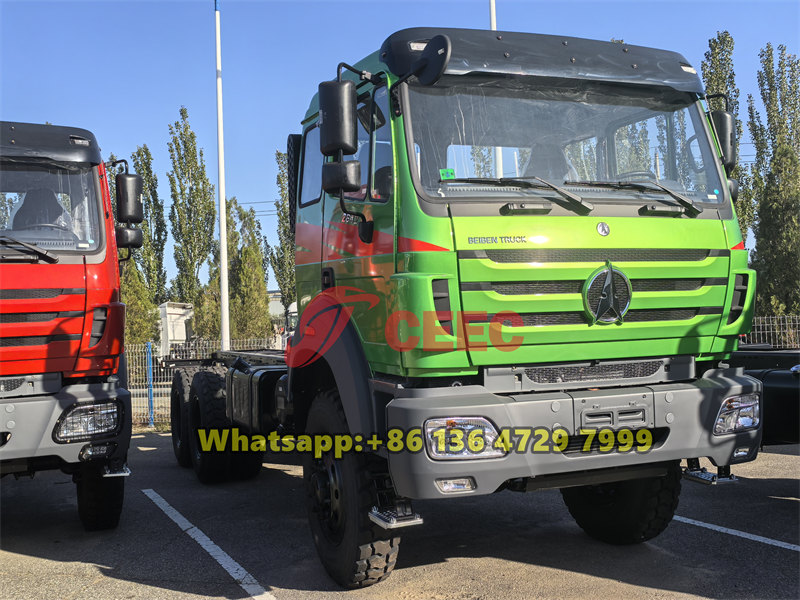

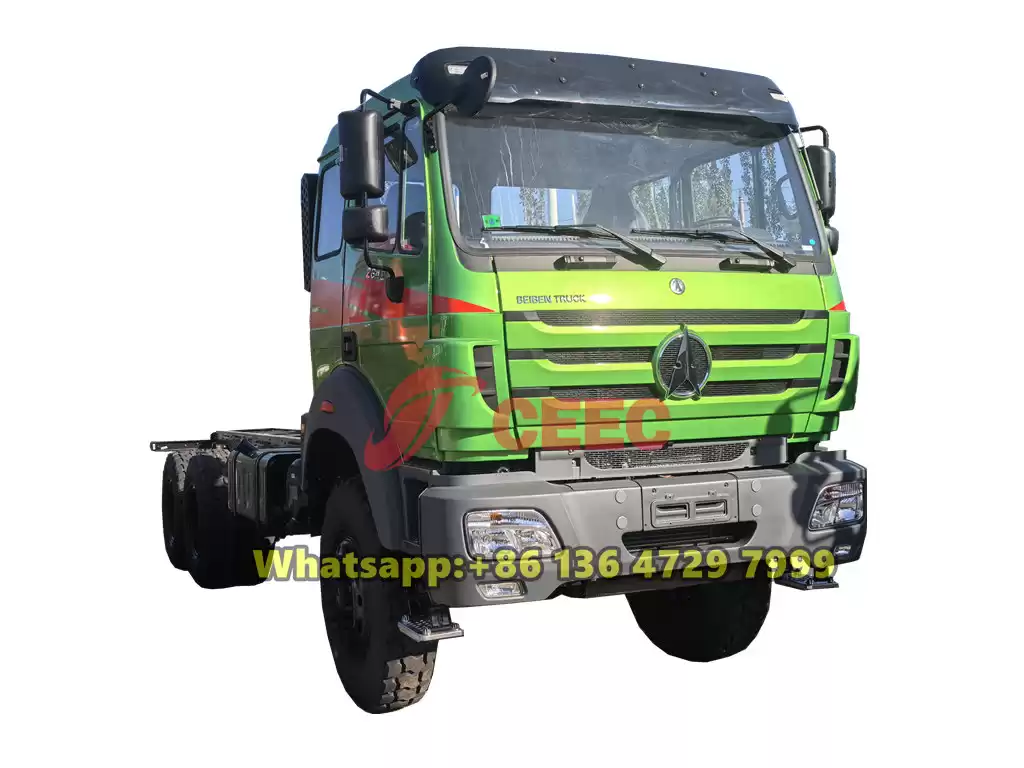

Product Pictures
