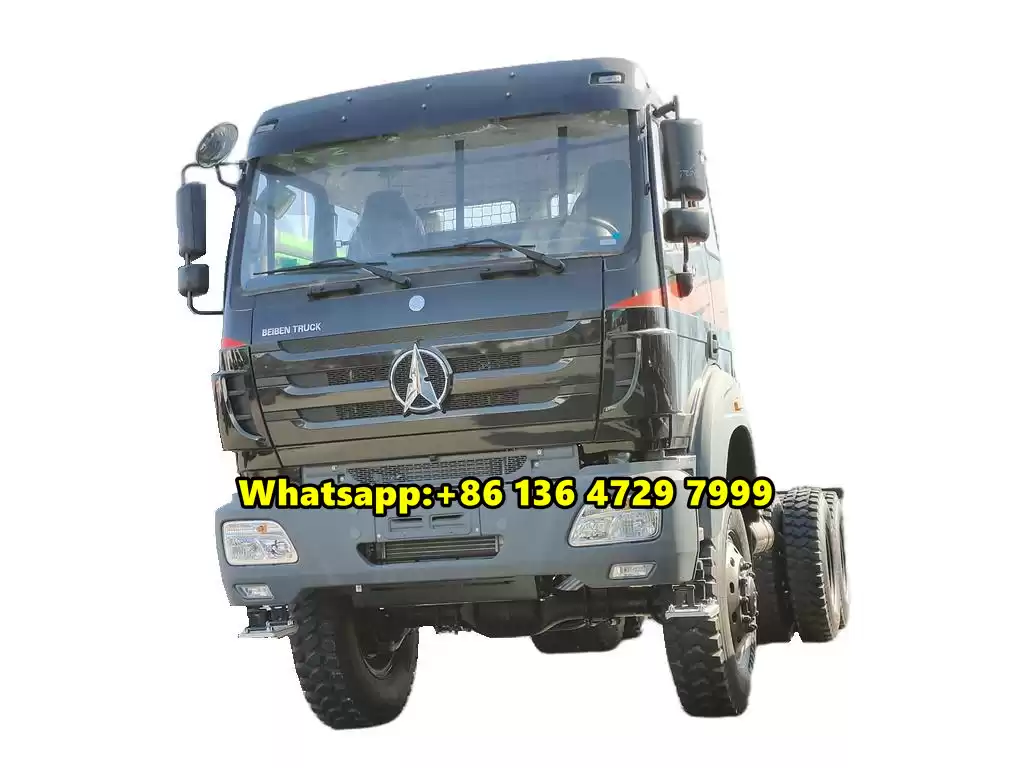

Beiben 6x6 cargo lorry chassis

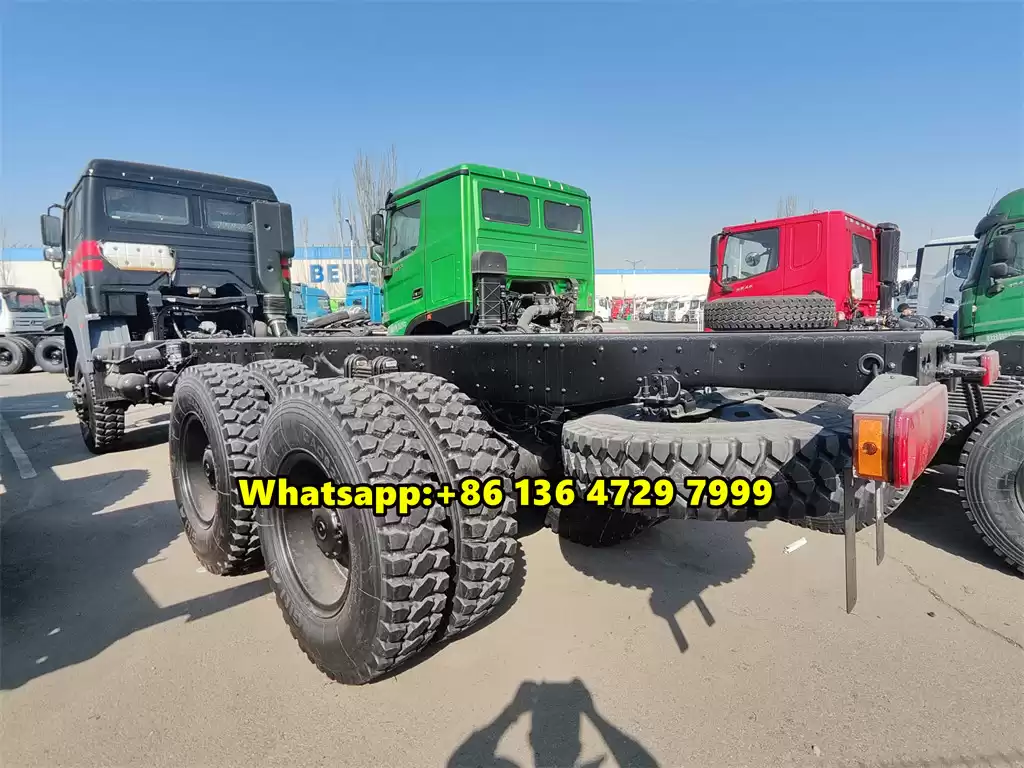

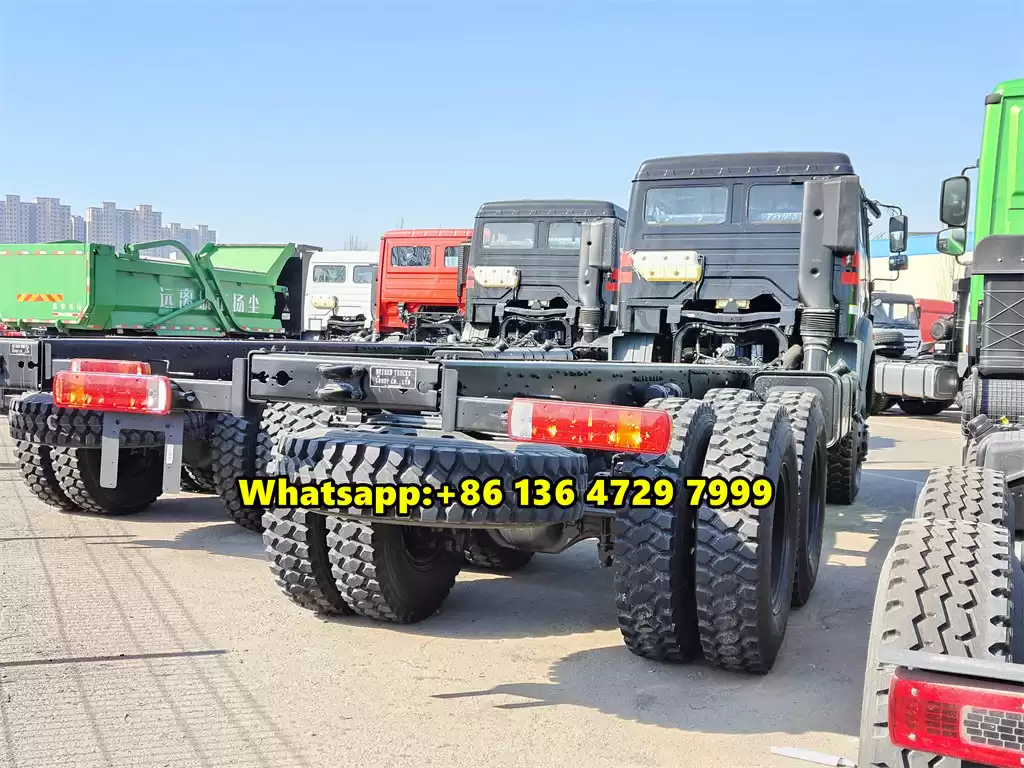

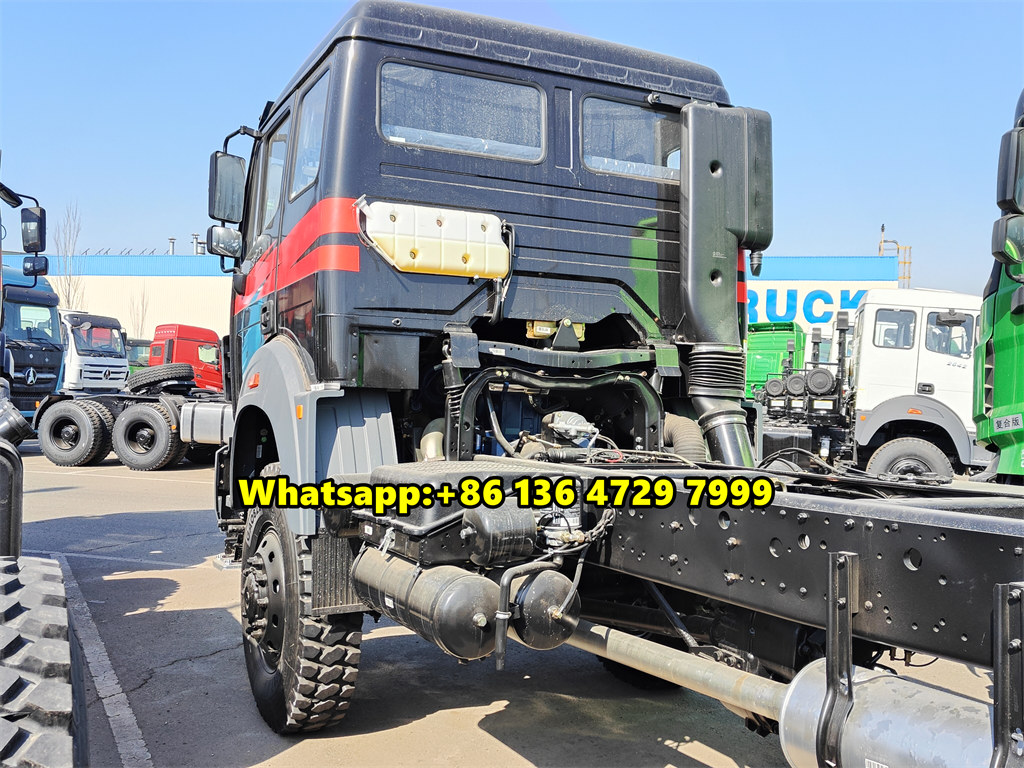

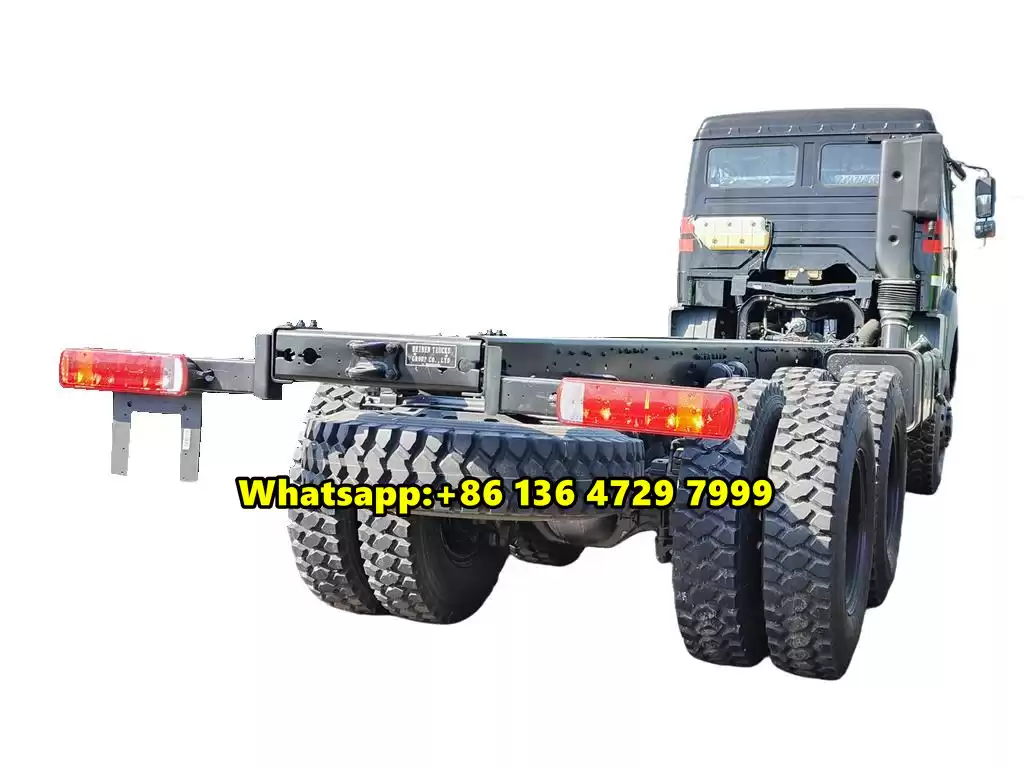

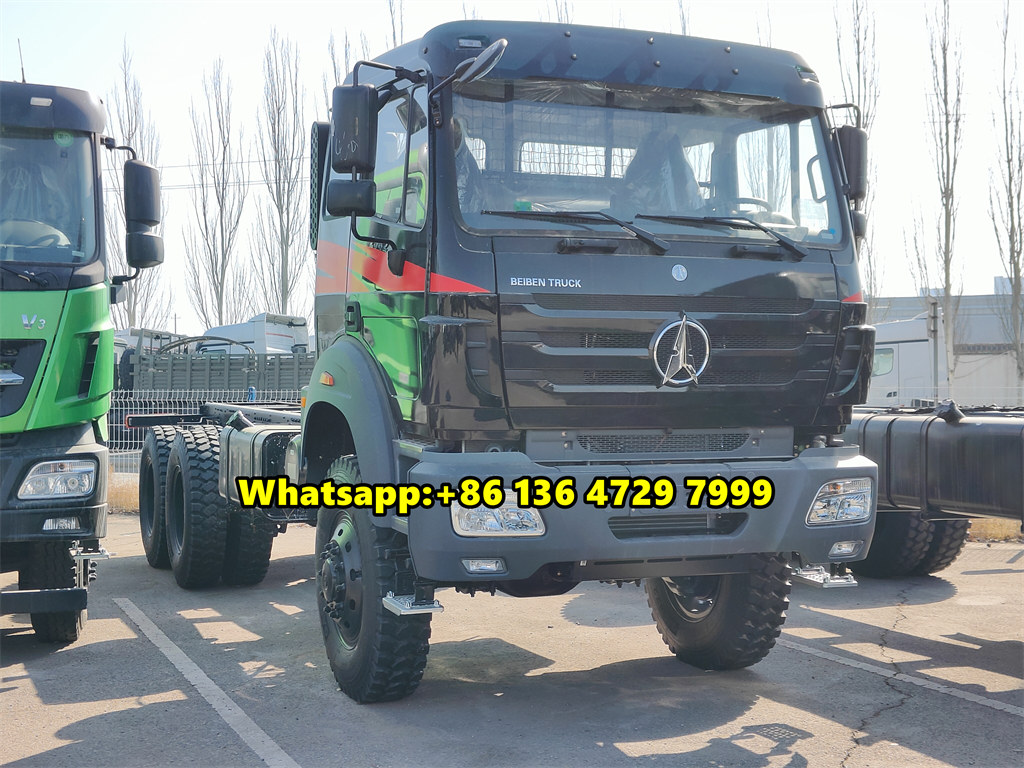

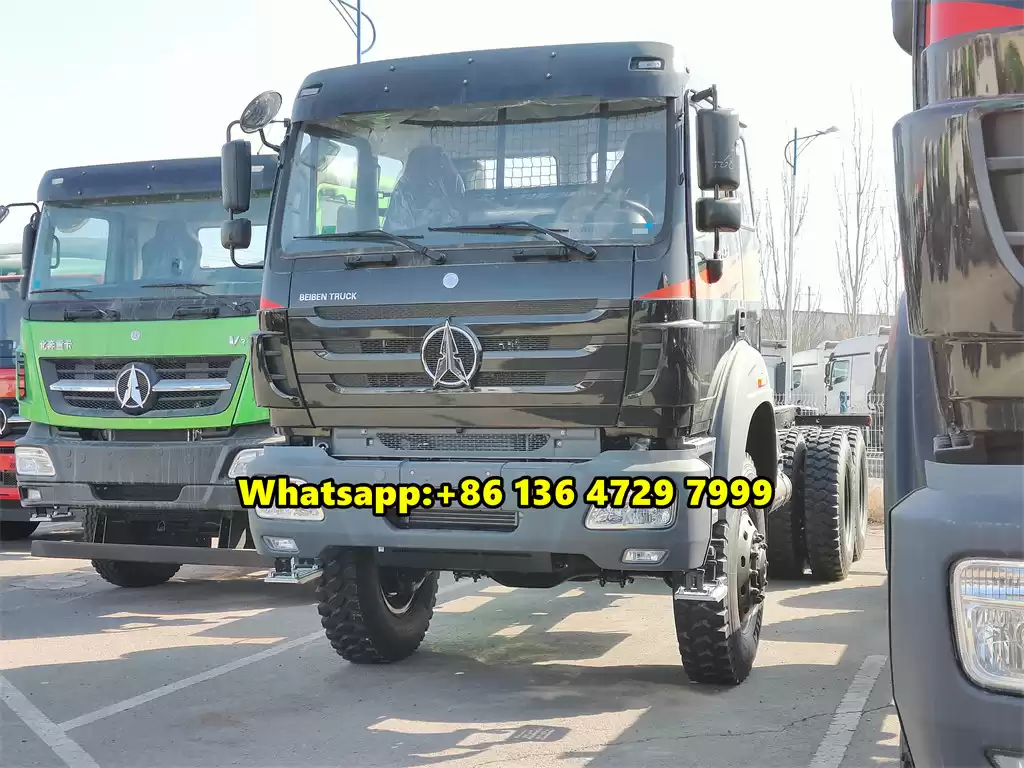

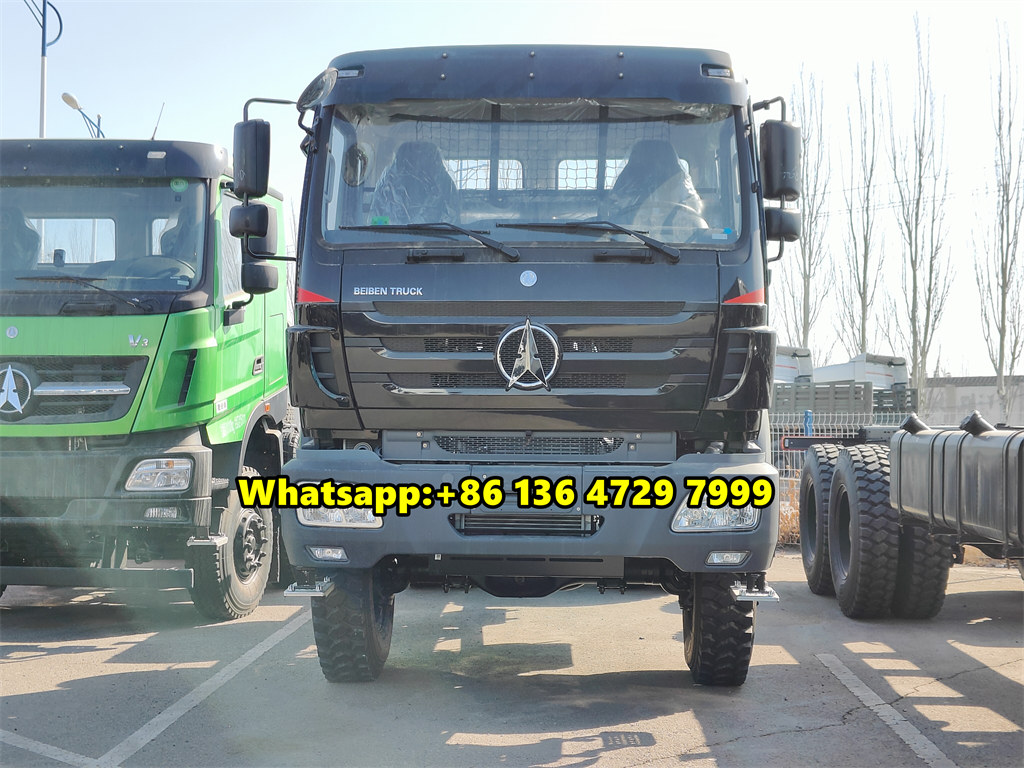

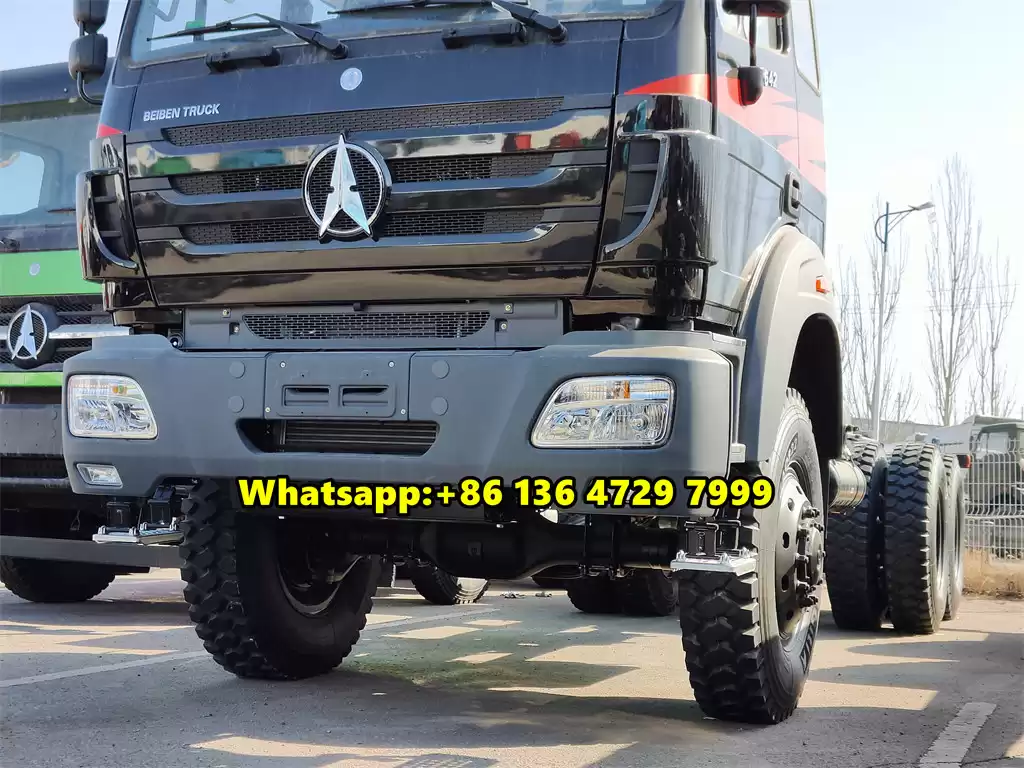

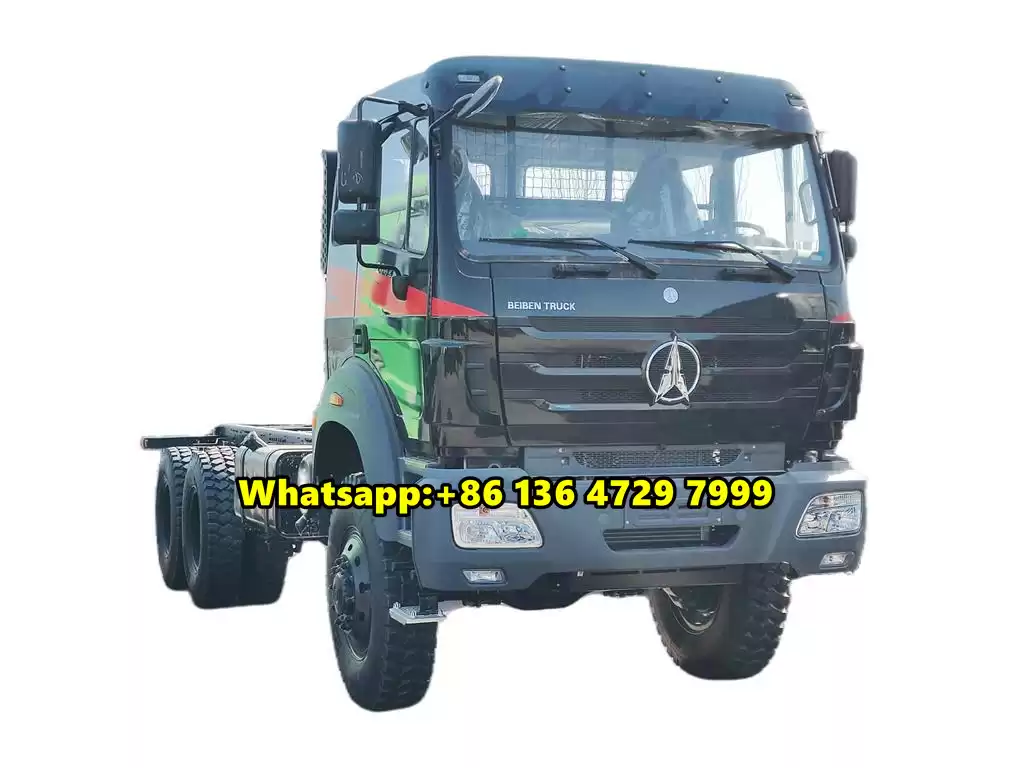

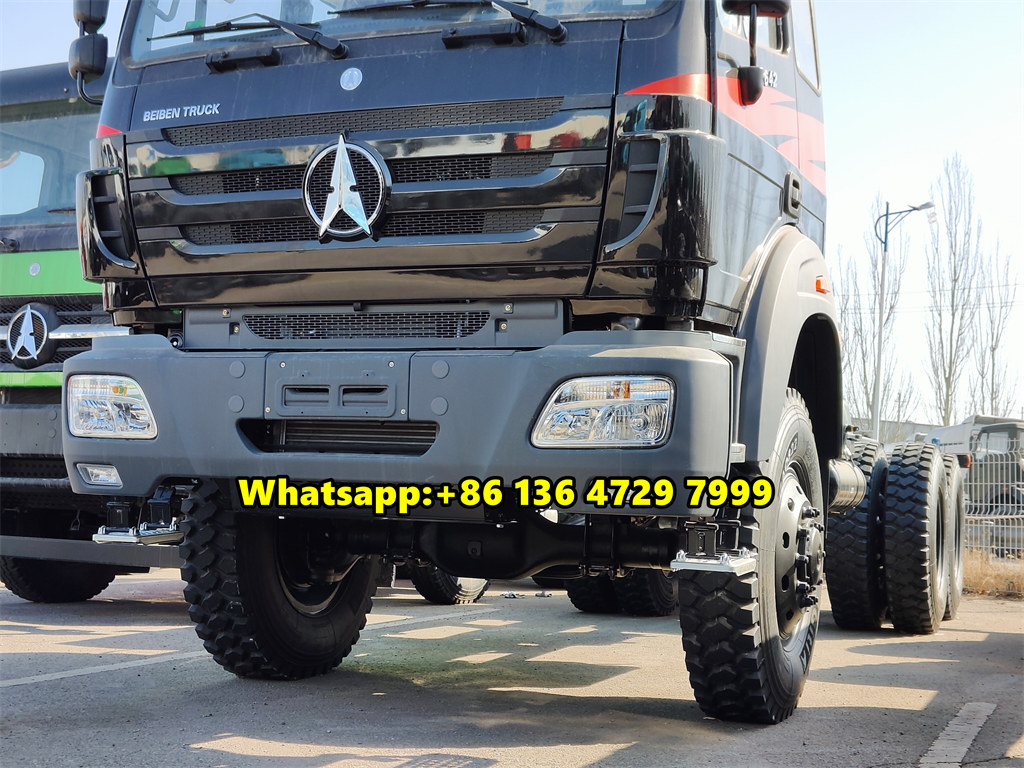

Beiben 6x6 offroad lorry truck chassis, mounted with NG80B cabin, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 12.00R24 tires with 11 pcs. DRC congo customer purchased Beiben 6x6 LHD 2642 lorry truck chassis with long cabin, BeiBen Axle factory produces Mercedes-Benz licensed axles for the heavy duty trucks. Axle models include the planetary hub-reduction axles HL-7/HD-7, and the steering axles VL-4, Beiben 6x6 cargo truck can have cabin different painting as required.


  • Drive system6x6
  • Engine power420HP
  • Working Capcity30-40 tons
  • Payment termsTT
  • Production time25-30days

BEIBEN Trucks is one of the famous domestic top-class heavy-duty truck manufacturing companies in China. With abundant technical staff, advanced equipment and modern managing system, Our company has series of products, such as Beiben offroad cargo truck, heavy-duty trucks, dump trucks, tractors and special trucks. The driving type includes 4 x 2, 4 x 4, 6 x 2, 6 x 4, 6 x 6, 8 x 4, 8 x 8 and 10 x 4. We can match with Germany Benz, Deutz Engine and domestic Weichai, Yuchai Engine. As far as power concerned, we have covered series types from 240 to 480Ps, and can also meet customers' different needs.

As the only one who manufacture under the license of Germany Benz Heavy-Duty Truck technology, our company established the domestic first-level production lines of general assembling, axle machining, transfer case machining, covering parts of large-scale cab, frame punching, Eisenman spray painting, and vehicle testing in Baotou City.

The series products of our BEIBEN trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x6 cargo lorry chassis are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.



Wheel base(mm) 4450+1450
L*W*H 9500X2500X3300
Curb weight(kg) 9900
Front overhang/rear overhang (mm) 1410/1940
Approach angle/Departure angle 26/20
Max Speed:(Km/h) ≤85
Model WP12.420E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
Engine  Fuel type Diesel
Min rate of consuming fuel(g/(kw.h)) 192g/kw.h
Rated Power / rotating(kw/(r/min) 309Kw(420HP)/2200rpm
Emission EURO3
Maximum Torque / rotating speed(n.m/(r/min) 1750Nm/1500-1800rpm
Displacement(ml) 11.596
Fuel tanker capacity(L) 400L+400L Iron
Transfer case LF200
Clutch Model #430, Single dry frictional disc,Hydraulic boosting
Gearbox Model 12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear.
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system Model 8098 whole circulation in ball type, hydraulic boosting
Suspension System Front Suspension Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,10 pcs springs.
Rear Suspension Non-free standing stabilization spring, stabilization suspension,13 pcs springs
Frame Fish belly shape, variable width, variable sections, Based on Germany Benz Technology
Cross section dimension of frame(mm) 317×70×8.5+7+8mm

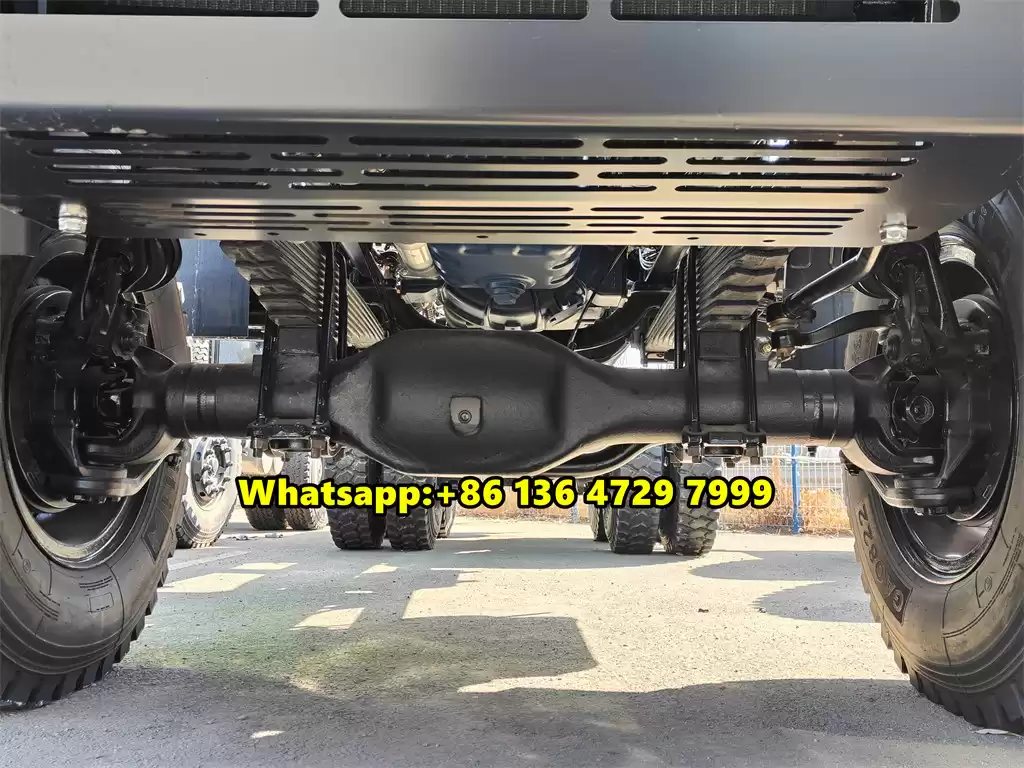

Front axle (Mercedes Benz Technology) Double-shoe pneumatic brake, 8 ton driving steering axle
Middle and Rear axle (Mercedes Benz Technology)  Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263
Tire 12.00R20 OR 12.00R24  radial tire
Electrical system Battery 2X12V/135Ah
Generator 28V-70A
Starter 5.58Kw/24V

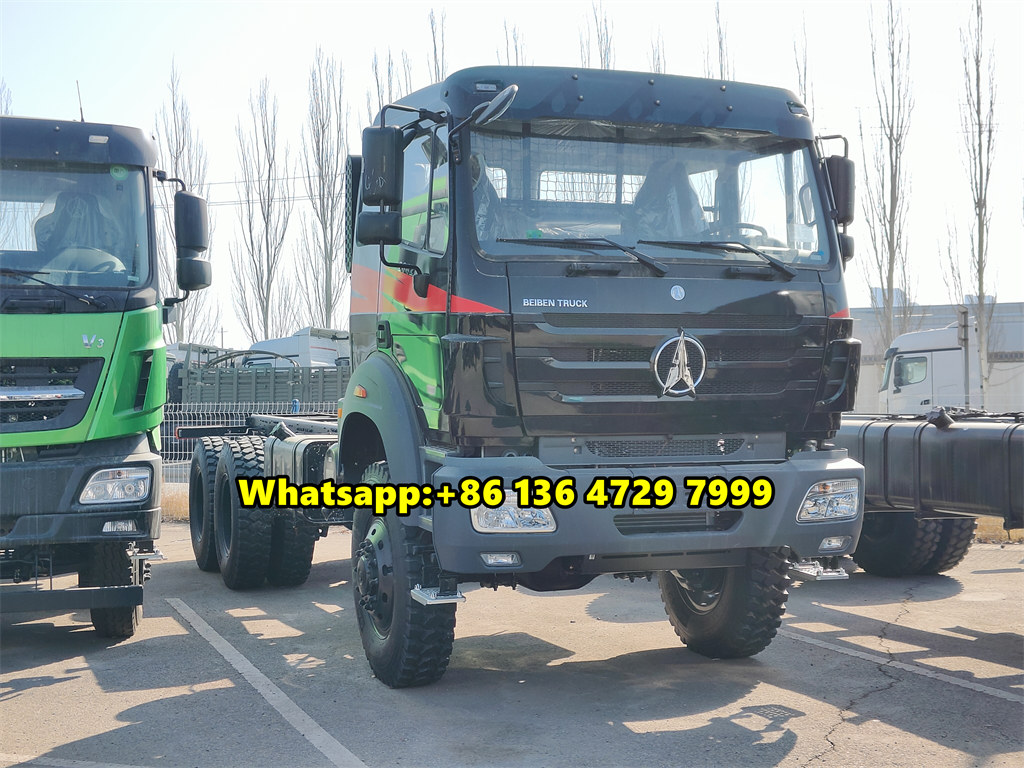

Cab NG80B left hand drive

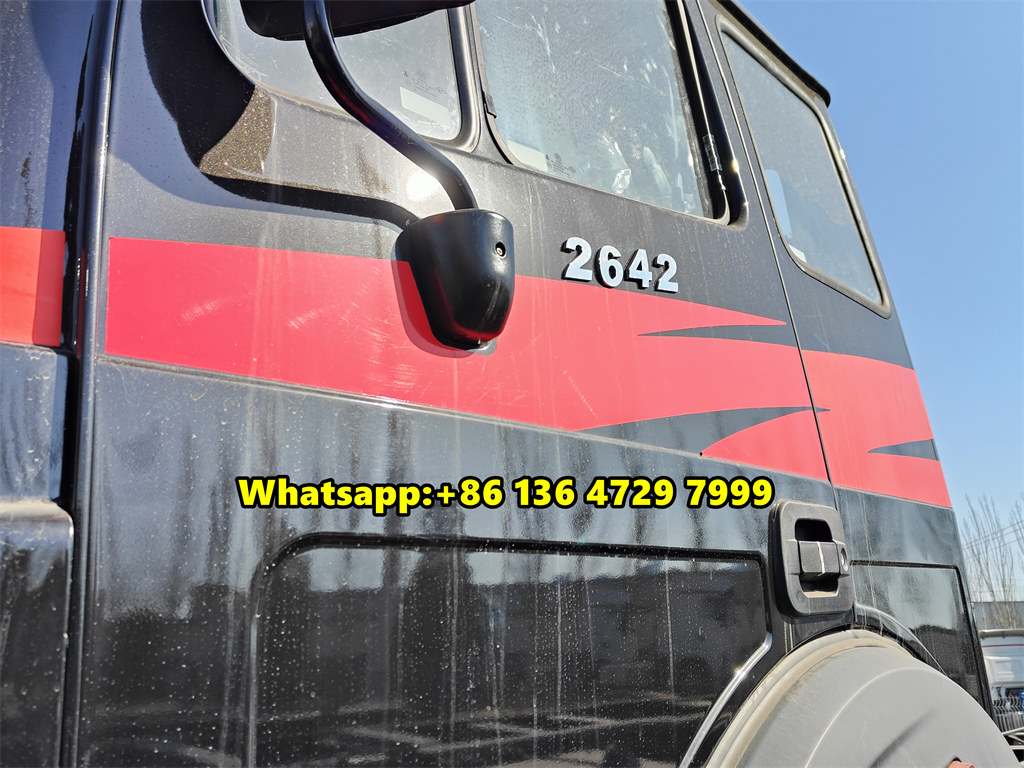

Long cab with one sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
Interior trimming:

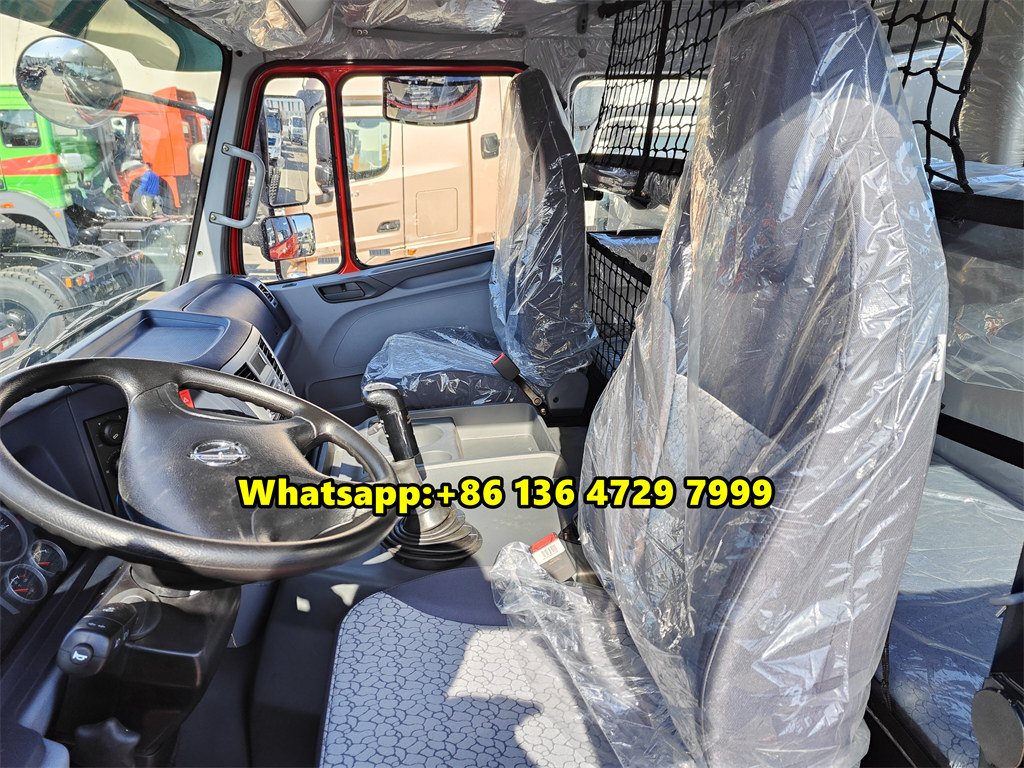

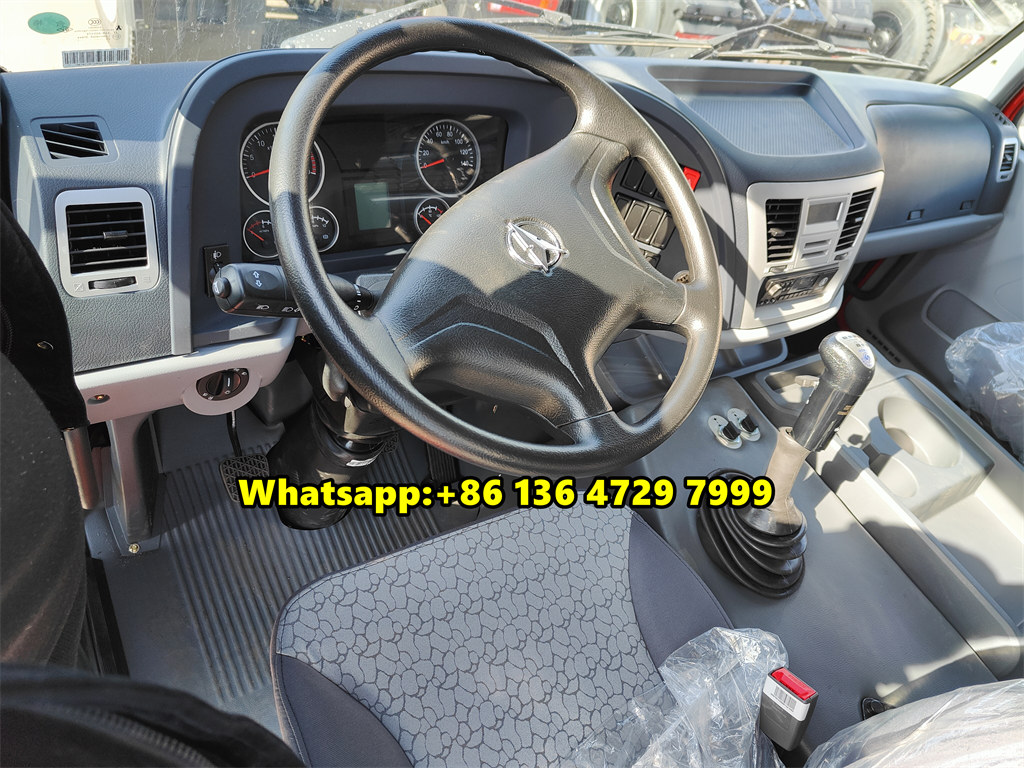

Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C
Exterior trimming:

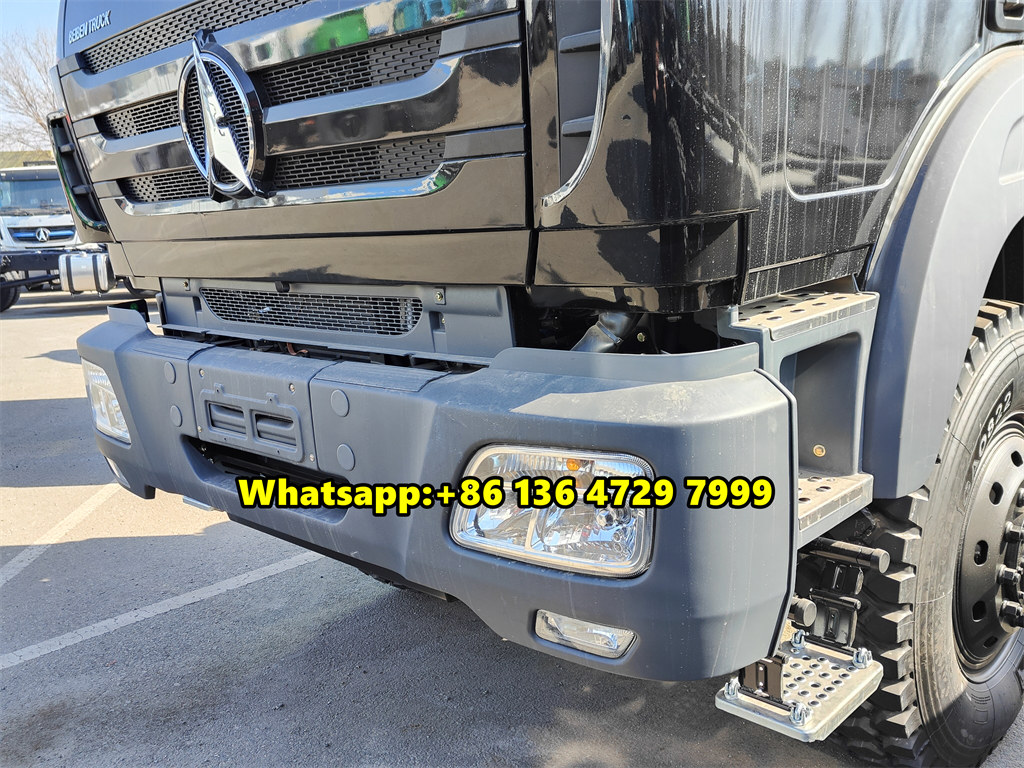

Metal bumper, two steps, new mirror.
Other specifications Two-stage air filter, 76°Tropical thermostat.
Upbody Longth 7m



--Heavy duty Beiben 6x6 cargo truck chassis advanced features

Beiben 2642 heavy-duty truck chassis has the advantages of excellent carrying capacity, excellent stability, excellent handling, efficient power system, reliable safety performance, wide applicability and high-quality after-sales service. These advantages make Beiben heavy-duty chassis highly competitive in the market and can meet the needs of different customers.
Excellent carrying capacity:
Beiben 2642 offroad truck chassis has a strong carrying capacity, which is mainly due to its solid structural design and high-quality material selection. Its high-strength steel plate and precise welding process ensure the stability and durability of the chassis, and can withstand the huge pressure brought by heavy-duty transportation.

Excellent stability:
The chassis design fully considers driving stability, and can maintain the smooth operation of the vehicle whether on highways or on rough roads. This stability is crucial for heavy-duty transportation and can ensure the safety of goods during transportation.

Excellent handling:
Beiben 6x6 heavy 2642 cargo truck chassis has excellent handling performance, and the driver can easily control the vehicle to perform various operations, such as turning, reversing, etc. This handling not only improves driving comfort, but also increases driving safety.

Efficient power system:
Equipped with a high-performance engine and advanced transmission system, Beiben heavy-duty 6x6 truck can provide strong power output to meet the needs of heavy-duty transportation. At the same time, its fuel economy is also good, which helps to reduce operating costs.

Reliable safety performance:
In terms of safety performance, Beiben 6WD offroad cargo truck chassis adopts a number of advanced technologies, such as ABS anti-lock braking system, ESP electronic stability program, etc., which effectively improves the driving safety of the vehicle. In addition, its sturdy body structure and high-quality braking system also provide all-round protection for the driver and cargo.

Wide applicability:
Beiben 6x6 truck lorry chassis is suitable for a variety of transportation needs, such as long-distance freight, construction site transportation, etc. Its diverse configuration and customizability enable it to meet the needs of different industries and different customers.

High-quality after-sales service:
As a well-known brand, Beiben provides high-quality after-sales service and technical support. Whether before or after purchase, customers can get timely and professional service response and technical support.
