Beiben 6x6 chassis for Africa

The Beiben 6×6 all-wheel-drive chassis is specially designed for the African market, featuring a six-wheel-drive system and equipped with a 206 kW (280HP) diesel engine delivering a maximum torque of 1160 Nm, providing excellent off-road performance. Its wide tires and finely tuned suspension system ensure stable driving on various complex terrains. The vehicle is also equipped with advanced safety configurations, making it suitable for multiple fields such as military transportation, mining, oil exploration, and more, demonstrating strong competitiveness.


  • Engine power280HP
  • Working Capcity30 tons
  • Payment termsTT
  • Production time30 days
  • Drive system6×6

Product Descriptions



The African continent boasts a diverse range of terrains, from vast deserts to dense rainforests, rugged mountains to flat grasslands, posing extreme demands on vehicle adaptability. The Beiben 6×6 AWD chassis stands out in the African market with its powerful off-road capabilities and stability. Its six-wheel-drive design ensures excellent passability across various complex terrains, while the wide tires and well-designed approach and departure angles further enhance the vehicle's passing performance.





The Beiben 6×6 all-wheel-drive chassis is equipped with a highly efficient and energy-saving diesel engine and an advanced transmission system, providing robust power support for the vehicle. The engine boasts a maximum power output of 206 kW (280 horsepower) and a peak torque of 1160 Nm, ensuring outstanding performance under various operating conditions. Additionally, the vehicle's relatively low fuel consumption helps reduce operational costs.

In terms of safety performance, the Beiben 6×6 off-road truck chassis features a dual-circuit air brake system with automatically adjustable brake clearance, ensuring the reliability and stability of the braking system. Furthermore, the vehicle is equipped with engine exhaust braking and parking brake systems, further enhancing driving safety. For handling, the vehicle's steering wheel can be adjusted up and down, as well as forward and backward, to suit different drivers' preferences. The vehicle also comes with an integrated instrument panel, digital instruments, and a radio, enhancing driving convenience and comfort.

The Beiben 6×6 truck has a wide range of applications in the African market, including military transportation, mining, oil exploration, and construction. In military transportation, it can carry heavy equipment and personnel, rapidly maneuvering through harsh terrains. In mining, it can withstand heavy loads and stable drive on rugged roads. In oil exploration, it can traverse deserts and swampy areas, ensuring the smooth progress of exploration work. In construction, it can serve as a transport platform for heavy construction machinery, improving construction efficiency. Furthermore, the superstructure can be customized based on the chassis according to customer needs to meet the requirements of different fields and scenarios.



Product Specifications



Wheel base(mm)

4450+1450

L*W*H (mm)

9500X2500X3300

Curb weight (kg)

9900

Front overhang/rear overhang (mm)

1410/1940

Approach angle/Departure angle

26/20

Max Speed:(Km/h)

≤85

Engine

Fuel type

Diesel

Model

WD615.50, 6 cylinders straight in line

Min rate of consuming fuel(g/(kw.h))

≤198g/kW.h

Rated Power

206Kw(280HP)

Emission standard

EURO 2

Rated speed

2200 rpm

Maximum Torque

1160Nm

Displacement(ml)

9726

Fuel tanker capacity(L)

400L Iron

Transfer case

LF200

Clutch

Model

#430, Single dry frictional disc, Hydraulic boosting

Gearbox

Model

9T1280, mechanical type, mechanical type, 9 forward speed gear.

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

8098 whole circulation in ball type, hydraulic boosting

Suspension System

Front Suspension

Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs.

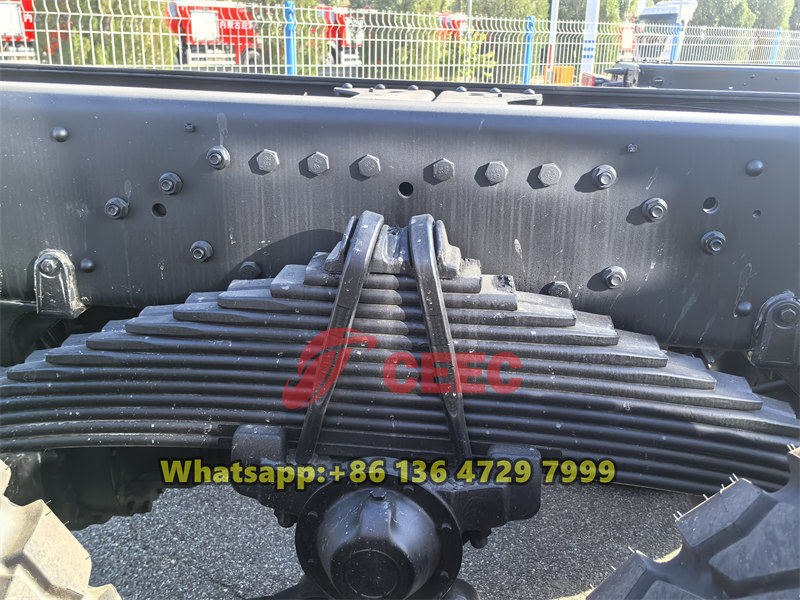

Rear Suspension

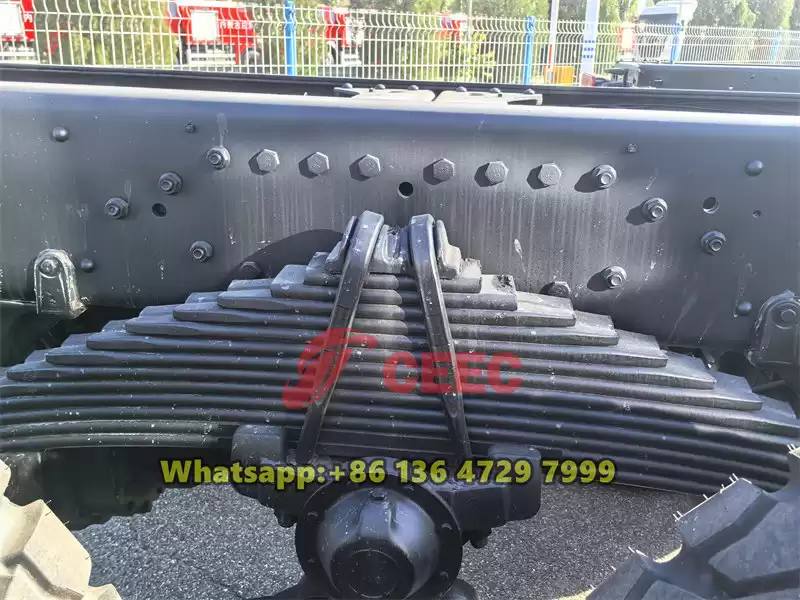

Non-free standing stabilization spring, stabilization suspension,13 pcs springs

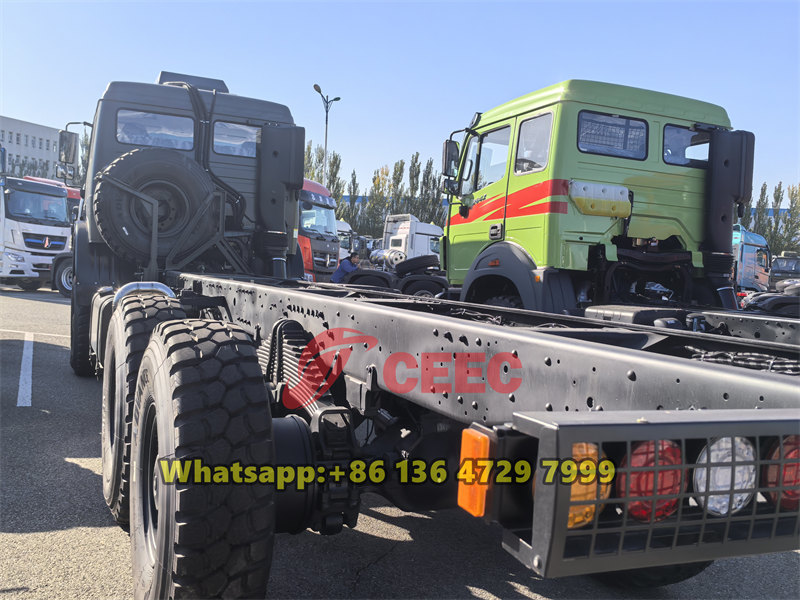

Frame

Fish belly shape, variable width, variable sections, Based on Germany Benz Technology

Cross section dimension of frame(mm)

317×70×8.5+7

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, 8 ton driving steering axle

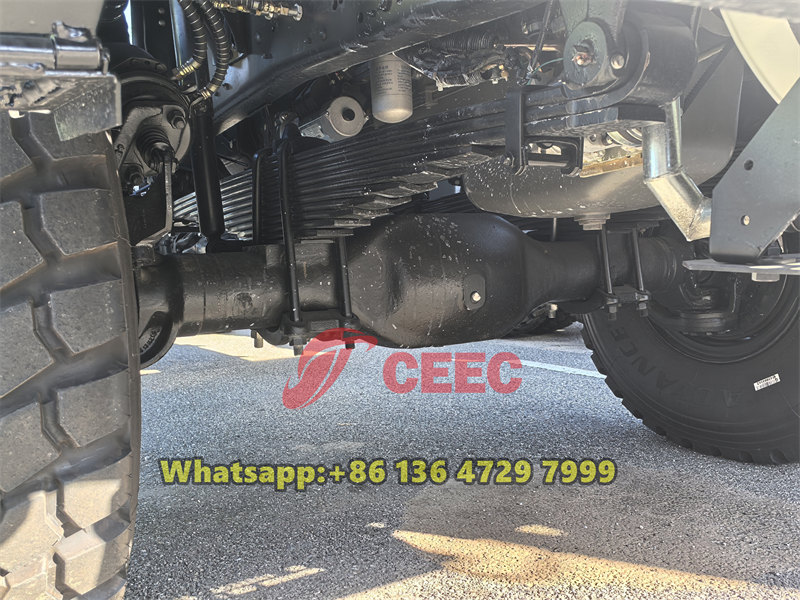

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263

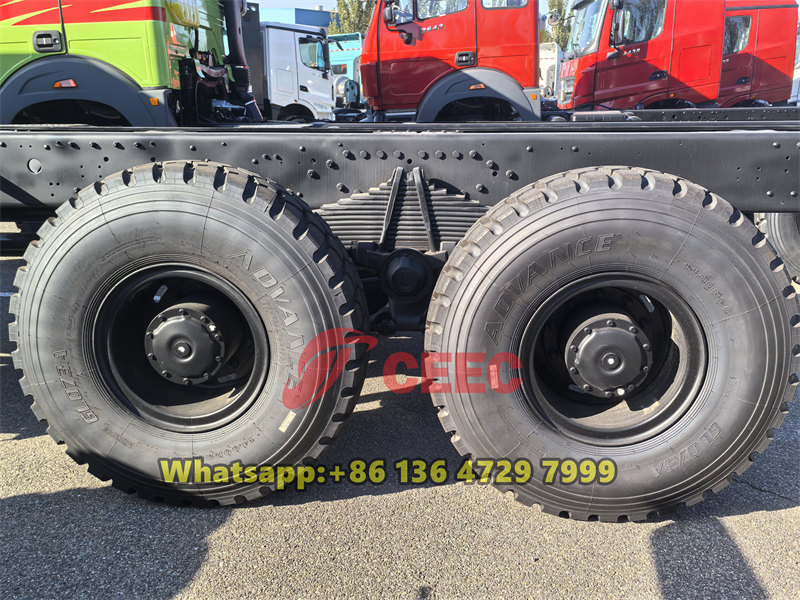

Tire

12.00R20 OR 12.00R24  radial tire

Electrical system

Battery

2X12V/135Ah

Generator

28V-70A

Starter

5.58Kw/24V

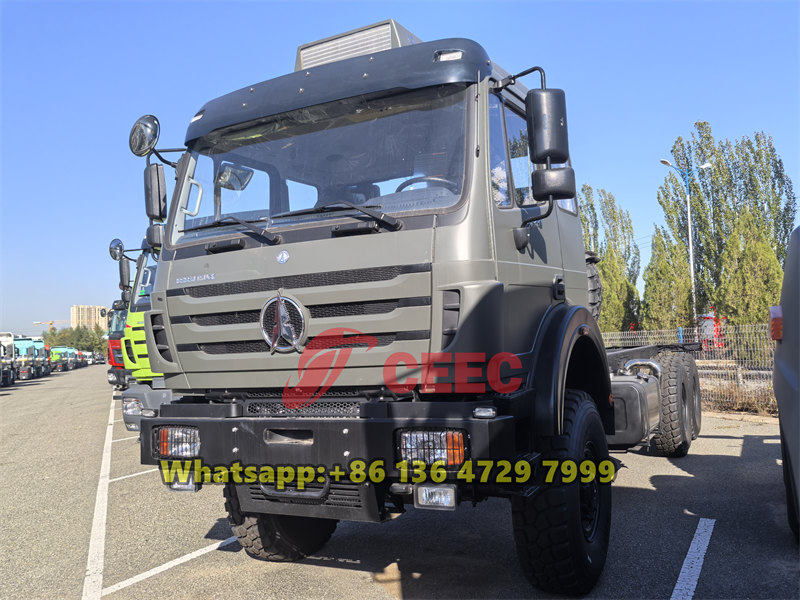

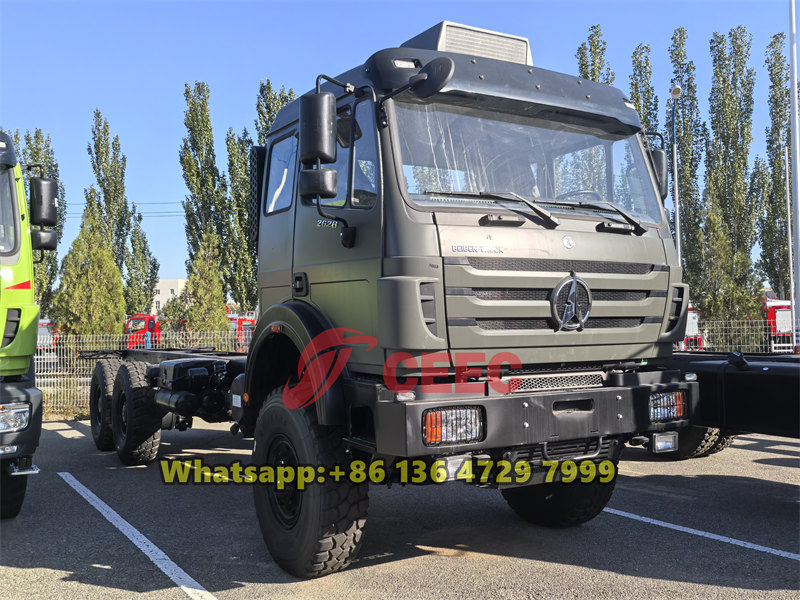

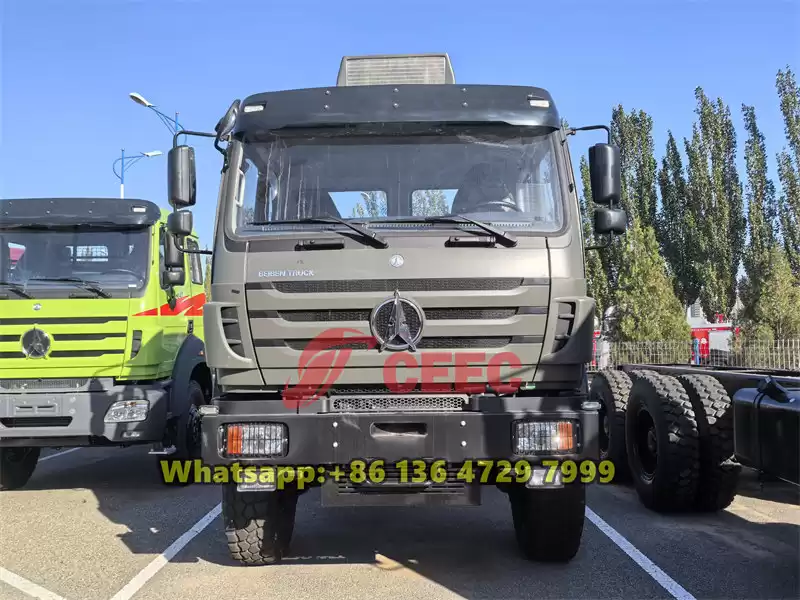

Cab

NG80B left hand drive
Long cab with one sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;

Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C

Exterior trimming:

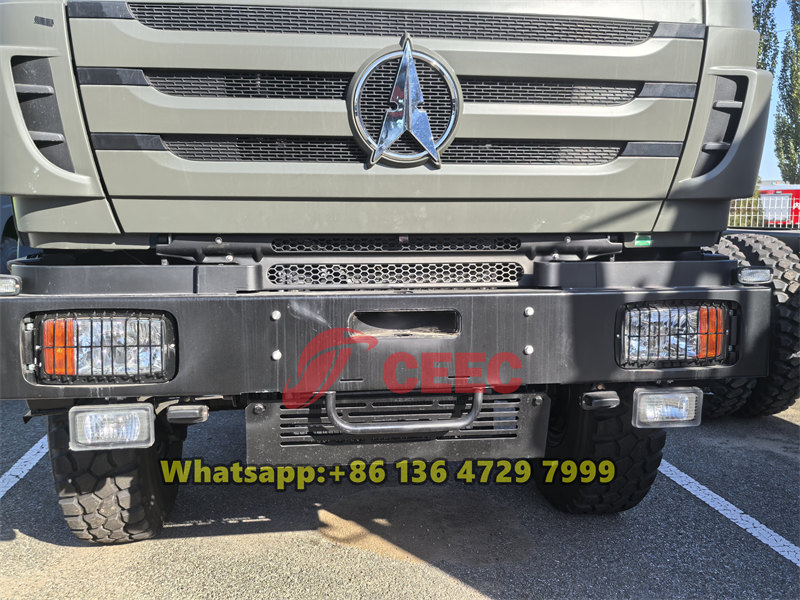

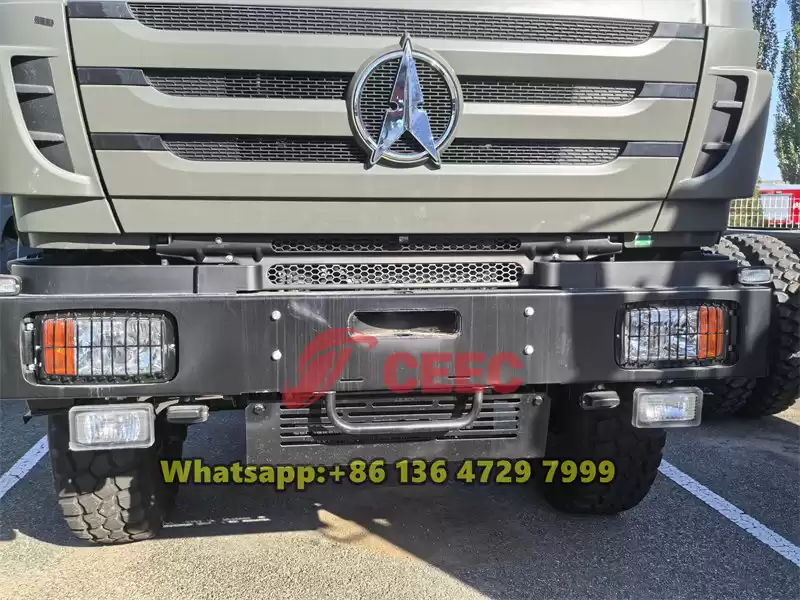

Metal bumper, two steps, new mirror.

Other specifications

Two-stage air filter, 76°Tropical thermostat.

Upbody

According to customer requirements

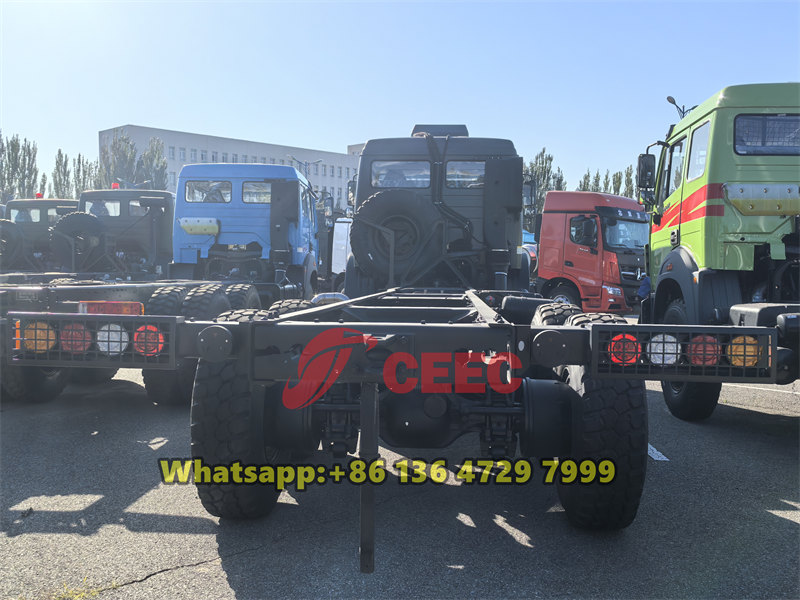

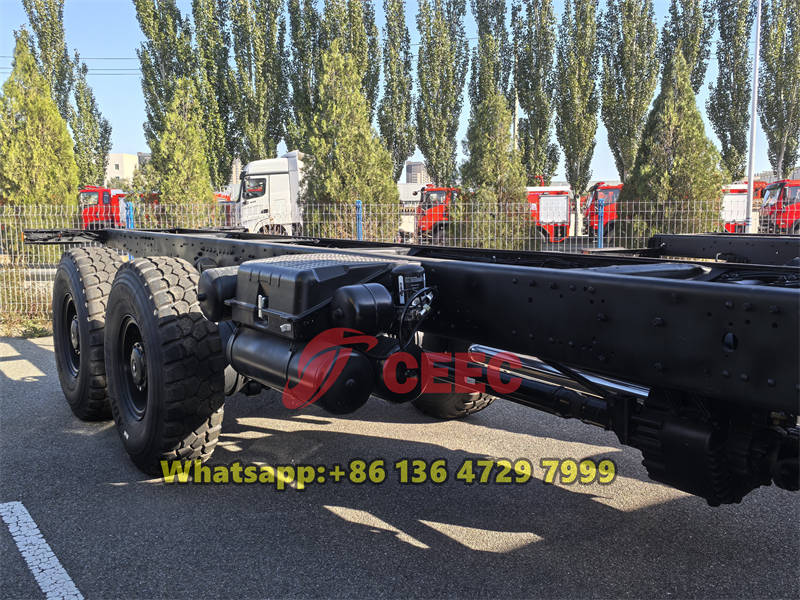

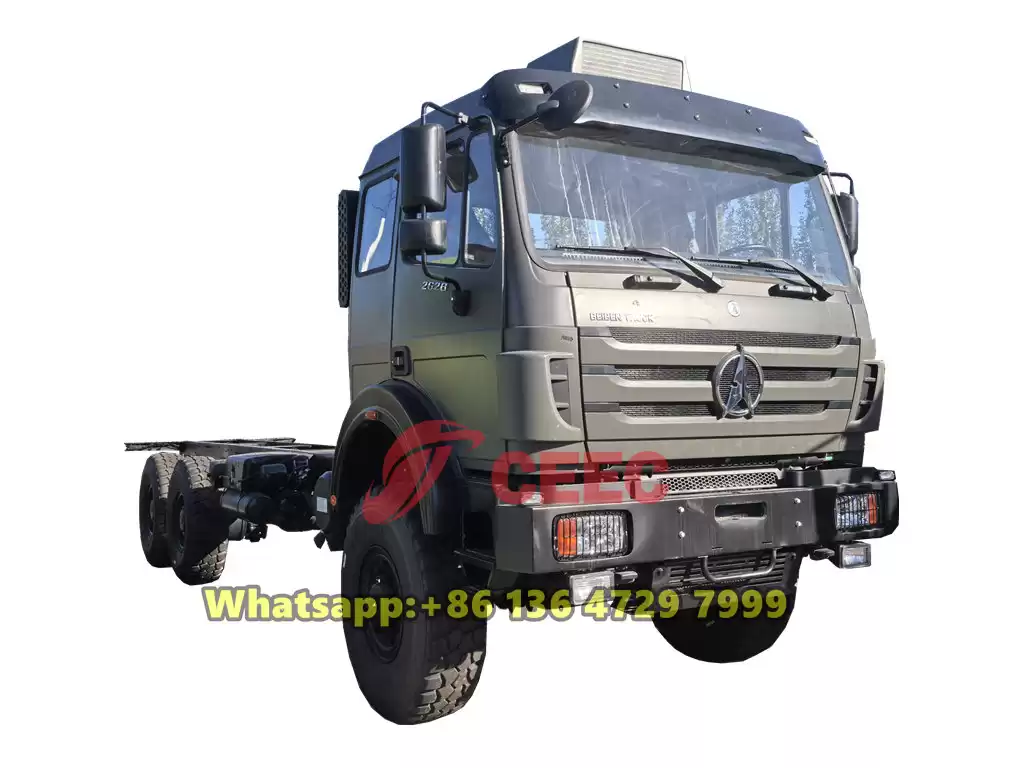

Product Details
