Beiben 6x6 drive truck with 12.00R24 tyre

The Beiben 6x6 drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions.

Under the hood, the Beiben truck boasts a high-performance WP12.420 diesel engine, delivering plenty of torque and horsepower to conquer steep inclines and rough terrain. The engine is paired with a Fast 12 shift transmission, providing smooth and efficient gear changes for optimal performance and fuel efficiency.

The truck features an NG80B full steel cabin, offering a comfortable and secure environment for the driver to operate in.



  • Engine power420HP, WP12.420
  • Working Capcity50 Ton
  • Payment termsT/T
  • Production time30 days
  • Drive system6x6
Facebook Twitter Pinterest LinkedIn 分享

Beiben 6x6 drive truck is a powerful and reliable vehicle designed for tough off-road conditions. Equipped with 12.00R24 tyres, this truck can easily navigate through rough terrains with ease, providing traction and stability.

The heart of this truck is the WP12.420 diesel engine, which delivers impressive performance and fuel efficiency. With a maximum power output of 420 horsepower, this engine ensures that the truck can handle heavy loads and challenging terrain without breaking a sweat.

The Fast 12 shift transmission allows for smooth and precise gear changes, ensuring optimal performance and efficiency. This transmission also contributes to the overall durability and reliability of the truck, making it a great choice for demanding applications.

The NG80B full steel cabin provides a comfortable and safe environment for the driver, with ample space and ergonomic design features. The cabin is also equipped with modern amenities and controls, making long journeys more enjoyable and less fatiguing.

The benz technology front axle and rear axle ensure superior handling and stability, even when the truck is fully loaded. These axles are designed to withstand heavy loads and harsh conditions, making them ideal for off-road use.

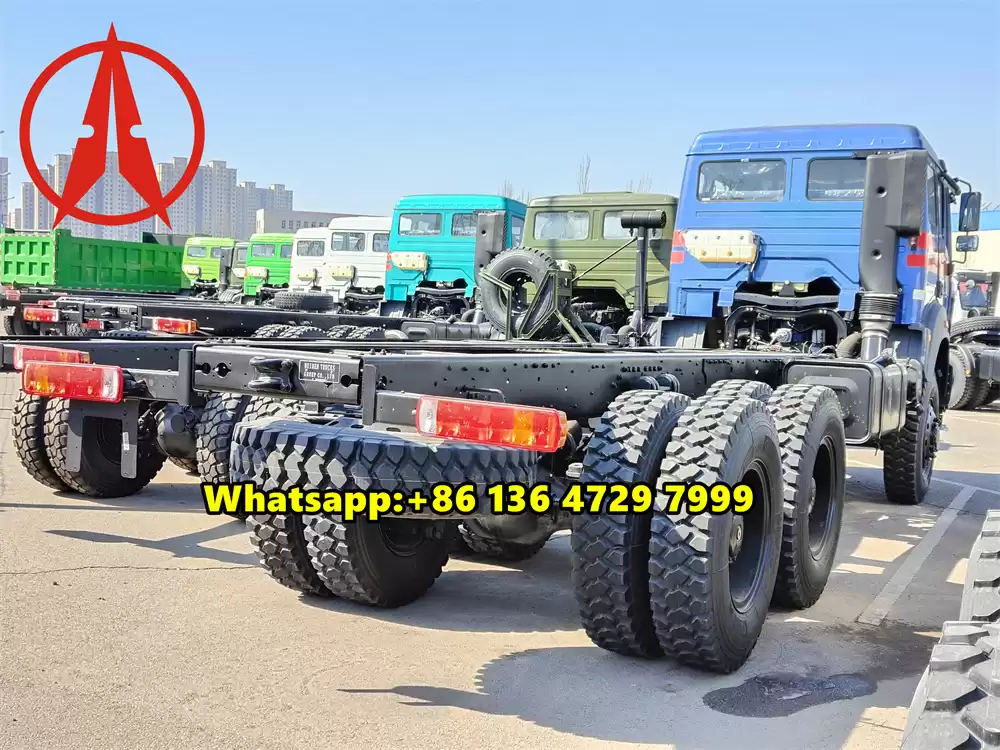

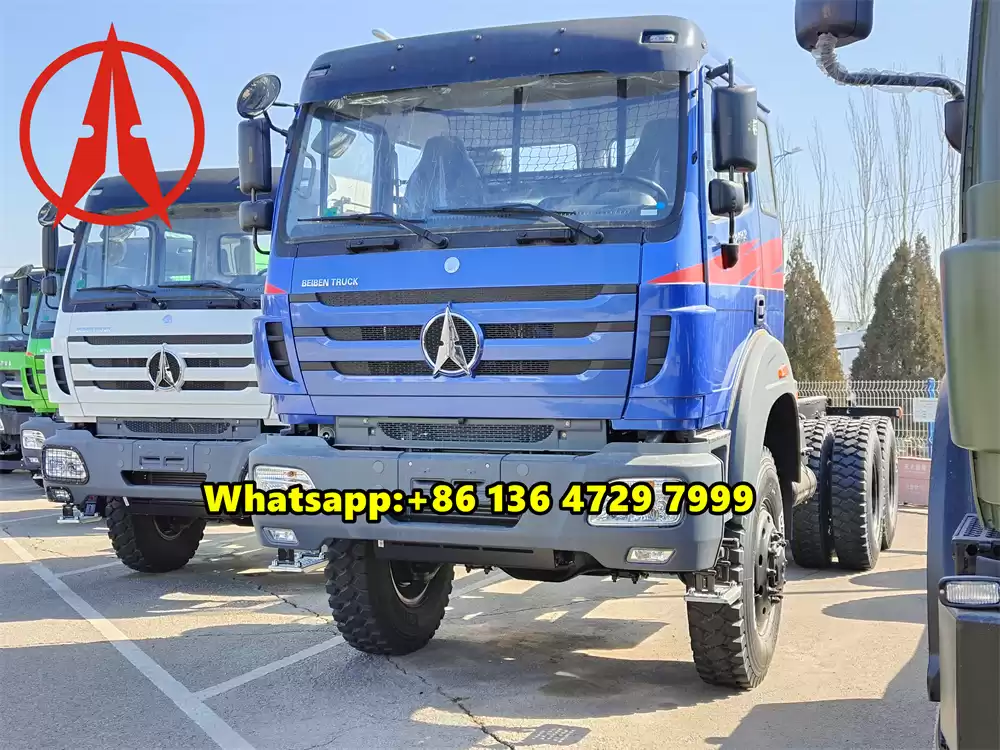

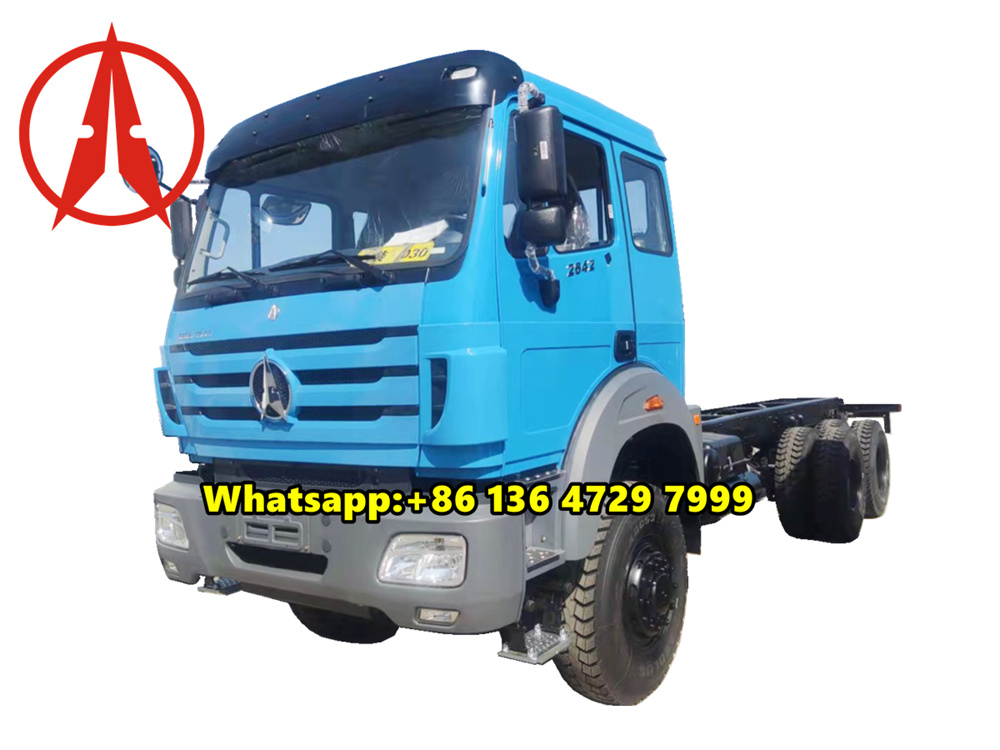

Beiben 6x6 drive off road truck

Required Technical Specification

Basic parameter



Mode

2642PZ/6×6

Length×width×height(mm)

9526×2500×3385

Wheel-base(mm)

4450+1450

Curb weight(kg)

11400

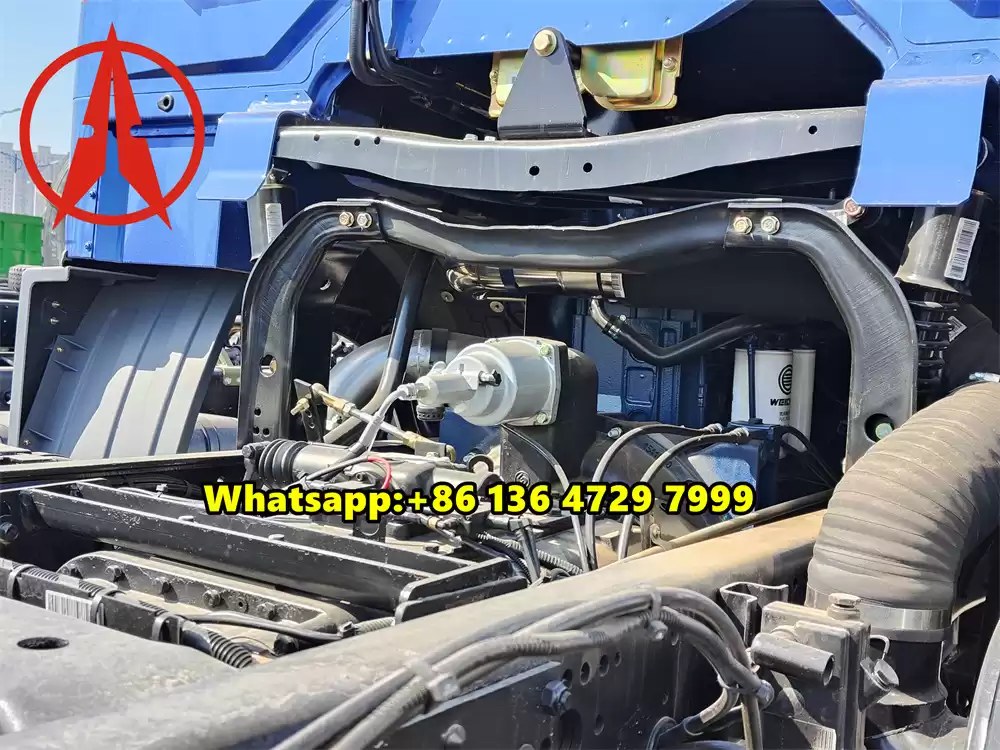

Engine parameter

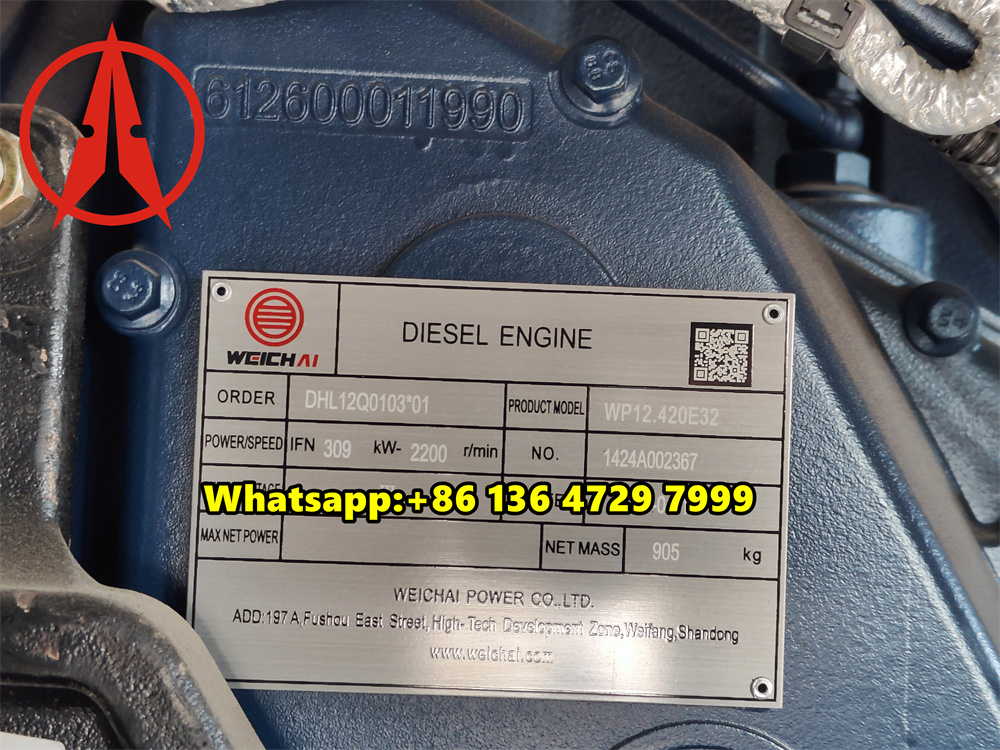

Model (six cylinder in line)

WP12.420E32

Max. Power (HP/rpm)

420

Max. Torque(Nm/rpm)

1600/1400～1600

Displacement(lit)

11.726 L

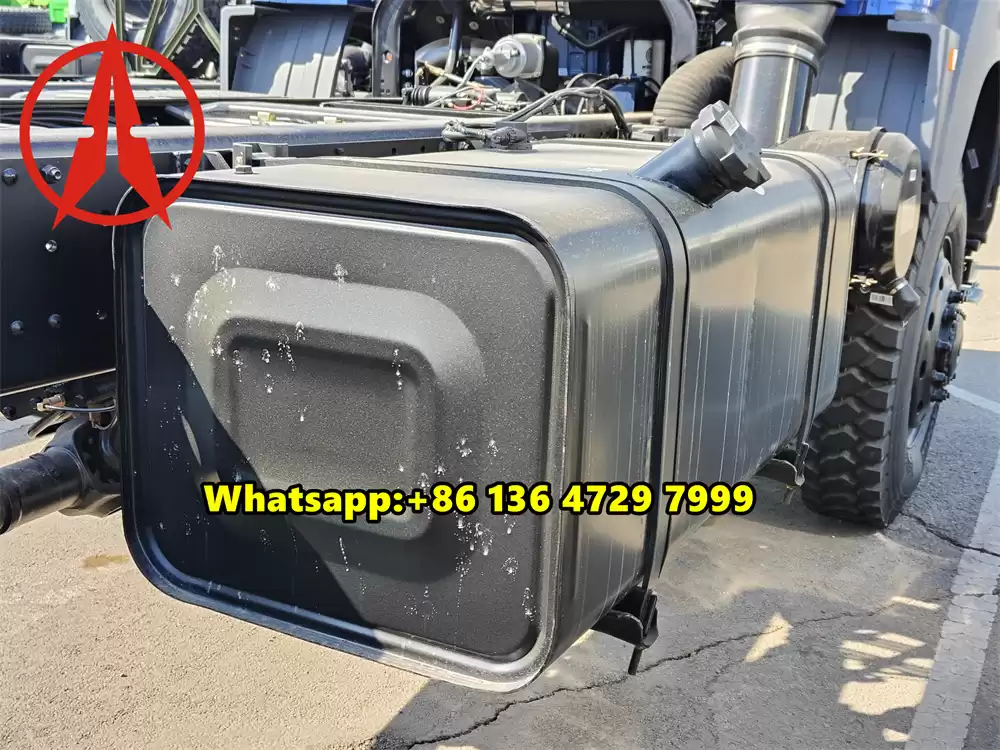

Fuel tank capacity

400L Iron oil tanker  400L

Transmission system



Clutch

430 Single disc, dry type, friction clutch；

Gearbox

Mechanical, 9JS150A

Steering system



Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system



Service brake

Double circulation air brake system equipped；

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake



Chassis parameter

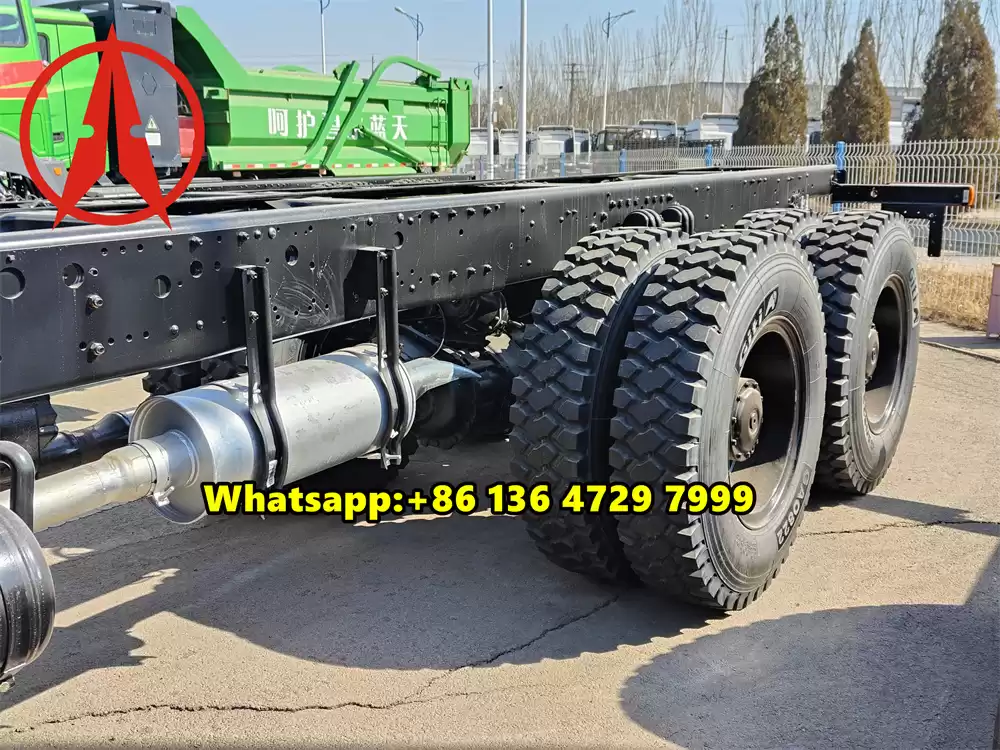

Frame

Variable width and section  317×70×8.5+7+8.5 mm；

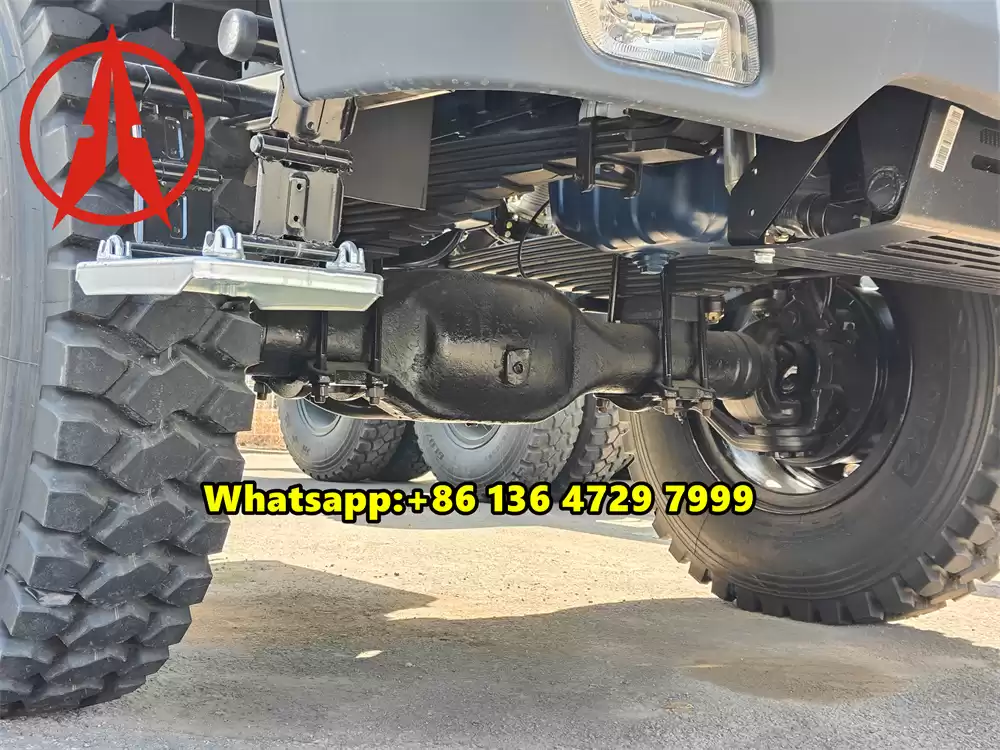

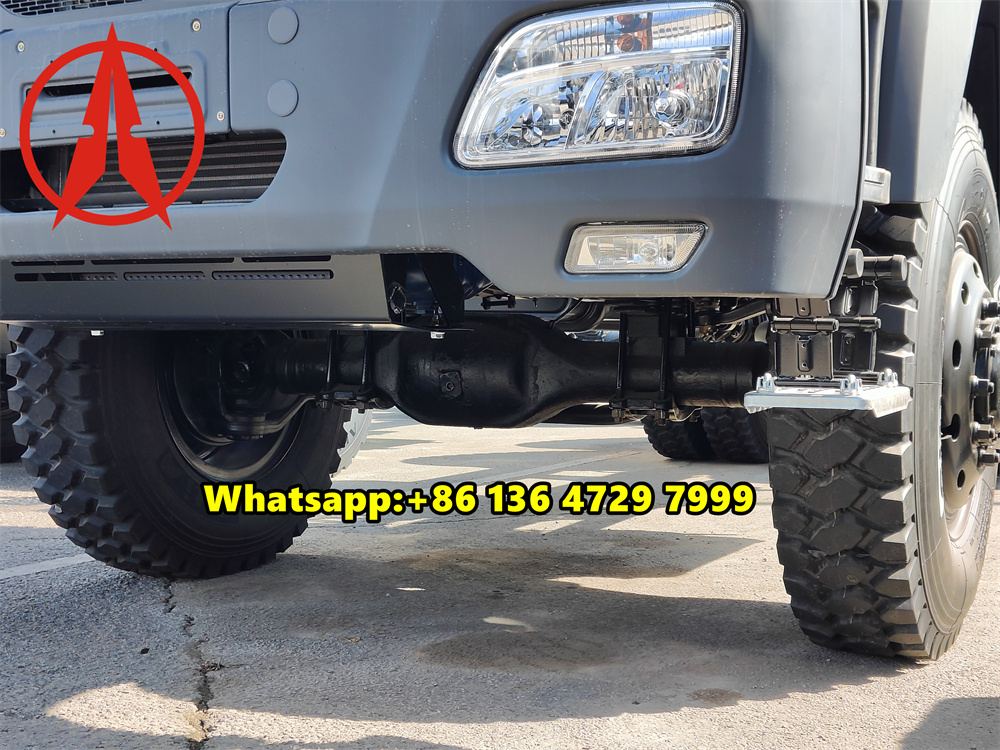

Front axle

7.5 T, no-driving steering axle, drum brake；

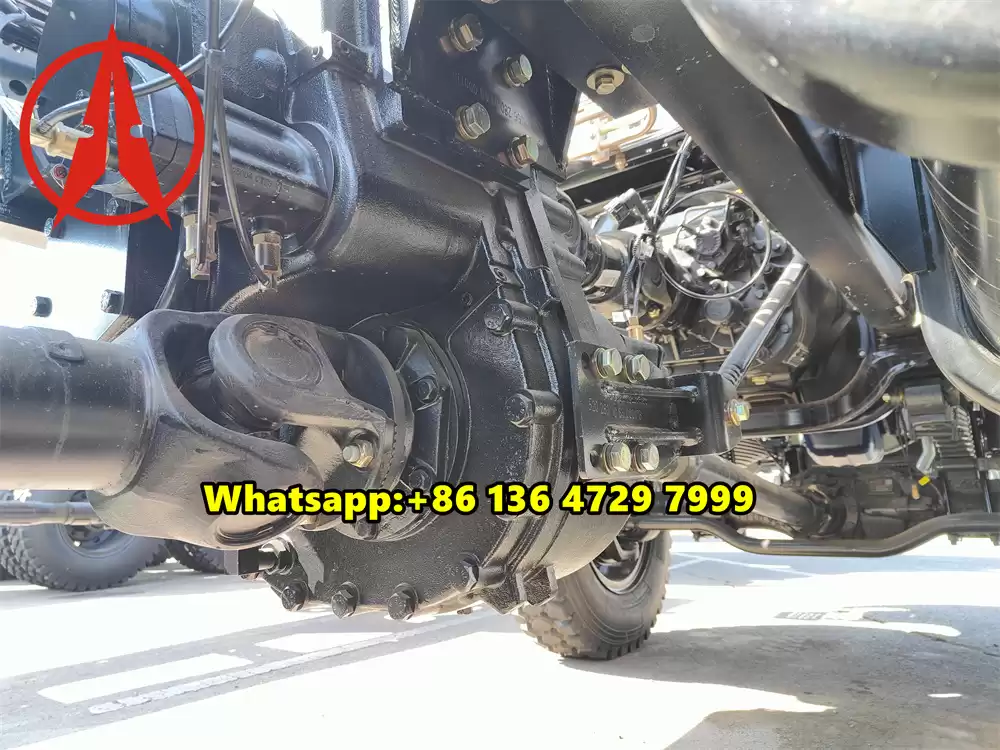

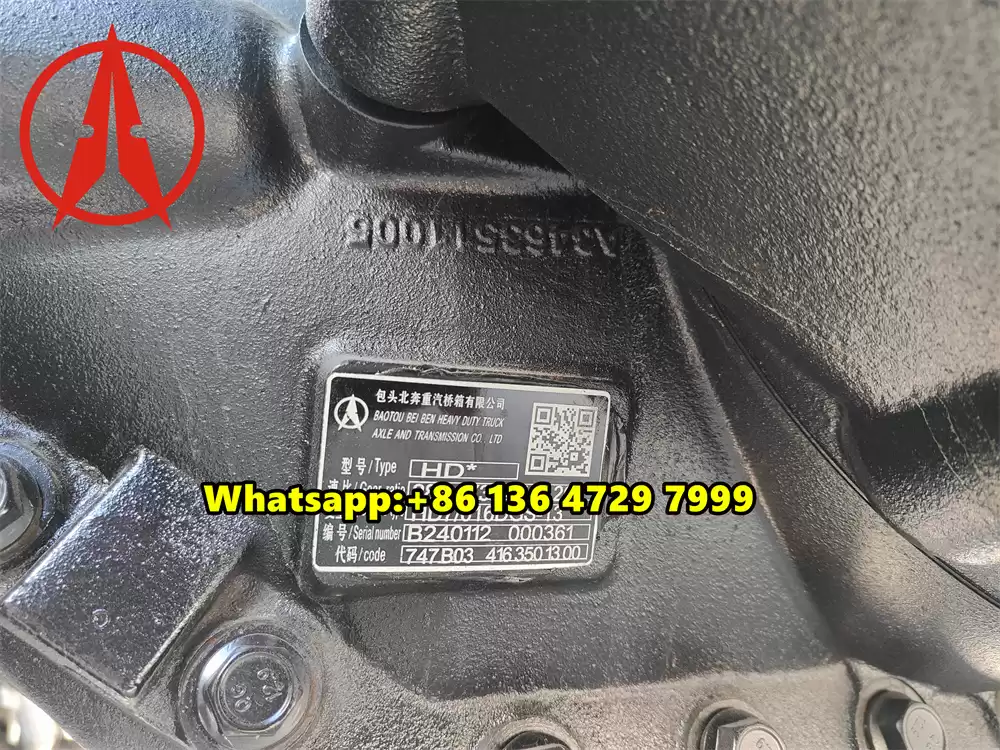

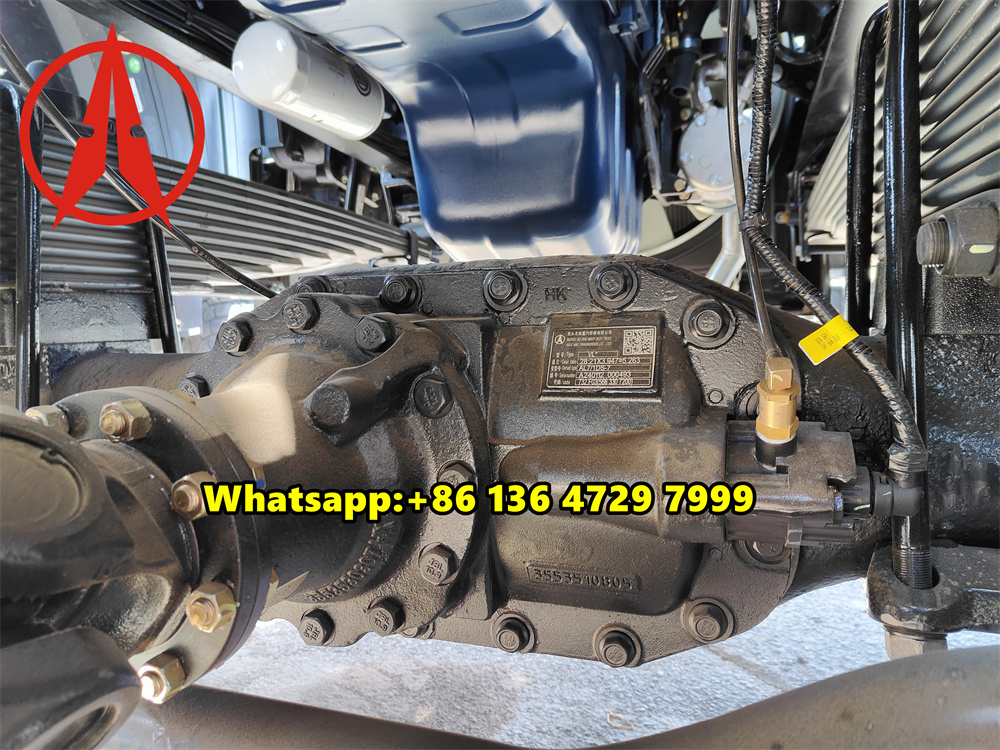

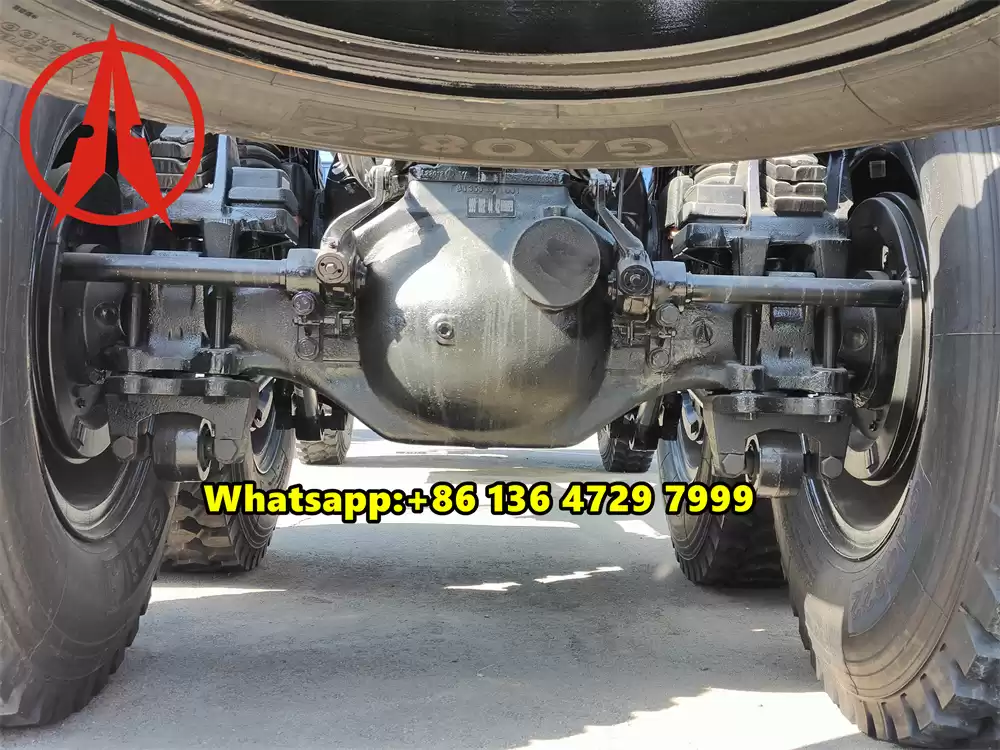

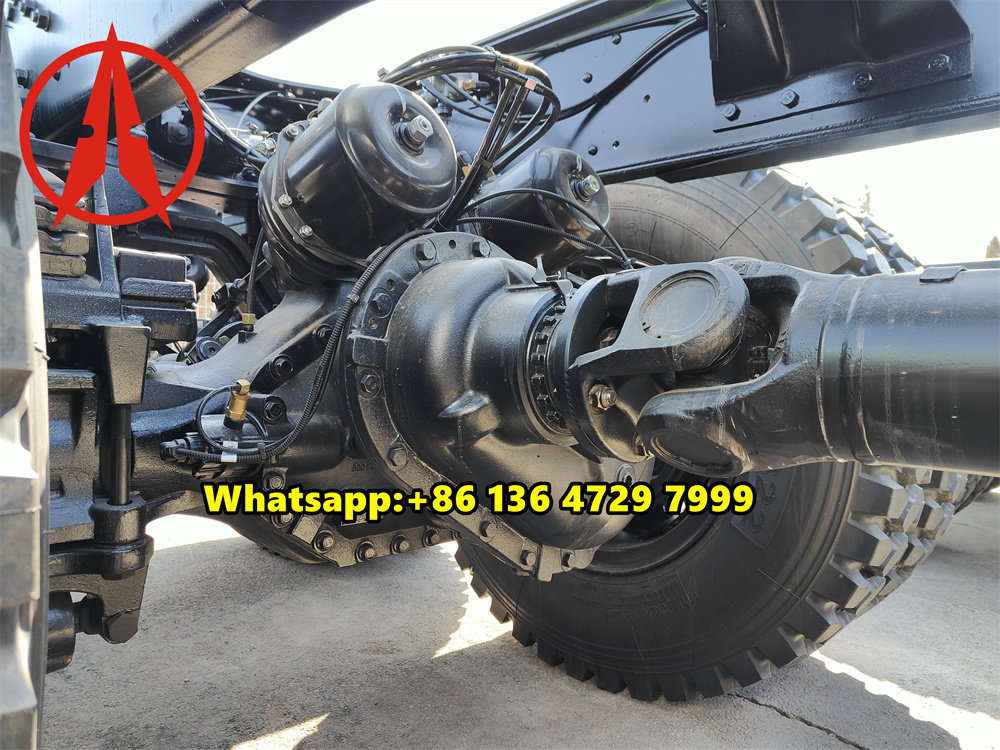

Middle & Rear axle

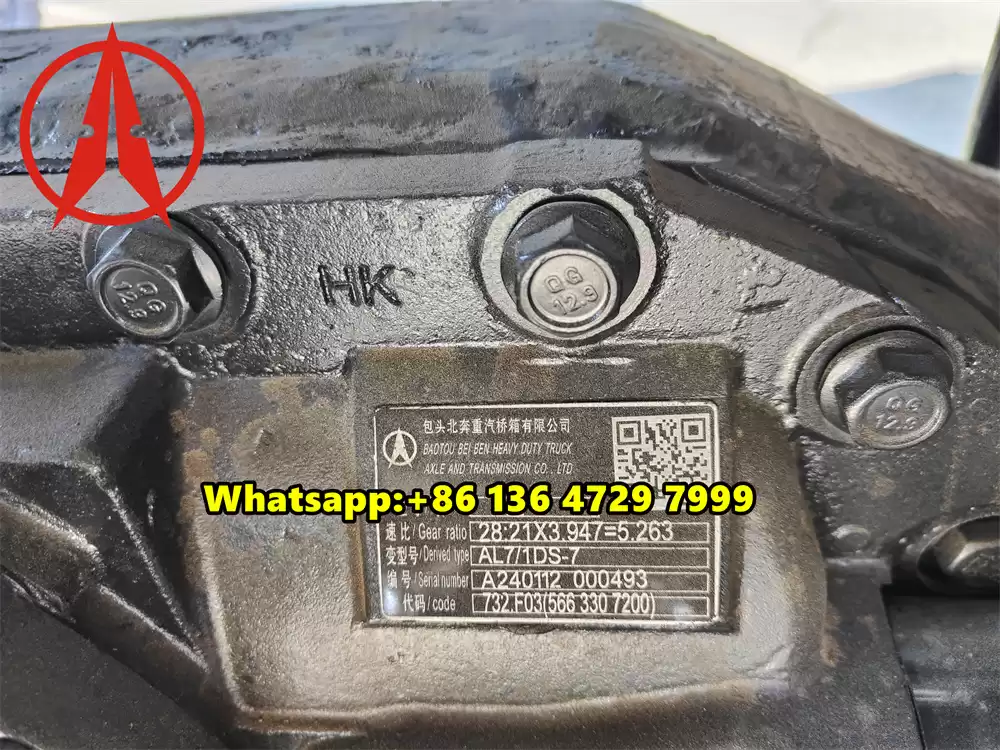

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263；

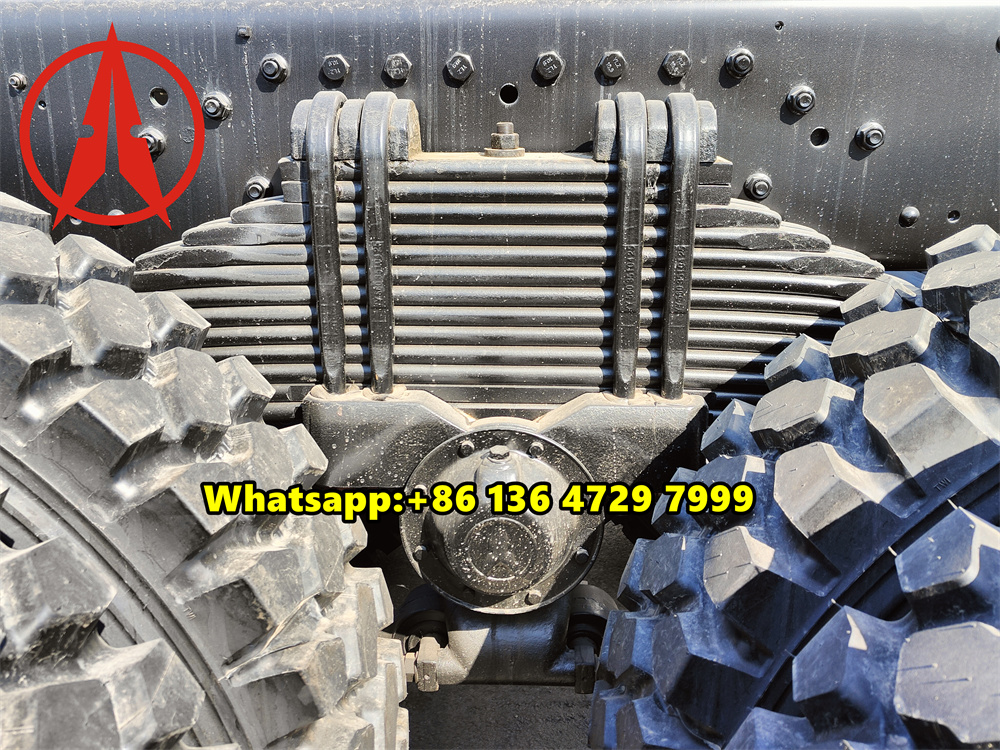

Front and rear suspension

Front/rear: Leaf spring, 13/13 pieces；

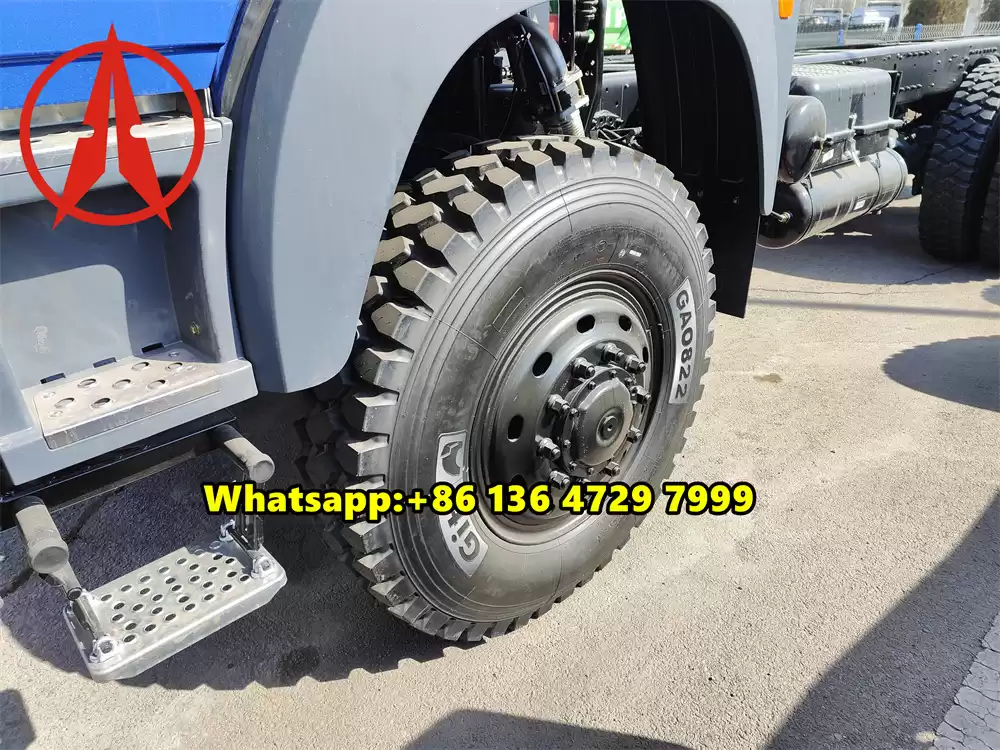

Tire

12.00R24

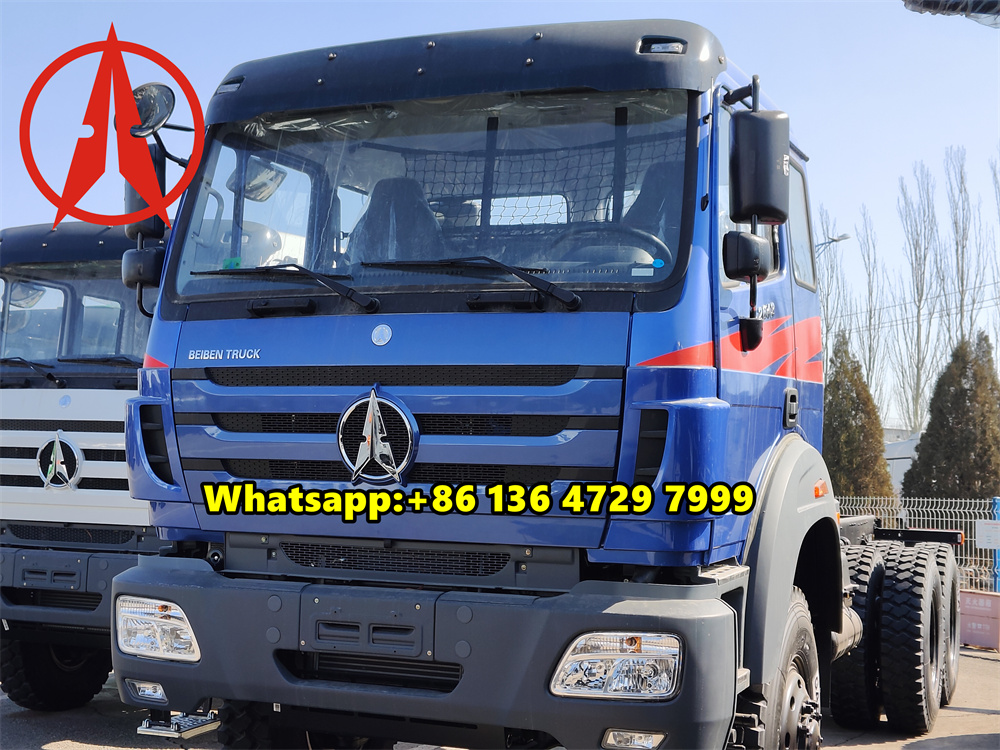

Cab



NG80B Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).



Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument



Offer

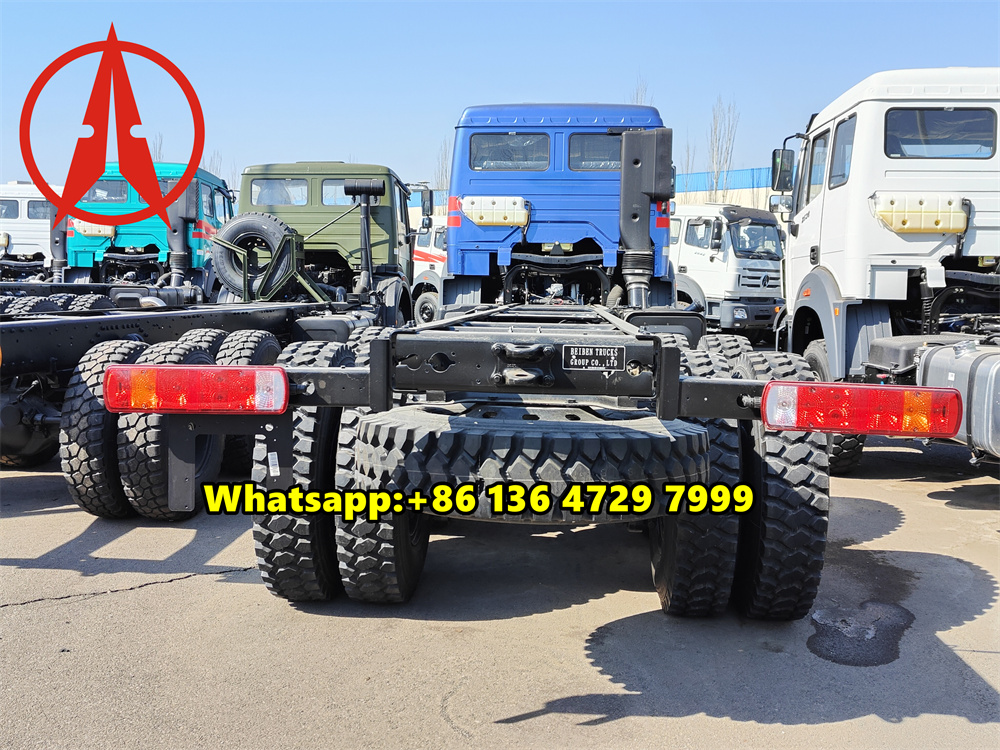

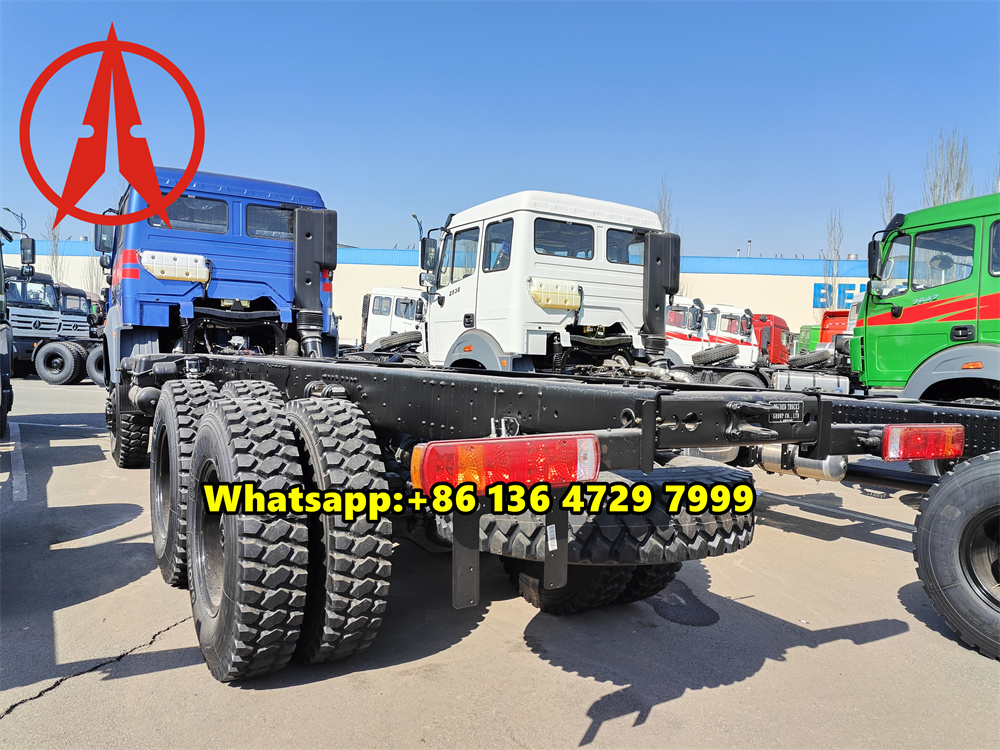

beiben 6x6 drive off road truck

beiben 6x6 drive off road truck

beiben 6x6 drive off road truck

beiben 6x6 drive off road truck
