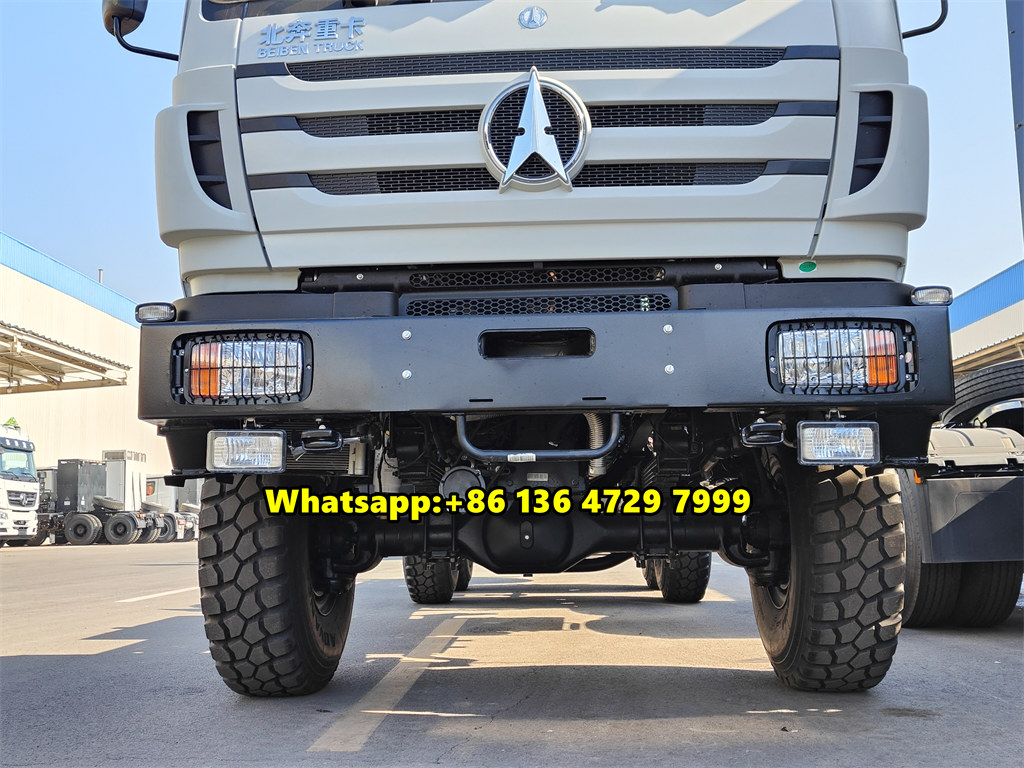

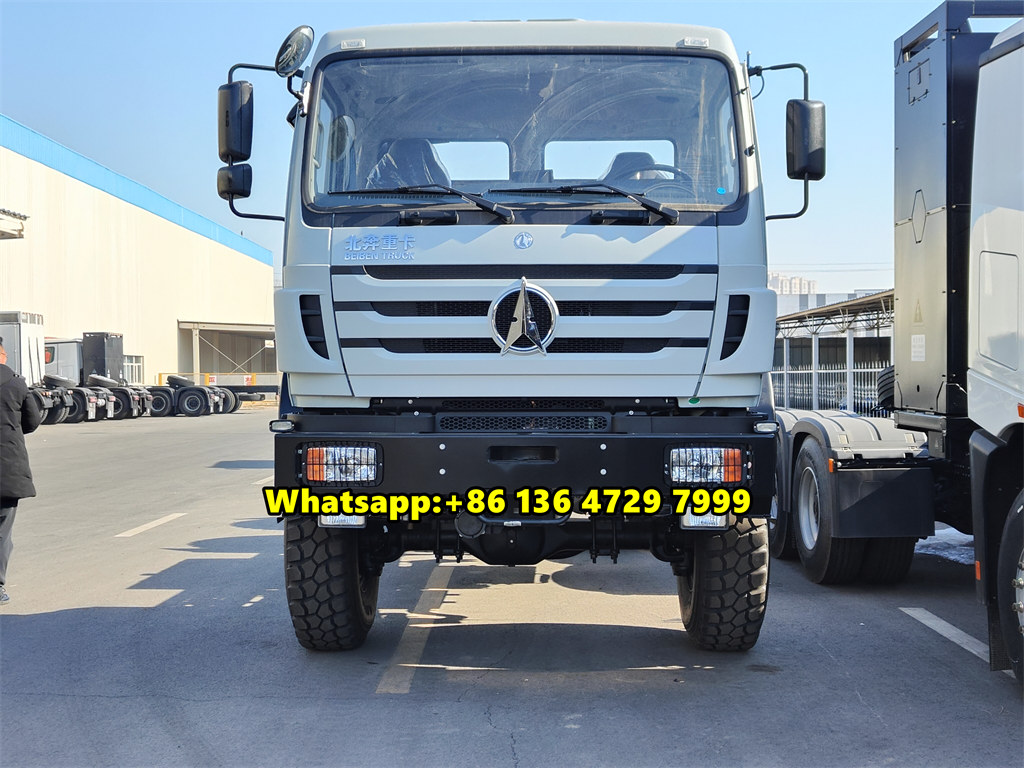

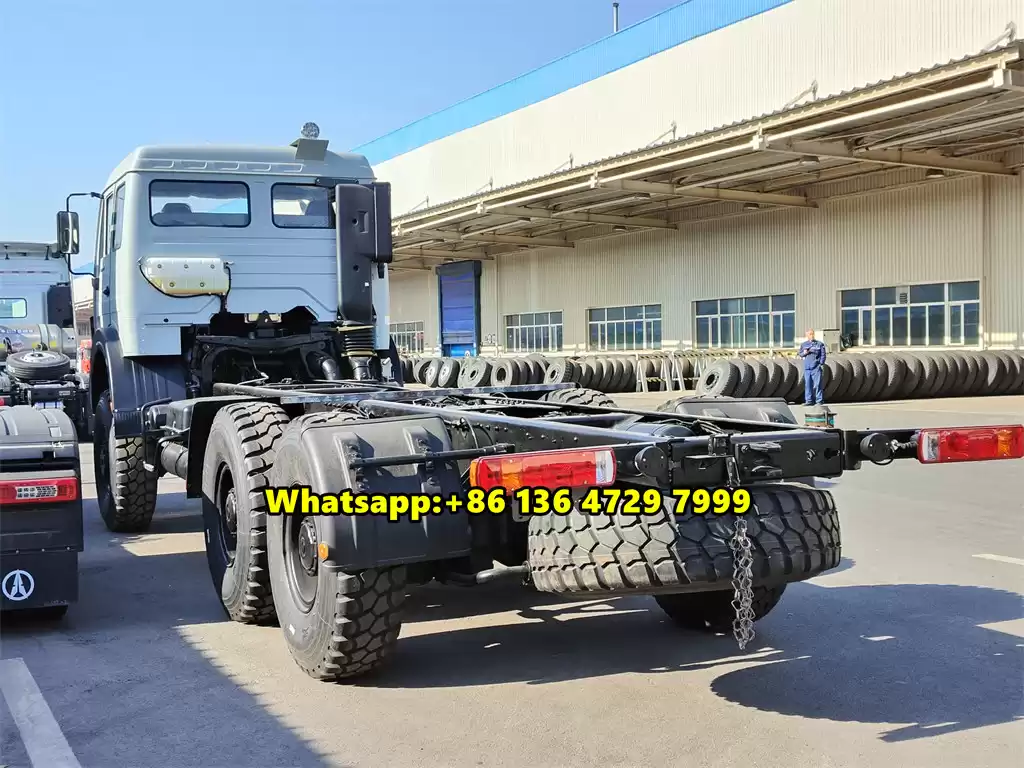

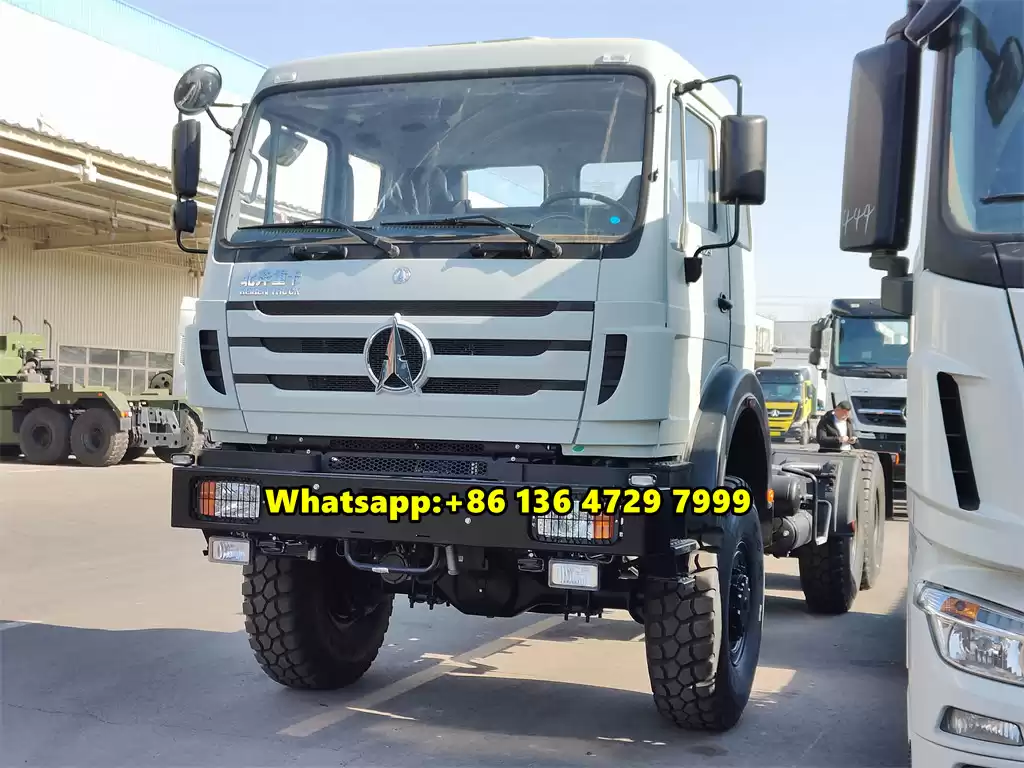

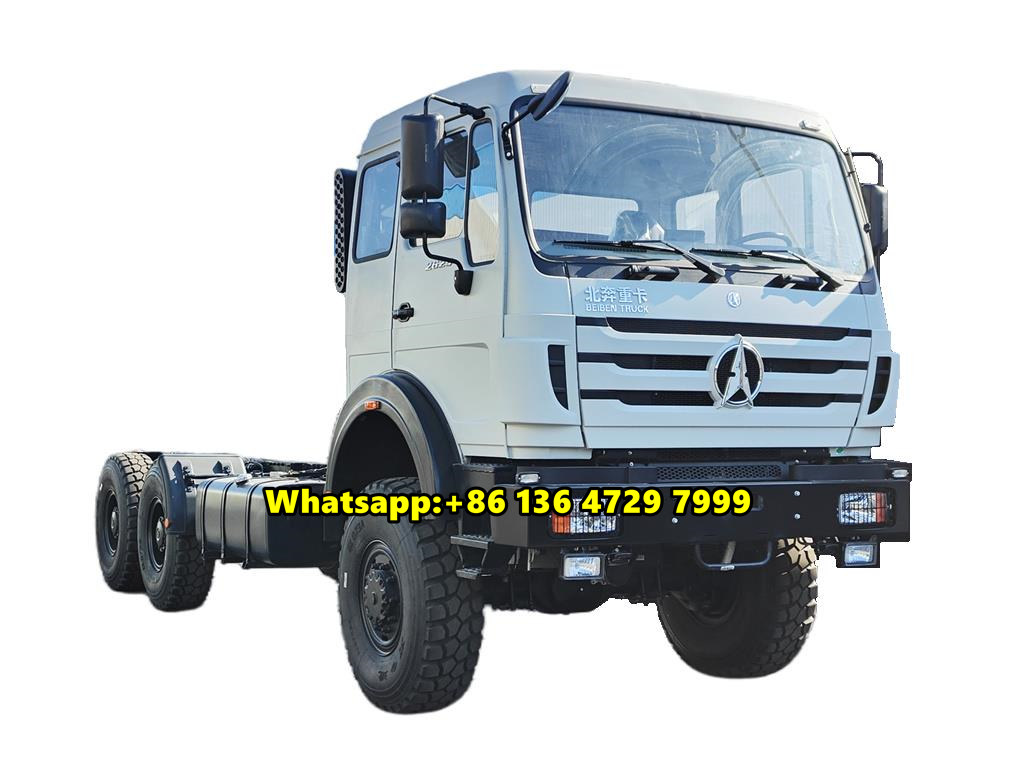

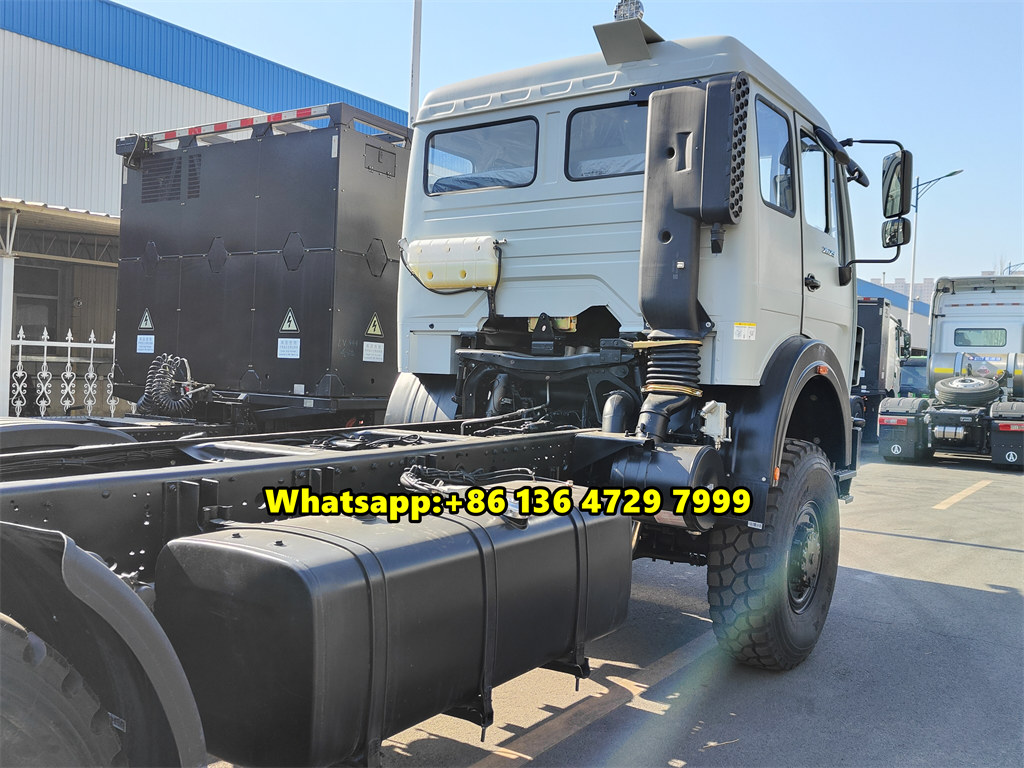

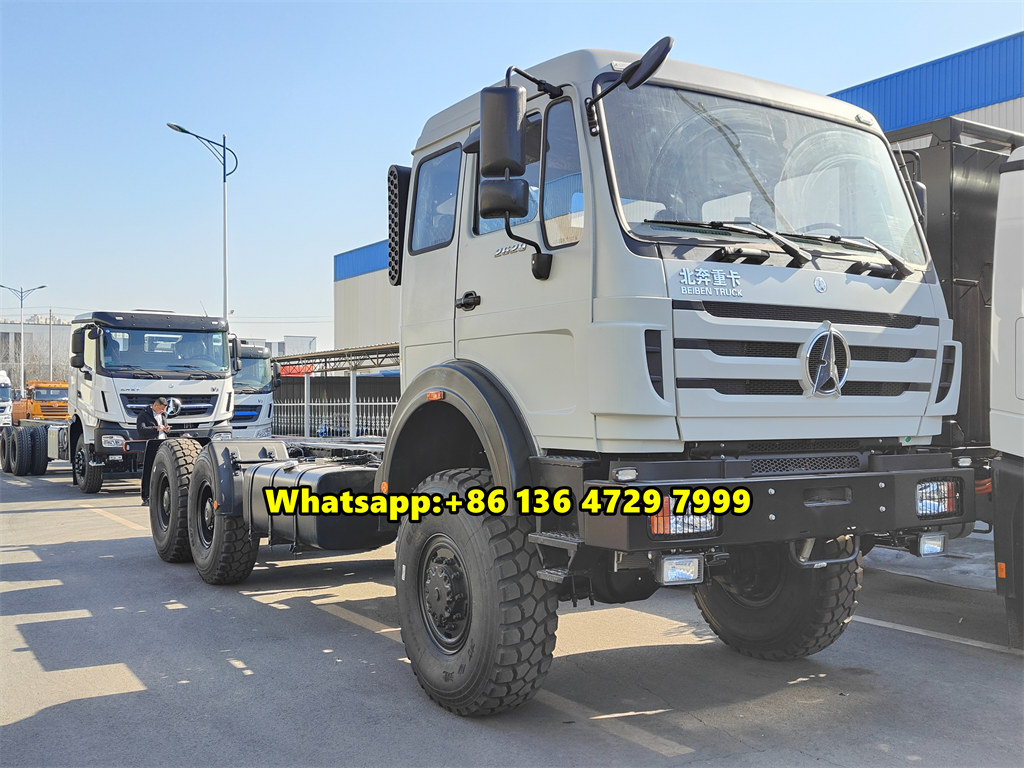

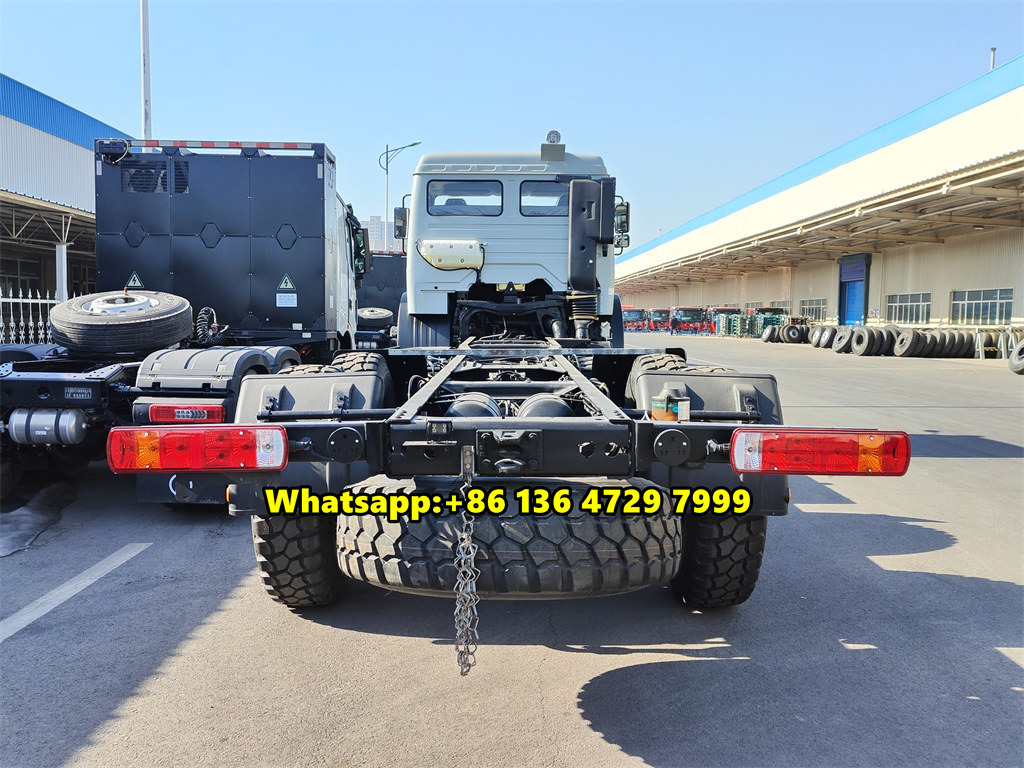

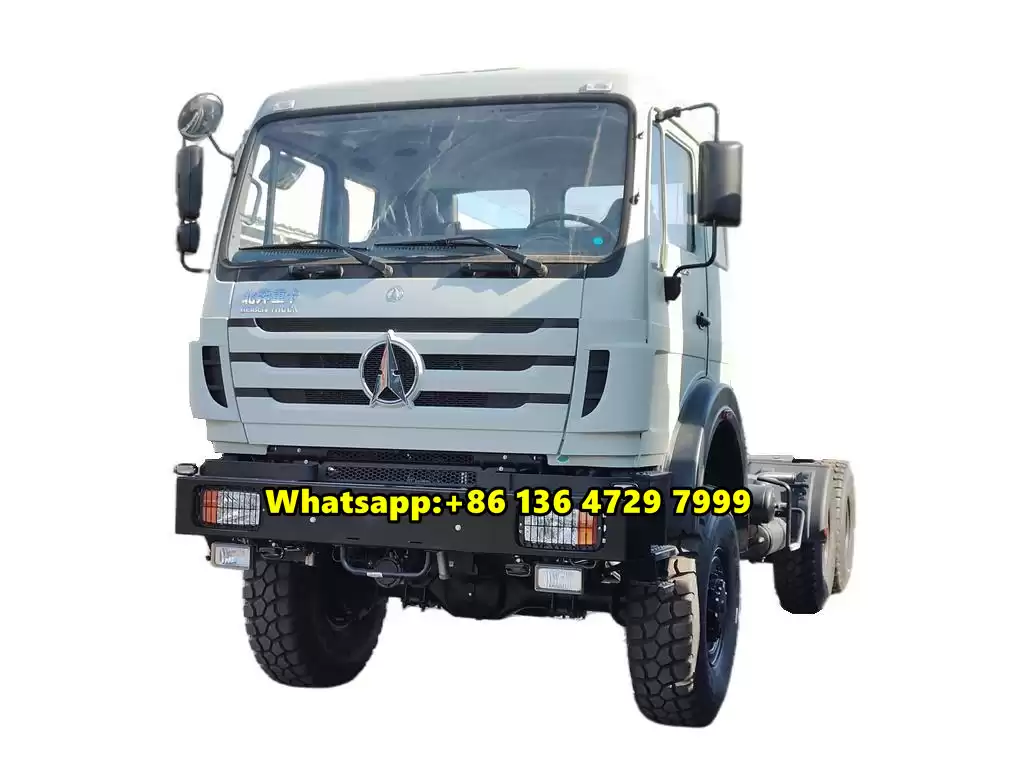

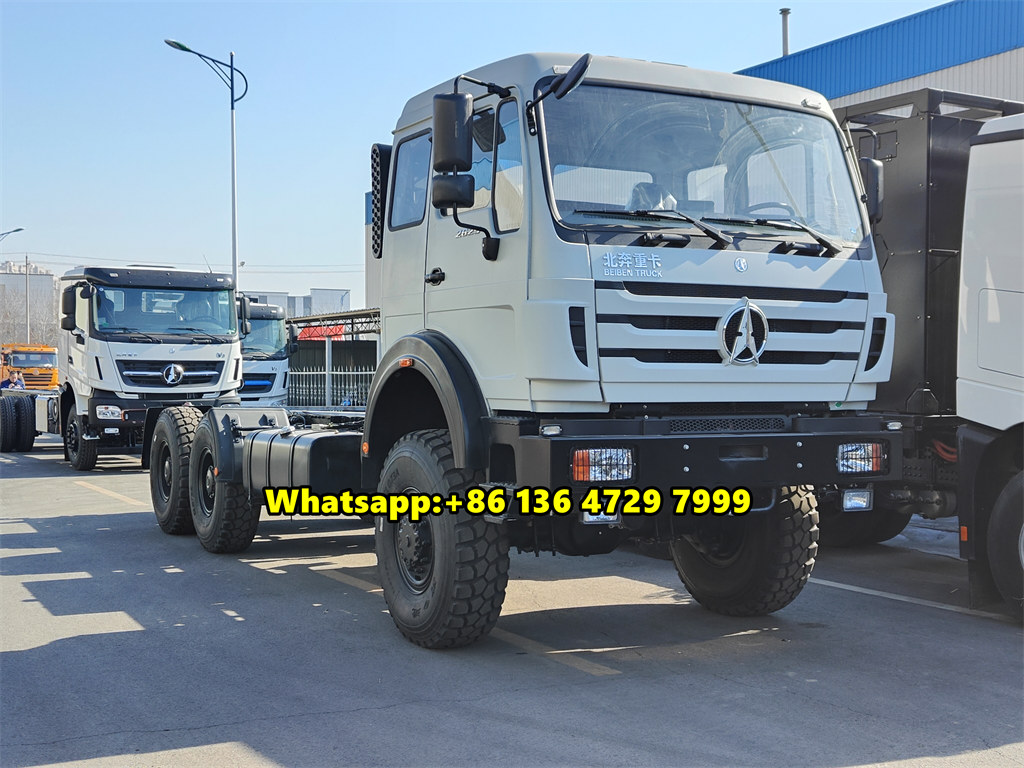

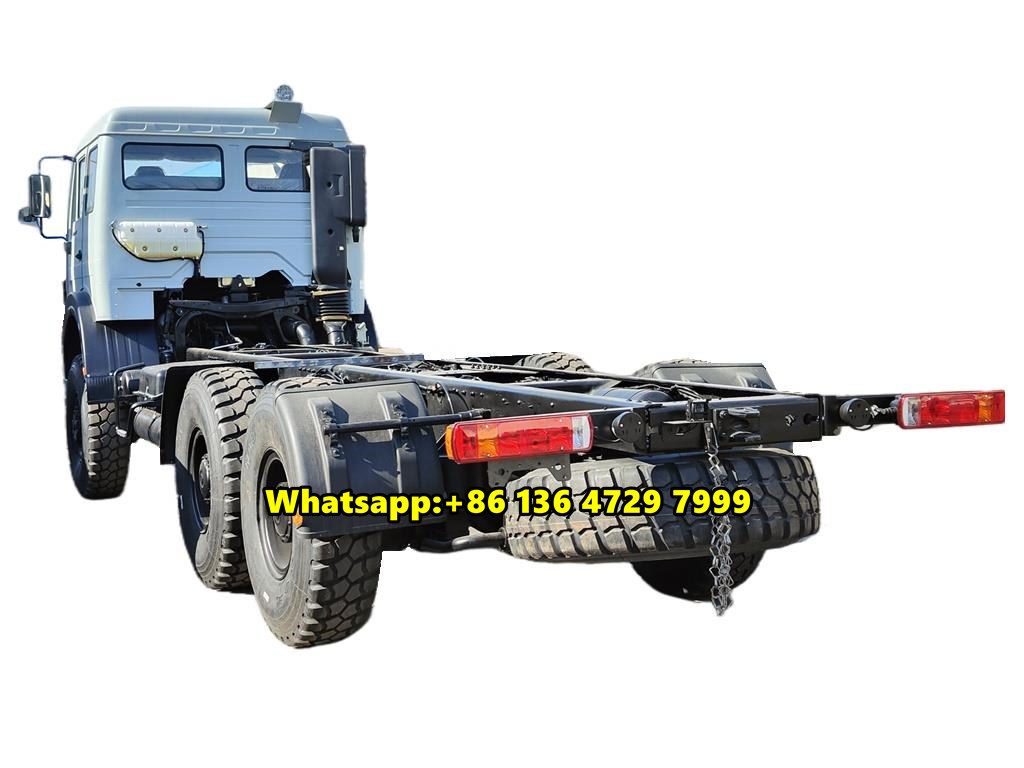

Beiben 6x6 Lorry truck only chassis

Beiben 6x6 offroad 6WD cargo truck, which equipped with NG80 classical cabin, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 14.00R20 tires, which have a larger diameter and higher height, and the Beiben 6x6 LHD 2642 cargo truck chassis with long cabin, which has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Stronger frame can be suitable to build all kinds of special purpose trucks. Beiben 6x6 cargo truck can have cabin different painting as required.


  • Drive system6x6
  • Engine power420HP
  • Working Capcity30-40 tons
  • Payment termsTT
  • Production time25-30days

Beiben 6x6 chassis refers to the Beiben 6x6 offroad cargo truck. The Beiben 2642 cargo truck has six wheels, including two front wheels and four rear wheels. Beiben 420HP cargo truck adopts six wheel drive and has strong offroad capabilities. Beiben 6x6 2642 cargo truck is widely used in the production of military and civilian special vehicles, such as Beiben 6x6 fire trucks, Beiben 6x6 engineering rescue vehicles, Beiben 6x6 fuel tank truck, Beiben 6x6 water tank truckBeiben 6x6 fire truckBeiben 6x6 wildland fire engine, Beiben 6x6 exploration vehicles, Beiben 6x6 tractor truck, etc.

Beiben Heavy Duty Offroad Cargo Truck is an important military offroad truck that suitable for Africa market DRC congo, Ethiopia, Kenya, Tanzania, Mozambique, etc. The Beiben 6x6 offroad cargo truck produces inherits the superior performance of Mercedes-Benz technology and combines China market conditions and use environment to make adaptive improvements and innovations. The North Benz 6x6 cargo truck not only has strong carrying capacity, but also excellent off-road performance. It can adapt to various complex road conditions and harsh environments. Therefore, it has a wide range of application prospects in the field of special vehicles.




The Beiben 6x6 cargo truck is a high-performance and strong off-road capable vehicle chassis that can meet the use requirements in various special needs and environments. Below technical parameters showing advanced features for Beiben 6 wheeler 2642 cargo truck chassis.

NORTH BENZ 6X6 Cargo Truck

Model

ND1255B50J

Driver's cab

Long cabin, one sleeper

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP12.420E32

EURO II/EUROIII emission standard

Maximum output:420hp@2200rpm

Number of cylinder:6

Displacement: 11.596L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 12JS200A transmission.

Front Axle

Benz, drum brake

Rear Axle

Benz double reduction drive axle, ratio=5.2

Steering

TAS85

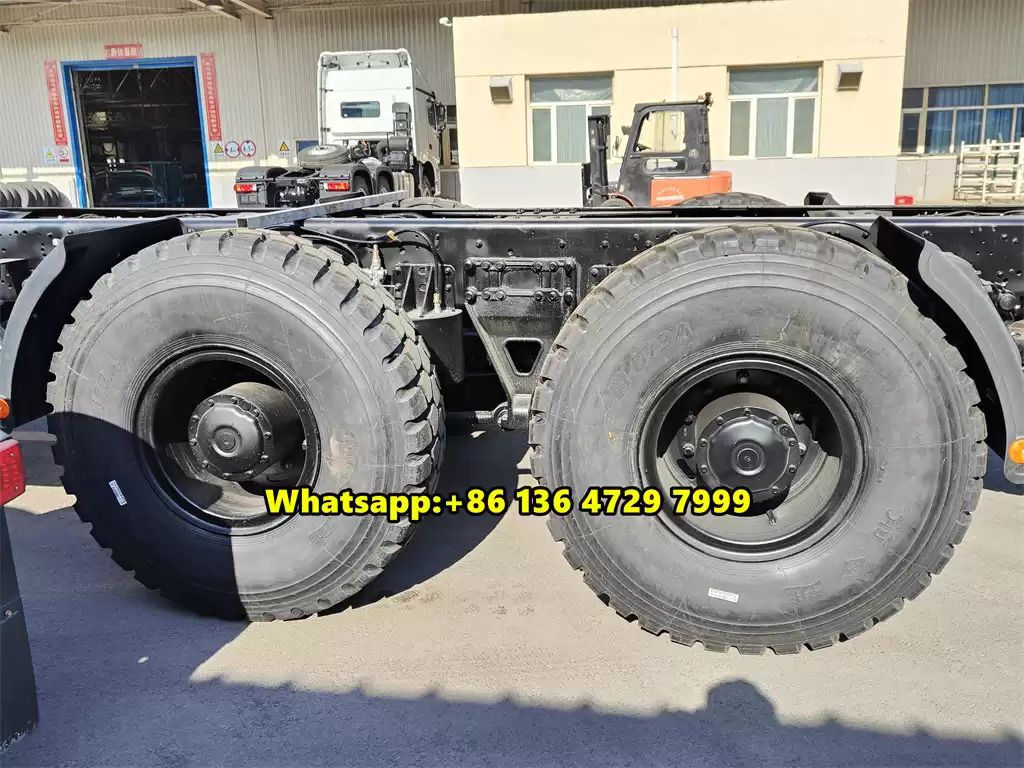

Wheel & Types

Rims:8.5-20

Tyre:14.00R20 tube

Optional: 12R22.5, 315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base   :   4750+1450

Overall size: 10576x2500x3385

Weight in kg

Kerb. mass: 11300 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h)             85

The manufacture reserves the right of technical alteration/change for better improvement prior notice

--Heavy duty beiben 6x6 cargo truck features

BBeiben 6x6 all wheel driving cargo truck with excellent off-road capability, which is an ideal for driving on rough roads, Powerful and passable chassis, high load capacity, very popular in the DRC Congo.

11. Beiben 2642 offroad cargo truck chassis adopt the Mercedes BENZ truck tech, the chassis is stable, stong and very durable.

22. With WEICHAI 420HP diesel engine and a maximum torque of 1250N.m, it is even more impressive in terms of manoeuvrability.

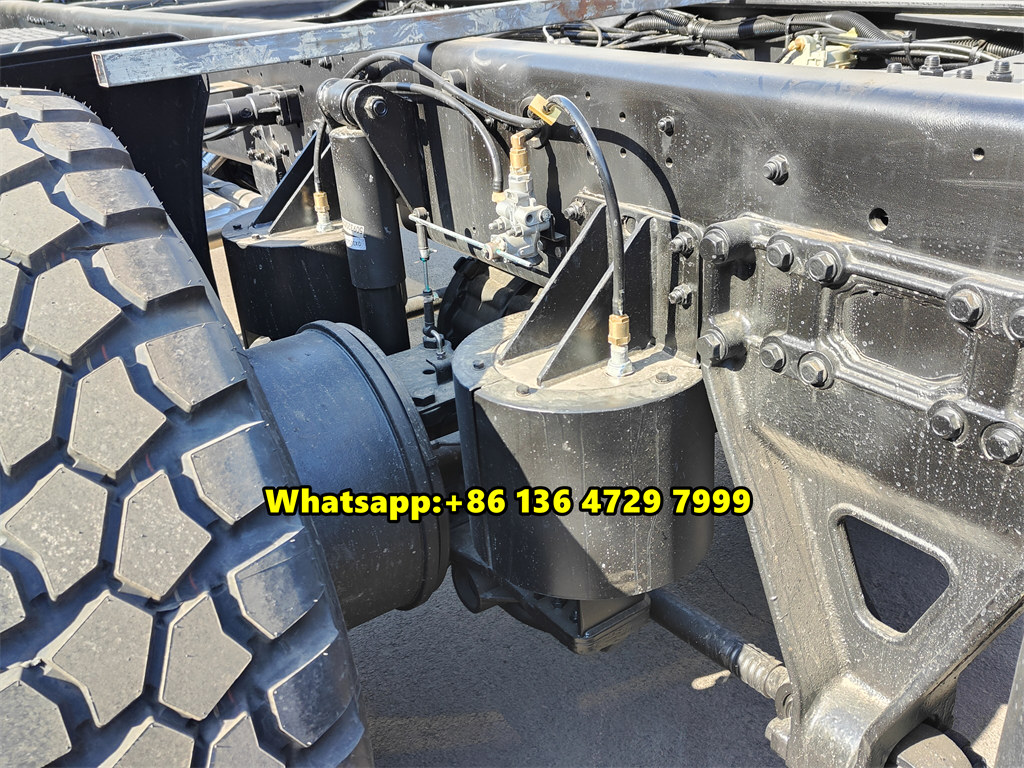

33. The BEIBEN 6x6 cargo truck brake system including the serivce brake, assistant brake and park brake. Details as follow: Brake gap can be adjusted automatically, double circulation air brake system, engine exhaust brake, potential spraings pressing on middle and rear wheels.
