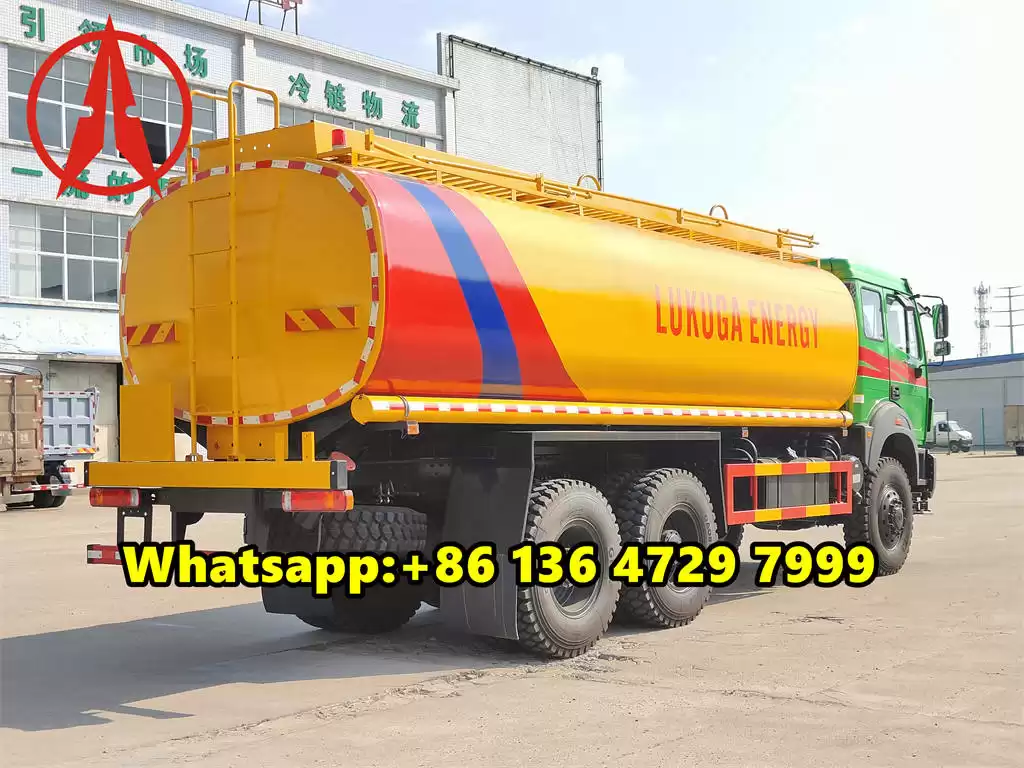

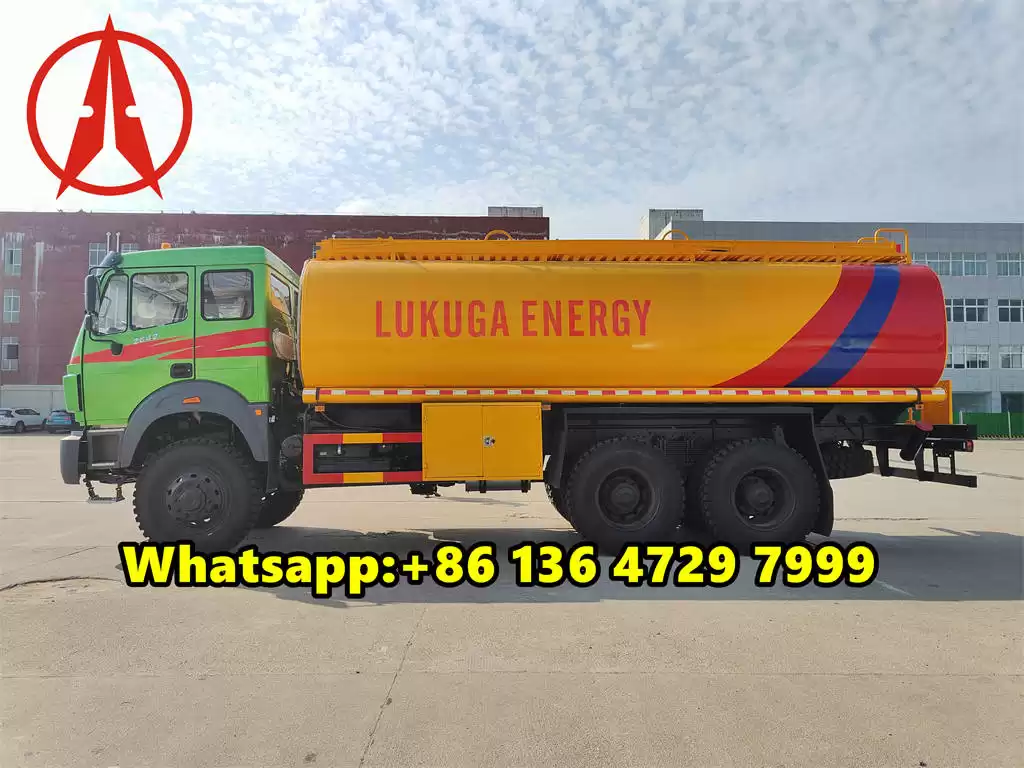

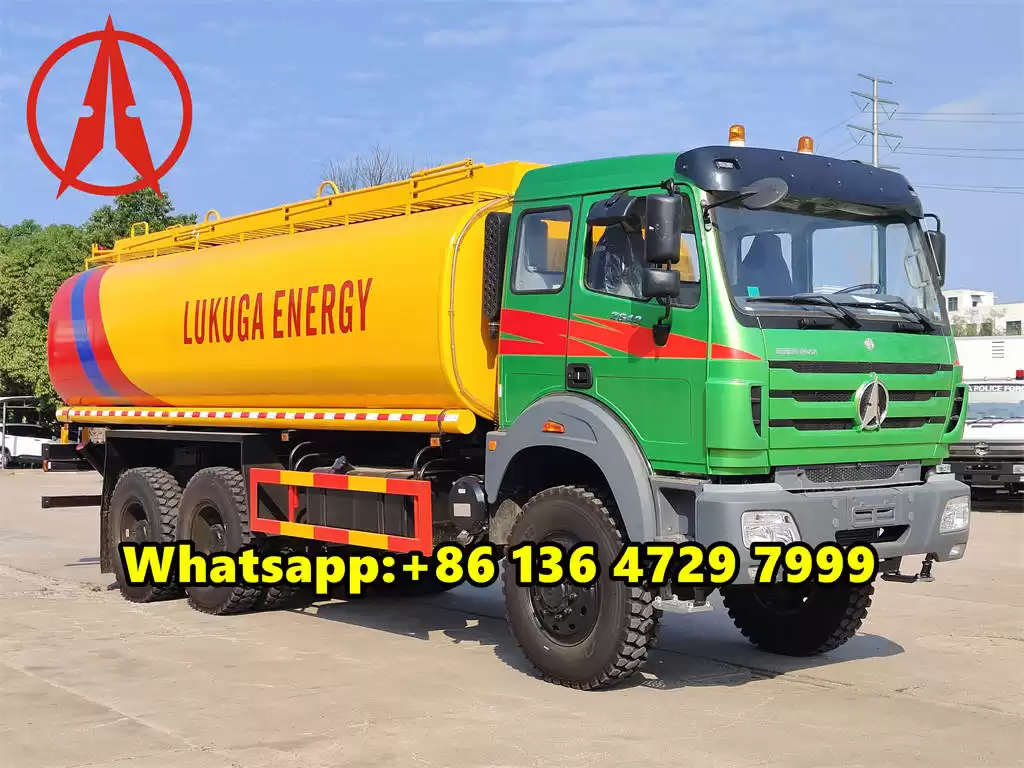

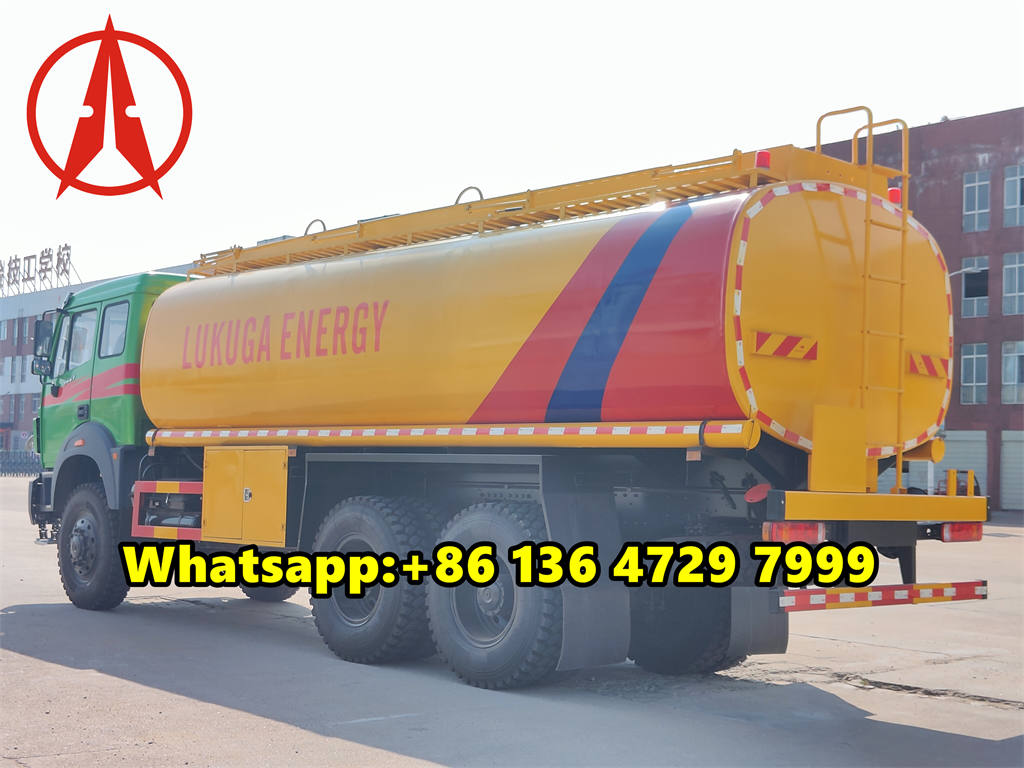

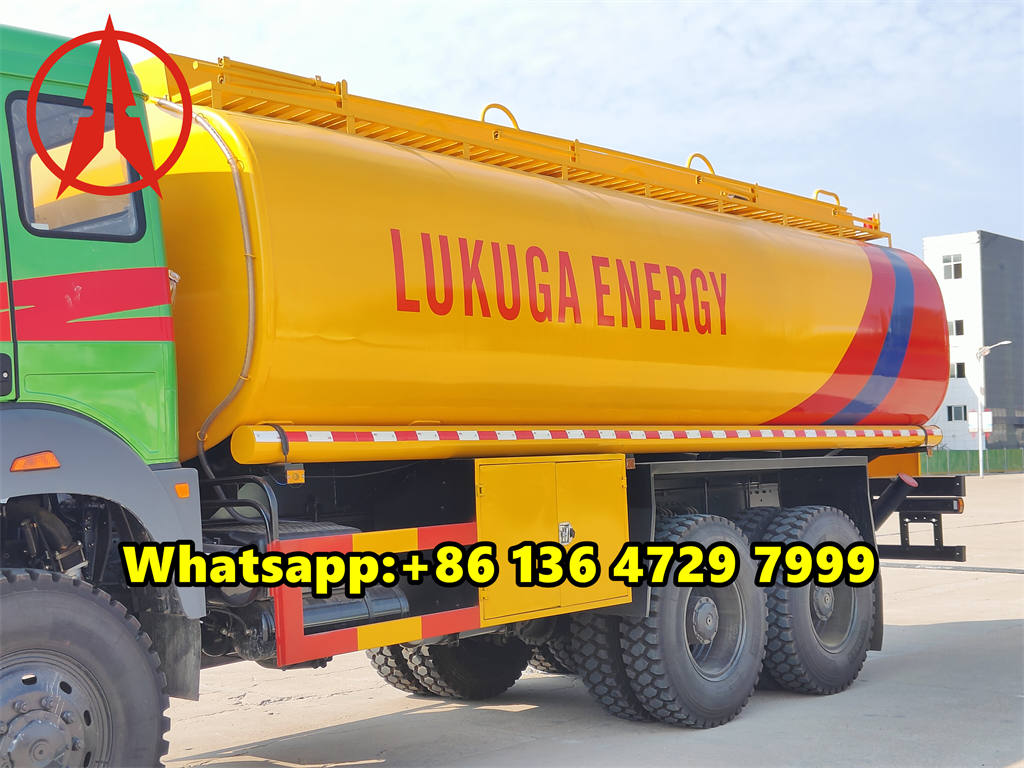

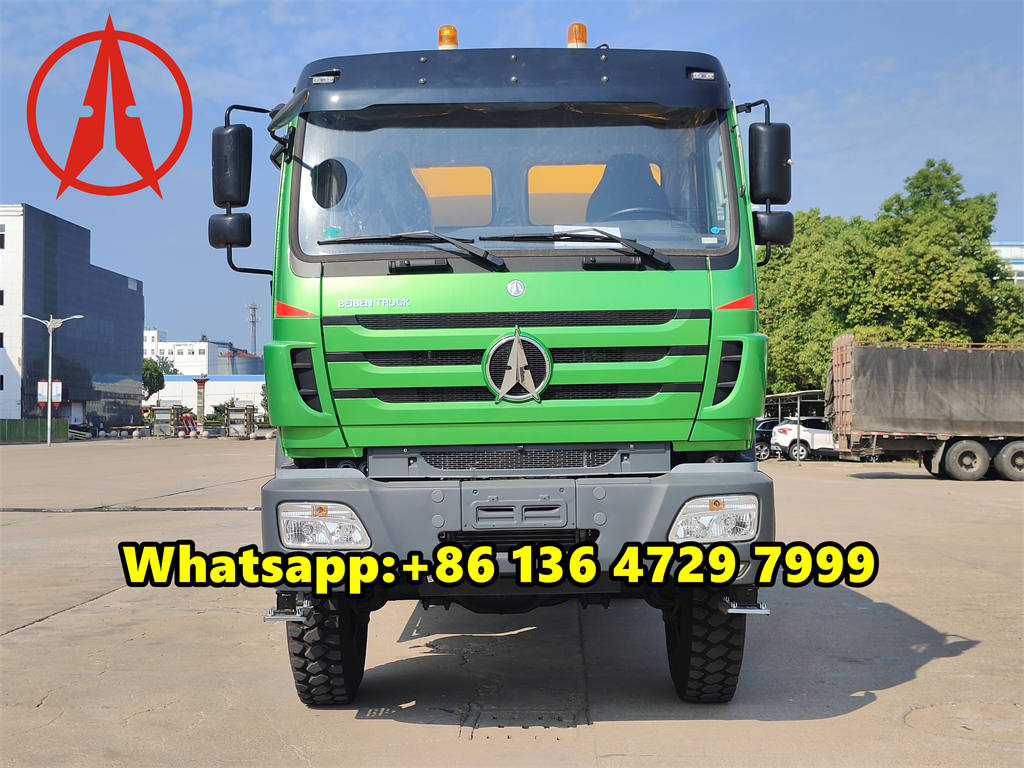

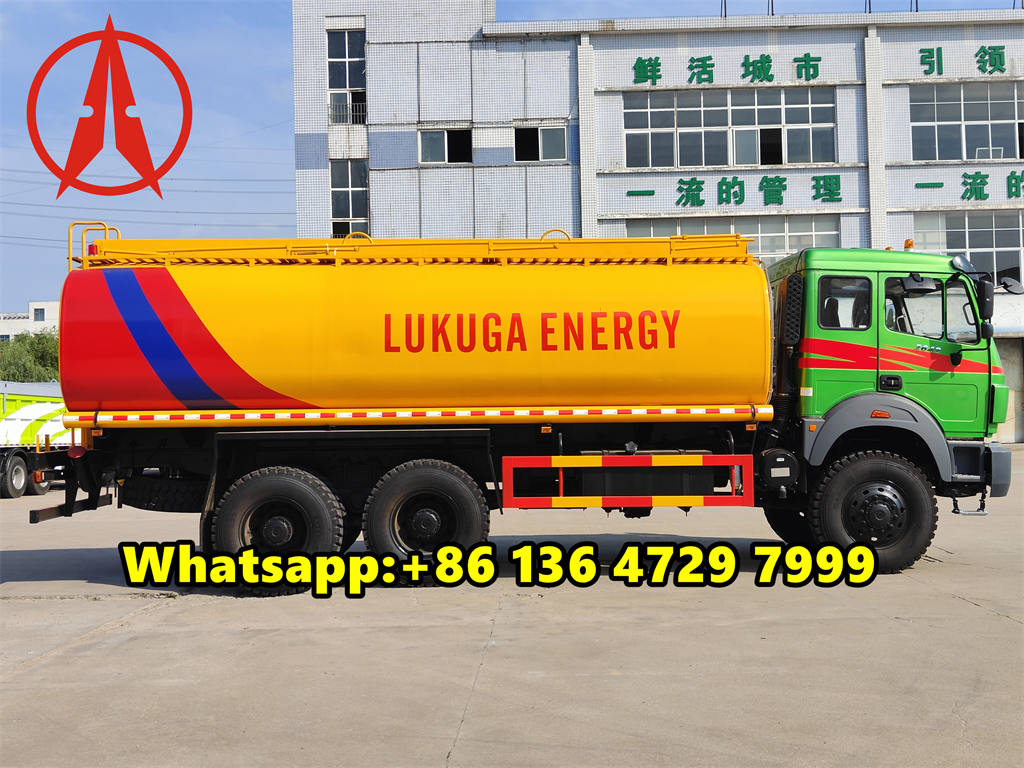

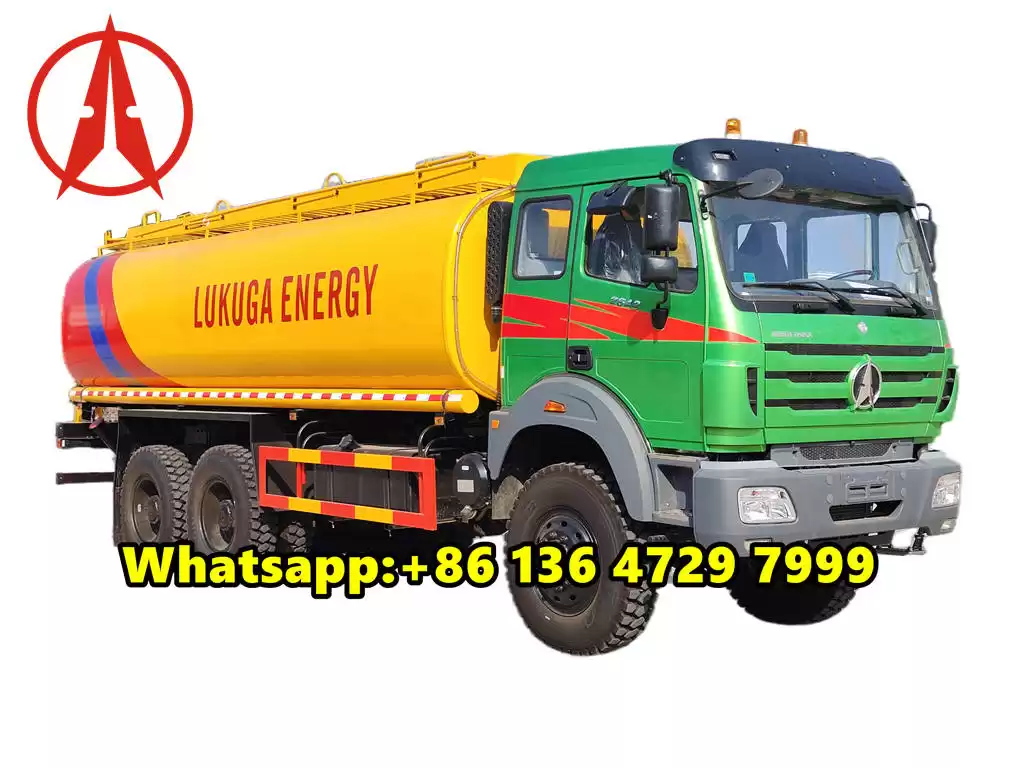

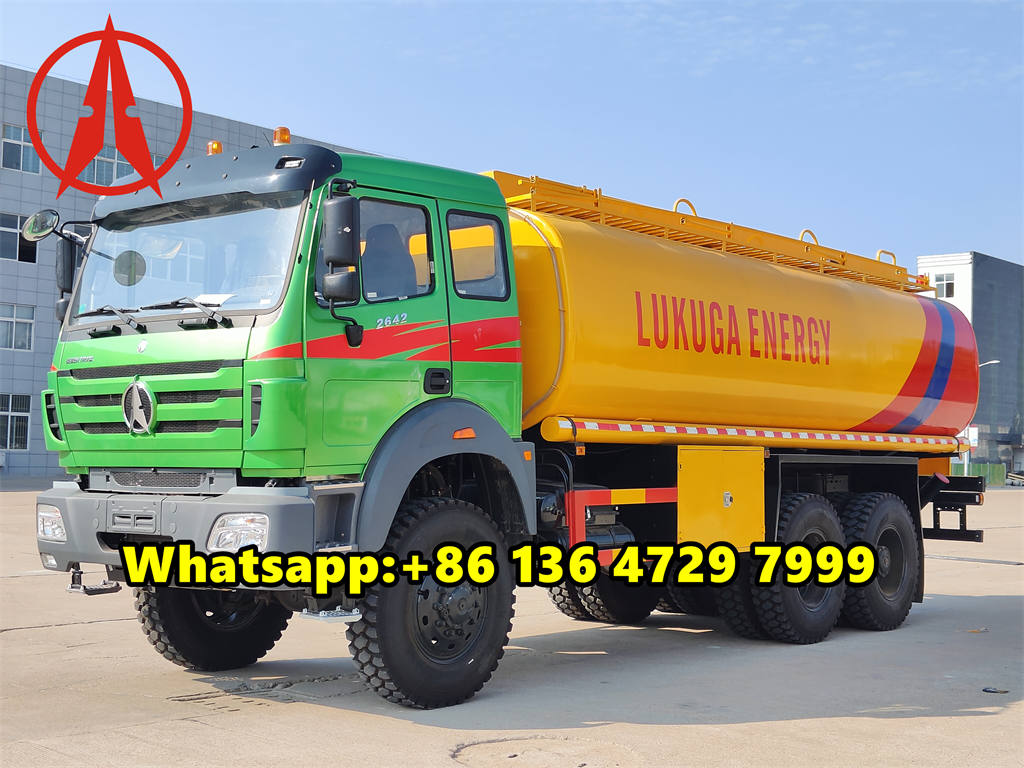

Beiben 6x6 off road fuel tanker truck

The Beiben 6×6 all-wheel drive fuel tanker is specifically designed for long-distance transportation and complex road conditions. With a chassis brand of Beiben, it features a front and rear axle configuration of 7T/13T*2 and an overall dimension of 9660×2500×3850mm. It adopts a 6×6 drive mode and is equipped with a FAST 12JS200T transmission and tires with a specification of 120.00R20. The vehicle is powered by a Weichai WP12.420E32 engine with a displacement of 12 liters and a maximum output power of 420 horsepower. The fuel tank has a total capacity of 20,000 liters and is divided into three compartments, meeting various transportation needs.


  • Engine power420 HP
  • Working Capcity20000 liters
  • Payment termsTT
  • Production time35 days
  • Drive system6×6 all wheel drive

Product Description

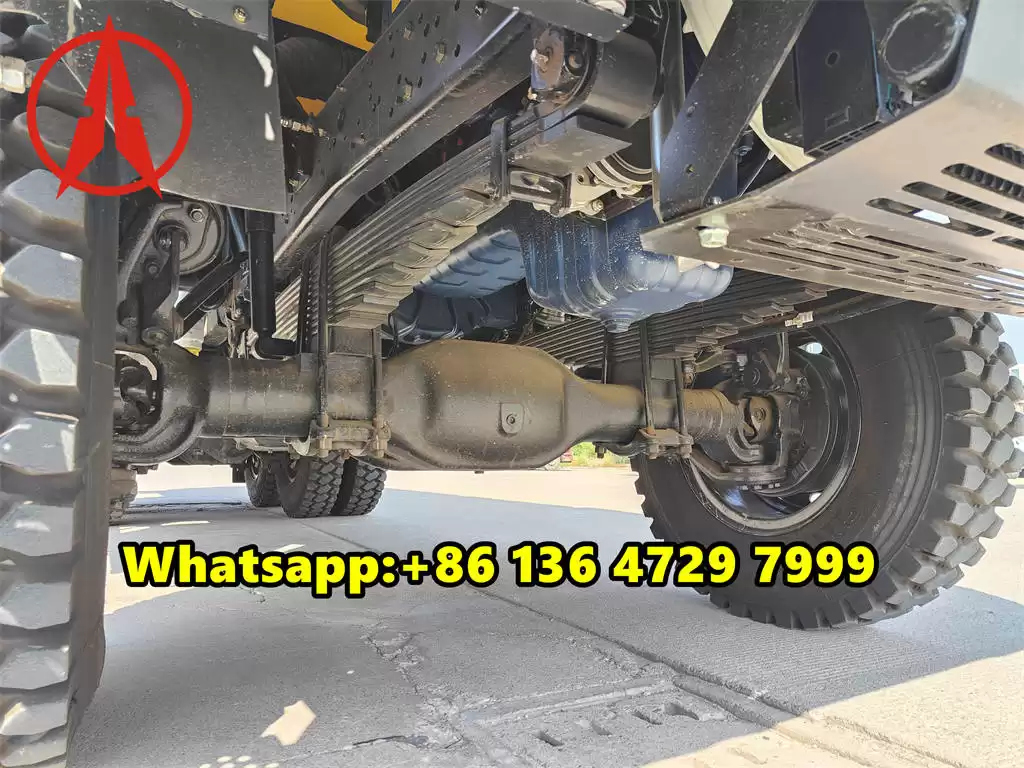

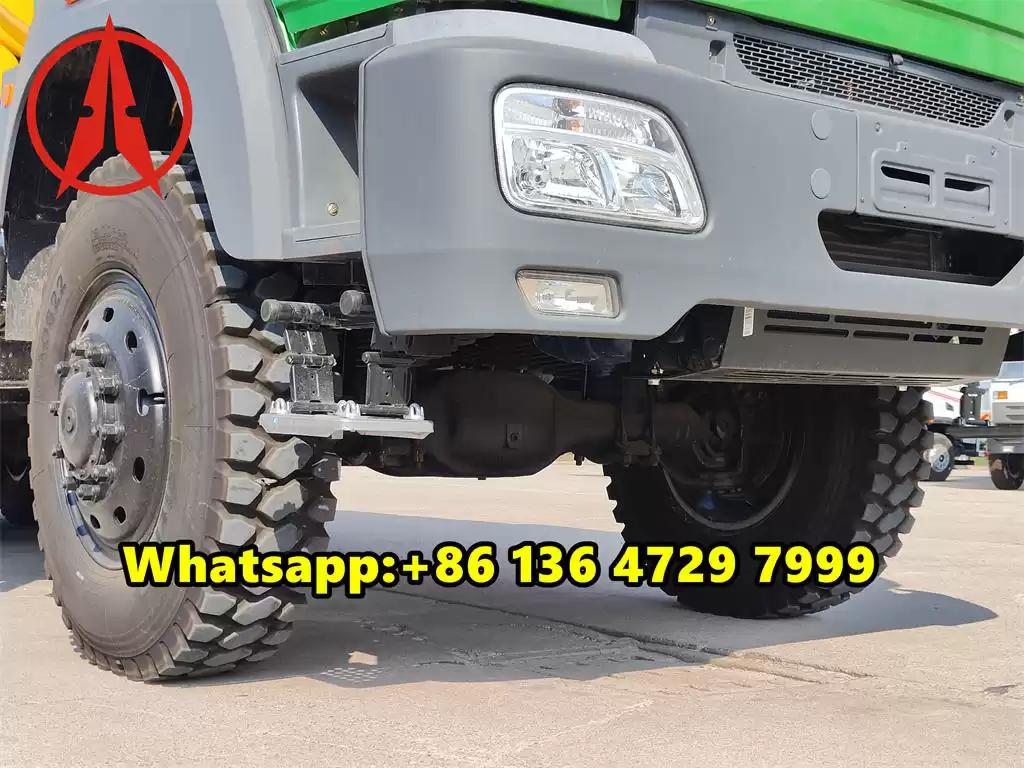

Beiben 6×6 all-wheel drive fuel tanker is a heavy-duty oil transportation vehicle specifically designed for long-distance transportation and complex road conditions. Its powerful performance and excellent adaptability make it an indispensable transportation tool in industries such as petroleum and chemical engineering. The vehicle adopts a 6×6 drive mode, meaning all six wheels have driving capability, which provides outstanding off-road performance and climbing ability.





The Beiben 6×6 fuel tanker truck is equipped with a Weichai WP12.420E32 engine, with a displacement of 12 liters and a maximum output power of 420 horsepower. This engine features a 6-cylinder in-line, four-stroke, water-cooled, turbocharged intercooling, and direct injection technology, resulting in high fuel efficiency and emissions that meet Euro 3 standards. The vehicle is also equipped with a FAST 12JS200T transmission, which has 12 forward gears and 2 reverse gears, ensuring smooth shifting and convenient operation.

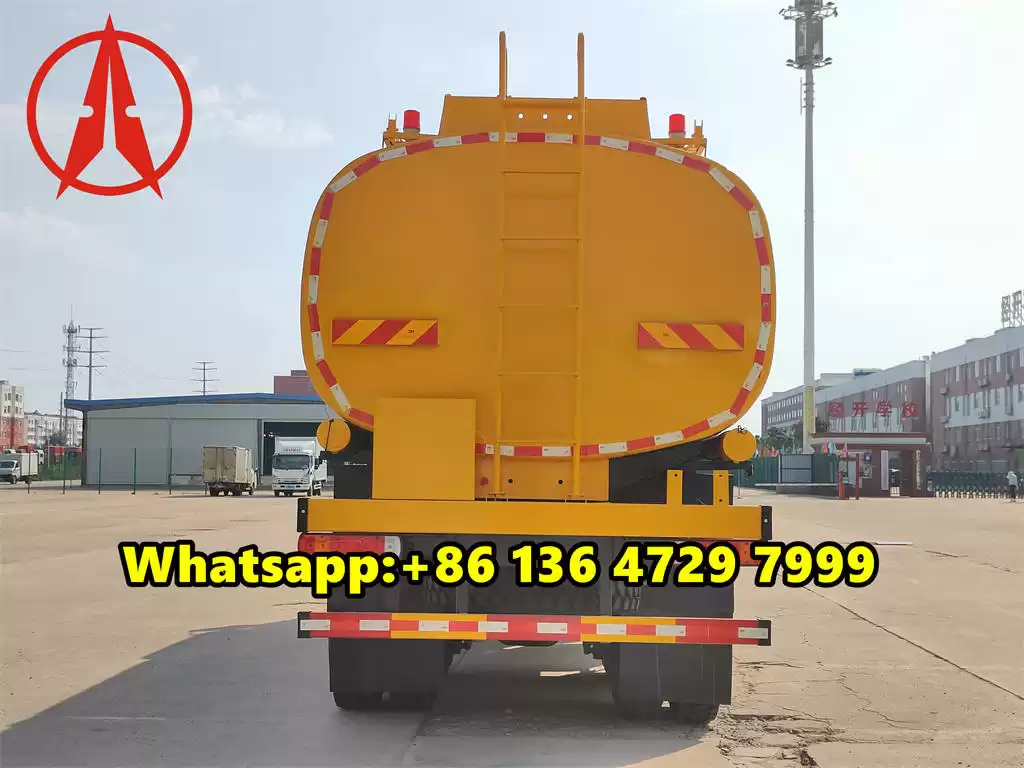

The fuel tank is a core component of the vehicle, with a total volume of 20,000 liters and divided into three compartments to meet different transportation needs. The fuel tank is made of Q235B steel, with a thickness of 5mm at the ends and 4mm for the body, ensuring its strength and durability. Additionally, the color and markings of the fuel tank can be customized according to customer requirements.

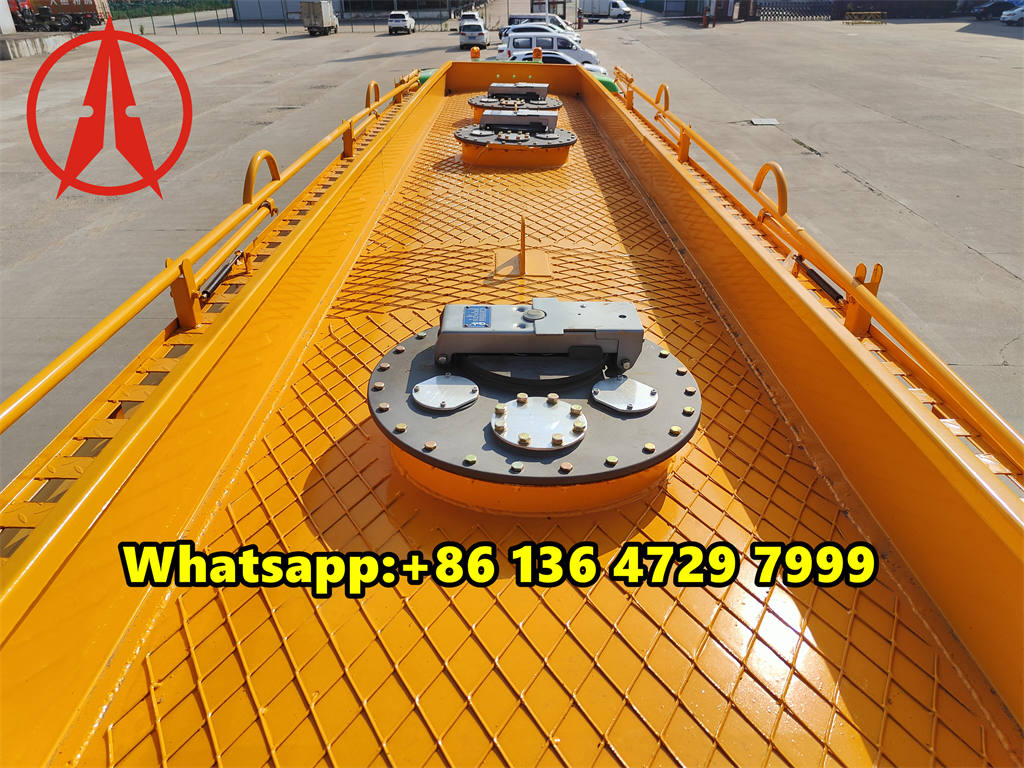

In terms of accessories, the Beiben 6×6 off-road fuel truck is equipped with 3 DN500 manholes, 3 DN50 breather valves, and 3 bottom valves, facilitating fuel filling and drainage. The vehicle also features an 80YHCB-60 oil pump with a flow rate of 60 cubic meters per hour, ensuring efficient fuel transfer. Furthermore, it is equipped with 3 ball valve-type discharge valves, 1 flowmeter with a 15-meter refueling gun, and 1 anti-static rail for safety.

To ensure driving safety, the Beiben 6×6 oil tanker truck is also equipped with an emergency cutoff device and a vapor recovery system, with an overfill sensor as a standard configuration. Additionally, the vehicle is equipped with a toolbox and a fire extinguisher to respond to emergencies.





Product Specifications



Truck Chassis

Chassis Brand

Beiben

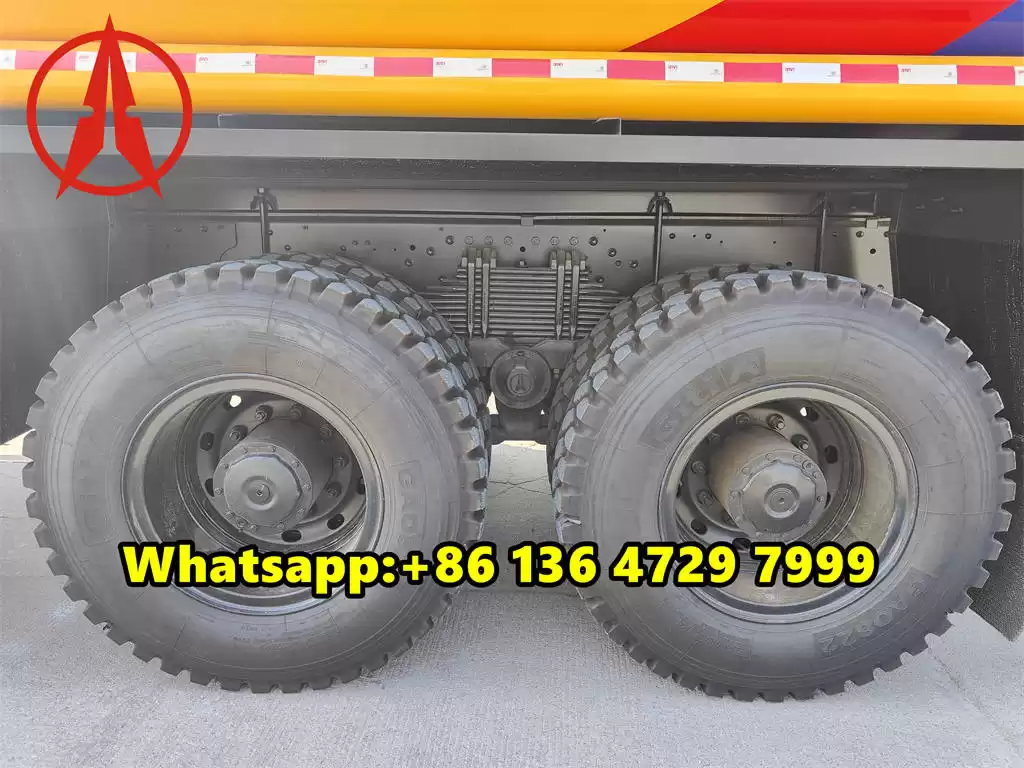

F/R Axle

7T/ 13T*2

Overall Dimensions

9660×2500×3850 mm

Drive Type

6×6, LHD

Wheelbase

4450+1450mm

Gearbox

FAST 12JS200T, 12F+2R

Tire

12.00R24, 10+1pcs

Brake

Air brake type

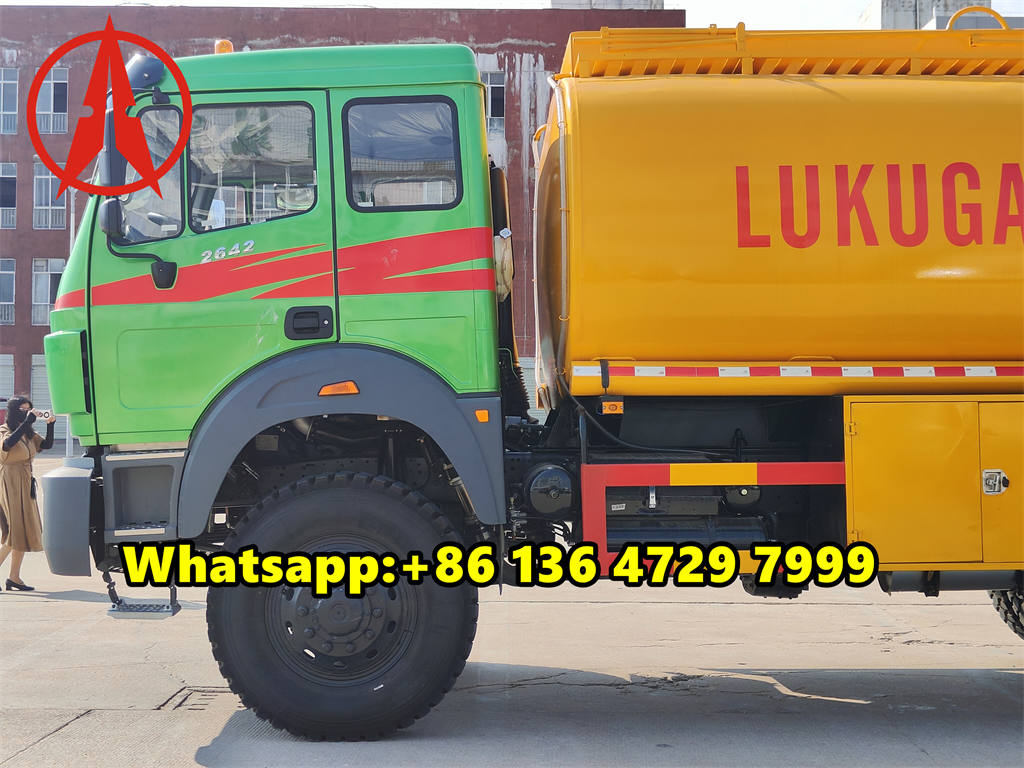

Cabin

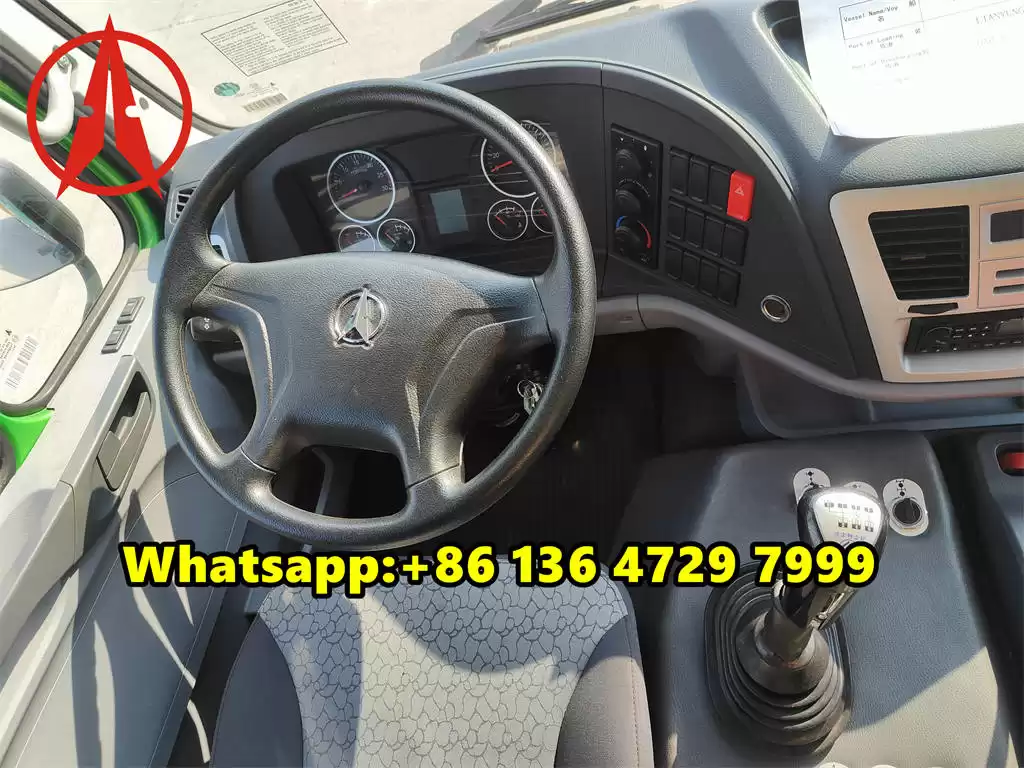

NG80, long cabin, with one sleeper, with A/C, hydraulic driver's seat, manual reversal, etc

Engine

Model

Weichai WP12.420E32

Horsepower

420HP

Displacement

12 L

Emission

Diesel, Euro 3

Type

6 cylinders in-line, four strokes, water-cooled, turbo-charged intercooling, direct injection

Fuel Tanker

Tank

Volume

20000L, 3 compartments

Material & Thick

steel Q235B; end 5mm, body 4mm

Color & Logo

customized

Fittings

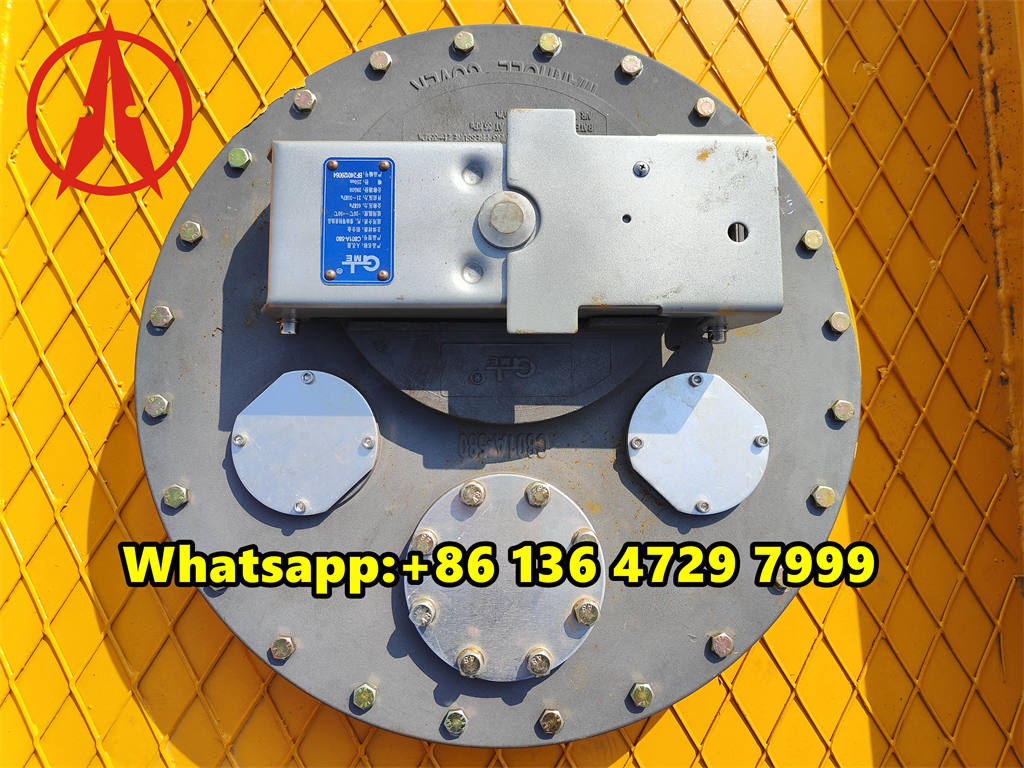

Manhole

3 units DN500

Breather Valve

3 units, DN50

Bottom Valve

3 units

Oil Pump

80YHCB-60, with flow rate 60m3/h

Discharge Valve

3 units, ball valve

Flowmeter

1 unit, with 15M rotary filling gun

Anti-static rail

1 piece

Emergency Cutoff Device

1 unit

Vapor Recovery System

Factory standard

Overfill sensor

Factory standard

Tool Box

1pcs

Fire extinguisher

1 pcs



Product Details
