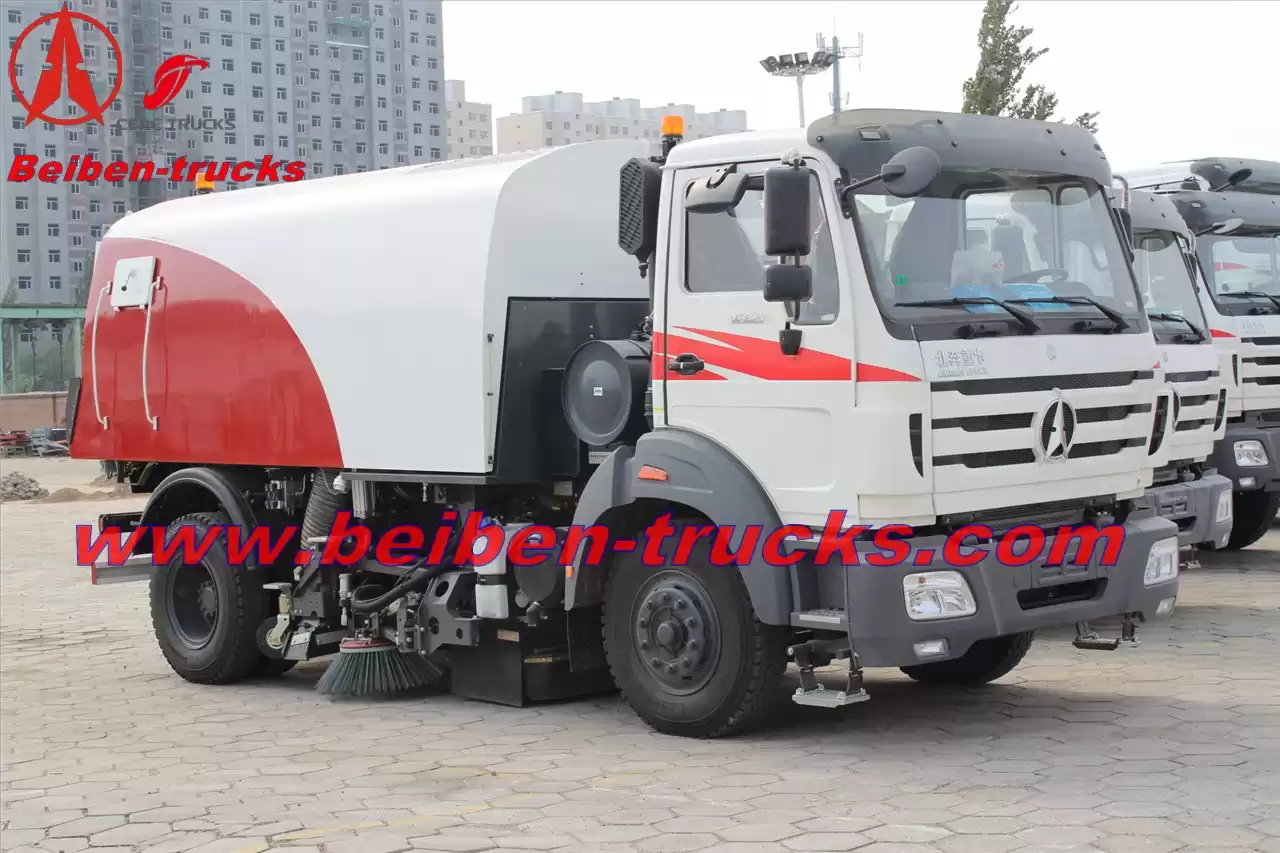

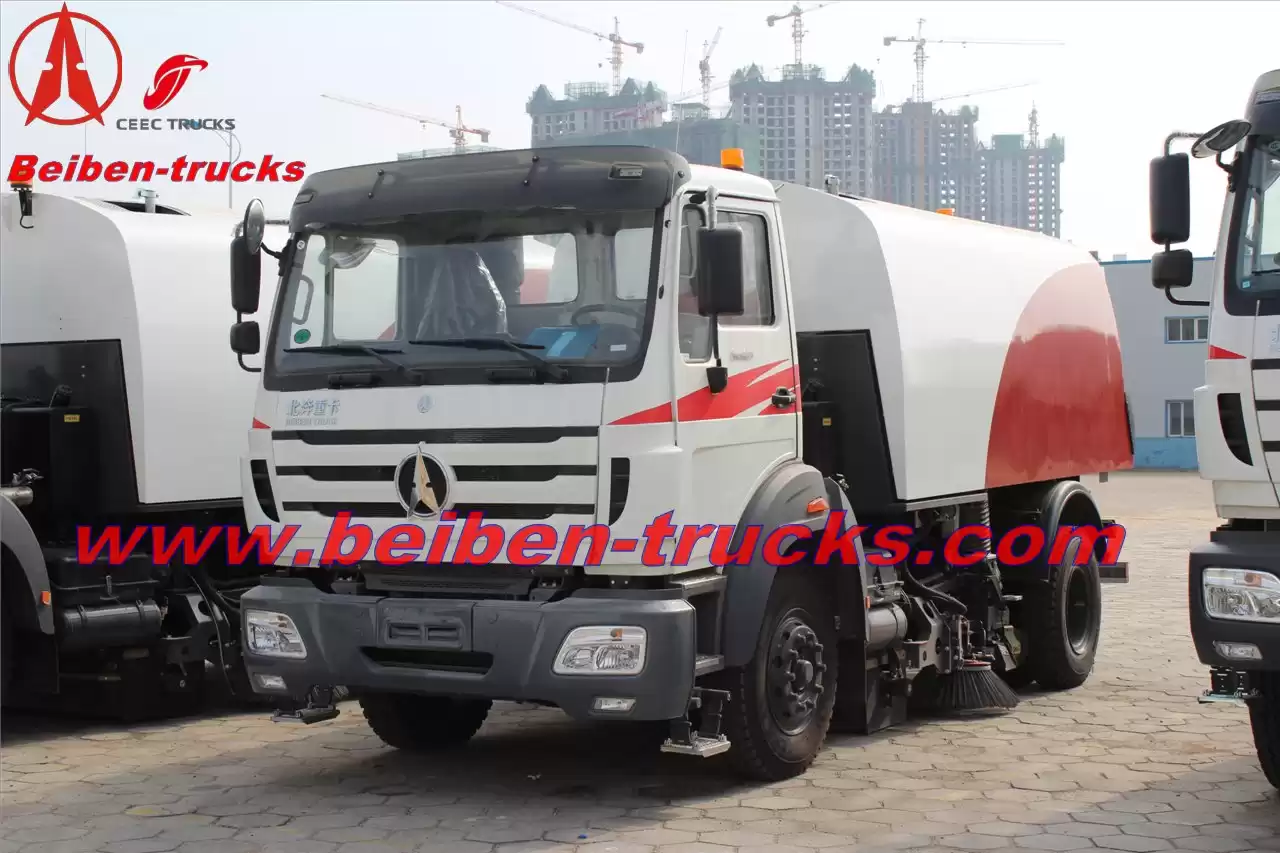

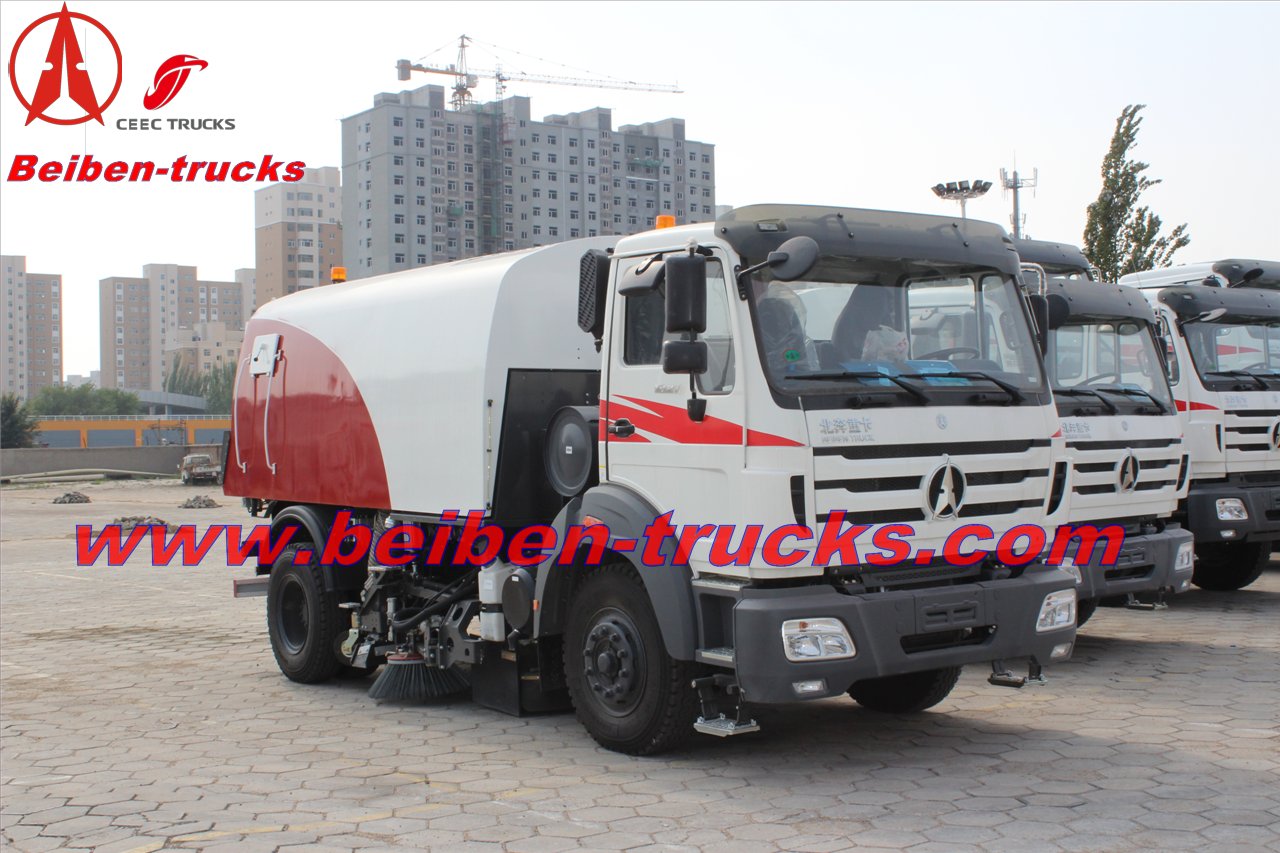

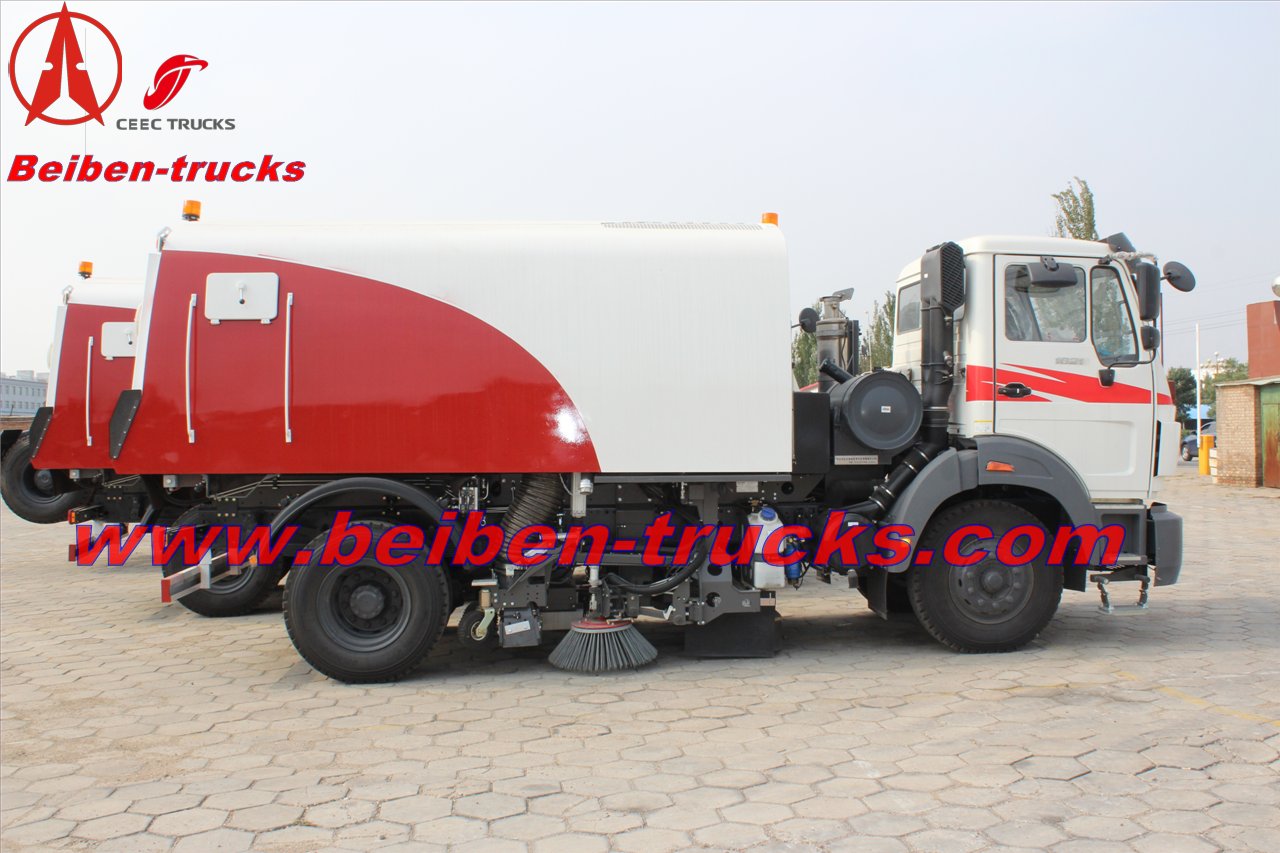

Beiben 8 CBM road sweeper truck

Beiben 8 CBM road sweeper truck, based on beiben 1821 truck chassis, Germany benz technology, with beiben trucks latest road sweeping truck upper structure technology.



Beiben 8 CBM road sweeper truck, based on beiben 1821 truck chassis, Germany benz technology, with beiben trucks latest road sweeping truck upper structure technology.

Key Features

1.  Consist of originalIsuzu Vehicles chassis, hydraulic system, elevating system and electricalsystem.

2.  Sweeper Truck technologyfrom American and made a lot of optimized design.

3.  The cleaning system isdriven by imported advanced hydraulic motor to guarantee the power andreliability during work.

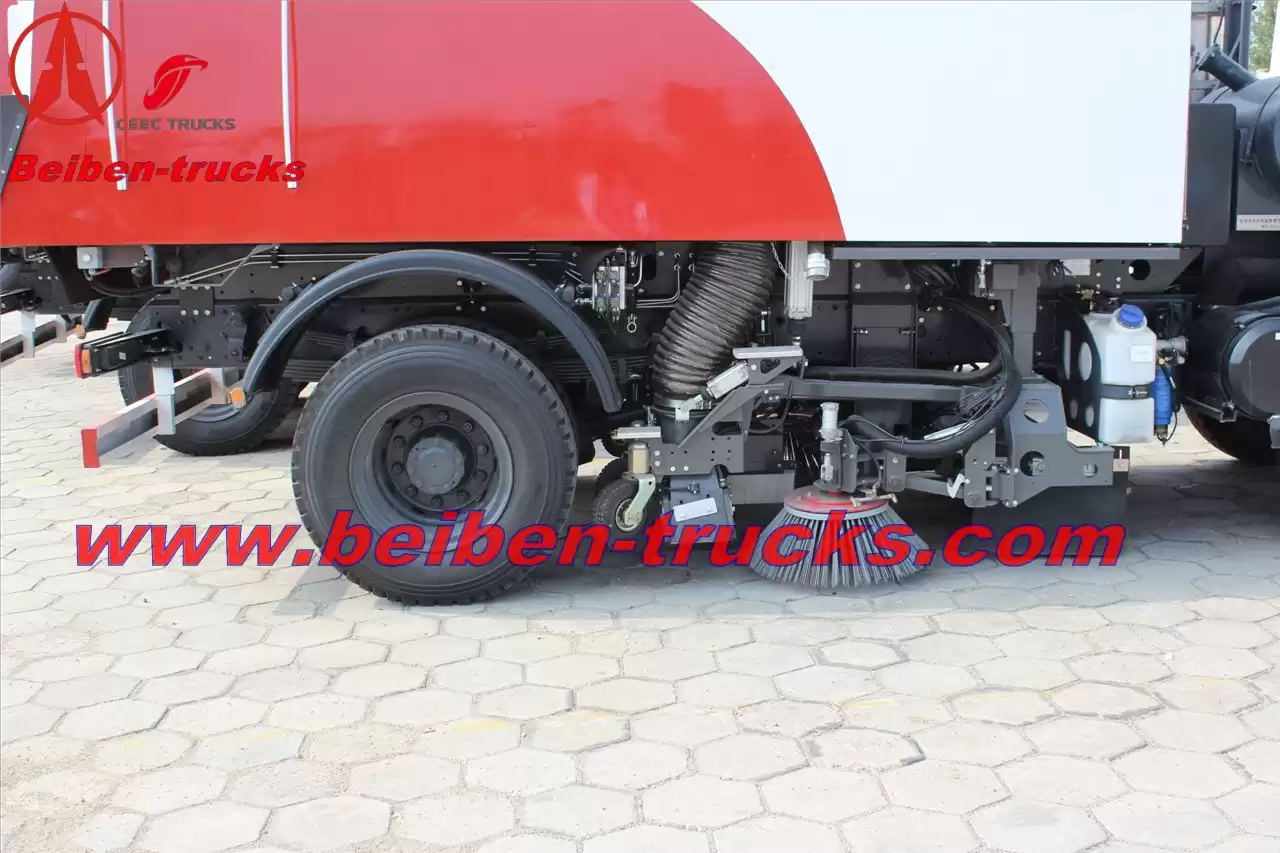

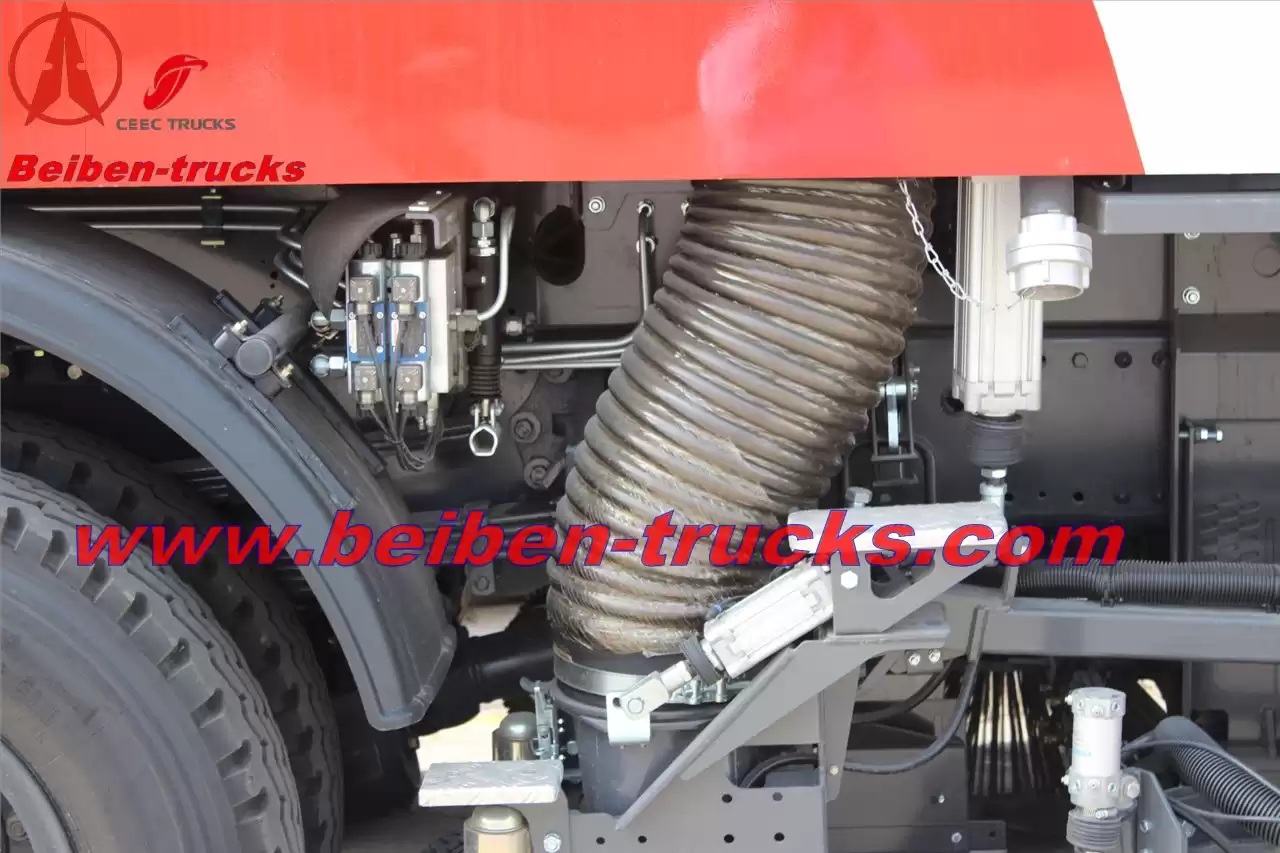

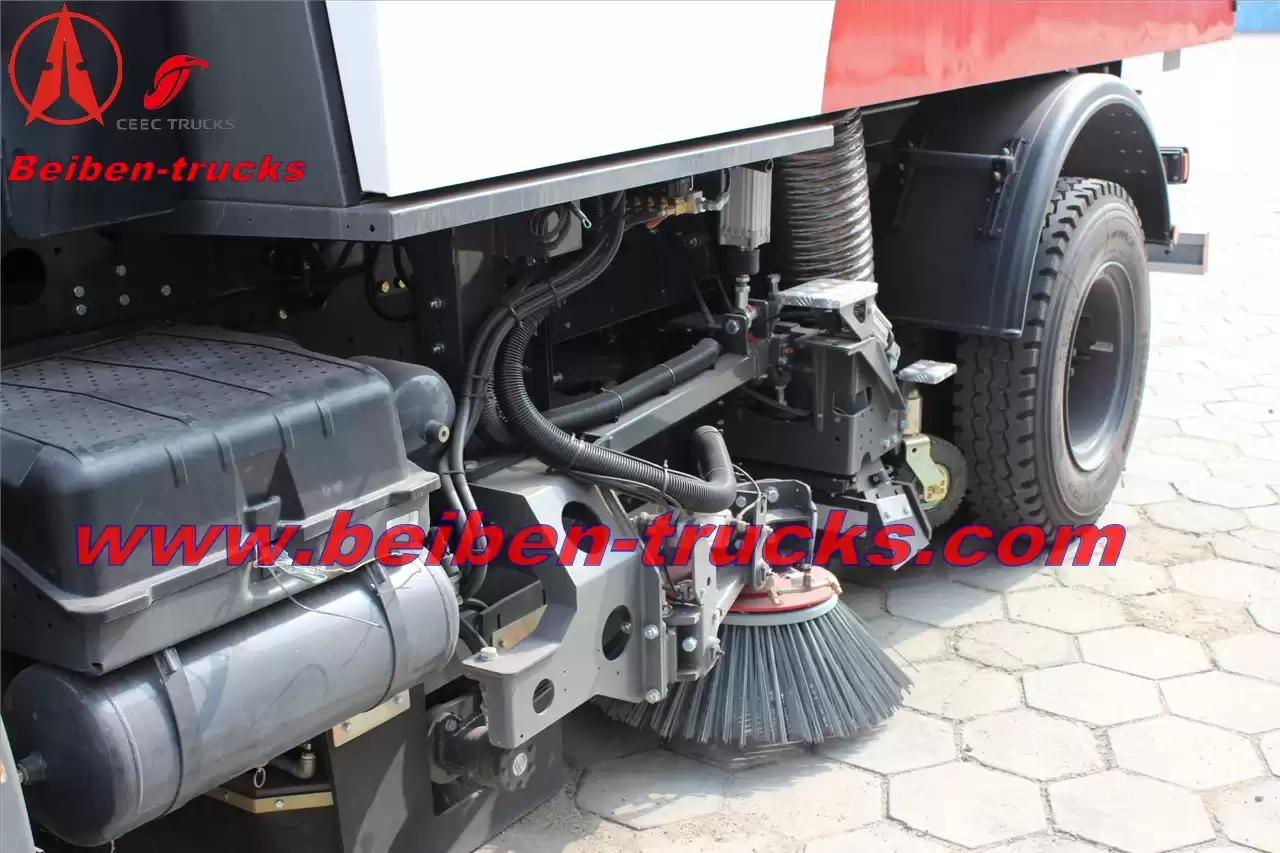

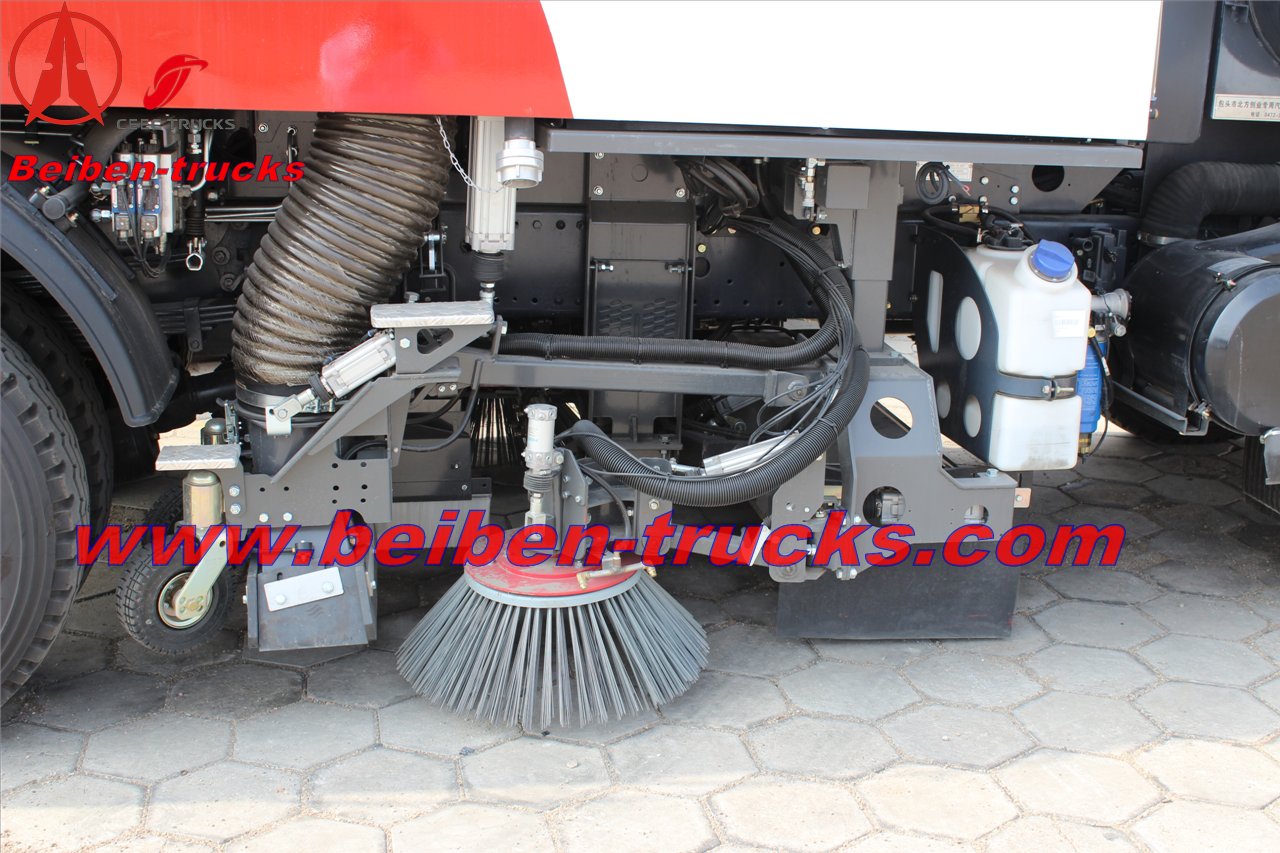

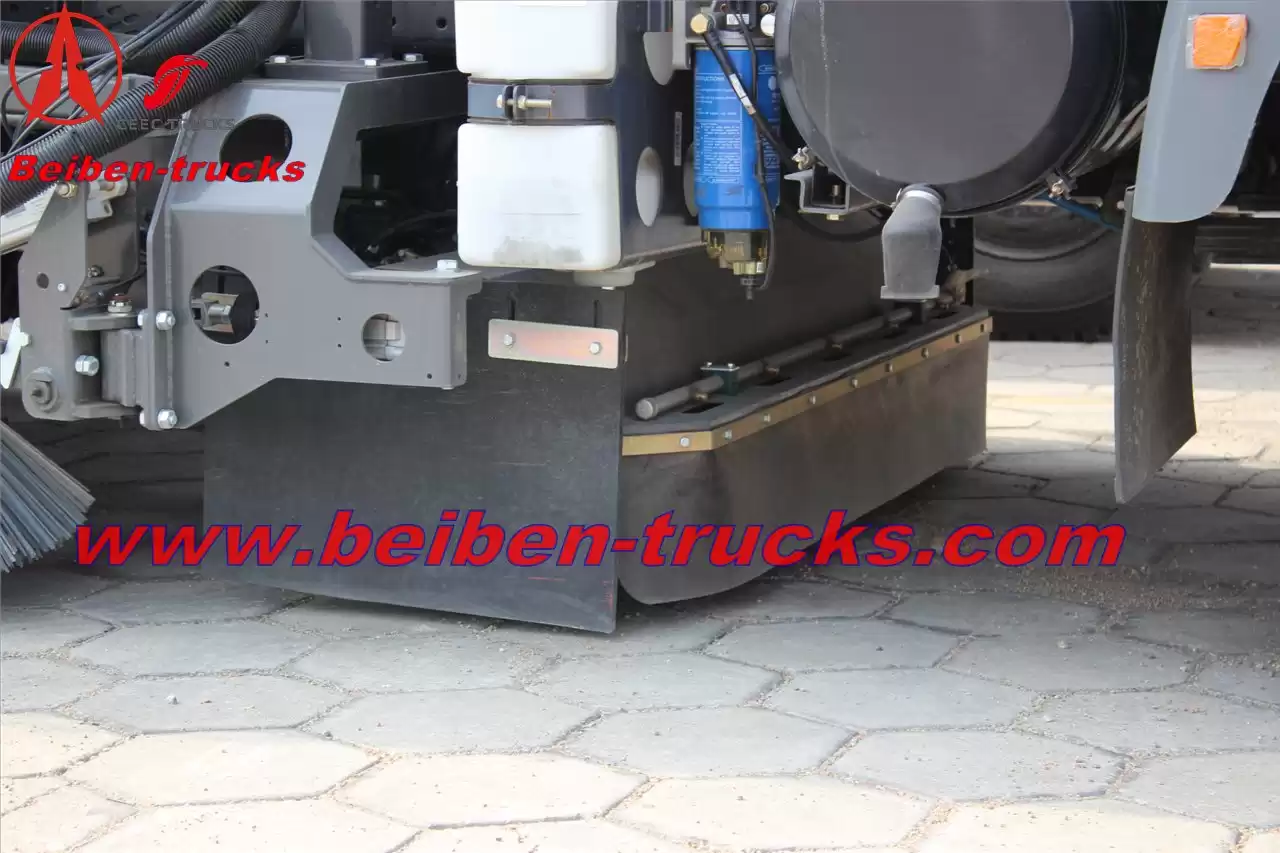

4.  With the structure offour mid-mounted disk brushes and one rear-mounted suction nozzle, whichprovide a large sweeping width, high sweeping efficiency and good trafficability. Also convenient for adjustment and maintenance of sweeper device andnozzle.

5.  An automatic clutch isset up on the transmission between the vice-engine and the fan, wshich canensure the automatic separation of the vice-engine from the fan when thevice-engine startup or shutdown.

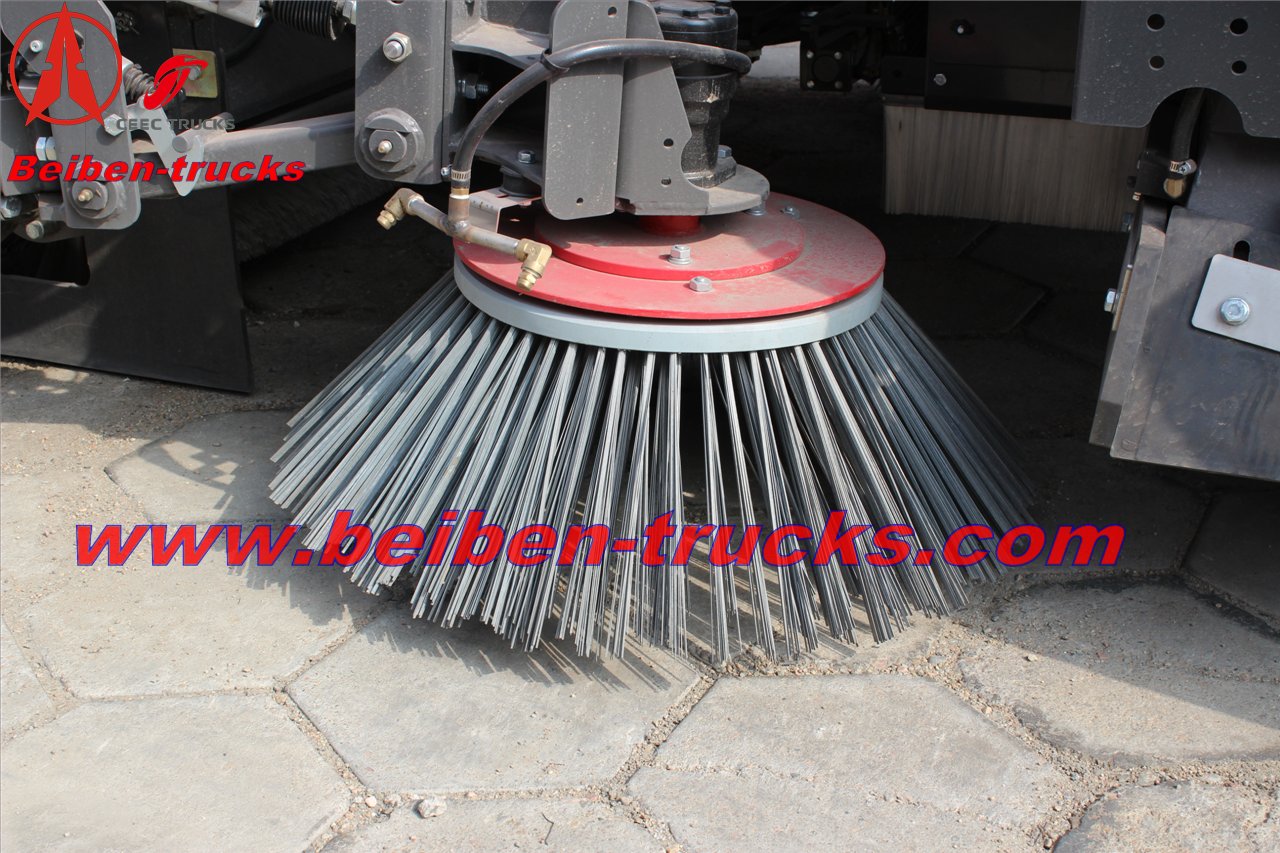

6.  The sweeping disk hasthe protection function and automatic reset function, which can avoid obstaclesautomatically and return automatically

Steering System



Type of Steering Gear

Recirculating ball and screw type with hydraulic power assistance

Adjustment Steering Wheel

Tilt and Telescopic

Steering  Wheel Position

Left hand drive

Brake System



Service Brake System

Full Air Brake

Parking Brake

Pneumatically Controlled Spring Brake

Assistant Brake

Exhaust Brake

Cab



Type

Forward Control Over Engine Type

Seat

3 Seats

Air Condition System

Manual Control

Radio System

AM-FM Radio

Dimension (mm)



Overall Length

7,220

Overall Width

2,300

Overall Height

2,640

Wheel Base

4,475

Weight (kg)



Curb Weight

7,050

Loading capacity

7,000

Max Gross Weight (G.V.W)

15,020

Sweeping system



Auxiliary engine

Japan Isuzu493

Engine power   (kw)

85

Rolling brush

One unit Standard

Side brush

4 unit standard

Dust suction collector

2 units left and right

Control box

English

Hydraulic system

Europe

Waste hopper capacity (m3)

7

Water capacity (m3)

1

Sweeping Speed(km/h)

3~25

Sweeping Width(mm)

3500

Maximum cleanable particle size(mm)

95
