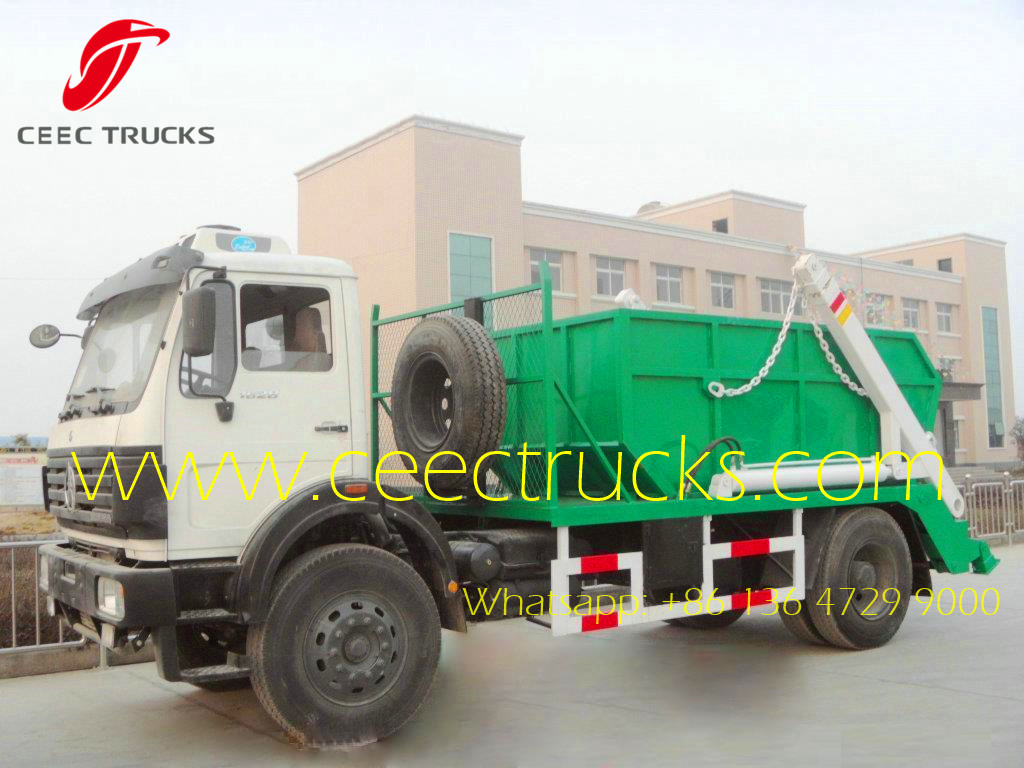

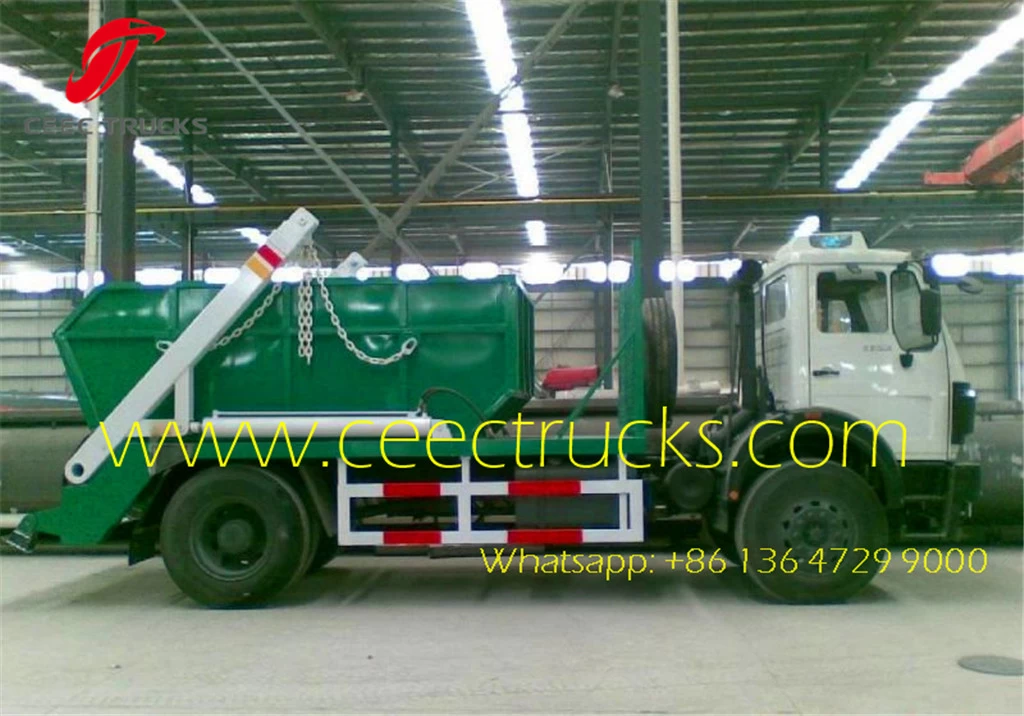

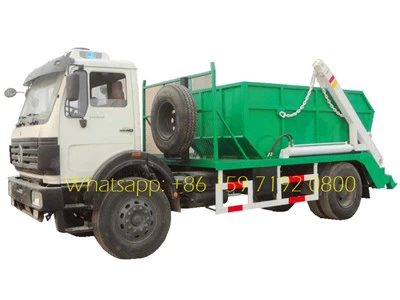

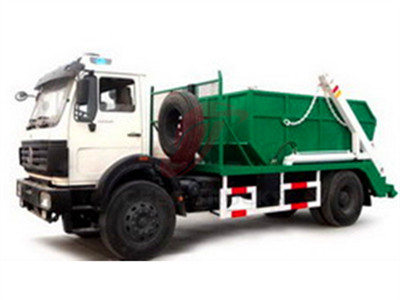

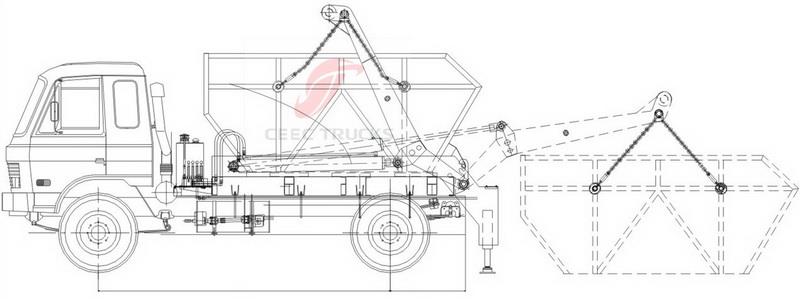

The 10 CBM swing arm garbage truck is widely used in sanitation & municipal, industrial enterprises and residential area. This truck be used together with several garbage tanks to improve work efficiency, also the 2016 newly design of the cover for all garbage tanks avoid pollution during transporting process. All modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept. Beiben 10 CBM skip loader trucks widely export Kenya, Congo DRC, Tanzania.
Beiben 4*4 offroad 10CBM skip loader trucks supplier
Advanced features for CEEC produced beiben 10-12 CBM skip loader garbage trucks:
1 The Garbage bucket is divided into different forms. It is respectively swing arm and the pit floor garbage bucket. And can be installed closures to prevent the disclosure of flying pollution. In order to adapt to different environments use requirements. It uses leading technology and military enterprises accessories .reliable quality,By the manufacturer to provide users with the garbage bucket drawings,to help users design garbage Truck.
2 Swing arm garbage trucks are widely applicable to the waste disposal and the city streets, schools, the application of national garbage bucket, can be a vehicle with more than one garbage bucket, each spam point to place more than one garbage bucket with the dump functions, hydraulically operated.

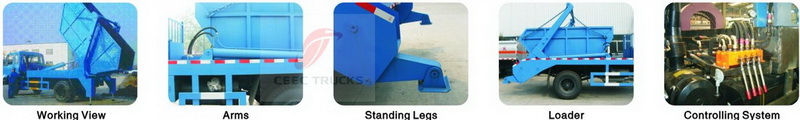

3 It can be increased a unified matching with hydraulic lifting assembly. Through the left and right arms shipment to a unified national arm garbage bucket. A car with more than one bucket, additional dump functions, to achieve security and stability, reliable performance.
Similar Key Words: Beiben swing arm garbage trucks, north benz 10-12 CBM roll off garbage trucks, Beiben 10000 liters skip loader truck, beiben 8 T skip load garbage trucks supplier, north benz 6 wheel garbage trucks price
| Truck Name
|
Beiben 4*4 offroad skip loader garbage truck
|
| Cubage( CBM )
|
10-12
|
| Parameters
|
Overall dimension length/width/height (mm)
|
8800×2470×3250
|
| Total Mass(kg)
|
14800
|
| Payload(kg)
|
7000
|
| Kerb Mass(kg)
|
7450
|
| Approach angle/ Departure angle(mm)
|
34/20
|
| Front suspension/rear suspension(mm)
|
1245/1405
|
| Fuel Type
|
diesel
|
| Fuel Consumption/100 km
|
22
|
| Max Speed
|
85
|
| Engine
|
Type
|
WD615.58 supercharged six-cylinder inner-coolingdiesel engine
|
| Displacement/Power(kw)
|
9726/175(240hp)
|
| Manufacturer
|
Weichai Diesel Engine Co., Ltd
|
| Type
|
6-in-line supercharged inner-cooling diesel engine
|

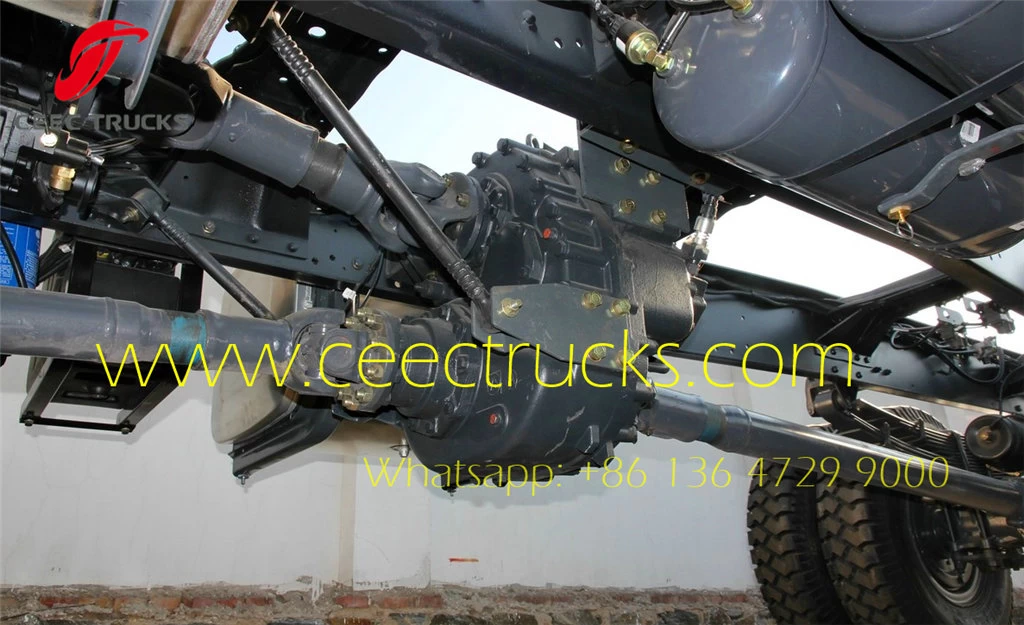

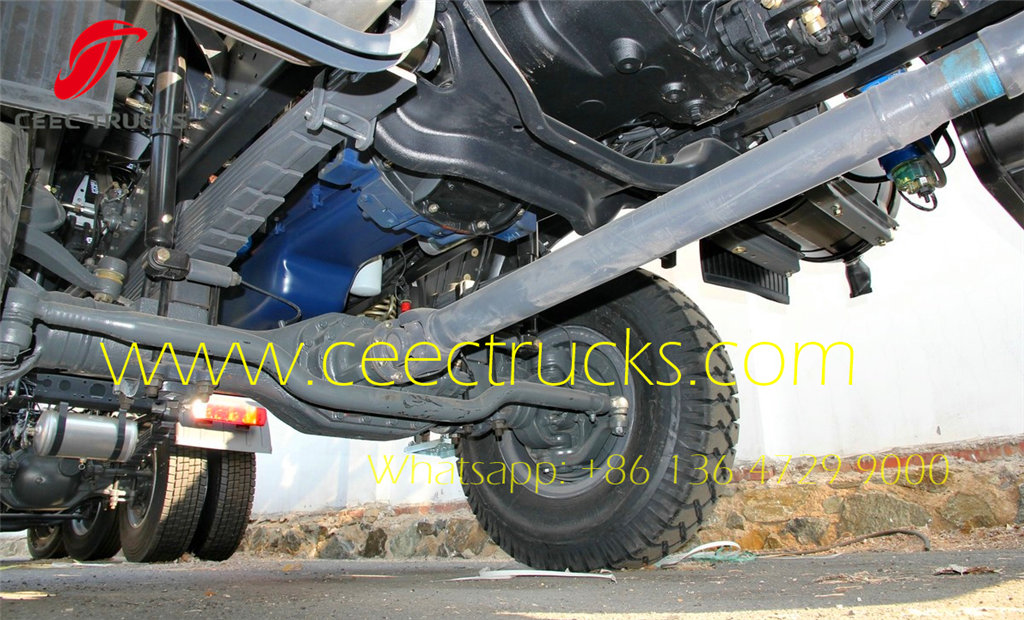

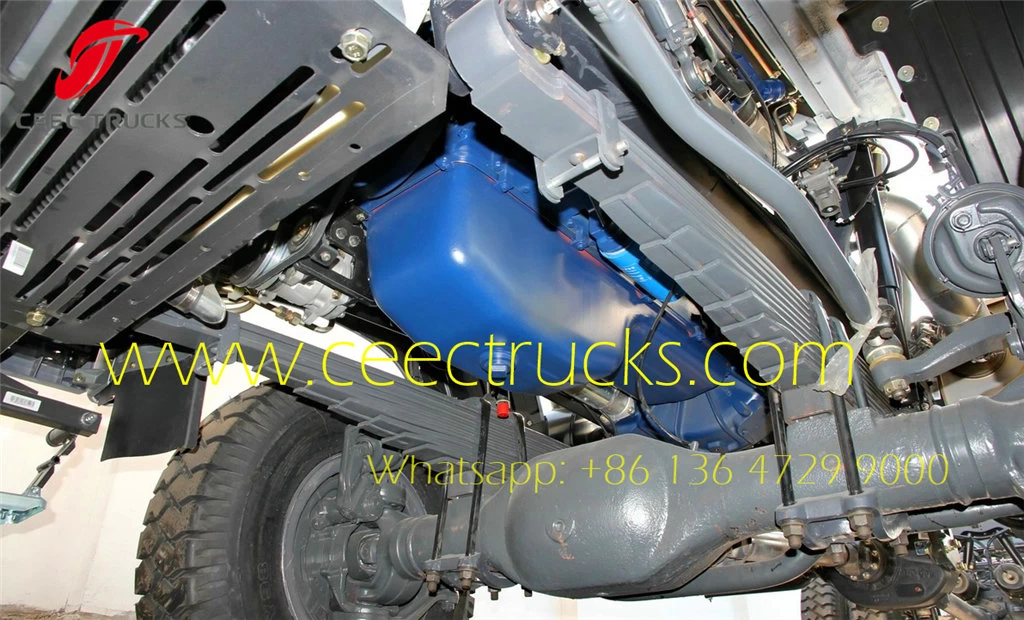

| Chassis
|
Drive type
|
4×2
|
| Wheelbase(mm)
|
4500
|
| Tread(front/rear)
|
1940/1860
|

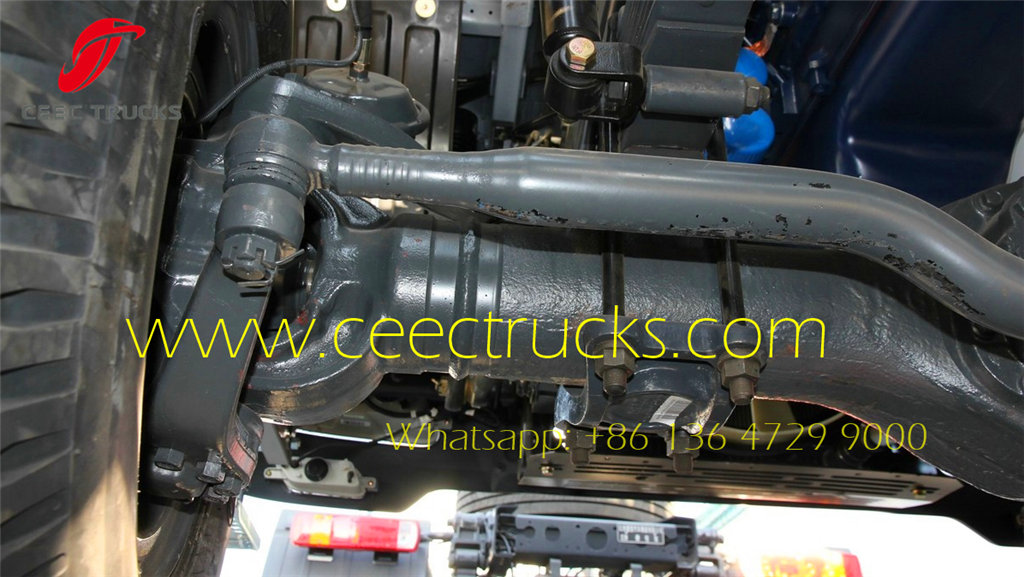

| Front axle
|
5T
|
| Rear axle
|
10T
|
| Steering gear
|
Dual-armed steering wheel,power steering
|
| Transmission
|
6 gear mechanical drive transmission
|
| Clutch
|
Diaphragm clutch, hydraulic remote control,pneumatic serveo
|
| Braking system
|
Split air braking system,spring breaking,exhaust braking
|

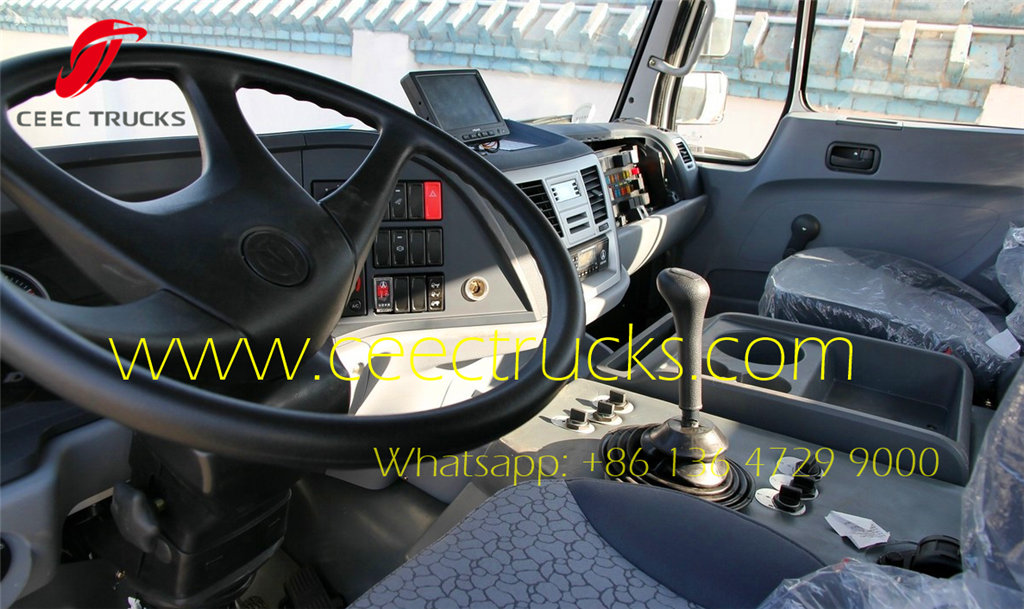

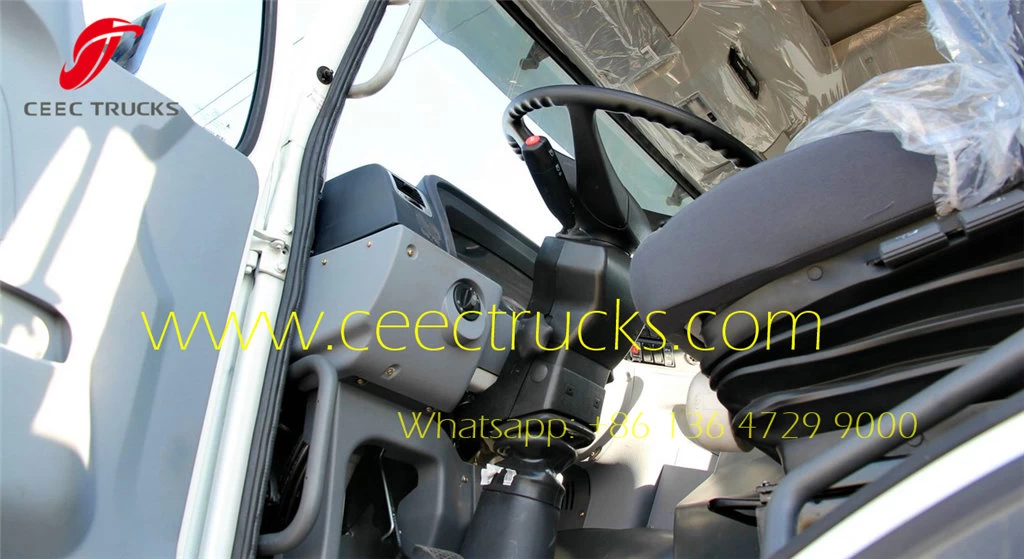

| Cab
|

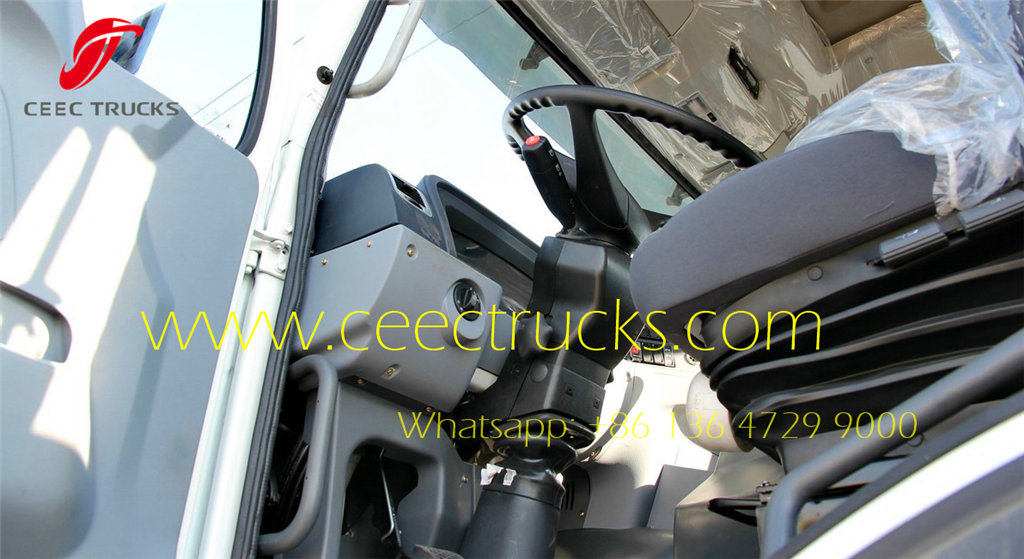

Non-longheaded one and a half row cab,whole metal-enclosed
|
| Number of spring axle(front/rear)
|
9/11+8
|
| Tire Type
|
10.00-20 16PR
|
| Air-condition
|
Choose to fix
|
| Special performance parameters
|
Hydraulic system pressure
|
16MPa
|
| Crane arm turn radius
|
2400mm
|
| Hydraulic systemFlow capacity
|
50L/min
|
| Crane arm maximum pivot angle
|
145
|
| Hoisting time
|
30s
|
| Unloading time
|
50s
|

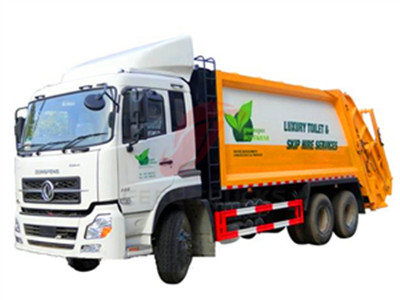

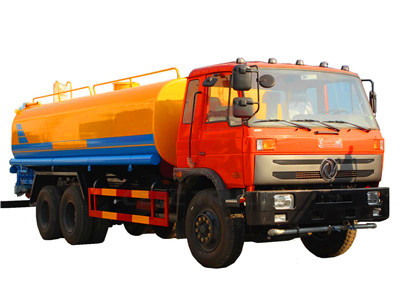

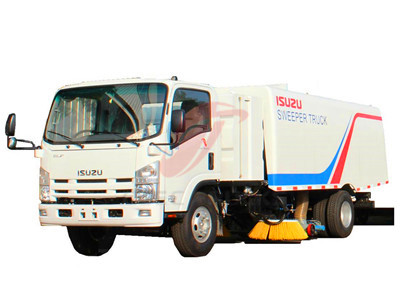

CEEC Recommend environmental protection truck series
