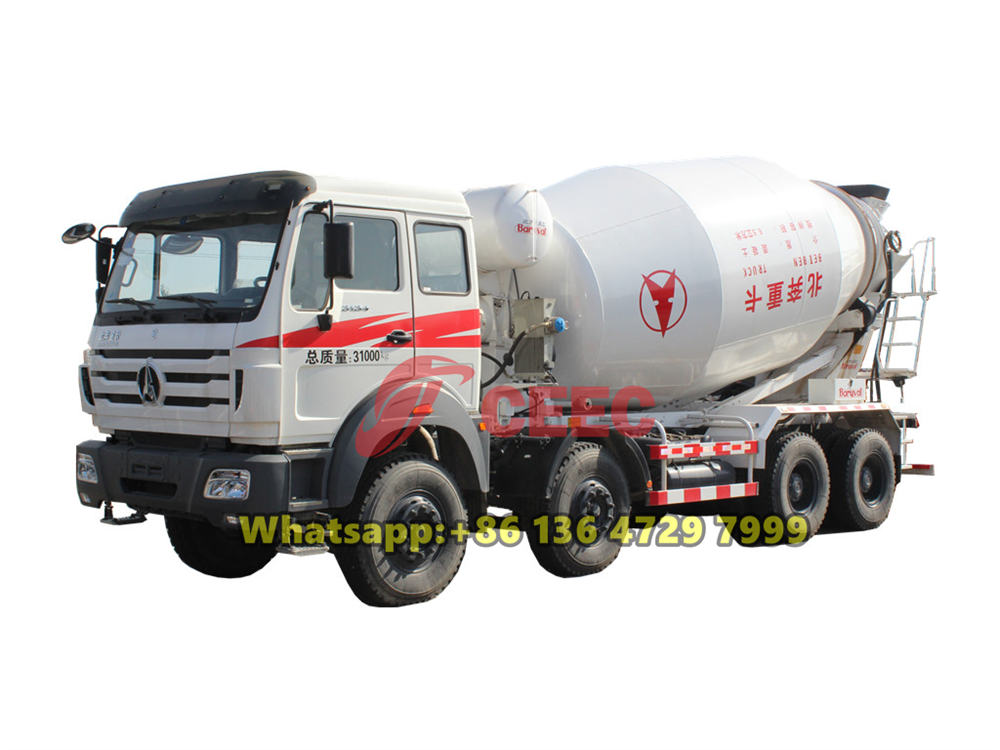

Beiben 8x4 12CBM mixer truck

The Beiben 8*4 Concrete Mixer Truck is a professional vehicle specifically designed for efficient transportation and mixing of concrete. Equipped with the WP10.340E32 engine, it delivers a maximum power of 250 kW (340 HP) and complies with Euro III emission standards. The mixer drum has a capacity of 12 cubic meters, with a filling speed of ≥2.8 cubic meters per minute and a discharge speed of ≥1.2 cubic meters per minute, while the residue rate is ≤0.5%. Featuring a FAST 9-speed gearbox, dual-axle load-bearing system, and hydraulic power steering, it is suitable for various complex working conditions, making it an efficient and reliable ideal choice for the construction industry.


  • Production time40 days
  • Payment termsTT
  • Working Capcity12 CBM
  • Engine power340 HP
  • Drive system8×4

Product Descriptions



In the modern construction industry, concrete mixer trucks are indispensable equipment. Whether for large-scale infrastructure projects or urban construction developments, concrete mixer trucks play a crucial role in transporting concrete from mixing plants to construction sites. The Beiben 8*4 Cement Mixer Truck is a professional vehicle specifically designed for efficient transportation and mixing of concrete. It combines Beiben's robust chassis technology with an advanced mixing system, capable of meeting the concrete transportation needs under various complex working conditions. Whether on urban roads, rural highways, or rugged construction sites, this mixer truck delivers exceptional performance and reliability.





The Beiben 8×4 12CBM Mixer Truck is powered by the WP10.340E32 engine, a 6-cylinder in-line, water-cooled diesel engine with a displacement of 9726 ml and a maximum output power of 250 kW (340 HP). This engine not only provides strong performance but also complies with Euro III emission standards, ensuring high efficiency while minimizing environmental impact. With a top speed of 90 km/h and a maximum climbing gradient of 30%, the vehicle is suitable for driving in various complex road conditions, ensuring timely concrete transportation.

The mixing drum of the Beiben 8*4 Concrete Mixer Truck is constructed from high-strength steel, offering an effective volume of 12 cubic meters, a filling speed of ≥2.8 cubic meters per minute, and a discharge speed of ≥1.2 cubic meters per minute, with a residue rate of ≤0.5%. This design ensures uniform mixing of concrete during transportation and enables rapid discharge at construction sites, improving construction efficiency. The mixing drum's rotation speed ranges from 0 to 12 rpm, allowing operators to adjust the mixing speed flexibly according to construction requirements, ensuring concrete quality and project progress. Additionally, the drum's drive system incorporates Italian-brand reducers and hydraulic pumps, as well as Japanese-brand hydraulic motors, ensuring the mixing system's efficiency and reliability.

The Beiben Mixer Truck is suitable for various construction sites and concrete mixing plants, including large-scale infrastructure projects, urban construction developments, and rural road construction. Its efficient concrete mixing capability and large-capacity mixing drum design enable it to handle high-intensity concrete transportation tasks.





Product Specifications



Product Name

Beiben 8*4 Concrete Mixer Truck



Chassis

 ND1316D35J



Fuel type

 Diesel



Cabin

 Beiben NG80B long cabin



Vehicle information(mm)

Overall dimensions (L×W×H)

10550*2500*3990



Wheel base

1500+3550+1450



Min. ground clearance

500



Weight data (kg)

G.V.W

31000



Curb weight (chassis)

16500



Max payload

25000 kg



Whole vehicle main performance

Max. speed (km/h)

90



Max. slope of climb (%)

30



Engine

Model

WP10.340E32



Maximum power

250kw / 340hp



Number of cylinders

6



Displacement (ml)

9726



Emission standard

Euro 3



Gear box

Model

FAST 9-speed



Axle

Front Load capacity (ton)

13T (double axle)



Rear Load capacity (ton)

18T(double axle)



Suspension

Leaf spring

12/12/13+7




Steering Wheel

left/right hand drive

optional



Brake system

Service brake

Air braking



Electric device

Rated voltage

24V



Mixer drum parameter

Tanker material

16MnQ345



Fact cubage

12 cbm



Filling speed

≥2.8cbm/min




Unloading speed

≥1.2cbm/min



Discharge reside ratio

≤0.5%



Mixer drum rotation speed

0~12(rpm)



Driving system

Reducer

Italy Brand



Hydraulic pump

Italy Brand or USA Brand



Hydraulic motor

Japanese Brand



Heat device

Made in China

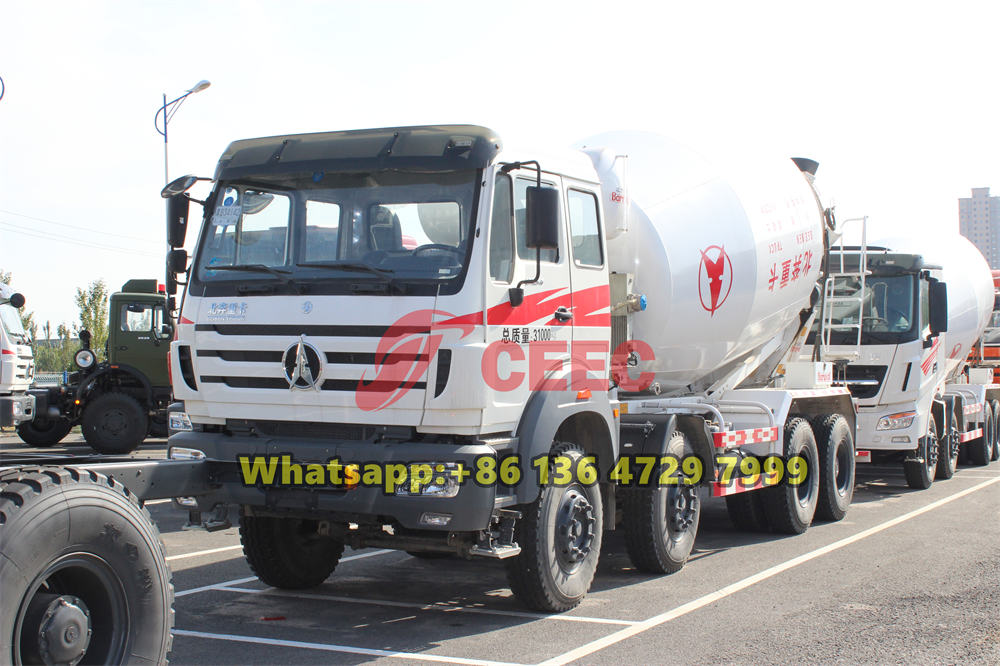

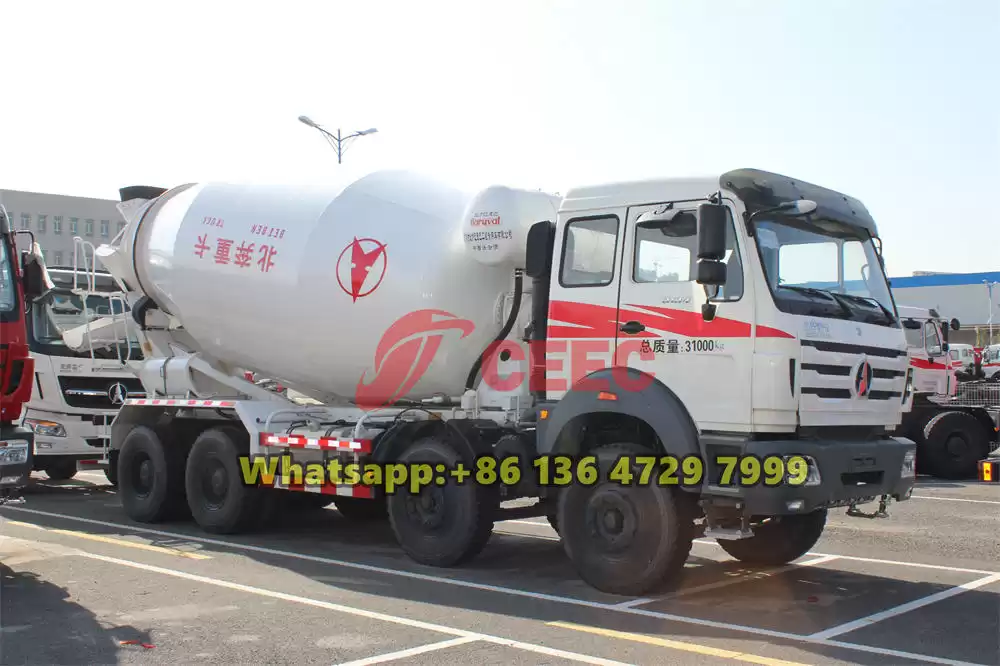

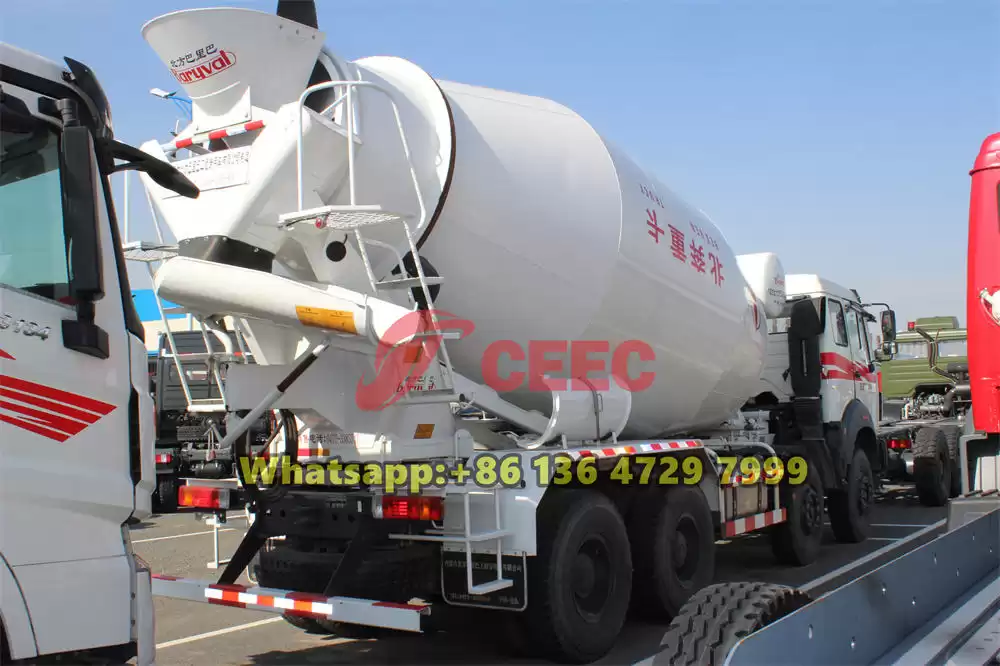

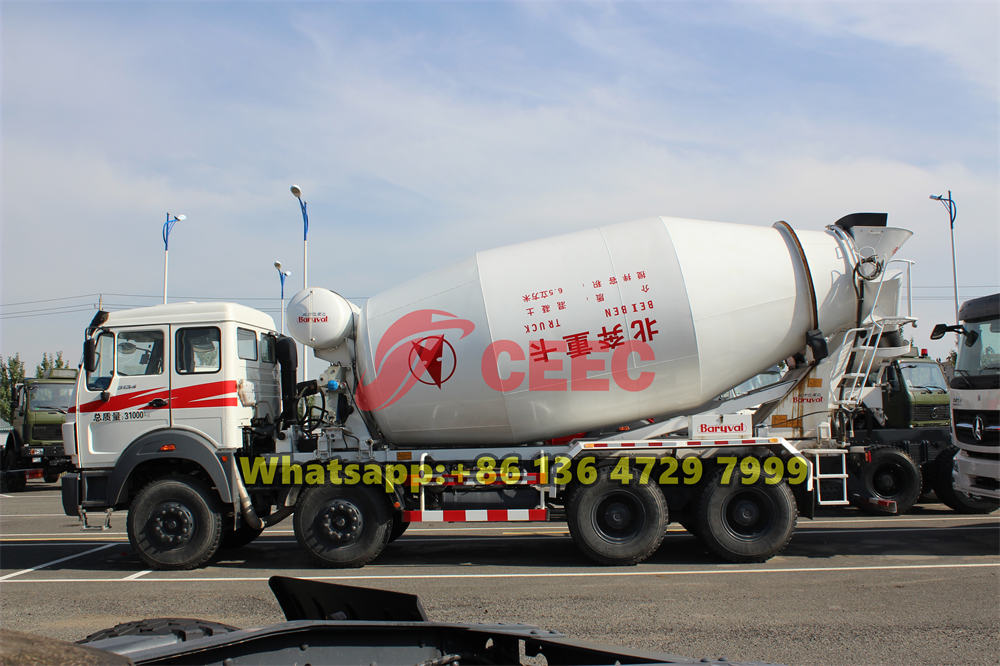

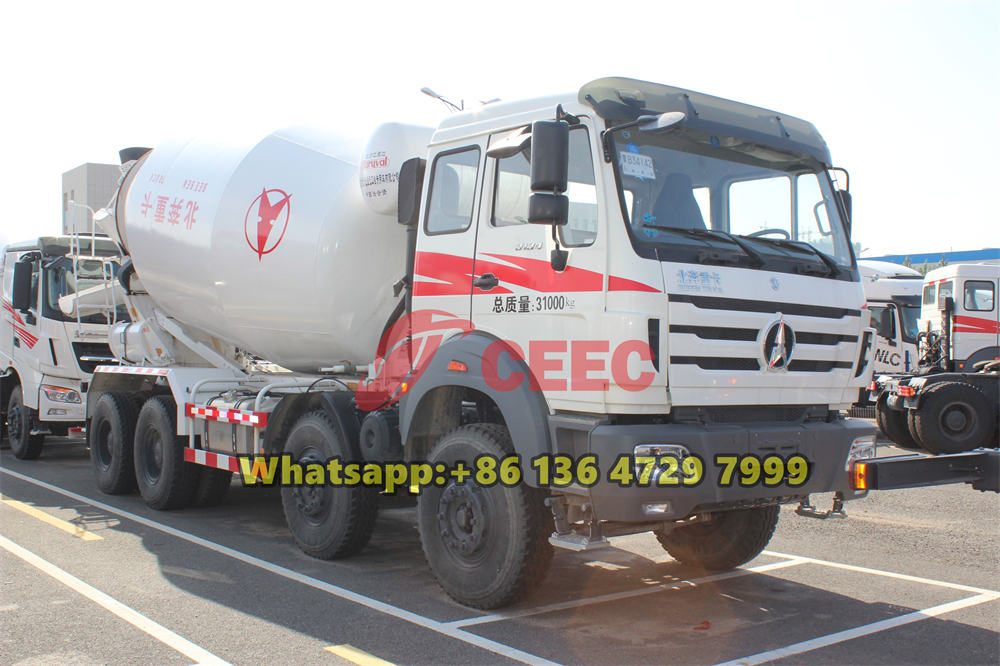

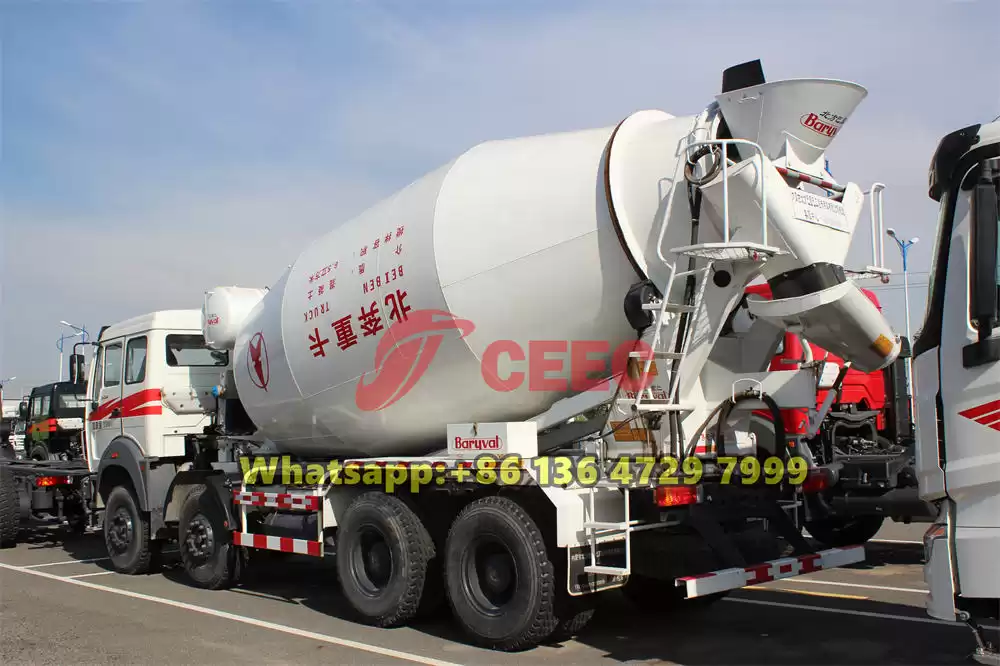

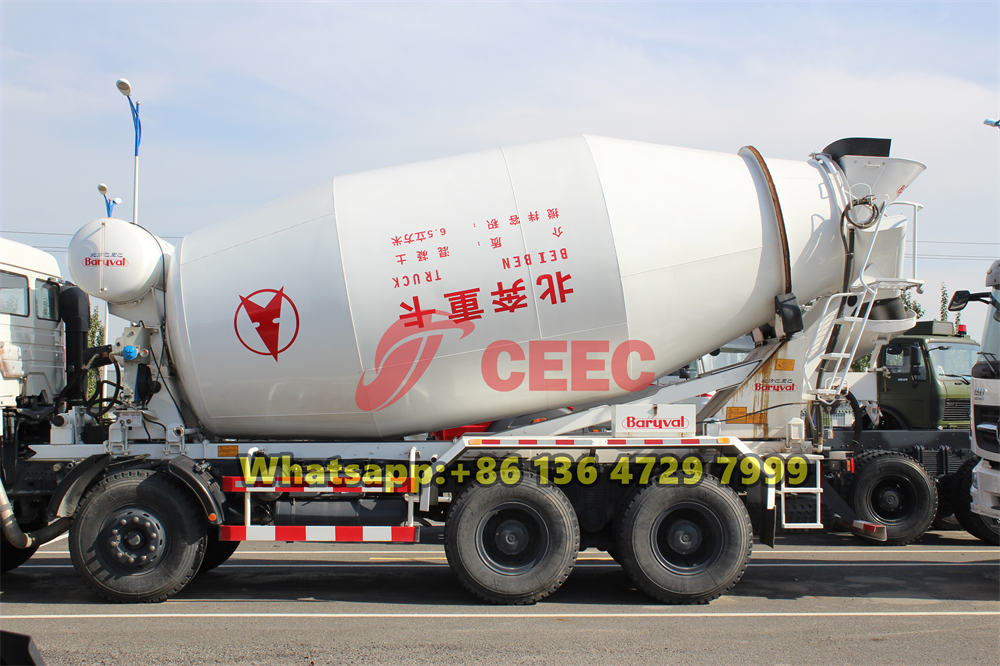

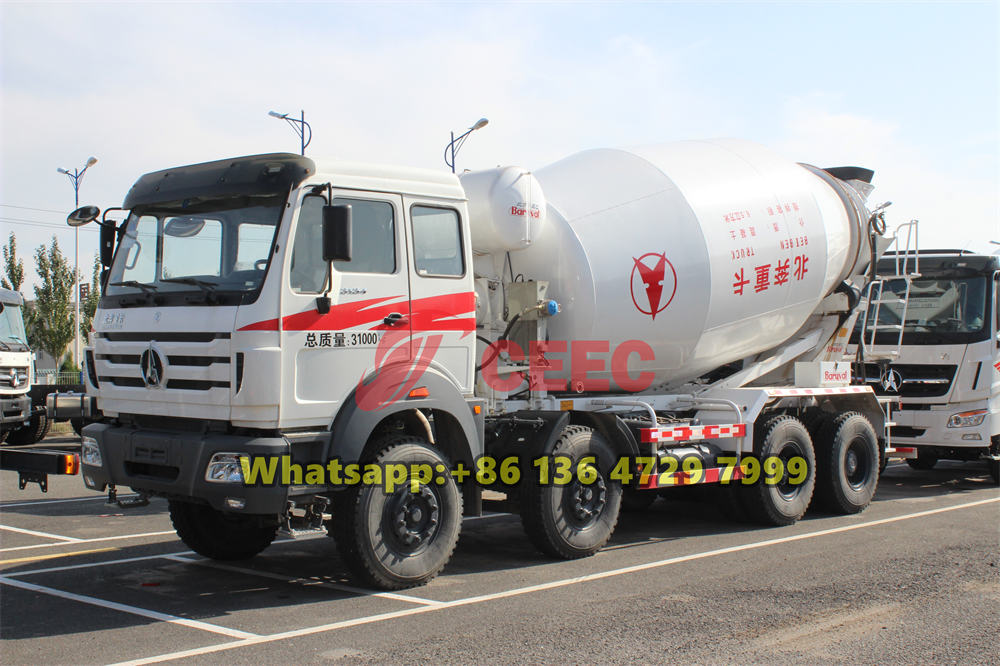

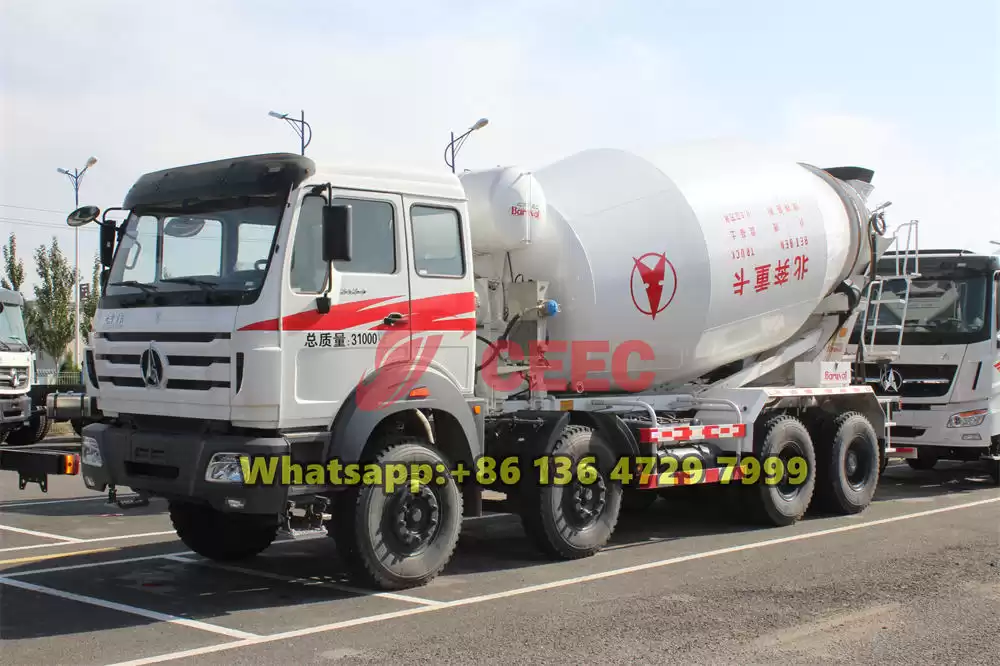

Product Pictures
