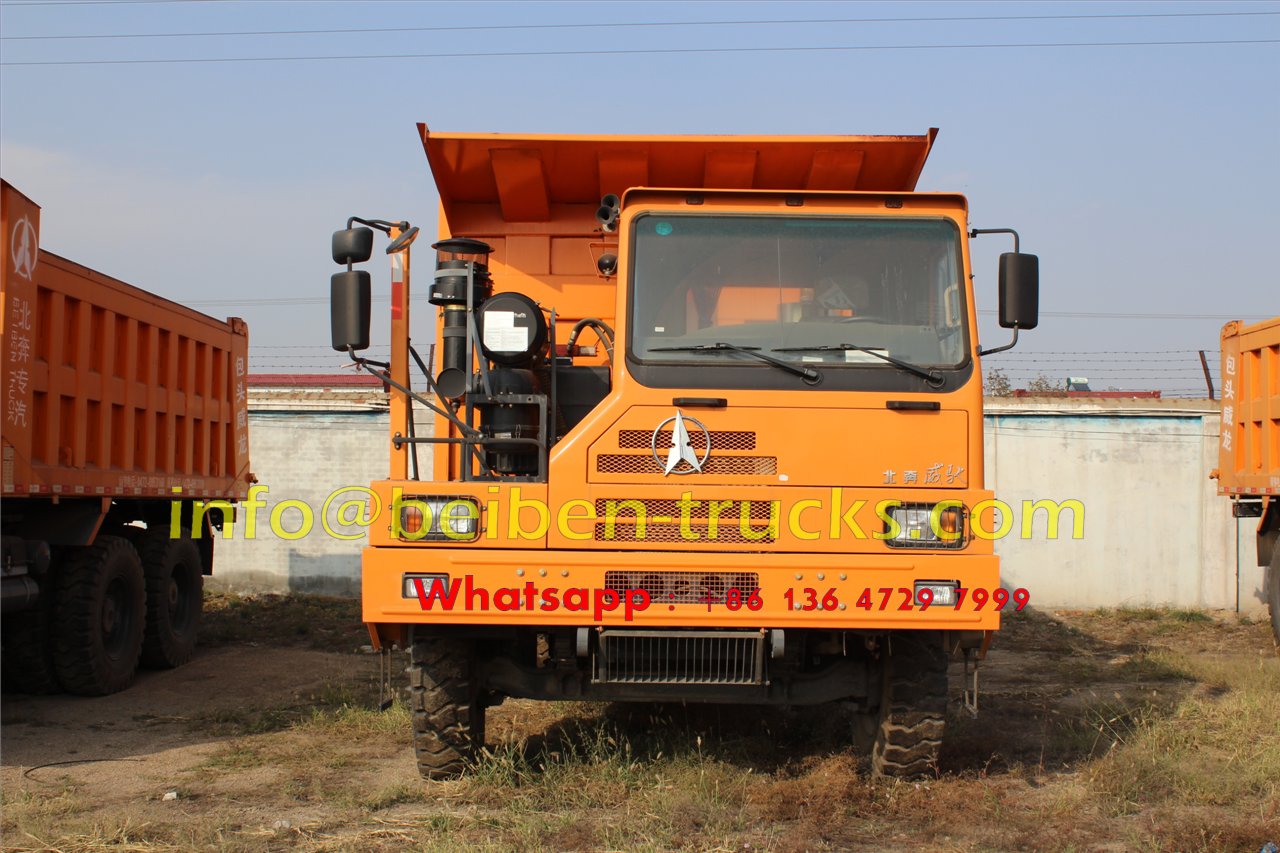

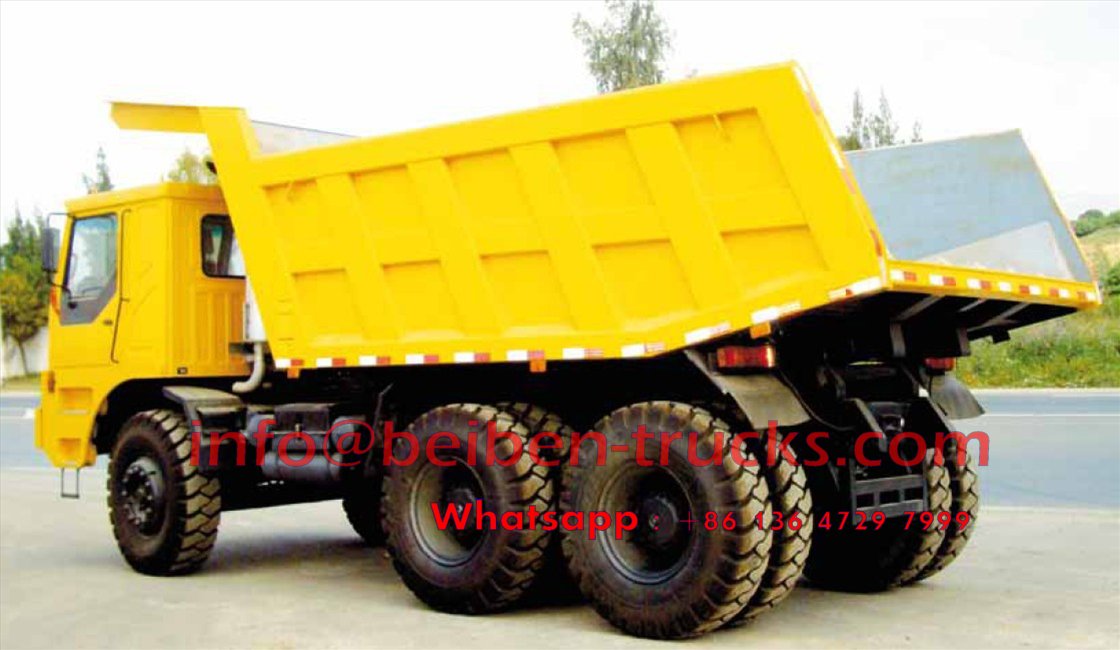

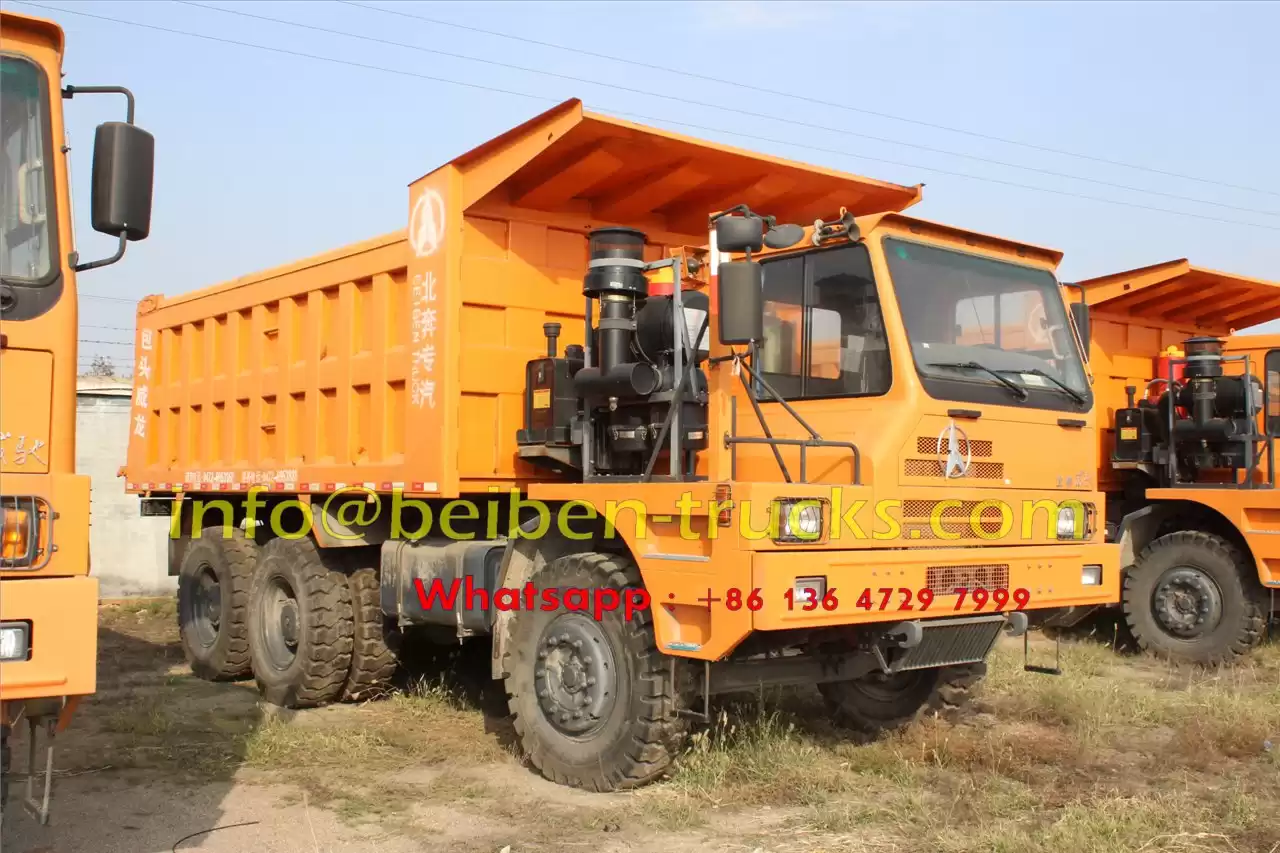

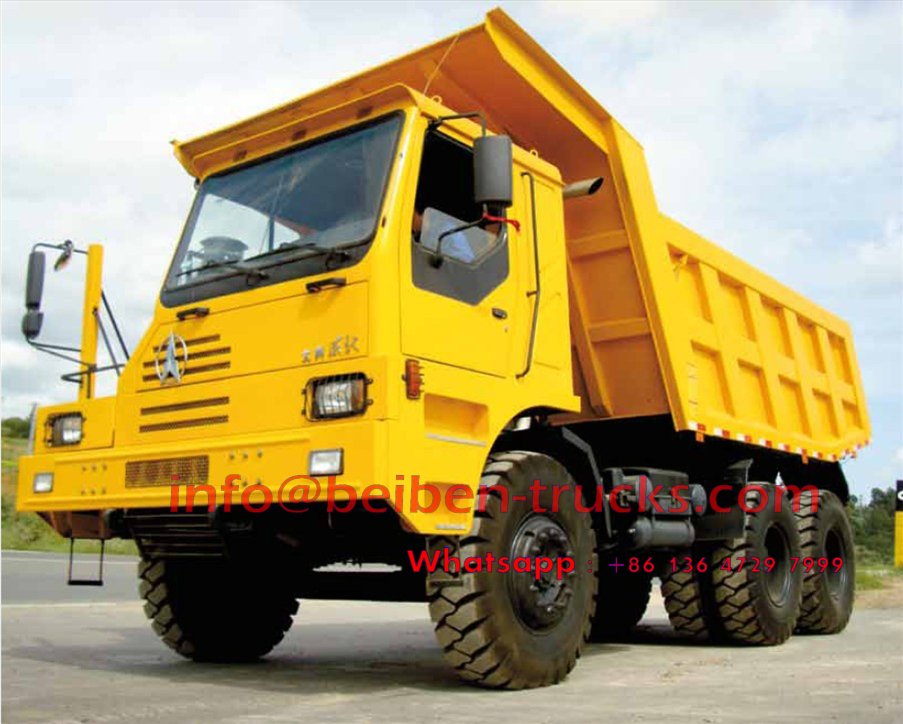

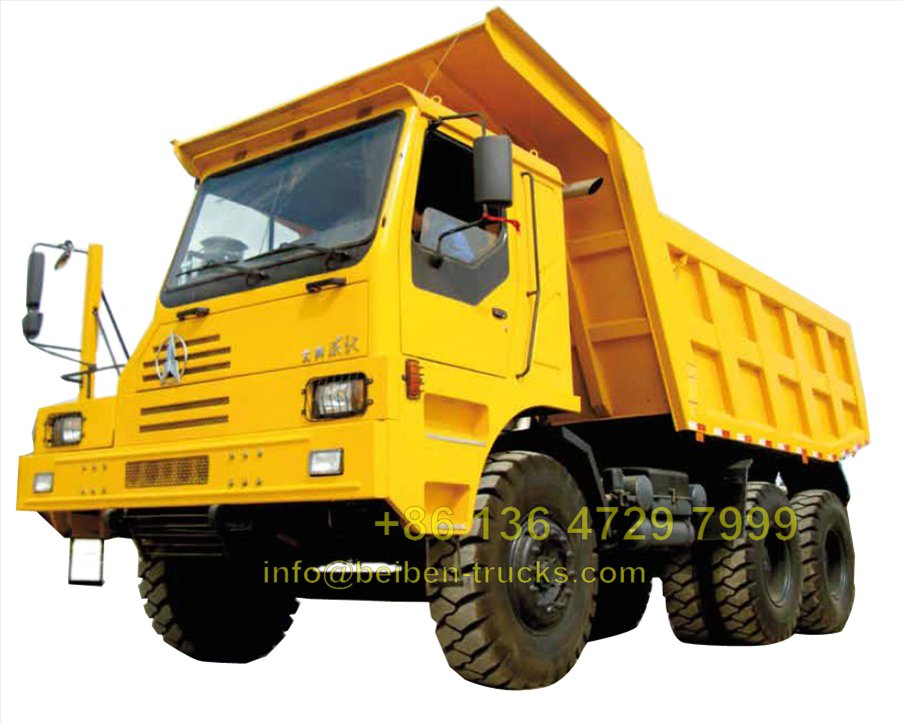

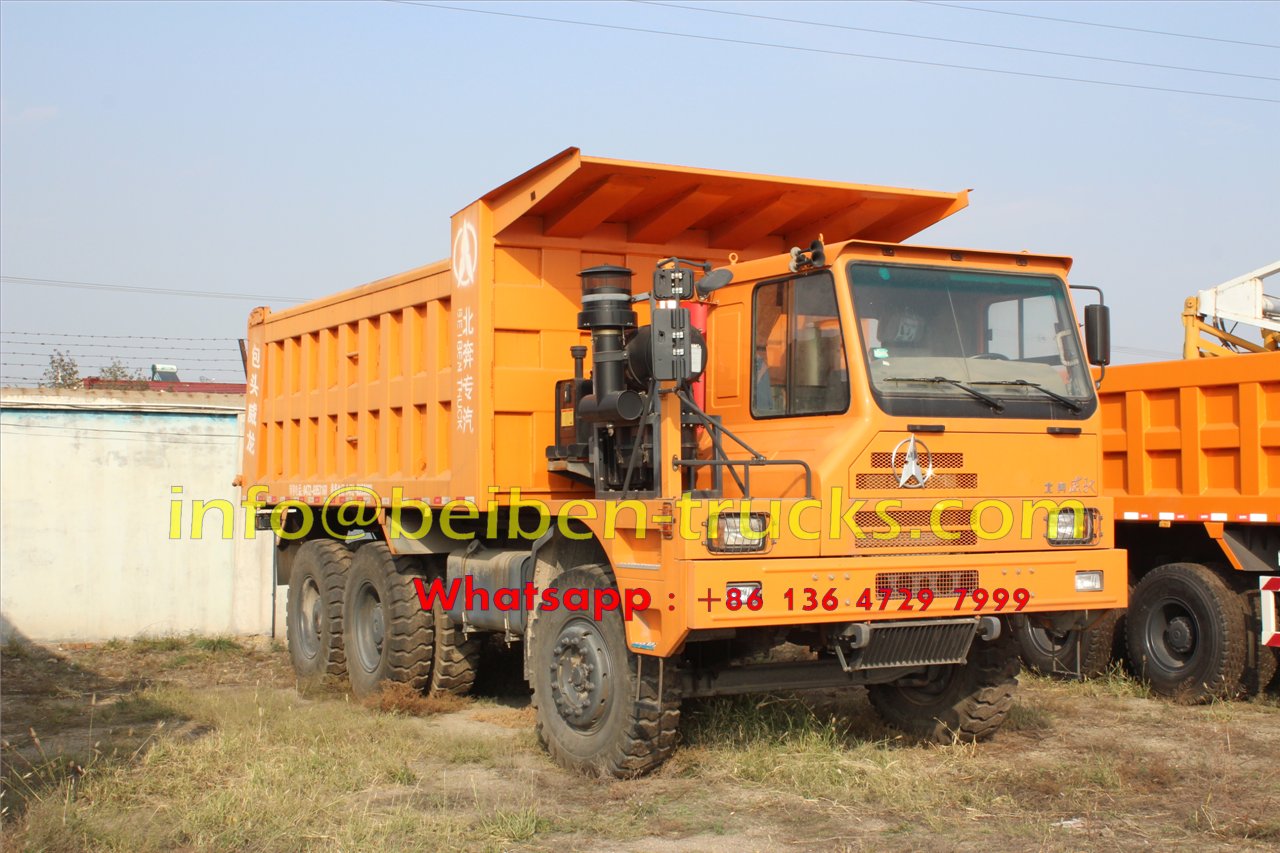

model
|
5538KK
|
|
driving model
|
6×4
|
|
gross weight
|
55000
|
|
（Kg） curb weight
|
22000
|
|
（Kg）load capacity
|
33000
|
|
（Kg）Front\rear axle load capacity
|
13000/47000
|
|

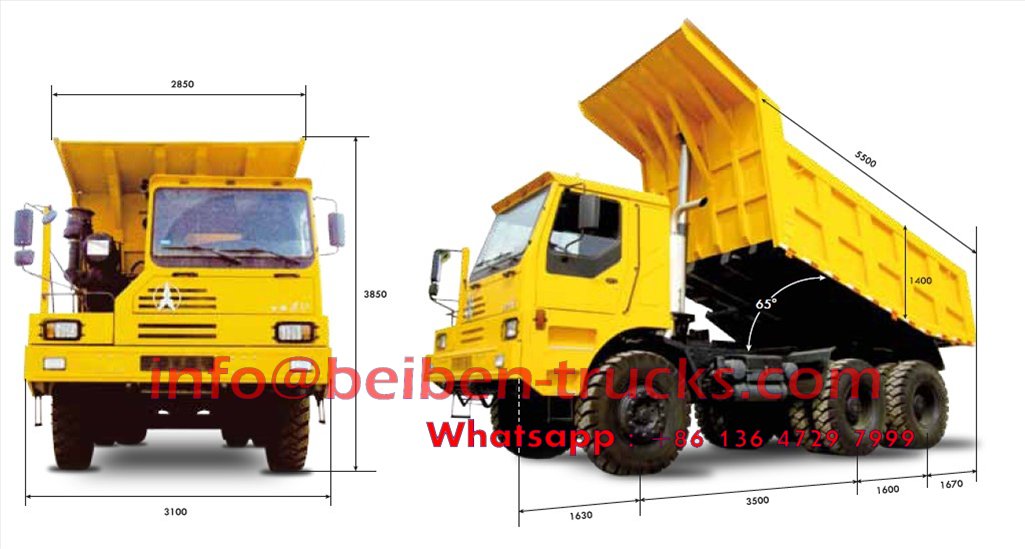

（mm）exterior dimension
|
8470×3100×3850
|
|
（mm） wheelbase
|
3500+1600
|
|
（mm） threadbase
|
2497/2228
|
|
（mm） front/rear suspension
|
1590/1740
|
|
（Km/h）top speed
|
55
|
|
max. slope climbing
capacity
|
30%
|
|
（m） turnning diameter
|
≤22
|
|
approching angle
|
≥30°
|
|
departure angle
|
≥40°
|
|
（mm） min.ground clearance
|
380
|
|
engine
|
model
|
WD12.420
|
|
type
|
water-cooled,6
cylinders in line,tubocharge,intercool
|
|
stroke x broe
|
126×130
|
|
（L） displacement
|
11.596
|
|
（KW/r.p.m）rated power
|
309/2200
|
|
（N.m/r.p.m）max. torque
|
1750/1300-1600
|
|
clutch
|
SACHS-430
|
|
gearbox
|
model
|
Manual ,mechanical
gearbox,9 forward gear,1 reverse gear
|
|
（N.m）permission input torque
|
2200
|
|
tranmission ratio
|
forward gear12.44;
8.31; 6.09; 4.54; 3.36; 2.47; 1.81; 1.35; 1.00; reverse gear 12.99
|
|
axle
|
front axle(13T)、middle and rear axle ratio9.716(BEIBEN25T)
|
|
steering system
|
Hydralic boosting
steering,whole circulation in ball type
|
|
brake system
|
double circulation air
brake,three sets of braking system
|
|
service
brake-contrallable double circulation foot brake
|
|
parking brake- hand
controlled blow-down springs brake
|
|
engine exhaust brake
|
|
frame
|
Double-layer composite、the same width 1020mm frame,dimension of section
320x90x8+8(mm), Full- wide straight frame with section of 330 x 80 x
16(8+8)mm, All frame and cabin were stamped by large-scale precision
hydraulic press for the one-time molding.
|
|
front suspension
|
The longitudinal
lay-out style of 13 parabolic leaf-springs, shock absorb
|
|

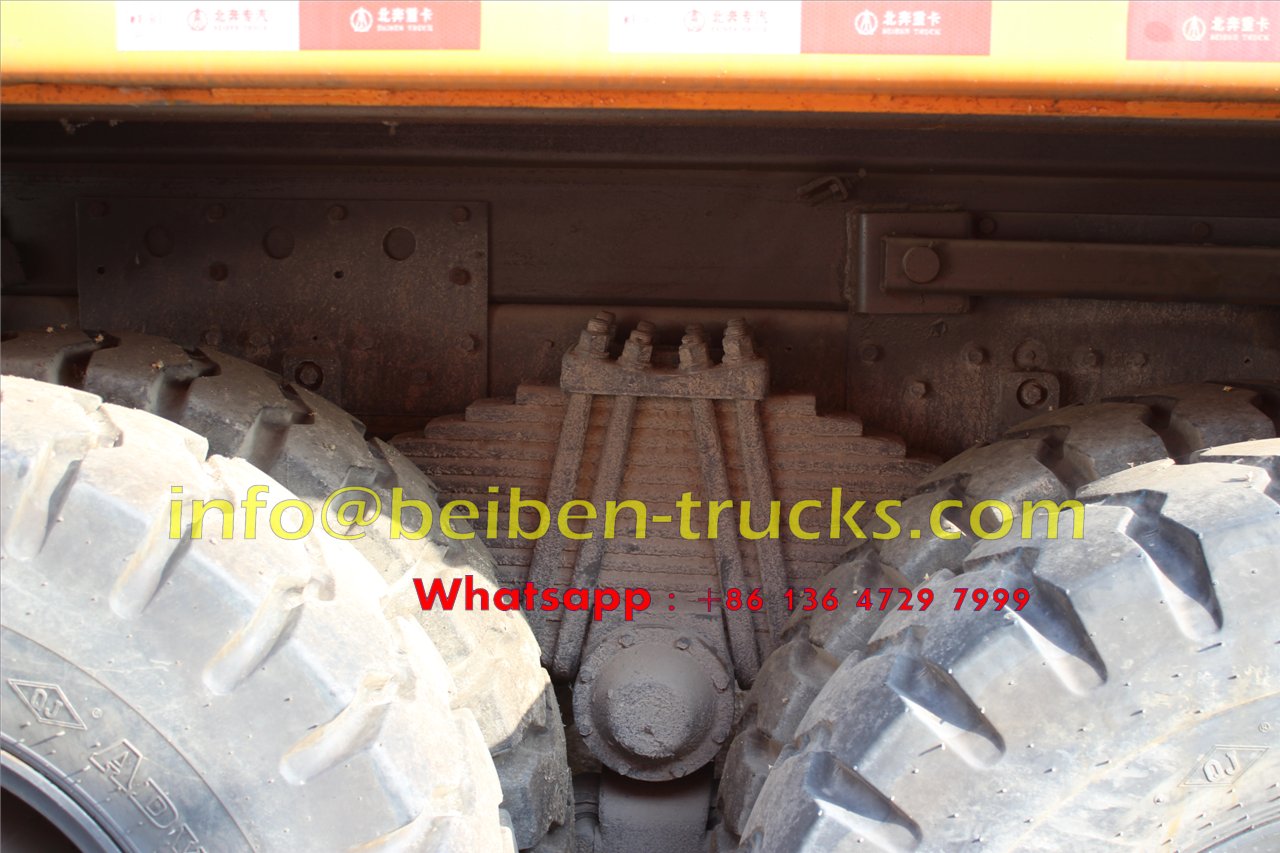

rear suspension
|
13 parabolic leaf
springs with no-independent style balance suspension
|
|
cab
|
Offset cabin, Full
steel skeleton structure, covered with double layer steel plate, can be
tipped forwardly, with air suspension seat for driver. Fully-integrated
structure instrument panel , Internal A/C, Radio ,MP3 Player, air horn, sun
visor, rear mirror, wiper, gauges (with color indication for safe and unsafe
working), monitoring and working signals are conveniently，located within easy reach of the operator.
|
|
electronics systme
|
storage battery
|
2×165Ah
|
|
generator
|
1500W,28V×55A
|
|
starter
|
5.4KW
|
|
rated voltage
|
24V
|
|
audio device
|
MP3(SD/USB)
|
|

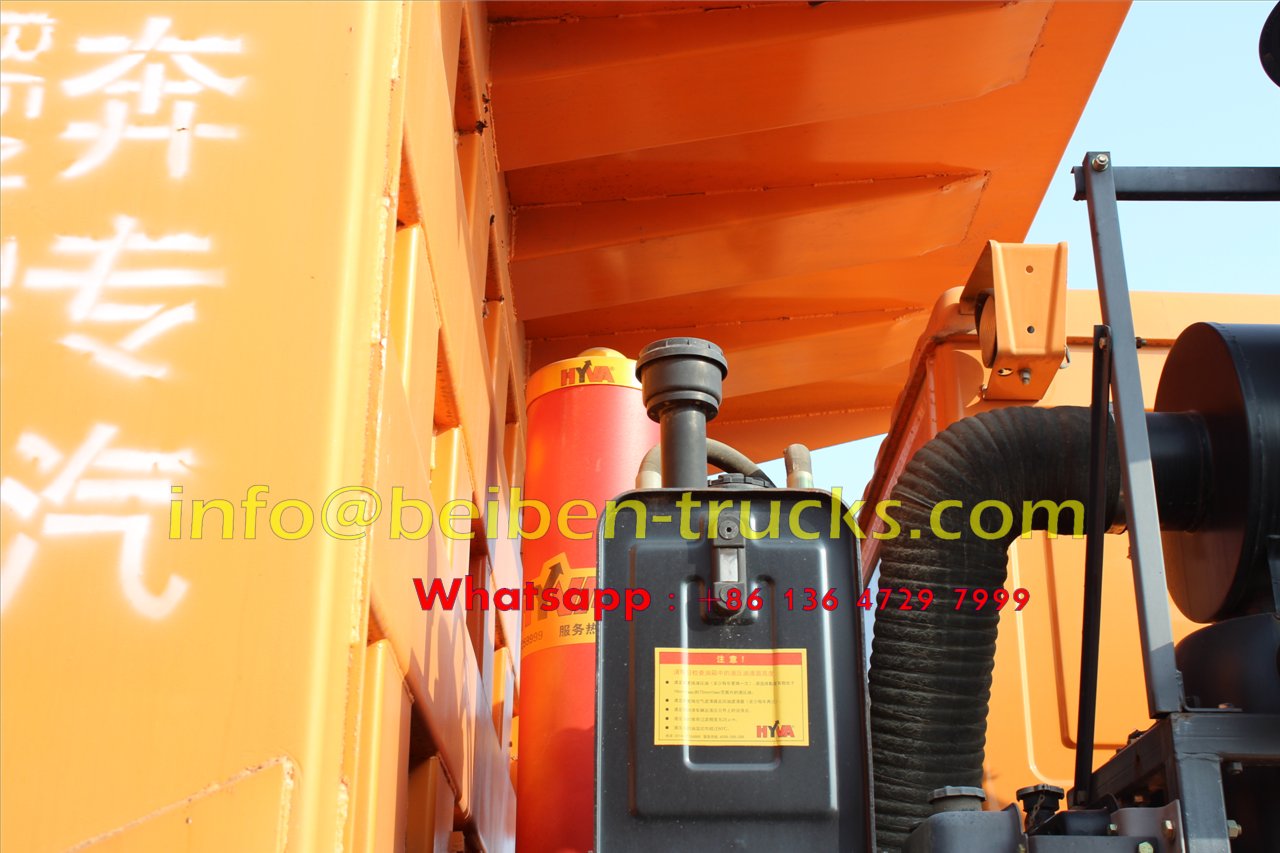

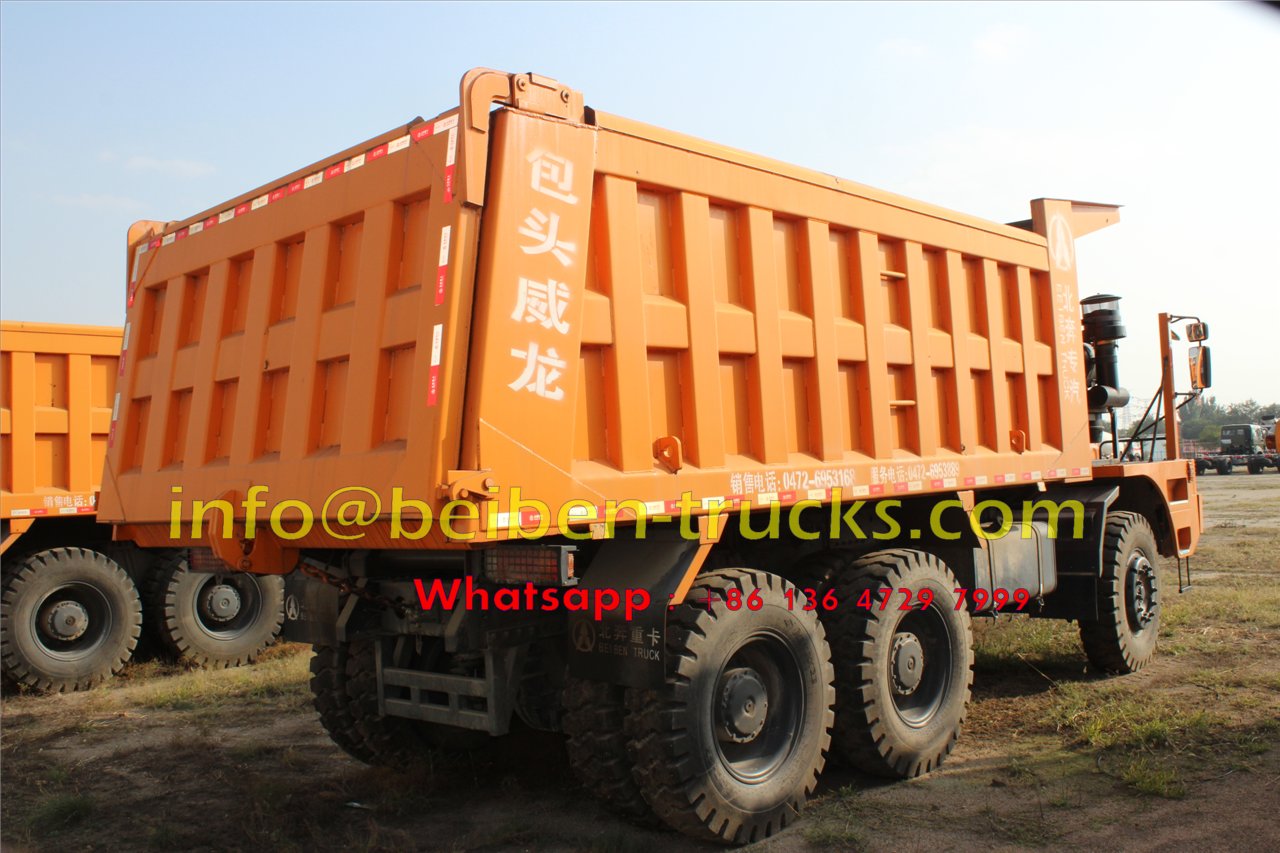

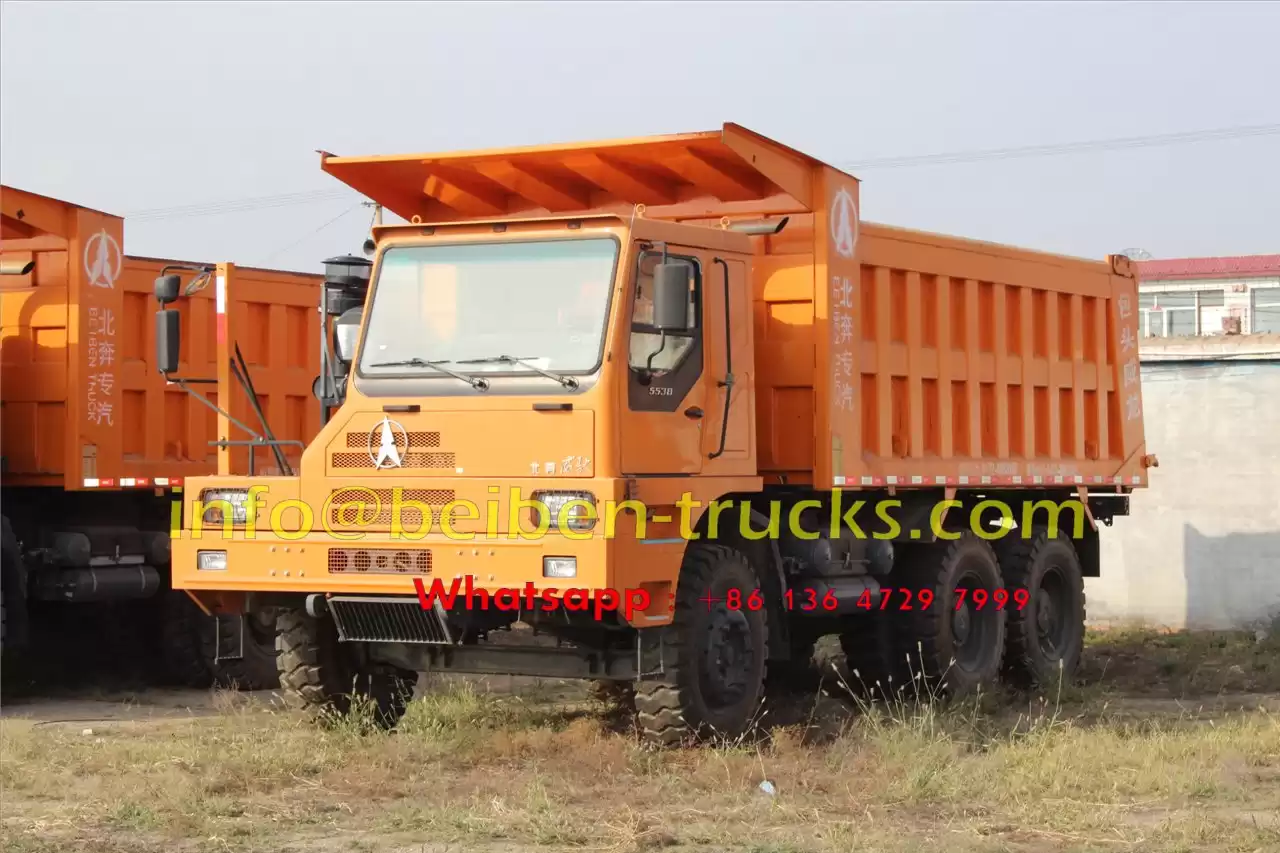

Dumper body
|
front lifting body,body
dimension5.6x2.9x1.6m,bottom steel thinkness 14mm with 5 longitudinal
frame,edge steel thinkness10mm(material 16Mn),upright front steel with 10mm
rear door. 8mm thinkness frame on rear door.four wrap angle,upside and
downside hinge,HYVA 172pump
|
|
A/C
|
heat from engine
coolant system
|
|
Inner A/C
|
|

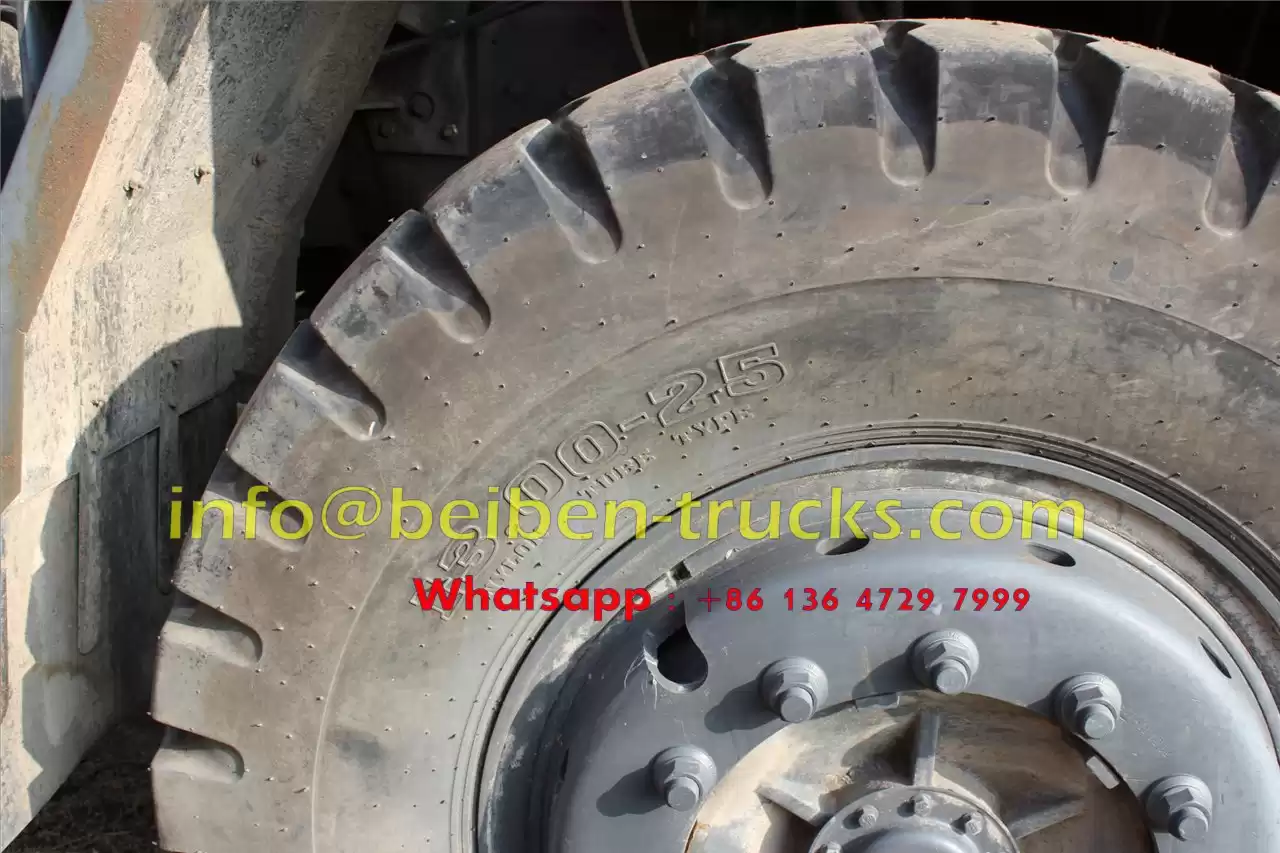

tyre
|
14.00-24
|
|
fuel tanker
|
400L
|
|
others
|
heating system on
bottom of dumper body
|
